LEXUS RC350 2015 Owners Manual

6018-2. Steps to take in an emergency
8
When trouble arises
RC350/RCF_U (OM24636U)
RC F
Press ( ) to turn off TRAC.
WA R N I N G
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the surrounding
area is clear to avoid striking other vehicl es, objects or people. The vehicle may also
lunge forward or lunge back suddenly as it becomes free. Use extreme caution.
■When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid accelerati on of the vehicle that may cause an acci-
dent resulting in death or serious injury.
NOTICE
■To avoid damaging the transmission and other components
●Avoid spinning the rear wheels and depressing the accelerator pedal more than nec-
essary.
●If the vehicle remains stuck even after th ese procedures are performed, the vehicle
may require towing to be freed.

6028-2. Steps to take in an emergency
RC350/RCF_U (OM24636U)

603
Vehicle specifications9
RC350/RCF_U (OM24636U)
9-1. SpecificationsMaintenance data (fuel, oil level, etc.)...................604
Fuel information.......................... 620
Tire information ........................... 623
9-2. Customization Customizable features ............ 635
9-3. Items to initialize Items to initialize ......................... 646

604
RC350/RCF_U (OM24636U)9-1. Specifications
RC350
*1: Unladen vehicle
*2: Vehicles with 265/35R19 tires
RC F
*: Unladen vehicle

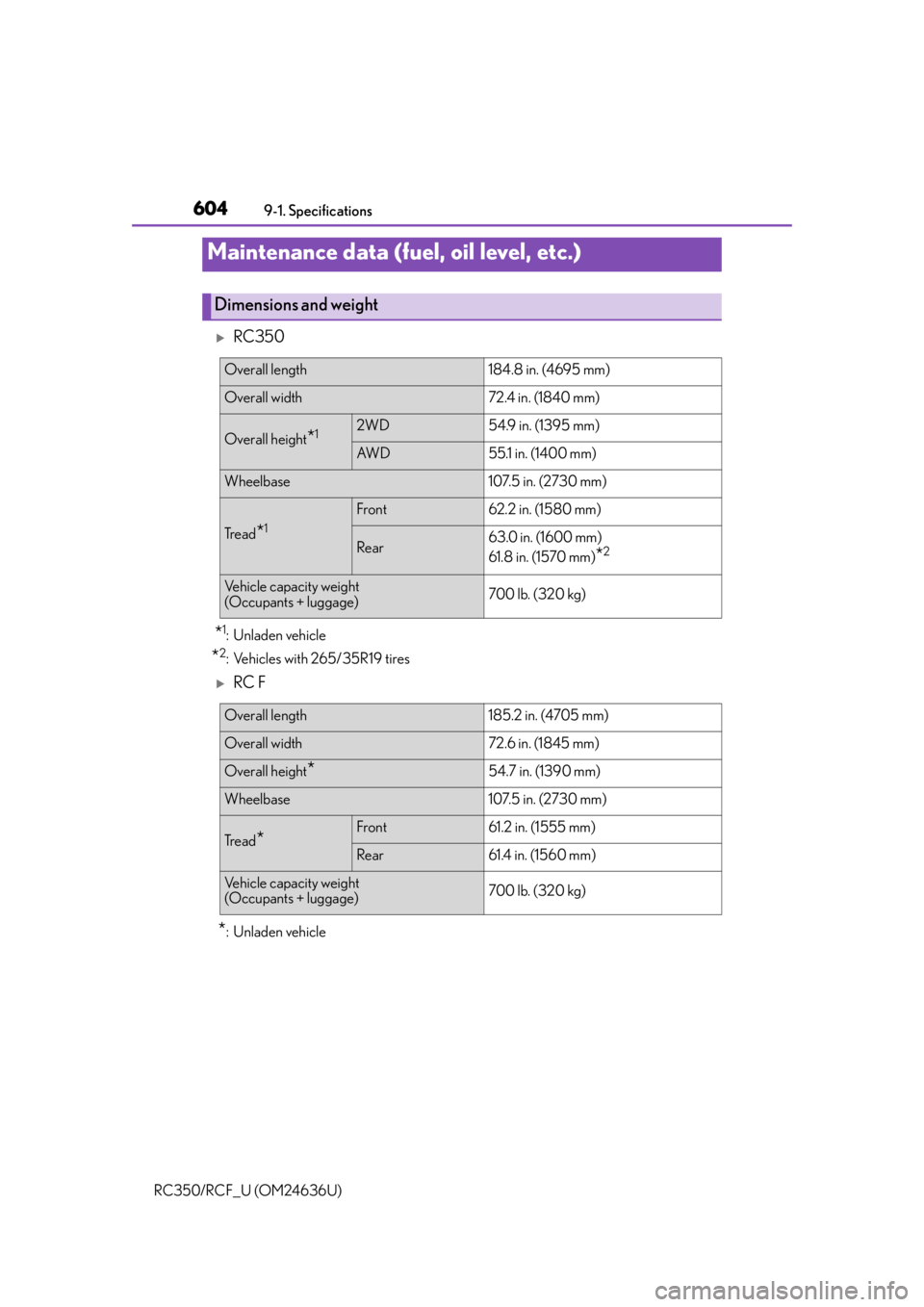

Maintenance data (fuel, oil level, etc.)
Dimensions and weight
Overall length184.8 in. (4695 mm)
Overall width72.4 in. (1840 mm)
Overall height*12WD54.9 in. (1395 mm)
AW D55.1 in. (1400 mm)
Wheelbase107.5 in. (2730 mm)
Tr e a d*1
Front62.2 in. (1580 mm)
Rear63.0 in. (1600 mm)
61.8 in. (1570 mm)
*2
Vehicle capacity weight
(Occupants + luggage)700 lb. (320 kg)
Overall length185.2 in. (4705 mm)
Overall width72.6 in. (1845 mm)
Overall height*54.7 in. (1390 mm)
Wheelbase107.5 in. (2730 mm)
Tr e a d*Front61.2 in. (1555 mm)
Rear61.4 in. (1560 mm)
Vehicle capacity weight
(Occupants + luggage)700 lb. (320 kg)

6059-1. Specifications
9
Vehicle specifications
RC350/RCF_U (OM24636U)
■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your vehicle.
This is the primary identification number fo r your Lexus. It is used in register-
ing the ownership of your vehicle.
This number is stamped on the top
left of the instrument panel and in the
engine compartment.
This number is also on the Certifica-
tion Label.
Vehicle identification
RC350RC F

6069-1. Specifications
RC350/RCF_U (OM24636U)

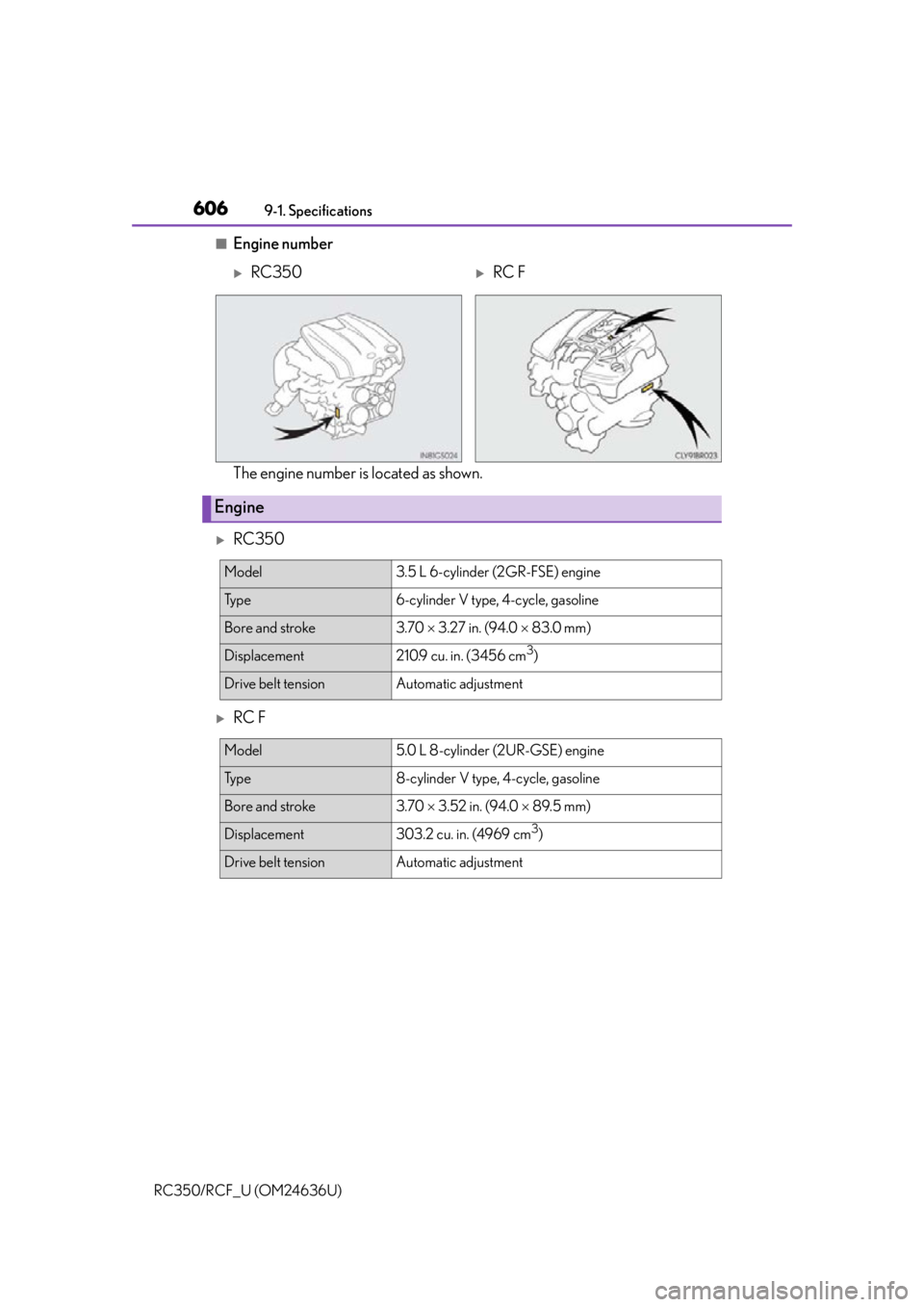

■Engine number
The engine number is located as shown.
RC350
RC F
RC350RC F
Engine
Model3.5 L 6-cylinder (2GR-FSE) engine
Ty p e6-cylinder V type, 4-cycle, gasoline
Bore and stroke3.70  3.27 in. (94.0  83.0 mm)
Displacement210.9 cu. in. (3456 cm3)
Drive belt tensionAutomatic adjustment
Model5.0 L 8-cylinder (2UR-GSE) engine
Ty p e8-cylinder V type, 4-cycle, gasoline
Bore and stroke3.70  3.52 in. (94.0  89.5 mm)
Displacement303.2 cu. in. (4969 cm3)
Drive belt tensionAutomatic adjustment

6079-1. Specifications
9
Vehicle specifications
RC350/RCF_U (OM24636U)
■Oil capacity (Drain and refill [Reference*])
*: The engine oil capacity is a reference quantity to be used when changing the engineoil. Warm up and turn off the engine, wait more than 5 minutes, and check the oil level
on the dipstick.

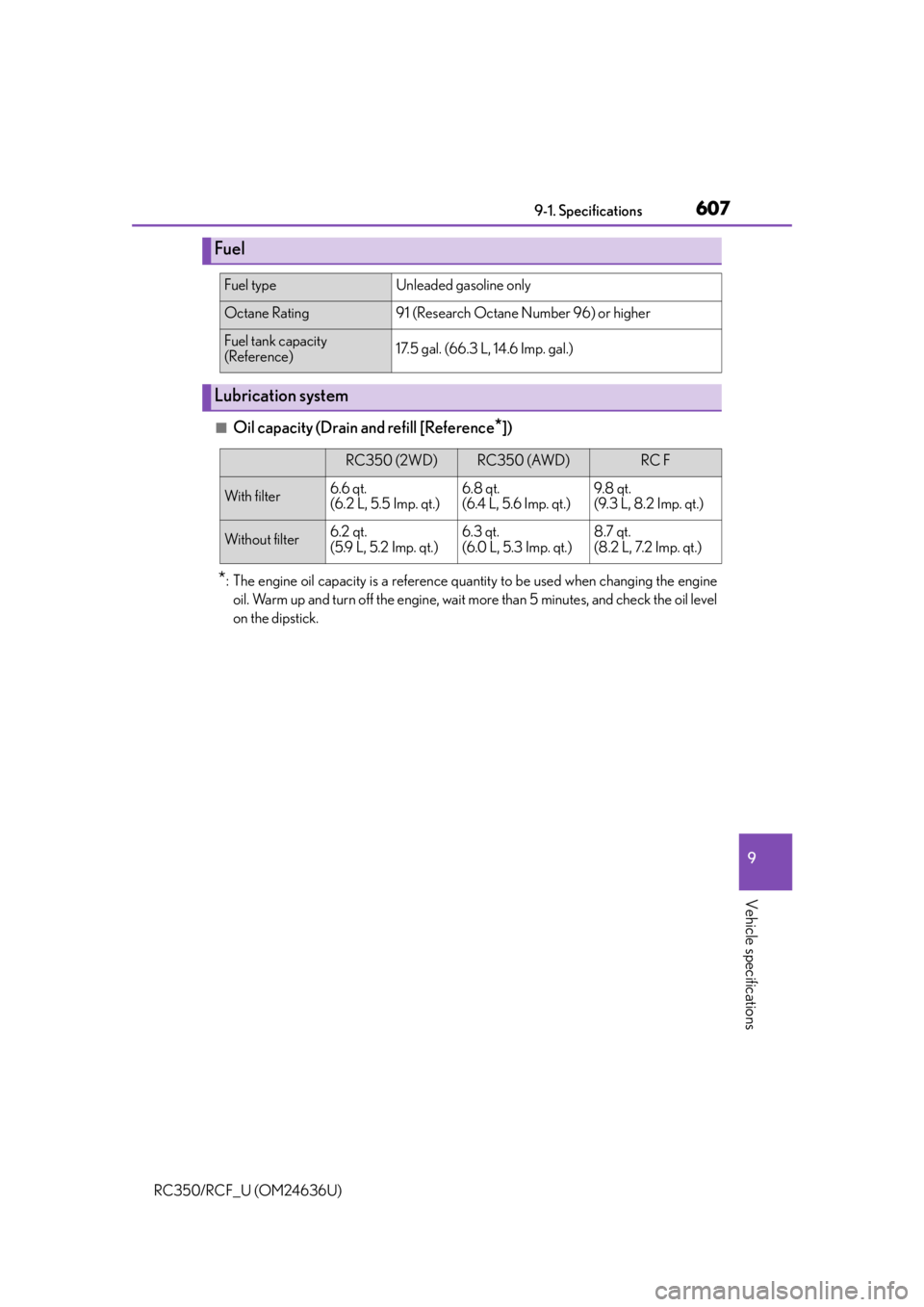

Fuel
Fuel typeUnleaded gasoline only
Octane Rating91 (Research Octane Number 96) or higher
Fuel tank capacity
(Reference)17.5 gal. (66.3 L, 14.6 Imp. gal.)
Lubrication system
RC350 (2WD)RC350 (AWD)RC F
With filter6.6 qt.
(6.2 L, 5.5 Imp. qt.)6.8 qt.
(6.4 L, 5.6 Imp. qt.)9. 8 q t .
(9.3 L, 8.2 Imp. qt.)
Without filter6.2 qt.
(5.9 L, 5.2 Imp. qt.)6.3 qt.
(6.0 L, 5.3 Imp. qt.)8.7 qt.
(8.2 L, 7.2 Imp. qt.)

6089-1. Specifications
RC350/RCF_U (OM24636U)
■Engine oil selection (RC350)
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the following
grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good start-
ing in cold weather.
If SAE 0W-20 is not available, SAE
5W-20 oil may be used. However, it
must be replaced with SAE 0W-20
at the next oil change.
Oil viscosity (0W-20 is explained here as an example): • The 0W in 0W-20 indicates the characteristic of the oil which allows cold startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.
• The 20 in 0W-20 indicates the viscos ity characteristic of the oil when the
oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.
How to read oil container label:
The International Lubricant Specifi-
cation Advisory Committee
(ILSAC) Certification Mark is added
to some oil containers to help you
select the oil you should use.
Outside temperature

6099-1. Specifications
9
Vehicle specifications
RC350/RCF_U (OM24636U)
■Engine oil selection (RC F)
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the following
grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 5W-30
SAE 5W-30 is the best choice for
good fuel economy and good start-
ing in cold weather.
If SAE 5W-30 is not available, SAE
10W-30 oil may be used. However,
it must be replaced with SAE 5W-
30 at the next oil change.
Oil viscosity (5W-30 is explained here as an example): • The 5W in 5W-30 indicates the characteristic of the oil which allows cold startability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.
• The 30 in 5W-30 indicates the viscosity characteristic of the oil when the oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.
How to read oil container label:
The International Lubricant Specifi-
cation Advisory Committee
(ILSAC) Certification Mark is added
to some oil containers to help you
select the oil you should use.
Outside temperature

6109-1. Specifications
RC350/RCF_U (OM24636U)

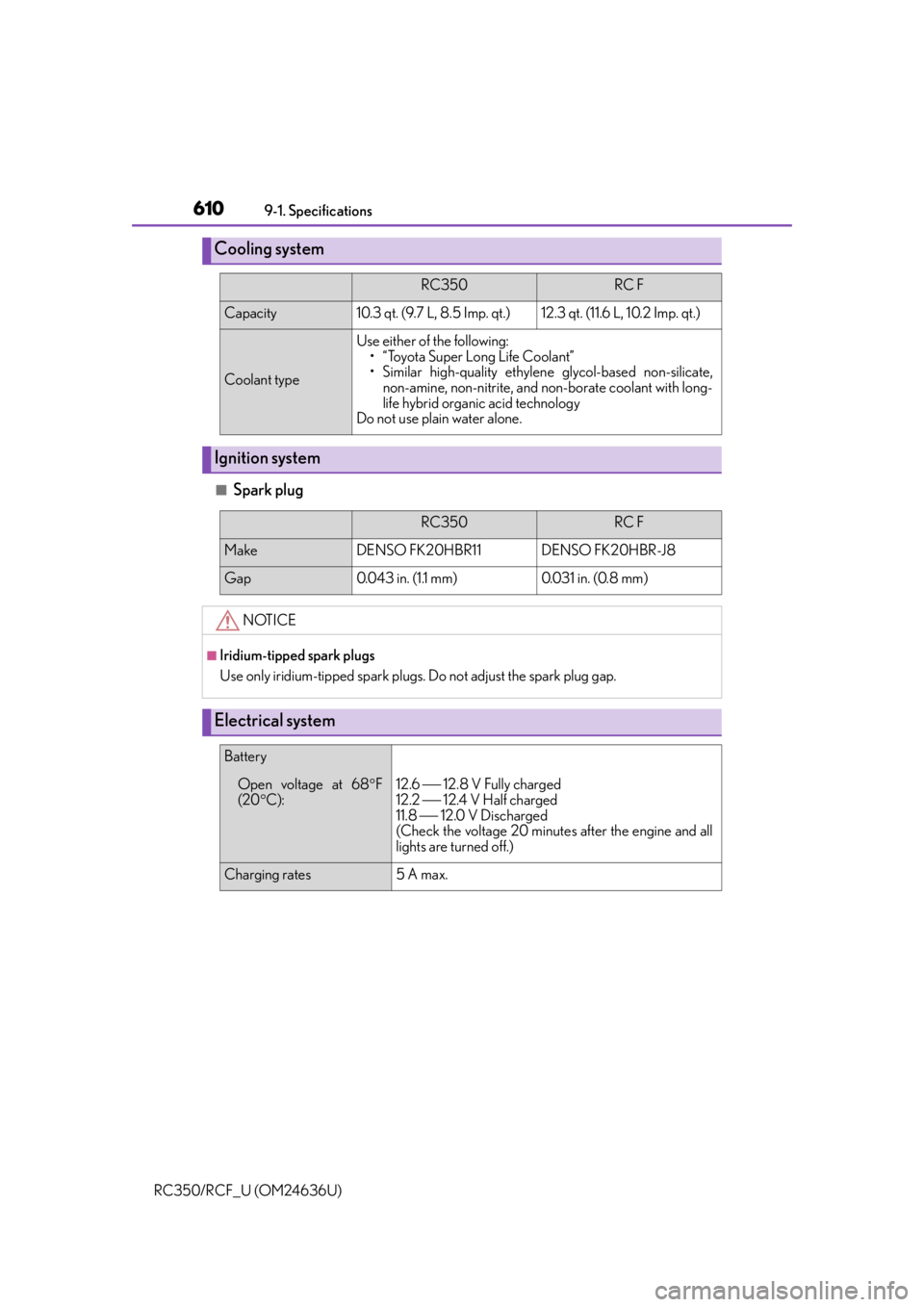

■Spark plug
Cooling system
RC350RC F
Capacity10.3 qt. (9.7 L, 8.5 Imp. qt.)12.3 qt. (11.6 L, 10.2 Imp. qt.)
Coolant type
Use either of the following: • “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate,
non-amine, non-nitrite, and non-borate coolant with long-
life hybrid organic acid technology
Do not use plain water alone.
Ignition system
RC350RC F
MakeDENSO FK20HBR11DENSO FK20HBR-J8
Gap0.043 in. (1.1 mm)0.031 in. (0.8 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
Electrical system
Battery
Open voltage at 68F
(20 C):12.6  12.8 V Fully charged
12.2
 12.4 V Half charged
11.8
 12.0 V Discharged
(Check the voltage 20 minutes after the engine and all
lights are turned off.)
Charging rates5 A max.
