interior lights LEXUS RC350 2016 Owners Manual
[x] Cancel search | Manufacturer: LEXUS, Model Year: 2016, Model line: RC350, Model: LEXUS RC350 2016Pages: 700, PDF Size: 14.12 MB
Page 1 of 700
![LEXUS RC350 2016 Owners Manual RC350_RC300_RC200t_RC F_U (OM24671U)
Pictorial indexSearch by illustration
1For safety
and securityMake sure to read through them
2Instrument clusterHow to read the gauges and meters, the variety of LEXUS RC350 2016 Owners Manual RC350_RC300_RC200t_RC F_U (OM24671U)
Pictorial indexSearch by illustration
1For safety
and securityMake sure to read through them
2Instrument clusterHow to read the gauges and meters, the variety of](/img/36/58024/w960_58024-0.png)
RC350_RC300_RC200t_RC F_U (OM24671U)
Pictorial indexSearch by illustration
1For safety
and securityMake sure to read through them
2Instrument clusterHow to read the gauges and meters, the variety of
warning lights and indicators, etc.
3Operation of each
componentOpening and closing the doors and windows,
adjustment before driving, etc.
4DrivingOperations and advice which are necessary for driving
5Lexus Display
Audio systemOperating the Lexus Display Audio system
6Interior featuresUsage of the interior features, etc.
7Maintenance
and careCaring for your vehicle and maintenance procedures
8When trouble
arisesWhat to do in case of malfunction or emergency
9Vehicle
specificationsVehicle specifications, customizable features, etc.
10For ownersReporting safety defects for U.S. owners, and seat belt
and SRS airbag instructio ns for Canadian owners
IndexSearch by symptom
Search alphabetically
Page 5 of 700
![LEXUS RC350 2016 Owners Manual 5
1
9 8
7 5 4
3
2
10
RC350_RC300_RC200t_RC F_U (OM24671U)
6
5-7. Connecting Bluetooth®
Steps for using Bluetooth®
devices .........................................373
Registering a Bluetooth
®
d LEXUS RC350 2016 Owners Manual 5
1
9 8
7 5 4
3
2
10
RC350_RC300_RC200t_RC F_U (OM24671U)
6
5-7. Connecting Bluetooth®
Steps for using Bluetooth®
devices .........................................373
Registering a Bluetooth
®
d](/img/36/58024/w960_58024-4.png)
5
1
9 8
7 5 4
3
2
10
RC350_RC300_RC200t_RC F_U (OM24671U)
6
5-7. Connecting Bluetooth®
Steps for using Bluetooth®
devices .........................................373
Registering a Bluetooth
®
device ...........................................375
Selecting a Bluetooth
®
device ........................................... 376
Connecting a Bluetooth
®
audio player ...............................377
Connecting a Bluetooth
®
phone ........................................... 378
Displaying a Bluetooth
®
device details .............................379
Detailed Bluetooth
®
settings ........................................380
5-8. Bluetooth
® Audio
Listening to Bluetooth
®
Audio ............................................ 381
5-9. Bluetooth
® Phone
Using a Bluetooth
®
Phone...........................................383
Making a call................................385
Receiving a call ...........................388
Speaking on th e phone ........... 389
Using a Bluetooth
®
phone message ........................ 391
Using the steering wheel switches ...................................... 393
Bluetooth
® phone
settings ........................................ 394
5-10. Phonebook Contact settings ......................... 396
Messaging setting ..................... 399 5-11. Bluetooth
®
What to do if...
(Troubleshooting) ...................400
Bluetooth
®................................... 404
5-12. Other function “Information” screen................. 409
USB photo ....................................... 411
Weather information ..................413
Voice command system ............ 414
6-1. Using the air conditioning system
Automatic air conditioning system .......................................... 420
Heated steering wheel/ seat heaters/
seat ventilators ......................... 429
6-2. Using the interior lights Interior lights list ......................... 432• Interior lights.......................... 433
• Personal lights ....................... 434
6-3. Using the storage features List of storage features ............ 435
• Glove box ............................... 436
• Console box .......................... 436
• Cup holders ............................437
Trunk features .............................. 438
6Interior features
Page 28 of 700
![LEXUS RC350 2016 Owners Manual 28Pictorial index
RC350_RC300_RC200t_RC F_U (OM24671U)
Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 169
Sun visors . . . . LEXUS RC350 2016 Owners Manual 28Pictorial index
RC350_RC300_RC200t_RC F_U (OM24671U)
Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 169
Sun visors . . . .](/img/36/58024/w960_58024-27.png)

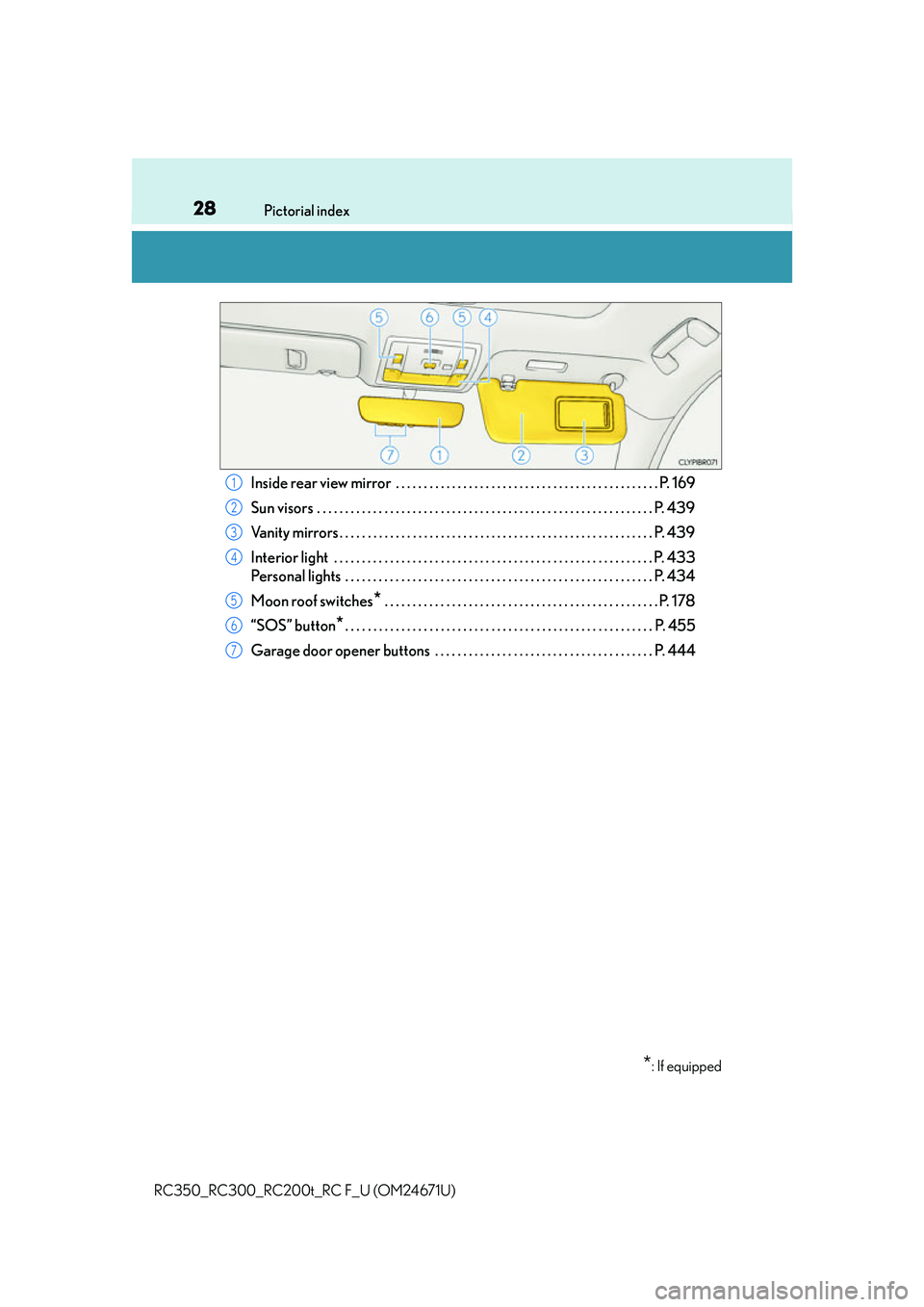

28Pictorial index
RC350_RC300_RC200t_RC F_U (OM24671U)
Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 169
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 439
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 439
Interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 433
Personal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 434
Moon roof switches
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 178
“SOS” button
*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 455
Garage door opener buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 444
*: If equipped
1
2
3
4
5
6
7
Page 419 of 700
![LEXUS RC350 2016 Owners Manual 419
Interior features6
RC350_RC300_RC200t_RC F_U (OM24671U)
6-1. Using the air conditioning system
Automatic air conditioning system ..........................................420
Heated steering whe LEXUS RC350 2016 Owners Manual 419
Interior features6
RC350_RC300_RC200t_RC F_U (OM24671U)
6-1. Using the air conditioning system
Automatic air conditioning system ..........................................420
Heated steering whe](/img/36/58024/w960_58024-418.png)

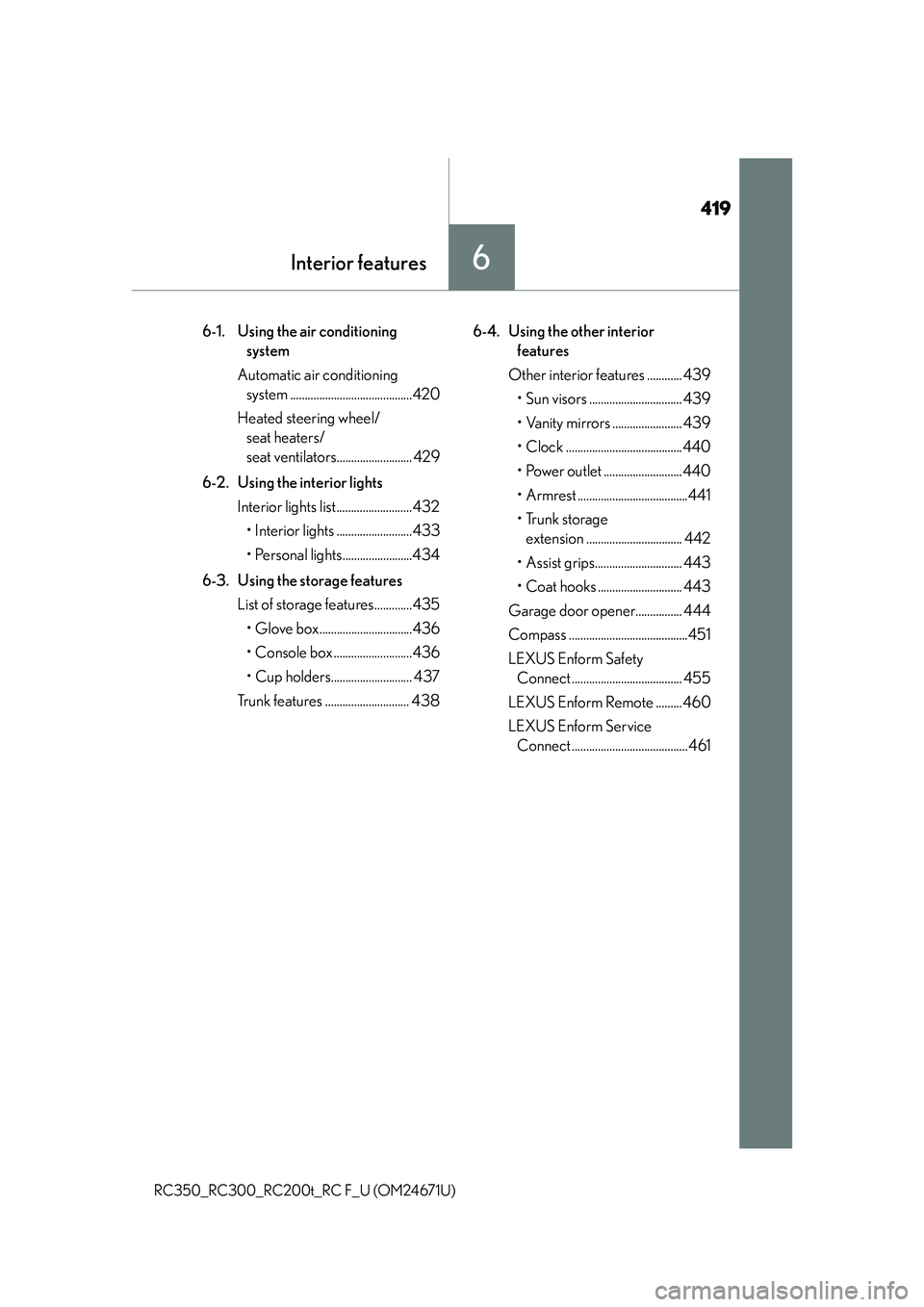

419
Interior features6
RC350_RC300_RC200t_RC F_U (OM24671U)
6-1. Using the air conditioning system
Automatic air conditioning system ..........................................420
Heated steering wheel/ seat heaters/
seat ventilators.......................... 429
6-2. Using the interior lights Interior lights list..........................432• Interior lights ..........................433
• Personal lights........................434
6-3. Using the storage features List of storage features.............435• Glove box................................436
• Console box ...........................436
• Cup holders............................ 437
Trunk features ............................. 438 6-4. Using the other interior
features
Other interior features ............ 439 • Sun visors ................................ 439
• Vanity mirrors ........................ 439
• Clock ........................................440
• Power outlet ...........................440
• Armrest ......................................441
•Trunk storage extension ................................. 442
• Assist grips.............................. 443
• Coat hooks ............................. 443
Garage door opener................ 444
Compass .........................................451
LEXUS Enform Safety Connect ...................................... 455
LEXUS Enform Remote .........460
LEXUS Enform Service Connect ........................................461
Page 431 of 700
![LEXUS RC350 2016 Owners Manual 4316-1. Using the air conditioning system
6
Interior features
RC350_RC300_RC200t_RC F_U (OM24671U)
Each time the switch is pressed, the
intensity of the seat ventilator changes
and the level indicator LEXUS RC350 2016 Owners Manual 4316-1. Using the air conditioning system
6
Interior features
RC350_RC300_RC200t_RC F_U (OM24671U)
Each time the switch is pressed, the
intensity of the seat ventilator changes
and the level indicator](/img/36/58024/w960_58024-430.png)

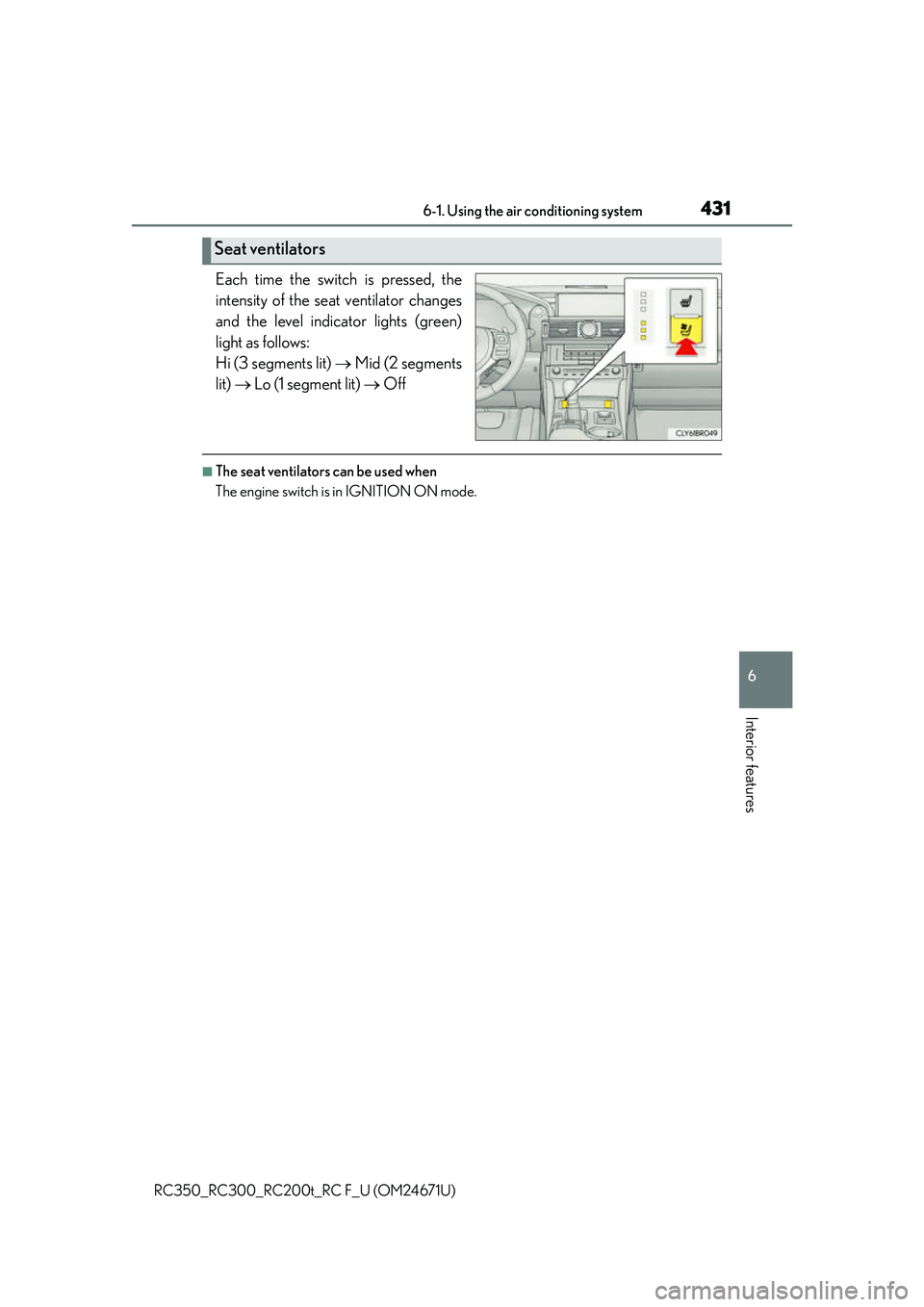

4316-1. Using the air conditioning system
6
Interior features
RC350_RC300_RC200t_RC F_U (OM24671U)
Each time the switch is pressed, the
intensity of the seat ventilator changes
and the level indicator lights (green)
light as follows:
Hi (3 segments lit) Mid (2 segments
lit) Lo (1 segment lit) Off
■The seat ventilators can be used when
The engine switch is in IGNITION ON mode.
Seat ventilators
Page 432 of 700
![LEXUS RC350 2016 Owners Manual 432
RC350_RC300_RC200t_RC F_U (OM24671U)6-2. Using the interior lights
Interior lights list
Outer foot lights
Personal lights (
P. 4 3 4 )
Front interior light ( P. 4 3 3 )
Ambient lights Rea LEXUS RC350 2016 Owners Manual 432
RC350_RC300_RC200t_RC F_U (OM24671U)6-2. Using the interior lights
Interior lights list
Outer foot lights
Personal lights (
P. 4 3 4 )
Front interior light ( P. 4 3 3 )
Ambient lights Rea](/img/36/58024/w960_58024-431.png)

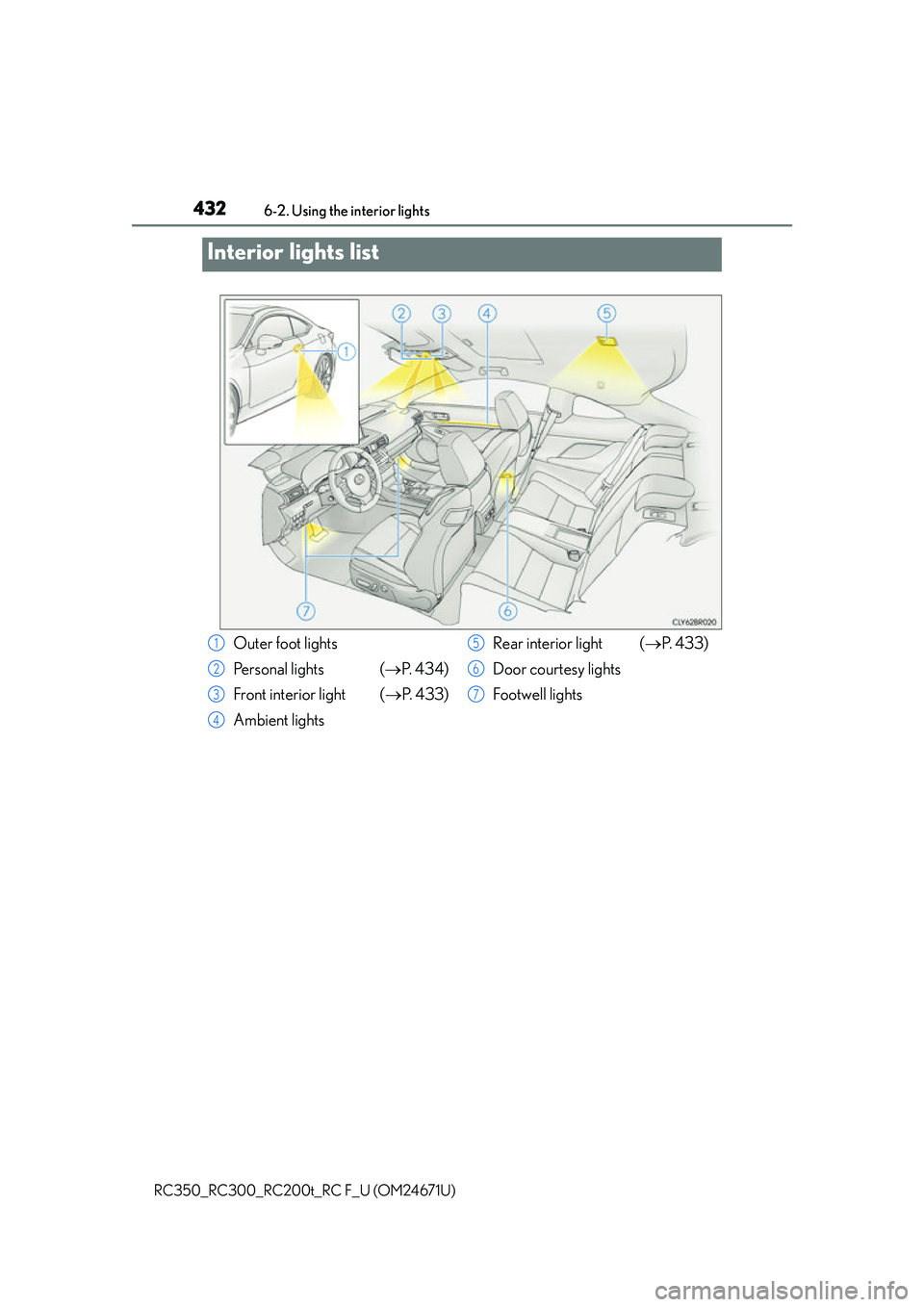

432
RC350_RC300_RC200t_RC F_U (OM24671U)6-2. Using the interior lights
Interior lights list
Outer foot lights
Personal lights (
P. 4 3 4 )
Front interior light ( P. 4 3 3 )
Ambient lights Rear interior light (
P. 4 3 3 )
Door courtesy lights
Footwell lights1
2
3
4
5
6
7
Page 433 of 700
![LEXUS RC350 2016 Owners Manual 4336-2. Using the interior lights
6
Interior features
RC350_RC300_RC200t_RC F_U (OM24671U)
The rear interior light turns on/off together with the front interior light.
Front
Turns the light on/off LEXUS RC350 2016 Owners Manual 4336-2. Using the interior lights
6
Interior features
RC350_RC300_RC200t_RC F_U (OM24671U)
The rear interior light turns on/off together with the front interior light.
Front
Turns the light on/off](/img/36/58024/w960_58024-432.png)
4336-2. Using the interior lights
6
Interior features
RC350_RC300_RC200t_RC F_U (OM24671U)
The rear interior light turns on/off together with the front interior light.
Front
Turns the light on/off (touch the light)
Turns the door position on/off On
Off
Rear
Tu r n s t h e l i g h t o n /o f f
If the front interior light is off, the rear
light can be turned on/off separately.
Interior lights
1
2
Page 434 of 700
![LEXUS RC350 2016 Owners Manual 4346-2. Using the interior lights
RC350_RC300_RC200t_RC F_U (OM24671U)
Turns the lights on/off (touch the lights)
●Illuminated entry system: The lights automa tically turn on/off according to engine LEXUS RC350 2016 Owners Manual 4346-2. Using the interior lights
RC350_RC300_RC200t_RC F_U (OM24671U)
Turns the lights on/off (touch the lights)
●Illuminated entry system: The lights automa tically turn on/off according to engine](/img/36/58024/w960_58024-433.png)

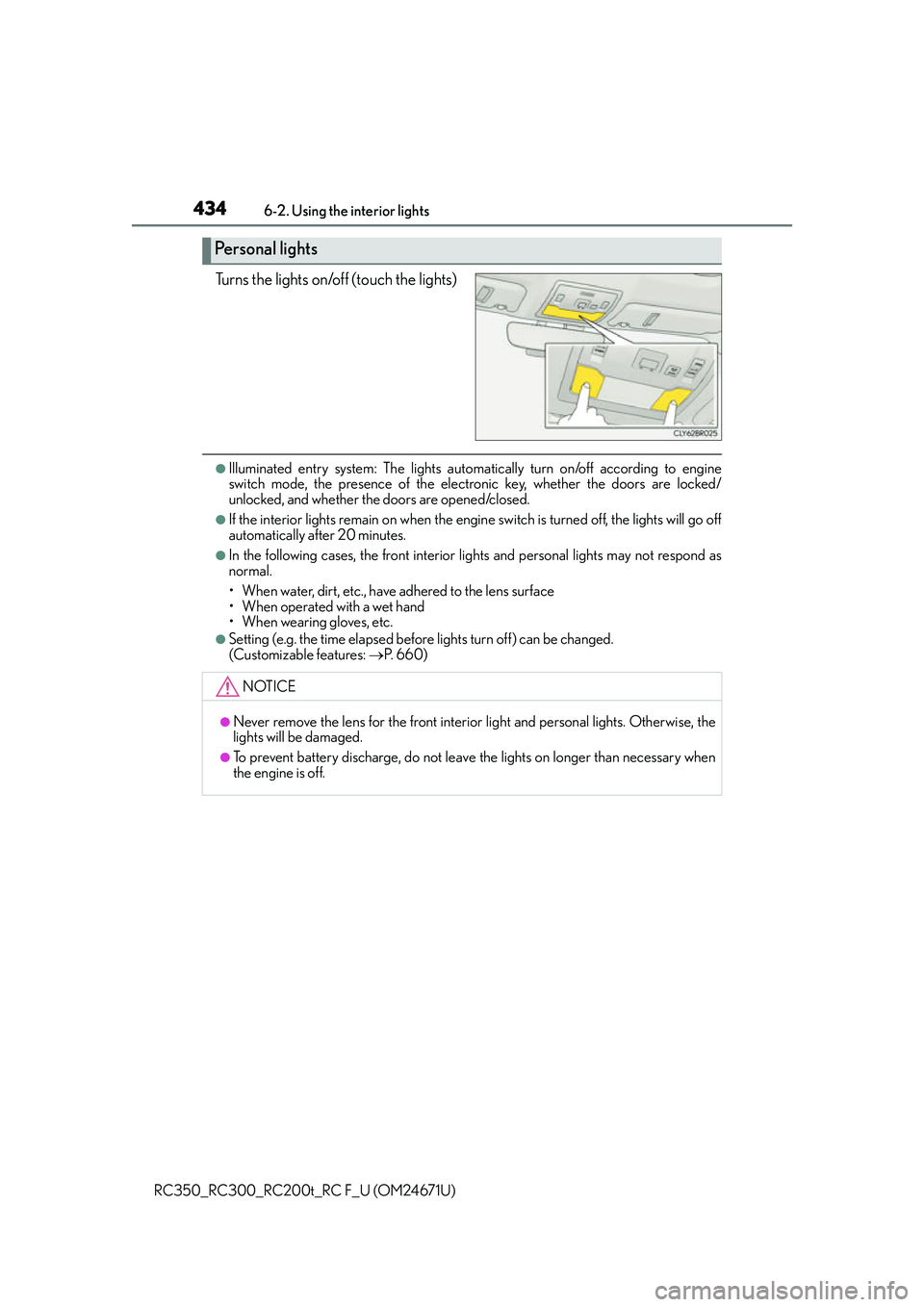

4346-2. Using the interior lights
RC350_RC300_RC200t_RC F_U (OM24671U)
Turns the lights on/off (touch the lights)
●Illuminated entry system: The lights automa tically turn on/off according to engine
switch mode, the presence of the electronic key, whether the doors are locked/
unlocked, and whether the doors are opened/closed.
●If the interior lights remain on when the engine switch is turned off, the lights will go off
automatically after 20 minutes.
●In the following cases, the front interior li ghts and personal lights may not respond as
normal.
• When water, dirt, etc., have adhered to the lens surface
• When operated with a wet hand
• When wearing gloves, etc.
●Setting (e.g. the time elapsed before lights turn off) can be changed.
(Customizable features: P. 660)
Personal lights
NOTICE
●Never remove the lens for the front interior light and personal lights. Otherwise, the
lights will be damaged.
●To prevent battery discharge, do not leav e the lights on longer than necessary when
the engine is off.
Page 439 of 700
![LEXUS RC350 2016 Owners Manual 439
RC350_RC300_RC200t_RC F_U (OM24671U)
6
Interior features
6-4. Using the other interior features
To set the visor in the forward posi-
tion, flip it down.
To set the visor in the side position,
fli LEXUS RC350 2016 Owners Manual 439
RC350_RC300_RC200t_RC F_U (OM24671U)
6
Interior features
6-4. Using the other interior features
To set the visor in the forward posi-
tion, flip it down.
To set the visor in the side position,
fli](/img/36/58024/w960_58024-438.png)

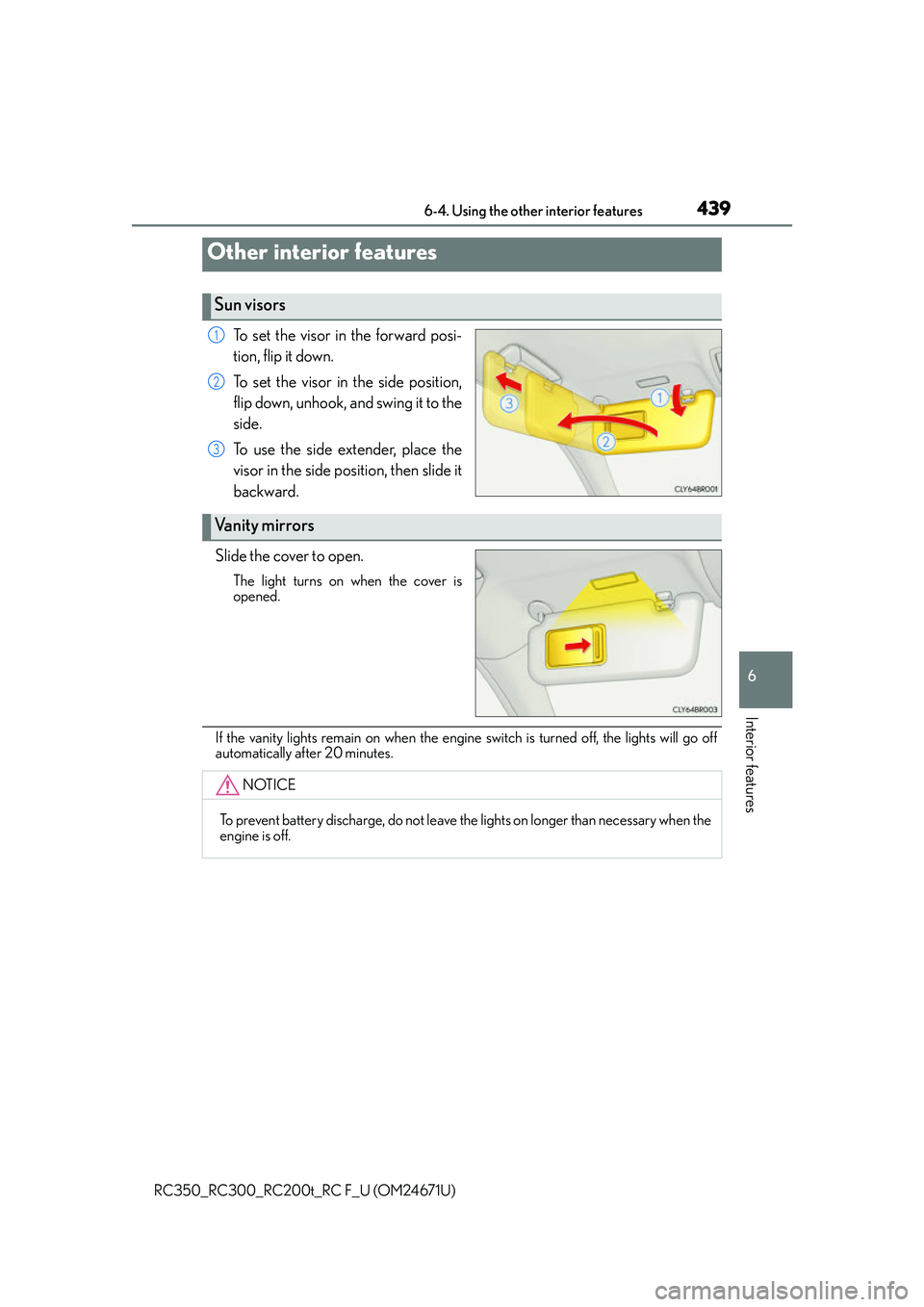

439
RC350_RC300_RC200t_RC F_U (OM24671U)
6
Interior features
6-4. Using the other interior features
To set the visor in the forward posi-
tion, flip it down.
To set the visor in the side position,
flip down, unhook, and swing it to the
side.
To use the side extender, place the
visor in the side position, then slide it
backward.
Slide the cover to open.
The light turns on when the cover is
opened.
If the vanity lights remain on when the engine switch is turned off, the lights will go off
automatically after 20 minutes.
Other interior features
Sun visors
1
2
3
Vanity mirrors
NOTICE
To prevent battery discharge, do not leave the lights on longer than necessary when the
engine is off.
Page 476 of 700
![LEXUS RC350 2016 Owners Manual 4767-2. Maintenance
RC350_RC300_RC200t_RC F_U (OM24671U)
Vehicle interior
ItemsCheck points
Accelerator pedal• The accelerator pedal should move smoothly (with- out uneven pedal effort or catching). LEXUS RC350 2016 Owners Manual 4767-2. Maintenance
RC350_RC300_RC200t_RC F_U (OM24671U)
Vehicle interior
ItemsCheck points
Accelerator pedal• The accelerator pedal should move smoothly (with- out uneven pedal effort or catching).](/img/36/58024/w960_58024-475.png)

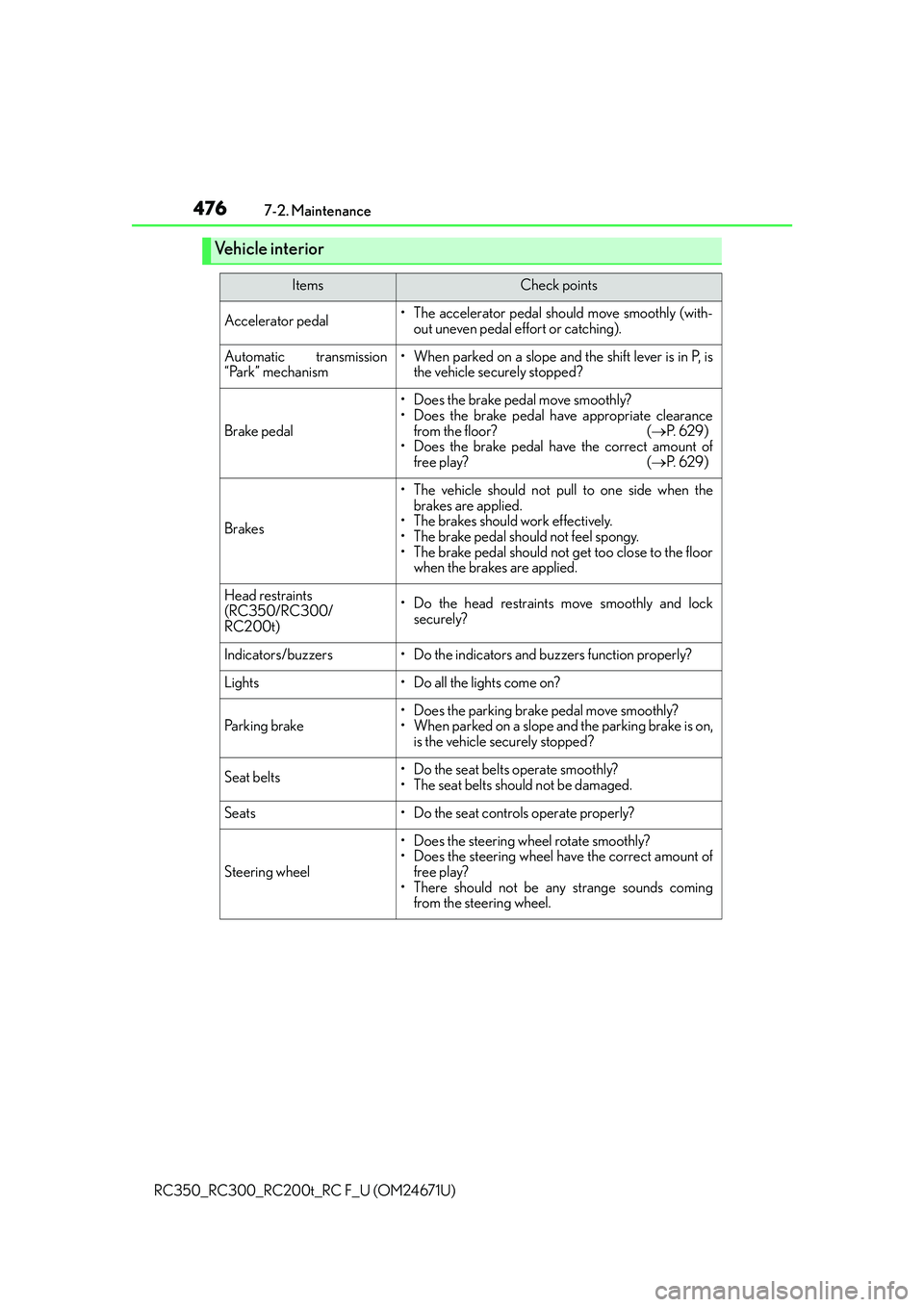

4767-2. Maintenance
RC350_RC300_RC200t_RC F_U (OM24671U)
Vehicle interior
ItemsCheck points
Accelerator pedal• The accelerator pedal should move smoothly (with- out uneven pedal effort or catching).
Automatic transmission
“Park” mechanism• When parked on a slope and the shift lever is in P, isthe vehicle securely stopped?
Brake pedal
• Does the brake pedal move smoothly?
• Does the brake pedal have appropriate clearance
from the floor? ( P. 6 2 9 )
• Does the brake pedal have the correct amount of
free play? ( P. 6 2 9 )
Brakes
• The vehicle should not pull to one side when the
brakes are applied.
• The brakes should work effectively.
• The brake pedal should not feel spongy.
• The brake pedal should not get too close to the floor when the brakes are applied.
Head restraints
(RC350/RC300/
RC200t)• Do the head restraints move smoothly and locksecurely?
Indicators/buzzers• Do the indicators and buzzers function properly?
Lights• Do all the lights come on?
Parking brake• Does the parking brake pedal move smoothly?
• When parked on a slope and the parking brake is on,
is the vehicle securely stopped?
Seat belts•Do the seat belt s operate smoothly?
• The seat belts should not be damaged.
Seats• Do the seat controls operate properly?
Steering wheel
• Does the steering wheel rotate smoothly?
• Does the steering wheel have the correct amount of free play?
• There should not be an y strange sounds coming
from the steering wheel.
