1934-5. Using the driving support systems
RC350/RC300 Owner's Manual
4
Driving
●Guardrails, walls, signs, parked vehicles
and similar stationary objects*
●Following vehicles that are in the same
lane*
●Vehicles traveling 2 lanes away from your
vehicle*
●Vehicles which are being overtaken rap-
idly by your vehicle*
*
: Depending on the conditions, detection of a vehicle and/or object may occur.
■Conditions under which the BSM func-
tion may not function correctly
●The BSM function may not detect vehi-
cles correctly in the following situations:
• When the sensor is misaligned due to a
strong impact to the sensor or its sur-
rounding area
• When mud, snow, ice, a sticker, etc. is
covering the sensor or surrounding area
on the rear bumper
• When driving on a road surface that is
wet with standing water during bad
weather, such as heav y rain, snow, or fog
• When multiple vehicles are approaching
with only a small gap between each vehi-
cle
• When the distance between your vehicle and a following vehicle is short
• When there is a significant difference in speed between your vehicle and the vehi-
cle that enters the detection area
• When the difference in speed between your vehicle and another vehicle is
changing
• When a vehicle enters a detection area traveling at about the same speed as your
vehicle
• As your vehicle starts from a stop, a vehi- cle remains in the detection area
• When driving up and down consecutive steep inclines, such as hills, dips in the
road, etc.
• When driving on roads with sharp bends, consecutive curves, or uneven surfaces
• When vehicle lanes are wide, or when driving on the edge of a lane, and the
vehicle in an adjacent lane is far away
from your vehicle
• When a bicycle carrier or other acces- sory is installed to the rear of the vehicle
• When there is a significant difference in height between your vehicle and the
vehicle that enters the detection area
• Immediately after the BSM main switch is
turned on
●Instances of the BSM function unneces-
sarily detecting a vehicle and/or object
may increase in the following situations:
• When the sensor is misaligned due to a strong impact to the sensor or its sur-
rounding area
• When the distance between your vehicle and a guardrail, wall, etc. that enters the
detection area is short
• When driving up and down consecutive steep inclines, such as hills, dips in the
road, etc.
• When vehicle lanes are narrow, or when driving on the edge of a lane, and a vehi-
cle traveling in a lane other than the adja-
cent lanes enters the detection area
• When driving on roads with sharp bends, consecutive curves, or uneven surfaces
• When the tires are slipping or spinning
• When the distance between your vehicle and a following vehicle is short
• When a bicycle carrier or other acces- sory is installed to the rear of the vehicle
■Operation of the RCTA function
The RCTA function uses radar sensors to detect vehicles approaching from the
right or left at the rear of the vehicle and alerts the driver of the presence of such
vehicles by flashing the outside rear view mirror indicators and sounding a buzzer.
RCTA function

2135-2. Using the air conditioning system
RC350/RC300 Owner's Manual
5
Interior features
5-2.Using the air conditioning system
Left-hand side temperature control switch
Automatic mode switch
Off switch
Fan speed down switch
Fan speed up switch
Air flow mode switch
Right-hand side temperature control switch
DUAL mode switch
A/C switch
Outside/recirculated air mode switch
Rear window defogger and outside rear view mirror defoggers switch
Windshield defogger switch
Automatic air conditioning system
Air outlets and fan speed are automatically adjusted according to the tem-
perature setting.
Press the “MENU” button on the Remote Touch, then select “Climate” to dis-
play the air conditioning control screen. ( P.210)
The air conditioning system can be disp layed and operated on the side display.
Air conditioning controls
A
B
C
D
E
F
G
H
I
J
K
L

2145-2. Using the air conditioning system
RC350/RC300 Owner's Manual
■Adjusting the temperature setting
To adjust the temperature setting,
touch and slide your finger up or down
on the sensor.
The temperature setting can also be
adjusted by touching on the sensor.
When the temperature setting is changed,
a buzzer sounds.
If is not pressed, the system will
blow ambient temperature air or heated
air.
■Fan speed setting
Press to increase the fan
speed.
Press to decrease the fan
speed.
■Change the airflow mode
To change the airflow, press .
The air outlets used are switched each time
the button is pressed.
Air flows to the upper body.
Air flows to the upper body and
feet.
Air flows to the feet.
Air flows to the feet and the wind-
shield defogger operates.
■Other functions
 Switching between outside air and
recirculated air modes ( P.216)
 Defogging the windshield ( P.217)
 Defogging the rear window and
outside rear view mirrors ( P.217)
Display the air conditioning control
screen
Air conditioning control screen
A
B
C
D
A

2175-2. Using the air conditioning system
RC350/RC300 Owner's Manual
5
Interior features
automatically.
The indicator above the selected button
comes on.
■Micro dust and pollen filter
Pollen is removed from the air and the
air flows to the upper part of the body.
Select on the option control
screen.
When the micro dust and pollen filter is on, is displayed on the air conditioning
control screen.
In order to prevent the windshield from
fogging up when the outside air is cold, the
dehumidification function may operate.
Pollen is filtered even if the micro dust and
pollen filter is turned off.
■Defogging the windshield
Defoggers are used to defog the wind-
shield and side windows.
Press .
Set the outside/recirc ulated air mode but-
ton to outside air mode if the recirculated
air mode is used. (It may switch automati-
cally.)
To defog the windshield and the side win-
dows early, turn the air flow and tempera-
ture up.
To return to the previous mode, press
again when the windshield is
defogged.
■Defogging the rear window and
outside rear view mirrors
Defoggers are used to defog the rear
window, and to remove raindrops, dew
and frost from the outside rear view
mirrors. Press .
The defoggers will automatically turn off
after a period of time.
■Windshield wiper de-icer (if
equipped)
This feature is used to prevent ice from
building up on the windshield and
wiper blades.
Turns on/off.
The indicator comes on when the wind-
shield wiper de-icer is on.
The windshield de-icer will automatically
turn off after a period of time.
■Registering air conditioning settings to
electronic keys (vehicles with driving
position memory)
●Unlocking the vehicle using an electronic
key and turning the engine switch to
IGNITION ON mode will recall that
key’s registered air conditioning settings.
●When the engine switch is turned off, the
current air conditioning settings will auto-
matically be registered to the electronic
key that was used to unlock the vehicle.
●The system may not operate correctly if
more than one electronic key is in the
vicinity or if the smart access system with
push-button start is used to unlock a pas-
senger door.
●The doors that can recall the air condi-
tioning setting* when unlocked using the
smart access system with push-button
start can be changed. For details, contact

2195-2. Using the air conditioning system
RC350/RC300 Owner's Manual
5
Interior features
●During use, various odors from inside and
outside the vehicle may enter into and
accumulate in the air conditioning sys-
tem. This may then cause odor to be
emitted from the vents.
●To reduce potential odors from occur-
ring:
• It is recommended that the air condition-
ing system be set to outside air mode
prior to turning the vehicle off.
• The start timing of the blower may be
delayed for a short period of time imme-
diately after the air conditioning system is
started in automatic mode.
■Air conditioning filter
P.273
■Air conditioning system refrigerant
●A label regarding the refrigerant of the
air conditioning system is attached to the
hood at the location shown in the follow-
ing illustration.
●The meaning of each symbol on the label
are as follows:
■Customization
Some functions can be customized.
( P.349)
Caution
Air conditioning system
Air conditioning system
lubricant type
Requires registered tech-
nician to service air condi-
tioning system
Flammable refrigerant
WARNING
■To prevent the windshield from fog-
ging up
●Do not use during cool air
operation in extremely humid weather.
The difference between the tempera-
ture of the outside air and that of the
windshield can cause the outer surface
of the windshield to fog up, blocking
your vision.
●Do not place anything on the instru-
ment panel which may cover the air
outlets. Otherwise, air flow may be
obstructed, preventing the windshield
defoggers from defogging.
■To prevent burns
●Do not touch the rear view mirror sur-
faces when the outside rear view mir-
ror defoggers are on.
●Do not touch the glass at lower part of
the windshield or to the side of the
front pillars when th e windshield wiper
de-icer is on.
NOTICE
■To prevent battery discharge
Do not leave the air conditioning system
on longer than necessary when the
engine is stopped.

2315-5. Using the other interior features
RC350/RC300 Owner's Manual
5
Interior features■Before programming HomeLink®
During programming, it is possible
that garage doors, gates, or other
devices may operate. For this rea-
son, make sure that people and
objects are clear of the garage door
or other devices to prevent injury or
other potential harm.
 It is recommended that a new bat-
tery be placed in the remote control
transmitter for more accurate pro-
gramming.
 Garage door opener motors manu-
factured after 1995 may be
equipped with rolling code protec-
tion. If this is the case, you may need
a stepladder or other sturdy, safe
device to reach the “Learn” or
“Smart” button on the garage door
opener motor.
■Programming HomeLink®
Steps 1 through 3 must be performed
within 60 seconds, otherwise the indi-
cator light will stop flashing and pro-
gramming will not be able to be
completed.
1 Press and release the HomeLink
®
button you want to program and
check that the HomeLink
® indica-
tor light flashes (orange).
2 Point the remote control transmit-
ter for the device at the rear view
mirror, 1 to 3 in. (25 to 75 mm)
from the HomeLink
® buttons.
Keep the HomeLink® indicator light in
view while programming.
3 Program a device.
Programming a device other than
an entry gate (for U.S.A. owners)
Press and hold the handheld transmit-
WARNING
■Conforming to federal safety stan-
dards
Do not use the HomeLink
® compatible
transceiver with any garage door opener
or device that lacks safety stop and
reverse features as required by federal
safety standards.
This includes any ga rage door that can-
not detect an interfering object. A door
or device without these features
increases the risk of death or serious
injury.
■When operating or programming
HomeLink®
Never allow a child to operate or play
with the HomeLink® buttons.
Programming the HomeLink®

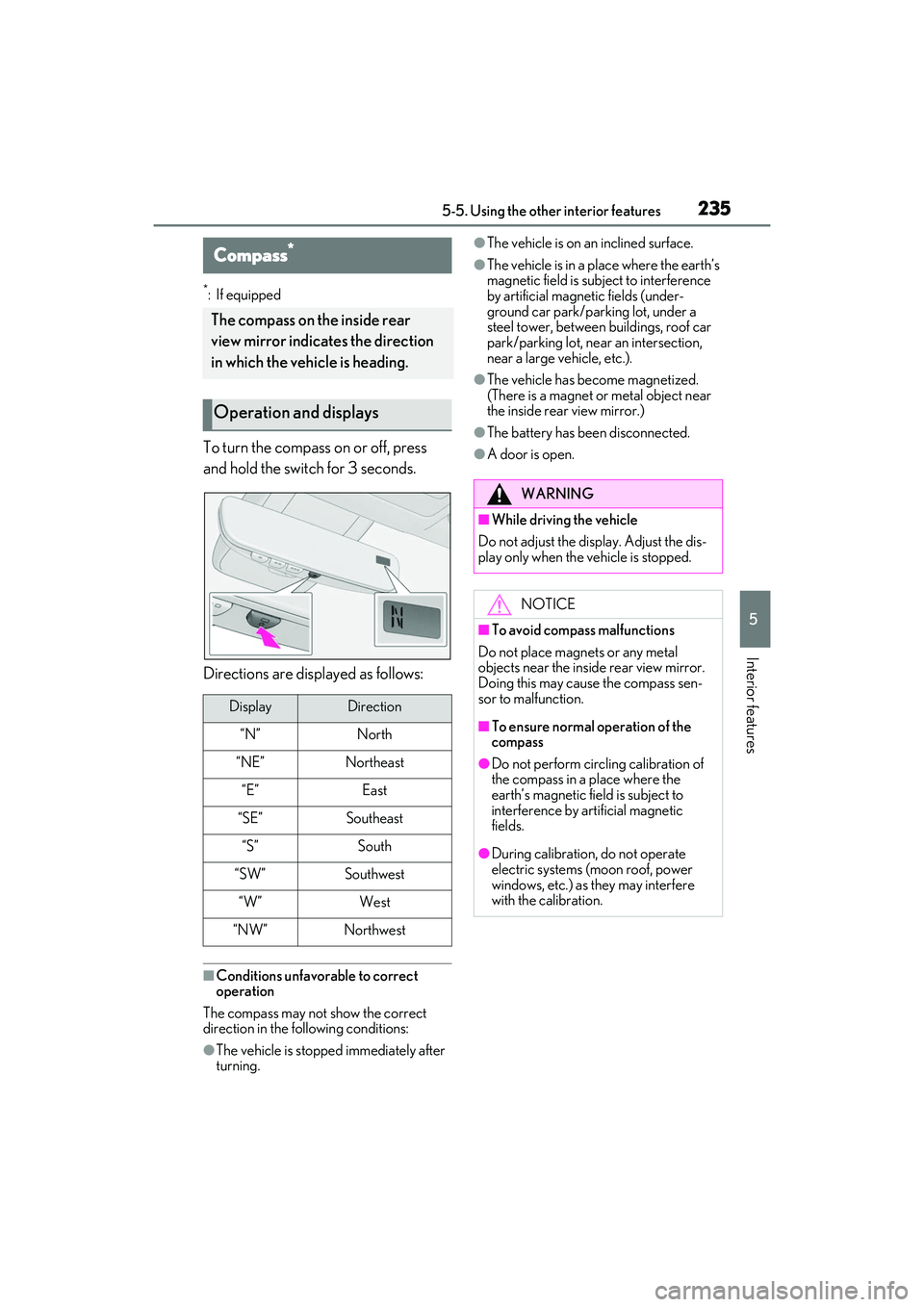

2355-5. Using the other interior features
RC350/RC300 Owner's Manual
5
Interior features
*:If equipped
To turn the compass on or off, press
and hold the switch for 3 seconds.
Directions are displayed as follows:
■Conditions unfavorable to correct
operation
The compass may not show the correct
direction in the following conditions:
●The vehicle is stopped immediately after
turning.
●The vehicle is on an inclined surface.
●The vehicle is in a place where the earth’s
magnetic field is subject to interference
by artificial magnetic fields (under-
ground car park/parking lot, under a
steel tower, between buildings, roof car
park/parking lot, near an intersection,
near a large vehicle, etc.).
●The vehicle has become magnetized.
(There is a magnet or metal object near
the inside rear view mirror.)
●The battery has been disconnected.
●A door is open.
Compass*
The compass on the inside rear
view mirror indicates the direction
in which the vehicle is heading.
Operation and displays
DisplayDirection
“N”North
“NE”Northeast
“E”East
“SE”Southeast
“S”South
“SW”Southwest
“W”West
“NW”Northwest
WARNING
■While driving the vehicle
Do not adjust the display. Adjust the dis-
play only when the vehicle is stopped.
NOTICE
■To avoid compass malfunctions
Do not place magnets or any metal
objects near the inside rear view mirror.
Doing this may cause the compass sen-
sor to malfunction.
■To ensure normal operation of the
compass
●Do not perform circling calibration of
the compass in a place where the
earth’s magnetic field is subject to
interference by artificial magnetic
fields.
●During calibration, do not operate
electric systems (moon roof, power
windows, etc.) as they may interfere
with the calibration.

385Alphabetical Index
RC350/RC300 Owner's Manual
CareExterior ........................................................... 240
Interior ............................................................. 243
Seat belts........................................................ 243
Wheels and wheel ornaments............ 240
Cargo capacity...............................................123
Cargo hooks ..................................................227
Center Display ...............................................210
Chains .............................................................. 204
Child restraint system Child seats definition................................... 40
Child seats installation........................ 44, 47
Front passenger occupa nt classification
system ............................................................. 36
Installing a CRS to the front passenger seat ....................................................................42
Installing CRS with LATCH anchors . 48
Installing CRS with top tether strap.....50
Riding with children ..................................... 40
Types of child restraint system installation method ............................................................. 41
Using an anchor bracket .......................... 49
Child safety Airbag precautions.......................................32
Battery precautions ........................262, 319
Child restraint system.......................... 40, 41
Heated steering wheel or seat heater
precautions.................................................. 221
How your child should wear the seat belt ............................................................................ 25
Installing child restraints ............................ 40
Moon roof precautions ..............................114
Power window lock switch........................ 111
Seat belt extender precautions ............. 25
Seat belt precautions .................................. 40
Trunk precautions ........................................ 89
Cleaning Exterior ........................................................... 240
Interior ............................................................. 243
Radar sensor................................................. 156
Seat belts........................................................ 243
Wheels and wheel ornaments............ 240 Clock ........................................................ 66, 228
Clock settings ............................................... 228
Coat hooks..................................................... 228
Compass ......................................................... 235
Condenser ..................................................... 260
Console box .................................................. 226
Consumption screen .................................... 78
Cooling system............................................. 258
Engine overheating...................................320
Cornering lights .............................................. 141 Replacing light bulbs............................... 280
Cruise control Dynamic radar cruise control with full-speed range ........................................174
Cup holders ................................................... 226
Current fuel consumption ...........................73
Curtain shield airbags .................................. 28
Customizable features .............................. 349
D
Daytime running light system .................. 140
Daytime running lights Replacing light bulbs............................... 280
Defogger Outside rear view mirrors....................... 217
Rear window .................................................. 217
Windshield ...................................................... 217
Differential Front differential oil..................................... 331
Rear differential oil...................................... 331
Dimension ...................................................... 326
Dinghy towing................................................. 124
Display Center Display ............................................. 210
Drive information .......................................... 73
LDA (Lane Departure Alert with steering control) ......................................................... 169
Multi-information display ............................ 71
Warning messages.................................. 303
Distance until next engine oil change .... 70
Do-it-yourself maintenance .....................247
Door courtesy lights ................................... 223

386Alphabetical Index
RC350/RC300 Owner's Manual
Door lockDoors .................................................................. 86
Smart access system with push-button start ................................................................... 93
Wireless remote control........................... 84
Doors Automatic door lock ing and unlocking
system .............................................................88
Door glasses ................................................... 110
Door lock.......................................................... 86
Open door warning buzzer87, 88, 297
Open door warning light ...................... 297
Outside rear view mirrors ..................... 108
Drive distance ...................................................73
Drive info 1/Drive info 2/Drive info 3.....73
Drive information ............................................73
Driver’s seat position memory Driving position memory........................ 100
Memory recall function ............................102
Power easy access system .................... 100
Drive-start control ......................................... 117
Driving Break-in tips .....................................................117
Correct driving posture .............................23
Driving mode select switch ....................196
Procedures ...................................................... 116
Winter drive tips......................................... 203
Driving assist system information display ..............................................................................76
Driving information display .........................73
Driving position memory........................... 100 Memory recall function ............................102
Power easy access system .................... 100
Driving range ....................................................73
DRS (Dynamic Rear Steering) ................199
Dynamic radar cruise control Warning message...................................... 301
Dynamic radar cruise control with full-speed range .......................................... 174 Warning message........................................ 181
Dynamic Rear Steering (DRS) ................199E
Eco Driving Indicator.....................................74
Eco Driving Indicator Light .........................74
EDR (Event data recorder) ............................7
Elapsed time ......................................................73
Electric Power Steering (EPS) ................199 Warning light ...............................................295
Electronic key .................................................. 82 Battery-saving function.............................. 94
If the electronic key does not operate properly ........................................................ 315
Replacing the battery ............................... 275
Emergency flashers .................................... 284
Emergency, in case of If a warning buzzer sounds...................293
If a warning light turns on.......................293
If a warning message is displayed...... 301
If the battery is discharged ......................317
If the electronic key does not operate properly ........................................................ 315
If the engine will not start..........................312
If the fuel filler do or cannot be opened
............................................................................314
If the vehicle is submerged or water on the road is rising ..................................... 285
If you have a flat tire ................................. 305
If you lose your keys ...................................314
If you think something is wrong............291
If your vehicle becomes stuck ............. 324
If your vehicle has to be stopped in an emergency .................................................284
If your vehicle needs to be towed ..... 287
If your vehicle overheats ........................320
Engine ACCESSORY mode................................ 127
Compartment..............................................255
Engine switch ................................................ 125
Fuel pump shut off system..................... 292
Hood ................................................................253
How to start the engine ........................... 125
Identification number ............................... 327

388Alphabetical Index
RC350/RC300 Owner's Manual
Gauges ............................................................... 66
Gear Position....................................................75
G-force................................................................74
Glove box ....................................................... 225
Glove box light ............................................. 226
H
Head restraints .............................................. 103
Headlight aim ................................................ 278
HeadlightsAutomatic High Beam system.............. 142
Light switch .................................................... 140
Replacing light bulbs................................280
Wattage.......................................................... 336
Heated steering wheel ................................ 221
Heaters Automatic air conditioning system ..... 213
Heated steering wheel.............................. 221
Outside rear view mirrors ...................... 217
Seat heaters .................................................... 221
High mounted stoplight Replacing light bulbs................................280
Hill-start assist control .................................199
Hood Open ............................................................... 253
Hooks Cargo hooks.................................................227
Coat hooks ................................................... 228
Retaining hooks (floor mat)......................22
Horn ....................................................................107
I
I/M test ............................................................ 250
Identification Engine ............................................................. 327
Vehicle ............................................................ 326
Ignition switch (engine switch).................125 Auto power off function ...........................128
Changing the engine switch modes.. 127
If your vehicle has to be stopped in an
emergency ................................................ 284 Illuminated entry system ........................... 224
Indicators ........................................................... 64
Initialization
Items to initialize ........................................ 358
Maintenance.................................... 246, 258
Power windows ............................................. 110
Tire pressure warning system ............. 267
Inside rear view mirror ................................107
Instrument panel light control ................... 70
Intercooler...................................................... 260
Intercooler coolant Capacity ........................................................ 330
Checking ...................................................... 258
Interior lights.................................................. 223 Front interior light ...................................... 223
Rear interior light........................................ 223
Intuitive parking assist Warning message ...................................... 185
J
JackPositioning a floor jack ............................253
Vehicle-equipped jack .......................... 305
Jack handle .................................................... 305
Jam protection function Moon roof ........................................................ 113
Power windows ............................................. 110
K
Keyless entrySmart access system with push-button start ................................................................... 93
Wireless remote control ...........................84
Keys Battery-saving function.............................. 94
Electronic key ................................................. 82
Engine switch ................................................ 125
If the electronic key does not operate properly ........................................................ 315
If you lose your keys ...................................314
Key number plate ......................................... 82
