2556-3. Do-it-yourself maintenance
RC350/RC300 Owner's Manual
6
Maintenance and care
RC350/RC300 AWDFuse boxes ( P.276)
Battery ( P.261)
Engine oil level dipstick ( P.256)
Engine coolant reservoir ( P.258)
Engine oil filler cap ( P.256)
Brake fluid reservoir ( P.260)
Washer fluid tank ( P.262)
Electric cooling fans
Condenser ( P.260)
Radiator ( P.260)
Engine compartment
Components
A
B
C
D
E
F
G
H
I
J

2566-3. Do-it-yourself maintenance
RC350/RC300 Owner's Manual
RC300Fuse boxes ( P.276)
Battery ( P.261)
Engine oil level dipstick ( P.256)
Engine oil filler cap ( P.256)
Engine coolant reservoir ( P.258)
Brake fluid reservoir ( P.260)
Washer fluid tank ( P.262)
Electric cooling fans
Condenser ( P.260)
Intercooler radiator ( P.260)
Radiator ( P.260)
Intercooler coolant reservoir ( P.258)
With the engine at operating tempera-
ture and turned off, check the oil level
on the dipstick.
■Checking the engine oil
1 Park the vehicle on level ground.
After warming up the engine and
turning it off, wait more than 5 min-
utes for the oil to drain back into the
bottom of the engine.
A
B
C
D
E
F
G
H
I
J
K
L
Checking and adding the engine
oil

2596-3. Do-it-yourself maintenance
RC350/RC300 Owner's Manual
6
Maintenance and care
on the reservoir when the engine is
cold.
■Engine coolant reservoir
RC350/RC300 AWD
RC300Reservoir cap
“FULL” line
“LOW” line
If the level is on or below the “LOW” line,
add coolant up to the “FULL” line.
(  P.320)
■Intercooler coolant reservoir
(RC300)
The coolant level is satisfactory if it is
between the “F” and “L” lines on the
reservoir when the engine is cold. Reservoir cap
“F” line
“L” line
If the level is on or
below the “L” line, add
coolant up to the “F” line. ( P.320)
■Coolant selection
Only use “Toyota Super Long Life Coolant”
or a similar high qua lity ethylene glycol
based non-silicate, non-amine, non-nitrite,
and non-borate coolant with long-life
hybrid organic acid technology.
U.S.A.:
“Toyota Super Long Life Coolant” is a mix-
ture of 50% coolant and 50% deionized
water. (Minimum temperature: -31°F
[-35°C])
Canada:
“Toyota Super Long Life Coolant” is a mix-
ture of 55% coolant and 45% deionized
water. (Minimum temperature: -44°F
[-42°C])
For more details about coolant, contact
your Lexus dealer.
■If the coolant level drops within a short
time of replenishing
Visually check the radiator, hoses, engine
and intercooler coolant reservoir caps,
drain cock and water pump.
If you cannot find a leak, have your Lexus
dealer test the cap and check for leaks in
the cooling system.
A
B
C
A
B
C

2606-3. Do-it-yourself maintenance
RC350/RC300 Owner's Manual
Check the radiator, condenser and
intercooler radiator and clear away
any foreign objects.
If any of the above parts are extremely
dirty or you are not sure of their condi-
tion, have your vehicle inspected by
your Lexus dealer.
■Checking fluid level
The brake fluid level should be
between the “MAX” and “MIN” lines
on the tank.
RC350/RC300 AWD
RC300
■Adding fluid
Make sure to check the fluid type and
prepare the necessary item.
 Fluid type
SAE J1703 or FMVSS No.116 DOT 3
brake fluid
SAE J1704 or FMVSS No.116 DOT 4
brake fluid
Item
Clean funnel
WARNING
■When the engine is hot
Do not remove the engine coolant reser-
voir cap, intercooler coolant reservoir
cap and coolant inlet cap. ( P.323)
The cooling system may be under pres-
sure and may spray ho t coolant if the cap
is removed, causing serious injuries, such
as burns.
NOTICE
■When adding coolant
Coolant is neither plain water nor
straight antifreeze. The correct mixture
of water and antifreeze must be used to
provide proper lubrication, corrosion
protection and cooling. Be sure to read
the antifreeze or coolant label.
■If you spill coolant
Be sure to wash it off with water to pre-
vent it from damagi ng parts or paint.
Checking the radiator, con-
denser and intercooler radiator
(if equipped)
WARNING
■When the engine is hot
Do not touch the radiator, condenser or
intercooler radiator as they may be hot
and cause serious injuries, such as burns.
Checking and adding the brake
fluid

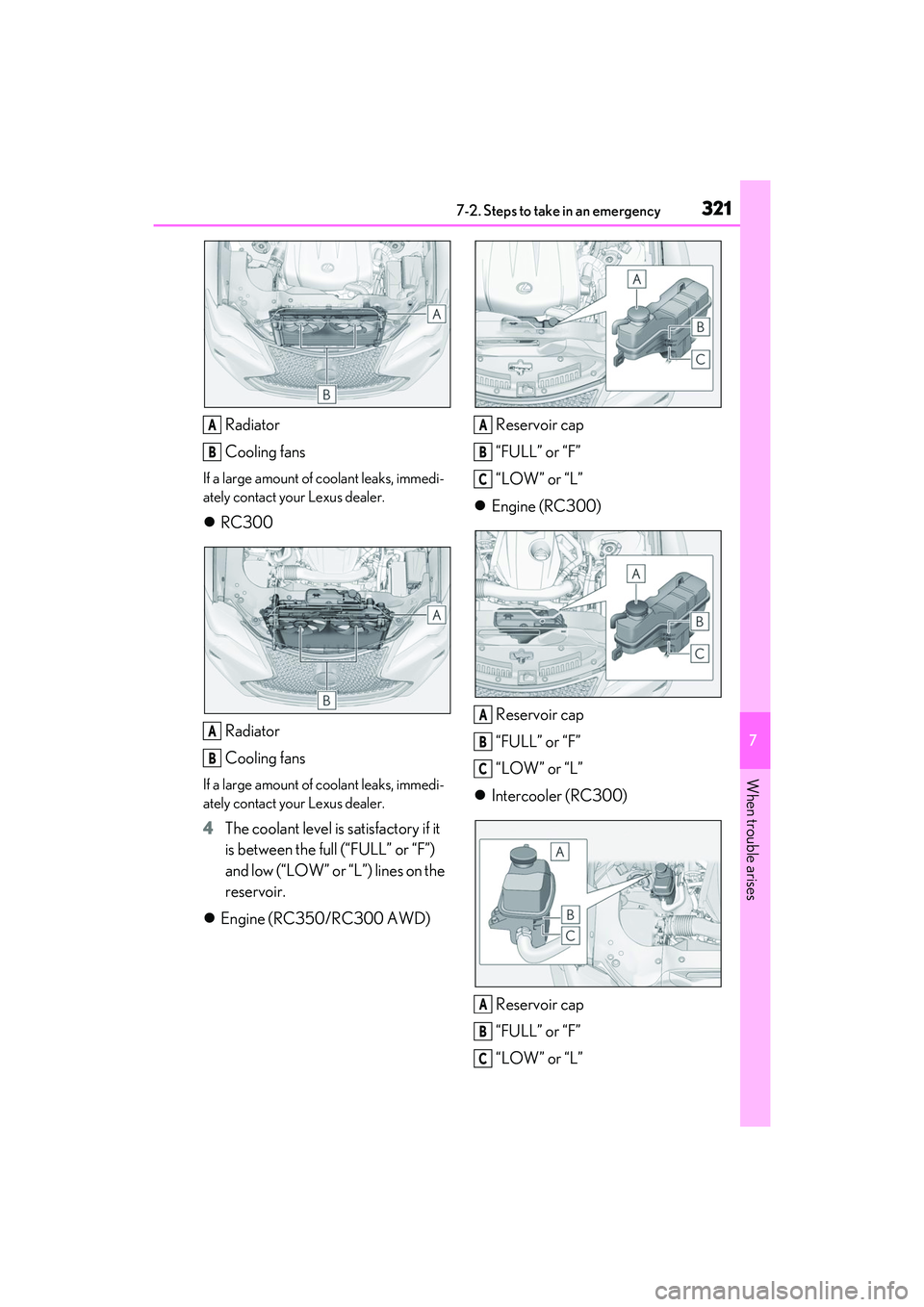

3217-2. Steps to take in an emergency
RC350/RC300 Owner's Manual
7
When trouble arises
Radiator
Cooling fans
If a large amount of coolant leaks, immedi-
ately contact your Lexus dealer.
RC300
Radiator
Cooling fans
If a large amount of coolant leaks, immedi-
ately contact your Lexus dealer.
4 The coolant level is satisfactory if it
is between the full (“FULL” or “F”)
and low (“LOW” or “L”) lines on the
reservoir.
 Engine (RC350/RC300 AWD) Reservoir cap
“FULL” or “F”
“LOW” or “L”
 Engine (RC300)
Reservoir cap
“FULL” or “F”
“LOW” or “L”
 Intercooler (RC300)
Reservoir cap
“FULL” or “F”
“LOW” or “L”
A
B
A
B
A
B
C
A
B
C
A
B
C

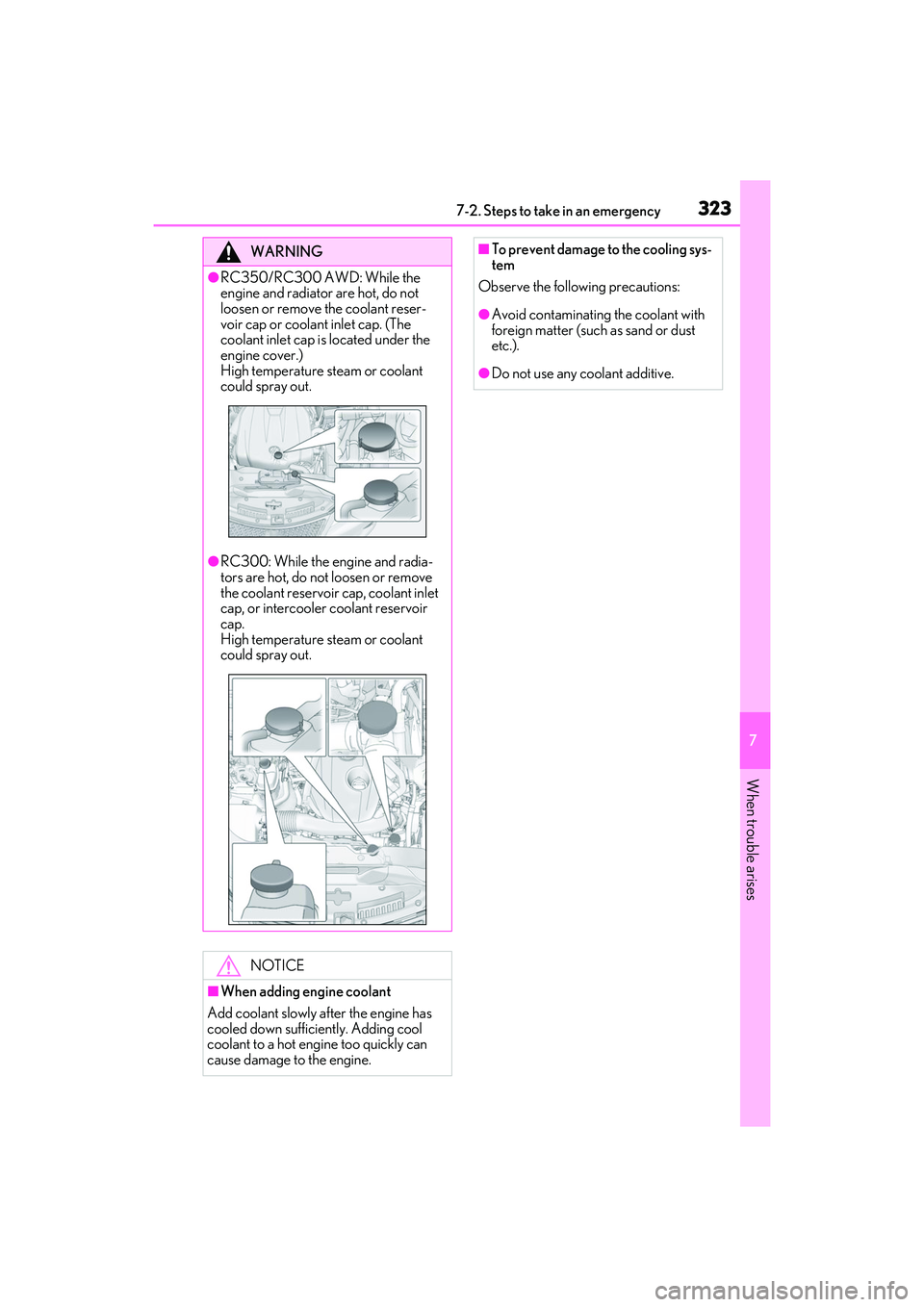

3237-2. Steps to take in an emergency
RC350/RC300 Owner's Manual
7
When trouble arises
WARNING
●RC350/RC300 AWD: While the
engine and radiator are hot, do not
loosen or remove the coolant reser-
voir cap or coolant inlet cap. (The
coolant inlet cap is located under the
engine cover.)
High temperature steam or coolant
could spray out.
●RC300: While the engine and radia-
tors are hot, do not loosen or remove
the coolant reservoir cap, coolant inlet
cap, or intercooler coolant reservoir
cap.
High temperature steam or coolant
could spray out.
NOTICE
■When adding engine coolant
Add coolant slowly after the engine has
cooled down sufficiently. Adding cool
coolant to a hot engine too quickly can
cause damage to the engine.
■To prevent damage to the cooling sys-
tem
Observe the following precautions:
●Avoid contaminating the coolant with
foreign matter (such as sand or dust
etc.).
●Do not use any coolant additive.
