86 2. Instrument cluster

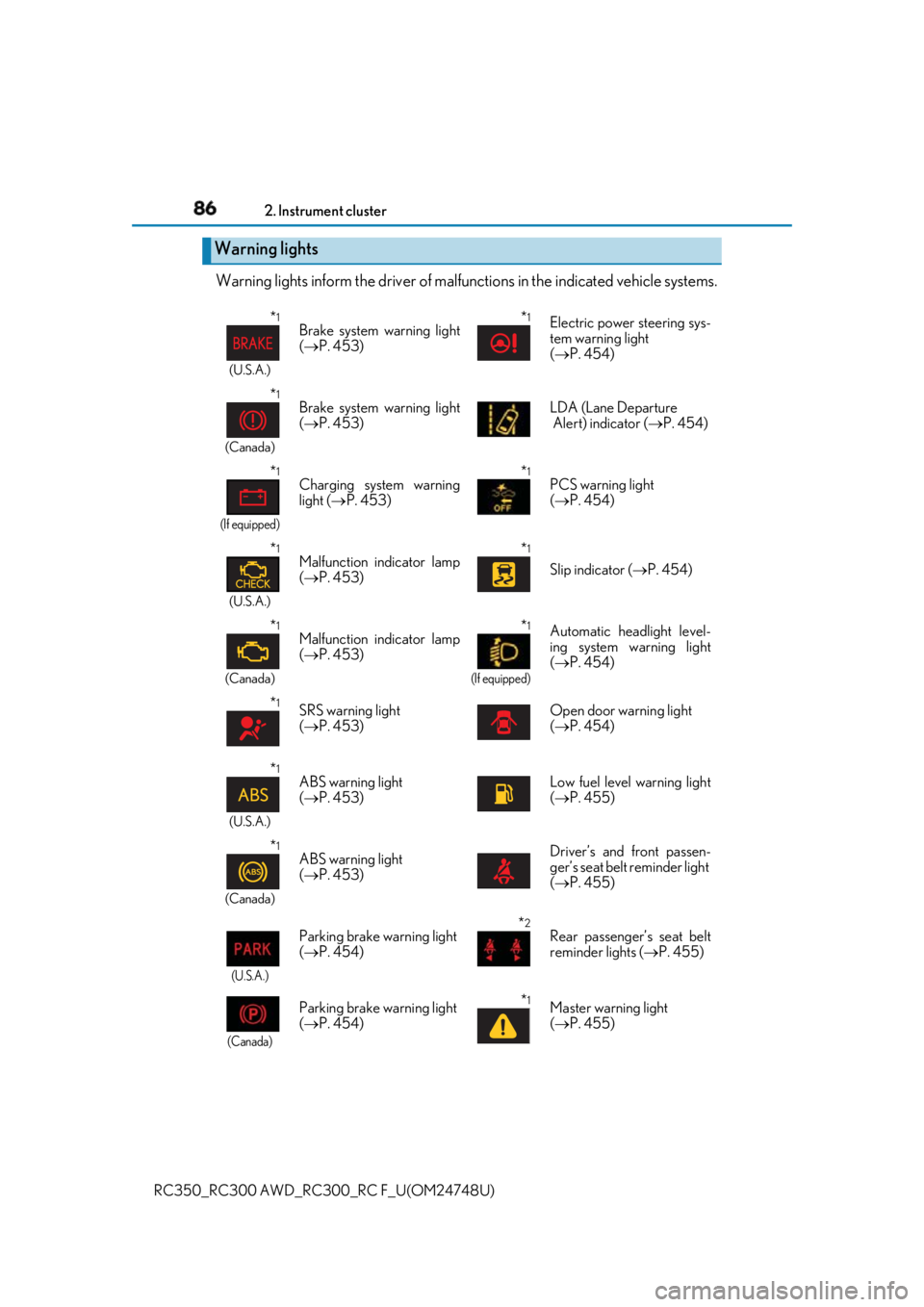

RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)Warning lights inform the driv er of malfunctions in th e indicated vehicle systems.
Warning lights * 1
(U.S.A.)
Brake system warning light
(  P. 453)
* 1
Electric power steering sys-
tem warning light
(  P. 454)
* 1
(Canada)
Brake system warning light
(  P. 453) LDA (Lane Departure
Alert) indicator (  P. 454)
* 1
(If equipped)
Charging system warning
light (  P. 453)
* 1
PCS warning light
(  P. 454)
* 1
(U.S.A.)
Malfunction indicator lamp
(  P. 453)
* 1
Slip indicator (  P. 454)
* 1
(Canada)
Malfunction indicator lamp
(  P. 453) * 1
(If equipped)
Automatic headlight level-
ing system warning light
(  P. 454)
* 1
SRS warning light
(  P. 453) Open door warning light
(  P. 454)
* 1
(U.S.A.)
ABS warning light
(  P. 453) Low fuel level warning light
(  P. 455)
* 1
(Canada)
ABS warning light
(  P. 453) Driver’s and front passen-
ger’s seat belt reminder light
(  P. 455)
(U.S.A.) Parking brake warning light
(  P. 454) * 2
Rear passenger’s seat belt
reminder lights (  P. 455)
(Canada) Parking brake warning light
(  P. 454) * 1
Master warning light
(  P. 455)

1072. Instrument cluster
2
Instrument cluster
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)◆ Using the odometer/trip meter display area
Items in this area are operated using the odometer/trip meter and trip meter
reset button.
Press: Change displayed item Each time the button is pressed, the
displayed item will be changed.
Press and hold: Reset Display the desired trip meter and
press and hold the button to reset the
trip meter.

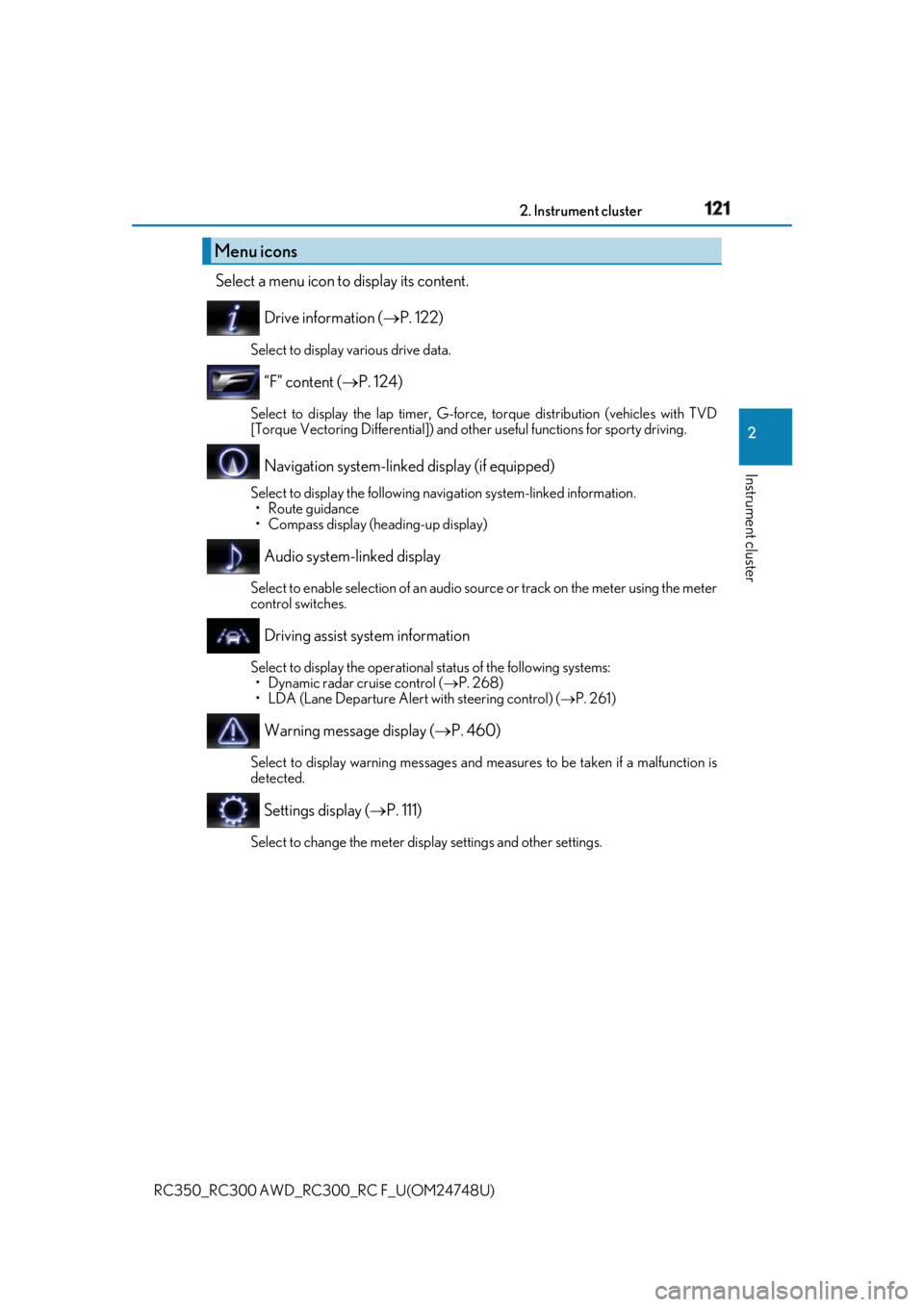

Select a menu icon to display its content.
Drive information (  P. 108)Select to display various drive data.
Navigation system-linked display (if equipped) Select to display the following na vigation system-linked information.
•Route guidance
• Compass display (heading-up display)
Audio system-linked display Select to enable selection of an audio source or track on the meter using the meter
control switches.
Driving assist system information Select to display the operational status of the following systems:
• Dynamic radar cruise control (  P. 268)
• LDA (Lane Departure Alert with steering control) (  P. 261)
Warning message display (  P. 460)Select to display warning messages and me asures to be taken if a malfunction is
detected.
Settings display (  P. 111)
Select to change the meter display settings and other settings.Menu icons

110 2. Instrument cluster
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)■

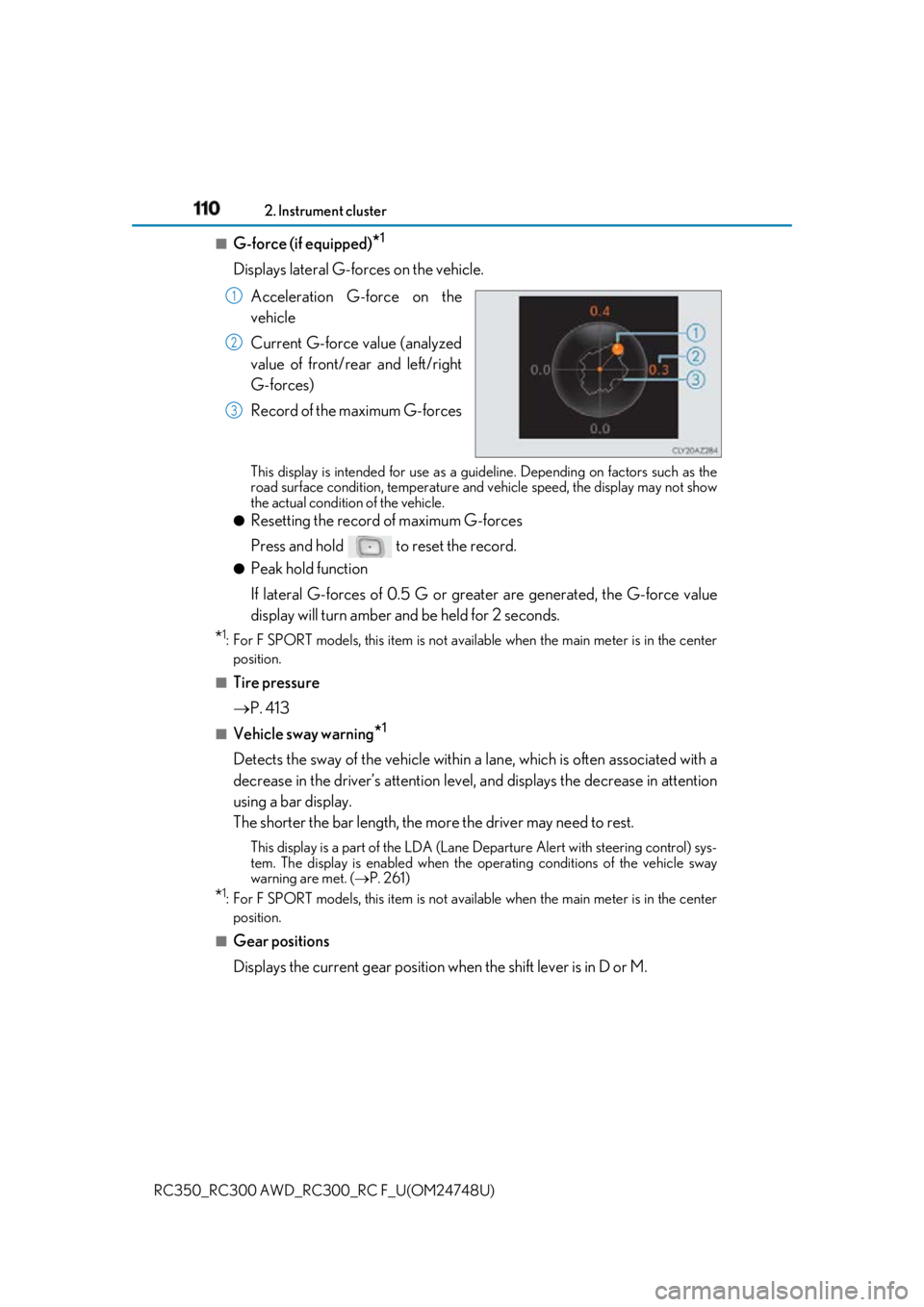

G-force (if equipped)
* 1

Displays lateral G-forces on the vehicle.
Acceleration G-force on the
vehicle
Current G-force value (analyzed
value of front/rear and left/right
G-forces)
Record of the maximum G-forces This display is intended for use as a guideline. Depending on factors such as the
road surface condition, temperature and vehicle speed, the display may not show
the actual condition of the vehicle. ●
Resetting the record of maximum G-forces
Press and hold to reset the record. ●
Peak hold function
If lateral G-forces of 0.5 G or grea ter are generated, the G-force value
display will turn amber and be held for 2 seconds.
* 1
: For F SPORT models, this item is not ava ilable when the main meter is in the center
position.■
Tire pressure
 P. 413■
Vehicle sway warning
* 1
Detects the sway of the vehicle within a lane, which is often associated with a
decrease in the driver’s at tention level, and displays the decrease in attention
using a bar display.
The shorter the bar length, the more the driver may need to rest. This display is a part of the LDA (Lane Departure Alert with steering control) sys-
tem. The display is enabled when the op erating conditions of the vehicle sway
warning are met. (  P. 261)
* 1
: For F SPORT models, this item is not ava ilable when the main meter is in the center
position.
■
Gear positions
Displays the current gear position when the shift lever is in D or M.1
2
3

1112. Instrument cluster
2
Instrument cluster
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)■
Units (if equipped)
* 2
The units of measure used can be changed while driving. Unlike the units setting performed on , the units setting performed on can
be changed while driving.
* 2
: For F SPORT models, this item is not available when the main meter is in the right-side
position.■
Blank (No items)
Displays no drive information contents.
◆ Changing settings
Use the meter control switches on th e steering wheel to change settings.
Press or to select .
Operate the switches to select a desired item.
Change the setting by referring to the message displayed on the screen.

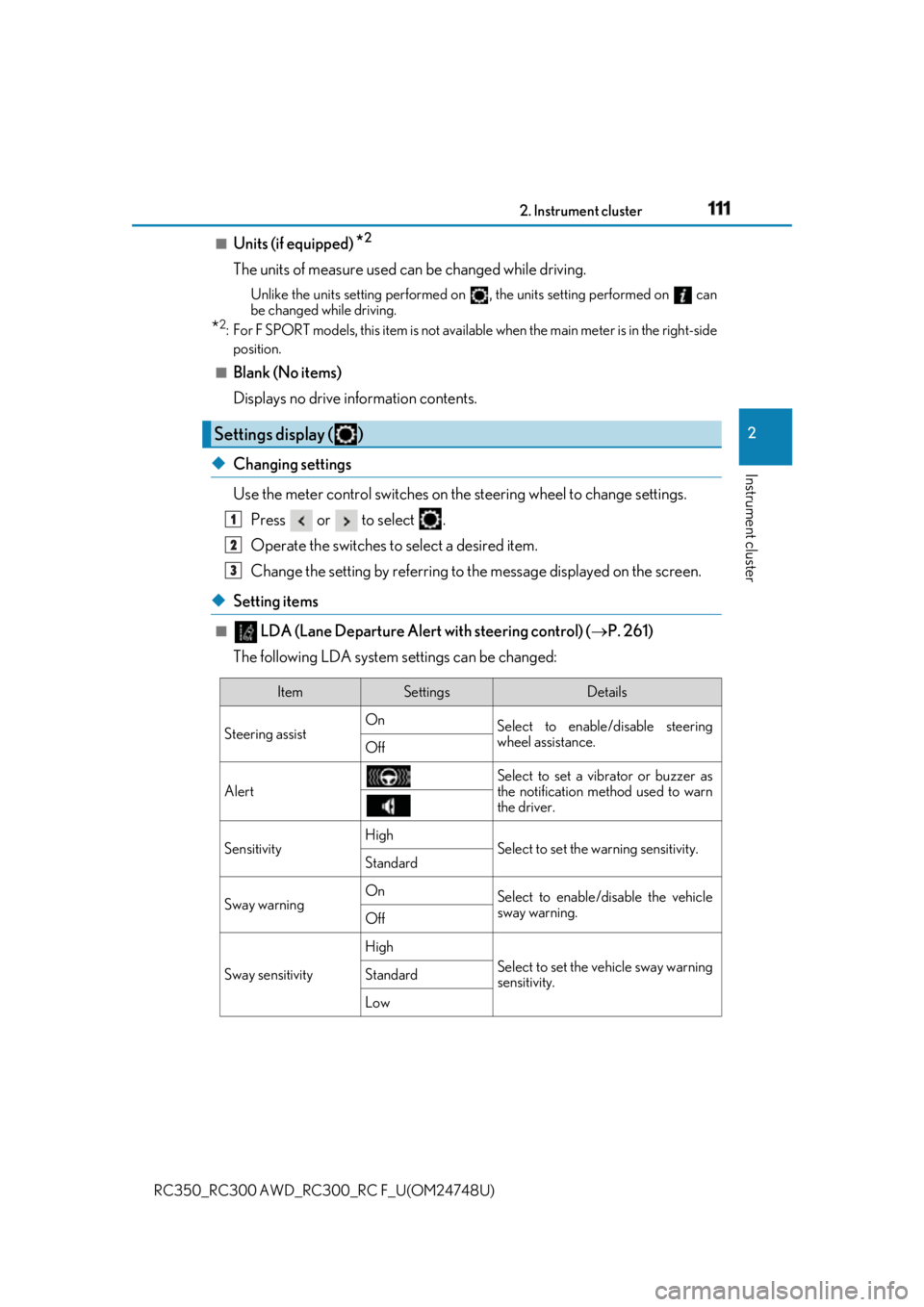

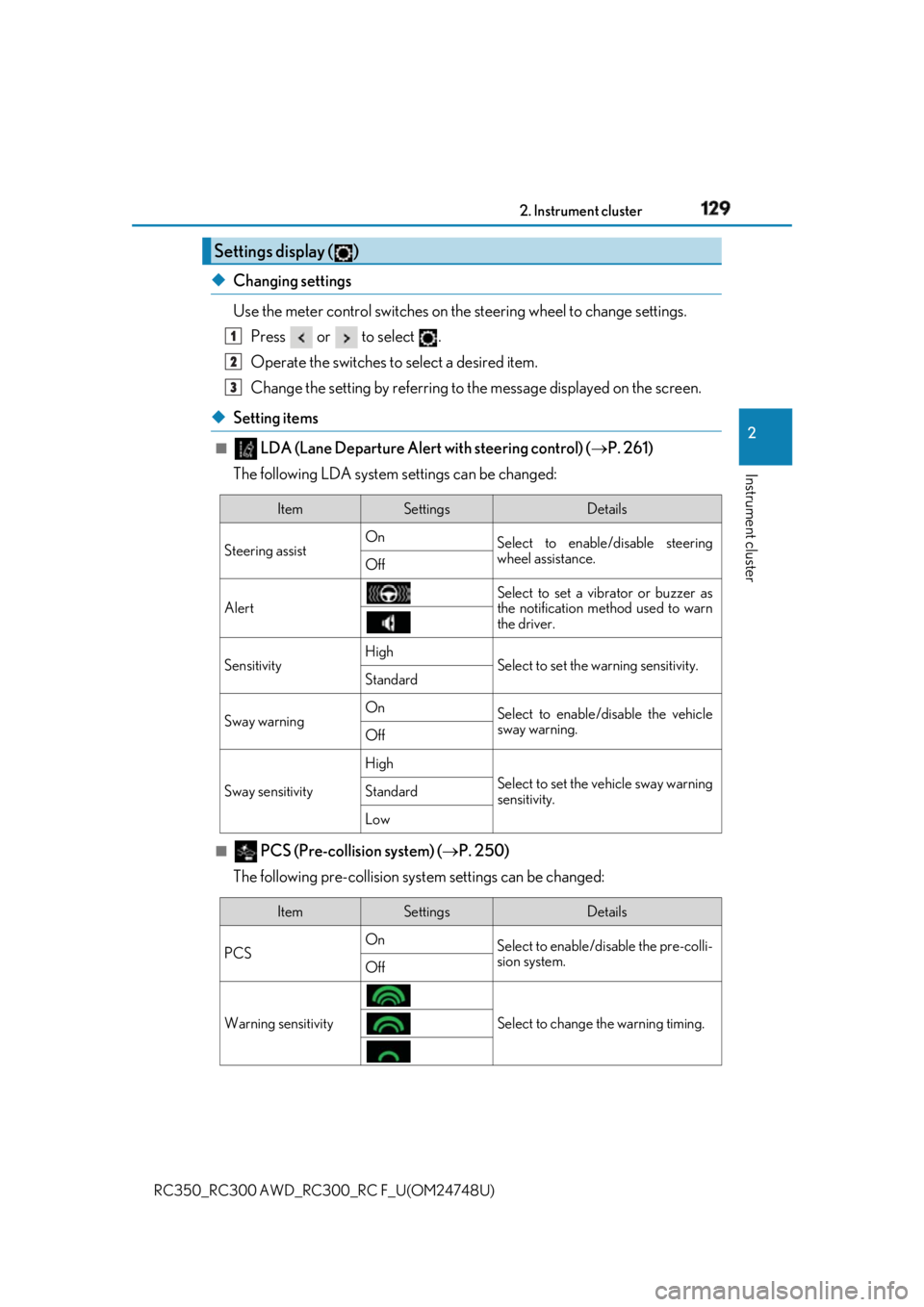

◆ Setting items ■
LDA (Lane Departure Alert with steering control) (  P. 261)
The following LDA system settings can be changed:Settings display ( ) 1
2
3
Item Settings Details
Steering assist On
Select to enable/disable steering
wheel assistance.
Off
Alert Select to set a vibrator or buzzer as
the notification method used to warn
the driver.
Sensitivity High
Select to set the warning sensitivity.
Standard
Sway warning On
Select to enable/disable the vehicle
sway warning.
Off
Sway sensitivity High
Select to set the vehicle sway warning
sensitivity.Standard
Low

1212. Instrument cluster
2
Instrument cluster
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)Select a menu icon to display its content.
Drive information (  P. 122)Select to display various drive data.
“F” content (  P. 124)Select to display the lap timer, G-force, torque distribution (vehicles with TVD
[Torque Vectoring Differential]) and othe r useful functions for sporty driving.
Navigation system-linked display (if equipped) Select to display the following na vigation system-linked information.
•Route guidance
• Compass display (heading-up display)
Audio system-linked display Select to enable selection of an audio source or track on the meter using the meter
control switches.
Driving assist system information Select to display the operational status of the following systems:
• Dynamic radar cruise control (  P. 268)
• LDA (Lane Departure Alert with steering control) (  P. 261)
Warning message display (  P. 460)Select to display warning messages and me asures to be taken if a malfunction is
detected.
Settings display (  P. 111)Select to change the meter display settings and other settings.Menu icons

1232. Instrument cluster
2
Instrument cluster
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)* 1
:Resetting:  P. 119
* 2
: Use the displayed fuel consumption as a reference.
* 3
: When only a small amount of fuel is added to the tank, the display may not be
updated.
When refueling, turn the engine switch off. If the vehicle is refueled without turning the
engine switch off, the display may not be updated.
* 4
: This distance is computed based on your average fuel consumption. As a result, the
actual distance that can be driven may differ from that displayed.■
Tire pressure
 P. 413■
Gear positions
Displays the current gear position when the shift lever is in D or M.■
Vehicle sway warning
Detects the sway of the vehicle within a lane, which is often associated with a
decrease in the driver’s at tention level, and displays the decrease in attention
using a bar display.
The shorter the bar length, the more the driver may need to rest. This display is a part of the LDA (Lane Departure Alert with steering control) sys-
tem. The display is enabled when the op erating conditions of the vehicle sway
warning are met. (  P. 261)■
Units
The units of measure used can be changed while driving. Unlike the units setting performed on , the units setting performed on can
be changed while driving.■
Blank (No items)
Displays no drive information contents.

1272. Instrument cluster
2
Instrument cluster
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)■

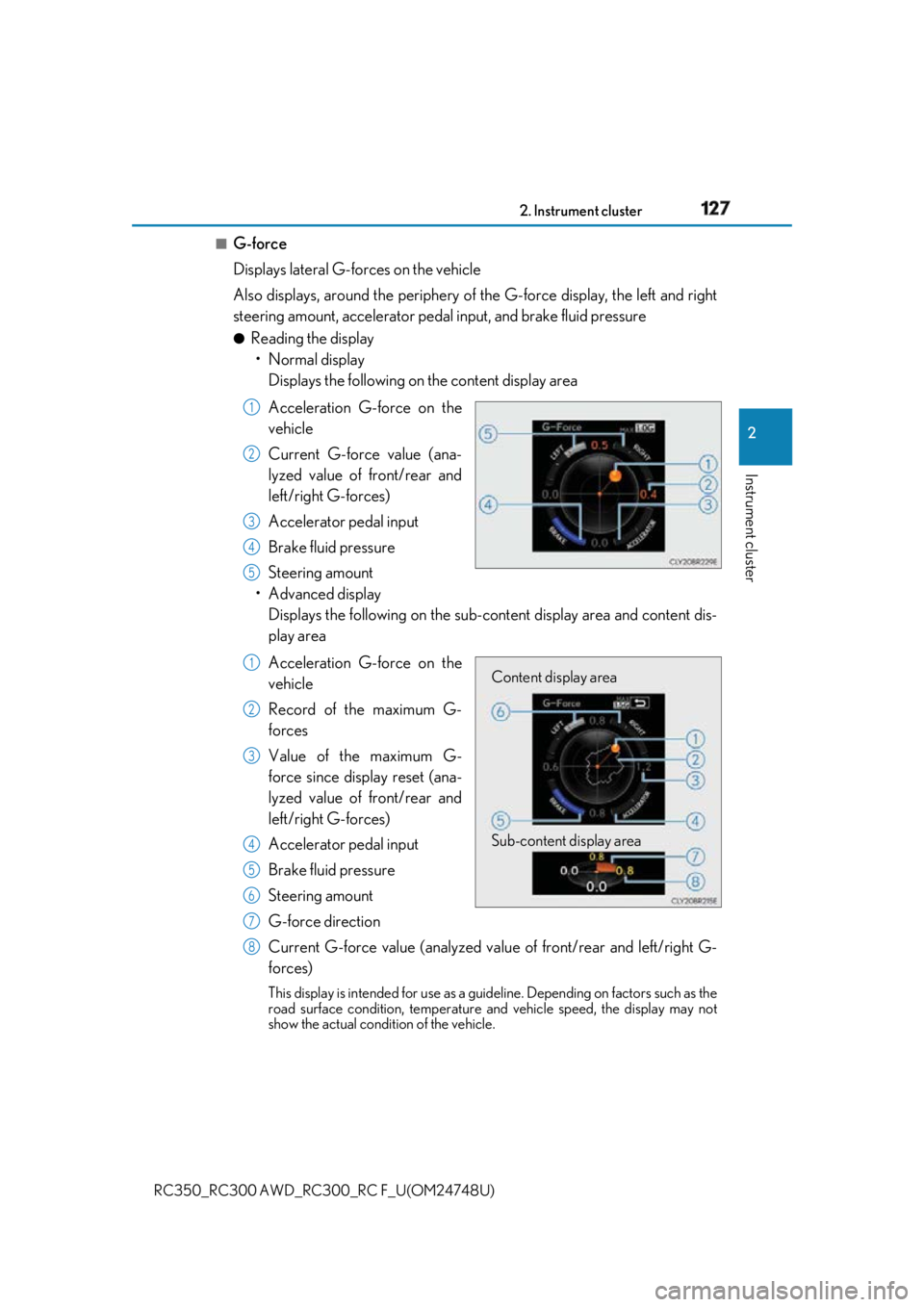

G-force
Displays lateral G-forces on the vehicle
Also displays, around the periphery of the G-force display, the left and right
steering amount, accelerator pedal input, and brake fluid pressure ●
Reading the display
• Normal display
Displays the following on the content display area
Acceleration G-force on the
vehicle
Current G-force value (ana-
lyzed value of front/rear and
left/right G-forces)
Accelerator pedal input
Brake fluid pressure
Steering amount
• Advanced display
Displays the following on the sub-content display area and content dis-
play area
Acceleration G-force on the
vehicle
Record of the maximum G-
forces
Value of the maximum G-
force since display reset (ana-
lyzed value of front/rear and
left/right G-forces)
Accelerator pedal input
Brake fluid pressure
Steering amount
G-force direction
Current G-force value (analyzed valu e of front/rear and left/right G-
forces) This display is intended for use as a guid eline. Depending on factors such as the
road surface condition, temperature and vehicle speed, the display may not
show the actual condition of the vehicle. 1
2
3
4
5
Content display area
Sub-content display area1
2
3
4
5
6
7
8

1292. Instrument cluster
2
Instrument cluster
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)◆ Changing settings
Use the meter control switches on th e steering wheel to change settings.
Press or to select .
Operate the switches to select a desired item.
Change the setting by referring to the message displayed on the screen.
◆ Setting items ■
LDA (Lane Departure Alert with steering control) (  P. 261)
The following LDA system settings can be changed:
■
PCS (Pre-collision system) (  P. 250)
The following pre-collision syst em settings can be changed:Settings display ( ) 1
2
3
Item Settings Details
Steering assist On
Select to enable/disable steering
wheel assistance.
Off
Alert Select to set a vibrator or buzzer as
the notification method used to warn
the driver.
Sensitivity High
Select to set the warning sensitivity.
Standard
Sway warning On
Select to enable/disable the vehicle
sway warning.
Off
Sway sensitivity High
Select to set the vehicle sway warning
sensitivity.Standard
Low
Item Settings Details
PCS On
Select to enable/disable the pre-colli-
sion system.
Off
Warning sensitivity Select to change the warning timing.

1332. Instrument cluster
2
Instrument cluster
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)■
G-force display ●
The G-force values may not be zero even when the vehicle is parked, such as when it is
parked on an incline. ●
The steering amount, accelerator pedal input, and brake fluid pressure displays are dis-
abled until the engine has warmed up (the variable red zone of the tachometer has
retracted to 7300 rpm).
After the engine has warmed up, these displays will be enabled. ●
Depending on the vehicle usage conditions, the brake fluid pressure display may not
reach its maximum reading even though the brake pedal is fully depressed. ●
If a battery terminal is disconnected and reconnected, the steering amount display may
be disabled temporarily. Afte r driving the vehicle for a while , the display will be enabled.■
Suspension of the settings display
In the following situations, op eration of the settings disp lay will be temporarily sus-
pended. ●
When a warning message appears on the multi-information display●
When the vehicle begins to move ■
Tire pressure ●
It may take a few minutes to display the tire inflation pressure after the engine switch is
turned to IGNITION ON mode. It may also take a few minutes to display the tire infla-
tion pressure after inflation pressure has been adjusted.●
“---” may be displayed if the tire position information cannot be determined due to
unfavorable radio wave conditions. ●
Tire inflation pressure changes with temperat ure. The displayed values may also be dif-
ferent from the values measured using a tire pressure gauge. ■
When disconnecting and reco nnecting battery terminals
The following information data will be reset: ●
Drive information ●
Lap timer: Measured lap times, history ●
G-force: Record of the maximum G-forces■
Using the lap timer
If the engine is stopped while a lap is being timed, the lap timer will stop and the lap time
up to that point will be recorded. ■
Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is characteristic
of liquid crystal displays, and there is no problem continuing to use the display.
