LEXUS RCF 2018 Owners Manual

2014-1. Before driving
4
Driving
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)Cargo capacity depends on the total weight of the occupants.
(Cargo capacity) = (Total load capac ity) — (Total weight of occupants)
Steps for Determining Correct Load Limit —
(1) Locate the statement “The combined weight of occupants and cargo should
never exceed XXX kg or XXX lbs. ” on your vehicle’s placard.
(2) Determine the combined weight of th e driver and passengers that will be rid-
ing in your vehicle.
(3) Subtract the combined weight of th e driver and passengers from XXX kg or
XXX lbs.
(4) The resulting figure equals the ava ilable amount of cargo and luggage load
capacity.
For example, if the “XXX” amount equals 1400 lbs. and there will be five 150
lb passengers in your vehicle, the amou nt of available cargo and luggage load
capacity is 650 lbs. (1400  750 (5  150) = 650 lbs.)
(5) Determine the combined weight of luggage and cargo being loaded on the
vehicle. That weight may not safely exceed the available cargo and luggage
load capacity calculated in Step 4.
(6) If your vehicle will be towing a trailer, load from your tra iler will be transferred
to your vehicle. Consult this manual to determine how this reduces the avail-
able cargo and luggage load capacity of your vehicle.
(  P. 204)Lexus does not recommend towing a trailer with your vehicle. Your vehicle is not
designed for trailer towing.Cargo and luggage Take notice of the following informat ion about storage precautions, cargo
capacity and load:
Capacity and distribution

202 4-1. Before driving
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)Cargo capacity
Total load capacity (vehicle capacity
weight) (  P. 536)
When 2 people with the combined weight of A lb. (kg) are riding in your vehicle,
which has a total load capacity (vehicle capacity weight) of B lb. (kg), the avail-
able amount of cargo and luggage load capacity will be C lb. (kg) as follows:
B
* 2
lb. (kg) - A
* 1
lb. (kg) = C
* 3
lb. (kg)
* 1
: A =Weight of people
* 2
: B =Total load capacity
* 3
: C =Available cargo and luggage load In this condition, if 2 more passengers with the combined weight of D lb. (kg) get on,
the available cargo and luggage load w ill be reduced E lb. (kg) as follows:
C lb. (kg) - D
* 4
lb. (kg) = E
* 5
lb. (kg)
* 4
: D =Additional weight of people
* 5
: E =Available cargo and luggage load
As shown in the example above, if the nu mber of occupants increases, the cargo
and luggage load will be reduced by an amount that equals the increased weight
due to the additional occupants. In other words, if an increa se in the number of
occupants causes an excess of the total load capacity (combined weight of occu-
pants plus cargo and luggage load), yo u must reduce the cargo and luggage on
your vehicle. Calculation formula for your vehicle 1
2

2034-1. Before driving
4
Driving
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)WARNING ■
Things that must not be carried in the trunk
The following things may cause a fire if loaded in the trunk: ●
Receptacles containing gasoline ●
Aerosol cans ■
Storage precautions
Observe the following precautions.
Failure to do so may prevent the pedals from being depressed properly, may block the
driver’s vision, or may result in items hittin g the driver or passeng ers, possibly causing
an accident. ●
Stow cargo and lugg age in the trunk whenever possible.●
RC350/RC300: To prevent cargo and luggage from sliding forward during braking,
do not stack anything in the enlarged trun k. Keep cargo and luggage low, as close to
the floor as possible. ●
RC350/RC300: When you fold down the rear seats, long items should not be
placed directly behind the front seats. ●
RC350/RC300: Never allow anyone to ride in the enlarged trunk. It is not designed
for passengers. They should ride in their se ats with their seat belts properly fastened.●
Do not place cargo or luggage in or on the following locations.
• At the feet of the driver
• On the front passenger or re ar seats (when stacking items)
• On the package tray
• On the instrument panel
•On the dashboard
• In front of the Center Display ●
Secure all items in the occupant compartment. ■
Capacity and distribution ●
Do not exceed the maximum axle weight rating or the total vehicle weight rating. ●
Even if the total load of occupant’s weight and the cargo load is less than the total load
capacity, do not apply the load unevenly. Improper loading may cause deterioration
of steering or braking control whic h may cause death or serious injury.

204 4-1. Before driving
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)◆ Total load capacity (vehicle capacity weight): (  P. 536)
Total load capacity means the combined weight of occupants, cargo and lug-
gage.
◆ Seating capacity: 4 occupants (Front 2, Rear 2)
Seating capacity means the maximum number of occupants whose estimated
average weight is 150 lb. (68 kg) per person.
◆ Towing capacity
Lexus does not recommend towing a trailer with your vehicle.
◆ Cargo capacity
Cargo capacity may increase or decrease depending on the weight and the
number of occupants. ■
Total load capacity and seating capacity
These details are also described on the tire and loading information label. (  P. 420)Vehicle load limits Vehicle load limits include total load capacity, seating capacity, towing capac-
ity and cargo capacity.
WARNING ■
Overloading the vehicle
Do not overload the vehicle.
It may not only cause damage to the tires, but also degrade steering and braking ability,
resulting in an accident.

2054-1. Before driving
4
Driving

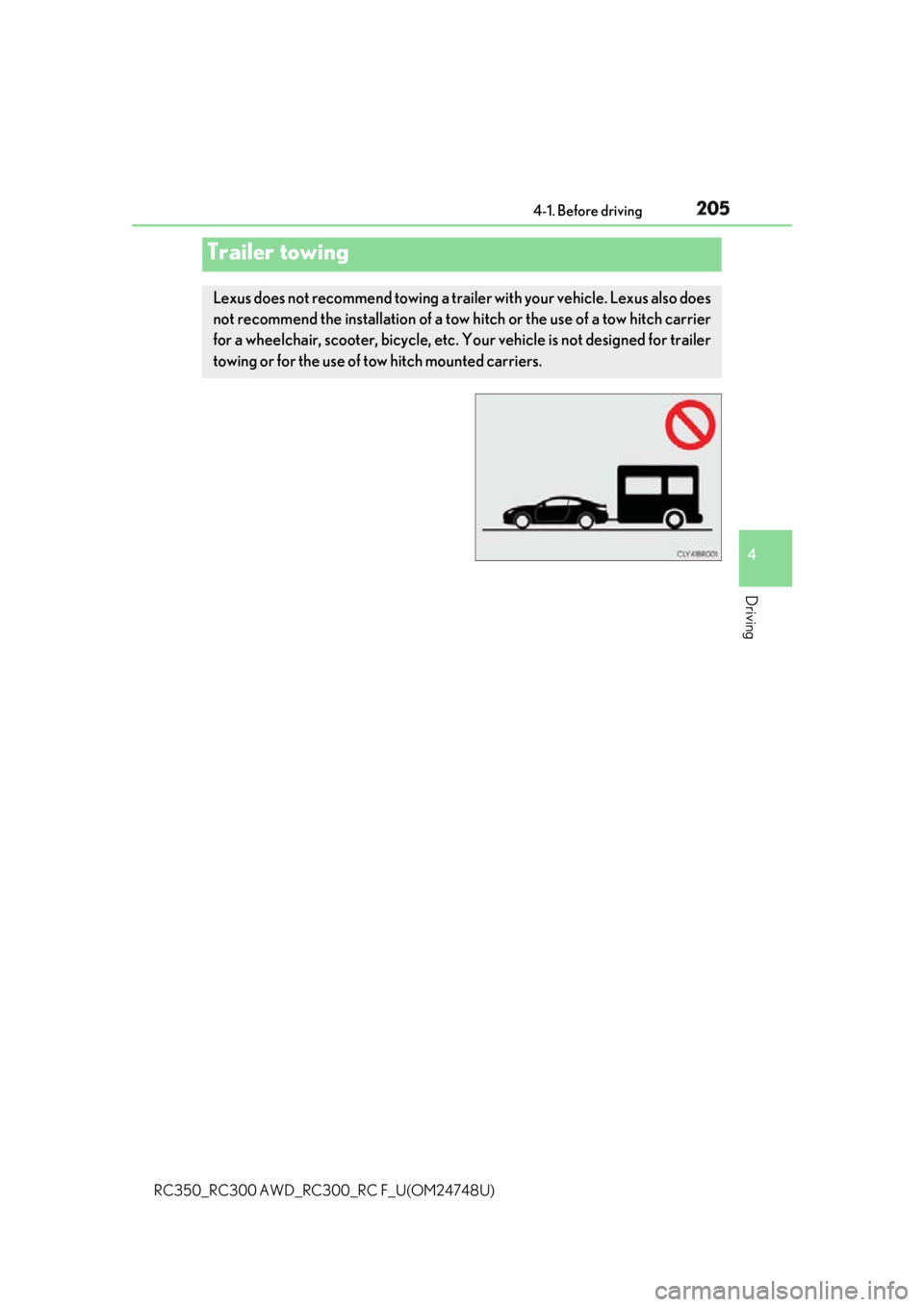

RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)Trailer towing Lexus does not recommend towing a trailer with your vehicle. Lexus also does
not recommend the installation of a tow hitch or the use of a tow hitch carrier
for a wheelchair, scooter, bicycle, etc. Your vehicle is not designed for trailer
towing or for the use of tow hitch mounted carriers.

206 4-1. Before driving
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)Dinghy towing Your vehicle is not designed to be dinghy towed (with 4 wheels on the ground)
behind a motor home.
NOTICE ■
To avoid serious damage to your vehicle
Do not tow your vehicle with the four wheels on the ground.

207
4
Driving
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U) 4-2. Driving procedures
Check that the parking brake is set.
Check that the shift lever is in P.
Firmly depress the brake pedal. and a message will be displayed on the multi-information display.
If it is not displayed, th e engine cannot be started.
Press the engine switch shortly and
firmly. When operating the engine switch, one
short, firm press is enough.
It is not necessary to press and hold the
switch.
The engine will crank until it starts or for
up to 30 seconds, whichever is less.
Continue depressing the brake pedal
until the engine is completely started.
The engine can be started from any
engine switch mode.
Stop the vehicle.
Set the parking brake (  P. 222), and shift the shift lever to P.
Press the engine switch.
Release the brake pedal and check that the display on the meters is off.Engine (ignition) switch Performing the following operations wh en carrying the electronic key on your
person starts the engine or changes engine switch modes.
Starting the engine 1
2
3
4
Stopping the engine 1
2
3
4

208 4-2. Driving procedures
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)Modes can be changed by pressing the en gine switch with brake pedal released.
(The mode changes each time the switch is pressed.) 
RC350/RC300
Off
* The emergency flashers can be used.
ACCESSORY mode Some electrical components such as the
audio system can be used.
“ACCESSORY” will be displayed on the
meters.
IGNITION ON mode All electrical components can be used.
“IGNITION ON” will be displayed on
the meters.
* : If the shift le ver is in a position other than
P when turning off the engine, the
engine switch will be turned to ACCES-
SORY mode, not to off.Changing engine switch modes 1
2
3

2094-2. Driving procedures
4
Driving
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)
RC F
Off
* The emergency flashers can be used.
The analog speedometer and the
tachometer will not be illuminated.
However, if the welcome illumination is
operating, the analog speedometer will
illuminate.
(Welcome illumination:  P. 101)
ACCESSORY mode Some electrical components such as the
audio system can be used.
The analog speedometer is illuminated.
IGNITION ON mode All electrical components can be used.
The analog speedometer and the
tachometer will be illuminated.
* : If the shift le ver is in a position other than
P when turning off the engine, the
engine switch will be turned to ACCES-
SORY mode, not to off.
If the engine is stopped with the shift le ver in a position other than P, the engine
switch will not be turned off but inst ead be turned to ACCESSORY mode. Per-
form the following procedure to turn the switch off:
Check that the parking brake is set.
Shift the shift lever to P.
Check that “Turn Off Vehicle” is disp layed on the multi-information display
and then press the engine switch once.
Check that “Turn Off Vehicle” on th e multi-information display is off.1
2
3
When stopping the engine with the shift lever in a position other than P1
2
3
4

210 4-2. Driving procedures
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)■
Auto power off function
If the vehicle is left in ACCESSORY mode for more than 20 minutes or IGNITION ON
mode (the engine is not running) for more than an hour with the shift lever in P, the engine
switch will automatically turn off. However, this function cannot entirely prevent battery
discharge. Do not leave the vehicle with the engine switch in ACCESSORY or IGNI-
TION ON mode for long periods of ti me when the engine is not running.■
Electronic key battery depletion
 P. 143 ■
Conditions affe cting operation
 P. 158 ■
Notes for the entry function
 P. 159 ■
If the engine does not start ●
Check that the shift lever is se curely set in P. The engine ma y not start if the shift lever is
displaced out of P. ●
The engine immobilizer system ma y not have been deactivated. (  P. 79)
Contact your Lexus dealer. ■
Steering lock
After turning the engine switch off and opening and closing the doors, the steering wheel
will be locked due to the steering lock func tion. Operating the engine switch again auto-
matically cancels the steering lock. ■
When the steering lock cannot be released
■
Steering lock motor overheating prevention
To prevent the steering lock motor from overheating, operation of the motor may be sus-
pended if the engine is turned on and off repeat edly in a short period of time. In this case,
refrain from operating the engine switch. After about 10 seconds, the steering lock
motor will resume functioning. ■
When “Access System with Elec. Key Malf unction See Owner’s Manual” is displayed
on the multi-information display
The system may be malfunctio ning. Have the vehicle inspected by your Lexus dealer
immediately. ■
If the electronic key battery is depleted
 P. 427“Steering Wheel Lock Press Engine Switch
while Turning Wheel” w ill be displayed on the
multi-information display.
Check that the shift leve r is in P. Press the
engine switch while turn ing the steering wheel
left and right.
