3816-1. Maintenance and care
6
Maintenance and care
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)●
Remove dirt and dust using a vacuum cleaner. Wipe dirty surfaces with a cloth
dampened with lukewarm water. ●
If dirt cannot be removed, wipe it off with a soft cloth dampened with neutral
detergent diluted to approximately 1%.
Wring out any excess water from the clot h and thoroughly wipe off remaining
traces of detergent and water. ●
Remove dirt and dust using a vacuum cleaner. ●
Wipe off any excess dirt and dust with a soft cloth dampened with diluted
detergent. Use a diluted water solution of appr oximately 5% neutral wool detergent.●
Wring out any excess water from the clot h and thoroughly wipe off all remain-
ing traces of detergent. ●
Wipe the surface with a dry, soft cl oth to remove any remaining moisture.
Allow the leather to dry in a shaded and ventilated area. ●
Remove dirt and dust using a vacuum cleaner. ●
Wipe it off with a soft cloth dampened with neutral detergent diluted to
approximately 1%. ●
Wring out any excess water from the clot h and thoroughly wipe off remaining
traces of detergent and water.Cleaning and protect ing the vehicle interiorThe following procedures will help prot ect your vehicle’s interior and keep it
in top condition:
Protecting the vehicle interior
Cleaning the leather areas
Cleaning the synthetic leather areas

382 6-1. Maintenance and care
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)●
Brush the surfaces using a soft brush. Do not brush hard as doing so may cause damage.●
Wipe the surfaces clean with a soft clot h that has been dampened in cold or
lukewarm water and squeezed out. ●
Allow the artificial leather (Alcantara ®
* ) to dry in a shaded and ventilated
area.
* :“Alcantara ®
” is a registered trademark of Alcantara S.p.A.■
Caring for leather areas
Lexus recommends cleaning the interior of the vehicle at least twice a year to maintain
the quality of the vehicle’s interior. ■
Shampooing the carpets
There are several commercial foaming-type cl eaners available. Use a sponge or brush to
apply the foam. Rub in overlapp ing circles. Do not use water. Wipe dirty surfaces and let
them dry. Excellent results are obtained by keeping the carpet as dry as possible.■
Seat belts
Clean with mild soap and lukewarm water us ing a cloth or sponge. Also check the belts
periodically for excessive wear, fraying or cuts. ■
When cleaning the carpeted portions of the glove box, console box, etc.
If a strong adhesive tape is used, there is a possibility that the surface of the carpet could
be damaged.Cleaning the artificial leather (Alcantara ®
* ) areas
WARNING ■
Water in the vehicle ●
Do not splash or spill liquid in the vehicle.
Doing so may cause electrical components etc. to malfunction or catch fire. ●
Do not get any of the SRS components or wiring in the vehicle interior wet.
(  P. 41)
An electrical malfunction ma y cause the airbags to deploy or not function properly,
resulting in death or serious injury. ■
Cleaning the interior (especially instrument panel)
Do not use polish wax or polish cleaner. Th e instrument panel may reflect off the wind-
shield, obstructing the driver’s view and le ading to an accident, resulting in death or
serious injury.

3836-1. Maintenance and care
6
Maintenance and care
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)NOTICE ■
Cleaning detergents ●
Do not use the following liquids, as they ma y discolor the vehicle interior or cause
streaks or damage to painted surfaces:
• Center Display: Organic substances such as benzine or gasoline, alkaline solu-
tions, and alcohol
• Seats: Alkaline solutions, or ganic substances such as thinner or benzine, and alco-
hol
• Other parts: Organic substances such as benzine or gasoline , alkaline or acidic
solutions, dye, and bleach ●
Do not use polish wax or polis h cleaner. The instrument pane l’s or other interior part’s
painted surface may be damaged. ■
Preventing damage to leather surfaces
Observe the following precautions to avoid damage to and deterioration of leather
surfaces: ●
Remove any dust or dirt from leather surfaces immediately.●
Do not expose the vehicle to direct sunlight for extended periods of time. Park the
vehicle in the shade, especially during summer. ●
Do not place items made of vinyl, plastic, or containing wax on the upholstery, as they
may stick to the leather su rface if the vehicle interior heats up significantly.■
Water on the floor
Do not wash the vehicle floor with water.
Vehicle systems such as the audio system ma y be damaged if wate r comes into contact
with electrical components such as the au dio system above or un der the floor of the
vehicle. Water may also cause the body to rust. ■
When cleaning the inside of the windshield
Do not allow glass cleaner to contact the lens. Also, do not touch the lens. (  P. 247)■
Cleaning the inside of the rear window ●
Do not use glass cleaner to clean the rear window, as this may cause damage to the
rear window defogger heater wires or antenna. Use a cloth dampened with luke-
warm water to gently wipe the window clean. Wipe th e window in strokes running
parallel to the heater wires or antenna. ●
Be careful not to scratch or damage the heater wires or antenna.

384
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)6-2. Maintenance
General maintenance should be performed on a daily basis. This can be done by
yourself or by a Lexus dealer.
Scheduled maintenance should be perfor med at specified intervals according to
the maintenance schedule. For details about maintenance items and sc hedules, refer to the “Warranty and Ser-
vice Guide”, “Owner’s Manual Supplement” or “Scheduled Maintenance”.
You can perform some maintena nce procedures by yourself.
Please be aware that do-it-yourself ma intenance may affect warranty coverage.The use of Lexus repair manuals is recommended.
For details about warranty co verage, refer to th e separate “Owner’s Guide”, “War-
ranty and Service Guide”, “Owner’s Manu al Supplement” or “Warranty Booklet”.Maintenance requirements To ensure safe and economical driving, day-to-day care and regular mainte-
nance are essential. It is the owner’s re sponsibility to perform regular checks.
Lexus recommends the following maintenance:
General maintenance
Scheduled maintenance
Do-it-yourself maintenance

3856-2. Maintenance
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U) 6
Maintenance and care ■
Repair and replacement
It is recommended that genuine Lexus parts be used for repairs to ensure performance
of each system. If non-Lexus parts are used in replacement or if a repair shop other than
a Lexus dealer performs repairs, confirm the warranty coverage.■
Resetting the message indicati ng maintenance is required
After the required maintenanc e is preformed according to the maintenance schedule,
please reset the message.
To reset the message, follow the procedures described below:
Select on the multi-information display. (  P. 111, 129)
Press the or meter control switch on the steering wheel to select “Vehicle
Settings” then “Scheduled Maintenance”. (To confirm setting, press .)
Select “Yes” an d then press .
A message will be displayed on the multi- information display when the reset proce-
dure has been completed. ■
Allow inspection and repairs to be performed by a Lexus dealer●
Lexus technicians are well-trained specialists and are kept up to date with the latest ser-
vice information. They are well informed about the operations of all systems on your
vehicle. ●
Keep a copy of the repair order. It proves that the maintenance that has been per-
formed is under warranty co verage. If any problem should arise while your vehicle is
under warranty, your Lexus dealer will promptly take care of it. 1
2
3
4

386 6-2. Maintenance
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)WARNING ■
If your vehicle is not properly maintained
Improper maintenance could result in se rious damage to the vehicle and possible
death or serious injury. ■
Handling of the battery ●
Engine exhaust, some of its constituents, and a wide variety of automobile compo-
nents contain or emit chemicals known to th e State of California to cause cancer and
birth defects and other reproductive ha rm. Work in a well ventilated area.●
Oils, fuels and fluids contained in vehicles as well as waste produced by component
wear contain or emit chemicals known to the State of California to cause cancer and
birth defects or other reproductive harm. Avoid exposure and wash any affected area
immediately. ●
Battery posts, terminals and related acce ssories contain lead and lead compounds
which are known to cause brain damage . Wash your hands after handling. (  P. 408)

3876-2. Maintenance
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U) 6
Maintenance and care
General maintenance Listed below are the general maintenanc e items that should be performed at
the intervals specified in the “Warranty and Service Guide” or “Owner’s
Manual Supplement”. It is recommende d that any problem you notice should
be brought to the attention of your Lexu s dealer or qualified service shop for
advice.
Engine compartment Items Check points
Battery Check the indicator (if equipped) and connections.
(  P. 408)
Brake fluid Is the brake fluid at the correct level? (  P. 407)
Engine/intercooler coolant Is the engine/intercooler c oolant at the correct level?
(  P. 404)
Engine oil Is the engine oil at the correct level? (  P. 400)
Exhaust system There should not be any fumes or strange sounds.
Radiator, condenser and
intercooler radiator The radiator, condenser and intercooler radiator
should be free from foreign objects. (  P. 406)
Washer fluid Is there sufficient washer fluid? (  P. 411)

388 6-2. Maintenance

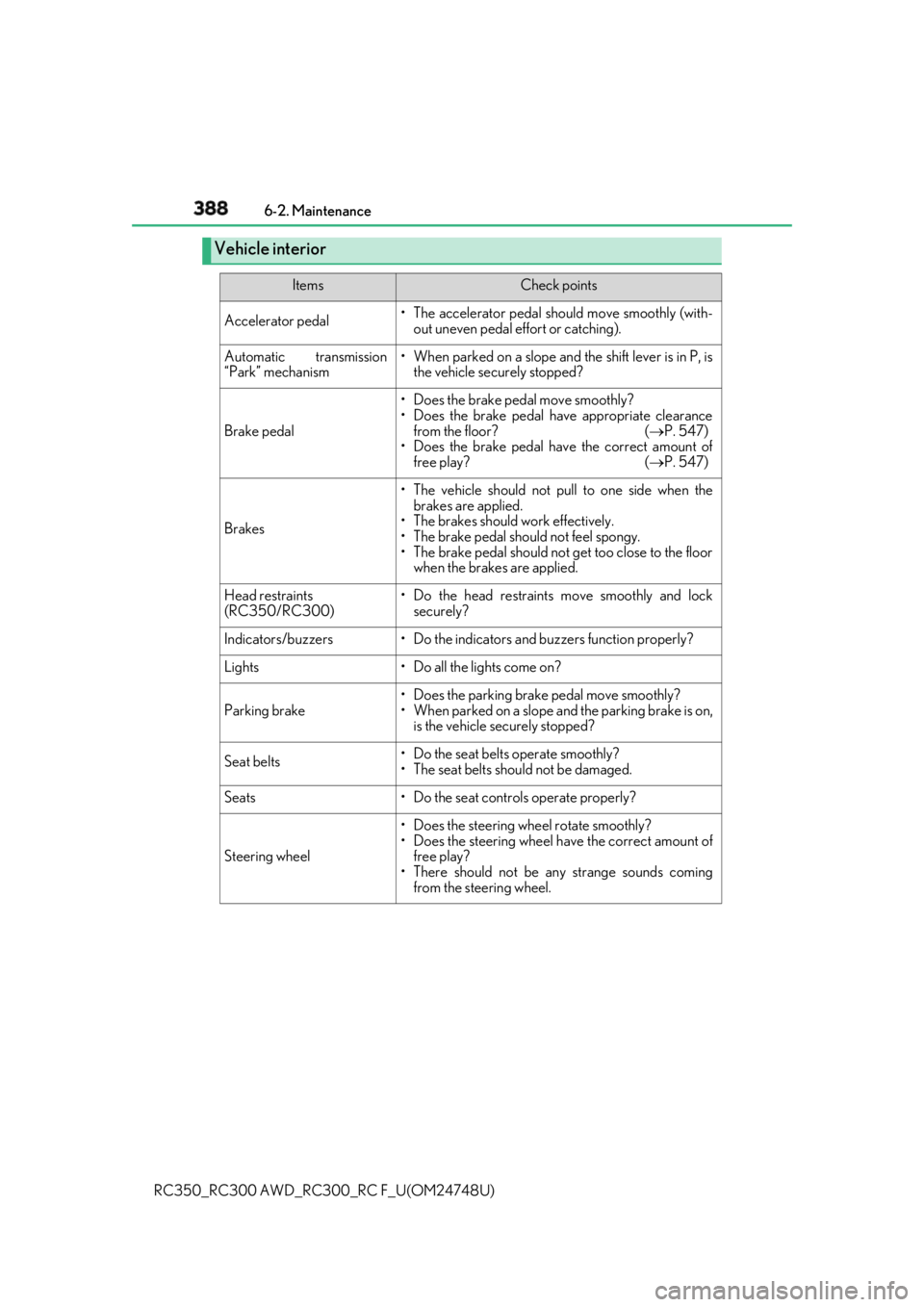

RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)Vehicle interior Items Check points
Accelerator pedal • The accelerator pedal sh ould move smoothly (with-
out uneven pedal effort or catching).
Automatic transmission
“Park” mechanism • When parked on a slope and the shift lever is in P, is
the vehicle securely stopped?
Brake pedal • Does the brake pedal move smoothly?
• Does the brake pedal have appropriate clearance
from the floor? (  P. 547)
• Does the brake pedal have the correct amount of
free play? (  P. 547)
Brakes • The vehicle should not pull to one side when the
brakes are applied.
• The brakes should work effectively.
• The brake pedal should not feel spongy.
• The brake pedal should no t get too close to the floor
when the brakes are applied.
Head restraints
(RC350/RC300) • Do the head restraints move smoothly and lock
securely?
Indicators/buzzers • Do the indicators and buzzers function properly?
Lights • Do all the lights come on?
Parking brake • Does the parking brake pedal move smoothly?
• When parked on a slope and the parking brake is on,
is the vehicle securely stopped?
Seat belts • Do the seat belts operate smoothly?
• The seat belts should not be damaged.
Seats • Do the seat controls operate properly?
Steering wheel • Does the steering wheel rotate smoothly?
• Does the steering wheel have the correct amount of
free play?
• There should not be any strange sounds coming
from the steering wheel.

3896-2. Maintenance
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U) 6

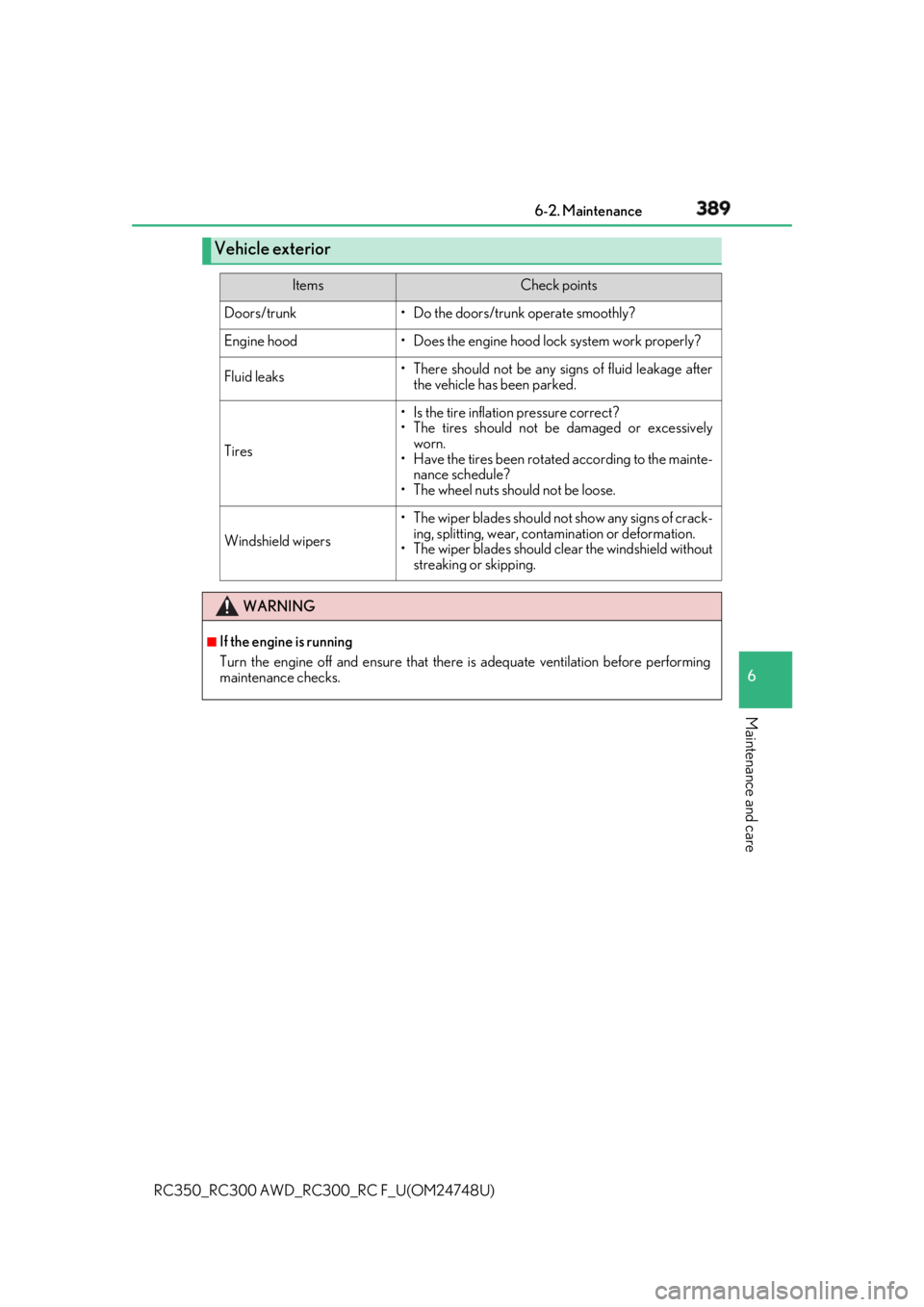

Maintenance and care Vehicle exterior Items Check points
Doors/trunk • Do the doors/trunk operate smoothly?
Engine hood • Does the engine hood lock system work properly?
Fluid leaks • There should not be any si gns of fluid leakage after
the vehicle has been parked.
Tires • Is the tire inflation pressure correct?
• The tires should not be damaged or excessively
worn.
• Have the tires been rotated according to the mainte-
nance schedule?
• The wheel nuts should not be loose.
Windshield wipers •The wiper blades should no t show any signs of crack-
ing, splitting, wear, contamination or deformation.
• The wiper blades should clear the windshield without
streaking or skipping.
WARNING ■
If the engine is running
Turn the engine off and ensure that there is adequate ventilation before performing
maintenance checks.

390 6-2. Maintenance
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)The OBD system determines that a problem exists somewhere in the emission
control system. Your vehicle may not pass the I/M test and may need to be
repaired. Contact your Lexus dealer to service the vehicle. ●
When the battery is disconnected or discharged
Readiness codes that are set duri ng ordinary driving are erased.
Also, depending on your driving habits , the readiness codes may not be com-
pletely set. ●
When the fuel tank cap is loose
The malfunction indicator lamp comes on indicating a temporary malfunction
and your vehicle may not pass the I/M test.
The error code in the OBD system will not be cleared unless the vehicle is driven
40 or more times.
Contact your Lexus dealer to pr epare the vehicle for re-testing.Emission inspection and maintenance (I/M)
programs Some states have vehicle emission in spection programs which include OBD
(On Board Diagnostics) checks. The OBD system monitors the operation of
the emission control system.
If the malfunction indicator lamp comes on
Your vehicle may not pass the I/M te st in the following situations:
When the malfunction indicator lamp still remains on after several driv-
ing trips
If your vehicle does not pass the I/M test
