4917-2. Steps to take in an emergency
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U) 7
When trouble arises

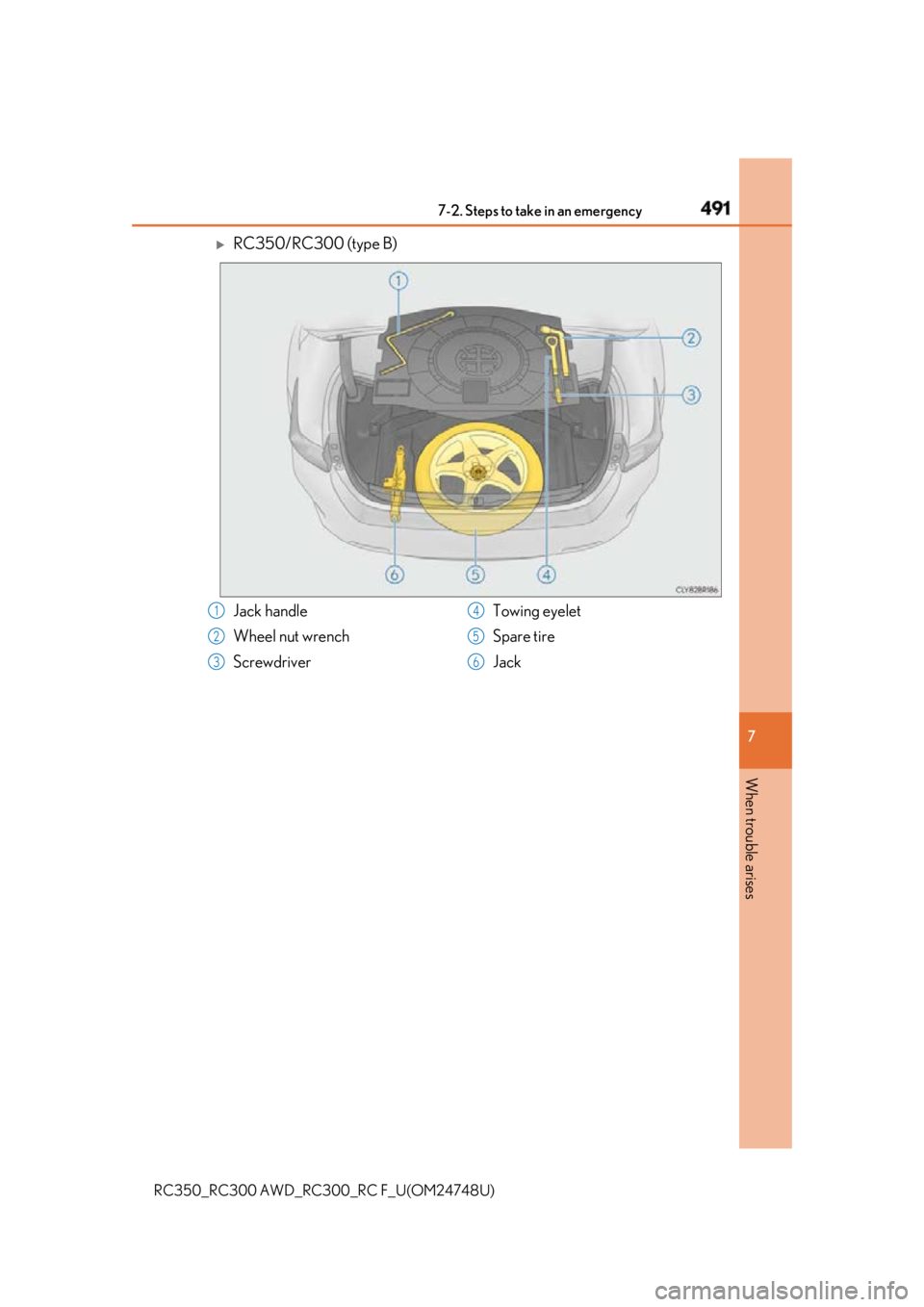

RC350/RC300 (type B)
Jack handle
Wheel nut wrench
Screwdriver Towing eyelet
Spare tire
Jack1
2
3 4
5
6
Page 492 of 636

492 7-2. Steps to take in an emergency
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)

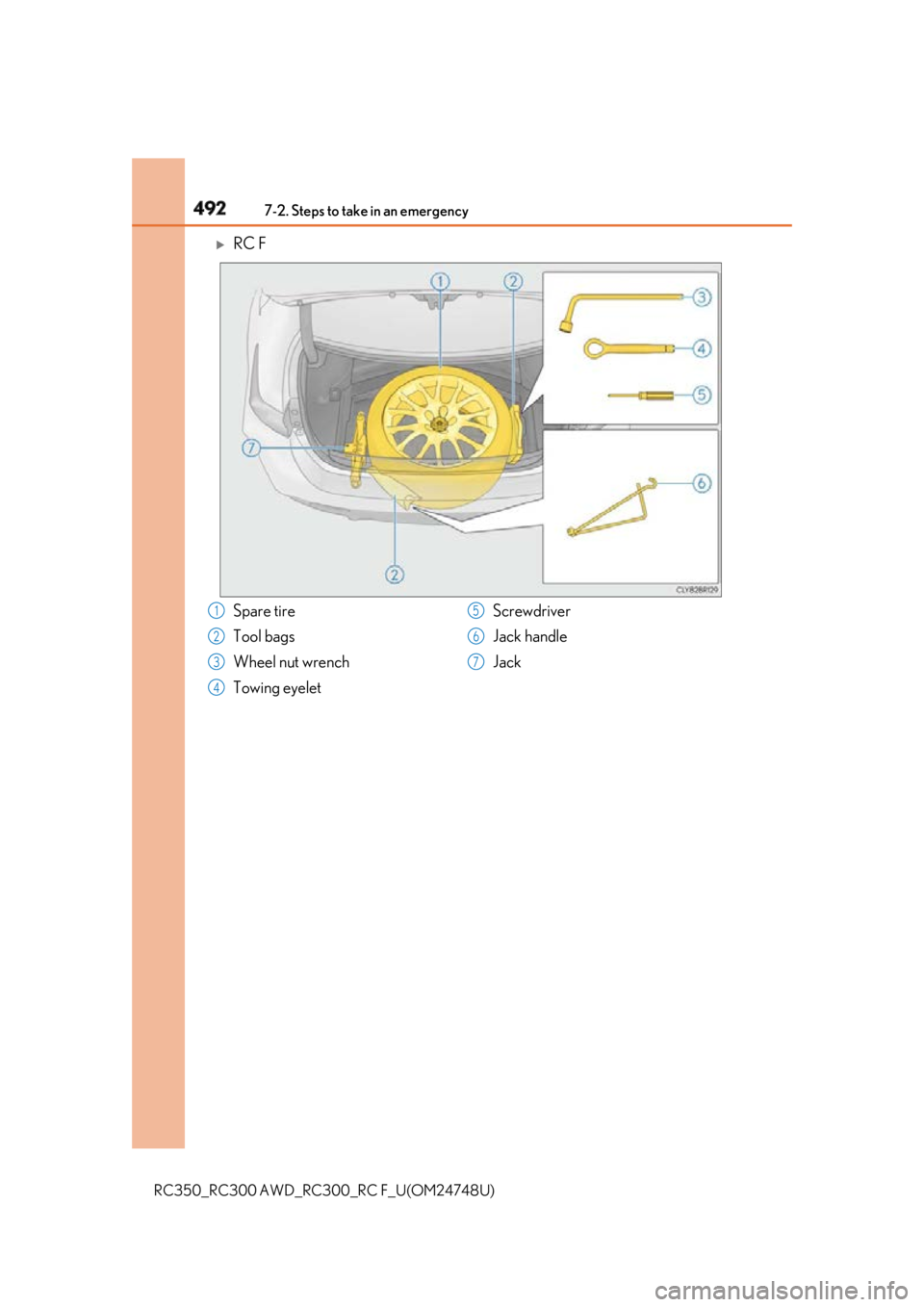

RC F
Spare tire
Tool bags
Wheel nut wrench
Towing eyelet Screwdriver
Jack handle
Jack1
2
3
4 5
6
7
Page 493 of 636

4937-2. Steps to take in an emergency
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U) 7
When trouble arises WARNING ■
Using the tire jack
Observe the following precautions.
Improper use of the tire jack may cause the ve hicle to suddenly fall off the jack, leading
to death or serious injury. ●
Do not use the tire jack for any purpose ot her than replacing tires or installing and
removing tire chains. ●
Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do no t use other tire jacks for replacing tires on
this vehicle. ●
Put the jack properly in its jack point. ●
Do not put any part of your body under the vehicle while it is supported by the jack.●
Do not start the engine or drive the vehicle while the vehicle is supported by the jack. ●
Do not raise the vehicle while someone is inside. ●
When raising the vehicle, do not pu t an object on or under the jack.●
Do not raise the vehicle to a height greater than that required to replace the tire. ●
Use a jack stand if it is necessary to get under the vehicle. ●
When lowering the vehicle, make sure that there is no-one near the vehicle. If there
are people nearby, warn them vocally before lowering.
Page 494 of 636

494 7-2. Steps to take in an emergency
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)
RC350/RC300
Hold the hook and lift up the lug-
gage mat.
Secure the luggage mat using the
hook.
Remove the tool tray.
Take out the jack.
For tightening
For loosening If the jack is too tightly installed to be
removed by hand, insert a tool, such
as the screwdriver included with the
vehicle, into the hole of the jack (por-

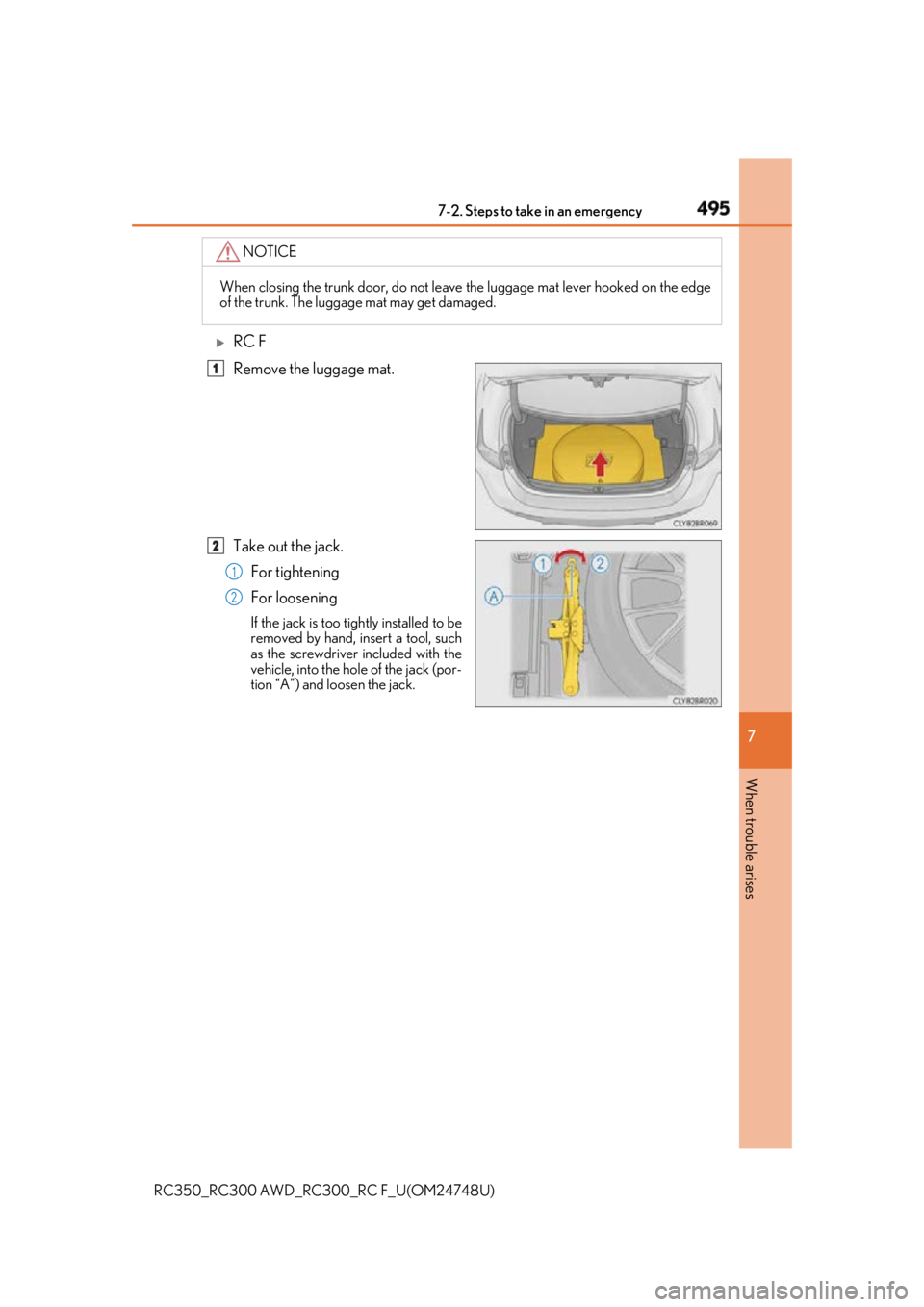

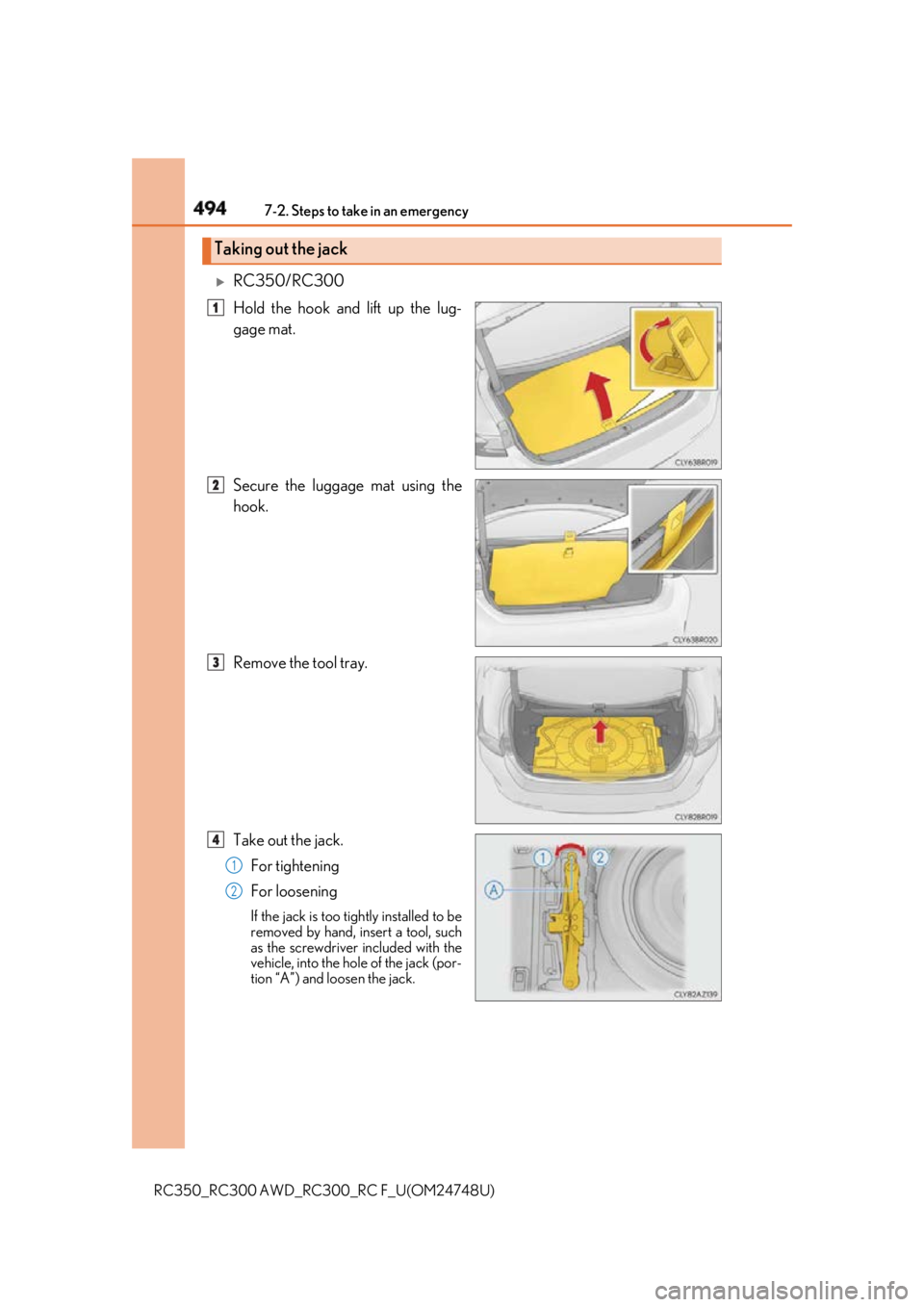

tion “A”) and loosen the jack.Taking out the jack 1
2
3
4
1
2
Page 495 of 636

4957-2. Steps to take in an emergency
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U) 7
When trouble arises
RC F
Remove the luggage mat.
Take out the jack.
For tightening
For loosening If the jack is too tightly installed to be
removed by hand, insert a tool, such
as the screwdriver included with the
vehicle, into the hole of the jack (por-
tion “A”) and loosen the jack.NOTICE
When closing the trunk door, do not leave the luggage mat lever hooked on the edge
of the trunk. The luggage mat may get damaged. 1
2
1
2
Page 496 of 636

496 7-2. Steps to take in an emergency
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)
RC350/RC300
Secure the luggage mat using the hook. ( P. 494)
Remove the tool tray.
Loosen the center fastener that
secures the spare tire. If the center fastener cannot be turned
by hand, use the wheel nut wrench that
is stored in the trunk. (To secure the tire,
tighten the center fastener by hand. Do
not use the wrench or other tools.)
RC F
Remove the luggage mat.
Loosen the center fastener that
secures the spare tire. If the center fastener cannot be turned
by hand, use the wheel nut wrench that
is stored in the trunk. (To secure the tire,
tighten the center fastener by hand. Do

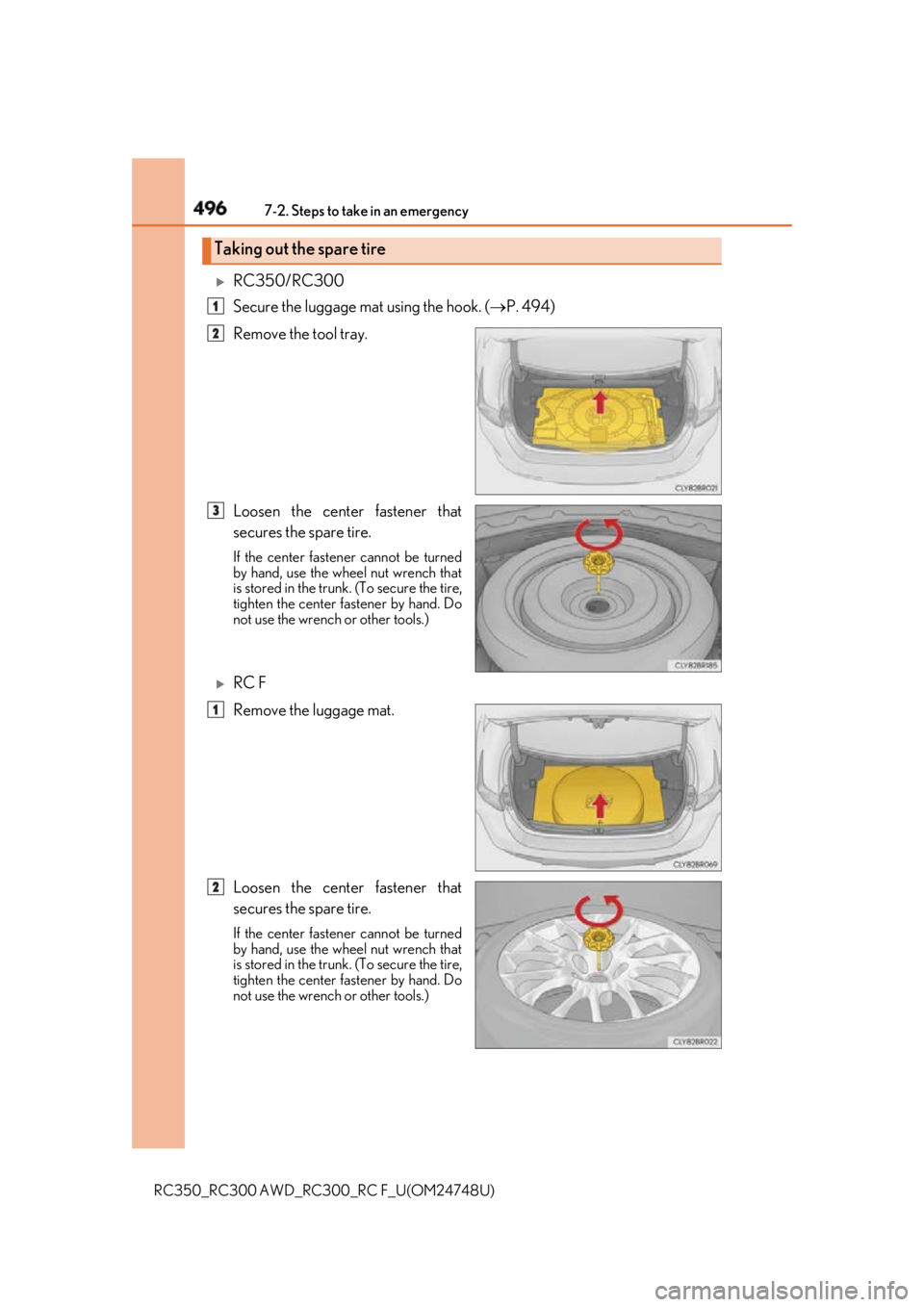

not use the wrench or other tools.)Taking out the spare tire 1
2
3
1
2
Page 497 of 636

4977-2. Steps to take in an emergency
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U) 7
When trouble arises Chock the tires.
Slightly loosen the wheel nuts (one
turn).
Turn the tire jack portion “A” by hand
until the notch of the jack is in con-
tact with the jack point. The jack point guides are located under
the rocker panel. They indicate the jack
point positions. WARNING ■
When storing the spare tire
Be careful not to catch fingers or other body parts between the spare tire and the body
of the vehicle.

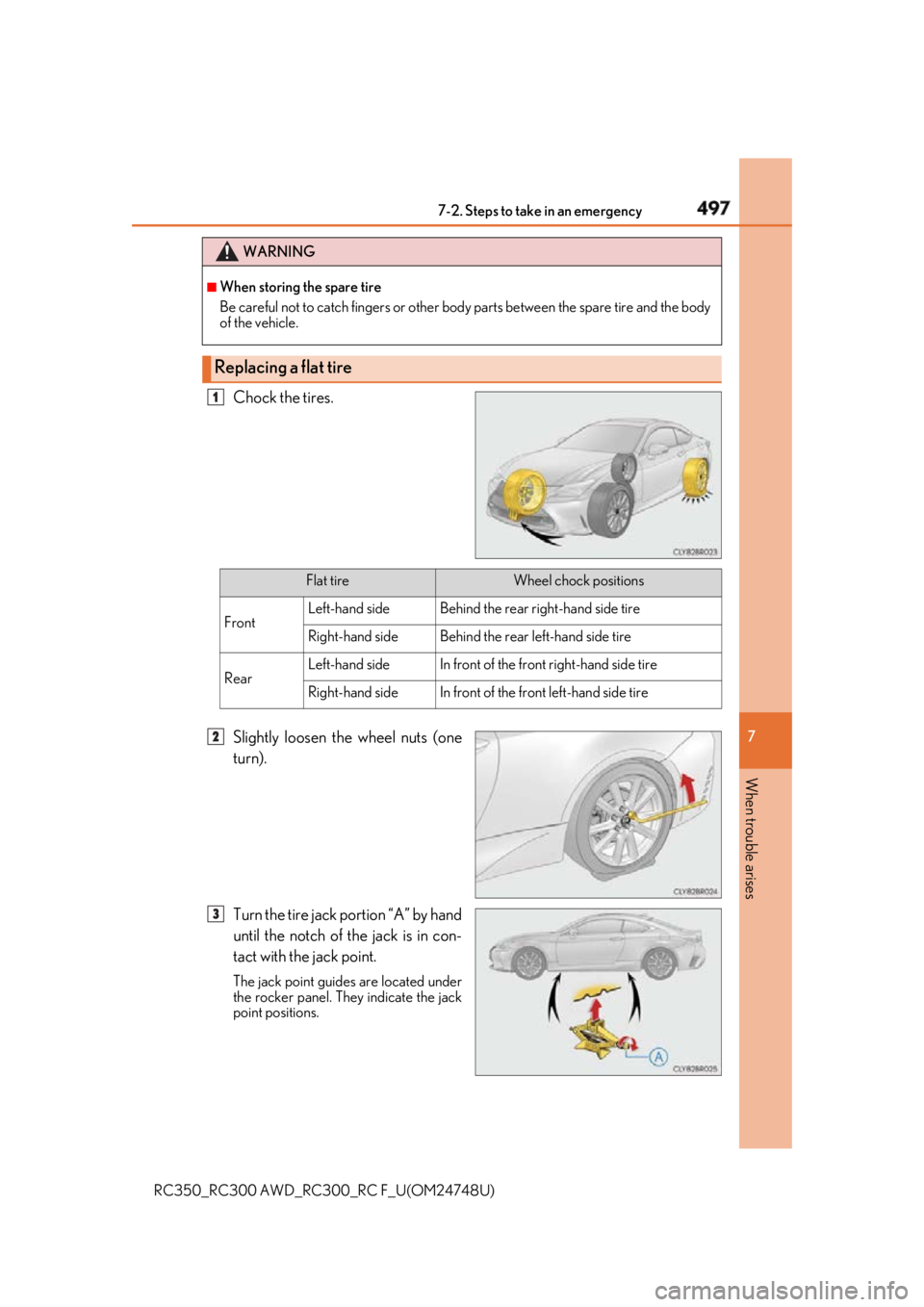

Replacing a flat tire 1
Flat tire Wheel chock positions
Front Left-hand side Behind the rear right-hand side tire
Right-hand side Behind the rear left-hand side tire
Rear Left-hand side In front of the front right-hand side tire
Right-hand side In front of the front left-hand side tire2
3
Page 498 of 636

498 7-2. Steps to take in an emergency
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and the
tire. When resting the tire on the ground,
place the tire so that the wheel design
faces up to avoid scratching the wheel

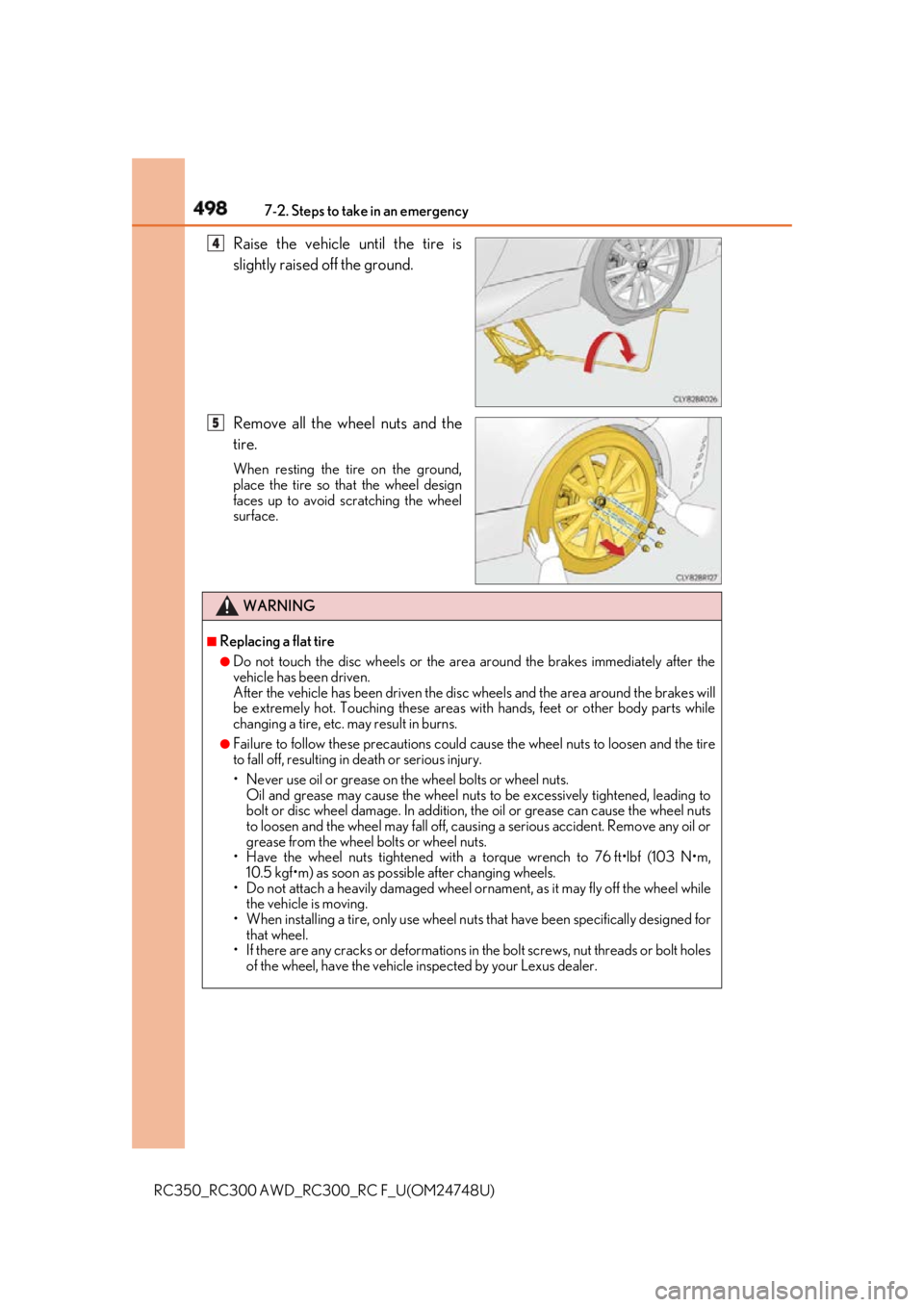

surface. 4
5
WARNING ■
Replacing a flat tire ●
Do not touch the disc wheels or the area around the brakes immediately after the
vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around the brakes will
be extremely hot. Touching these areas with hands, feet or other body parts while
changing a tire, etc. may result in burns. ●
Failure to follow these precautions could cau se the wheel nuts to loosen and the tire
to fall off, resulting in death or serious injury.
• Never use oil or grease on the wheel bolts or wheel nuts.
Oil and grease may cause the wheel nuts to be excessively tightened, leading to
bolt or disc wheel damage. In addition, the oil or grease can cause the wheel nuts
to loosen and the wheel may fall off, causing a serious accident. Remove any oil or
grease from the wheel bolts or wheel nuts.
• Have the wheel nuts tightened with a torque wrench to 76 ft•lbf (103 N•m,
10.5 kgf•m) as soon as possible after changing wheels.
• Do not attach a heavily damaged wheel or nament, as it may fly off the wheel while
the vehicle is moving.
• When installing a tire, only use wheel nuts that have been specifically designed for
that wheel.
• If there are any cracks or deformations in the bolt screws, nut threads or bolt holes
of the wheel, have the vehicle inspected by your Lexus dealer.
Page 499 of 636

4997-2. Steps to take in an emergency
RC350_RC300 AWD_RC3 00_RC F_U(OM24748U) 7
When trouble arises Remove any dirt or foreign matter
from the wheel contact surface. If foreign matter is on the wheel contact
surface, the wheel nuts may loosen
while the vehicle is in motion, causing
the tire to come off.
Install the spare tire and loosely tighte n each wheel nut by hand by approxi-
mately the same amount.
When replacing an aluminum wheel
with a steel wheel, tighten the wheel
nuts until the tapered portion comes
into loose contact with the disc
wheel seat.
When replacing an aluminum wheel
with an aluminum wheel, turn the
wheel nuts until the washers come
into contact with the disc wheel.

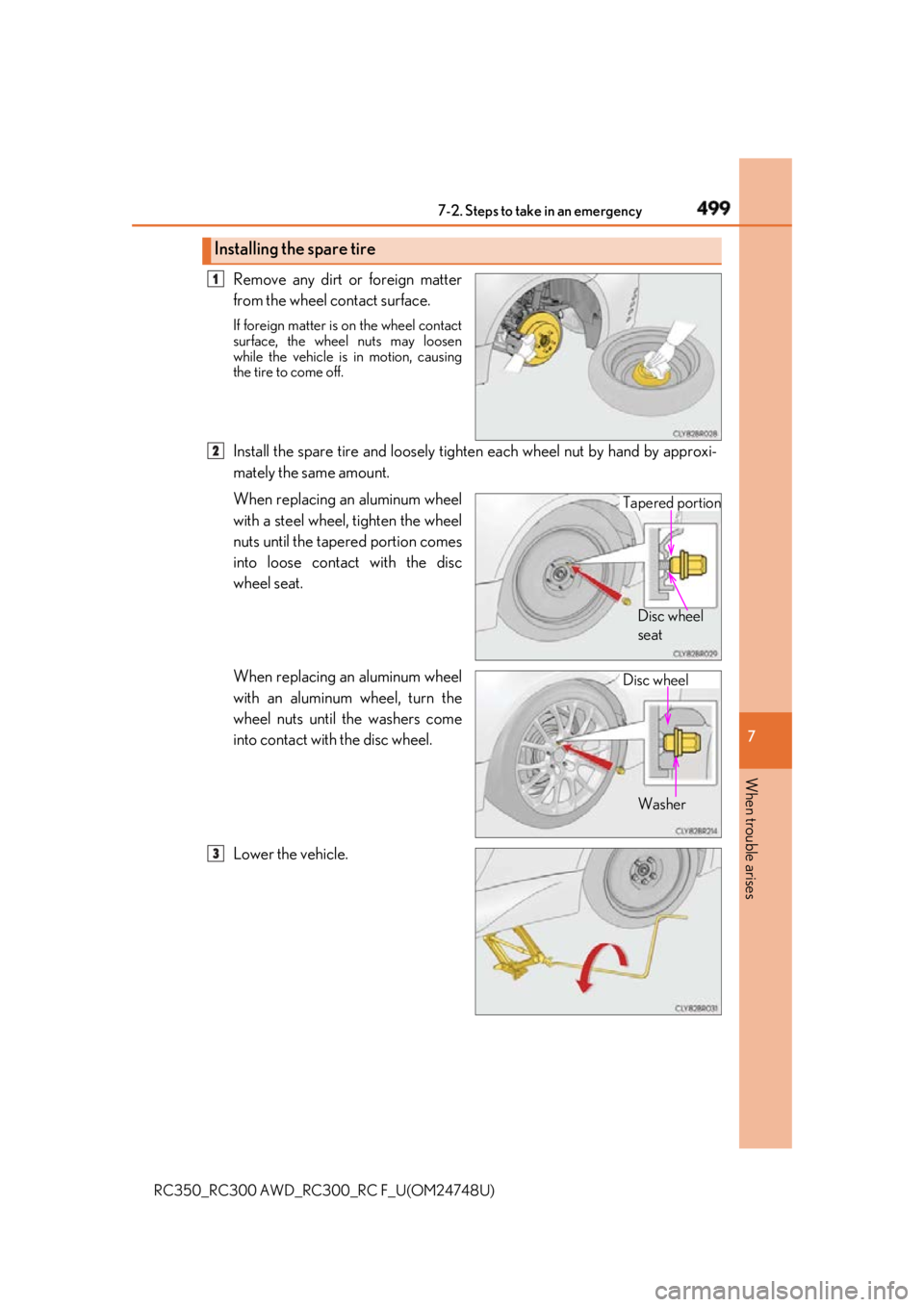

Lower the vehicle.Installing the spare tire 1
2
Disc wheel
seatTapered portion
WasherDisc wheel
3
Page 500 of 636

500 7-2. Steps to take in an emergency

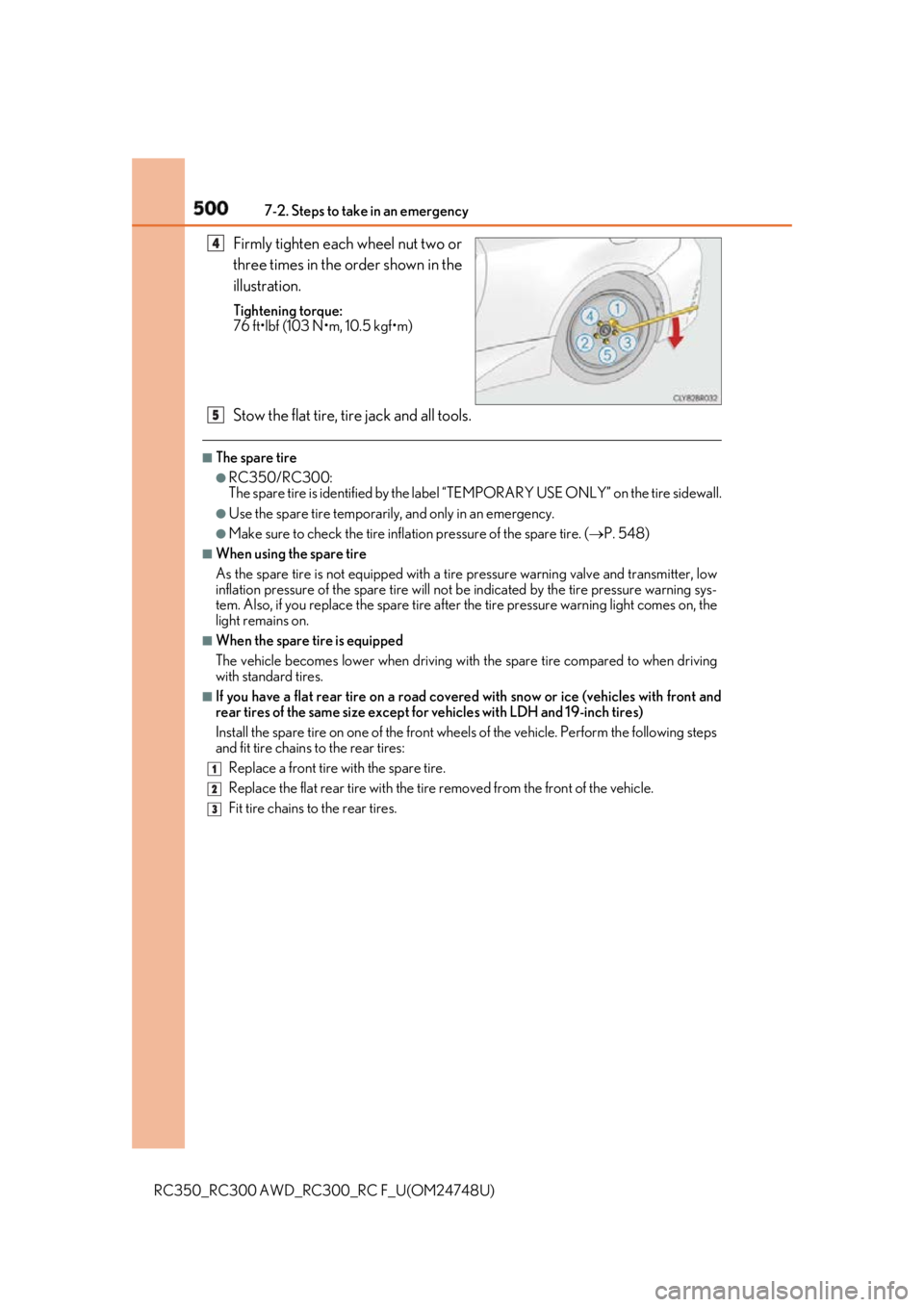

RC350_RC300 AWD_RC3 00_RC F_U(OM24748U)Firmly tighten each wheel nut two or
three times in the order shown in the
illustration. Tightening torque:
76 ft•lbf (103 N•m, 10.5 kgf•m)
Stow the flat tire, tire jack and all tools. ■
The spare tire ●
RC350/RC300:
The spare tire is identified by the label “TEMPORARY USE ONLY” on the tire sidewall.●
Use the spare tire temporarily , and only in an emergency.●
Make sure to check the tire inflat ion pressure of the spare tire. ( P. 548)■
When using the spare tire
As the spare tire is not equipped with a tire pressure warning valv e and transmitter, low
inflation pressure of the spare tire will not be indicated by the tire pressure warning sys-
tem. Also, if you replace the spare tire after the tire pressure warn ing light comes on, the
light remains on. ■
When the spare tire is equipped
The vehicle becomes lower when driving with the spare tire compared to when driving
with standard tires. ■
If you have a flat rear tire on a road covered with snow or ice (vehicles with front and
rear tires of the same size except fo r vehicles with LDH and 19-inch tires)
Install the spare tire on one of the front whee ls of the vehicle. Perform the following steps
and fit tire chains to the rear tires:
Replace a front tire with the spare tire.
Replace the flat rear tire with the tire removed from the front of the vehicle.
Fit tire chains to the rear tires. 4
5
1
2
3
