stop start LEXUS RCF 2019 Owner's Guide

4597-2. Steps to take in an emergency
RC F_U 7
When trouble arises WARNING ■
Maintenance of the tires
Each tire, including the spare (if provided), should be checked monthly when cold and
inflated to the inflation pressure recomm ended by the vehicle manufacturer on the
vehicle placard or tire inflation pressure label (tire and load information label). (If your
vehicle has tires of a different size than the size indicated on the vehicle placard or tire
inflation pressure label [tire and load in formation label], you should determine the
proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle ha s been equipped with a tire pressure moni-
toring system (TPMS-tire pressure warning system) that illuminates a low tire pressure
telltale (tire pressure warning light) when on e or more of your tires is significantly
under-inflated. Accordingly, when the low ti re pressure telltale (tire pressure warning
light) illuminates, you should st op and check your tires as soon as possible, and inflate
them to the proper pressure. Driving on a si gnificantly under-inflat ed tire causes the
tire to overheat and can lead to tire failure . Under-inflation also reduces fuel efficiency
and tire tread life, and may affect the vehicle’s handling and stopping ability.
Please note that the TPMS (tire pressure wa rning system) is not a substitute for proper
tire maintenance, and it is th e driver’s responsibility to ma intain correct tire pressure,
even if under-inflation has not reached the le vel to trigger illumina tion of the TPMS low
tire pressure telltale (tir e pressure warning light).
Your vehicle has also been equipped with a TPMS (tire pressure warning system) mal-
function indicator to indicate when the system is not operating properly. The TPMS
(tire pressure warning system) malfunction indi cator is combined with the low tire pres-
sure telltale (tire pressure warning light). When the system detects a malfunction, the
telltale will flash for approximately one mi nute and then remain continuously illumi-
nated. This sequence will cont inue upon subsequent vehicl e start-ups as long as the
malfunction exists. When the malfunction in dicator is illuminated, the system may not
be able to detect or signal low tire pressure as intended.
TPMS (tire pressure warning system) malfun ctions may occur for a variety of reasons,
including the installation of replacement or alternate tires or wheels on the vehicle that
prevent the TPMS (tire pressure warning system) from functioning properly. Always
check the TPMS (tire pressure warning system) malfunction telltale after replacing one
or more tires or wheels on your vehicle to ensure that the replacement or alternate
tires and wheels allow the TPMS (tire pressu re warning system) to continue to function
properly.
NOTICE ■
To ensure the tire pressure warning system operates properly
Do not install tires with different specificatio ns or makers, as the tire pressure warning
system may not operate properly.

478 7-2. Steps to take in an emergency
RC F_U Indicates a malfunction in the tire pressure warning sys-
tem
 Stop the vehicle in a safe place and turn the engine
switch off then on again.
If the tire pressure warn ing indicator flashes for 1
minute then illuminates, ther e is a malfunction in the
system. Have the vehicle inspected at your Lexus
dealer.
Indicates that the tire position information cannot be rec-
ognized
 Drive for a short while an d check if the display
updates.
If the radio wave conditions improve, the display
may return to normal. If th e tire pressure is still not
displayed after driving for several minutes, stop the
vehicle in a safe place, turn the engine switch off
then on again, and start driving.
If the tire pressure is st ill not displayed even after
repeating this process seve ral times, have the vehi-
cle inspected at your Lexus dealer. (If equipped)
Indicates a malfunction in the DRS (Dynamic Rear Steer-
ing)
system
A buzzer also sounds.
 Have the vehicle inspected by your Lexus dealer. (If equipped)
Indicates a malfunction in the active rear wing
 Have the vehicle inspected by your Lexus dealer.
Indicates that the washer fluid level is low
 Add washer fluid.Warning message Details/Actions

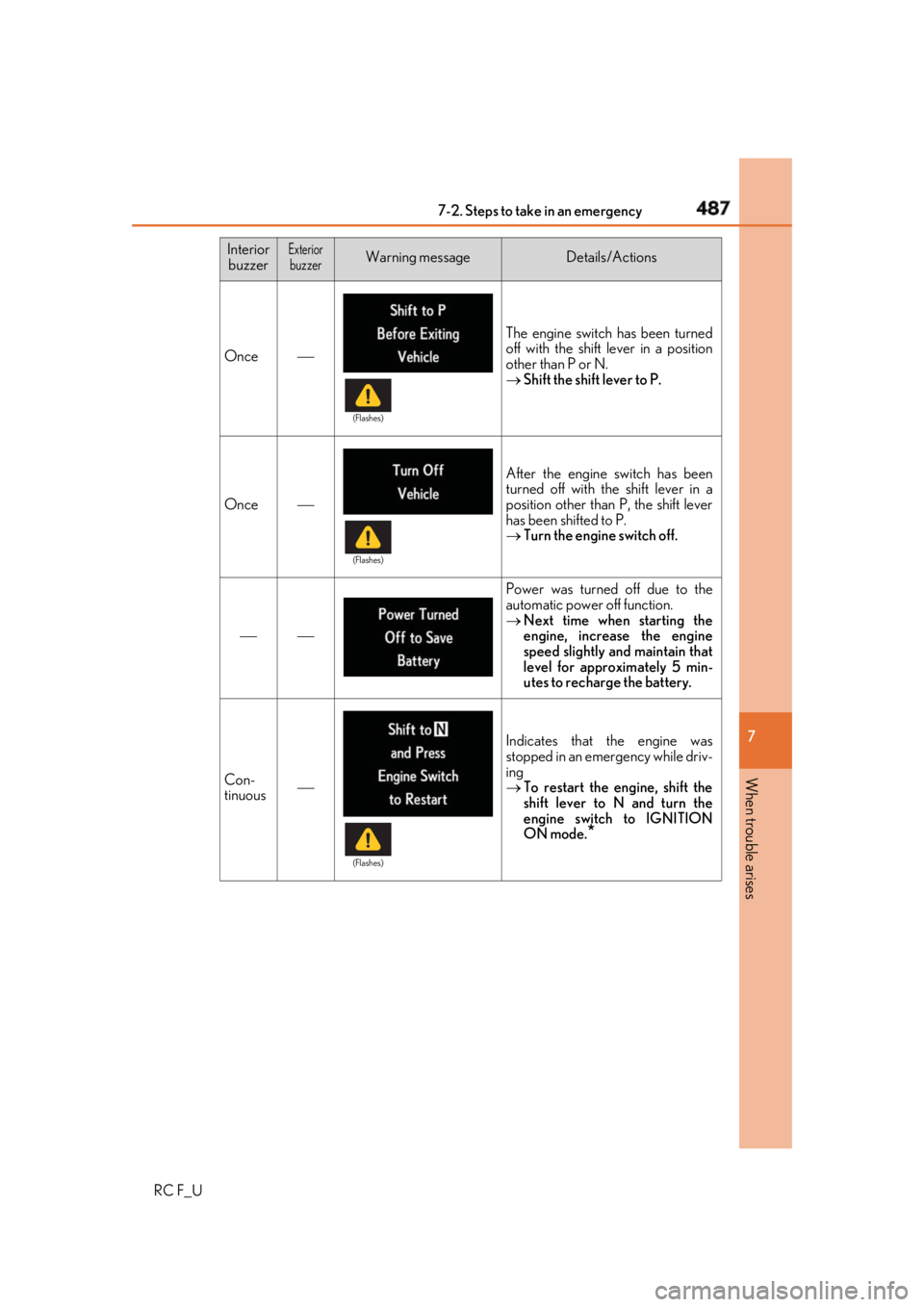

4877-2. Steps to take in an emergency
RC F_U 7
When trouble arises Once  The engine switch has been turned
off with the shift lever in a position
other than P or N.
 Shift the shift lever to P.
Once  After the engine switch has been
turned off with the shift lever in a
position other than P, the shift lever
has been shifted to P.
 Turn the engine switch off.
  Power was turned off due to the
automatic power off function.
 Next time when starting the
engine, increase the engine
speed slightly and maintain that
level for approximately 5 min-
utes to recharge the battery.
Con-
tinuous  Indicates that the engine was
stopped in an emergency while driv-
ing
 To restart the engine, shift the
shift lever to N and turn the
engine switch to IGNITION
ON mode.
*Interior
buzzer Exterior
buzzer Warning message Details/Actions (Flashes)
(Flashes)
(Flashes)

488 7-2. Steps to take in an emergency
RC F_U * : The engine may not be restarted depending on the vehicle condition.■
Warning messages
 P. 482 ■
Warning buzzer
 P. 457Once  Indicates that the engine switch has
been pressed while driving
 Except when emergency stop-
ping of the vehicle is needed,
immediately release the engine
switch.Interior
buzzer Exterior
buzzer Warning message Details/Actions (Flashes)

520 7-2. Steps to take in an emergency
RC F_U Ensure that the shift lever is in P and depress the brake pedal.
Touch the Lexus emblem side of the
electronic key to the engine switch. When the electronic key is detected, a
buzzer sounds and the engine switch
will turn to IGNITION ON mode.
When the smart access system with
push-button start is deactivated in cus-
tomization setting, the engine switch will
turn to ACCESSORY mode.
Firmly depress the brake pedal and check that is shown on the multi-
information display.
Press the engine switch.
In the event that the engine still cannot be started, contact your Lexus dealer.■
Stopping the engine
Shift the shift lever to P and press the engine switch as you normally do when stopping
the engine. ■
Replacing the key battery
As the above procedure is a temporary measure, it is recommended that the electronic
key battery be replaced immediately when the battery is depleted. (  P. 427)■
Changing engine switch modes
Release the brake pedal and press the engine switch in step above.
The engine does not start and modes will be changed each time the switch is pressed.
(  P. 208) ■
When the electronic key does not work properly ●
Make sure that the smart access system wi th push-button start has not been deacti-
vated in the customization setting. If it is off, turn the function on.
(Customizable features:  P. 569)●
Check if battery-saving mode is set. If it is set, cancel the function. (  P. 158)Starting the engine 1
2
3
4
3

5297-2. Steps to take in an emergency
RC F_U 7
When trouble arises Add coolant if necessary. Water can be used in an emerge ncy if coolant is unavailable.
Start the engine and turn the air conditio ning system on to check that the radi-
ator cooling fans operate and to check for coolant leaks from the radiator or
hoses. The fans operate when the air conditioning system is turned on immediately after a
cold start. Confirm that the fans are operating by checking the fan sound and air flow.
If it is difficult to check these, turn the air conditioning system on and off repeatedly.
(The fan may not operate in freezing temperatures.)
If the fans are not operating:
Stop the engine immediately an d contact your Lexus dealer.
If the fans are operating:
Have the vehicle inspected at the nearest Lexus dealer. 5 
Engine (RC350/RC300 AWD) 
Engine (RC300)
Engine (RC F) 
Intercooler (RC300)
6
7

532 7-2. Steps to take in an emergency
RC F_U Stop the engine. Set the parking br ake and shift the shift lever to P.
Remove the mud, snow or sand from around the rear wheels.
Place wood, stones or some other materi al under the rear wheels to help pro-
vide traction.
Restart the engine.
Shift the shift lever to D or R and rele ase the parking brake. Then, while exer-
cising caution, depress the accelerator pedal. ■
When it is difficult to free the vehicle 
RC350/RC300
If the vehicle becomes stuck Carry out the following procedures if the tires spin or the vehicle becomes
stuck in mud, dirt or snow:
Press ( ) to turn off TRAC. 1
2
3
4
5

5778-2. Customization
RC F_U 8
Vehicle specifications ■
Seat belt reminder (  P. 455)■
Vehicle customization ●
When the smart access system with push-button start is off, the entry unlock function
cannot be customized. ●
When the doors remain closed after unlocking the doors and the timer activated auto-
matic door lock function activates, signals will be generated in accordance with the
operation buzzer volume and operational si gnal (Emergency flashers) function set-
tings. ●
Some settings can be changed using a switch or the Center Display. If a setting is
changed using a switch, the ch anged setting will not be refl ected on the Center Display
screen until the engine switch is turn ed off and then to IGNITION ON mode.■
When customizing usin g the Remote Touch
Stop the vehicle in a safe place, apply the parking brake, and shift the shift lever to P. Also,
to prevent battery discharge, leave the engine running while customizing the features. Function Default setting Customized setting
Vehicle speed linked seat belt
reminder buzzer On Off — O 1 2
WARNING ■
During customization
As the engine needs to be running during customization, ensure that the vehicle is
parked in a place with adequate ventilation. In a closed area such as a garage, exhaust
gases including harmful carbon monoxide (CO) may collect and enter the vehicle. This
may lead to death or a serious health hazard.
NOTICE ■
During customization
To prevent battery discharge, ensure that the engine is running while customizing fea-
tures.

613What to do if... (Troubleshooting)
RC F_U ●
Did you press the engine switch while firmly depressing the brake pedal?
(  P. 207)●
Is the shift lever in P? (  P. 210)●
Is the electronic key anywhere detectable inside the vehicle? (  P. 156)●
Is the steering wheel unlocked? (  P. 210)●
Is the electronic key battery weak or depleted?
In this case, the engine can be started in a temporary way. (  P. 520)●
Is the battery discharged? (  P. 522)●
Is the engine switch in IGNITION ON mode?
If you cannot release the shift lever by depressing the brake pedal with the
engine switch in IGNITION ON mode. (  P. 219)●
It is locked automatically to prevent theft of the vehicle. (  P. 210)
●
Is the window lock switch pressed?
The power window except for the one at the driver’s seat cannot be operated
if the window lock switch is pressed. (  P. 182)
●
The auto power off function will be operated if the vehicle is left in ACCES-
SORY or IGNITION ON mode (the engine is not running) for a period of
time. (  P. 210)If you think something is wrong The engine does not start
The shift lever cannot be shifted from P even if you depress the brake
pedal
The steering wheel cannot be turned after the engine is stopped
The windows do not open or close by operating the power window
switches
The engine switch is turned off automatically

614 What to do if... (Troubleshooting)
RC F_U ●
The seat belt reminder light is flashing
Are the driver and the front passe nger wearing the seat belts? (  P. 455)●
The parking brake indicator is on
Is the parking brake released? (  P. 222)
Depending on the situation, other type s of warning buzzer may also sound.
(  P. 453, 460)
●
Did anyone inside the vehicle open a door during setting the alarm?
The sensor detects it and the alarm sounds. (  P. 80)
Do one of the following to de activate or stop the alarms:• Unlock the doors.
• Open the trunk using the entry function or wireless remote control.
• Turn the engine switch to ACCESSORY or IGNITION ON mode, or start the
engine.
●
Is the electronic key left inside th e vehicle or the moon roof opened?
Check the message on the multi-information display. (  P. 460)
●
When a warning light turns on or a wa rning message is displayed, refer to
P. 453, 460. A warning buzzer sounds during driving
An alarm is activated and the horn sounds
A warning buzzer sounds when leaving the vehicle
A warning light turns on or a warning message is displayed
