hood open LEXUS RCF 2021 Owners Manual

4TABLE OF CONTENTS
Hood..................................................264
Positioning a floor jack............... 265
Engine compartment.................. 267
Tires ................................................... 273
Tire inflation pressure ................. 279
Wheels............................................... 281
Air conditioning filter..................282
Electronic key battery ................ 283
Checking and replacing fuses ........................................................... 285
Headlight aim................................. 287
Light bulbs ....................................... 288
7-1. Essential information Emergency flashers..................... 294
If your vehicle has to be stopped in an emergency ............................. 294
If the vehicle is trapped in rising water............................................... 295
7-2. Steps to take in an emergency If your vehicle needs to be towed........................................................... 297
If you think something is wrong ........................................................... 300
Fuel pump shut off system ......... 301
If a warning light turns on or a warn- ing buzzer sounds ..................... 302
If a warning message is displayed ............................................................ 310
If you have a flat tire (vehicles with a spare tire) ...................................... 313
If you have a flat tire (vehicles with an emergency tire puncture
repair kit) ....................................... 319
If the engine wi ll not start .......... 329If you lose your keys.....................
331
If the fuel filler door cannot be opened ........................................... 331
If the electronic key does not oper- ate properly ................................. 332
If the vehicle battery is discharged .......................................................... 334
If your vehicle overheats ........... 337
If the vehicle becomes stuck ... 339
8-1. Specifications Maintenance data (fuel, oil level, etc.) ................................................. 342
Fuel information............................ 349
Tire information ............................. 351
8-2. Customization Customizable features .............. 360
8-3. Items to initialize Items to initialize ........................... 369
8-4. Certifications Certifications ................................. 370
9-1. For owners Reporting safety defects for U.S. owners ........................................... 380
Seat belt instructions for Canadian owners (in French) ................... 380
SRS airbag instructions for Cana- dian owners (in French) ......... 382
Headlight aim instructions for Canadian owners (in French)... .......

................................................ 388
7When trouble arises
8Vehicle specifications
9For owners

13Pictorial index
Windshield wipers .................................................................................................. P.143
Precautions for winter season ..................................................................................... P.204
To prevent freezing (windshield wiper de-icer)
*................................................... P.217
Precautions against car wash ............................. ......................................................... P.242
Fuel filler door ..........................................................................................................P.150
Refueling method .............................................................................................................. P .150
Fuel type/fuel tank capacity ...... ................................................................................... P.343
Tires.......................................................................................................................... ..P.273
Tire size/inflation pressure ............................ ............................................................... P.347
Winter tires.......................................................................................................................... P.204
Checking/rotation/tire pressure warning system.............................................. P.273
Coping with flat tires............................................................................................... P.313, 319
Hood .......................................................................................................................... P.264
Opening ........................................................................................................................ ....... P.264
Engine oil ..................................................................................................................... ......... P.343
Coping with overheating ............................................................................................... P.337
Warning messages ........................................................................................................... P.31 0
Active rear wing
*.................................................................................................... P.195
Headlights .................................................................................................................P.13 8
Parking lights/daytime running lights...............................................................P.138
Turn signal lights ...................................................................................................... P.136
Side marker lights ...................................................................................................P.138
Tail lights .................................................................................................................... P.138
Stop lights
License plate lights .................................................................................................P.138
Back up lights
Shifting the shift lever to R .............................................................................................. P.13 3
*:If equipped
Light bulbs of the exterior lights for driving(Replacing method: P.288, Watts: P.348)
D
E
F
G
H
I
J
K
L
M
N
O

15Pictorial index
Parking brake........................................................................................................... P.137
Applying/releasing ............................................................................................................P.137
Precautions for winter season .. ...................................................................................P.205
Warning buzzer/message............................................................................................. P.310
Headlight switch .....................................................................................................P.138
Turn signal lever ...................................................................................................... P.136
Headlights/parking lights/tail lights/license plate lig hts/daytime running lights
................................................................................................................................................... P.138
Windshield wiper and washer switch ................................................................ P.143
Usage.......................................................................................................................... ............ P.143
Adding washer fluid ......................................................................................................... P.2 72
Warning messages ........................................................................................................... P.31 0
Headlight cleaners
*1......................................................................................................... P.143
Emergency flasher switch ...................................................................................P.294
Trunk opener switch................................................................................................. P.96
Hood lock release lever ....................................................................................... P.264
Tilt and telescopic steering control switch
*1.................................................. P.108
Adjustment ..................................................................................................................... ...... P.108
Driving position memory
*1............................................................................................. P.105
Tilt and telescopic steeri ng lock release lever
*1........................................... P.108
Air conditioning system ........................................................................................P.213
Usage.......................................................................................................................... .............P.213
Rear window defogger..................................................................................................... P.217
Audio system
*2
Trunk opener main switch ..................................................................................... P.98
*1: If equipped
*2: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
E
F
G
H
I
J
K
L
M
N
O

581-4. Theft deterrent system
■Items to check before locking the
vehicle
To prevent unexpected triggering of
the alarm and vehicle theft, make sure
of the following:
 Nobody is in the vehicle.
 The windows and moon roof (if
equipped) are closed before the
alarm is set.
 No valuables or other personal items are left in the vehicle.
■Setting
Close the doors, trunk and hood, and
lock both side doors. The system will
be set automatically after 30 seconds.
The indicator light changes from being on
to flashing when the system is set.
■Deactivating or stopping
Do one of the following to deactivate
or stop the alarms:
 Unlock the doors.
 Open the trunk using the entry
function or wireless remote control.
 Turn the engine switch to ACCES-
SORY or IGNITION ON mode, or
start the engine. (The alarm will be
deactivated or stopped after a few
seconds.)
■System maintenance
The vehicle has a maintenance-free type
alarm system.
■Triggering of the alarm
The alarm may be triggered in the following
situations:
(Stopping the alarm deactivates the alarm
system.)
●For Canada: The doors are unlocked
using the mechanical key.
Alarm
The alarm uses light and sound to
give an alert when an intrusion is
detected.
The alarm is triggered in the follow-
ing situations when the alarm is set:
 Except for Canada: A locked
door is unlocked or opened in any
way other than using the entry
function, wireless remote control
or mechanical key. (The doors will
lock again automatically.)
 For Canada: A locked door is
unlocked or opened in any way
other than using the entry func-
tion or wireless remote control.
(The doors will lock again auto-
matically.)
 The trunk is opened in any way
other than using the entry func-
tion or wireless remote control.
 The hood is opened.
Setting/deactivating/stopping
the alarm system

591-4. Theft deterrent system
1
For safety and security
●The trunk is opened using the mechanical
key.
●A person inside the vehicle opens a door,
the trunk or hood, or unlocks the vehicle
using an inside lock button.
●The battery is rech arged or replaced
when the vehicle is locked. ( P.336)
■Alarm-operated door lock
In the following cases, depending on the sit-
uation, the door may automatically lock to
prevent improper entry into the vehicle:
●When a person remaining in the vehicle
unlocks the door and the alarm is acti-
vated.
●While the alarm is activated, a person remaining in the vehicle unlocks the door.
●When recharging or replacing the bat-
tery
NOTICE
■To ensure the system operates cor-
rectly
Do not modify or remove the system. If
modified or removed, the proper opera-
tion of the system cannot be guaranteed.

943-2. Opening, closing and locking the doors and trunk
■Door lock switches (to
lock/unlock)
1 Locks both side doors
2 Unlocks both side doors
■Inside lock buttons (to lock/unlock)
1 Locks the door
2 Unlocks the door
Both side doors can be opened by pulling
the inside handle even if the lock buttons
are in the lock position.
■Locking the doors from the outside with-
out a key
1 Move the inside lock button to the lock
position.
2 Close the door.
The door cannot be locked if the engine
switch is in ACCESSORY or IGNITION
ON mode, or the electronic key is left
inside the vehicle. However, the key may not
be detected correctly and the door may be
locked.
■If a symbol indicating one or more of the
doors open is shown on the multi-infor-
mation display
The hood, one or more of the doors, or
trunk is not fully closed. If the vehicle
reaches a speed of 3 mph (5 km/h), the
master warning light flashes and a buzzer
sounds to indicate that the door(s) are not
fully closed. Make sure to close hood, all
doors and trunk.
The following functions can be set or
canceled:
For instructions on customizing, refer to
WARNING
■To prevent an accident
Observe the following precautions while
driving the vehicle.
Failure to do so may result in a door
opening and an occupant being thrown
out of the vehicle, re sulting in death or
serious injury.
●Ensure that both side doors are prop-
erly closed and locked.
●Do not pull the inside handle of the
doors while driving.
The doors may be opened even if the
inside lock buttons are in locked position.
■Side window open/close function
linked to door operation
Do not hold the upper edge of the side
window when you close the door. Other-
wise, your fingers or hand may be caught
in the window.
Unlocking and locking the doors
from the inside
Automatic door locking and
unlocking systems

1564-5. Using the driving support systems
●In the following situations, if the situation has changed (or the vehicle has been driven for
some time) and the normal operating conditions are detected, the message will disappear
and the system will become operational.
If the message does not disappear, contact your Lexus dealer.
• When the temperature around the radar sensor is outside of the operational range, such as when the vehicle is in the sun or in an extremely cold environment
• When the front camera cannot detect objects in front of the vehicle, such as when driving
in the dark, snow, or fog, or when brig ht lights are shining into the front camera

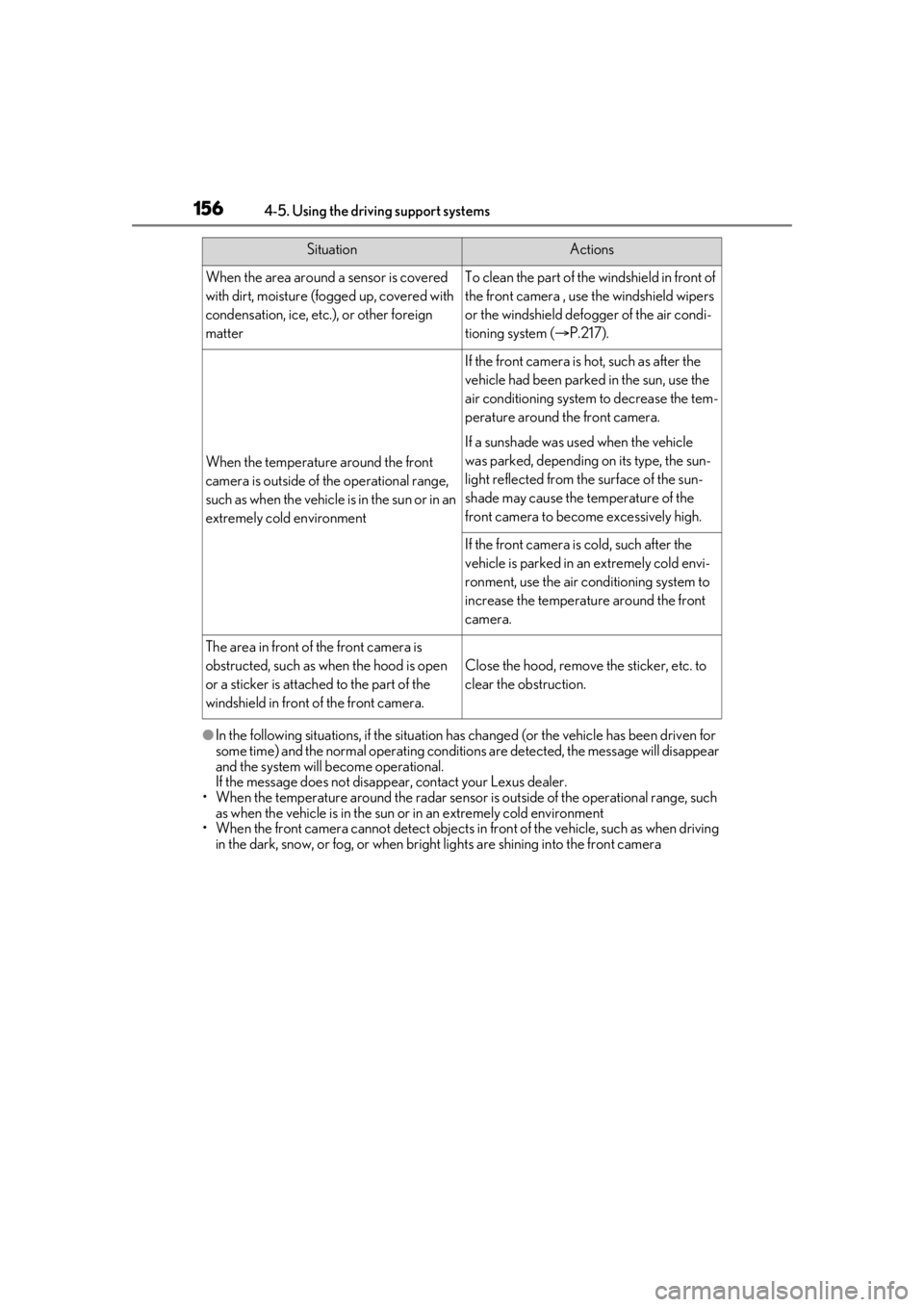

SituationActions
When the area around a sensor is covered
with dirt, moisture (f ogged up, covered with
condensation, ice, etc.), or other foreign
matterTo clean the part of the windshield in front of
the front camera , use the windshield wipers
or the windshield defo gger of the air condi-
tioning system ( P.217).
When the temperature around the front
camera is outside of the operational range,
such as when the vehicle is in the sun or in an
extremely cold environment
If the front camera is hot, such as after the
vehicle had been parked in the sun, use the
air conditioning system to decrease the tem-
perature around the front camera.
If a sunshade was used when the vehicle
was parked, depending on its type, the sun-
light reflected from the surface of the sun-
shade may cause the temperature of the
front camera to become excessively high.
If the front camera is cold, such after the
vehicle is parked in an extremely cold envi-
ronment, use the air conditioning system to
increase the temperature around the front
camera.
The area in front of the front camera is
obstructed, such as when the hood is open
or a sticker is attached to the part of the
windshield in front of the front camera.
Close the hood, remove the sticker, etc. to
clear the obstruction.

2195-2. Using the air conditioning system
5
Interior features
●During use, various odors from inside and
outside the vehicle may enter into and
accumulate in the air conditioning sys-
tem. This may then cause odor to be
emitted from the vents.
●To reduce potential odors from occur-
ring:
• It is recommended that the air condition-
ing system be set to outside air mode
prior to turning the vehicle off.
• The start timing of the blower may be
delayed for a short period of time imme-
diately after the air conditioning system is
started in automatic mode.
■Air conditioning filter
 P.282
■Air conditioning system refrigerant
●A label regarding the refrigerant of the
air conditioning system is attached to the
hood at the location shown in the follow-
ing illustration.
●The meaning of each symbol on the label
are as follows:
■Customization
Some functions can be customized.
(  P.360)
■Location of air outlets
The air outlets and air volume changes
according to the selected airflow
mode.
■Adjusting the position of and open-
ing and closing the air outlets
Front
Direct air flow to the left or right, up
or down
Turn the knob to open or close the
vent
Caution
Air conditioning system
Air conditioning system
lubricant type
Requires registered tech-
nician to service air condi-
tioning system
Flammable refrigerant
Air outlets
A
B

2646-4. Do-it-yourself maintenance
1Pull the hood lock release lever.
The hood will pop up slightly.
2Pull up the auxiliary catch lever and
lift the hood.
Hood
Opening the hood
WARNING
■Pre-driving check
Check that the hood is fully closed and
locked.
If the hood is not locked properly, it may
open while the vehicle is in motion and
cause an accident, which may result in
death or serious injury.

3347-2. Steps to take in an emergency
key when the alarm system is set, the alarm
may be triggered.
■Changing engine switch modes
Release the brake pedal and press the
engine switch in step 3 above.
The engine does not start and modes will be
changed each time the switch is pressed.
(  P.130)
If you have a set of jumper (or booster)
cables and a second vehicle with a
12-volt battery, you can jump start your
vehicle by following the steps below.
1 Confirm that the electronic key is
being carried.
When connecting the jumper (or booster)
cables, depending on the situation, the
alarm may activate and doors locked.
( P.59)
2 Open the hood. ( P.264)
3 Remove the engine cover.
Raise the rear of the engine cover
to remove the rear clip, and then
If the vehicle battery is dis-
charged
The following procedures may be
used to start the engine if the vehi-
cle’s battery is discharged.
You can also call your Lexus dealer
or a qualified repair shop.
Restarting the engine
