turn signal bulb LEXUS RCF 2022 Owners Manual

13Pictorial index
RC F Owner's Manual
Windshield wipers .................................................................................................. P.143
Precautions for winter season .....................................................................................P.203
To prevent freezing (windshield wiper de-icer)
*.................................................. P.215
Precautions against car wash ...................................................................................... P.240
Fuel filler door ..........................................................................................................P.150
Refueling method .............................................................................................................. P .150
Fuel type/fuel tank capacity .......................................................................................... P.341
Tires.......................................................................................................................... ... P.271
Tire size/inflation pressure ............................ ............................................................... P.345
Winter tires................................................................................................................... .......P.203
Checking/rotation/tire pressure warning system................................................ P.271
Coping with flat tires................................................................................................. P.311, 3 21
Hood ..........................................................................................................................P .262
Opening ........................................................................................................................ ....... P.262
Engine oil ..................................................................................................................... .......... P.341
Coping with overheating ............................................................................................... P.336
Warning messages ......................................................................................................... P.308
Active rear wing
*.................................................................................................... P.195
Headlights .................................................................................................................P.13 8
Parking lights/daytime running lights................ ...............................................P.138
Turn signal lights ...................................................................................................... P.136
Side marker lights ...................................................................................................P.138
Tail lights .................................................................................................................... P.138
Stop lights
License plate lights .................................................................................................P.138
Back up lights
Shifting the shift lever to R .............................................................................................. P.13 3
*:If equipped
Light bulbs of the exterior lights for driving(Replacing method: P.286, Watts: P.346)
D
E
F
G
H
I
J
K
L
M
N
O

1364-2. Driving procedures
RC F Owner's Manual
The lever will return to its original posi-
tion immediately after operation.
1Right turn
2 Lane change to the right (move the
lever partway and release it)
The right hand signals will flash 3 times.
3Lane change to the left (move the
lever partway and release it)
The left hand signals will flash 3 times.
4Left turn
■If the turn signals do not stop flash-
ing after turning left or right, or if
you want to stop them flashing
Operate the lever in the opposite
direction to either position 2 or 3 . If
you move the lever to either position 1
or 4, the selected turn signals will flash.
■Turn signals can be operated when
The engine switch is in IGNITION ON
mode.
■If the indicator flashes faster than usual
Check that a light bulb in the front or rear
turn signal lights has not burned out.
■If the turn signals stop flashing before a
lane change has been performed
Operate the lever again.
■Customization
Some functions can be customized.
( P.358)
Turn signal lever
Operating instructions

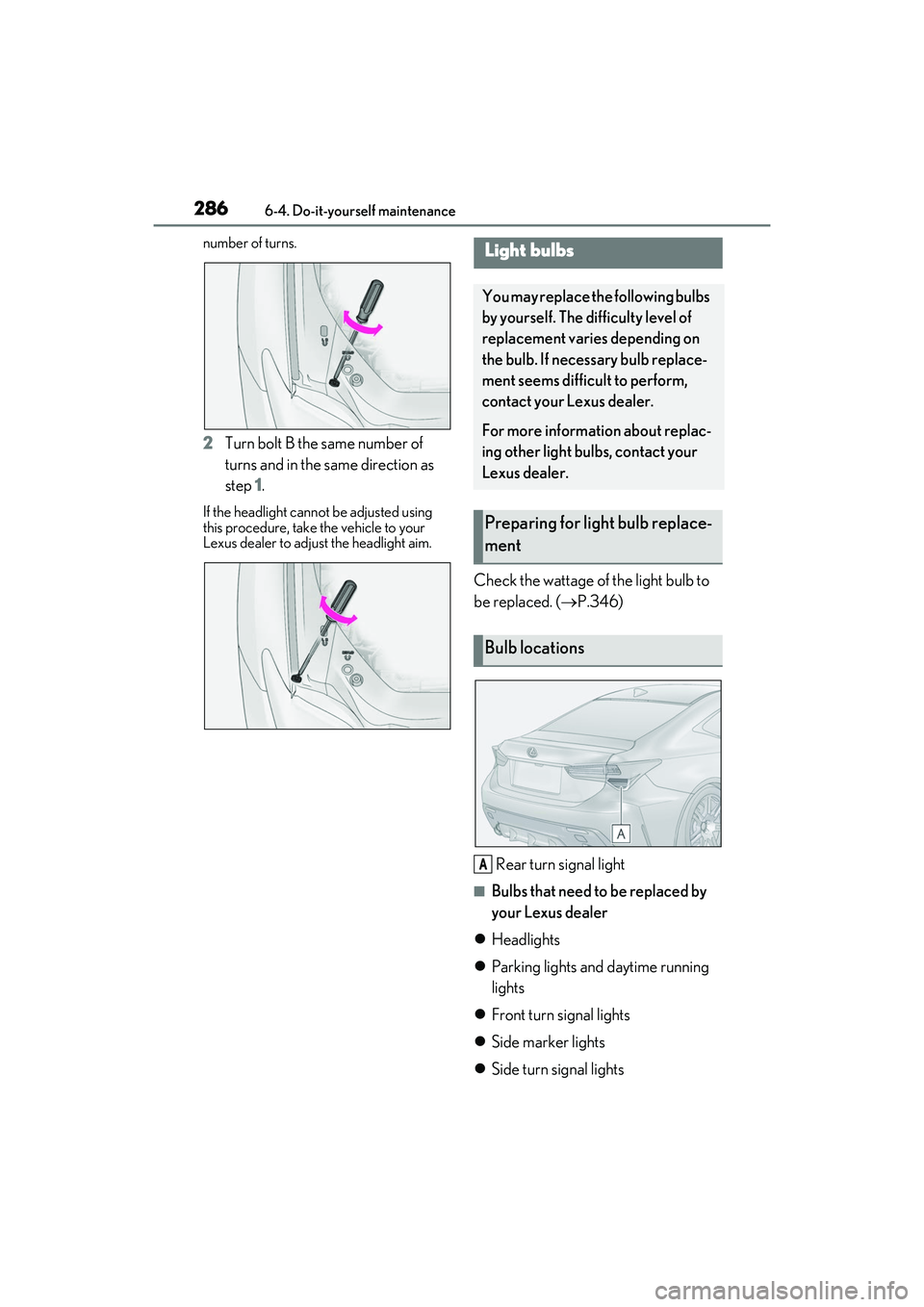

2866-4. Do-it-yourself maintenance
RC F Owner's Manual
number of turns.
2Turn bolt B the same number of
turns and in the same direction as
step 1.
If the headlight cannot be adjusted using
this procedure, take the vehicle to your
Lexus dealer to adjust the headlight aim.
Check the wattage of the light bulb to
be replaced. ( P.346)
Rear turn signal light
■Bulbs that need to be replaced by
your Lexus dealer
 Headlights
 Parking lights and daytime running
lights
 Front turn signal lights
 Side marker lights
 Side turn signal lights
Light bulbs
You may replace the following bulbs
by yourself. The difficulty level of
replacement varies depending on
the bulb. If necessary bulb replace-
ment seems difficult to perform,
contact your Lexus dealer.
For more information about replac-
ing other light bulbs, contact your
Lexus dealer.
Preparing for light bulb replace-
ment
Bulb locations
A

2876-4. Do-it-yourself maintenance
RC F Owner's Manual
6
Maintenance and care
Stop/tail lights
 Back-up lights
 High mounted stoplight
 License plate lights
■LED light bulbs
The lights other than the rear turn signal
lights each consist of a number of LEDs. If
any of the LEDs burn out, take your vehicle
to your Lexus dealer to have the light
replaced.
■Condensation build-up on the inside of
the lens
Temporary condensation build-up on the
inside of the headlight lens does not indi-
cate a malfunction. Contact your Lexus
dealer for more information in the following
situations:
●Large drops of water ha ve built up on the
inside of the lens.
●Water has built up in side the headlight.
■When replacing light bulbs
P.285
■Rear turn signal lights
1 Open the trunk and apply protec-
tive tape to the peripheral of the
taillight and the vehicle body
around the taillight.
Use masking tape, etc. Do not use duct
tape, as it may leave residue or damage the paint when removed.
2
Using a flathead screwdriver,
remove the cover.
To prevent scratching the vehicle, wrap the
tip of the flathead scre wdriver with a cloth,
etc.
3 Remove the 2 screws.Replacing light bulbs

2886-4. Do-it-yourself maintenance
RC F Owner's Manual
4Pull the light unit toward the rear of
the vehicle to remove it.
5 Turn the bulb base
counterclockwise.
6 Remove the light bulb.
7 Install a new light bulb then install
the bulb base to the light unit by
inserting it and turning the bulb
base clockwise.
After installing the light bulb, turn on the
rear turn signal light to visually check that there is no light leaking from the bulb base.
8
Align the tabs and push the light
unit toward the front of the vehicle
to install it.
9 Install the 2 screws and cover.
10 Remove the protective tape.
WARNING
■Replacing light bulbs
●Turn off the lights. Do not attempt to
replace the bulb immediately after
turning off the lights. The bulbs
become very hot and may cause
burns.
●Do not touch the glass portion of the
light bulb with bare hands. When it is
unavoidable to hold the glass portion,
use and hold with a clean dry cloth to
avoid getting moisture and oils on the
bulb. Also, if the bu lb is scratched or
dropped, it may blow out or crack.

3468-1. Specifications
RC F Owner's Manual
Type B
A: Wedge base bulbs (amber)
B: Wedge base bulbs (clear)
Tire size
Front tires: 255/35ZR19 (92Y)
Rear tires: 275/35ZR19 (96Y)
Spare tire: 225/40ZR19 (93Y)
Tire inflation pressure (Rec-
ommended cold tire inflation
pressure)
Driving under normal conditions
Front: 36 psi (250 kPa, 2.5 kgf/cm
2 or bar)
Rear: 36 psi (250 kPa, 2.5 kgf/cm
2 or bar)
Spare: 42 psi (290 kPa, 2.9 kgf/cm
2 or bar)
Driving at high speeds (above 137 mph [220 km/h]) (in
countries where such speeds are permitted by law)
Add 8 psi (50 kPa, 0.5 kgf/cm
2 or bar) to the fronttires and
rear tires. Never exceed th e maximum coldtire inflation
pressure indicated on the tire sidewall.
Wheel size
Front wheels: 19  9J
Rear wheels: 19  10J
Spare wheels: 19  8 1/2J
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)
Light bulbs
Light bulbsBulb No.WType
ExteriorRear turn signal lights21A
Interior
Vanity lights8B
Footwell lights1943.8B
Trunk light5B

397Alphabetical Index
RC F Owner's Manual
Preparing and checking before winter......................................................................... 203
Engine coolant temperature gauge ....... 66
Engine immobilizer system .........................57
Engine oil Capacity ...........................................................341
Checking ....................................................... 265
Low engine oil pressure warning light.......................................................................... 301
Preparing and checking before winter ......................................................................... 203
Engine switch ..................................................128 Auto power off function ............................ 131
Changing the engine switch modes. 130
If your vehicle has to be stopped in an
emergency ................................................ 292
EPS (Electric Power Steering) ................199 Electric power steer ing system warning
light ................................................................ 302
Event data recorder (EDR) ........................... 8
F
First-aid kit storage belt ............................ 225
Flat tire Tire pressure warning system ............. 273
Vehicles with a spare tire ........................ 321
Vehicles without a spare tire .................. 311
Floor mats ...........................................................22
Fluid Automatic transmission .......................... 343
Brake....................................................268, 344
Washer ........................................................... 270
Footwell light ................................................... 221
Front passenger occupant classification system .............................................................. 36
Front seats Adjustment..................................................... 103
Cleaning......................................................... 243
Correct driving posture .............................23
Driving position memory........................ 105
Memory recall function ........................... 106
Power easy access system .................... 105 Seat heaters ....................................................219
Seat position memory .............................. 105
Seat ventilators ..............................................219
Front side marker light Light switch .................................................... 138
Front turn signal lights Replacing light bulbs................................ 287
Turn signal lever .......................................... 136
Fuel Capacity ...........................................................341
Fuel gauge........................................................ 66
Fuel pump shut off system.....................299
Information .................................................... 347
Low fuel level warning light ................. 304
Refueling.......................................................... 150
Type ....................................................................341
Fuel consumption Average fuel economy .............................. 75
Current fuel consumption ........................ 75
Fuel filler door If the fuel filler do or cannot be opened
..........................................................................329
Refueling.......................................................... 150
Fuel gauge ......................................................... 66
Fuel pump shut off system........................ 299
Fuses ................................................................. 283
G
Garage door opener ................................. 229
Gauges ............................................................... 66
Gear Position ....................................................76
G-force................................................................79
Glove box ....................................................... 224
Glove box light ............................................. 224
H
Headlight aim ................................................ 285
Headlights Automatic High Beam system ............. 140
Light switch .................................................... 138
Replacing light bulbs................................ 287

399Alphabetical Index
RC F Owner's Manual
Launch control................................................193
LDA (Lane Departure Alert with steering control) Operation........................................................164
Warning message.......................................169
LDA (Lane Departure Alert with steering control) switch .............................................166
Lever Auxiliary catch lever ................................. 262
Hood lock release lever......................... 262
Shift lever.......................................................... 132
Turn signal lever ...........................................136
Wiper lever.....................................................143
Lexus Enform Safety Connect.................. 53
Lexus Safety System + Automatic High Beam ............................. 140
Dynamic radar cruise control .................171
LDA (Lane Departure Alert with steering control) ..........................................................164
PCS (Pre-Collision System).................. 157
License plate lights Light switch .................................................... 138
Replacing light bulbs................................ 287
Light bulbs Replacing .......................................................286
Lights Automatic High Beam system............. 140
Front interior lights ...................................... 221
Headlight switch ......................................... 138
Interior lights................................................... 221
Interior lights list............................................ 221
Personal lights ..............................................222
Rear interior lights ....................................... 221
Replacing light bulbs................................ 287
Trunk light......................................................... 97
Turn signal lever ...........................................136
Vanity lights .................................................. 228
Wattage.......................................................... 346
Lock steering column ..................................128M
Maintenance Do-it-yourself maintenance ................ 260
General maintenance .............................256
Maintenance date..................................... 340
Maintenance requirements ..................255
Malfunction indicator lamp ...................... 301
Master warning light ..................................305
Matte paint care guide ......... 247, 251, 252
Menu icons.........................................................74
Meter Changing the display.................................... 71
Indicators........................................................... 63
Instrument panel light control................. 73
Meter control switches .............................. 74
Meters................................................................. 66
Multi-information display .......................... 73
Settings................................................................ 81
Units..................................................................... 76
Warning lights ............................................ 300
Warning message .................................... 308
Micro dust and pollen filter .......................215
Mirrors Inside rear view mirror ............................. 109
Outside rear view mirror defoggers 215
Outside rear view mirrors........................ 110
Vanity mirrors ..............................................228
Moon roof Door lock linked moon roof operation............................................................................. 115
Jam protection function ............................. 115
Operation ......................................................... 114
Multi-information display .............................73 Audio system-linked display .................... 81
Drive information 1/Drive information 2/Drive information 3 ............................. 75
Drive information display .......................... 75
Driving support system information dis- play..................................................................... 81
Dynamic radar cruise control................. 171
Eco Driving Indicator.................................. 76

401Alphabetical Index
RC F Owner's Manual
PCS warning light .....................................303
R
Radar cruise control (dynamic radar cruise control) ............................................................ 171
Radiator ........................................................... 268
RCTA Function ............................................................ 179
Rear Cross Traffic Alert (RCTA) ........... 179
Rear passengers’ seat belt reminder lights
..........................................................................305
Rear seats Seat heaters .................................................... 219
Seat ventilators.............................................. 219
Rear side marker lights Light switch .................................................... 138
Rear turn signal lights Replacing light bulbs................................ 287
Turn signal lever ...........................................136
Wattage.......................................................... 346
Rear view mirror Inside rear view mirror............................. 109
Outside rear view mirrors ....................... 110
Rear window defogger ...............................215
Refueling Capacity ...........................................................341
Fuel types.........................................................341
If the fuel filler door cannot be opened......................................................................... 329
Opening the fuel tank cap ..................... 150
Remote Touch .............................................. 206
Replacing Electronic key battery................................281
Fuses ................................................................ 283
Light bulbs.....................................................286
Tires .................................................................... 321
Resetting the message indicating mainte- nance is required ...................................... 255
Rev indicator .................................................... 70
Rev peak............................................................... 71
S
Seat belt reminder light................. 304, 305
Seat belts............................................................ 24 Automatic Locking Retractor................. 26
Child restraint system installation ......... 43
Cleaning and maintaining the seat belt.......................................................................... 243
Driver’s and front pa ssenger’s seat belt
reminder light and buzzer ................ 304
Emergency Locking Retractor .............. 26
How to wear your seat belt ..................... 25
How your child should wear the seat belt
............................................................................. 25
Pregnant women, proper seat belt use ............................................................................. 24
Rear passengers’ seat belt reminder lights and buzzer ................................... 305
Seat belt extender......................................... 25
Seat belt pretensioners .............................. 27
SRS warning light........................................ 301
Seat heaters .....................................................219
Seat position memory................................. 105
Seat ventilators ...............................................219
Seating capacity.............................................126
Seats Adjustment ..................................................... 103
Child seats/child restraint system installa-tion .................................................................... 42
Cleaning ......................................................... 243
Driving position memory ........................ 105
Power easy access system .................... 105
Properly sitting in the seat ........................ 23
Seat heaters ....................................................219
Seat position memory .............................. 105
Seat ventilators ..............................................219
Sensor Automatic headlight system .................. 138
Automatic High Beam system ............. 140
Inside rear view mirror ............................... 110
LDA (Lane Departure Alert with steering control) ......................................................... 164

402Alphabetical Index
RC F Owner's Manual
Radar sensor...................................... 153, 180
Rain-sensing windshield wipers.......... 148
Service reminder message ..................... 255
Shift lever Automatic transmission ............................ 132
Side airbags ...................................................... 28
Side marker lights Light switch .................................................... 138
Replacing light bulbs................................ 287
Side mirrors Adjustment....................................................... 110
BSM (Blind Spot Monitor) ..................... 179
Folding ................................................................. 111
Linked mirror function when reversing111
Mirror position memory.......................... 105
RCTA function .............................................. 179
Side turn signal lights Replacing light bulbs................................ 287
Turn signal lever ...........................................136
Side windows ................................................... 112
Slip indicator .................................................. 303
Smart access system with push-button start Antenna location........................................... 98
Entry functions................................................ 92
Starting the engine ......................................128
Snow tires ....................................................... 203
Spare tire...........................................................321 Storage location ......................................... 322
Spark plug ...................................................... 343
Specifications ................................................ 340
Speed indicator ............................................... 70
Speed meter Speed indicator ............................................. 70
Speedometer ................................................... 66
Steering lock Column lock release..................................128
Steering lock system warning message...........................................................................128
Steering wheel Adjustment..................................................... 108
Heated steering wheel.............................. 219 Meter control switches .............................. 74
Power easy access system .................... 105
Steering wheel position memory........ 105
Stop lights Replacing light bulbs................................ 287
Storage features .......................................... 223
Stuck If the vehicle becomes stuck ............... 338
Sun visors ........................................................ 228
Sunshade Roof...................................................................... 115
Switches Activating the Automatic High Beam140
Active rear wing switch ........................... 195
Automatic High Beam system ............. 140
Door lock switches ...................................... 94
Driving mode select switch ....................192
Driving position memory switches .... 105
Emergency flashers switch ................... 292
Engine switch ................................................ 128
Garage door opener switches........... 229
Heated steering wheel switch ...............219
Ignition switch ............................................... 128
Instrument panel light control switches............................................................................. 73
Intuitive parking assist switch ................ 186
“LAUNCH” switch .................................... 193
Light switches ............................................... 138
Meter control switches .............................. 74
Moon roof switches..................................... 114
“ODO TRIP” switch .................................... 72
Outside rear view mirror switches ...... 110
Paddle shift switches ....................... 134, 135
PCS OFF switch ......................................... 159
Power door lock switch ............................ 94
Power window switches ........................... 112
Rear window and outside rear view mir- ror defoggers switch ............................... 211
Seat heater switches...................................219
Seat ventilator switches ............................219
“SOS” button................................................... 53
