fuel LEXUS RX 2023 Owners Manual

2
RX500h/RX350h_QG_U
Driving ComfortBasic Operation of Mult imedia System .............................................................................. 50
Navigation
*............................................................................................................................... ........51
Connecting a Smartphone or Communication Device
*............................................ 55
Basic Operation of Audio System
*........................................................................................ 61
Lexus Climate Concierge ........................................................................................................ ..67
Front Automatic Air Conditioning System
*..................................................................... 68
Rear Air Conditioning System ................................................................................................ 70
Interior features
Starting Voice Control
*.............................................................................................................. 71
Connecting the USB Port ........................................................................................................ ..75
Lexus Enform
Safety Connect ................................................................................................................. ..............76
Remote Connect................................................................................................................. .......... 78
Service Connect................................................................................................................ .............79
Opening and Closing Side Doors ..................................................................................................................... .................. 80
Power Windows .................................................................................................................. .......... 82
Moon Roof ...................................................................................................................... ................. 83
Panoramic Moon Roof ............................................................................................................ ... 84
Fuel Tank Cap ................................................................................................................................ 86
Power Back Door ................................................................................................................ ......... 87
Garage Door Opener ............................................................................................................. ... 93
What to do if...
List of Warning/Indicator Lights........................................................................................... 100
If the electronic key does not operate proper ly ..............................................................104
If the hybrid system do esn’t start........................................................................................... 10 6
If a door cannot be opened using the door opener switch.........................................107
*: This feature may be operated by Voice command (See P.71)

5
RX500h/RX350h_QG_U
■Switches
“ODO TRIP” switch*1
Instrument panel light control switches*1
Advanced Park (parking assist system) main switch*1, 2
Camera switch*2, 3
Power back door switch ......................................................................................... P.87
Fuel filler door opener switch ...... ............................................. ............................ P.86
Driving position memory switches
*1, 2
*1: Refer to the “OWNER’S MANUAL”.
*2: If equipped
*3: Refer to the “MULTIMEDIA OWNER’S MANUAL”.
A
B
C
D
E
F
G

12
RX500h/RX350h_QG_U
Hybrid System
This illustration is for explanation only and
may differ depending on the specifications
of the vehicle.
Charge area
Shows regeneration
* status.
Eco area
Shows that the vehicle is being driven
in an Eco-friendly manner.
Power area
Shows that an Eco- friendly driving
range is being exceeded (during full
power driving etc.)
Hybrid Eco area
Shows that gasoline engine power is
not being used very often.
The gasoline engine will automatically
stop and restart under various condi-
tions.
• By keeping the indicator needle within Eco area, more Eco-fr iendly driving can
be achieved.
• Charge area indicates regeneration
* sta-
tus. Regenerated energy will be used to
charge the hybrid battery (traction bat-
tery).
*: When used in this manual, regeneration refers to the conversion of energy cre-
ated by the movement of the vehicle into
electrical energy.
Hybrid System
Your vehicle is a hybrid electric vehicle. It has characteristics different from conventional
vehicles. Be sure you are closely familiar with the characteristics of your vehicle, and
operate it with care.
The hybrid system combines the use of a gaso line engine and an electric motor (traction
motor) according to driving conditions, impr oving fuel efficiency and reducing exhaust
emissions.
For details, refer to the “Owner’s Manual”.
Hybrid System Indicator
A
B
C
D

14
RX500h/RX350h_QG_U
Because there is no engine sound or vibration, it is easy to mistake the hybrid electric vehi-
cle for being off when it is actu ally still running, as indicated by the “READY” indicator being
illuminated. For safety, make sure to always shift the shift position to P and apply the parking
brake when parked.
The following sounds or vibrations may occur when the hybrid system is operating and are
not a malfunction:
• Motor sounds may be heard from the engine compartment.
• Sounds may be heard from the hybrid battery (traction battery) behind the rear seats when the hybrid syst em starts or stops.
• Relay operating sounds such as a snap or soft clank will be emitted from the hybrid battery
(traction battery), under the rear seats, when the hybrid sy stem is started or stopped.
• Sounds from the hybrid system may be heard when the back door is open.
• Sounds may be heard from the transmission when the gasoline engine starts or stops,
when driving at low speeds, or during idling.
• Engine sounds may be heard when accelerating sharply.
• Sounds may be heard due to regenerative braking when the brake pedal is depressed or as the accelerator pedal is released.
• Vibration may be felt when the gasoline engi ne starts or stops.
• Cooling fan sounds may be heard from th e air intake vents under the rear seats.
When the vehicle has run out of fuel and the hybrid system cannot be started, refuel the
vehicle with at least enough gasoline to make the low fuel level warning light go off. If there is
only a small amount of fuel, the hybrid system may not be able to start. (The standard amount
of fuel is about 2.6 gal. [9.8 L, 2.2 Imp. gal.], when the vehicle is on a level surface. This value
may vary when the vehicle is on a slope. Add extra fuel when the vehicle is inclined.)
Sounds and vibrations specific to a hybrid electric vehicle
Running out of fuel

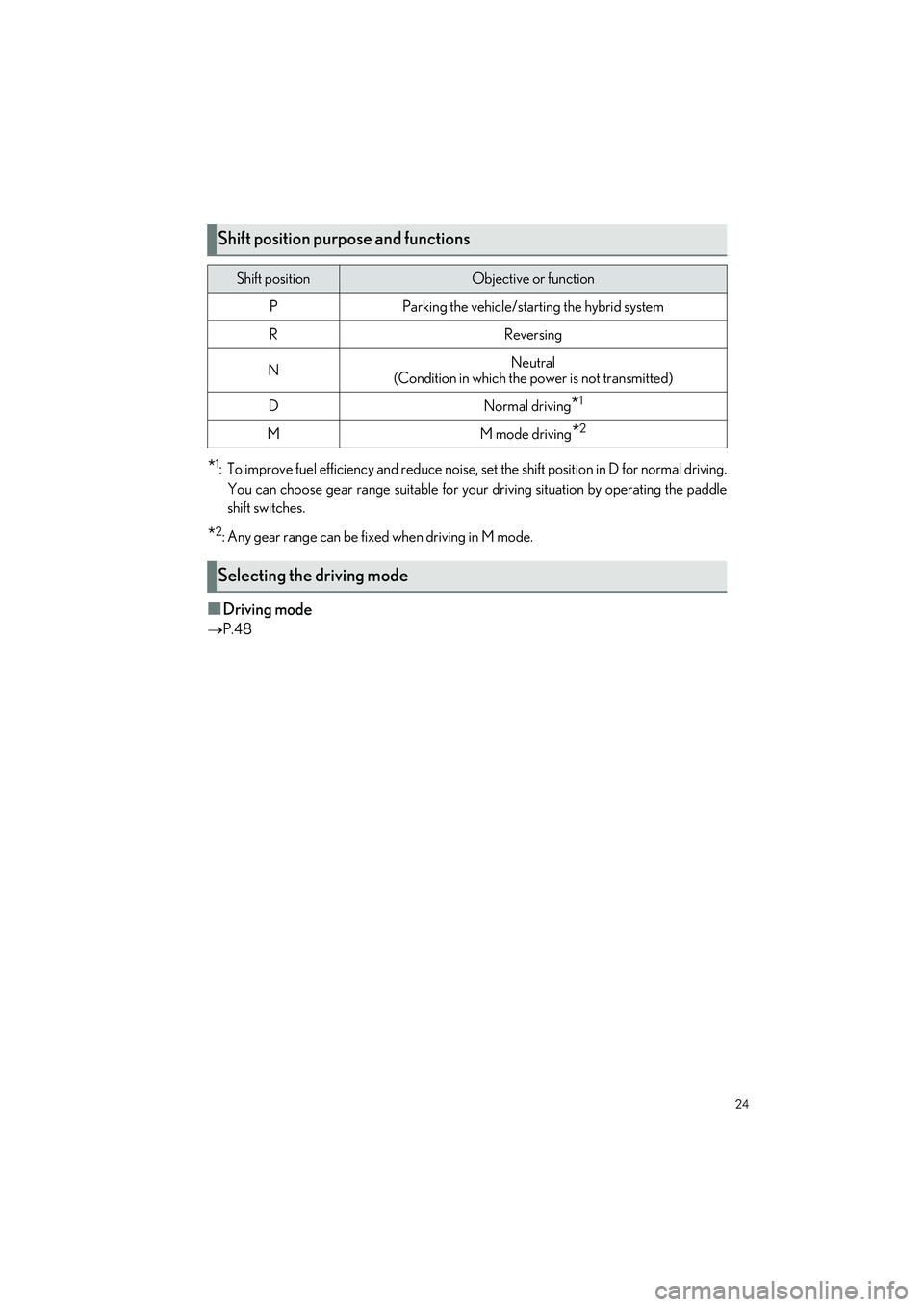

24
RX500h/RX350h_QG_U
*1: To improve fuel efficiency and reduce noise, set the shift position in D for normal driving.
You can choose gear range suitable for your driving situation by operating the paddle
shift switches.
*2: Any gear range can be fixed when driving in M mode.
■Driving mode
 P.48
Shift position purpose and functions
Shift positionObjective or function
PParking the vehicle/starting the hybrid system
RReversing
NNeutral
(Condition in which the power is not transmitted)
DNormal driving*1
MM mode driving*2
Selecting the driving mode

28
RX500h/RX350h_QG_U
*1: To improve fuel efficiency and reduce noise, set the shift position in D for normal driving.
You can choose gear range suitable for your driving situation by operating the paddle
shift switches.
*2: By selecting shift ranges using S mode, yo u can control accelerating force and engine
braking force.
■Driving mode
 P.48
To drive using temporary shift range selection, operate the “-” paddle shift switch. Changing
the shift range enables the level of engine brak ing force to be selected. The shift range can
then be selected by operating the “-” and “+” paddle shift switches.
1Upshifting
2Downshifting
The selected shift range, from D1 to D5, will
be displayed on the meter.
The initial shift range when the “-” paddle
shift switch is operated is automatically set
to D4.
To return to normal D position driving, hold
the “+” puddle shift switch for a period of
time or operate the “+” puddle shift switch
in the D5 range.
■Shift ranges and their functions
● You can choose from 5 levels of engine braking force.
● A lower shift range will provid e greater engine braking force than a higher shift range,
and the engine revolutions will also increase.
Shift positionObjective or function
PParking the vehicle/starting the hybrid system
RReversing
NNeutral (Condition in which the power is not transmitted)
DNormal driving*1
SS mode driving*2
Selecting the driving mode
Selecting shift ranges in the D position

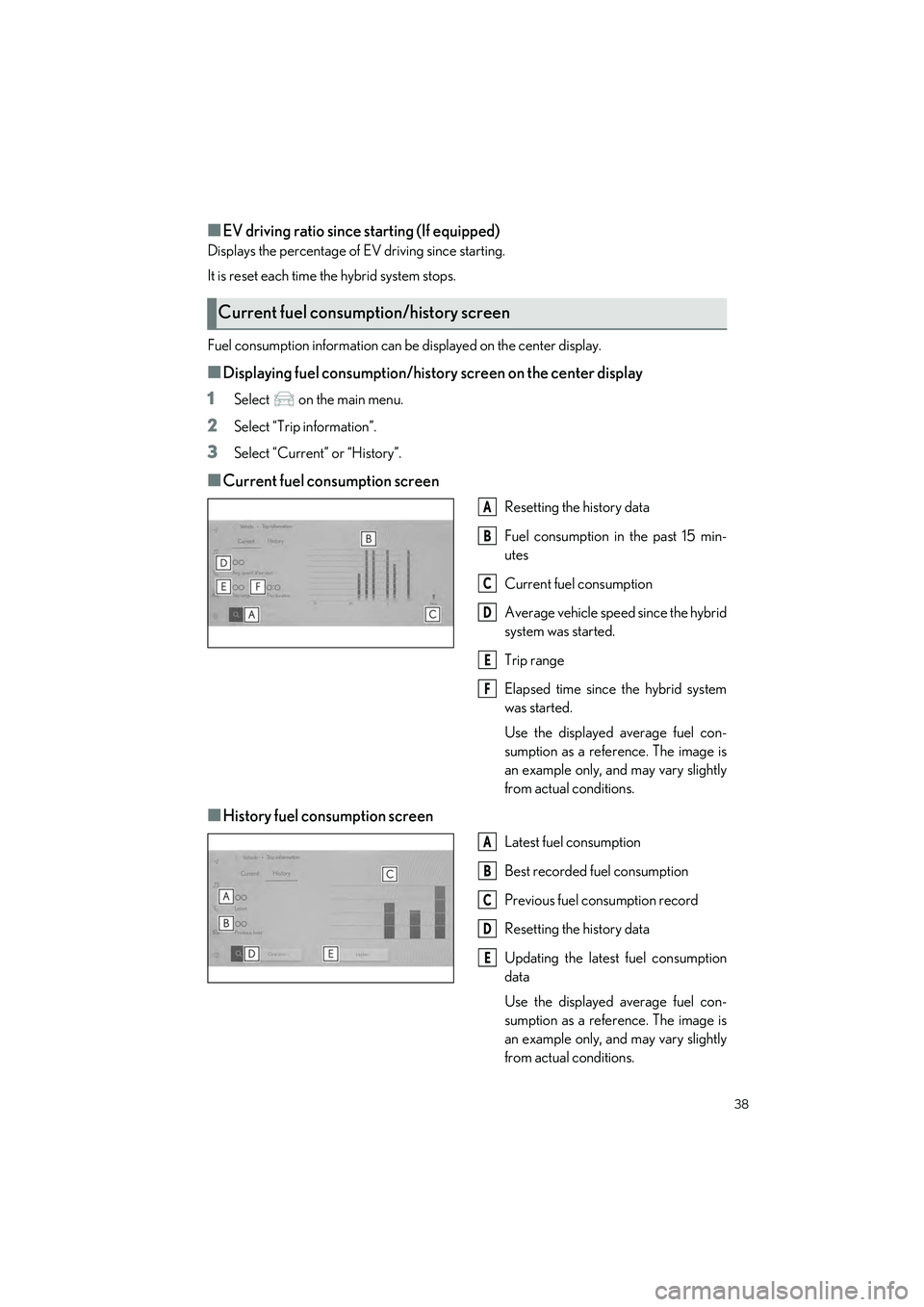

38
RX500h/RX350h_QG_U
■EV driving ratio since starting (If equipped)
Displays the percentage of EV driving since starting.
It is reset each time the hybrid system stops.
Fuel consumption information can be displayed on the center display.
■Displaying fuel consumption/history screen on the center display
1
Select on the main menu.
2Select “Trip information”.
3Select “Current” or “History”.
■Current fuel consumption screen
Resetting the history data
Fuel consumption in the past 15 min-
utes
Current fuel consumption
Average vehicle speed since the hybrid
system was started.
Trip range
Elapsed time since the hybrid system
was started.
Use the displayed average fuel con-
sumption as a refe rence. The image is
an example only, and may vary slightly
from actual conditions.
■History fuel consumption screen
Latest fuel consumption
Best recorded fuel consumption
Previous fuel consumption record
Resetting the history data
Updating the latest fuel consumption
data
Use the displayed average fuel con-
sumption as a refe rence. The image is
an example only, and may vary slightly
from actual conditions.
Current fuel consumption/history screen
A
B
C
D
E
F
A
B
C
D
E

48
RX500h/RX350h_QG_U
1Select on the center display.
2Select “Drive mode”.
3Select driving mode.
1Normal mode
Provides an optimal balance of fuel
economy, quietness, and dynamic per-
formance. Suitable for city driving.
2Eco drive mode
Helps the driver accelerate in an eco-
friendly manner and improve fuel
economy through moderate throttle
characteristics and by controlling the
operation of the ai r conditioning sys-
tem (heating/cooling).
When the Eco drive mode is selected,
Eco drive mode indicator comes on.
3Sport mode
Vehicles without Adaptive Variable
Suspension System: Controls the
hybrid system to provide quick, power-
ful acceleration. This mode also
changes the steering feel, making it
suitable for when agile driving
response is desired, such as when driv-
ing on roads with many curves.
Vehicles with Adaptive Variable Sus-
pension System: Help s to ensure steer-
ing performance and driving stability
by simultaneously controlling the
steering and suspension in addition to
the hybrid system. Suitable for sportier
driving.
When the Sport mode is selected,
“Sport” indicator will comes on.
Driving Mode Select Switch
The driving modes can be selected to suit driving conditions.
Selecting a drive mode

52
RX500h/RX350h_QG_U
■Searching for a destination by category
A destination can be searched for from a list of categories.
1Touch [ ] or [ ] on the map screen.
2Touch [Destinations].
3Touch the desired search method.
[Home]: Touch to set the registered
home as the destination. A point must
be registered as home before using
this function.
*
[Work]: Touch to set the registered
workplace as the destination. A point
must be registered as a workplace
before using this function.
*
[Favorites]: Touch to set a registered favorite as the destination. A point must be regis-
tered as a favorite before using this function.
[Recents]: Touch to set a destination from the destination history as the destination.
[Sent to car]: Send to car enables customer to send a destination or POI to the vehicle
from Lexus app.
[Parking]: Touch to search for a nearby parking lot to set as a destination.
[Fuel/Charging]: Touch to search for a fuel station/charging facility to set as a destina-
tion.
[Food]: Touch to search for a rest aurant to set as a destination.
[Hospitals]: Touch to search for a hospital to set as a destination.
When setting a business as a destination, if your estimated time of arrival is outside of
business hours or near closing time, a notifica tion asking to confirm the destination will
be displayed.
*: Home and Work must be added via Lexus app.

74
RX500h/RX350h_QG_U
■Vehicle device control
Allows you to easily change a vehicle setting or activate a function by voice.
■Notifications
Offers notifications based on user preference s, vehicle geolocation and learned behavior.
Each service can be set to On/Off from the Lexus app.
FunctionExample voice commandSubscription
Climate“Turn on the air conditioner”
“Set the temperature to 70 degrees”
“Turn the fan speed up”No
FunctionDetailSubscription
POI suggestion
(Navigation)Parking suggestions near destinationYes
Low fuel reminder
(Navigation)
Automatically notifies user of low fuel level. If
applicable, provides POI list nearby (ahead) or
along route and allows user to select and navigate
by touch.
Yes
