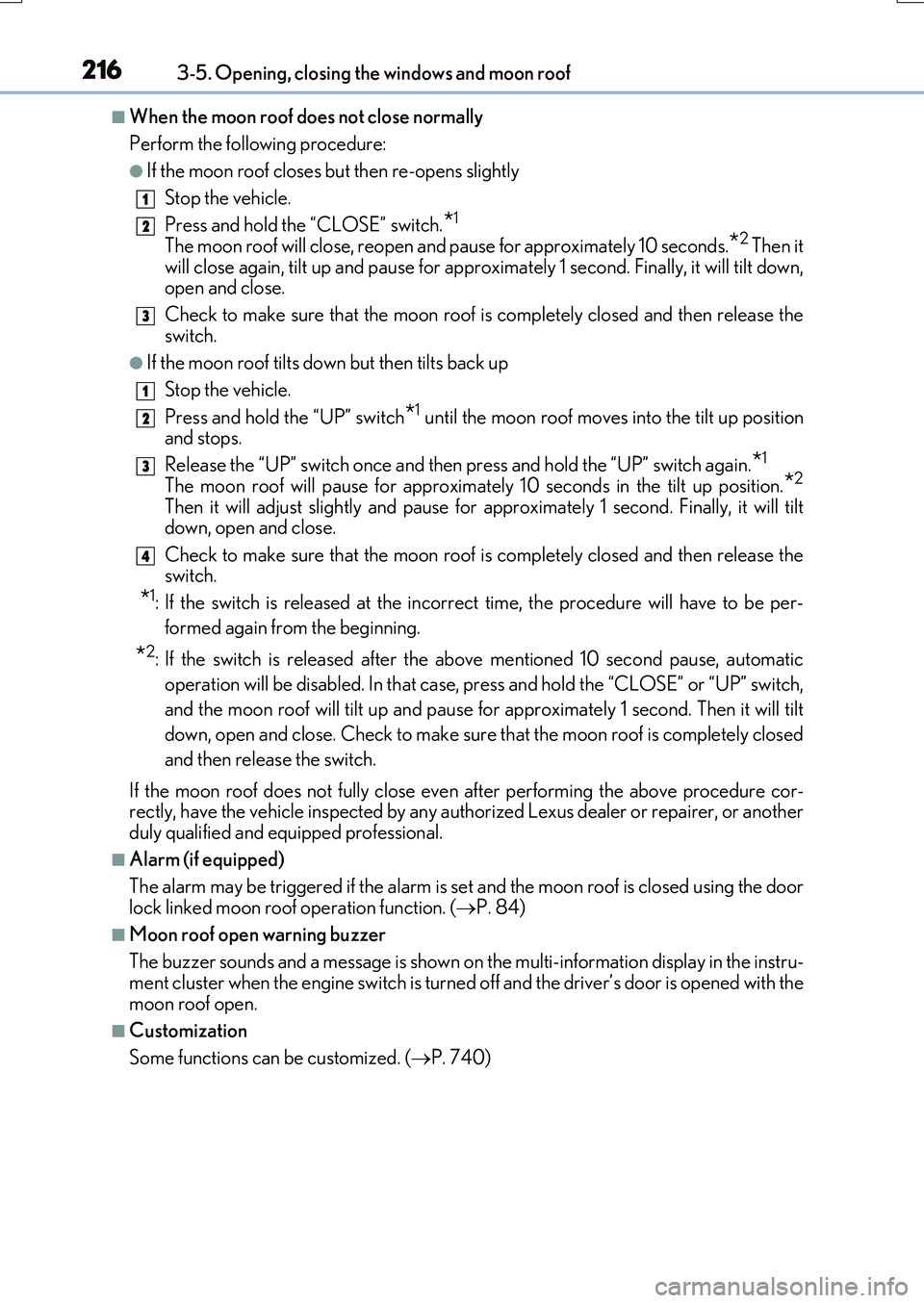

2163-5. Opening, closing the windows and moon roof
RX350/RX200t_EE_OM48F32E
■When the moon roof does not close normally
Perform the following procedure:
●If the moon roof closes but then re-opens slightly
Stop the vehicle.
Press and hold the “CLOSE” switch.*1
The moon roof will close, reopen and pause for approximately 10 seconds.*2 Then it
will close again, tilt up and pause for approximately 1 second. Finally, it will tilt down, open and close.
Check to make sure that the moon roof is completely closed and then release the
switch.
●If the moon roof tilts down but then tilts back up
Stop the vehicle.
Press and hold the “UP” switch*1 until the moon roof moves into the tilt up position and stops.
Release the “UP” switch once and then press and hold the “UP” switch again.*1
The moon roof will pause for approximately 10 seconds in the tilt up position.*2
Then it will adjust slightly and pause for approximately 1 second. Finally, it will tilt down, open and close.
Check to make sure that the moon roof is completely closed and then release the switch.
*1: If the switch is released at the incorrec t time, the procedure will have to be per-
formed again from the beginning.
*2: If the switch is released after the above mentioned 10 second pause, automatic
operation will be disabled. In that case, pr ess and hold the “CLOSE” or “UP” switch,
and the moon roof will tilt up and pause for approximately 1 second. Then it will tilt
down, open and close. Check to make sure that the moon roof is completely closed
and then release the switch.
If the moon roof does not fully close even after performing the above procedure cor- rectly, have the vehicle inspected by any authorized Lexus dealer or repairer, or anotherduly qualified and equipped professional.
■Alarm (if equipped)
The alarm may be triggered if the alarm is se t and the moon roof is closed using the door lock linked moon roof operation function. ( P. 84)
■Moon roof open warning buzzer
The buzzer sounds and a message is shown on the multi-information display in the instru- ment cluster when the engine switch is turned off and the driver’s door is opened with the
moon roof open.
■Customization
Some functions can be customized. ( P. 740)
1
2
3
1
2
3
4

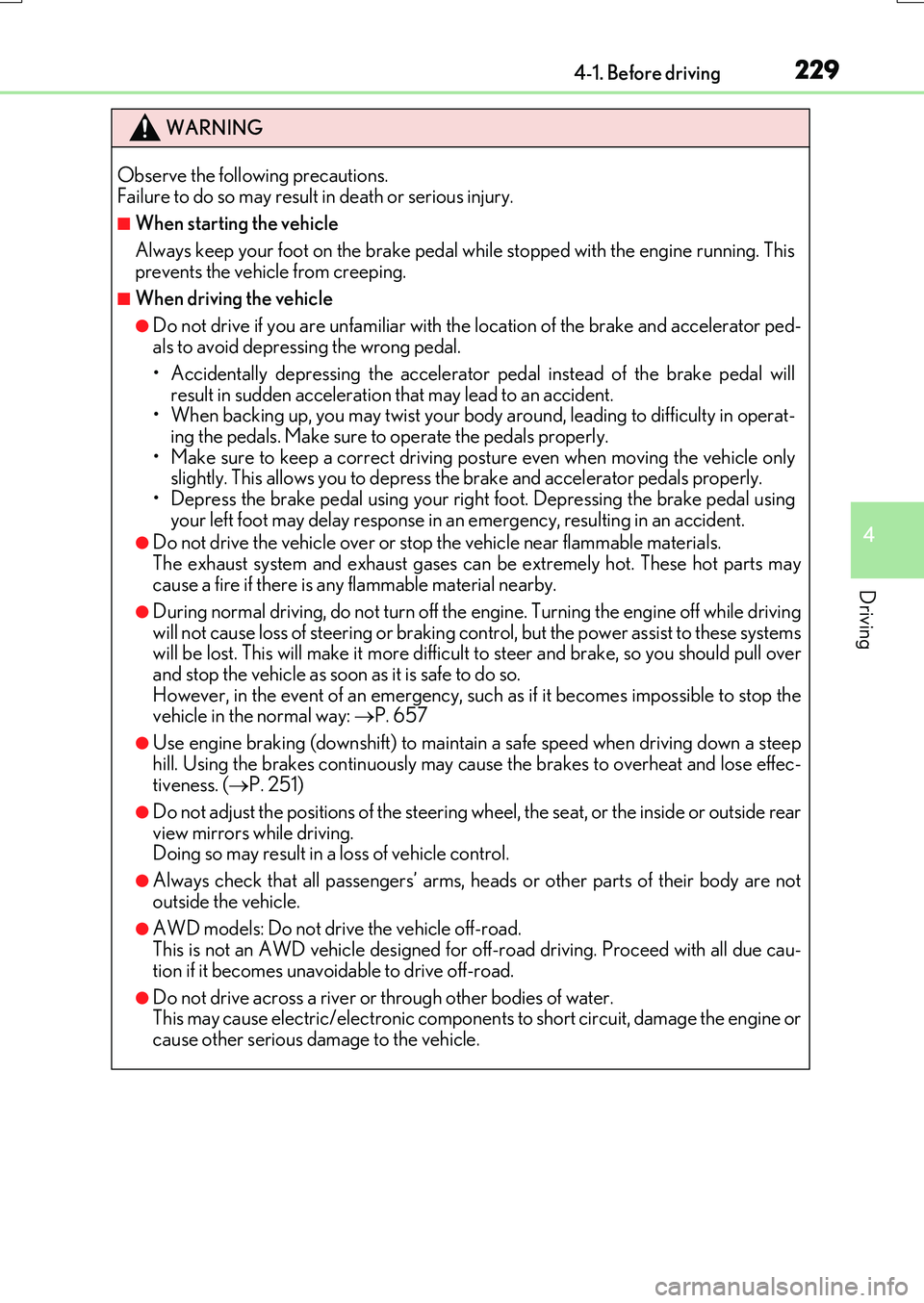

2294-1. Before driving
4
Driving
RX350/RX200t_EE_OM48F32E
WARNING
Observe the following precautions. Failure to do so may result in death or serious injury.
■When starting the vehicle
Always keep your foot on the brake pedal while stopped with the engine running. This prevents the vehicle from creeping.
■When driving the vehicle
●Do not drive if you are unfamiliar with the location of the brake and accelerator ped-als to avoid depressing the wrong pedal.
• Accidentally depressing the accelerator pedal instead of the brake pedal will
result in sudden acceleration that may lead to an accident. • When backing up, you may twist your body around, leading to difficulty in operat- ing the pedals. Make sure to operate the pedals properly.
• Make sure to keep a correct driving posture even when moving the vehicle only slightly. This allows you to depress the brake and accelerator pedals properly.• Depress the brake pedal using your right foot. Depressing the brake pedal using
your left foot may delay response in an emergency, resulting in an accident.
●Do not drive the vehicle over or stop the vehicle near flammable materials.
The exhaust system and exhaust gases can be extremely hot. These hot parts may cause a fire if there is any flammable material nearby.
●During normal driving, do not turn off the engine. Turning the engine off while driving
will not cause loss of steering or braking control, but the power assist to these systems will be lost. This will make it more difficult to steer and brake, so you should pull over and stop the vehicle as soon as it is safe to do so.
However, in the event of an emergency, such as if it becomes impossible to stop the vehicle in the normal way: P. 657
●Use engine braking (downshift) to maintain a safe speed when driving down a steep
hill. Using the brakes continuously may caus e the brakes to overheat and lose effec- tiveness. ( P. 251)
●Do not adjust the positions of the steering wheel, the seat, or the inside or outside rear
view mirrors while driving. Doing so may result in a loss of vehicle control.
●Always check that all passengers’ arms, heads or other parts of their body are not
outside the vehicle.
●AWD models: Do not drive the vehicle off-road. This is not an AWD vehicle designed for o ff-road driving. Proceed with all due cau-
tion if it becomes unavoidable to drive off-road.
●Do not drive across a river or through other bodies of water. This may cause electric/electronic components to short circuit, damage the engine or
cause other serious damage to the vehicle.

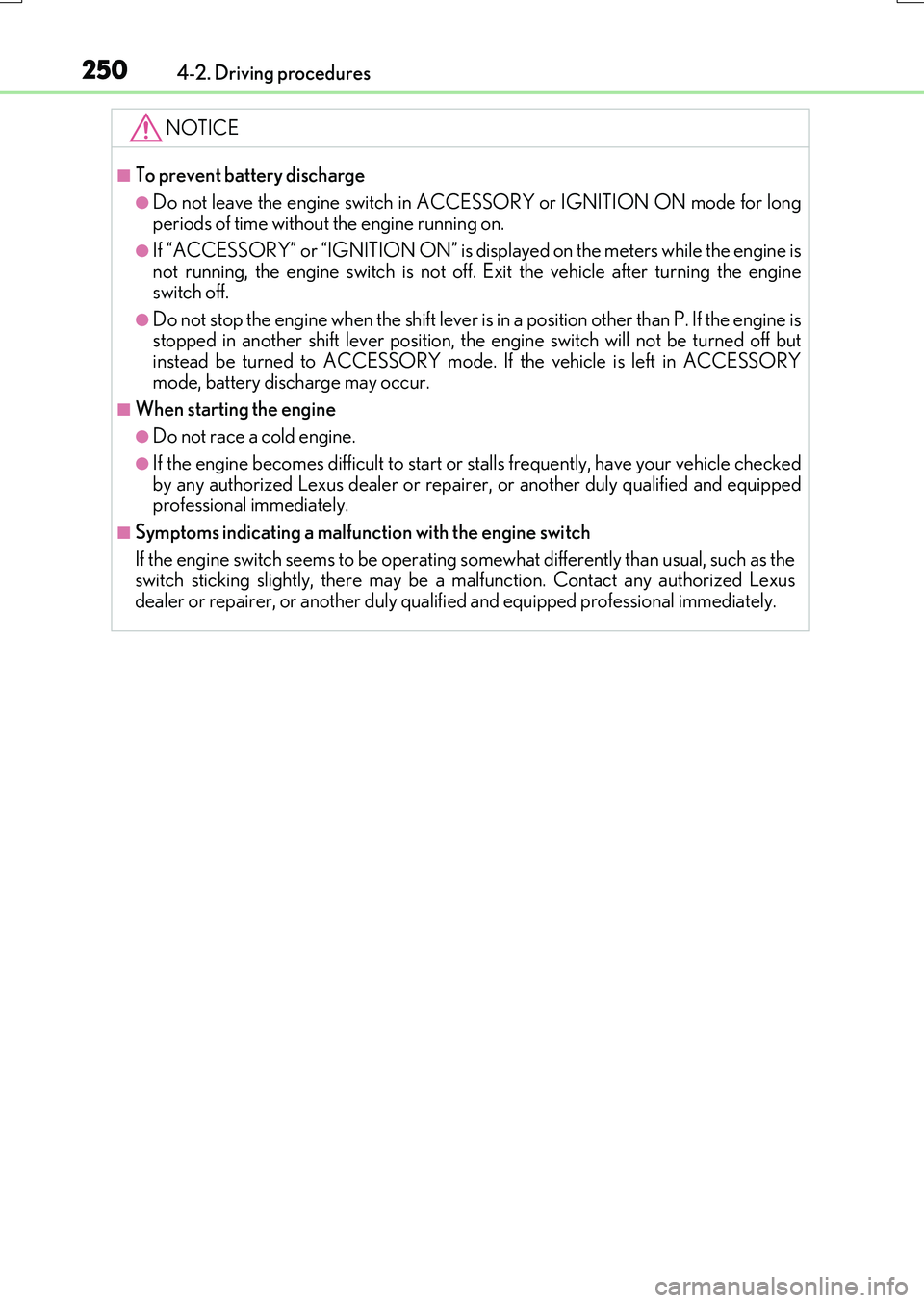

2504-2. Driving procedures
RX350/RX200t_EE_OM48F32E
NOTICE
■To prevent battery discharge
●Do not leave the engine switch in ACCESSORY or IGNITION ON mode for long periods of time without the engine running on.
●If “ACCESSORY” or “IGNITION ON” is displayed on the meters while the engine isnot running, the engine switch is not off. Exit the vehicle after turning the engineswitch off.
●Do not stop the engine when the shift lever is in a position other than P. If the engine isstopped in another shift lever position, the engine switch will not be turned off butinstead be turned to ACCESSORY mode. If the vehicle is left in ACCESSORY
mode, battery discharge may occur.
■When starting the engine
●Do not race a cold engine.
●If the engine becomes difficult to start or stalls frequently, have your vehicle checked by any authorized Lexus dealer or repair er, or another duly qualified and equipped professional immediately.
■Symptoms indicating a malfun ction with the engine switch
If the engine switch seems to be operating s omewhat differently than usual, such as the switch sticking slightly, th ere may be a malfunction. Contact any authorized Lexus
dealer or repairer, or another duly qualif ied and equipped professional immediately.

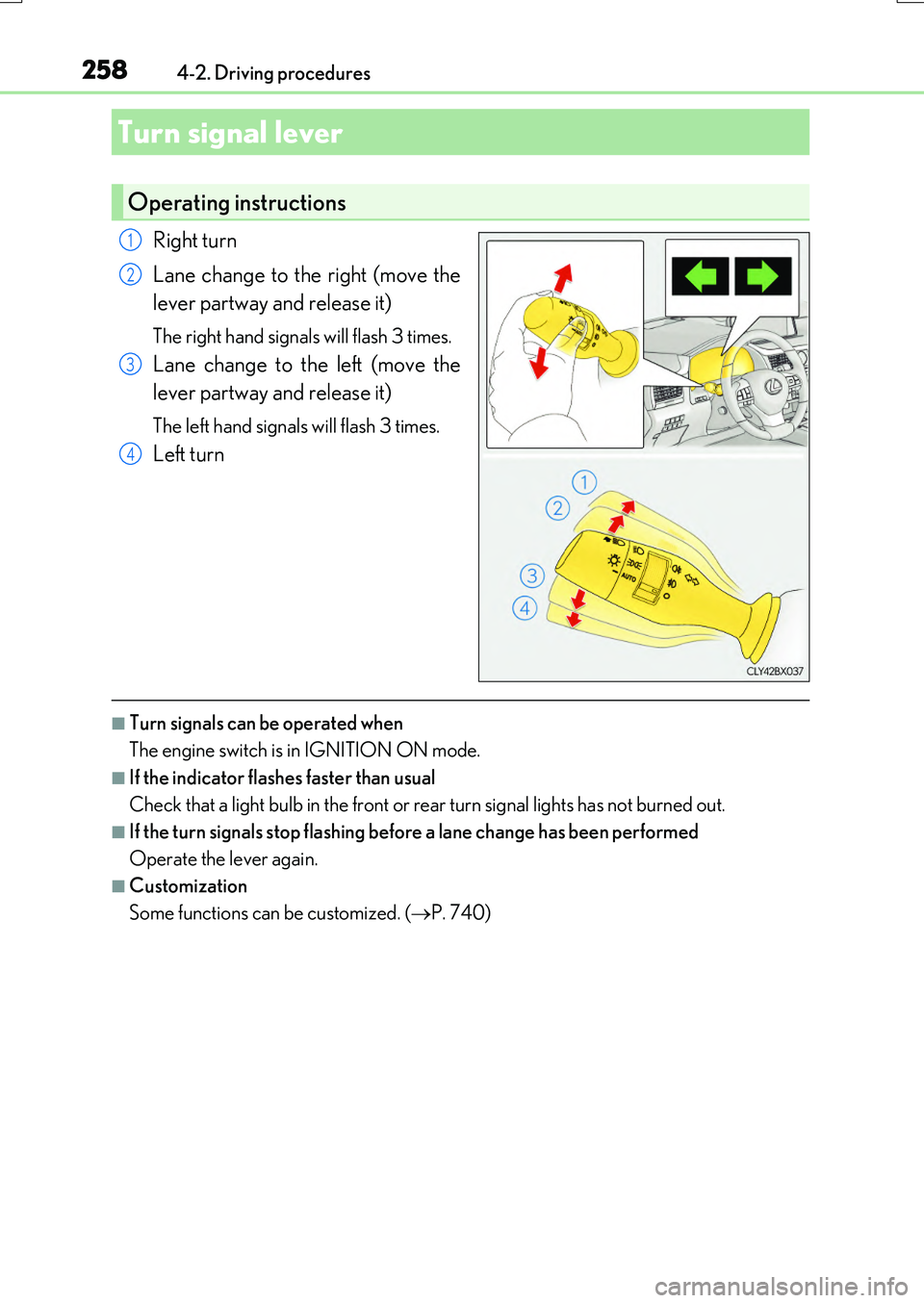

2584-2. Driving procedures
RX350/RX200t_EE_OM48F32E
Right turn
Lane change to the right (move the
lever partway and release it)
The right hand signals will flash 3 times.
Lane change to the left (move the
lever partway and release it)
The left hand signals will flash 3 times.
Left turn
■Turn signals can be operated when
The engine switch is in IGNITION ON mode.
■If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned out.
■If the turn signals stop flashing before a lane change has been performed
Operate the lever again.
■Customization
Some functions can be customized. ( P. 740)
Turn signal lever
Operating instructions
1
2
3
4

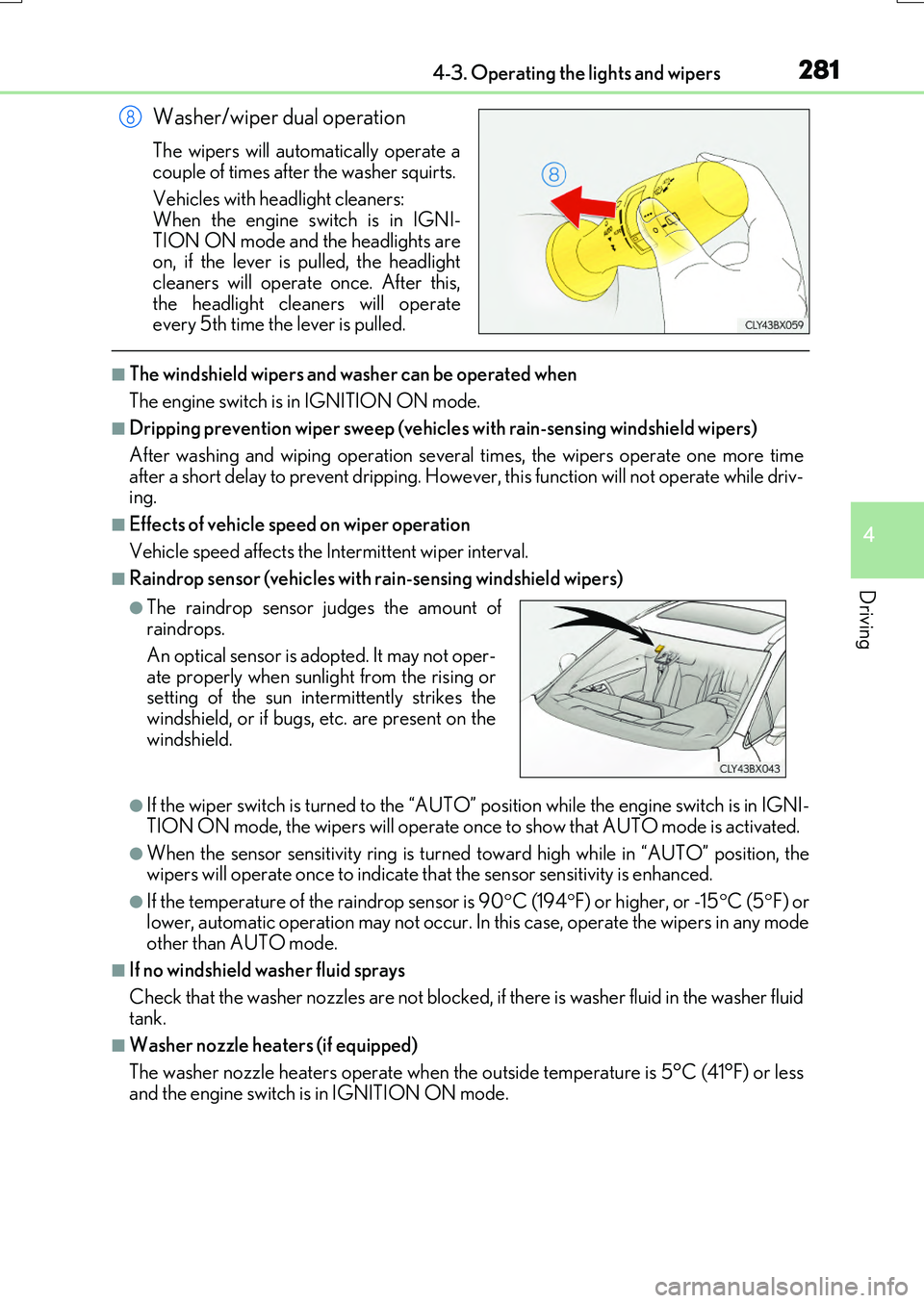

2814-3. Operating the lights and wipers
4
Driving
RX350/RX200t_EE_OM48F32E
Washer/wiper dual operation
The wipers will automatically operate a
couple of times after the washer squirts.
Vehicles with headlight cleaners: When the engine switch is in IGNI-
TION ON mode and the headlights are on, if the lever is pulled, the headlightcleaners will operate once. After this,
the headlight cleaners will operate every 5th time the lever is pulled.
■The windshield wipers and washer can be operated when
The engine switch is in IGNITION ON mode.
■Dripping prevention wiper sweep (vehicles with rain-sensing windshield wipers)
After washing and wiping operation severa l times, the wipers operate one more time after a short delay to prevent dripping. However, this function will not operate while driv- ing.
■Effects of vehicle speed on wiper operation
Vehicle speed affects the Intermittent wiper interval.
■Raindrop sensor (vehicles with rain-sensing windshield wipers)
●If the wiper switch is turned to the “AUTO” position while the engine switch is in IGNI-
TION ON mode, the wipers will operate on ce to show that AUTO mode is activated.
●When the sensor sensitivity ring is turned toward high while in “AUTO” position, the wipers will operate once to indicate th at the sensor sensitivity is enhanced.
●If the temperature of the raindrop sensor is 90C (194F) or higher, or -15C (5F) or lower, automatic operation may not occur. In this case, operate the wipers in any modeother than AUTO mode.
■If no windshield washer fluid sprays
Check that the washer nozzles are not blocked, if there is washer fluid in the washer fluid tank.
■Washer nozzle heaters (if equipped)
The washer nozzle heaters operate when the outside temperature is 5°C (41°F) or less
and the engine switch is in IGNITION ON mode.
8
●The raindrop sensor judges the amount of raindrops.
An optical sensor is adopted. It may not oper- ate properly when sunlight from the rising orsetting of the sun intermittently strikes the
windshield, or if bugs, etc. are present on the windshield.

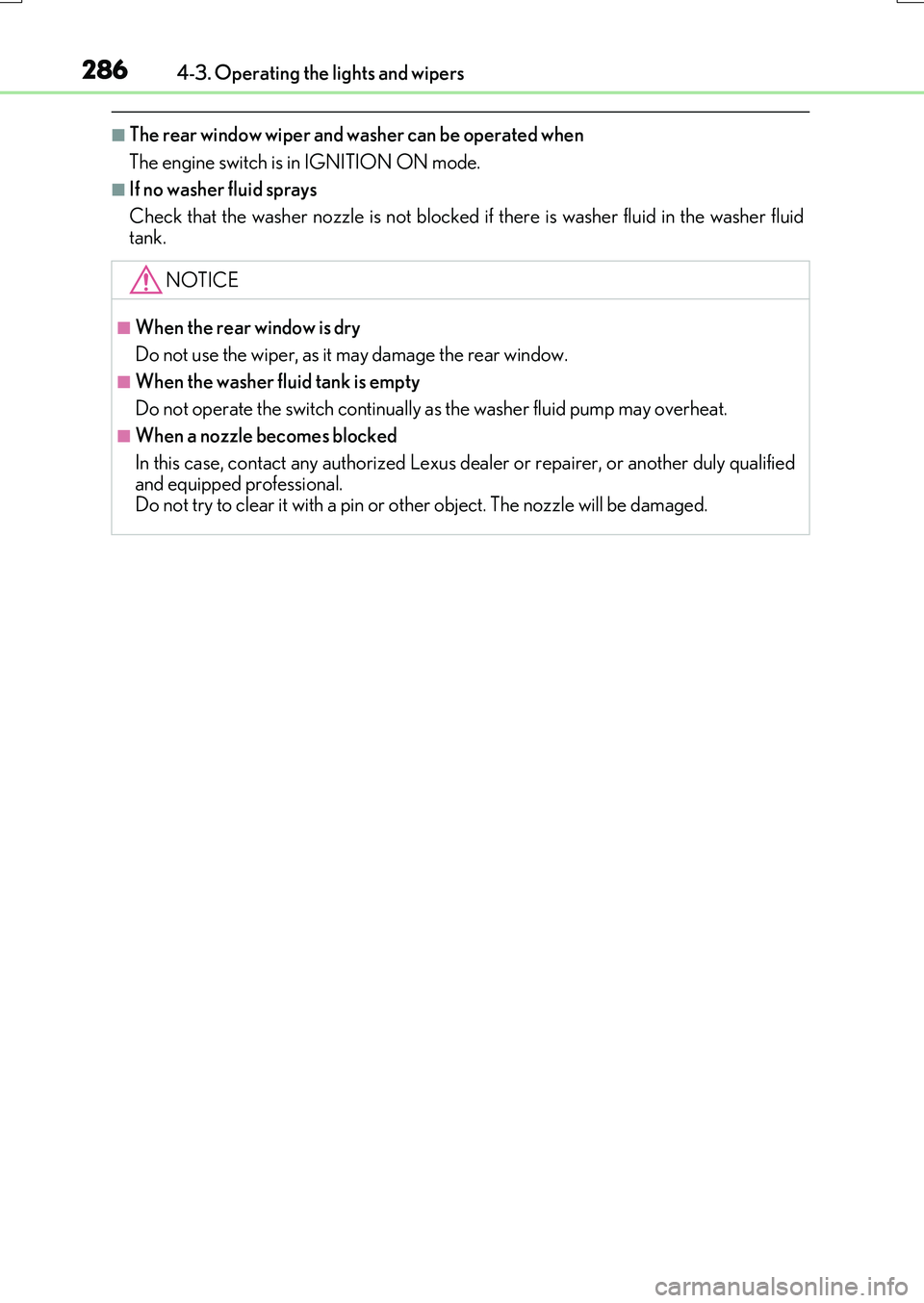

2864-3. Operating the lights and wipers
RX350/RX200t_EE_OM48F32E
■The rear window wiper and washer can be operated when
The engine switch is in IGNITION ON mode.
■If no washer fluid sprays
Check that the washer nozzle is not blocked if there is washer fluid in the washer fluid
tank.
NOTICE
■When the rear window is dry
Do not use the wiper, as it may damage the rear window.
■When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may overheat.
■When a nozzle becomes blocked
In this case, contact any authorized Lexus de aler or repairer, or another duly qualified
and equipped professional. Do not try to clear it with a pin or other object. The nozzle will be damaged.

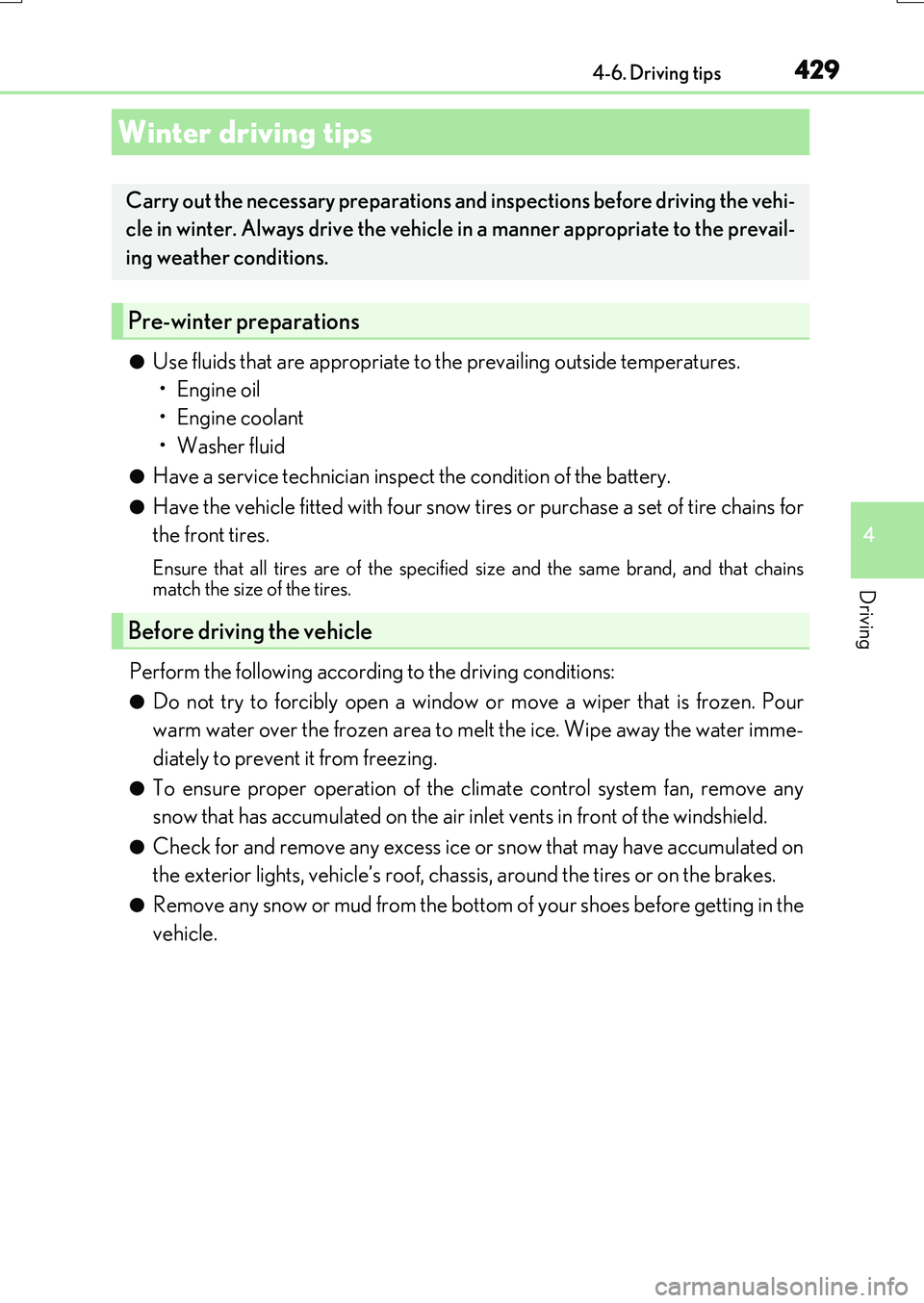

429
4
Driving
RX350/RX200t_EE_OM48F32E
4-6. Driving tips
●Use fluids that are appropriate to the prevailing outside temperatures.
•Engine oil
• Engine coolant
• Washer fluid
●Have a service technician inspect the condition of the battery.
●Have the vehicle fitted with four snow tires or purchase a set of tire chains for
the front tires.
Ensure that all tires are of the specified size and the same brand, and that chains match the size of the tires.
Perform the following according to the driving conditions:
●Do not try to forcibly open a window or move a wiper that is frozen. Pour
warm water over the frozen area to melt the ice. Wipe away the water imme-
diately to prevent it from freezing.
●To ensure proper operation of the climate control system fan, remove any
snow that has accumulated on the air inlet vents in front of the windshield.
●Check for and remove any excess ice or snow that may have accumulated on
the exterior lights, vehicle’s roof, chassi s, around the tires or on the brakes.
●Remove any snow or mud from the bottom of your shoes before getting in the
vehicle.
Winter driving tips
Carry out the necessary preparations and inspections before driving the vehi-
cle in winter. Always drive the vehicle in a manner appropriate to the prevail-
ing weather conditions.
Pre-winter preparations
Before driving the vehicle

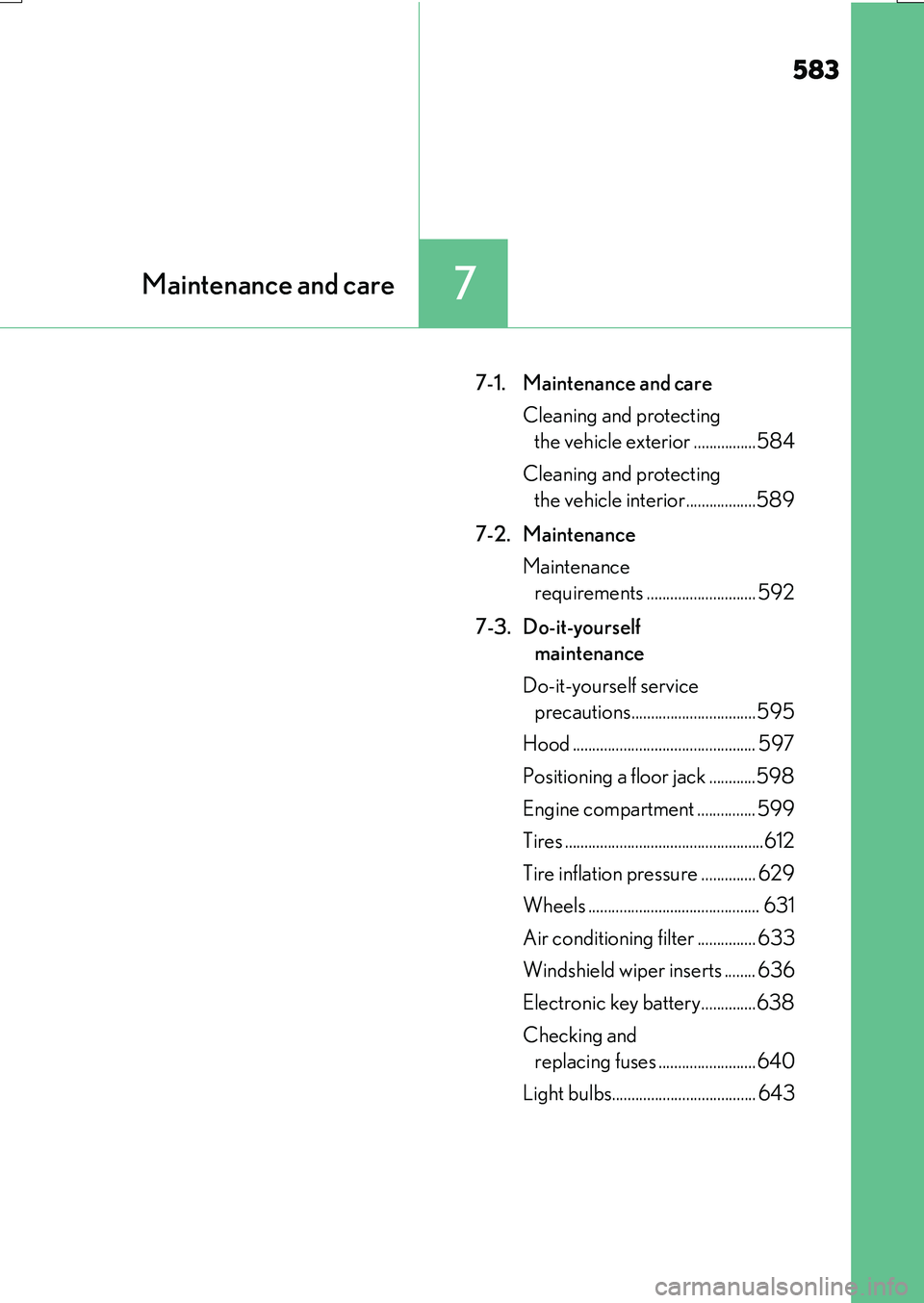

583
7Maintenance and care
RX350/RX200t_EE_OM48F32E
7-1. Maintenance and care
Cleaning and protecting
the vehicle exterior ................584
Cleaning and protecting
the vehicle interior..................589
7-2. Maintenance
Maintenance
requirements ............................ 592
7-3. Do-it-yourself
maintenance
Do-it-yourself service
precautions................................595
Hood ............................................... 597
Positioning a floor jack ............598
Engine compartment ............... 599
Tires ...................................................612
Tire inflation pressure .............. 629
Wheels ............................................ 631
Air conditioning filter ............... 633
Windshield wiper inserts ........ 636
Electronic key battery..............638
Checking and
replacing fuses .........................640
Light bulbs..................................... 643

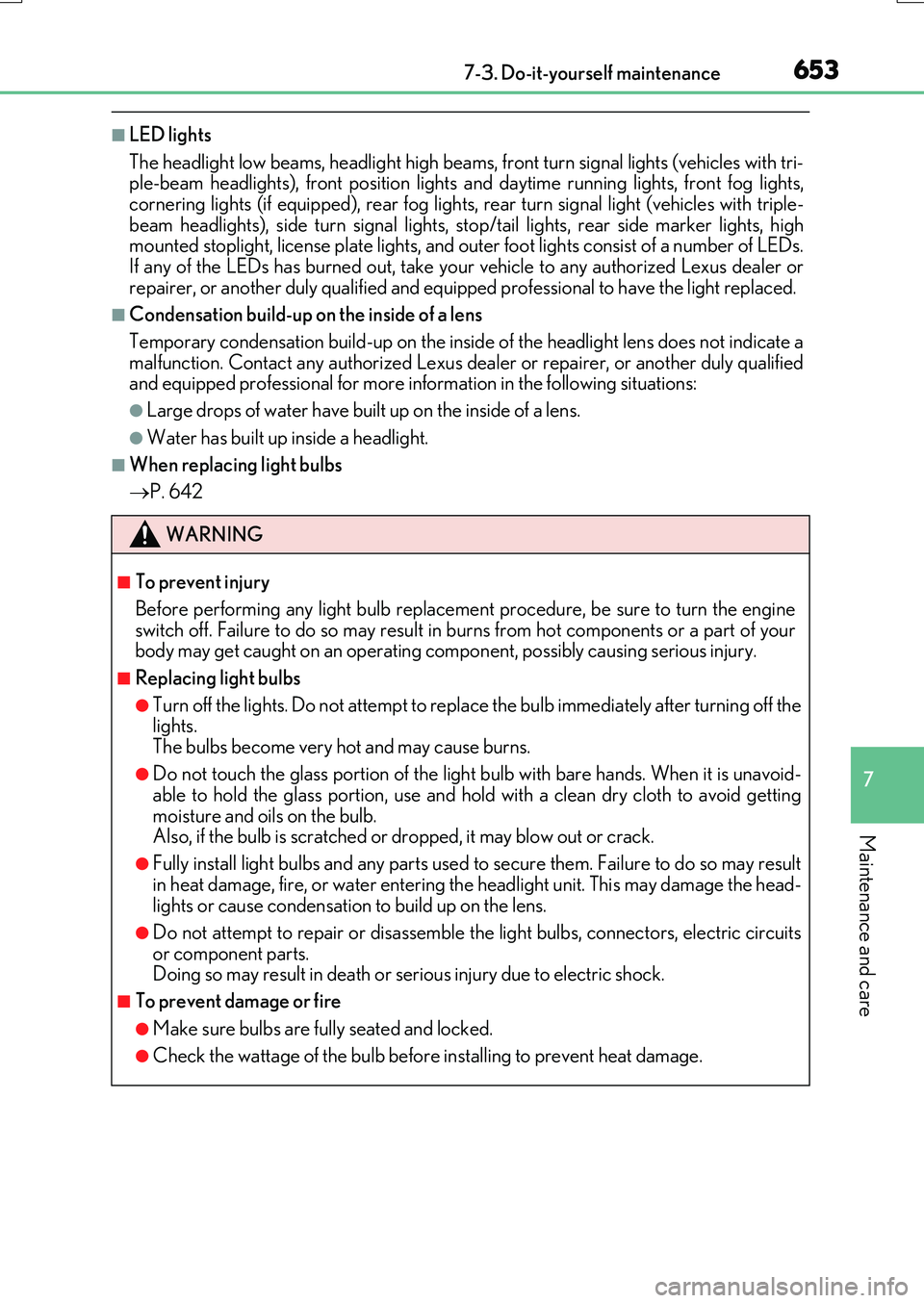

6537-3. Do-it-yourself maintenance
7
Maintenance and care
RX350/RX200t_EE_OM48F32E
■LED lights
The headlight low beams, headlight high beams, front turn signal lights (vehicles with tri- ple-beam headlights), front position lights and daytime running lights, front fog lights, cornering lights (if equipped), rear fog lights, rear turn signal light (vehicles with triple-
beam headlights), side turn signal lights, st op/tail lights, rear side marker lights, high mounted stoplight, license plate lights, and outer foot lights consist of a number of LEDs.If any of the LEDs has burned out, take your vehicle to any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional to have the light replaced.
■Condensation build-up on the inside of a lens
Temporary condensation build-up on the inside of the headlight lens does not indicate a
malfunction. Contact any authorized Lexus dealer or repairer, or another duly qualified and equipped professional for more info rmation in the following situations:
●Large drops of water have built up on the inside of a lens.
●Water has built up inside a headlight.
■When replacing light bulbs
 P. 642
WARNING
■To prevent injury
Before performing any light bulb replacement procedure, be sure to turn the engine switch off. Failure to do so may result in burns from hot components or a part of your body may get caught on an operating co mponent, possibly causing serious injury.
■Replacing light bulbs
●Turn off the lights. Do not attempt to replace the bulb immediately after turning off the lights.
The bulbs become very hot and may cause burns.
●Do not touch the glass portion of the light bulb with bare hands. When it is unavoid- able to hold the glass portion, use and hold with a clean dry cloth to avoid getting
moisture and oils on the bulb. Also, if the bulb is scratched or dropped, it may blow out or crack.
●Fully install light bulbs and any parts used to secure them. Failure to do so may result
in heat damage, fire, or wate r entering the headlight unit. This may damage the head- lights or cause condensation to build up on the lens.
●Do not attempt to repair or disassemble the light bulbs, connectors, electric circuits
or component parts. Doing so may result in death or serious injury due to electric shock.
■To prevent damage or fire
●Make sure bulbs are fully seated and locked.
●Check the wattage of the bulb before installing to prevent heat damage.

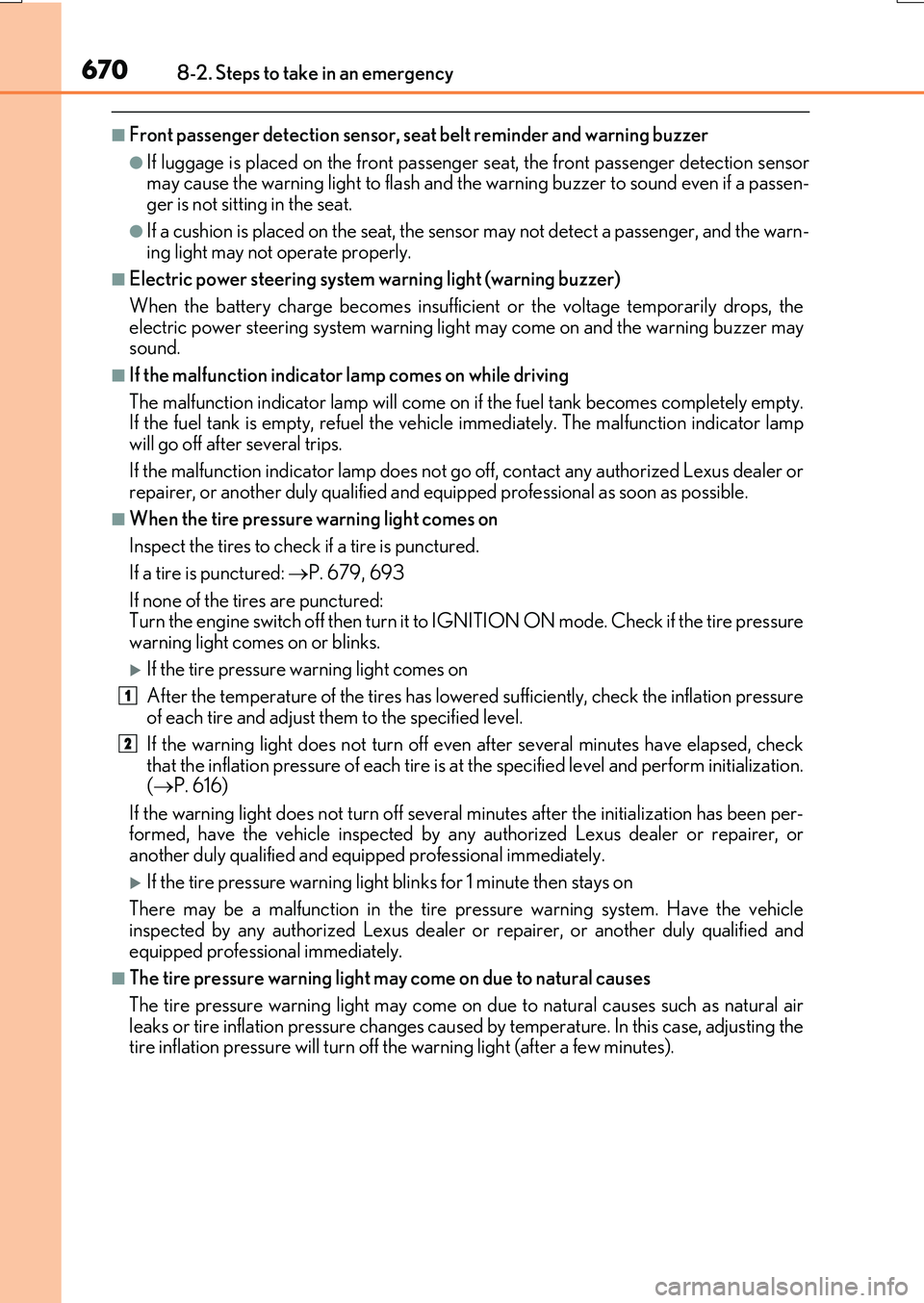

6708-2. Steps to take in an emergency
RX350/RX200t_EE_OM48F32E
■Front passenger detection sensor, seat belt reminder and warning buzzer
●If luggage is placed on the front passenger seat, the front passenger detection sensor may cause the warning light to flash and the warning buzzer to sound even if a passen-ger is not sitting in the seat.
●If a cushion is placed on the seat, the sensor may not detect a passenger, and the warn-ing light may not operate properly.
■Electric power steering system warning light (warning buzzer)
When the battery charge becomes insufficien t or the voltage temporarily drops, the electric power steering system warning lig ht may come on and the warning buzzer may sound.
■If the malfunction indicator lamp comes on while driving
The malfunction indicator lamp will come on if the fuel tank becomes completely empty. If the fuel tank is empty, refuel the vehicle immediately. The malfunction indicator lamp
will go off after several trips.
If the malfunction indicator lamp does not go off, contact any authorized Lexus dealer or repairer, or another duly qualified and eq uipped professional as soon as possible.
■When the tire pressure warning light comes on
Inspect the tires to check if a tire is punctured.
If a tire is punctured: P. 679, 693
If none of the tires are punctured: Turn the engine switch off then turn it to IGNITION ON mode. Check if the tire pressurewarning light comes on or blinks.
If the tire pressure warning light comes on
After the temperature of the tires has lowere d sufficiently, check the inflation pressure of each tire and adjust them to the specified level.
If the warning light does not turn off even after several minutes have elapsed, check that the inflation pressure of each tire is at the specified level and perform initialization. ( P. 616)
If the warning light does not turn off severa l minutes after the initialization has been per- formed, have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and equipped professional immediately.
If the tire pressure warning light blinks for 1 minute then stays on
There may be a malfunction in the tire pressure warning system. Have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional immediately.
■The tire pressure warning light may come on due to natural causes
The tire pressure warning light may come on due to natural causes such as natural air leaks or tire inflation pressure changes caused by temperature. In this case, adjusting the tire inflation pressure will turn off th e warning light (after a few minutes).
1
2
