27Pictorial index
RX350/RX200t_EE_OM48F32E
Remote Touch*1, 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 530
Lexus Display Audio controller*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 440
Wireless charger switch*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 568
Brake hold switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 263
Front seat heater switches*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 550
Seat ventilator switches*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 551
VSC OFF switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 424
Driving mode select switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 417
Stop & Start cancel switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 345
*1: For vehicles with a navigation system, refer to “NAVIGATION SYSTEM OWNER’S
MANUAL”.
*2: If equipped
1
2
3
4
5
6
7
8
9

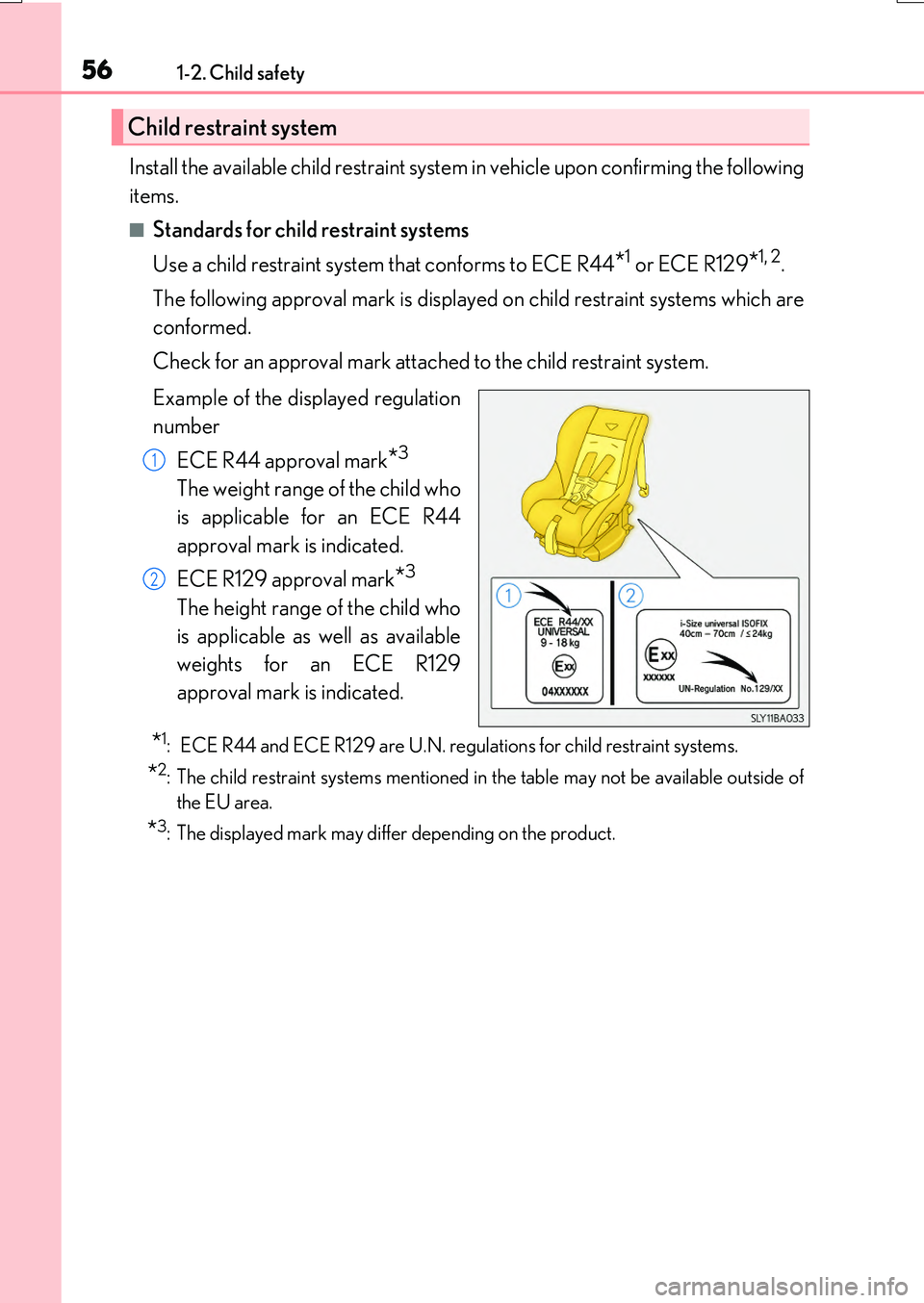

561-2. Child safety
RX350/RX200t_EE_OM48F32E
Install the available child restraint system in vehicle upon confirming the following
items.
■Standards for child restraint systems
Use a child restraint system that conforms to ECE R44*1 or ECE R129*1, 2.
The following approval mark is displaye d on child restraint systems which are
conformed.
Check for an approval mark attached to the child restraint system.
Example of the displayed regulation
number
ECE R44 approval mark*3
The weight range of the child who
is applicable for an ECE R44
approval mark is indicated.
ECE R129 approval mark*3
The height range of the child who
is applicable as well as available
weights for an ECE R129
approval mark is indicated.
*1: ECE R44 and ECE R129 are U.N. regu lations for child restraint systems.
*2: The child restraint systems mentioned in the table may not be available outside of
the EU area.
*3: The displayed mark may differ depending on the product.
Child restraint system
1
2

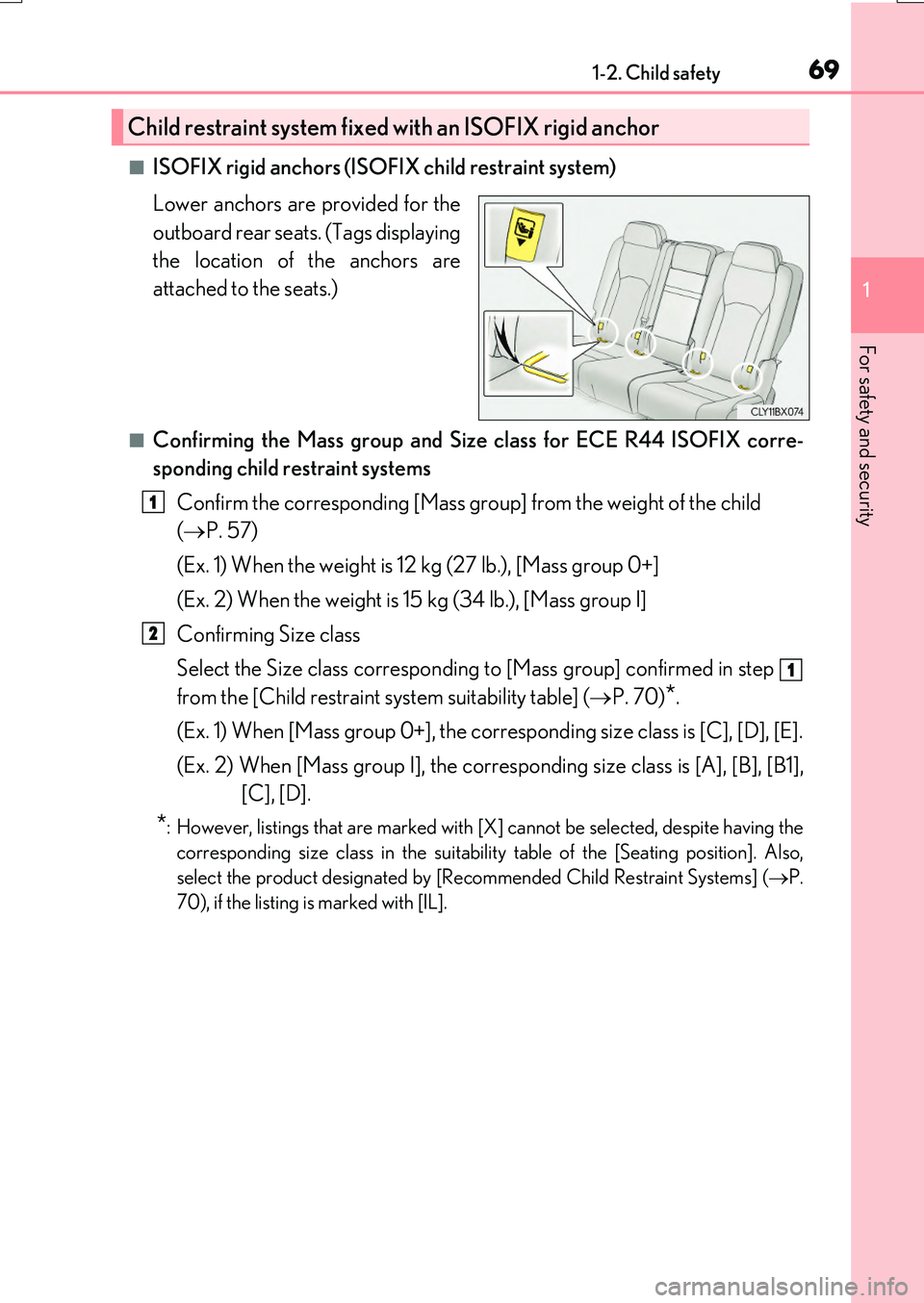

691-2. Child safety
1
For safety and security
RX350/RX200t_EE_OM48F32E
■ISOFIX rigid anchors (ISOFIX child restraint system)
Lower anchors are provided for the
outboard rear seats. (Tags displaying
the location of the anchors are
attached to the seats.)
■Confirming the Mass group and Size class for ECE R44 ISOFIX corre-
sponding child restraint systems
Confirm the corresponding [Mass group] from the weight of the child
( P. 57)
(Ex. 1) When the weight is 12 kg (27 lb.), [Mass group 0+]
(Ex. 2) When the weight is 15 kg (34 lb.), [Mass group I]
Confirming Size class
Select the Size class corresponding to [Mass group] confirmed in step
from the [Child restraint system suitability table] ( P. 70)*.
(Ex. 1) When [Mass group 0+], the corresponding size class is [C], [D], [E].
(Ex. 2) When [Mass group I], the corresponding size class is [A], [B], [B1],
[C], [D].
*: However, listings that are marked with [X] cannot be selected, despite having the
corresponding size class in the suitability table of the [Seating position]. Also,
select the product designated by [Rec ommended Child Restraint Systems] (P.
70), if the listing is marked with [IL].
Child restraint system fixed with an ISOFIX rigid anchor
1
2
1

851-3. Theft deterrent system
1
For safety and security
RX350/RX200t_EE_OM48F32E
●The intrusion sensor detects intruders or movement in the vehicle.
●The tilt sensor detects changes in vehicle inclination, such as when the vehicle
is towed away.
This system is designed to deter and pr event vehicle theft but does not guarantee
absolute security against all intrusions.
■Setting the intrusion sensor and tilt sensor
The intrusion sensor and tilt sensor will be set automatically when the alarm is
set. ( P. 83)
■Canceling the intrusion sensor and tilt sensor
If you are leaving pets or other moving things inside the vehicle, make sure to
disable the intrusion sensor and tilt sensor before setting the alarm, as they will
respond to movement inside the vehicle.
Turn the engine switch off.
Press the intrusion sensor and tilt
sensor cancel switch.
A message will be shown on the
multi-information display in the
instrument cluster.
The intrusion sensor and tilt sen-
sor will revert to on each time the
engine switch is turned to IGNI-
TION ON mode.
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modi fied or removed, the proper operation of the system cannot be guaranteed.
Intrusion sensor (if equipped) /Intrusion sensor and tilt sensor
(if equipped)
1
2

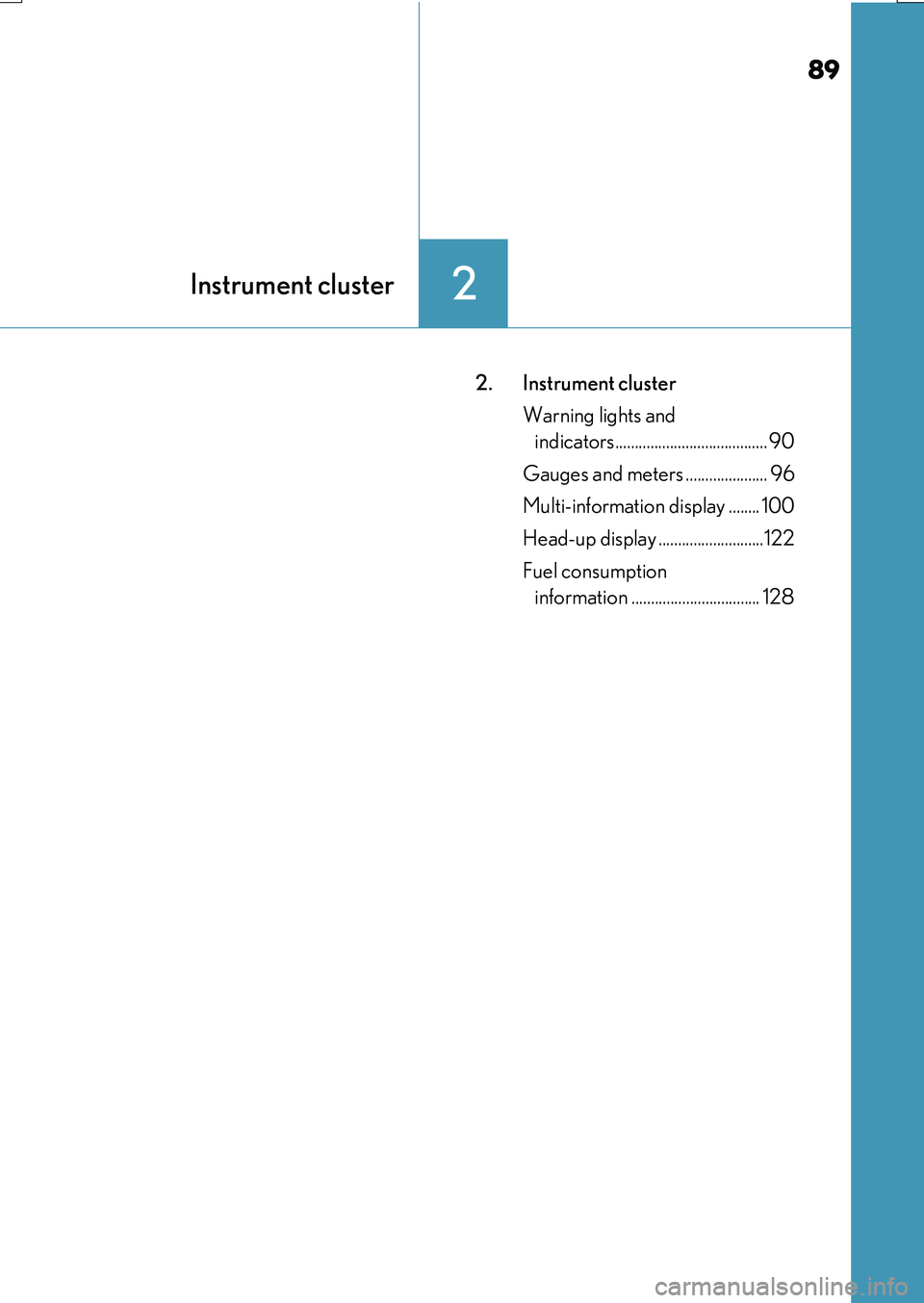

89
2Instrument cluster
RX350/RX200t_EE_OM48F32E
2. Instrument cluster
Warning lights and
indicators....................................... 90
Gauges and meters ..................... 96
Multi-information display ........ 100
Head-up display ...........................122
Fuel consumption
information ................................. 128

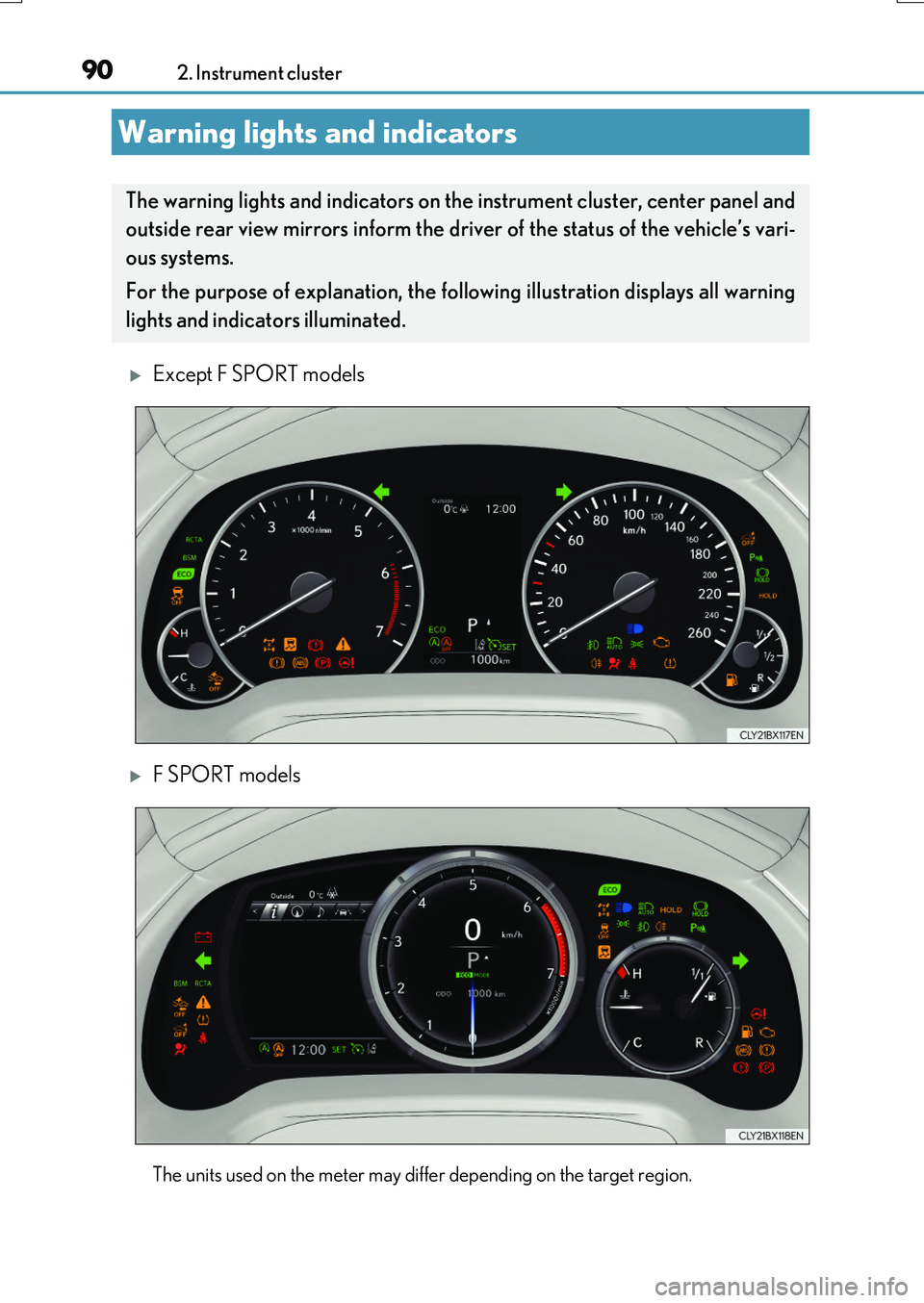

90
RX350/RX200t_EE_OM48F32E
2. Instrument cluster
Except F SPORT models
F SPORT models
The units used on the meter may differ depending on the target region.
Warning lights and indicators
The warning lights and indicators on th e instrument cluster, center panel and
outside rear view mirrors inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the foll owing illustration displays all warning
lights and indicators illuminated.

922. Instrument cluster
RX350/RX200t_EE_OM48F32E
*1: These lights turn on when the engine switch is turned to IGNITION ON mode to
indicate that a system check is being performed. They will turn off after the engine is
started, or after a few seconds. There may be a malfunction in a system if a light does
not come on, or turn off. Have the vehicle inspected by any authorized Lexus dealer
or repairer, or another duly qualified and equipped professional.
*2: When the start-up display is displayed on the multi-information display, this light may
not turn on even though the engine swit ch has been turned to IGNITION ON mode.
*3: The light flashes to indicate a malfunction.
*4: This light illuminates on the center panel.
The indicators inform the driver of the operating state of the vehicle’s various sys-
tems.
Indicators
Turn signal indicator ( P. 258)
Cruise control “SET”
indicator ( P. 329, 341)
Tail light indicator
( P. 265)(if equipped)
LKA indicator (P. 313)
Headlight high beam indicator ( P. 265)(if equipped)
LKA indicator (P. 313)
*1
(if equipped)
Automatic High Beam
indicator ( P. 274) Adaptive High-beam System indicator ( P. 269)
*5
(if equipped)
LKA indicator (P. 313)
Front fog light indicator ( P. 278)

(if equipped)
Lexus parking
assist-sensor indicator ( P. 371)
Rear fog light indicator
( P. 278)
*1, 6
(if equipped)
ICS OFF indicator
( P. 383)
Cruise control indicator
( P. 329, 341)(if equipped)
“BSM” indicator (P. 355)
(if equipped)
Radar cruise control indicator ( P. 329) (if equipped)
“RCTA” indicator ( P. 355)

942. Instrument cluster
RX350/RX200t_EE_OM48F32E
●Drive mode indicators
Except F SPORT models
F SPORT models
*1: These lights turn on when the engine switch is turned to IGNITION ON mode to indicate that a system check is being performed. They will turn off after the engine is
started, or after a few seconds. There may be a malfunction in a system if a light does
not come on, or turn off. Have the vehicle inspected by any authorized Lexus dealer
or repairer, or another duly qualified and equipped professional.
*2: When the start-up display is displayed on the multi-information display, this light may
not turn on even though the engine swit ch has been turned to IGNITION ON mode.
*3: In order to confirm operation, the BSM outside rear view mirror indicators illuminate
in the following situations:
• When the BSM function is enabled on of the multi-information display, the
engine switch is turned to IGNITION ON mode.
• When the engine switch is in IGNITION ON mode, the BSM function is enabled
on of the multi-information display.
If the system is functioning correctly, the BSM outside rear view mirror indicators will
turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not turn off,
there may be a malfunction in the system.
If this occurs, have the vehicle inspected by any authorized Lexus dealer or repairer,
or another duly qualified and equipped professional. Eco drive mode indicator
(  P. 417)
(if equipped)
“SPORT” indicator
(  P. 417)
(if equipped)
“SPORT S” indicator
(  P. 417)
(if equipped)
“SPORT S+” indicator
(  P. 417)
(if equipped)
“Customize” indicator
(  P. 417)
Eco drive mode indicator
(  P. 417) “SPORT S” indicator
(  P. 417)
“SPORT S+” indicator
(  P. 417) “CUSTOMIZE” indicator
(  P. 417)

972. Instrument cluster
2
Instrument cluster
RX350/RX200t_EE_OM48F32E
Engine coolant temperature gauge
Displays the engine coolant temperature
Tachometer
Displays the engine speed in revolutions per minute
F SPORT models: When sport mode is selected for the driving mode, the periph-
ery of the tachometer will change color and the scale of the tachometer will be emphasized.
Outside temperature
Displays the outside temperature within the range of -40°C (-40°F) to 50°C(122°F). Low outside temperature indicator comes on when the ambient tempera-
ture is 3°C (37°F) or lower.
Multi-information display
Presents the driver with a variety of vehicle data ( P. 100)
Displays warning messages in case of a malfunction ( P. 673)
Clock
Vehicles with a navigation system: Time displayed is linked to the analog clock on the instrument panel. (P. 568)
Vehicles with a Lexus Display Audio system:
Time displayed on the clock can be adju sted on of the multi-information dis-
play. ( P. 110)
Speedometer
Fuel gauge
Shift position display ( P. 251)
Odometer and trip meter (P. 118)
1
2
3
4
5
6
7
8
9

982. Instrument cluster
RX350/RX200t_EE_OM48F32E

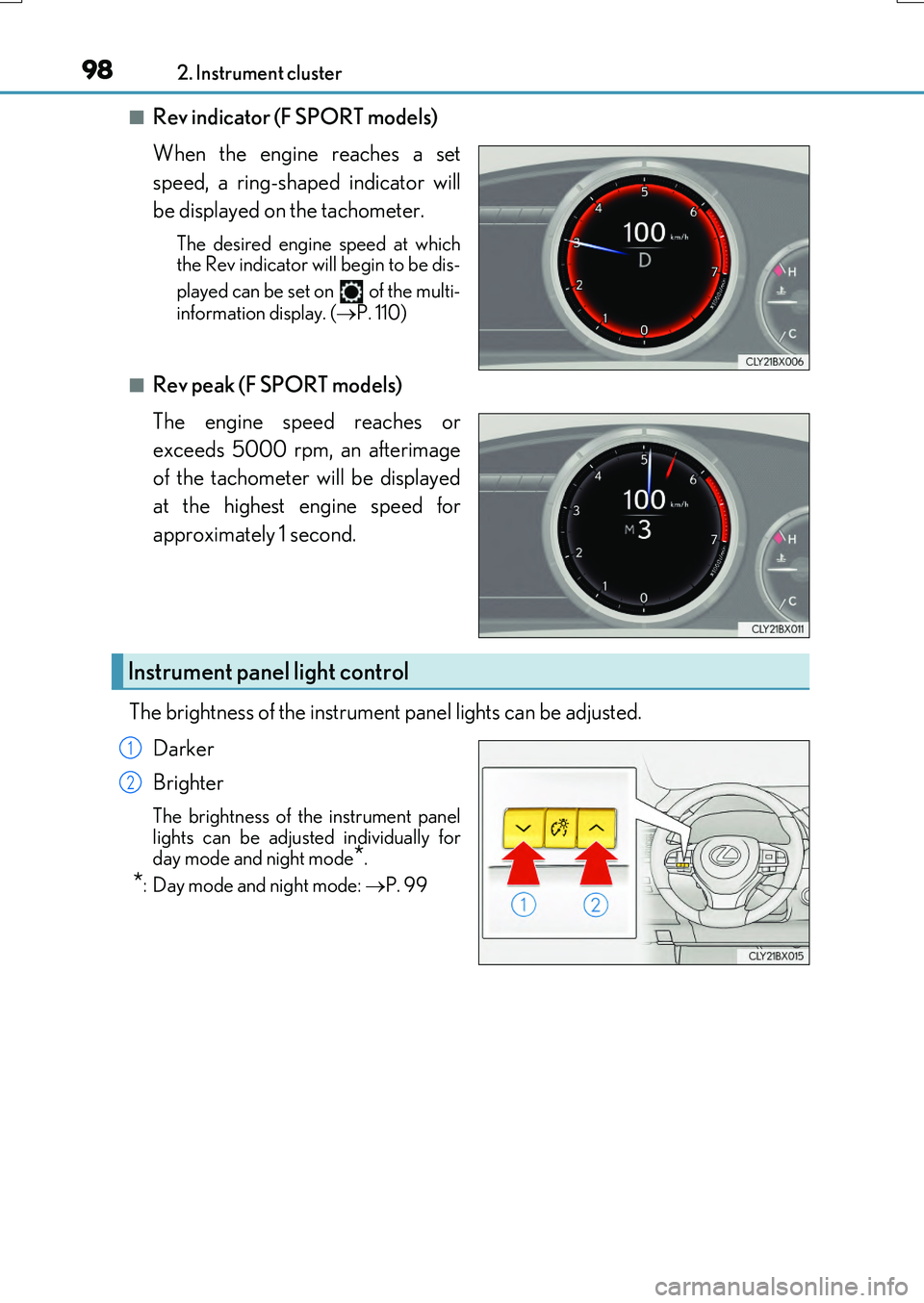

■Rev indicator (F SPORT models)
When the engine reaches a set
speed, a ring-shaped indicator will
be displayed on the tachometer.
The desired engine speed at which the Rev indicator will begin to be dis-
played can be set on of the multi-
information display. ( P. 110)
■Rev peak (F SPORT models)
The engine speed reaches or
exceeds 5000 rpm, an afterimage
of the tachometer will be displayed
at the highest engine speed for
approximately 1 second.
The brightness of the instrument panel lights can be adjusted.
Darker
Brighter
The brightness of the instrument panel lights can be adjusted individually for
day mode and night mode*.
*: Day mode and night mode: P. 99
Instrument panel light control
1
2
