3284-5. Using the driving support systems
RX350/RX200t_EE_OM48F32E

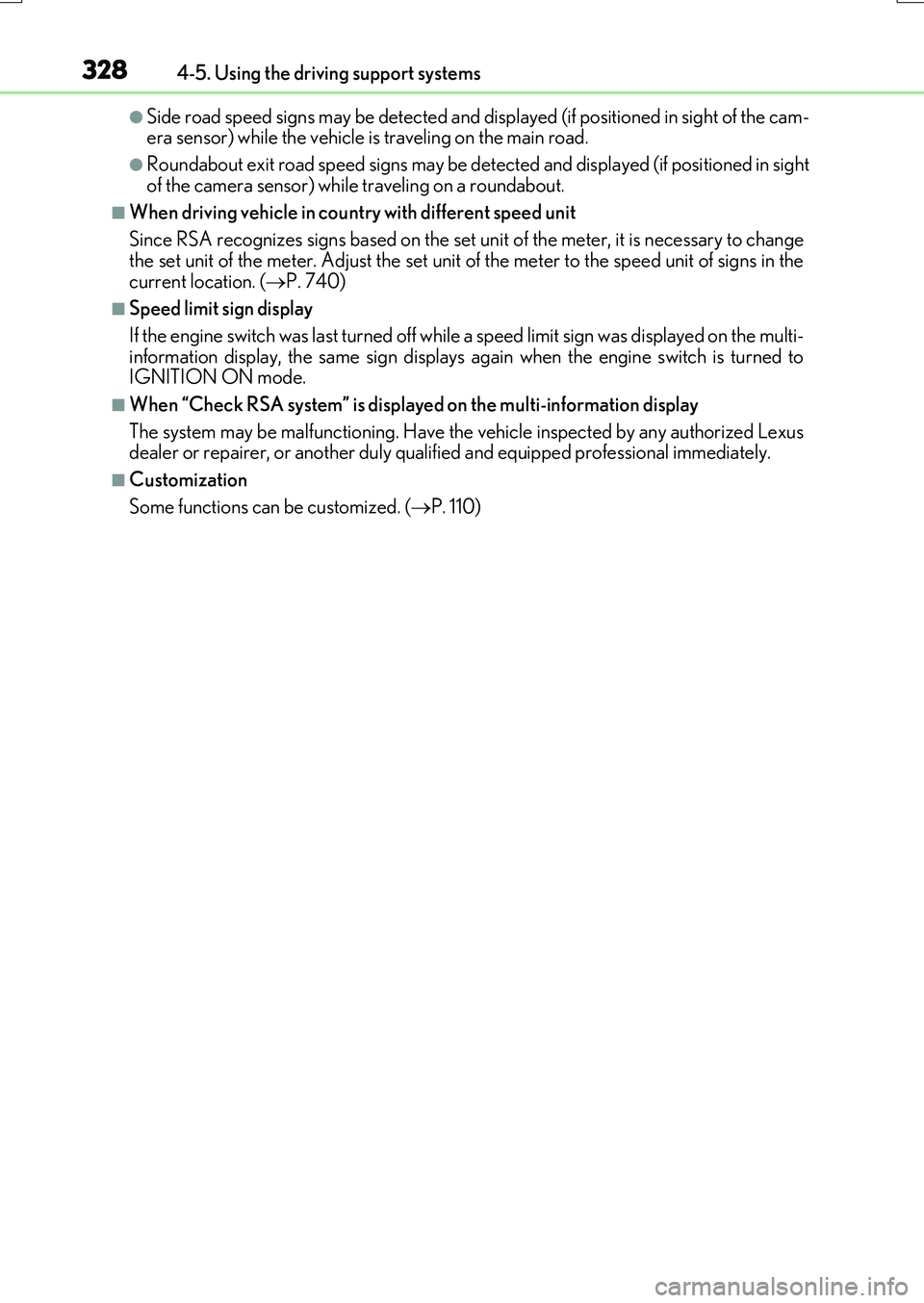

●Side road speed signs may be detected and displayed (if positioned in sight of the cam- era sensor) while the vehicle is traveling on the main road.
●Roundabout exit road speed signs may be detected and displayed (if positioned in sight
of the camera sensor) while traveling on a roundabout.
■When driving vehicle in country with different speed unit
Since RSA recognizes signs based on the set un it of the meter, it is necessary to change
the set unit of the meter. Adjust the set unit of the meter to the speed unit of signs in the current location. ( P. 740)
■Speed limit sign display
If the engine switch was last turned off while a speed limit sign was displayed on the multi- information display, the same sign displays again when the engine switch is turned to IGNITION ON mode.
■When “Check RSA system” is displaye d on the multi-information display
The system may be malfunctioning. Have the vehicle inspected by any authorized Lexus dealer or repairer, or another duly qua lified and equipped professional immediately.
■Customization
Some functions can be customized. ( P. 110)

429
4
Driving
RX350/RX200t_EE_OM48F32E
4-6. Driving tips
●Use fluids that are appropriate to the prevailing outside temperatures.
•Engine oil
• Engine coolant
• Washer fluid
●Have a service technician inspect the condition of the battery.
●Have the vehicle fitted with four snow tires or purchase a set of tire chains for
the front tires.
Ensure that all tires are of the specified size and the same brand, and that chains match the size of the tires.
Perform the following according to the driving conditions:
●Do not try to forcibly open a window or move a wiper that is frozen. Pour
warm water over the frozen area to melt the ice. Wipe away the water imme-
diately to prevent it from freezing.
●To ensure proper operation of the climate control system fan, remove any
snow that has accumulated on the air inlet vents in front of the windshield.
●Check for and remove any excess ice or snow that may have accumulated on
the exterior lights, vehicle’s roof, chassi s, around the tires or on the brakes.
●Remove any snow or mud from the bottom of your shoes before getting in the
vehicle.
Winter driving tips
Carry out the necessary preparations and inspections before driving the vehi-
cle in winter. Always drive the vehicle in a manner appropriate to the prevail-
ing weather conditions.
Pre-winter preparations
Before driving the vehicle

4354-6. Driving tips
4
Driving
RX350/RX200t_EE_OM48F32E

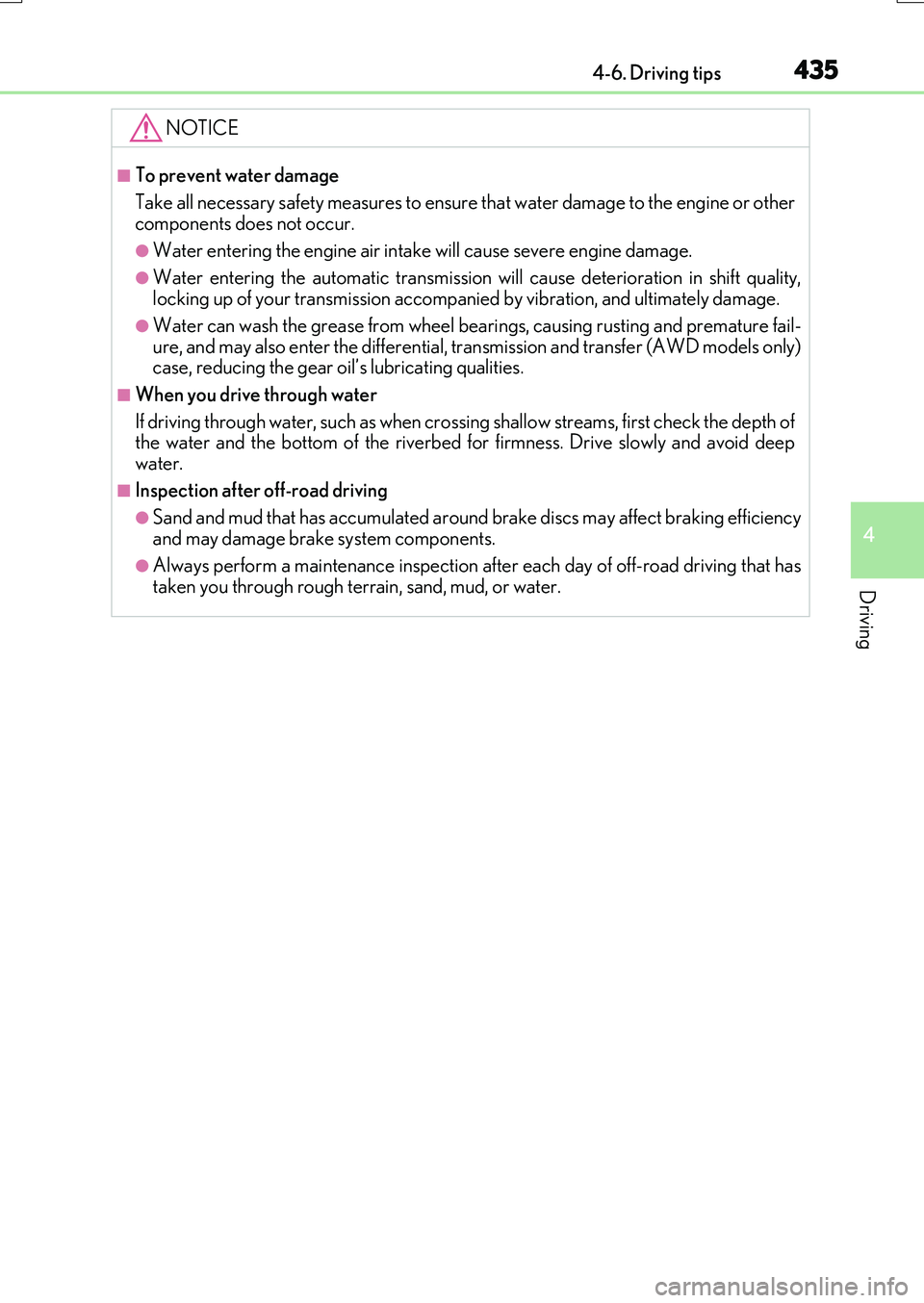

NOTICE
■To prevent water damage
Take all necessary safety measures to ensure that water damage to the engine or other components does not occur.
●Water entering the engine air intake will cause severe engine damage.
●Water entering the automatic transmission will cause deterioration in shift quality, locking up of your transmission accompanied by vibration, and ultimately damage.
●Water can wash the grease from wheel bear ings, causing rusting and premature fail- ure, and may also enter the differential, transmission and transfer (AWD models only)case, reducing the gear o il’s lubricating qualities.
■When you drive through water
If driving through water, such as when crossing shallow streams, first check the depth of the water and the bottom of the riverbed for firmness. Drive slowly and avoid deep
water.
■Inspection after off-road driving
●Sand and mud that has accumulated around brake discs may affect braking efficiency
and may damage brake system components.
●Always perform a maintenance inspection after each day of off-road driving that has taken you through rough terrain, sand, mud, or water.

583
7Maintenance and care
RX350/RX200t_EE_OM48F32E
7-1. Maintenance and care
Cleaning and protecting
the vehicle exterior ................584
Cleaning and protecting
the vehicle interior..................589
7-2. Maintenance
Maintenance
requirements ............................ 592
7-3. Do-it-yourself
maintenance
Do-it-yourself service
precautions................................595
Hood ............................................... 597
Positioning a floor jack ............598
Engine compartment ............... 599
Tires ...................................................612
Tire inflation pressure .............. 629
Wheels ............................................ 631
Air conditioning filter ............... 633
Windshield wiper inserts ........ 636
Electronic key battery..............638
Checking and
replacing fuses .........................640
Light bulbs..................................... 643

5937-2. Maintenance
7
Maintenance and care
RX350/RX200t_EE_OM48F32E

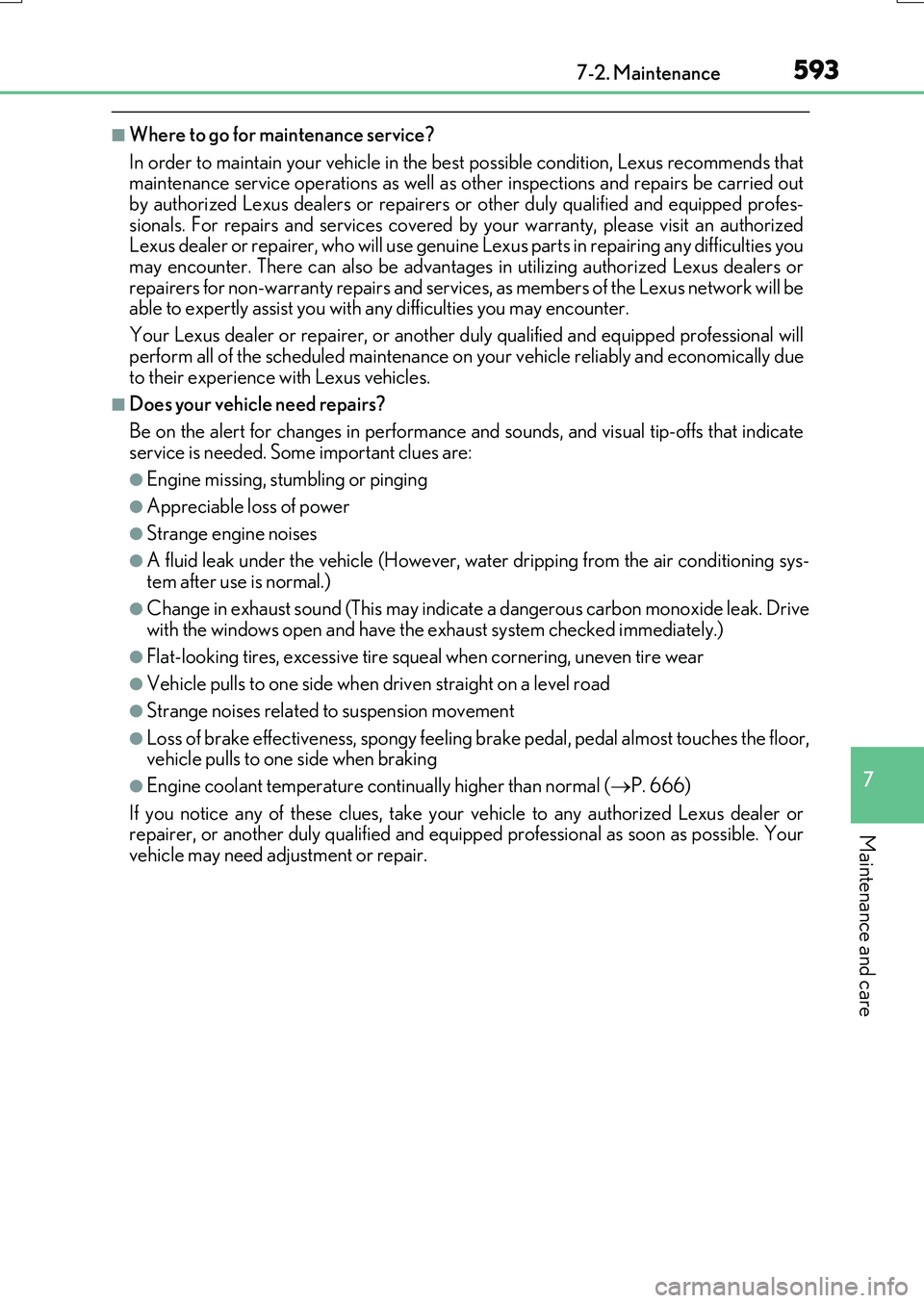

■Where to go for maintenance service?
In order to maintain your vehicle in the best possible condition, Lexus recommends that maintenance service operations as well as ot her inspections and repairs be carried out by authorized Lexus dealers or repairers or other duly qualified and equipped profes-
sionals. For repairs and services covered by your warranty, please visit an authorized Lexus dealer or repairer, who will use genuine Lexus parts in repairing any difficulties youmay encounter. There can also be advantages in utilizing authorized Lexus dealers or
repairers for non-warranty repa irs and services, as members of the Lexus network will be able to expertly assist you with any difficulties you may encounter.
Your Lexus dealer or repairer, or another duly qualified and equipped professional will
perform all of the scheduled maintenance on your vehicle reliably and economically due to their experience with Lexus vehicles.
■Does your vehicle need repairs?
Be on the alert for changes in performance and sounds, and visual tip-offs that indicate service is needed. Some important clues are:
●Engine missing, stumbling or pinging
●Appreciable loss of power
●Strange engine noises
●A fluid leak under the vehicle (However, water dripping from the air conditioning sys-
tem after use is normal.)
●Change in exhaust sound (This may indicate a dangerous carbon monoxide leak. Drive with the windows open and have the exhaust system checked immediately.)
●Flat-looking tires, excessive tire squeal when cornering, uneven tire wear
●Vehicle pulls to one side when driven straight on a level road
●Strange noises related to suspension movement
●Loss of brake effectiveness, spongy feeling brake pedal, pedal almost touches the floor,vehicle pulls to one side when braking
●Engine coolant temperature continually higher than normal ( P. 666)
If you notice any of these clues, take your vehicle to any authorized Lexus dealer or repairer, or another duly qualified and equipp ed professional as soon as possible. Your vehicle may need adjustment or repair.

6017-3. Do-it-yourself maintenance
7
Maintenance and care
RX350/RX200t_EE_OM48F32E

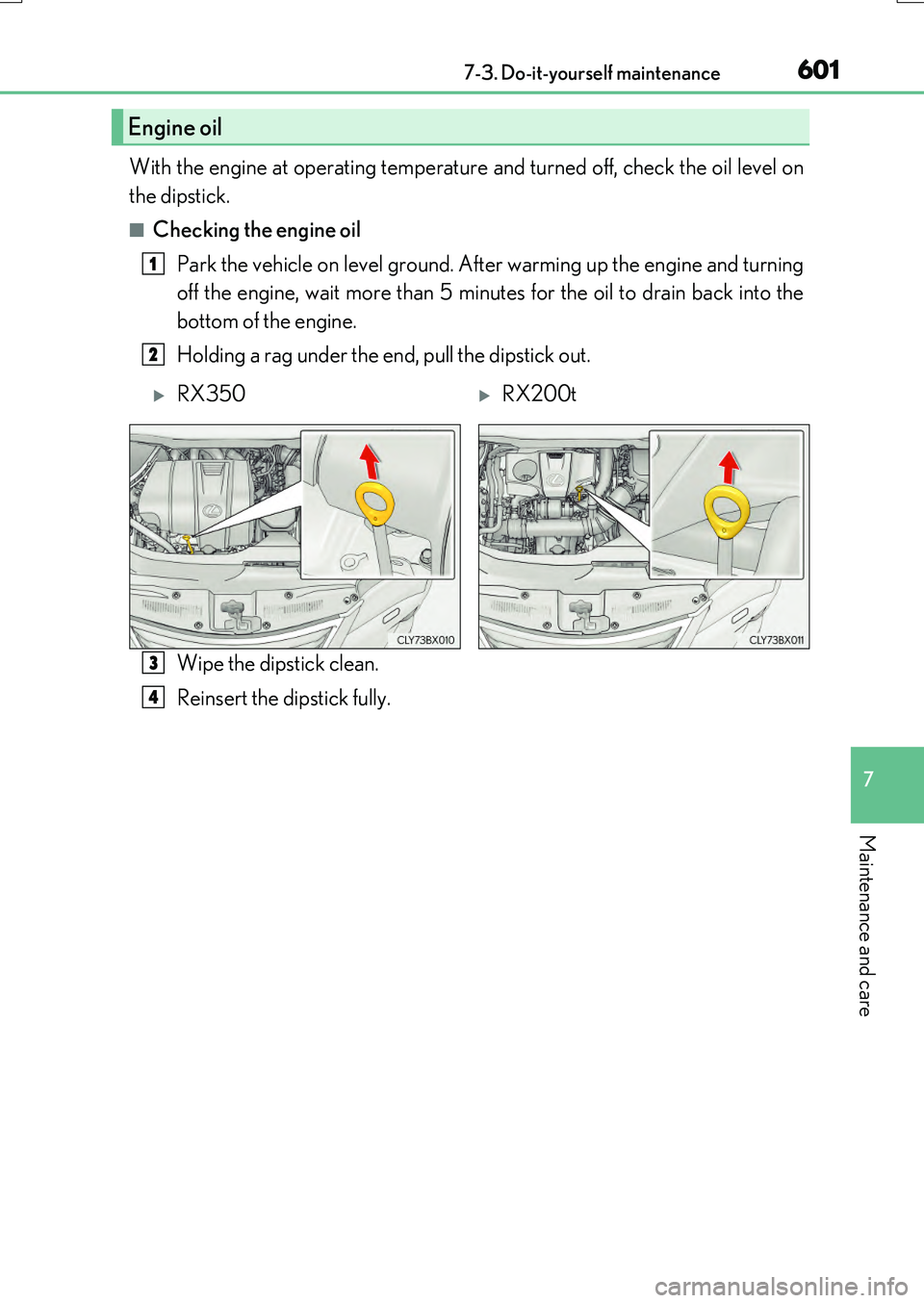

With the engine at operating temperature and turned off, check the oil level on
the dipstick.
■Checking the engine oil
Park the vehicle on level ground. After warming up the engine and turning
off the engine, wait more than 5 minutes for the oil to drain back into the
bottom of the engine.
Holding a rag under the end, pull the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully.
Engine oil
1
2
RX350RX200t
3
4

6027-3. Do-it-yourself maintenance
RX350/RX200t_EE_OM48F32E

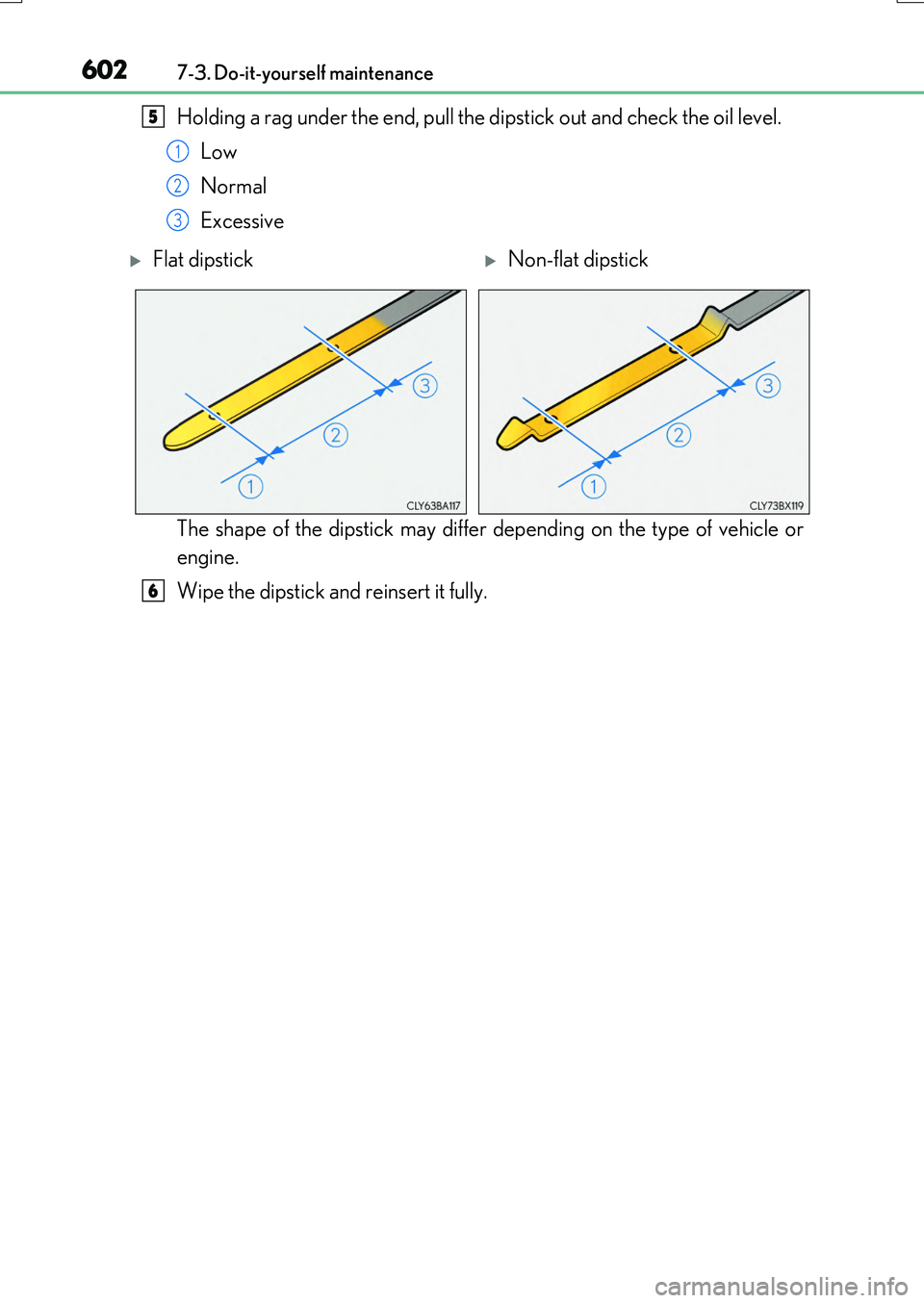

Holding a rag under the end, pull the dipstick out and check the oil level.
Low
Normal
Excessive
The shape of the dipstick may differ depending on the type of vehicle or
engine.
Wipe the dipstick and reinsert it fully.
5
1
2
3
Flat dipstickNon-flat dipstick
6

6037-3. Do-it-yourself maintenance
7
Maintenance and care
RX350/RX200t_EE_OM48F32E

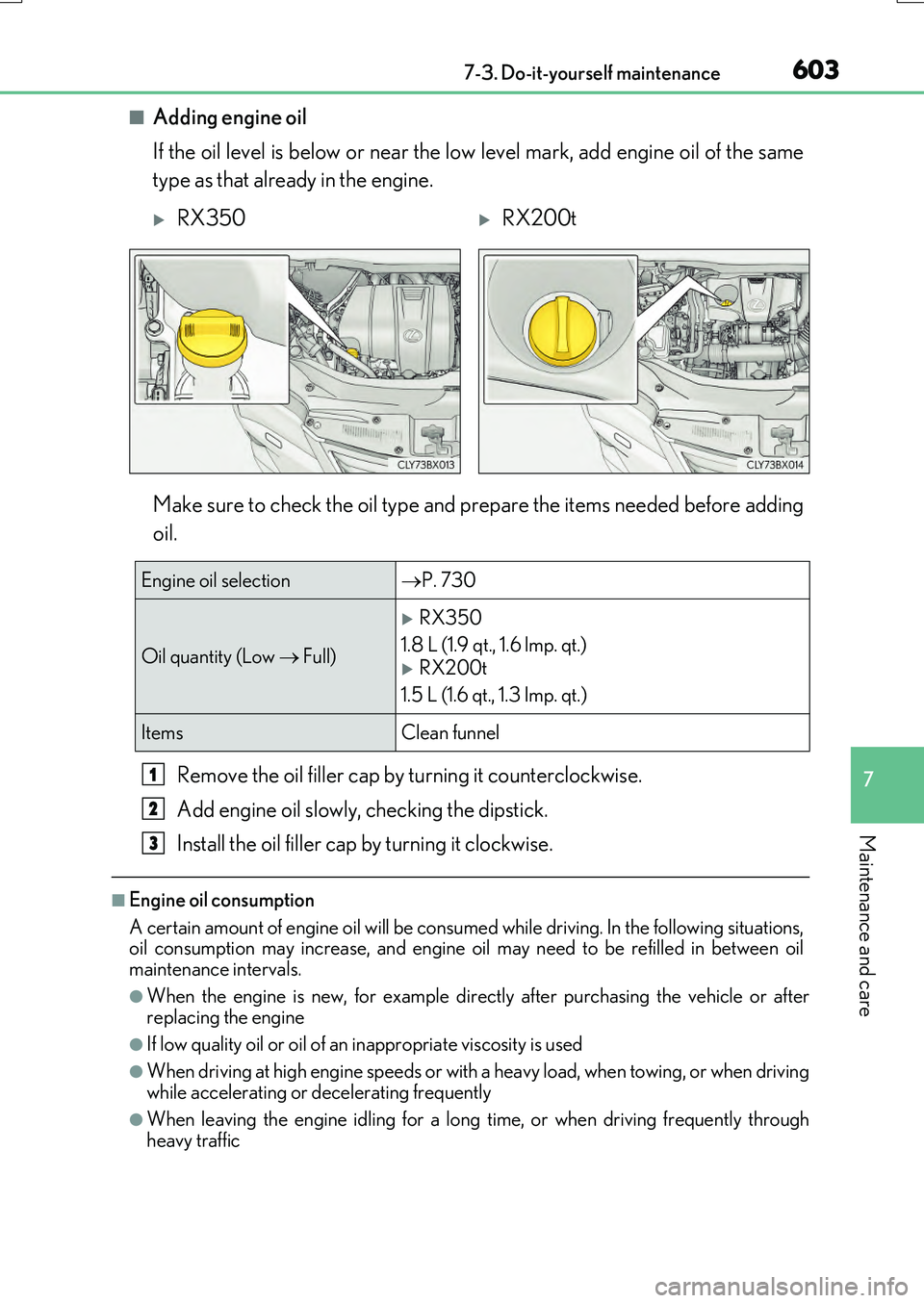

■Adding engine oil
If the oil level is below or near the low level mark, add engine oil of the same
type as that already in the engine.
Make sure to check the oil type and prepare the items needed before adding
oil.
Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
■Engine oil consumption
A certain amount of engine oil will be consum ed while driving. In the following situations, oil consumption may increase, and engine o il may need to be refilled in between oil maintenance intervals.
●When the engine is new, for example directly after purchasing the vehicle or afterreplacing the engine
●If low quality oil or oil of an inappropriate viscosity is used
●When driving at high engine speeds or with a heavy load, when towing, or when driving while accelerating or decelerating frequently
●When leaving the engine idling for a long time, or when driving frequently through
heavy traffic
RX350RX200t
Engine oil selection P. 730
Oil quantity (Low  Full)
RX350
1.8 L (1.9 qt., 1.6 lmp. qt.)
RX200t
1.5 L (1.6 qt., 1.3 Imp. qt.)
ItemsClean funnel
1
2
3

6047-3. Do-it-yourself maintenance
RX350/RX200t_EE_OM48F32E
■After changing the engine oil
The engine oil maintenance data should be reset. Perform the following procedures:
Select on the multi-information display. ( P. 110)
Press or of the meter control switch, select the “Vehicle Settings” then “Oil
Maintenance”. (To confirm setting, press .)
Select the “Yes” and push .
A message is displayed on th e multi-information display.
WARNING
■Used engine oil
●Used engine oil contains potentially harmful contaminants which may cause skin dis-
orders such as inflammation and skin cancer, so care should be taken to avoid pro-
longed and repeated contact. To remove used engine oil from your skin, wash
thoroughly with soap and water.
●Dispose of used oil and filters only in a safe and acceptable manner. Do not dispose of
used oil and filters in household trash, in sewers or onto the ground. Call any autho-
rized Lexus dealer or repairer, or anothe r duly qualified and equipped professional,
service station or auto parts store for information concerning recycling or disposal.
●Do not leave used engine oil within the reach of children.
NOTICE
■To prevent serious engine damage
Check the oil level on a regular basis.
■When replacing the engine oil
●Be careful not to spill engine oil on the vehicle components.
●Avoid overfilling, or the engine could be damaged.
●Check the oil level on the dipstick every time you refill the vehicle.
●Be sure the engine oil filler cap is properly tightened.
1
2
3
4

6067-3. Do-it-yourself maintenance
RX350/RX200t_EE_OM48F32E

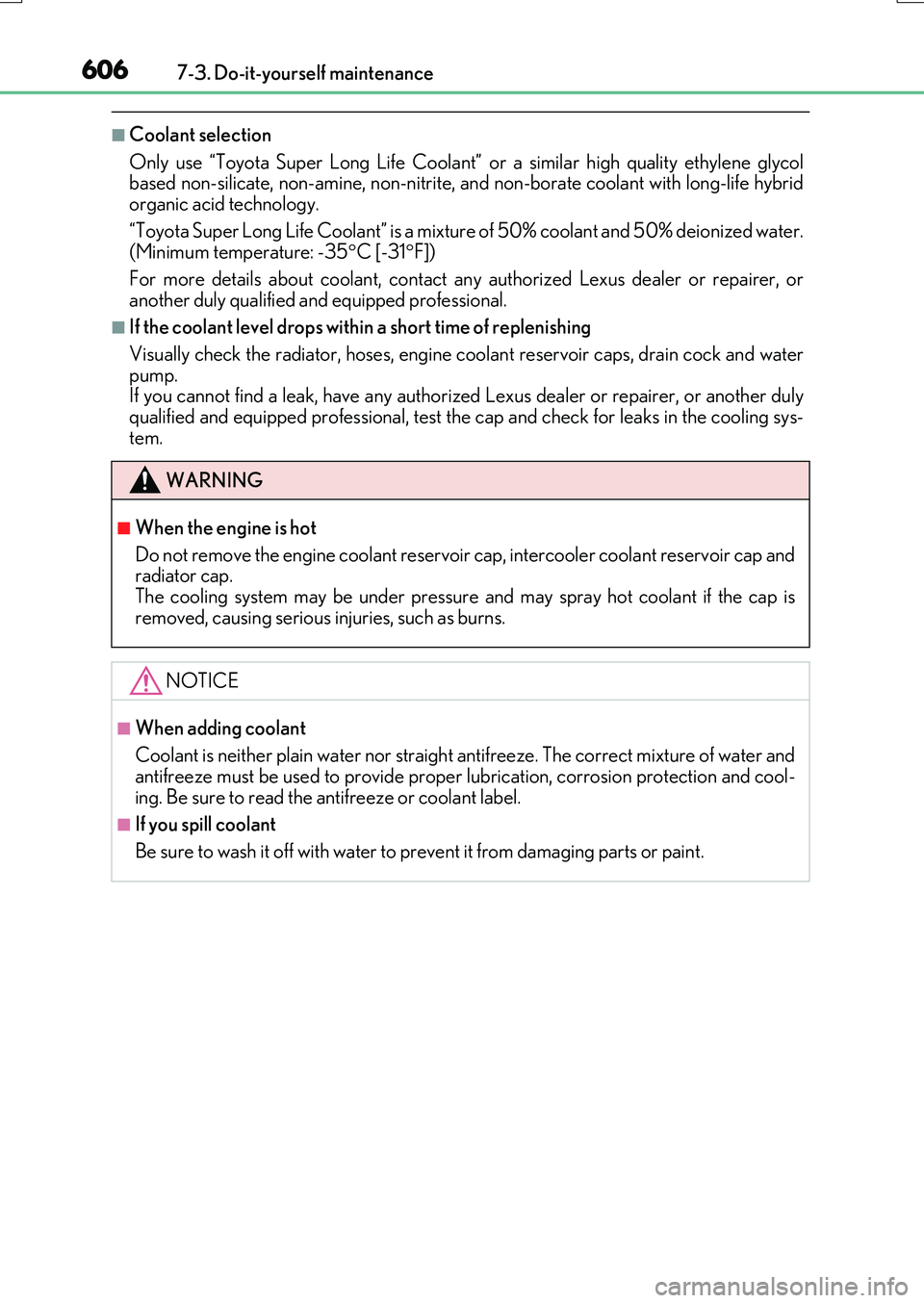

■Coolant selection
Only use “Toyota Super Long Life Coolant” or a similar high quality ethylene glycol based non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life hybridorganic acid technology.
“Toyota Super Long Life Coolant” is a mixt ure of 50% coolant and 50% deionized water. (Minimum temperature: -35 C [-31F])
For more details about coolant, contact any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
■If the coolant level drops within a short time of replenishing
Visually check the radiator, hoses, engine coolant reservoir caps, drain cock and water
pump. If you cannot find a leak, have any authorized Lexus dealer or repairer, or another dulyqualified and equipped professional, test the cap and check for leaks in the cooling sys-
tem.
WARNING
■When the engine is hot
Do not remove the engine coolant reservoir cap, intercooler coolant reservoir cap and radiator cap.
The cooling system may be under pressure and may spray hot coolant if the cap is removed, causing serious injuries, such as burns.
NOTICE
■When adding coolant
Coolant is neither plain water nor straight antifreeze. The correct mixture of water and
antifreeze must be used to provide proper lubrication, corrosion protection and cool- ing. Be sure to read the antifreeze or coolant label.
■If you spill coolant
Be sure to wash it off with water to prevent it from damaging parts or paint.
