Page 599 of 776

5997-3. Do-it-yourself maintenance
7
Maintenance and care
RX350/RX200t_EE_OM48F32E
RX350
Engine compartment
Washer fluid tank (P. 611)
Engine oil filler cap ( P. 603)
Engine oil level dipstick ( P. 601)
Engine coolant reservoir
( P. 605)
Battery ( P. 607)
Fuse box ( P. 640)
Radiator ( P. 607)
Condenser ( P. 607)
Electric cooling fans
1
2
3
4
5
6
7
8
9
Page 600 of 776

6007-3. Do-it-yourself maintenance
RX350/RX200t_EE_OM48F32E
RX200t
Intercooler coolant reservoir
( P. 605)
Engine oil filler cap ( P. 603)
Engine oil level dipstick ( P. 601)
Engine coolant reservoir
( P. 605)
Battery ( P. 607)
Fuse box ( P. 640)
Radiator ( P. 607)
Condenser ( P. 607)
Electric cooling fans
Intercooler radiator ( P. 607)
Washer fluid tank ( P. 611)
1
2
3
4
5
6
7
8
9
10
11

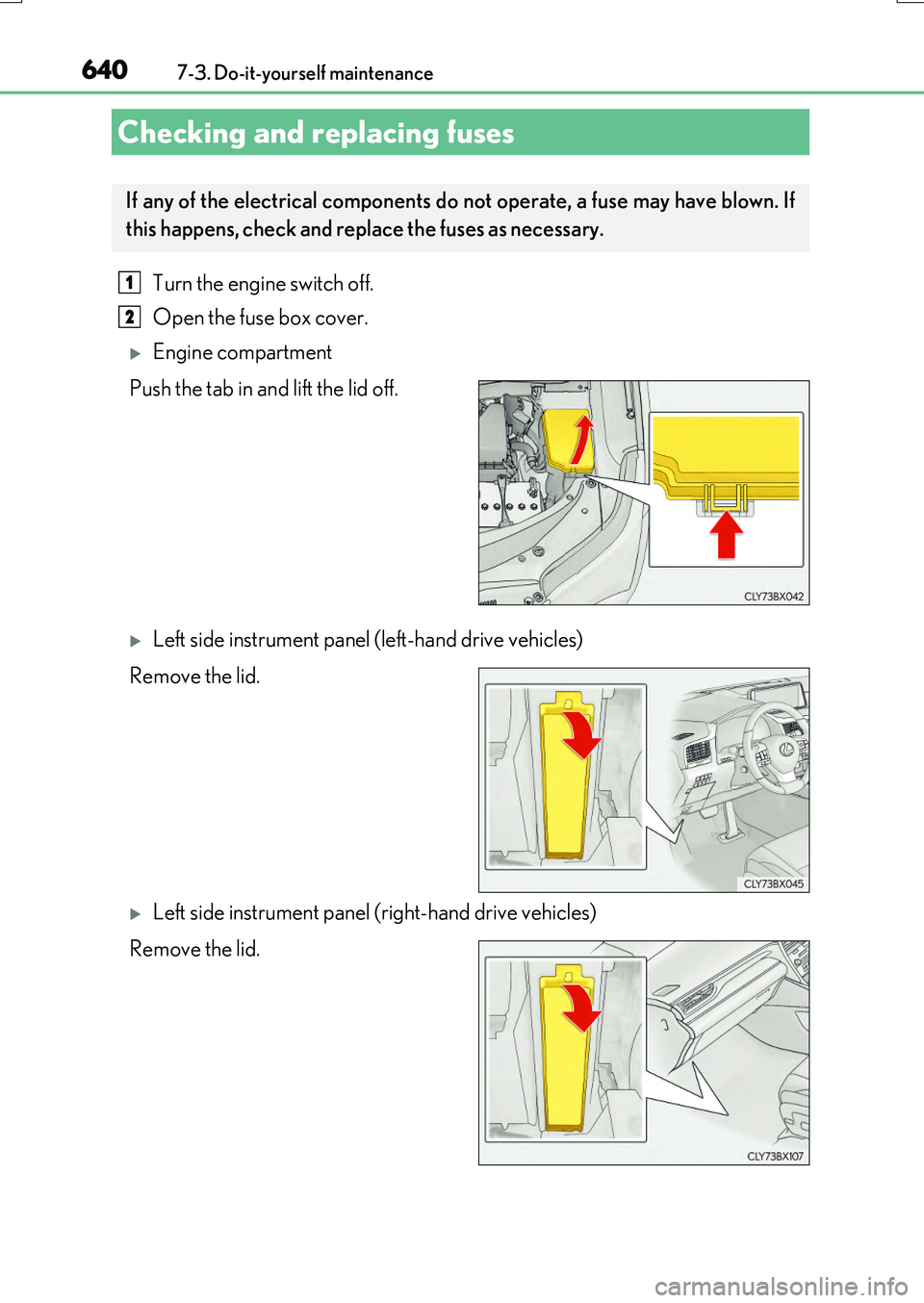

Page 640 of 776

6407-3. Do-it-yourself maintenance
RX350/RX200t_EE_OM48F32E
Turn the engine switch off.
Open the fuse box cover.
Engine compartment
Push the tab in and lift the lid off.
Left side instrument panel (left-hand drive vehicles)
Remove the lid.
Left side instrument panel (right-hand drive vehicles)
Remove the lid.
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have blown. If
this happens, check and repl ace the fuses as necessary.
1
2
Page 641 of 776

6417-3. Do-it-yourself maintenance
7
Maintenance and care
RX350/RX200t_EE_OM48F32E
Remove the fuse with the pullout
tool.
Only some fuses can be removed
using the pullout tool.
Check if the fuse is blown.
Normal fuse
Blown fuse
Replace the blown fuse with a new fuse of an appropriate amperage rat-
ing. The amperage rating can be found on the fuse box lid.
Many types of fuse are used on this
vehicle. This illustration shows a com- mon type of fuse used on this vehicle.
3
4
1
2
Page 642 of 776

6427-3. Do-it-yourself maintenance
RX350/RX200t_EE_OM48F32E
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may need replacement. ( P. 643)
●If the replaced fuse blows again, have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
■If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
■When replacing light bulbs
Lexus recommends that you us e genuine Lexus products designed for this vehicle. Because certain bulbs are connected to circuits designed to prevent overload, non-gen-
uine parts or parts not designed for this vehicle may be unusable.
WARNING
■To prevent system breakdowns and vehicle fire
Observe the following precautions. Failure to do so may cause damage to the vehicle, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than that indicated, or use any otherobject in place of a fuse.
●Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
●Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by any authorized
Lexus dealer or repairer, or another duly qualified and equipped professional as soon as possible.
Page 764 of 776

764Alphabetical index
RX350/RX200t_EE_OM48F32E
Front turn signal lights
Replacing light bulbs........................ 643
Turn signal lever .................................258
Wattage..................................................738
Fuel
Capacity ................................................. 729
Fuel gauge................................................ 96
Information ............................................ 739
Refueling ................................................ 287
Type .......................................................... 729
Fuel consumption information ......... 128
Fuel filler door ........................................ 287
Refueling ................................................ 287
When the fuel filler door
cannot be opened .........................289
Fuses ..........................................................640
Gauges ........................................................ 96
Glove box ................................................ 557
Grocery bag hooks .............................563
Hands-free system
(for cellular phone) ........................... 492
Head restraints ...................................... 200
Head-up display...................................... 122
Headlight cleaner................................. 279
Headlights ............................................... 265
Adaptive High-beam System ..... 269
Automatic headlight leveling........267
Automatic High Beam .................... 274
Follow me home system................ 266
Light switch........................................... 265
Replacing light bulbs ....................... 643
Wattage ................................................. 738
Windshield wiper linked
headlight illumination ................... 268
Heated steering wheel....................... 549
Heated Windshield Defroster ........ 543
Heaters
Automatic air conditioning
system.................................................. 536
Heated steering wheel ................... 549
Outside rear view mirrors ............ 542
Seat heaters............................... 550, 551
High mounted stoplight
Replacing............................................... 643
G
H
