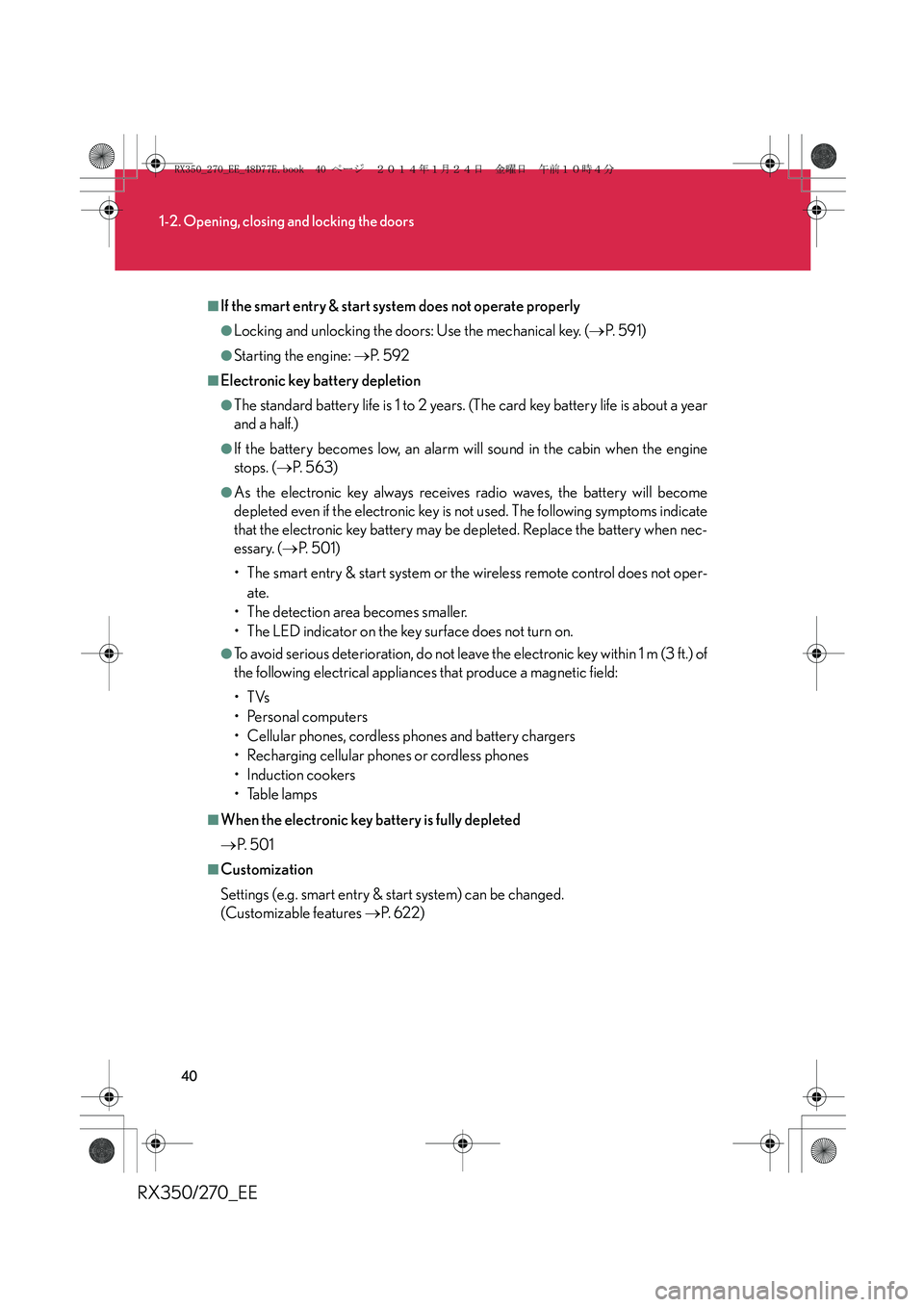

change key battery LEXUS RX270 2014 Owners Manual

40
1-2. Opening, closing and locking the doors
RX350/270_EE
■If the smart entry & start system does not operate properly
●Locking and unlocking the doors: Use the mechanical key. (→P. 5 9 1 )
●Starting the engine: →P. 5 9 2
■Electronic key battery depletion
●The standard battery life is 1 to 2 years. (The card key battery life is about a year
and a half.)
●If the battery becomes low, an alarm will sound in the cabin when the engine
stops. (→P. 5 6 3 )
●As the electronic key always receives radio waves, the battery will become
depleted even if the electronic key is not used. The following symptoms indicate
that the electronic key battery may be depleted. Replace the battery when nec-
essary. (→P. 5 0 1 )
• The smart entry & start system or the wireless remote control does not oper-
ate.
• The detection area becomes smaller.
• The LED indicator on the key surface does not turn on.
●To avoid serious deterioration, do not leave the electronic key within 1 m (3 ft.) of
the following electrical appliances that produce a magnetic field:
•TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
• Induction cookers
• Table lamps
■When the electronic key battery is fully depleted
→P. 5 0 1
■Customization
Settings (e.g. smart entry & start system) can be changed.
(Customizable features →P. 6 2 2 )
RX350_270_EE_48D77E.book 40 ページ ２０１４年１月２４日　金曜日　午前１０時４分

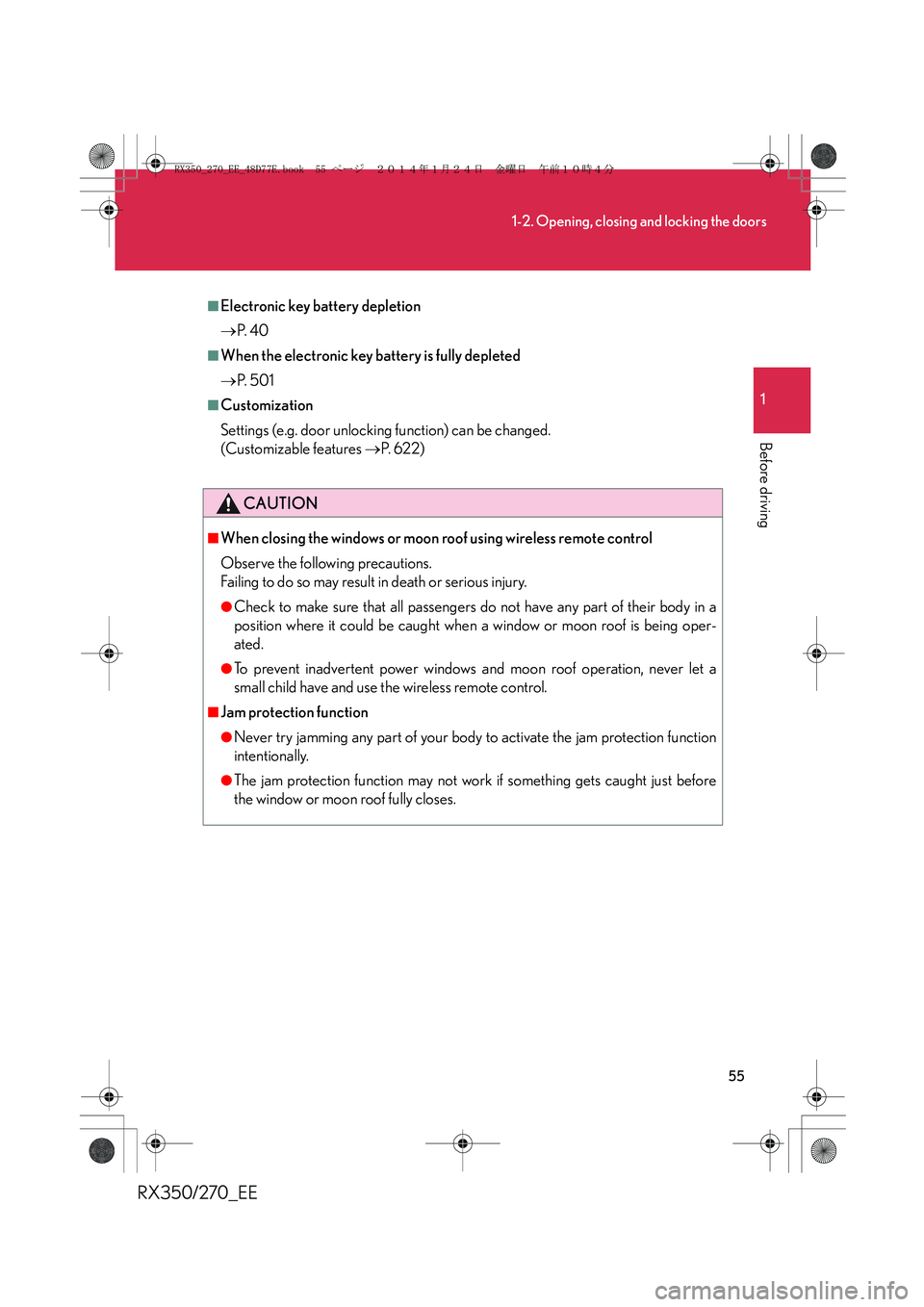

55
1-2. Opening, closing and locking the doors
1
Before driving
RX350/270_EE
■Electronic key battery depletion
→P. 4 0
■When the electronic key battery is fully depleted
→P. 5 0 1
■Customization
Settings (e.g. door unlocking function) can be changed.
(Customizable features →P. 6 2 2 )
CAUTION
■When closing the windows or moon roof using wireless remote control
Observe the following precautions.
Failing to do so may result in death or serious injury.
●Check to make sure that all passengers do not have any part of their body in a
position where it could be caught when a window or moon roof is being oper-
ated.
●To prevent inadvertent power windows and moon roof operation, never let a
small child have and use the wireless remote control.
■Jam protection function
●Never try jamming any part of your body to activate the jam protection function
intentionally.
●The jam protection function may not work if something gets caught just before
the window or moon roof fully closes.
RX350_270_EE_48D77E.book 55 ページ ２０１４年１月２４日　金曜日　午前１０時４分

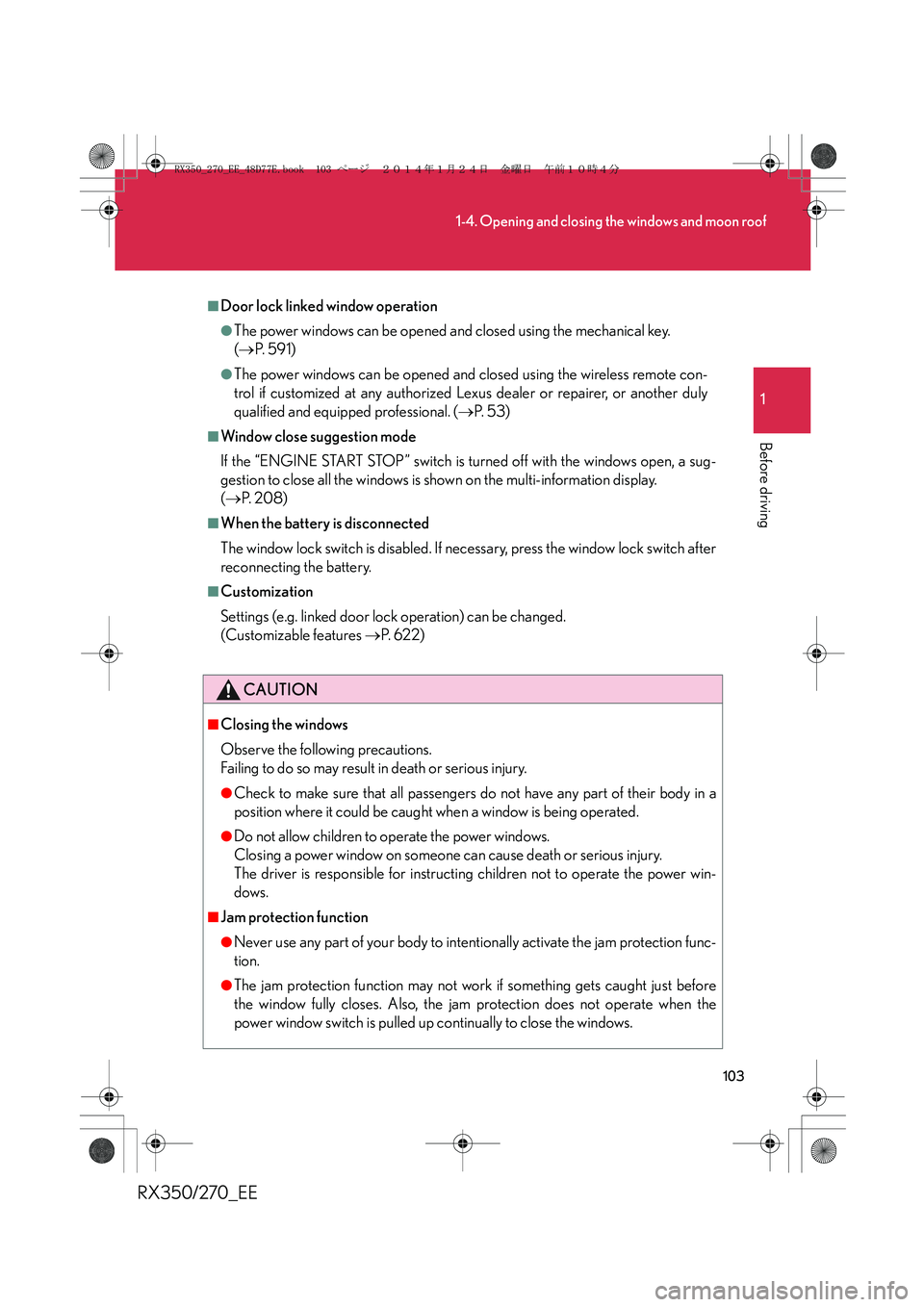

103
1-4. Opening and closing the windows and moon roof
1
Before driving
RX350/270_EE
■Door lock linked window operation
●The power windows can be opened and closed using the mechanical key.
(→P. 5 9 1 )
●The power windows can be opened and closed using the wireless remote con-
trol if customized at any authorized Lexus dealer or repairer, or another duly
qualified and equipped professional. (→P. 5 3 )
■Window close suggestion mode
If the “ENGINE START STOP” switch is turned off with the windows open, a sug-
gestion to close all the windows is shown on the multi-information display.
(→P. 2 0 8 )
■When the battery is disconnected
The window lock switch is disabled. If necessary, press the window lock switch after
reconnecting the battery.
■Customization
Settings (e.g. linked door lock operation) can be changed.
(Customizable features →P. 6 2 2 )
CAUTION
■Closing the windows
Observe the following precautions.
Failing to do so may result in death or serious injury.
●Check to make sure that all passengers do not have any part of their body in a
position where it could be caught when a window is being operated.
●Do not allow children to operate the power windows.
Closing a power window on someone can cause death or serious injury.
The driver is responsible for instructing children not to operate the power win-
dows.
■Jam protection function
●Never use any part of your body to intentionally activate the jam protection func-
tion.
●The jam protection function may not work if something gets caught just before
the window fully closes. Also, the jam protection does not operate when the
power window switch is pulled up continually to close the windows.
RX350_270_EE_48D77E.book 103 ページ ２０１４年１月２４日　金曜日　午前１０時４分

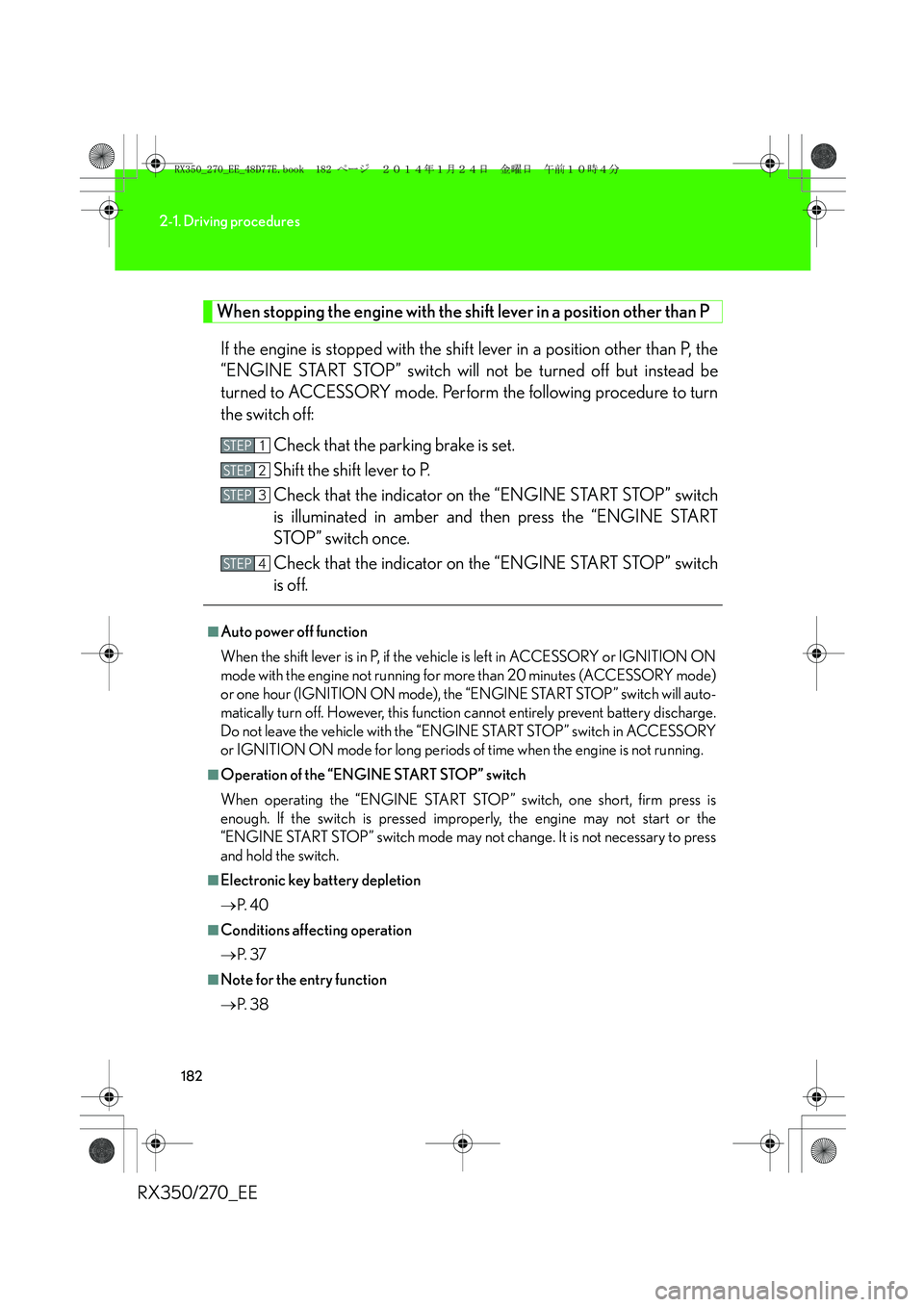

182
2-1. Driving procedures
RX350/270_EE
When stopping the engine with the shift lever in a position other than P
If the engine is stopped with the shift lever in a position other than P, the
“ENGINE START STOP” switch will not be turned off but instead be
turned to ACCESSORY mode. Perform the following procedure to turn
the switch off:
Check that the parking brake is set.
Shift the shift lever to P.
Check that the indicator on the “ENGINE START STOP” switch
is illuminated in amber and then press the “ENGINE START
STOP” switch once.
Check that the indicator on the “ENGINE START STOP” switch
is off.
■Auto power off function
When the shift lever is in P, if the vehicle is left in ACCESSORY or IGNITION ON
mode with the engine not running for more than 20 minutes (ACCESSORY mode)
or one hour (IGNITION ON mode), the “ENGINE START STOP” switch will auto-
matically turn off. However, this function cannot entirely prevent battery discharge.
Do not leave the vehicle with the “ENGINE START STOP” switch in ACCESSORY
or IGNITION ON mode for long periods of time when the engine is not running.
■Operation of the “ENGINE START STOP” switch
When operating the “ENGINE START STOP” switch, one short, firm press is
enough. If the switch is pressed improperly, the engine may not start or the
“ENGINE START STOP” switch mode may not change. It is not necessary to press
and hold the switch.
■Electronic key battery depletion
→P. 4 0
■Conditions affecting operation
→P. 3 7
■Note for the entry function
→P. 3 8
STEP1
STEP2
STEP3
STEP4
RX350_270_EE_48D77E.book 182 ページ ２０１４年１月２４日　金曜日　午前１０時４分

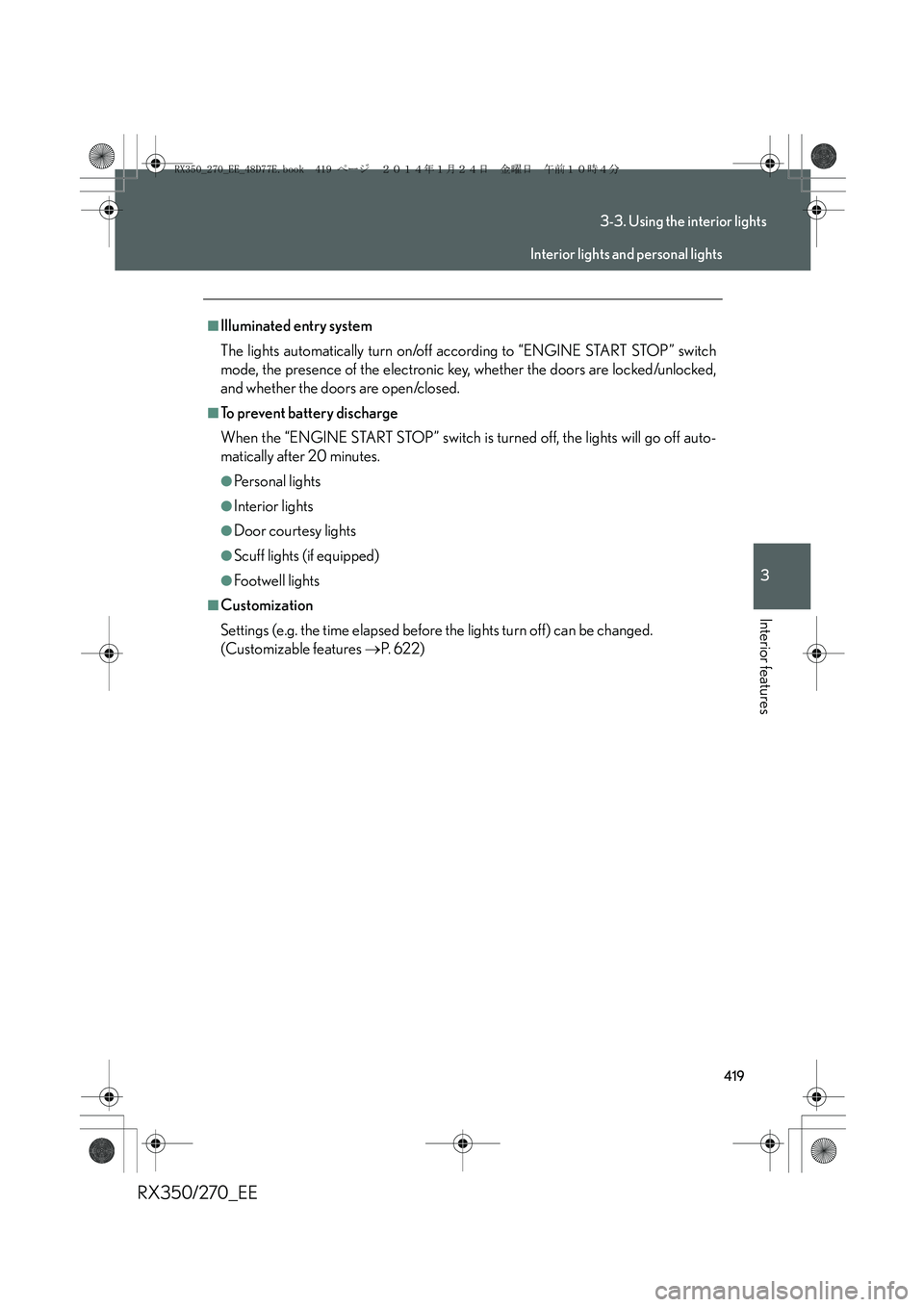

419
3-3. Using the interior lights
3
Interior features
RX350/270_EE
■Illuminated entry system
The lights automatically turn on/off according to “ENGINE START STOP” switch
mode, the presence of the electronic key, whether the doors are locked/unlocked,
and whether the doors are open/closed.
■To prevent battery discharge
When the “ENGINE START STOP” switch is turned off, the lights will go off auto-
matically after 20 minutes.
●Personal lights
●Interior lights
●Door courtesy lights
●Scuff lights (if equipped)
●Footwell lights
■Customization
Settings (e.g. the time elapsed before the lights turn off) can be changed.
(Customizable features →P. 6 2 2 )
Interior lights and personal lights
RX350_270_EE_48D77E.book 419 ページ ２０１４年１月２４日　金曜日　午前１０時４分

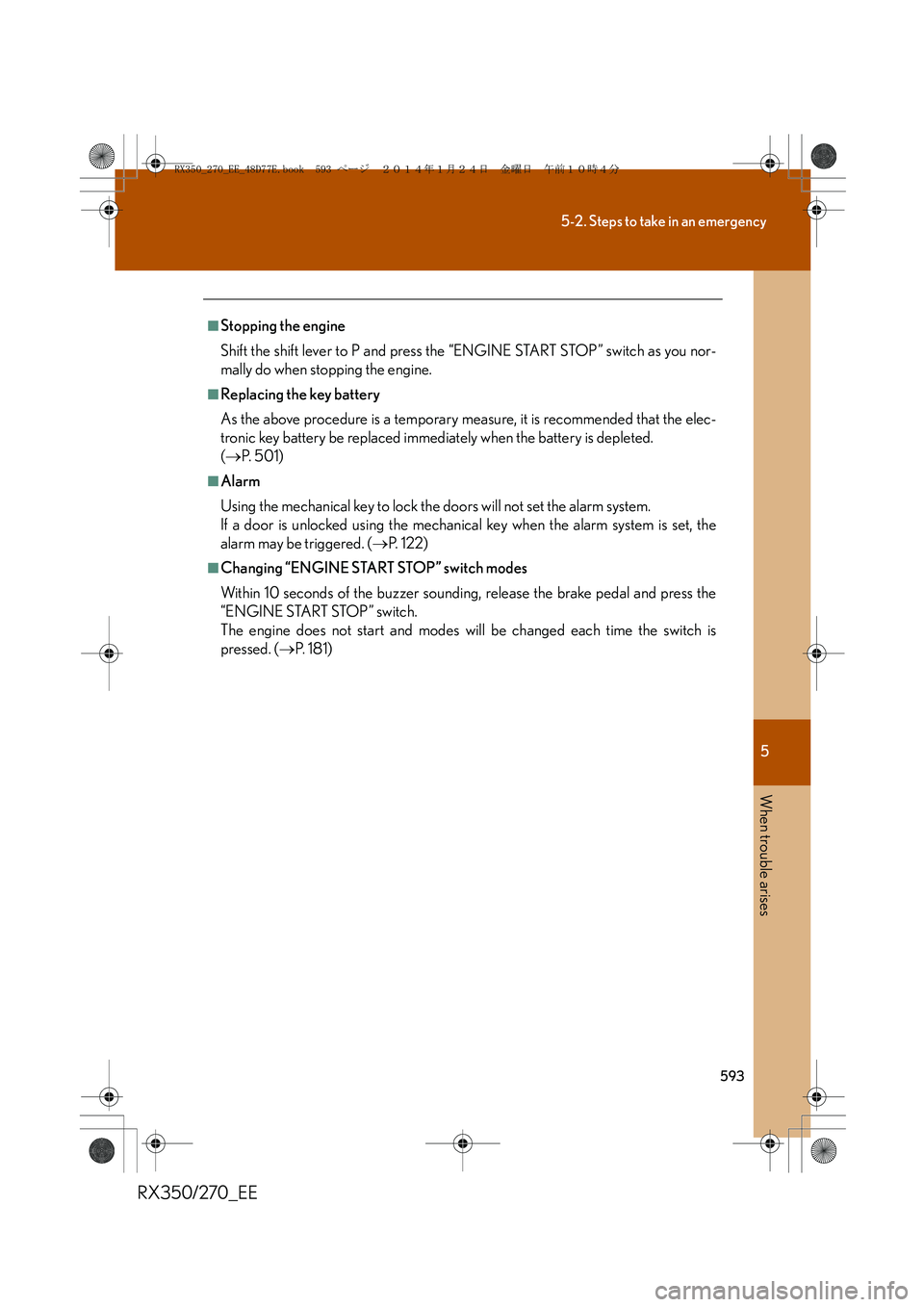

5
593
5-2. Steps to take in an emergency
When trouble arises
RX350/270_EE
■Stopping the engine
Shift the shift lever to P and press the “ENGINE START STOP” switch as you nor-
mally do when stopping the engine.
■Replacing the key battery
As the above procedure is a temporary measure, it is recommended that the elec-
tronic key battery be replaced immediately when the battery is depleted.
(→P. 5 0 1 )
■Alarm
Using the mechanical key to lock the doors will not set the alarm system.
If a door is unlocked using the mechanical key when the alarm system is set, the
alarm may be triggered. (→P. 1 2 2 )
■Changing “ENGINE START STOP” switch modes
Within 10 seconds of the buzzer sounding, release the brake pedal and press the
“ENGINE START STOP” switch.
The engine does not start and modes will be changed each time the switch is
pressed. (→P. 1 8 1 )
RX350_270_EE_48D77E.book 593 ページ ２０１４年１月２４日　金曜日　午前１０時４分

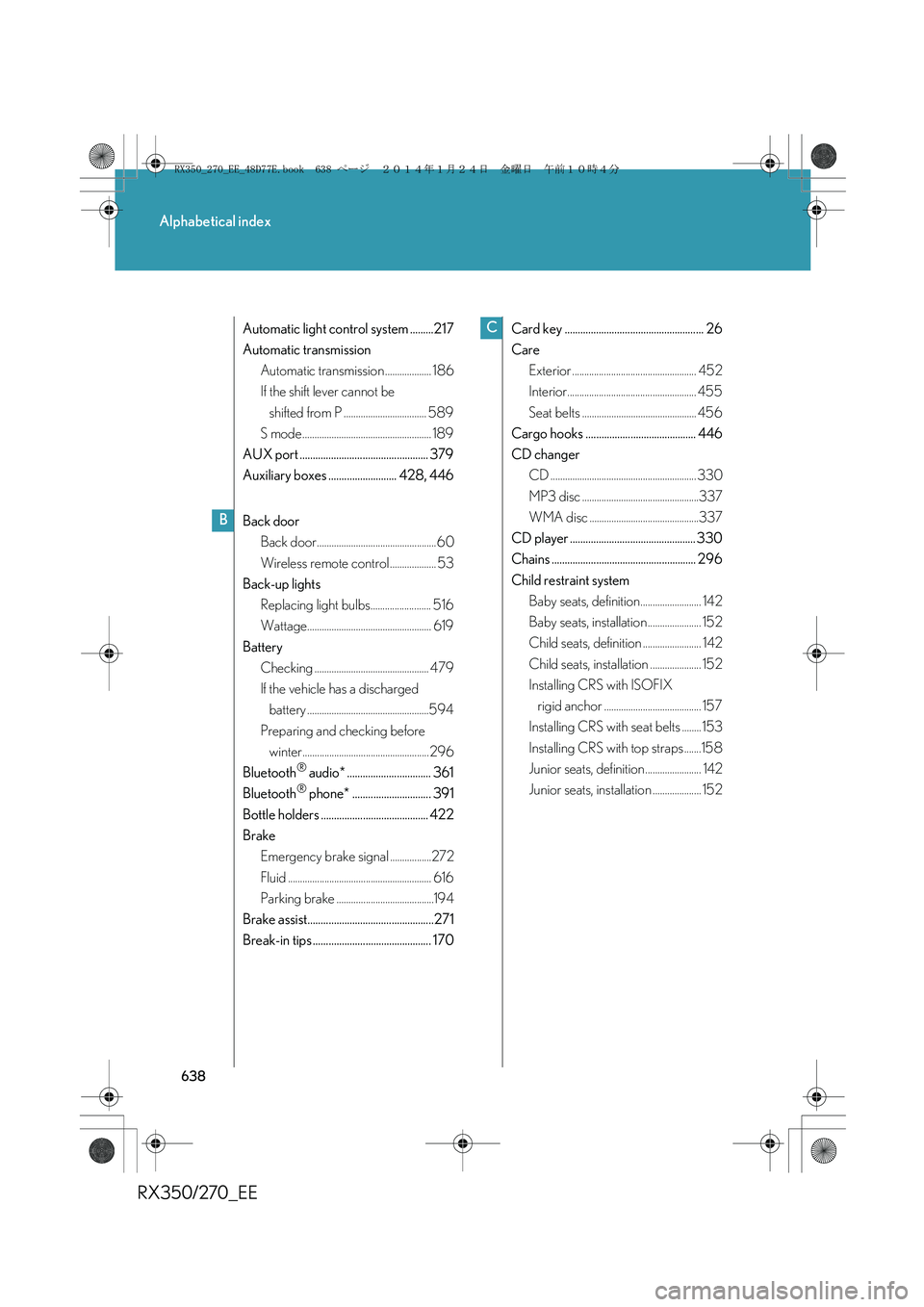

638
Alphabetical index
RX350/270_EE
Automatic light control system .........217
Automatic transmission
Automatic transmission ................... 186
If the shift lever cannot be
shifted from P .................................. 589
S mode ..................................................... 189
AUX port ................................................. 379
Auxiliary boxes .......................... 428, 446
Back door
Back door.................................................60
Wireless remote control ................... 53
Back-up lights
Replacing light bulbs......................... 516
Wattage................................................... 619
Battery
Checking ............................................... 479
If the vehicle has a discharged
battery ..................................................594
Preparing and checking before
winter.................................................... 296
Bluetooth
® audio* ................................ 361
Bluetooth® phone* .............................. 391
Bottle holders ......................................... 422
Brake
Emergency brake signal .................272
Fluid ........................................................... 616
Parking brake ........................................194
Brake assist................................................271
Break-in tips ............................................. 170Card key ..................................................... 26
Care
Exterior ................................................... 452
Interior..................................................... 455
Seat belts ............................................... 456
Cargo hooks .......................................... 446
CD changer
CD ............................................................ 330
MP3 disc ................................................337
WMA disc .............................................337
CD player ................................................ 330
Chains ....................................................... 296
Child restraint system
Baby seats, definition......................... 142
Baby seats, installation ...................... 152
Child seats, definition ........................ 142
Child seats, installation ..................... 152
Installing CRS with ISOFIX
rigid anchor ........................................ 157
Installing CRS with seat belts ........ 153
Installing CRS with top straps .......158
Junior seats, definition ....................... 142
Junior seats, installation .................... 152
B
C
RX350_270_EE_48D77E.book 638 ページ ２０１４年１月２４日　金曜日　午前１０時４分
