Specifications LEXUS RX330 2006 User Guide

SECTION 6 – 3
563
SERVICE PROCEDURES AND
SPECIFICATIONS
Chassis
Specifications564
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Checking brake fluid 568
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Checking power steering fluid 569
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking tire inflation pressure 570
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tire Information 573
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Types of tires 583
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .
Rotating tires 584
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .
Checking and replacing tires 585
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing snow tires and chains 587
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Replacing wheels 590
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Aluminum wheel precautions 591
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Suspension and chassis 591
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CHASSIS
564
SPECIFICATIONS
— REAR DIFFERENTIALOil capacity
0.9 L (1.0 qt., 0.8 Imp. qt.)
Oil typeHypoid gear oil API GL −5
Recommended oil viscosityAbove − 18C (0F) SAE 90
Below − 18C (0F) SAE 80W or 80W −90
NOTE:
“Toyota Genuine Differential Gear Oil” is used in your Lexus vehicle. Use Lexus approve\
d “Toyota Genuine Differential Gear Oil ”
or equivalent to satisfy the following grade and viscosity. Please contact your Lexus dealer for further details.
— AUTOMATIC TRANSAXLE
Fluid capacity Drain and refill
3.5 L (3.7 qt., 3.1 Imp. qt.)
Fluid typeToyota Genuine ATF Type TIV*
* Change automatic transmission fluid only as necessary.
Generally, it is necessary to change automatic transmission
fluid only if your vehicle is driven under one of the Special
Operating Conditions listed in your “Owner’s Manual
Supplement / Scheduled Maintenance”. When changing the
automatic transmission fluid, use only “Toyota Genuine ATF
Type T−IV” (ATF JWS3309 or NWS6500) to aid in assuring
optimum transaxle performance.NOTICE
Using automatic transmission fluid other than “Toyota
Genuine ATF Type TIV” may cause deterioration in
shift quality, locking up of your transmission
accompanied by vibration, and ultimately damage the
automatic transmission of your vehicle.
Please contact your Lexus dealer for further details.

CHASSIS
574
1Tire size: For details, see “Tire size” on page
575.
2DOT and Tire Identification Number (TIN): For
details, see “DOT and Tire Identification Number
(TIN)” on page 575.
3Location of the tread wear indicators: For
details, see “Checking and replacing tires” on
page 585.
4Tire ply composition and materials: Plies mean
a layer of rubber −coated parallel cords. Cords
mean the strands forming the plies in the tire.
5Radial tires or biasply tires — A radial tire has
“RADIAL” on the sidewall. A tire not marked with
“RADIAL” is a bias−ply tire.
6“TUBELESS” or “TUBE TYPE”: A tubeless tire
does not have a tube inside the tire and air is
directly filled in the tire. A tube type tire has a
tube inside the tire and the tube maintains the
air pressure.
7Load limit at maximum cold tire inflation
pressure: For details, see “Checking and
replacing tires” on page 585.
8Maximum cold tire inflation pressure: This
means the pressure to which a tire may be
inflated. For details about recommended cold tire
inflation pressure, see “Specifications” on page
564.
9Uniform tire quality grading — For details, see
“Uniform tire quality grading” that follows.
10Summer tire or all season tire: An all season
tire has “M+S” on the sidewall. The tire not
marked with “M+S” is a summer tire. For details,
see “Types of tires” on page 583.

SECTION 6 – 4
593
SERVICE PROCEDURES AND
SPECIFICATIONS
Electrical components
Specifications594
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Checking battery condition 601
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Battery recharging precautions 604
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking and replacing the blade type fuses 605
. . . . . . . . . . . . . . . .
Checking the cartridge type fuses 607
. . . . . . . . . . . . . . . . . . . . . . . . . .
Adding washer fluid 609
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Checking the headlight aim 609
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Replacing light bulbs 611
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

ELECTRICAL COMPONENTS
594
SPECIFICATIONS

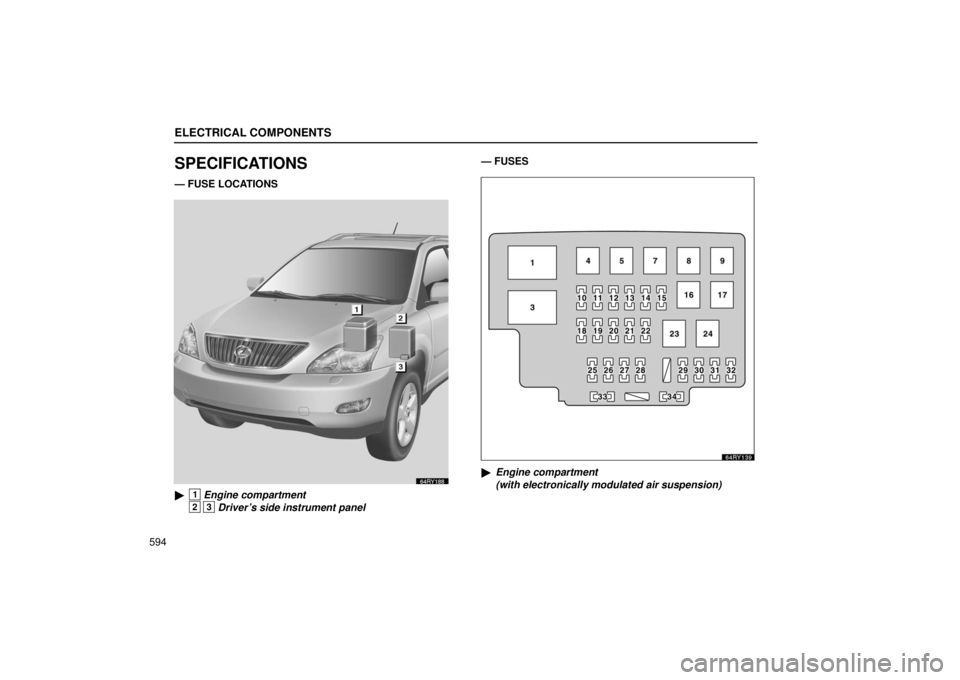

— FUSE LOCATIONS
1Engine compartment
2 3 Driver’s side instrument panel— FUSES

Engine compartment
(with electronically modulated air suspension)

SECTION 6 – 5
615
SERVICE PROCEDURES AND
SPECIFICATIONS
Body
Specifications616
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Protecting your vehicle from corrosion 618
. . . . . . . . . . . . . . . . . . . . . .
Washing and waxing 619
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Cleaning the interior 621
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.

BODY
616
SPECIFICATIONS
— DIMENSIONS AND WEIGHTSOverall length
4730 mm (186.2 in.)
Overall width1845 mm (72.6 in.)
Overall height*1
Tw o −wheel drive models
Four−wheel drive models — With electronically modulated air suspension
— Without electronically modulated air suspension1670 mm (65.7 in.)*2
1710 mm (67.3 in.)*3
1725 mm (67.9 in.)*4
1670 mm (65.7 in.)*2
1710 mm (67.3 in.)*3
1725 mm (67.9 in.)*4
1680 mm (66.1 in.)*2
1720 mm (67.7 in.)*3
1735 mm (68.3 in.)*4
*1: Unladen vehicle
*2: Without roof rails
*3: With roof rails
*4: With roof rails and cross rails
