LEXUS RX330 2006 Owners Manual

STARTING AND DRIVING
400
1Brake pedal 2 “D” (Drive) position
2. With your foot holding down the brake pedal, shift the
selector lever to “D” position.
Always use the “D” position to improve fuel economy and quiet
driving. In this position, shifting into the overdrive gear is
possible. However, while the engine coolant temperature is
low, the transmission will not shift into the overdrive gear even
in the “D” position. (See “(c) Using engine braking” and\
“(f)
Good driving practice” for exceptions.)
CAUTION
Never put your foot on the accelerator pedal while
shifting.
3. Release the parking brake and brake pedal. Depress
the accelerator pedal slowly for smooth starting.
In normal cruising, the vehicle will start in first gear and
automatically shift up to the most suitable gear. On inclines,
declines or winding roads, etc., the vehicle shifts up and down
automatically according to the running conditions to obtain the
suitable driving power and engine braking.
If you need to accelerate rapidly while driving, depress the
accelerator pedal to the full throttle position. This provides
more acceleration by automatically downshifting the
transmission to the next lower gear or beyond, depending on
the vehicle speed.
If engine braking is needed, such as in descending a long hill,
see “(c) Using engine braking”.

STARTING AND DRIVING
401
(b) Driving in “S” mode
1Upshifting2Downshifting
3“S” mode position
4Shift range position indicator
You can change the shift range position in the “S” mode.
The shift range position can be switched between “5”
(fifth range) and “1” (first range) by moving the selector
lever up to the “+” side or down to the “” side. The fir\
st
shift range position is “4” (fourth range) when the selector
lever is shifted to the “S” position.
 Shift range position indicator
The shift range position is displayed on the instrument cluster.
 Shift range positions
“5” (fifth range): The most suitable gear is automatically
selected between first and overdrive (fifth) gears according
to vehicle speed and driving conditions. Always use the “5”
(fifth range) position to improve fuel economy and for quiet
driving.
“4” (fourth range): The most s uitable gear is automatically
selected between first and fourth gears according to vehicle
speed and driving conditions. In the “4” (fourth range)
position, the automatic transmission system will select the
most suitable gear to handle current running conditions
such as hill climbing, hard towing, etc.

STARTING AND DRIVING
402“3” (third range): The most suitable gear is automatically
selected between first and third gears according to vehicle
speed and driving conditions. This range is best used when
stronger engine braking is necessary.
“2” (second range): First or second gear will automatically
be selected according to vehicle speed and driving
conditions. This range is to be used when engine braking
stronger than that of the “3” (third range) position is
necessary.
“1” (first range): This gear is fixed in first regardless of
vehicle
speed or driving conditions. This range is to be used
when maximum engine braking is necessary.
If you attempt to downshift the transmission when it is not
possible to downshift due to high vehicle speed, a warning tone
sounds twice.
Maximum allowable speeds
To get on a highway or to pass slower traffic, maximum
acceleration may be necessary. Make sure you observe the
following maximum allowable speeds in each range:
range km/h (mph)1 51 (32)
2 92 (58)
3 144 (90)
NOTICE
Do not downshift if you are going faster than the
maximum allowable speed for the next lower range.
 “S” mode indicator light
“S” mode allows you to use the shift range positions.
The “S” mode indicator light comes on when the selector
lever is shifted into the “S” position. When the “S” mode
indicator light does not come on even with the selector lever
moved to the “S” position, there may be a problem
somewhere in the system. Have your vehicle
checked/repaired by your Lexus dealer as soon as possible.
In this case, you can drive in the same condition as in the “D”
position.

STARTING AND DRIVING
403
(c) Using engine braking
“S” mode position
To use the braking power of the engine, downshift the range in
the “S” mode position as follows:
 Shift into the “4” (fourth range) position. The transmission
will downshift to fourth gear and engine braking will be
engaged.
If you drive in the “D” position: Shift the selector lever to
the “S” position and “4” (fourth range) will automatically\
be
selected.
If you drive in the “S” position: Shift the selector lever
down to the “ −” position by selecting the “4” (fourth range). Vehicles with the cruise control —
When
the cruise control is being used, even if you downshift
from “D” or “5” (fifth range) to “4” (fourth range)\
, engine
braking will not be enabled because the cruise control is not
cancelled. For vehicle speed reduction, see page 415.
Vehicles with the dynamic laser cruise control —
When the cruise control is being used in the conventional
(fixed speed) cruise control mode or in the
vehicle −to−vehicle distance control mode, even if you
downshift from “D” or “5” (fifth range) to “4” (fourth range),
engine braking will not be enabled because the cruise
control is not cancelled. For vehicle speed reduction, see
pages 427 and 436.
 Shift into the “3” (third range) position. The transmission will
downshift to third gear when the vehicle speed is or
becomes lower than 129 km/h (81 mph) and more powerful
engine braking will be enabled.
If you drive in the “D” position: Shift the selector lever to
the “S” position then shift the lever down to the “ −” position
once to select the “3” (third range).
If you drive in the “S” position: Shift the selector lever
down to the “ −” position to select “3” (third range).

STARTING AND DRIVING
404
Shift into the “2” (second range) position. The transmission
will downshift to second gear when the vehicle speed is or
becomes lower than 83 km/h (52 mph) and more powerful
engine braking than that of the “3” (third range) position will
be enabled.
If you drive in the “D” position: Shift the selector lever to
the “S” position and shift the lever down to the “ −” position
twice to select “2” (second range).
If you drive in the “S” position: Shift the selector lever
down to the “− ” position to select “2” (second range).
 Shift into the “1” (first range) position. The transmission will
downshift to first gear when the vehicle speed is or becomes
lower than 39 km/h (24 mph) and maximum engine braking
will be enabled.
If you drive in the “D” position: Shift the selector lever to
the “S” position and shift the lever down to the “ −” position
three times to select “1” (first range).
If you drive in the “S” position: Shift the selector lever
down to the “− ” position to select “1” (first range).

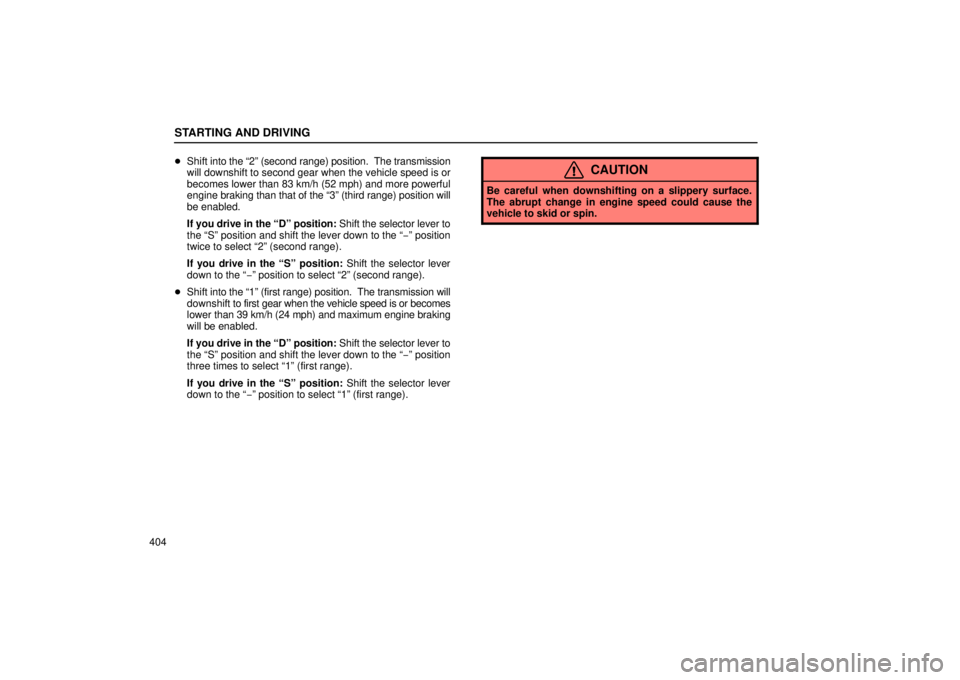

CAUTION
Be careful when downshifting on a slippery surface.
The abrupt change in engine speed could cause the
vehicle to skid or spin.

STARTING AND DRIVING
405
(d) Backing up
1Brake pedal2 “R” (Reverse) position
1. Bring the vehicle to a complete stop.
2. With the brake pedal held down with your foot, shift the
selector lever to the “R” position.
NOTICE
Never shift into reverse while the vehicle is moving.
Vehicles with driving position memory system —
When the shift lever is shifted into “R” position, the outside rear
view mirrors automatically down to help backing up. For
details, see page 231. Vehicles with rear view monitor system —
When the selector lever is shifted into “R” position with the
ignition switch in the “ON” position, rear view monitor system
will
activate. For instructions, see “Rear view monitor system”
on page 408.

STARTING AND DRIVING
406
(e) Parking
1Brake pedal2 Parking brake pedal
3“P” (Park) position
1. Bring the vehicle to a complete stop.
2. Depress the parking brake fully to securely apply the
parking brake.
3. With the brake pedal held down with your foot, shift the
selector lever to the “P” position.
CAUTION
Never attempt to move the selector lever into “P” under
any circumstances while the vehicle is moving. Serious
mechanical damage and loss of vehicle control may
result.

STARTING AND DRIVING
407
(f) Good driving practice
If the transmission repeatedly shifts up and down between
fourth and overdrive gears when climbing a gentle slope,
shift the selector lever into the “S” position. Be sure to shift
the selector lever to the “D” position after climbing the slope.
 When towing a trailer, in order to maintain efficient engine
braking and electrical charging performance, do not use
overdrive (fifth) gear.
CAUTION
Always keep your foot on the brake pedal while stopped
with the engine running. This prevents the vehicle from
creeping.
NOTICE
Always use the brake pedal or the parking brake to hold
the vehicle on an upgrade. Do not attempt to hold the
vehicle using the accelerator pedal, as this can cause
the transmission to overheat.
(g) If you cannot shift the selector lever
If you cannot shift the selector lever even though the brake
pedal is depressed, use the shift lock override button. For
instructions, see “If you cannot shift automatic transmission
selector lever” on page 524.

STARTING AND DRIVING
408
(h) Driving in snow mode
Use this mode when starting your vehicle in ice or snow.
To set the snow mode, push the switch. In the “ECT SNOW”
indicator on the instrument cluster is on. To cancel the snow
mode, push the switch again. The “ECT SNOW” indicator light
will go off when the snow mode is cancelled.
If the engine is turned off with the snow mode is on, the snow
mode is cancelled when the engine is restarted.
REAR VIEW MONITOR SYSTEM
The rear view monitor system assists the driver by
displaying an image of the rear of the vehicle while
backing up. The displayed image on the screen is a
horizontally reversed mirror image of the inside rear view
mirror.
To display the rear view image on the screen, place the
selector lever in the “R” position when the ignition switch
is in the “ON” position.
If you move the selector lever out of the “R” position, the screen
returns to the previous screen. Operating another function of
the navigation system will display another screen.
The rear view monitor system is a supplemental device
intended to assist back up. When backing up, be sure to check
behind and all around the vehicle visually.

STARTING AND DRIVING
409

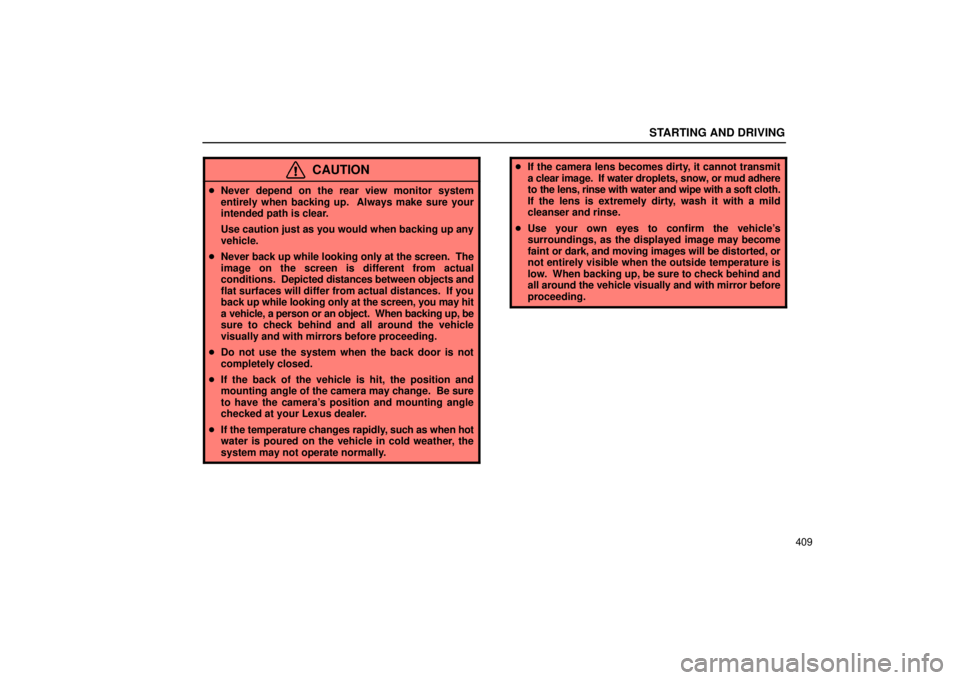

CAUTION
Never depend on the rear view monitor system
entirely when backing up. Always make sure your
intended path is clear.
Use caution just as you would when backing up any
vehicle.
 Never back up while looking only at the screen. The
image on the screen is different from actual
conditions. Depicted distances between objects and
flat surfaces will differ from actual distances. If you
back up while looking only at the screen, you may hit
a vehicle, a person or an object. When backing up, be
sure to check behind and all around the vehicle
visually and with mirrors before proceeding.
 Do not use the system when the back door is not
completely closed.
 If the back of the vehicle is hit, the position and
mounting angle of the camera may change. Be sure
to have the camera’s position and mounting angle
checked at your Lexus dealer.
 If the temperature changes rapidly , such as when hot
water is poured on the vehicle in cold weather, the
system may not operate normally.
 If the camera lens becomes dirty, it cannot transmit
a clear image. If water droplets, snow, or mud adhere
to the lens, rinse with water and wipe with a soft cloth.
If the lens is extremely dirty, wash it with a mild
cleanser and rinse.
 Use your own eyes to confirm the vehicle’s
surroundings, as the displayed image may become
faint or dark, and moving images will be distorted, or
not entirely visible when the outside temperature is
low. When backing up, be sure to check behind and
all around the vehicle visually and with mirror before
proceeding.
