INTRODUCTION
540
Removing the engine compartment cover
Before jump starting or checking the power steering fluid,
etc. in the engine compartment, remove the engine
compartment cover as follows:
1. Push the core of the clips and remove the clips.
2. Remove the cover.
Be careful not to lose the removed plastic clips.
After checking the items, install the engine compartment
covers and insert the plastic clips in their original
positions.
When inserting the clips, do as shown above.
NOTICE
After installing the engine compartment cover, make
sure the cover is securely in its original position.

INTRODUCTION
541
DOITYOURSELF SERVICEPRECAUTIONS
If you perform maintenance yourself, be sure to follow the
correct procedure given in this Section.
You should be aware that improper or incomplete servicing
may result in operating problems.
Performing do −it−yourself maintenance during the warranty
period may affect your warranty coverage. Read the separate
Lexus Warranty statement for details and suggestions.
This Section gives instructions only for those items that are
relatively easy for an owner to perform. As explained in
Section 5, there are still a number of items that must be
performed by a qualified technician with special tools.
For information on tools and parts for do−it−yourself
maintenance, see “Parts and tools” on page 543.
Utmost care should be taken when working on your vehicle to
prevent accidental injury. Here are a few precautions that you
should be especially careful to observe:
CAUTION
 When the engine is running, keep hands, clothing,
and tools away from the moving fan and engine drive
belt. (Removing rings, watches, and ties is
advisable.)
 Right after driving, the engine compartment — the
engine, radiator, exhaust manifold and power
steering fluid reservoir, etc. — will be hot. So be
careful not to touch them. Oil and other fluids may
also be hot.
 If the engine is hot, do not remove the radiator cap or
loosen the drain plugs to prevent burning yourself.
 Do not leave anything that may burn easily, such as
paper or rags, in the engine compartment.
 Do not smoke, cause sparks or allow open flames
around fuel or the battery. Their fumes are
flammable.
 Do not get under your vehicle with just the body jack
supporting it. Always use automotive jack stands or
other solid supports.
 Be sure that the ignition is off if you work near the
electric cooling fans or radiator grille. With the
ignition on, the electric cooling fans will
automatically start to run if the engine coolant
temperature is high and/or the air conditioning is on.

INTRODUCTION
542
Use eye protection whenever you work on or under
your vehicle where you may be exposed to flying or
falling material, fluid spray, etc.
 Take care when filling the brake fluid reservoir
because brake fluid can harm your eyes and damage
painted surfaces. If fluid gets in your eyes, flush your
eyes with clean water immediately. If you still feel
uncomfortable with your eyes, go to the doctor.
 Be extremely cautious when working on the battery.
It contains poisonous and corrosive sulfuric acid.NOTICE
Remember that battery and ignition cables carry high
currents or voltages. Be careful of accidentally
causing a short circuit.
 Before closing the engine hood, check to see that you
have not forgotten any tools, rags, etc.
 Do not drive with the air cleaner removed, or
excessive engine wear could result. Also backfiring
could cause a fire in the engine compartment.
 If you spill the fluid, be sure to wash it off with water
to prevent it from damaging the parts or paint.
 Do not overfill automatic transmission fluid and
power steering fluid, or the transmission and power
steering could be damaged.
 Be careful not to scratch the glass surface with the
wiper frame.

INTRODUCTION
543
PARTS AND TOOLS
Here is a list of parts and tools you will need to perform
do−it−yourself maintenance. Remember all Lexus parts are
designed in metric sizes, so your tools must be metric.
Checking the engine oil level
Parts (if level is low):
“Toyota Genuine Motor Oil” or equivalent
See page 558 for details about engine oil selection.
Tools:
 Rag or paper towel
 Funnel (only for adding oil)
Checking the engine coolant level
Parts (if level is low):
“Toyota Super Long Life Coolant” or similar high quality
ethylene glycol based non −silicate, non− amine, non−nitrite,
and non −borate coolant with long −life hybrid organic acid
technology.
“Toyota Super Long Life Coolant” is a mixture of 50%
coolant and 50% deionized water (for the U.S.A.) or 55%
coolant and 45% deionized water (for Canada). Tools:

Funnel (only for adding coolant)
Checking brake fluid
Parts (if level is low):
FMVSS No.116 DOT 3 or SAE J1703 brake fluid
Tools:
 Rag or paper towel
 Funnel (only for adding fluid)
Checking power steering fluid
Parts (if level is low):
Automatic transmission fluid DEXRON
II or III
Tools:
 Rag or paper towel
 Funnel (only for adding fluid)

INTRODUCTION
544
Checking battery condition
Tools:
Warm water
 Baking soda
 Grease
 Conventional wrench (for terminal clamp bolts)
Checking and replacing the blade type fuses
Parts (if replacement is necessary):
Fuse with same amperage rating as original
Checking the cartridge type fuses
Parts (if replacement is necessary):
Genuine Lexus fuse or equivalent with same amperage
rating as original
Adding washer fluid
Parts:
Water
 Washer fluid containing antifreeze (for winter use)
Tools:
 Funnel
POSITIONING THE JACK
 Front
Rear (Twowheel drive models)

INTRODUCTION
545

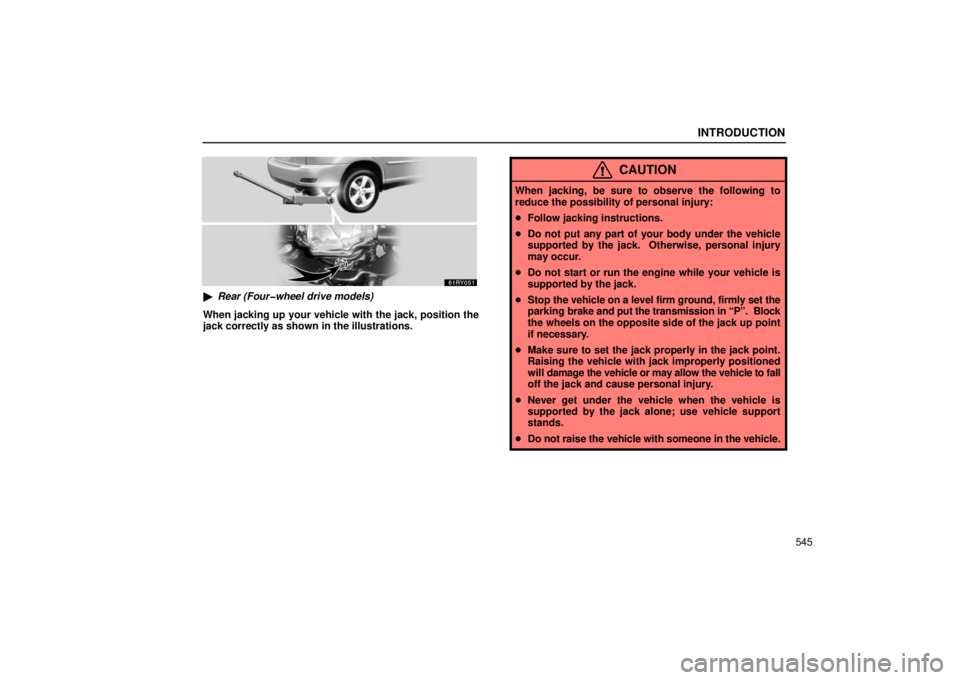

Rear (Fourwheel drive models)
When jacking up your vehicle with the jack, position the
jack correctly as shown in the illustrations.
CAUTION
When jacking, be sure to observe the following to
reduce the possibility of personal injury:
 Follow jacking instructions.
 Do not put any part of your body under the vehicle
supported by the jack. Otherwise, personal injury
may occur.
 Do not start or run the engine while your vehicle is
supported by the jack.
 Stop the vehicle on a level firm ground, firmly set the
parking brake and put the transmission in “P”. Block
the wheels on the opposite side of the jack up point
if necessary.
 Make sure to set the jack properly in the jack point.
Raising the vehicle with jack improperly positioned
will damage the vehicle or may allow the vehicle to fall
off the jack and cause personal injury.
 Never get under the vehicle when the vehicle is
supported by the jack alone; use vehicle support
stands.
 Do not raise the vehicle with someone in the vehicle.

INTRODUCTION
546
When raising the vehicle, do not place any objects on
top of or underneath the jack.
 Vehicles with electronically modulated air
suspension: When jacking up, be sure to turn off the
height control and stop the engine. Otherwise, the
vehicle height may change in the automatic leveling
function, resulting in an unexpected accident. For
details, see page 446.
NOTICE
Make sure to place the jack correctly, or your vehicle
may be damaged.

SECTION 6 – 2
547
SERVICE PROCEDURES AND
SPECIFICATIONS
Engine
Specifications548
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Fuel 551
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel pump shut off system 553
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Facts about engine oil consumption 554
. . . . . . . . . . . . . . . . . . . . . . . .
Used engine oil 555
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Checking the engine oil level 556
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking the engine coolant level 559
. . . . . . . . . . . . . . . . . . . . . . . . . .
Checking the radiator and condenser 561
. . . . . . . . . . . . . . . . . . . . . . .
Spark plugs 562
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .

ENGINE
548
SPECIFICATIONS
— GENERALModel
3.3 L V6 (3MZ− FE)
Type6 cylinder V type, 4 cycle, gasoline
Bore and stroke92  83 mm (3.62  3.27 in.)
Displacement3311 cm3 (202.1 cu. in.)
Valve clearance (engine cold)
Intake
Exhaust0.15 — 0.25 mm (0.006 — 0.010 in.)
0.25 — 0.35 mm (0.010 — 0.014 in.)
Drive belt tension (with Borroughs drive belt
tension gauge No. BT− 33−73F)125  10 lb.
— FUEL
Fuel type
Unleaded gasoline only
Octane Rating91 (Research Octane Number 96) or higher

62Z005
Outside temperature
ENGINE
549
— LUBRICATION SYSTEM
Oil capacity Drain and refillWith filter
Without filter
4.7 L (5.0 qt., 4.1 Imp. qt.)
4.5 L (4.8 qt., 4.0 Imp. qt.)
Oil gradeILSAC multigrade engine oil

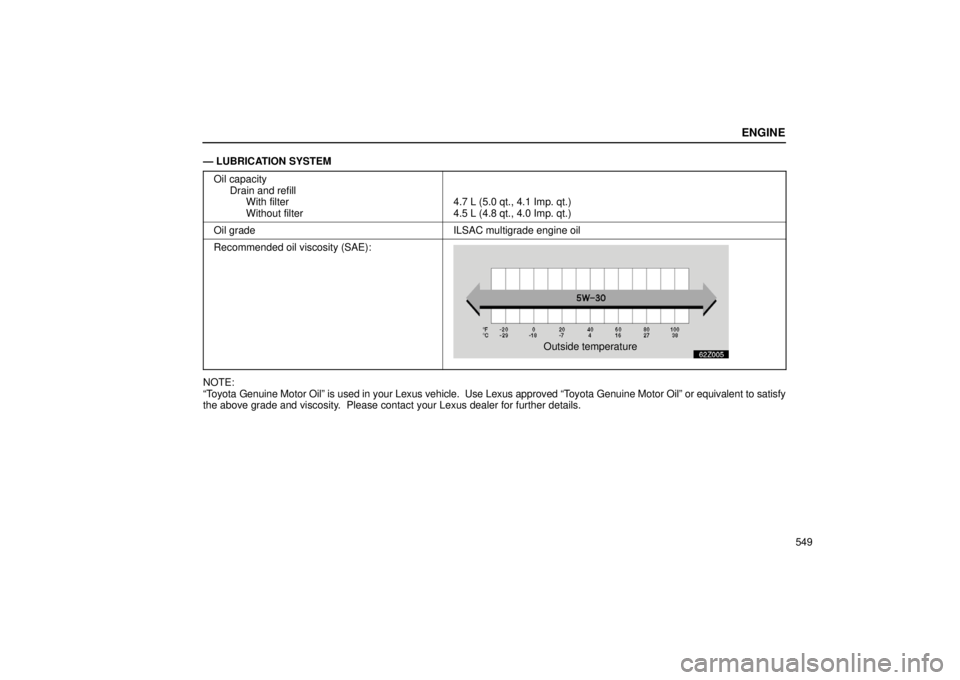

Recommended oil viscosity (SAE):
NOTE:
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus approved “T oyota Genuine Motor Oil” or equivalent to satisfy
the above grade and viscosity. Please contact your Lexus dealer for further details.
