OBD port LEXUS RX350 2015 Owners Manual

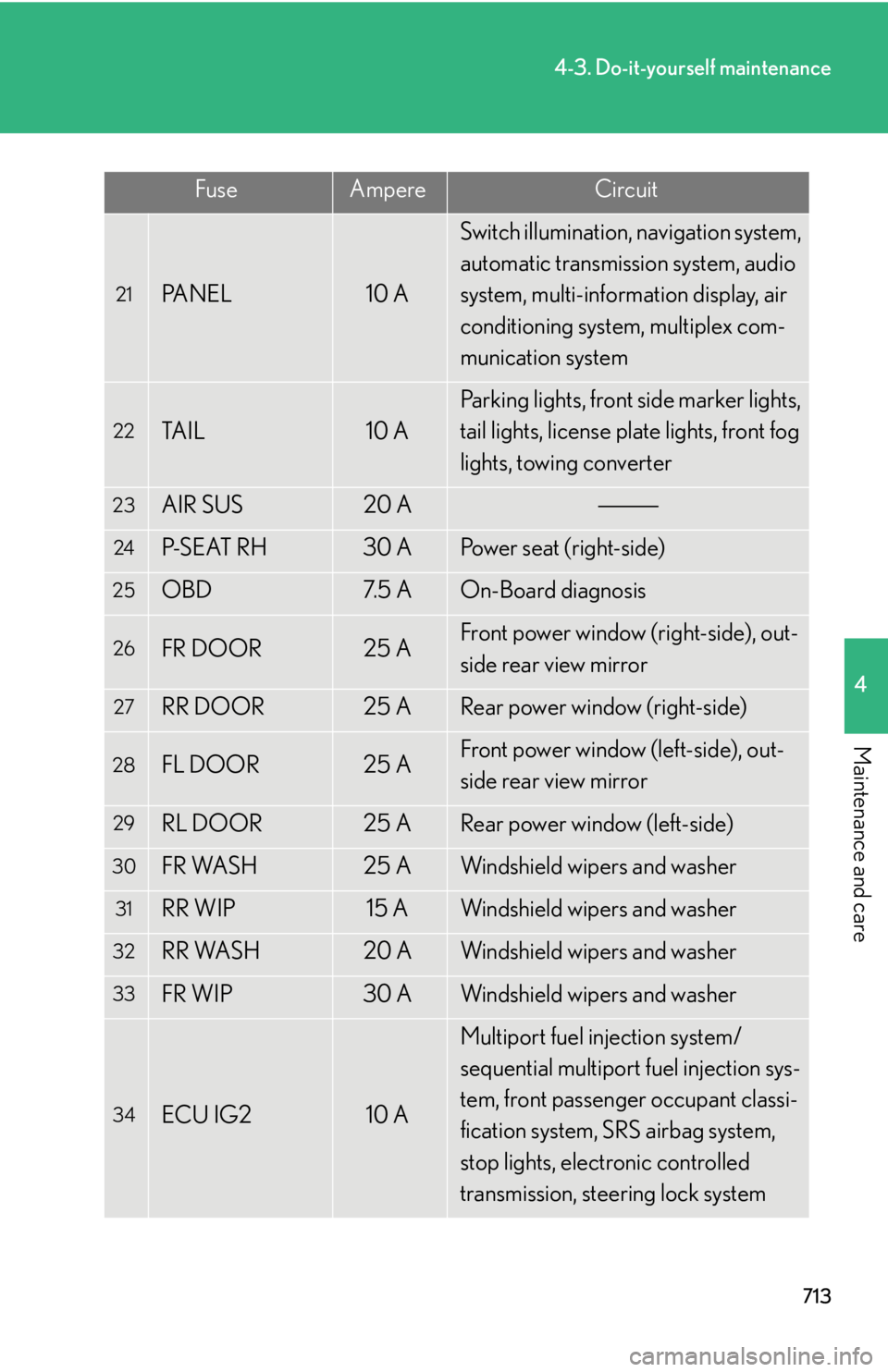

7134-3. Do-it-yourself maintenance
4
Maintenance and care 21
PA N E L 10 A Switch illumination, navigation system,
automatic transmission system, audio
system, multi-information display, air
conditioning system, multiplex com-
munication system22
TA I L 10 A Parking lights, front side marker lights,
tail lights, license plate lights, front fog
lights, towing converter23
AIR SUS 20 A24
P-S E AT R H 30 A Power seat (right-side)25
OBD 7. 5 A On-Board diagnosis26
FR DOOR 25 A Front power window (right-side), out-
side rear view mirror27
RR DOOR 25 A Rear power window (right-side)28
FL DOOR 25 A Front power window (left-side), out-
side rear view mirror29
RL DOOR 25 A Rear power window (left-side)30
FR WASH 25 A Windshield wipers and washer31
RR WIP 15 A Windshield wipers and washer32
RR WASH 20 A Windshield wipers and washer33
FR WIP 30 A Windshield wipers and washer
34
ECU IG2 10 A Multiport fuel injection system/
sequential multiport fuel injection sys-
tem, front passenger occupant classi-
fication system, SRS airbag system,
stop lights, electronic controlled
transmission, steering lock systemFuse Ampere Circuit
