594 7-3. Do-it-yourself maintenance
RX350/RX350L_UEngine compartment
Washer fluid tank (  P. 603)
Engine oil filler cap (  P. 596)
Engine oil level dipstick
(  P. 595)
Engine coolant reservoir
(  P. 598) Battery (  P. 601)
Brake fluid reservoir (  P. 600)
Fuse box (  P. 625)
Radiator (  P. 599)
Condenser (  P. 599)
Electric cooling fans1
2
3
4 5
6
7
8
9
10

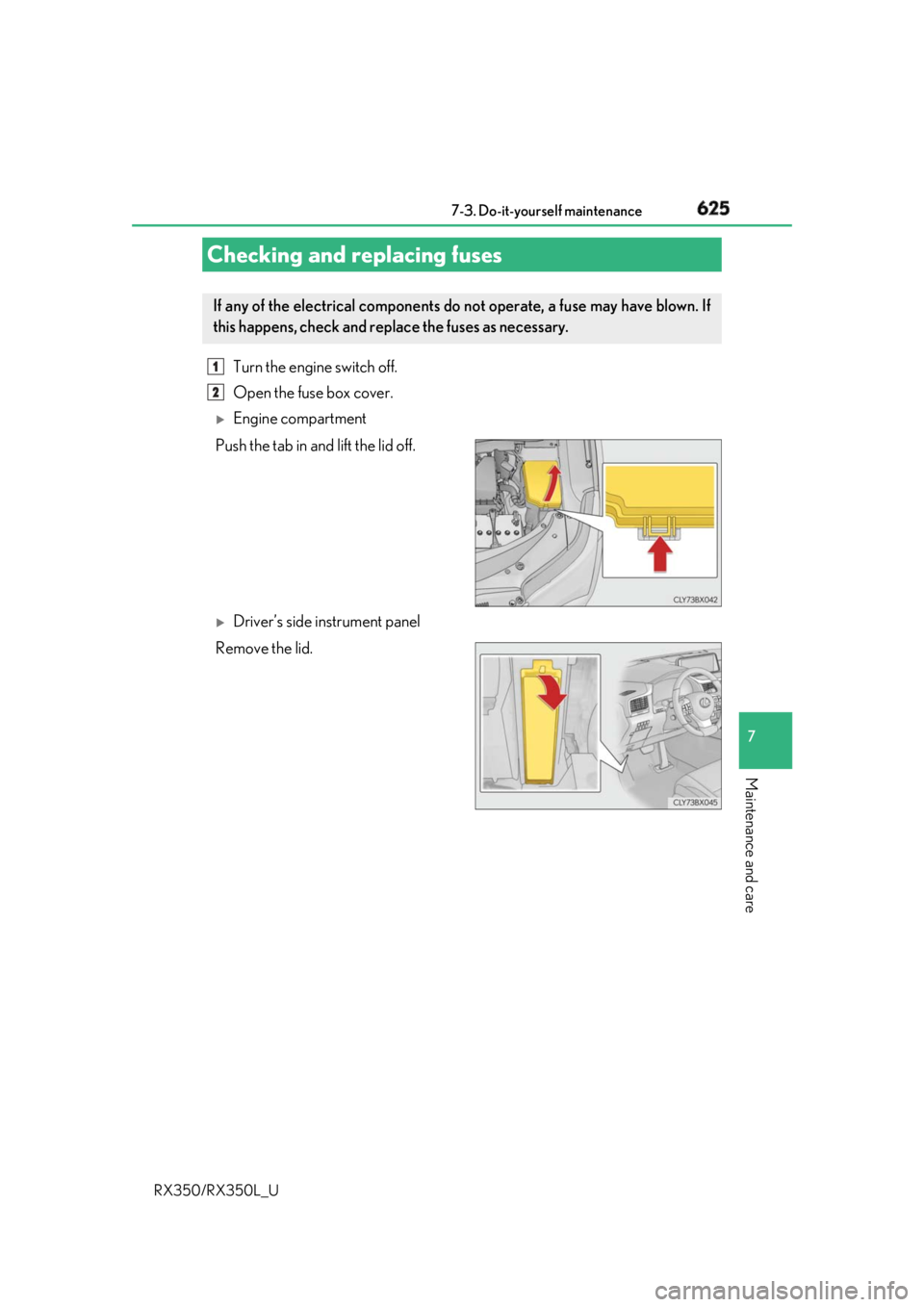

6257-3. Do-it-yourself maintenance
7
Maintenance and care
RX350/RX350L_U Turn the engine switch off.
Open the fuse box cover. 
Engine compartment
Push the tab in and lift the lid off. 
Driver’s side instrument panel
Remove the lid.Checking and replacing fuses If any of the electrical components do not operate, a fuse may have blown. If
this happens, check and repl ace the fuses as necessary.1
2

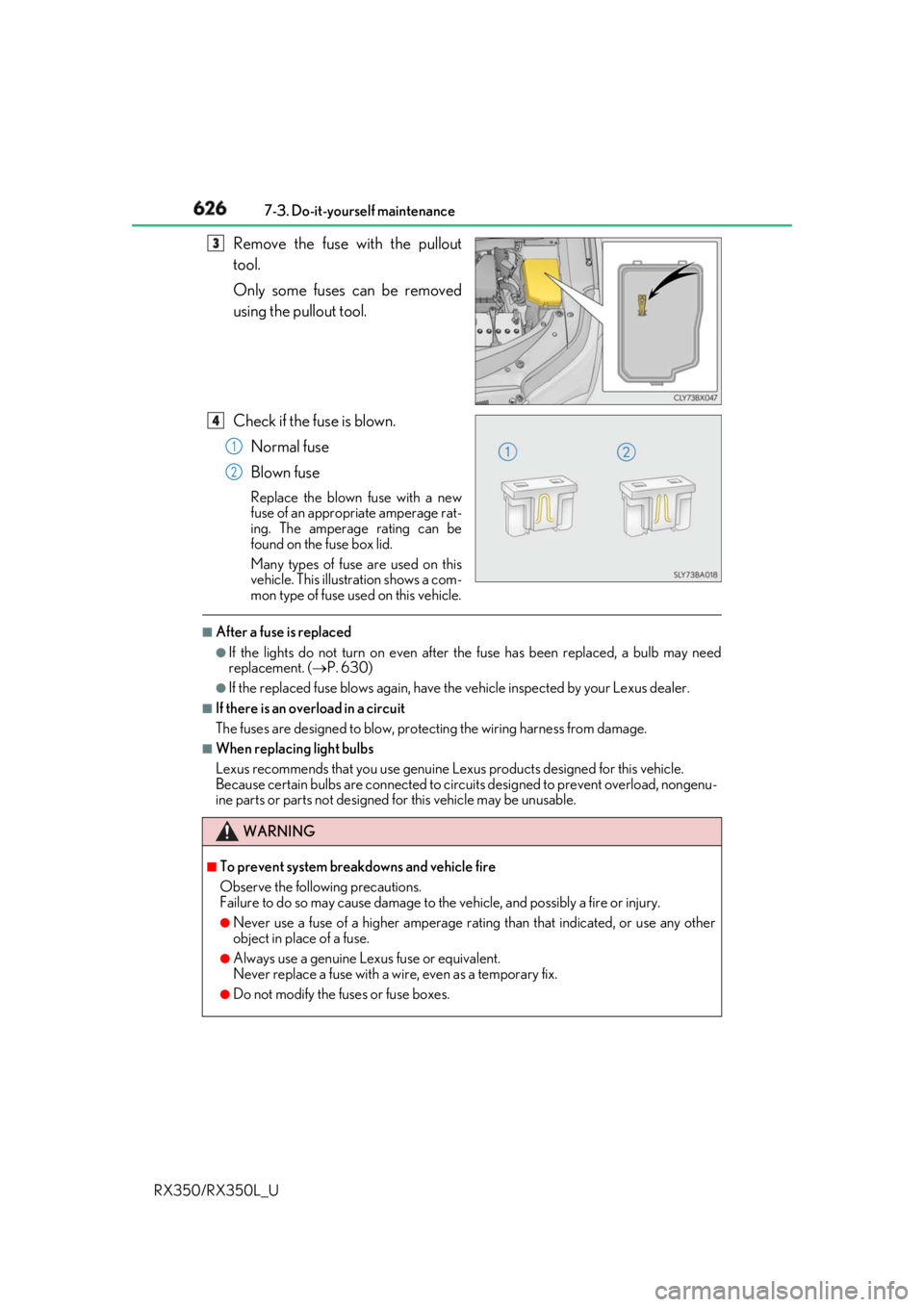

626 7-3. Do-it-yourself maintenance
RX350/RX350L_U Remove the fuse with the pullout
tool.
Only some fuses can be removed
using the pullout tool.
Check if the fuse is blown.
Normal fuse
Blown fuse Replace the blown fuse with a new
fuse of an appropriate amperage rat-
ing. The amperage rating can be
found on the fuse box lid.
Many types of fuse are used on this
vehicle. This illustration shows a com-
mon type of fuse used on this vehicle.■
After a fuse is replaced ●
If the lights do not turn on even after the fuse has been replaced, a bulb may need
replacement. (  P. 630)●
If the replaced fuse blows again, have th e vehicle inspected by your Lexus dealer.■
If there is an overload in a circuit
The fuses are designed to blow, protec ting the wiring ha rness from damage.■
When replacing light bulbs
Lexus recommends that you use genuine Lexus products designed for this vehicle.
Because certain bulbs are conne cted to circuits designed to prevent overload, nongenu-
ine parts or parts not designed for this vehicle may be unusable. 3
4
1
2
WARNING ■
To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to th e vehicle, and possibly a fire or injury.●
Never use a fuse of a higher amperage rating than that indicated, or use any other
object in place of a fuse. ●
Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wi re, even as a temporary fix.●
Do not modify the fuses or fuse boxes.
