762-1. Instrument cluster
Odometer and trip meter display (P.78)
F SPORT models
The units used on the meters may differ depending on the target region.
Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C). Low
outside temperature indicator comes on when the ambient temperature is 37°F (3°C) or
lower.
Multi-information display
Presents the driver with a variety of vehicle data ( P.79)
Displays warning messages in case of a malfunction (P.422)
Tachometer
Displays the engine speed in revolutions per minute
When sport mode is se lected for the driving mode, the periphery of the tachometer will
change color and the scale of the tachometer will be emphasized.
Speedometer
Engine coolant temperature gauge
Displays the engine coolant temperature
Fuel gauge
Displays the quantity of fuel remaining in the tank
Shift position display ( P.180)
Odometer and trip meter display ( P.78)
Clock
Time displayed is linked to the analog clock on the instrument panel. (P.336)
■Rev indicator (F SPORT models) When the engine speed reaches a set
I
A
B
C
D
E
F
G
H
I

832-1. Instrument cluster
2
Vehicle status information and indicators
tire inflation pressure after the engine
switch is turned to IGNITION ON mode.
It may also take a few minutes to display
the tire inflation pressure after inflation
pressure has been adjusted.
• “---” may be displayed if the tire position information cannot be determined due to
unfavorable radio wave conditions.
• Tire inflation pressure changes with tem- perature. The displayed values may also
be different from the values measured
using a tire pressure gauge.
Select to display the following naviga-
tion system-linked information.
 Route guidance
 Compass display (heading-up dis-
play)
Select to enable selection of an audio
source or track on the meter using the
meter control switches.
Select to display the operational status
of the following systems:
 LTA (Lane Tracing Assist) ( P.218)
 RSA (Road Sign Assist) (if
equipped) ( P.227)
 Dynamic radar cruise control with
full-speed range ( P.230)
■Meter display settings that can be
changed
 Clock
Select to switch between 12-hour display
and 24-hour display.
Language
Select to change the language displayed.
Units
Select to change the units of measure dis-
played.
 Eco Driving Indicator Light
( P.81)
Select to enable/disable the Eco Driving
Indicator Light.
 Switch settings
Select to display how to change the top
screen.
Drive information 1/Drive informa-
tion 2/Drive information 3
Select to select up to 2 items ( P.80) that
will be displayed on each Drive information
screen (Drive information 1 screen, Drive
information 2 screen, and Drive informa-
tion 3 screen) respectively.
 Pop-up display
Select to enable/disable the pop-up dis-
play.
• Intersection guidance (if equipped)
• Incoming calls
• Brightness adjustment
Color (except F SPORT models)
Select to set the color of the cursor on the
multi-information display.
Needle (F SPORT models)
Navigation system-linked dis-
play (if equipped)
Audio system-linked display
Driving assist system information
Settings display

1784-2. Driving procedures
that automatically shuts off the engine
when the shift lever is in P with the engine
running for an extended period.
●The engine will automatically shut off
after approximately 1 hour if it has been
left running while the shift lever is in P.
●The timer for the automatic engine shut
off feature will reset if the brake pedal is
depressed or if the shif t lever is in a posi-
tion other than P.
●After the vehicle is parked, if the door is
locked with the door lock switch ( P.99)
from the inside or the mechanical key
from the outside, the automatic engine
shut off feature will be disabled. The timer
for the automatic engine shut off feature
will be re-enabled if the driver’s door is
opened.
■Locking the door from outside with the
engine running
1 With the driver’s door open, pull the
driver’s door handle and insert the
mechanical key.
2 Turn the mechanical key counterclock-
wise.
3 Pull out the mechanical key and close
the door.
Modes can be changed by pressing
WARNING
■Stopping the engine in an emergency
If you want to stop th e engine in an emer-
gency while driving the vehicle, press
and hold the engine switch for more than
2 seconds, or press it briefly 3 times or
more in succession. (
P.404)
However, do not touch the engine switch
while driving except in an emergency.
Turning the engine off while driving will
not cause loss of steering or braking con-
trol, but the power assist to these systems
will be lost. This will make it more difficult
to steer and brake, so you should pull
over and stop the vehicle as soon as it is
safe to do so.
■When parking
Exhaust gases include harmful carbon
monoxide (CO), which is colorless and
odorless. Observe the following precau-
tions.
Failure to do so may cause exhaust gases
to enter the vehicle and may lead to an
accident caused by light-headedness, or
may lead to death or a serious health
hazard.
●If the vehicle is in a poorly ventilated
area or a closed area, such as a
garage, stop the engine.
WARNING
●Do not leave the vehicle with the
engine running for a long time. If such
a situation cannot be avoided, park the
vehicle in an open space and ensure
that exhaust fumes do not enter the
vehicle interior.
●Do not leave the engine running in an
area with snow build-up, or where it is
snowing. If snowbanks build up around
the vehicle while the engine is running,
exhaust gases may collect and enter
the vehicle.
Changing engine switch modes

4718-2. Customization
8
Vehicle specifications

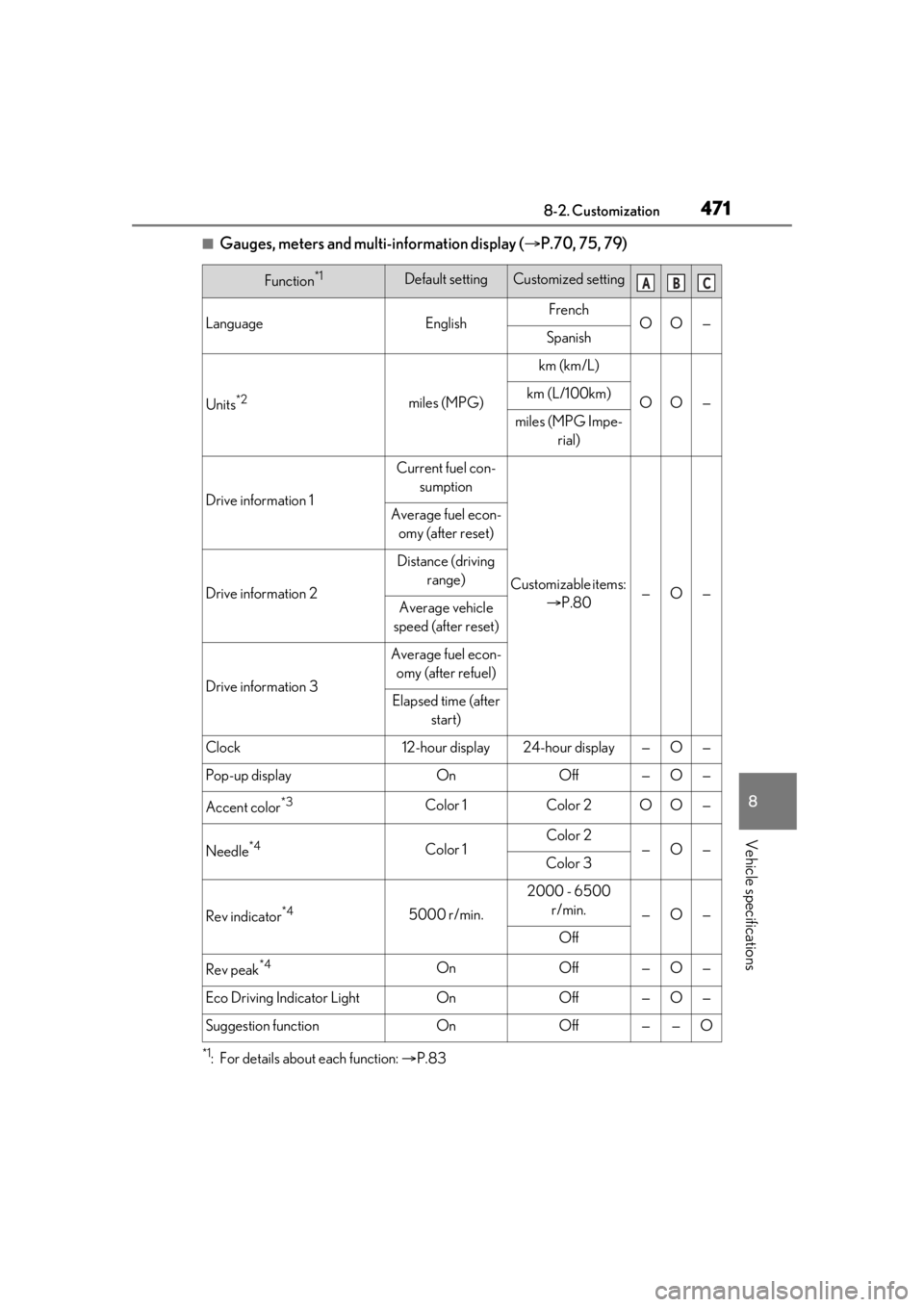

■Gauges, meters and multi-information display (P.70, 75, 79)
*1: For details about each function: P.83
Function*1Default settingCustomized setting
LanguageEnglishFrenchOO—Spanish
Units*2miles (MPG)
km (km/L)
OO—km (L/100km)
miles (MPG Impe-
rial)
Drive information 1
Current fuel con-sumption
Customizable items: P.80—O—
Average fuel econ-
omy (after reset)
Drive information 2
Distance (driving range)
Average vehicle
speed (after reset)
Drive information 3
Average fuel econ- omy (after refuel)
Elapsed time (after start)
Clock12-hour display24-hour display—O—
Pop-up displayOnOff—O—
Accent color*3Color 1Color 2OO—
Needle*4Color 1Color 2—O—Color 3
Rev indicator*45000 r/min.
2000 - 6500 r/min.
—O—
Off
Rev peak*4OnOff—O—
Eco Driving Indicator LightOnOff—O—
Suggestion functionOnOff——O
ABC

4828-2. Customization
■Seat belt reminder (P.413)
■Vehicle customization
●When the smart access system with
push-button start is off, the entry unlock
function cannot be customized.
●When the doors remain closed after
unlocking the doors and the timer acti-
vated automatic door lock function acti-
vates, signals will be generated in
accordance with the operation buzzer
volume and operational signal (Emer-
gency flashers) function settings.
●Some settings can be changed using a
switch or the Remote Touch. If a setting is
changed using a switch, the changed set-
ting will not be reflected on the Remote
Touch until the engine switch is turned off
and then to IGNITION ON mode.
■Clock settings screen
If the clock adjustment screen is displayed
continuously when attempting to change
the clock settings, the system may be mal-
functioning. Have the vehicle inspected by
your Lexus dealer.
FunctionDefault settingCustomized setting
Vehicle speed linked seat belt
reminder buzzerOnOff——O
ABC

509Alphabetical Index
Turn signal lever .......................................... 184
Vanity lights ..................................................338
Wattage..........................................................458
Lock steering column .................................. 177
LTA (Lane Tracing Assist) Operation........................................................218
Warning messages .................................. 226
Luggage cover ............................................. 323
M
Maintenance Do-it-yourself maintenance ...................361
General maintenance ............................. 357
Maintenance data...................................... 452
Maintenance requirements ..................356
Malfunction indicator lamp .......................414
Master warning light ....................................419
Menu icons.........................................................79
Meter Clock .................................................................. 75
Indicators ...........................................................72
Instrument panel light control ................ 78
Meter control switches ..............................80
Meters ................................................................ 75
Multi-information display .......................... 79
Settings .............................................................. 83
Units .................................................................... 82
Warning lights ............................................... 413
Warning message..................................... 422
Micro dust and pollen filter ..................... 303
Mirrors Inside rear view mirror................................141
Outside rear view mirror defoggers298
Outside rear view mirrors ...................... 142
Vanity mirrors..............................................338
Moon roof Door lock linked moon roof operation.......................................................................... 148
Door lock linked panoramic moon roof operation ....................................................... 151
Jam protection function........................... 148
Operation........................................................ 147 Multi-information display .............................79
Audio system-linked display ...................83
AWD Control ................................................. 81
Drive information ......................................... 80
Driving assist system information .........83
Driving information display ..................... 80
Dynamic radar cruise control with full-speed range ......................................230
Eco Driving Indicator................................... 81
G-force .............................................................. 82
LTA (Lane Tracing Assist) .................... 223
Menu icons ...................................................... 79
Meter control switches ............................. 80
Navigation system-linked display ........83
Pop-up display ............................................... 79
Settings...............................................................83
Suggestion function .....................................84
Tire pressure ................................................ 373
Units..................................................................... 82
Warning message ..................................... 422
N
Navigation system-linked display... 83, 89
Noise from under vehicle ...............................6
O
“ODO TRIP” switch ...................................... 78
Odometer ......................................................... 78
Odometer and trip meter display Display items ................................................... 78
“ODO TRIP” switch .................................... 78
Pop-up display ............................................... 78
Oil Engine oil........................................................454
Rear differential oil......... ..................... ...... 456
Opener Fuel filler door ..............................................202
Hood ................................................................363
Outer foot lights Location ........................................................... 313
Outside door handle lig hts........................313
