4TABLE OF CONTENTS
6-1. Maintenance and careCleaning and protecting the vehi-cle exterior ................................... 336
Cleaning and protecting the vehi- cle interior .................................... 339
6-2. Maintenance Maintenance requirements ..... 342
General maintenance ................ 343
Emission inspection and mainte- nance (I/M) programs ............ 346
6-3. Do-it-yourself maintenance Do-it-yourself service precautions........................................................... 347
Hood.................................................. 349
Positioning a floor jack............... 349
Engine compartment................... 351
Tires ................................................... 357
Tire inflation pressure................. 363
Wheels.............................................. 365
Air conditioning filter..................366
Windshield wiper inserts........... 368
Electronic key battery ................ 369
Checking and replacing fuses ............................................................ 371
Headlight aim................................. 372
Light bulbs ....................................... 374
7-1. Essential information Emergency flashers..................... 384
If your vehicle has to be stopped in an emergency ............................. 384If the vehicle is submerged or water
on the road is rising .................. 385
7-2. Steps to take in an emergency If your vehicle needs to be towed.......................................................... 387
If you think something is wrong ........................................................... 391
Fuel pump shut off system ........ 392
If a warning light turns on or a warn- ing buzzer sounds..................... 393
If a warning messa ge is displayed
.......................................................... 402
If you have a flat tire .................... 406
If the engine will not start ........... 418
If you lose your keys..................... 419
If the fuel filler door cannot be opened .......................................... 420
If the electronic key does not oper- ate properly ................................... 421
If the vehicle battery is discharged .......................................................... 423
If your vehicle overheats ........... 426
If the vehicle becomes stuck ... 428
8-1. Specifications Maintenance data (fuel, oil level, etc.) ................................................. 430
Fuel information............................ 438
Tire information ............................ 440
8-2. Customization Customizable features .............. 449
8-3. Initialization Items to initialize ........................... 462
6Maintenance and care
7When trouble arises
8Vehicle specifications

13Pictorial index
Precautions for winter season ....................................................................................... P.271
To prevent freezing (windshield wiper de-icer)
*...................................................P.291
Precautions for car wash ............................................................................................... P.337
Fuel filler door .......................................................................................................... P.195
Refueling method .............................................................................................................. P .195
Fuel type/fuel tank capacity ......................................................................................... P.432
Tires.......................................................................................................................... ..P.357
Tire size/inflation pressure ................................................................................P.357, 436
Winter tires/tire chains .................................................................................................... P.2 71
Checking/rotation/tire pressure warning system.............................................. P.357
Coping with flat tires........................................................................................................ P .406
Hood ..........................................................................................................................P .349
Opening ........................................................................................................................ ....... P.349
Engine oil ..................................................................................................................... ......... P.432
Coping with overheating ............................................................................................... P.426
Warning messages .......................................................................................................... P.402
Headlights/front turn signal lights/front side marker lights ............ P.178, 184
Side turn signal lights ............................................................................................. P.178
Parking lights/daytime running lights................ ...............................................P.184
Fog lights/cornering lights
*....................................................................... P.184, 190
Rear side marker lights .........................................................................................P.184
Stop/tail lights ..........................................................................................................P.184
Back-up lights/rear turn signal lights ............. ......................................... P.178, 184
Shifting the shift lever to R ...............................................................................................P.1 74
License plate lights .................................................................................................P.184
*:If equipped
Light bulbs of the exterior lights for driving
(Replacing method: P. 374, Watts: P.437)
E
F
G
H
I
J
K
L
M
N
O

441-1. For safe use
Exhaust gas precautions
Harmful substance to the human
body is included in exhaust gases if
inhaled.
WARNING
Exhaust gases include harmful carbon
monoxide (CO), which is colorless and
odorless. Observe the following precau-
tions.
Failure to do so may cause exhaust gases
enter the vehicle and may lead to an
accident caused by light-headedness, or
may lead to death or a serious health
hazard.
■Important points while driving
●Keep the back door closed.
●If you smell exhaust gases in the vehi-
cle even when the back door is closed,
open the windows and have the vehi-
cle inspected at your Lexus dealer as
soon as possible.
■When parking
●If the vehicle is in a poorly ventilated
area or a closed area, such as a
garage, stop the engine.
●Do not leave the vehicle with the
engine running for a long time.
If such a situation cannot be avoided,
park the vehicle in an open space and
ensure that exhaust fumes do not enter
the vehicle interior.
●Do not leave the engine running in an
area with snow build-up, or where it is
snowing. If snowbanks build up around
the vehicle while the engine is running,
exhaust gases may collect and enter
the vehicle.
■Exhaust pipe
The exhaust system needs to be checked
periodically. If there is a hole or crack
caused by corrosion, damage to a joint
or abnormal exhaust noise, be sure to
have the vehicle inspected and repaired
by your Lexus dealer.

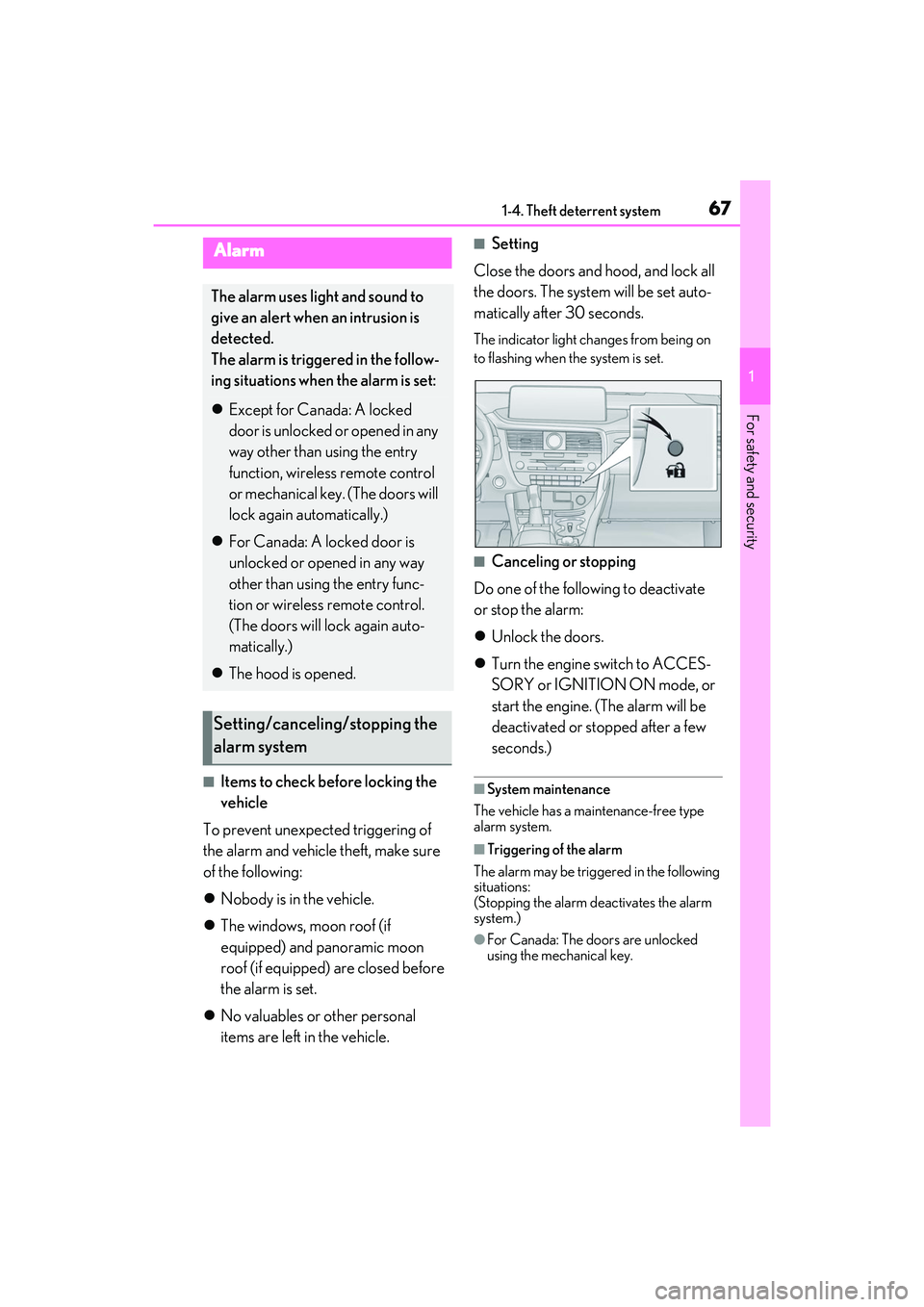

671-4. Theft deterrent system
1
For safety and security
■Items to check before locking the
vehicle
To prevent unexpected triggering of
the alarm and vehicle theft, make sure
of the following:
 Nobody is in the vehicle.
 The windows, moon roof (if
equipped) and panoramic moon
roof (if equipped) are closed before
the alarm is set.
 No valuables or other personal
items are left in the vehicle.
■Setting
Close the doors and hood, and lock all
the doors. The system will be set auto-
matically after 30 seconds.
The indicator light changes from being on
to flashing when the system is set.
■Canceling or stopping
Do one of the following to deactivate
or stop the alarm:
 Unlock the doors.
 Turn the engine switch to ACCES-
SORY or IGNITION ON mode, or
start the engine. (The alarm will be
deactivated or stopped after a few
seconds.)
■System maintenance
The vehicle has a maintenance-free type
alarm system.
■Triggering of the alarm
The alarm may be triggered in the following
situations:
(Stopping the alarm deactivates the alarm
system.)
●For Canada: The doors are unlocked
using the mechanical key.
Alarm
The alarm uses light and sound to
give an alert when an intrusion is
detected.
The alarm is triggered in the follow-
ing situations when the alarm is set:
 Except for Canada: A locked
door is unlocked or opened in any
way other than using the entry
function, wireless remote control
or mechanical key. (The doors will
lock again automatically.)
 For Canada: A locked door is
unlocked or opened in any way
other than using the entry func-
tion or wireless remote control.
(The doors will lock again auto-
matically.)
 The hood is opened.
Setting/canceling/stopping the
alarm system

722-1. Instrument cluster
*1: These lights turn on when the engine switch is turned to IGNITION ON
mode to indicate that a system check is
being performed. They will turn off after
the engine is started, or after a few sec-
onds. There may be a malfunction in a
system if a light does not come on, or
turn off. Have the vehicle inspected by
your Lexus dealer.
*2: This light illuminates on the multi-infor-mation display.
*3: Except F SPORT models: This light illu-minates on the multi-information dis-
play.
F SPORT models: This light illuminates
on the meter.
*4: This light illuminates on the center panel.
The indicators inform the driver of the
operating state of the vehicle’s various
systems.
(flashes)
Brake hold operated indicator*1
( P.399)
Master warning light
*1
( P.399)
WARNING
■If a safety system warning light does
not come on
Should a safety system light such as the
ABS and SRS warning lights not come on
when you start the engine, this could
mean that these systems are not available
to help protect you in an accident, which
could result in death or serious injury.
Have the vehicle inspected by your
Lexus dealer immediately if this occurs.
Indicators
Turn signal indicator ( P.178)
(U.S.A.)
Headlight indicator (P.184)
(Canada)
Tail light indicator ( P.184)
Headlight high beam indicator
( P.185)
Automatic High Beam indica-
tor
*1 (  P.187)
Fog light indicator (if equipped)
( P.190)
PCS warning light
*1, 2
( P.206)
Cruise control indicator
( P.229)
Dynamic radar cruise control
indicator ( P.222)
Cruise control “SET” indicator
( P.222)
(white)
LTA indicator ( P.215)
(green)
LTA indicator (P.215)
(orange)
(flashes)LTA indicator ( P.215)
BSM outside rear view mirror
indicators
*3, 4 (if equipped)
( P.232, 245)
BSM indicator (if equipped)
( P.232)
Intuitive parking assist OFF indi-
cator
*1, 2 (if equipped)
( P.239)
RCTA OFF indicator
*1, 2 (if
equipped) ( P.245)

732-1. Instrument cluster
2
Vehicle status information and indicators
Drive mode indicators
Except F SPORT models
F SPORT models
*1: These lights turn on when the engine
switch is turned to IGNITION ON
mode to indicate that a system check is
being performed. They will turn off after
the engine is started, or after a few sec-
onds. There may be a malfunction in a
system if a light does not come on, or
turn off. Have the vehicle inspected by
your Lexus dealer.
*2: This light comes on when the system is turned off.
*3: In order to confirm operation, the BSM
outside rear view mirror indicators illu-
minate in the following situations:
 When the BSM function is enabled
on of the multi-information dis-
play, the engine switch is turned to
IGNITION ON mode.
 When the engine switch is in IGNI-
TION ON mode, the BSM function
is enabled on of the multi-infor-
mation display.
If the system is functioning correctly,
the BSM outside rear view mirror indi-
cators will turn off after a few seconds.
If the BSM outside rear view mirror
indicators do not illuminate or do not
turn off, there may be a malfunction in
PKSB OFF indicator*1, 2 (if
equipped) ( P.252)
All-wheel drive lock indicator
*1
(AWD models only) ( P.264)
(flashes)
Slip indicator*1 (P.266)
VSC OFF indicator
*1, 2
( P.267)
Smart access system with
push-button start indicator
*5
( P.170)
(U.S.A.)
Parking brake indicator
(P.179)
(Canada)
Parking brake indicator
(P.179)
Brake hold standby indicator
*1
( P.182)
Brake hold operated indicator
*1
( P.182)
Eco Driving Indicator Light
*1
( P.81)
Low outside temperature indi-
cator
*6 ( P.75)
Security indicator
*7 ( P.66,
67)
(U.S.A.)
“AIR BAG ON/OFF”
indicator
*1, 7 (  P.40)
(Canada)
“AIR BAG ON/OFF”
indicator
*1, 7 ( P.40)
Eco drive mode indicator
( P.262)
Sport mode indicator (if
equipped) ( P.262)
Customize mode indicator
(P.262)
Eco drive mode indicator
( P.262)
Sport mode indicator (if
equipped) ( P.262)
Sport S mode indicator
( P.262)
Sport S+ mode indicator
( P.262)

772-1. Instrument cluster
2
Vehicle status information and indicators
speed, a ring-shaped indicator will be
displayed on the tachometer.
The desired engine speed at which the Rev
indicator will begin to be displayed can be
set on of the multi-information display.
(  P.79)
■Rev peak (F SPORT models)
The engine speed reaches or exceeds
5000 rpm, an afterimage of the
tachometer will be displayed at the
highest engine speed for approxi-
mately 1 second.
■The meters and display illuminate when
The engine switch is in IGNITION ON
mode.
■Outside temperature display
●In the following situations, the correct
outside temperature may not be dis-
played, or the display may take longer
than normal to change:
• When stopped, or driving at low speeds (less than 12 mph [20 km/h])
• When the outside temperature has changed suddenly (at the entrance/exit of
a garage, tunnel, etc.)
●When “--” or “E” is displayed, the system
may be malfunctioning
. Take your vehicle
to your Lexus dealer.
■Liquid crystal display
Small spots or light sp ots may appear on the
display. This phenomenon is characteristic
of liquid crystal disp lays, and there is no
problem continuing to use the display.
■Customization
The gauges and meters can be customized
on of the multi-in formation display.
( P.83)
WARNING
■The information display at low tem-
peratures
Allow the interior of the vehicle to warm
up before using the liquid crystal infor-
mation display. At extremely low tem-
peratures, the information display
monitor may respond slowly, and display
changes may be delayed.
For example, there is a lag between the
driver’s shifting and the new gear number
appearing on the display. This lag could
cause the driver to downshift again,
causing rapid and excessive engine brak-
ing and possibly an accident resulting in
death or injury.
NOTICE
■To prevent damage to the engine and
its components
●Do not let the indicator needle of the
tachometer enter the red zone, which
indicates the maximum engine speed.
●The engine may be overheating if the
engine coolant temperature gauge is
in the red zone (H). In this case, imme-
diately stop the vehicle in a safe place,
and check the engine after it has
cooled completely. ( P.426)

973-2. Opening, closing and locking the doors
3
Before driving
3-2.Opening, closing and locking the doors
■Smart access system with
push-button start
Carry the electronic key to enable this
function.
1 Grip the driver’s door handle to
unlock the door. Grip any passen-
ger door handle to unlock all the
doors.
*
Make sure to touch the sensor on the back
of the handle.
The doors cannot be unlocked for 3 sec-
onds after the doors are locked.
*: The door unlock settings can be
changed.
2 Touch the lock sensor (indentation
on the surface of the door handle)
to lock all the doors.
Check that the door is securely locked.
■Wireless remote control
1 Locks all the doors
Check that the door is securely locked.
2Unlocks all the doors
Pressing the button unlocks the driver’s
door. Pressing the button again within 3
seconds unlocks the other doors.
Press and hold to open the windows
*2 and
the moon roof
*1, 2 or panoramic moon
roof
*1, 2
*1
: If equipped
*2: This setting must be customized at your
Lexus dealer.
■Switching the door unlock function
It is possible to set which doors the entry
function unlocks using the wireless remote
control.
1 Turn the engine switch off.
2 When the indicator light on the key sur-
face is not on, press and hold ,
or for approxi-
mately 5 seconds while pressing and
holding .
The setting changes each time an operation
is performed, as shown below. (When
changing the setting continuously, release
the buttons, wait for at least 5 seconds, and
repeat step 2 .)
Side doors
The vehicle can be locked and
unlocked using the entry function,
wireless remote control or door
lock switches.
Unlocking and locking the doors
from the outside

1303-3. Adjusting the seats
off.
• The driver’s seat belt has been unfastened.
When any of the following has been
performed, the seat and steering
wheel automatically return to their
original positions.
• The engine switch has been turned to ACCESSORY mode or IGNI-
TION ON mode.
• The driver’s seat belt has been fas- tened.
■Operation of the power easy access sys-
tem
When exiting the vehicle, the power easy
access system may not operate if the seat is
already close to the rearmost position, etc.
■Customization
Some functions can be customized.
(  P.449)
1 Check that the shift lever is in P.
2 Turn the engine switch to IGNI-
TION ON mode.
3 Adjust the driver’s seat, steering
wheel, outside rear view mirrors
and head-up display (if equipped)
to the desired positions.
4 While pressing the “SET” button, or
within 3 seconds after the “SET”
button is pressed, press button “1”,
“2” or “3” until the buzzer sounds.
If the selected button has already been
preset, the previously recorded position will be overwritten.
■Seat positions that can be memorized
(
P.117)
The adjusted positions other than the posi-
tion adjusted by lumb ar support switch can
be recorded.
■In order to correctly use the driving
position memory function
If a seat position is already in the furthest
possible position and the seat is operated in
the same direction, the recorded position
may be slightly differen t when it is recalled.
1Check that the shift lever is in P.
2 Turn the engine switch to IGNI-
TION ON mode.
Recording a driving position into
memory
WARNING
■Seat adjustme nt caution
Take care during seat adjustment so that
the seat does not strike the rear passen-
ger or squeeze your body against the
steering wheel.
Recalling a driving position

1433-5. Opening, closing the windows and moon roof
3
Before driving
2Tilts the moon roof down*
*: Lightly press either side of the moon roof
switch to stop the moon roof partway.
■The moon roof can be operated when
The engine switch is in IGNITION ON
mode.
■Operating the moon roof after turning
the engine off
The moon roof can be operated for approx-
imately 45 seconds after the engine switch
is turned to ACCESSORY mode or turned
off. It cannot, howeve r, be operated once
the driver’s door is opened.
■Jam protection function
If an object is dete cted between the moon
roof and the frame while the moon roof is
closing or tilting down, travel is stopped and
the moon roof opens slightly.
■Sunshade
The sunshade can be opened and closed
manually. However, th e sunshade will open
automatically when the moon roof is
opened.
■Door lock linked moon roof operation
●The moon roof can be opened and
closed using the mechanical key.*
( P.422)
●The moon roof can be opened using the
wireless remote control.* ( P.97)
●The alarm may be triggered if the alarm is
set and the moon roof is closed using the
door lock linked moon roof operation
function. ( P.67)
*: These settings must be customized at
your Lexus dealer.
■When the moon roof does not close nor-
mally
Perform the following procedure:
If the moon roof closes but then re-opens
slightly
1 Stop the vehicle.
2 Press and hold the “CLOSE” switch.
*1
The moon roof will close, reopen and pause for approximately 10 seconds.
*2 Then it will
close again, tilt up and pause for approxi-
mately 1 second. Finally, it will tilt down,
open and close.
3 Check to make sure that the moon roof
is completely closed and then release
the switch.
If the moon roof tilts down but then tilts
back up
1 Stop the vehicle.
2 Press and hold the “UP” switch
*1 until
the moon roof moves into the tilt up
position and stops.
3 Release the “UP” switch once and then
press and hold the “UP” switch
again.
*1The moon roof will pause for
approximately 10 seco nds in the tilt up
position.
*2 Then it will adjust slightly and
pause for approximately 1 second.
Finally, it will tilt down, open and close.
4 Check to make sure that the moon roof
is completely closed and then release
the switch.
*1: If the switch is released at the incorrect
time, the procedure w ill have to be per-
formed again from the beginning.
*2: If the switch is released after the above mentioned 10 second pause, automatic
operation will be disabled. In that case,
press and hold the “CLOSE” or “UP”
switch, and the moon roof will tilt up and
pause for approximately 1 second. Then
it will tilt down, open and close. Check
to make sure that the moon roof is com-
pletely closed and then release the
switch.
If the moon roof does not fully close even
after performing the above procedure cor-
rectly, have the vehicle inspected by your
Lexus dealer.
■Moon roof open warning buzzer
A buzzer sounds and a message is shown
on the multi-informat ion display in the
instrument cluster when the engine switch
is turned off and the driver’s door is opened
with the moon roof open.
