19Pictorial index
■Interior
RX350
SRS airbags................................................................................................................ P.30
Floor mats ....................................................................................................................P .24
Front seats .................................................................................................................. P. 117
Rear seats ................................................................................................................... P. 118
Head restraints ........................................................................................................P.132
Seat belts ..................................................................................................................... P.26
Console box............................................................................................................ P.305
Inside lock buttons ....................................................................................................P.99
Cup holders .............................................................................................................P.306
Assist grips .............................................................................................................. P.322A
B
C
D
E
F
G
H
I
J

20Pictorial index
RX350L (vehicles with separate-type second-row seats)
SRS airbags................................................................................................................ P.30
Floor mats ....................................................................................................................P.24
Front seats .................................................................................................................. P. 117
Second-row seats .................................................................................................... P.118
Third-row seats ......................................................................................................... P.118
Head restraints ........................................................................................................P.132
Seat belts ..................................................................................................................... P.26
Console box............................................................................................................ P.305
Inside lock buttons ....................................................................................................P.99
Cup holders .............................................................................................................P.306
Assist grips .............................................................................................................. P.322
Rear automatic air conditioning system .........................................................P.294A
B
C
D
E
F
G
H
I
J
K
L

21Pictorial index
RX350L (vehicles with bench-type second-row seats)
SRS airbags................................................................................................................ P.30
Floor mats ....................................................................................................................P .24
Front seats .................................................................................................................. P. 117
Second-row seats .................................................................................................... P.118
Third-row seats ......................................................................................................... P.118
Head restraints ........................................................................................................P.132
Seat belts ..................................................................................................................... P.26
Console box............................................................................................................ P.305
Inside lock buttons ....................................................................................................P.99
Cup holders .............................................................................................................P.306
Assist grips .............................................................................................................. P.322
Rear automatic air conditioning system .........................................................P.294A
B
C
D
E
F
G
H
I
J
K
L

3035-5. Using the storage features
5
Interior features
5-5.Using the storage features
Vehicles with bench-type second-row seatsGlove box ( P.305)
Auxiliary boxes (if equipped) ( P.308)
Door pockets ( P.307)
Bottle holders ( P.307)
Console box ( P.305)
Cup holders ( P.306)
Coin box ( P.307)
Smartphone holder ( P.305)
List of storage features
Location of the storage features
A
B
C
D
E
F
G
H

3045-5. Using the storage features
Vehicles with separate-type second-row seatsGlove box ( P.305)
Auxiliary boxes ( P.308)
Door pockets ( P.307)
Bottle holders ( P.307)
Console box ( P.305)
Cup holders ( P.306)
Coin box ( P.307)
Smartphone holder ( P.305)
A
B
C
D
E
F
G
H
WARNING
■Items that should not be left in the
storage spaces
Do not leave glasses, lighters or spray
cans in the storage spaces, as this may
cause the following when cabin tempera-
ture becomes high:
●Glasses may be deformed by heat or
cracked if they come into contact with
other stored items.
●Lighters or spray ca ns may explode. If
they come into contact with other
stored items, the lighter may catch fire
or the spray can may release gas,
causing a fire hazard.

3055-5. Using the storage features
5
Interior features
1Open (press the button)
2 Unlock with the mechanical key
3 Lock with the mechanical key
■Glove box light
The glove box light turns on when the tail
lights are on.
■When cleaning the interior
Remove to clean it.
When installing , engage the left and
right claws and then engage the center
claw.
Push the knob.
Lift by hand to fully open the console box.
■Console box light
The console box light turns on when the tail
lights are on.
■Pen holder
A pen can be stored in the pen holder on
the underside of the lid.
WARNING
■When storage compartments are not
in use
When driving or when the storage com-
partments are not in use, keep the lids
closed.
In the event of sudden braking or sudden
swerving, an accident may occur due to
an occupant being struck by an open lid
or the items stored inside.
Glove box
Smartphone holder
Console box
A
A

3065-5. Using the storage features
■Trays in the console box (if equipped)
Remove each tray to access the storage
space under the tray.
Front seats
Bench-type second-row seats
Pull down the armrest and then press
down the button.
Separate-type second-row seats
Press in the button.
■The depth of the front cup holder can be
changed.
1 To store a water bottle, push down the
bottom of the cup holder.
2 To return the bottom to its original posi-
tion, press the button.
NOTICE
■Trays (if equipped)
Do not place items which may obstruct
the trays in the console box. Doing so
may prevent opening and closing of the
lid.
Cup holders
WARNING
■Items unsuitable for the cup holder
●Do not place anything other than cups,
aluminum cans, or water bottles in the
cup holders. Other items may be
thrown out of the holders in the event
of an accident or sudden braking, pos-
sibly causing injury. If possible, cover
hot drinks to prevent burns.

3235-6. Using the other interior features
5
Interior features
The coat hooks are provided with the
rear assist grips.
The GPS clock's time is automatically
adjusted by utilizing GPS time infor-
mation.
For details, refer to “NAVIGATION AND
MULTIMEDIA SYSTEM OWNER’S
MANUAL”.
Please use as a power supply for elec-
tronic goods that use less than 12
VDC/10 A (power consumption of
120 W).
Observe the following when using
electronic goods:
Make sure that the power consump-
tion of all the connected power out-
lets on the instrument panel and in
the luggage compartment is less
than 120 W.
 Make sure that the power consump-
tion of all the connected power out-
lets inside the console box is less
than 120 W.
On the instrument panel
Remove the cap.
Inside the console box
Open the lid.
NOTICE
■To prevent damage to the assist grip
Do not hang any heavy object or put a
heavy load on the assist grip.
Coat hooks
WARNING
■Items that must not be hung on the
hook
Do not hang coat hangers or other hard
or sharp objects on the hook. If the SRS
curtain shield airbags deploy, these items
may become projectiles, causing death
or serious injury.
Clock
Power outlets

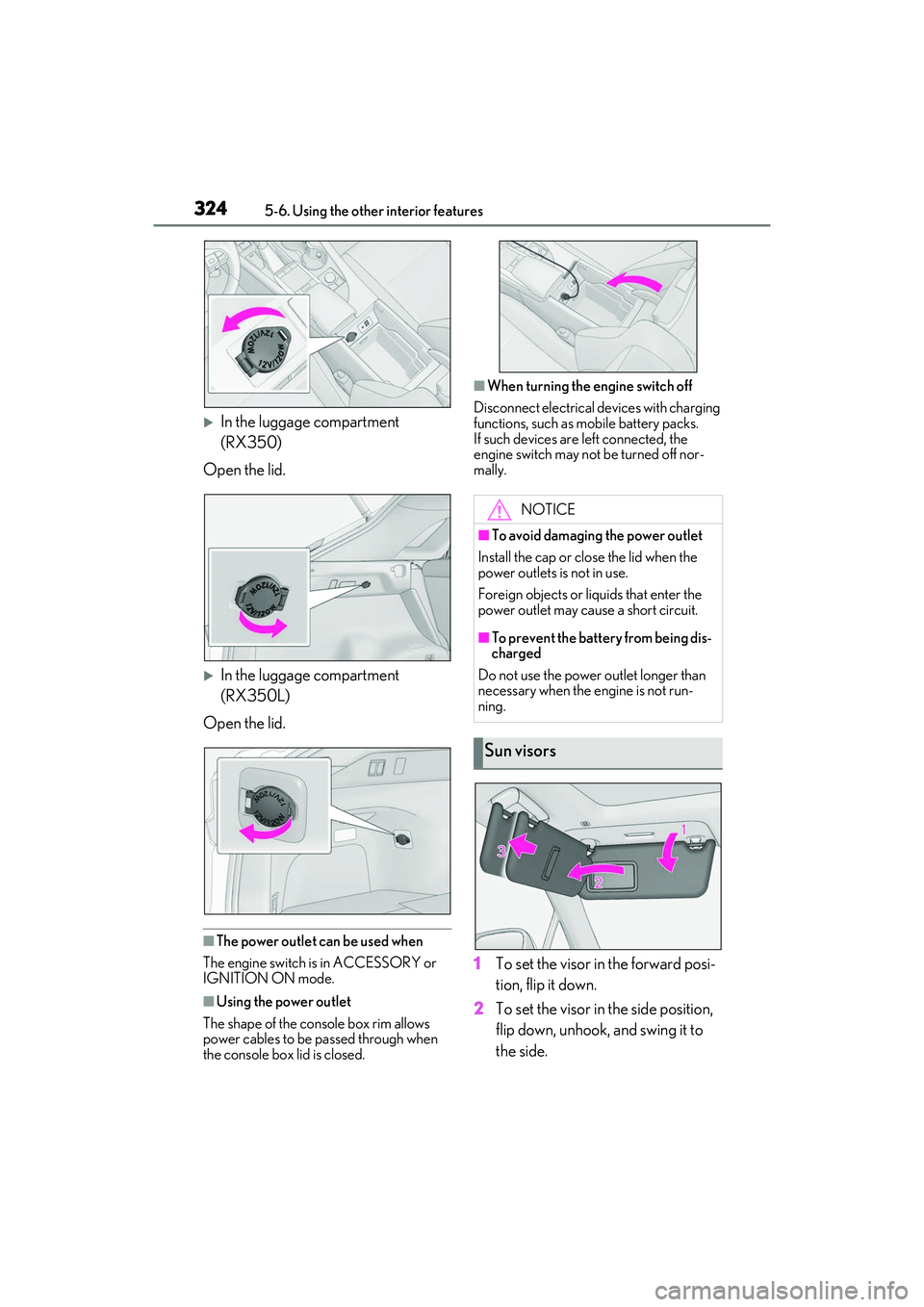

3245-6. Using the other interior features
In the luggage compartment
(RX350)
Open the lid.
In the luggage compartment
(RX350L)
Open the lid.
■The power outlet can be used when
The engine switch is in ACCESSORY or
IGNITION ON mode.
■Using the power outlet
The shape of the console box rim allows
power cables to be passed through when
the console box lid is closed.
■When turning the engine switch off
Disconnect electrical devices with charging
functions, such as mobile battery packs.
If such devices are left connected, the
engine switch may not be turned off nor-
mally.
1 To set the visor in the forward posi-
tion, flip it down.
2 To set the visor in the side position,
flip down, unhook, and swing it to
the side.
NOTICE
■To avoid damaging the power outlet
Install the cap or close the lid when the
power outlets is not in use.
Foreign objects or li quids that enter the
power outlet may cause a short circuit.
■To prevent the battery from being dis-
charged
Do not use the power outlet longer than
necessary when the engine is not run-
ning.
Sun visors

482Alphabetical Index
BrakeBrake hold.......................................................182
Fluid ......................................................354, 436
Parking brake ................................................ 179
Warning light ............................................... 393
Brake assist .................................................... 265
Break-in tips...................................................... 151
Brightness control Instrument panel light control ................ 78
BSM (Blind Spot Monitor)....................... 232
Buzzer Hands off steering wheel warning (LTA)...........................................................................218
C
Care Exterior ........................................................... 336
Interior ............................................................. 339
Seat belts........................................................ 339
Wheels and wheel ornaments............ 336
Cargo capacity.................................... 155, 158
Cargo hooks ................................................. 309
Cargo net hooks .......................................... 309
Center Display .............................................280
Chains ...............................................................272
Child restraint system Fixed with a LATCH system .................. 54
Fixed with a seat belt...................................50
Front passenger occupa nt classification
system ............................................................. 39
Points to remember .................................... 45
Riding with children ..................................... 45
Types of child restraint system installation method ........................................................... 46
Using an anchor bracket .......................... 57
Child safety Airbag precautions...................................... 36
Battery precautions ......................356, 425
Child restraint system................................. 46
Heated steering wheel and seat heater precautions................................................ 297 How your child should
wear the seat belt
............................................................................. 27
Moon roof precautions.............................144
Panoramic moon roof precautions ....147
Power back door precautions ............... 101
Power window lock switch .....................142
Power window precautions .................... 141
Rear door child-protectors ................... 100
Seat belt extender prec autions.............. 27
Seat belt precautions .................................. 45
Child-protectors........................................... 100
Cleaning Exterior............................................................336
Interior .............................................................339
Radar sensor ................................................. 198
Seat belts ........................................................339
Wheels and wheel ornaments ............336
Clock ........................................................ 75, 323
Coat hooks..................................................... 323
Coin box.......................................................... 307
Compass ...........................................................331
Condenser ..................................................... 354
Console box .................................................. 305
Consumption screen .................................... 90
Cooling system............................................. 353 Engine overheating................................... 426
Cornering lights ............................................ 186 Replacing light bulbs................................375
Cruise control Dynamic radar cruise control with full-speed range ...................................... 222
Cup holders ................................................... 306
Current fuel consumption .......................... 80
Curtain shield airbags .................................. 30
Customizable features .............................. 449
D
Daytime running light system .................. 184
Defogger Outside rear view mirrors.................... 286
Rear window ............................................... 286
Windshield ................................................... 286
