6648-2. Steps to take in an emergency
RX350/RX350L_U
■If “Forward Camera System Unavailable” or “Forward Camera System
Unavailable Clean Windshield” is displayed
The following systems may be suspended until the problem shown in the mes-
sage is resolved. (P. 290)
●PCS (Pre-Collision System)
●LKA (Lane-Keeping Assist)
●Dynamic radar cruise control with full-speed range
●Automatic High Beam
■If “Oil Maintenance Required Soon” is shown
Indicates that the engine oil is scheduled to be changed.
Check the engine oil, and change if necessary. After changing the engine oil,
the message should be reset. ( P. 597)
■If “Oil Maintenance Required” is shown
Indicates that the engine oil should be changed.
Check and change the engine oil, and o il filter by your Lexus dealer. After
changing the engine oil, the message should be reset. ( P. 597)
■If “Maintenance Required Soon” is displayed (U.S.A. only)
Indicates that all maintenance according to the driven distance on the mainte-
nance schedule
* should be performed soon.
Comes on approximately 4500 miles (7200 km) after the message has been
reset.
If necessary, perform maintenance. Plea se reset the message after the main-
tenance is performed. ( P. 585)
*: Refer to the separate “Scheduled Mainte nance” or “Owner’s Manual Supplement”
for the maintenance interval applicable to your vehicle.

6838-2. Steps to take in an emergency
8
When trouble arises
RX350/RX350L_U
One of the following may be the cause of the problem:
●One or both of the battery terminals may be disconnected.
●The battery may be discharged. (P. 687)
●There may be a malfunction in the steering lock system.
Contact your Lexus dealer if the problem cannot be repaired, or if repair procedures
are unknown.
When the engine does not start, the follo wing steps can be used as an interim
measure to start the engine if the engine switch is functioning normally.
Turn the engine switch to IGNITION ON mode and check that the parking
brake is set. ( P. 232, 247)
Shift the shift lever to P.
Turn the engine switch to ACCESSORY mode.
Press and hold the engine switch for about 15 seconds while depressing the
brake pedal firmly.
Even if the engine can be started using the above steps, the system may be mal-
functioning. Have the vehicle in spected by your Lexus dealer.
The starter motor does not turn over, the interior lights and headlights
do not turn on, or the horn does not sound.
Emergency start function
1
2
3
4

6858-2. Steps to take in an emergency
8
When trouble arises
RX350/RX350L_U
■Locking the doorWith the door open, push down
the inside lock button.
Close the door.
■Key linked functions
Ensure that the shift lever is in P and depress the brake pedal.
Touch the Lexus emblem side of the
electronic key to the engine switch.
When the electronic key is detected, a
buzzer sounds and the engine switch
will turn to IGNITION ON mode.
When the smart access system with
push-button start is deactivated in
customization setting, the engine switch
will turn to ACCESSORY mode.
Firmly depress the brake pedal and check that is shown on the multi-
information display.
Press the engine switch shortly and firmly.
In the event that the engine still cannot be started, contact your Lexus dealer.
1
Closes the windows and the moon roof* or
panoramic moon roof* (turn and hold)
Opens the windows and the moon roof
* or
panoramic moon roof
* (turn and hold)
These settings must be customized at your
Lexus dealer.
*: If equipped
Starting the engine
2
1
22
1
2
3
4

6868-2. Steps to take in an emergency
RX350/RX350L_U
■Stopping the engine
Shift the shift lever to P, set the parking brake, and press the engine switch as you nor-
mally do when stopping the engine.
■Replacing the key battery
As the above procedure is a temporary measure, it is recommended that the electronic
key battery be replaced immediately when the battery is depleted. ( P. 623)
■Changing engine switch modes
Release the brake pedal and press the engine switch in step above.
The engine does not start and modes will be changed each time the switch is pressed.
(  P. 232)
■When the electronic key does not work properly
●Make sure that the smart access system wi th push-button start has not been deacti-
vated in the customization setting. If it is off, turn the function on.
(Customizable features P. 722)
●Check if battery-saving mode is set. If it is set, cancel the function. (P. 148)
WARNING
■When using the mechanical key and operating the power windows or the moon roof
or panoramic moon roof
Operate the power window or the moon roof or panoramic moon roof after checking
to make sure that there is no possibility of any passenger having any of their body parts
caught in the window or the moon roof or panoramic moon roof.
Also, do not allow children to op erate the mechanical key. It is possible for children and
other passengers to get caught in the powe r window or the moon roof or panoramic
moon roof.
3

6938-2. Steps to take in an emergency
8
When trouble arises
RX350/RX350L_U
Add coolant if necessary.
Water can be used in an emergency if
coolant is unavailable.
Start the engine and turn the air conditioning system on to check that the radi-
ator cooling fans operate and to check for coolant leaks from the radiator or
hoses.
The fans operate when the air conditioning system is turned on immediately after a
cold start. Confirm that the fans are operating by checking the fan sound and air flow.
If it is difficult to check these, turn the air conditioning system on and off repeatedly.
(The fans may not operate in freezing temperatures.)
If the fans are not operating:
Stop the engine immediately an d contact your Lexus dealer.
If the fans are operating:
Have the vehicle inspected at the nearest Lexus dealer.
Check if “Engine Coolant Temp High St op in a Safe Place See Owner’s Man-
ual” is shown on the multi-information display.
If the message does not disappear:
Stop the engine and contact your Lexus dealer.
If the message is not displayed:
Have the vehicle inspected at the nearest Lexus dealer.
5
6
7
8

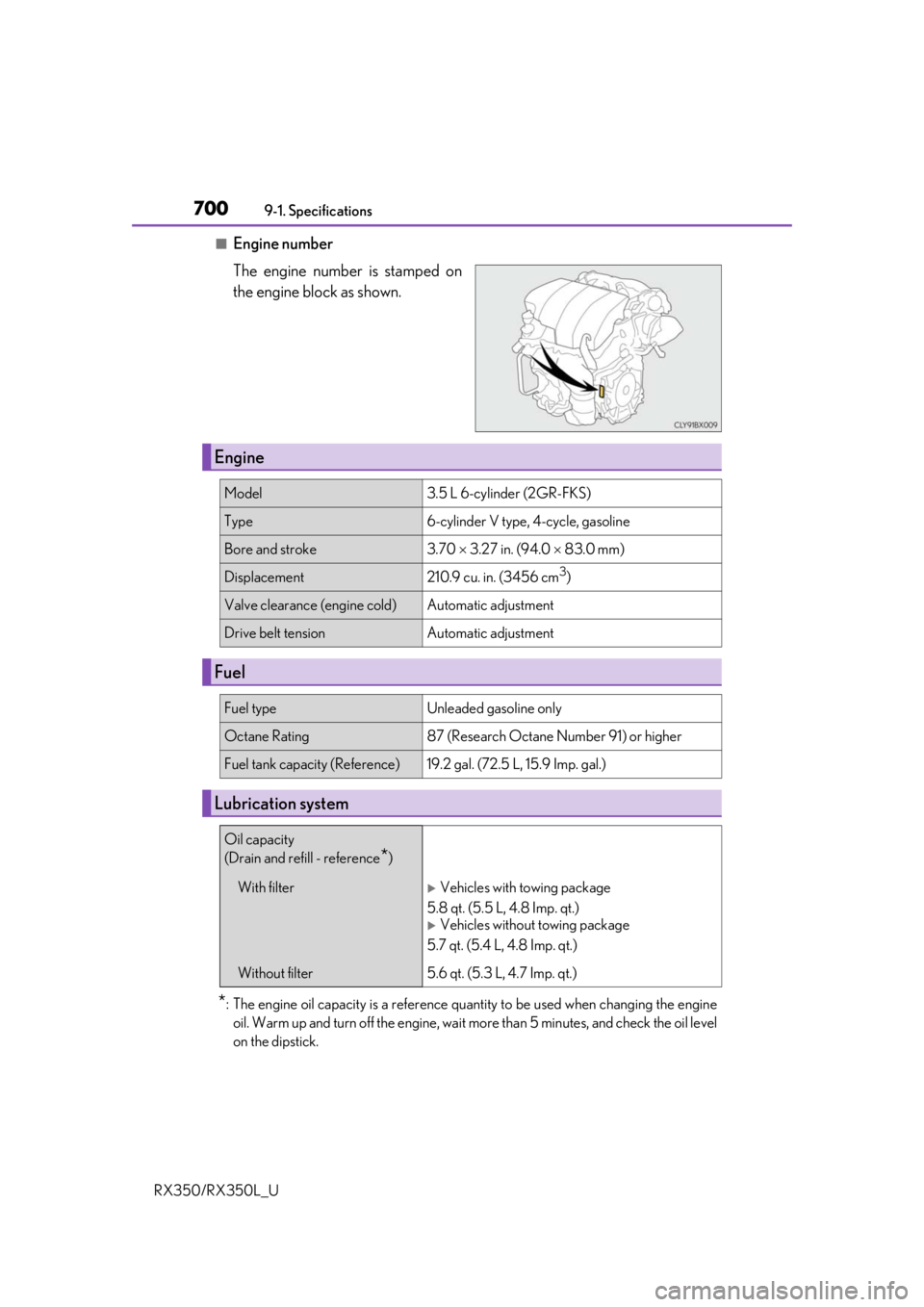

7009-1. Specifications
RX350/RX350L_U
■Engine number
The engine number is stamped on
the engine block as shown.
*: The engine oil capacity is a reference quantity to be used when changing the engine oil. Warm up and turn off the engine, wait more than 5 minutes, and check the oil level
on the dipstick.
Engine
Model3.5 L 6-cylinder (2GR-FKS)
Type6-cylinder V type, 4-cycle, gasoline
Bore and stroke3.70  3.27 in. (94.0  83.0 mm)
Displacement210.9 cu. in. (3456 cm3)
Valve clearance (engine cold)Automatic adjustment
Drive belt tensionAutomatic adjustment
Fuel
Fuel typeUnleaded gasoline only
Octane Rating87 (Research Octane Number 91) or higher
Fuel tank capacity (Reference)19.2 gal. (72.5 L, 15.9 Imp. gal.)
Lubrication system
Oil capacity
(Drain and refill - reference
*)
With filterVehicles with towing package
5.8 qt. (5.5 L, 4.8 Imp. qt.)
Vehicles without towing package
5.7 qt. (5.4 L, 4.8 Imp. qt.)
Without filter5.6 qt. (5.3 L, 4.7 Imp. qt.)

752
RX350/RX350L_UWhat to do if... (Troubleshooting)
What to do if... (Troubleshooting)
●If you lose your mechanical keys, ne
w genuine mechanical keys can be made
by your Lexus dealer. ( P. 121)
●If you lose your electronic keys, the risk of vehicle theft increases significantly.
Contact your Lexus dealer immediately. ( P. 123)
●Is the electronic key battery weak or depleted? ( P. 623)
●Is the engine switch in IGNITION ON mode?
When locking the doors, turn the engine switch off. (P. 232)
●Is the electronic key left inside the vehicle?
When locking the doors, make sure that you have the electronic key on your
person.
●The function may not operate properly du e to the condition of the radio wave.
( P. 148)
●Is the child-protector lock set?
The rear door cannot be opened from in side the vehicle when the lock is set.
Open the rear door from outside and then unlock the child-protector lock.
( P. 127)
If you have a problem, check the foll owing before contacting your Lexus
dealer.
The doors cannot be locked, unlocked, opened or closed
You lose your keys
The doors cannot be locked or unlocked
The rear door cannot be opened

754What to do if... (Troubleshooting)
RX350/RX350L_U
●The seat belt reminder light is flashing
Are the driver and the passengers wearing the seat belts?
( P. 656, 656)
●The parking brake indicator is on
Is the parking brake released? ( P. 247)
Depending on the situation, other types of warning buzzer may also sound.
( P. 654, 661)
●Did anyone inside the vehicle open a door during setting the alarm?
The sensor detects it and the alarm sounds. ( P. 77)
Do one of the following to stop the alarms:
• Unlock the doors.
• Turn the engine switch to ACCESSORY or IGNITION ON mode, or start the engine.
●Is the message displayed on the multi-information display?
Check the message on the multi-information display. ( P. 661)
●When a warning light turns on or a warning message is displayed, refer to
P. 654, 661.A warning buzzer sounds during driving
An alarm is activated and the horn sounds
A warning buzzer sounds when leaving the vehicle
A warning light turns on or a warning message is displayed

760Alphabetical index
RX350/RX350L_U
Child-protectors..................................... 127
Cleaning......................................... 576, 581 Aluminum wheels .............................. 577
Exterior....................................................576
Interior ...................................................... 581
Seat belts ............................................... 582
Clock .................................................86, 544
Coat hooks.............................................. 556
Compass .................................................. 564
Condenser .............................................. 599
Console box ...........................................530
Consumption screen ..................... 94, 114 Coolant
Capacity................................................. 702
Checking .............................................. 598
Preparing and checking before winter ....................................384
Cooling system ..................................... 598 Engine overheating .......................... 692
Cornering lights.................................... 253
Cruise control Dynamic radar cruise control with full-speed range .................. 300
Cup holders.............................................. 531
Curtain shield airbags ............................ 37
Customizable features ....................... 722
Customized mode................................373

762Alphabetical index
RX350/RX350L_U
Eco drive mode ..................................... 373
Eco Driving Indicator........................... 105
EDR (Event data recorder) ...................10
Electric Power Steering (EPS) ....... 378Warning light ...................................... 655
Electronic key ......................................... 120 Battery-saving function .....................147
If the electronic key does not operate properly............................ 684
Replacing the battery .......................623
Emergency flashers ............................. 644
Emergency, in case of If a warning buzzer sounds.......... 654
If a warning light turns on.............. 654
If a warning message is displayed.............................................. 661
If the battery is discharged ........... 687
If the electronic key does not operate properly............................ 684
If the engine will not start............... 682
If you have a flat tire ......................... 666
If you lose your keys .................. 121, 123
If you think something is wrong ...................................................652
If your vehicle becomes stuck .... 695
If your vehicle has to be stopped in an emergency .. 645
If your vehicle needs to be towed................................................... 646
If your vehicle overheats ................692 Engine
ACCESSORY mode ..................... 232
Compartment ..................................... 594
Engine switch ........................................ 231
Hood........................................................ 592
How to start the engine.................... 231
Identification number.......................700
If your vehicle has to be stopped in an emergency.......... 645
Ignition switch (engine switch) ..... 231
Overheating......................................... 692
Engine coolant Capacity................................................. 702
Checking .............................................. 598
Preparing and checking before winter ....................................384
Engine coolant temperature gauge ........................................................ 86
Engine immobilizer system .................. 74
Engine oil Capacity.................................................700
Checking ...............................................595
Preparing and checking before winter ....................................384
Engine oil maintenance data ............597
Engine switch ........................................... 231
Enhanced VSC ..................................... 378
EPS (Electronic Power Steering) ........ 378 Warning light .......................................655
Event data recorder (EDR)................... 10
E
