701-2. Child safety
RX350/RX350L_U
■Anchor brackets (for top tether strap)
Anchor brackets are provided for the following seats:
Using an anchor bracket (for top tether strap)
Bench-type second-row seatsSeparate-type second-row seats
Third-row left side seat
Anchor bracketsAnchor brackets
Anchor brackets

711-2. Child safety
1
For safety and security
RX350/RX350L_U
■Fixing the top tether strap to the anchor bracket (second-row seats)
Install the child restraint system in accordance to the operation manual
enclosed with the child restraint system.
Remove the head restraint if it
interferes with your child restraint
system. ( P. 177)
If the head restraint cannot be
removed, raise it to the uppermost
position.
Open the anchor bracket cover,
latch the hook onto the anchor
bracket and tighten the top tether
strap.
Make sure the top tether strap is
securely latched. ( P. 66)
When installing th e child restraint
system with the he ad restraint being
raised, be sure to have the top tether
strap pass underneath the head
restraint.
1
HookTop tether strap
2

721-2. Child safety
RX350/RX350L_U
■Fixing the top tether strap to the anchor bracket (third-row left side seat)
Install the child restraint system in accordance to the operation manual
enclosed with the child restraint system.
Remove the head restraint if it
interferes with your child restraint
system. ( P. 177)
If the head restraint cannot be
removed, raise it to the uppermost
position.
Latch the hook onto the anchor
bracket and tighten the top tether
strap.
Make sure the top tether strap is
securely latched. ( P. 66)
When installing th e child restraint
system with the he ad restraint being
raised, be sure to have the top tether
strap pass underneath the head
restraint.
■Laws and regulations pertaining to anchors
The LATCH system conforms to FMVSS225 or CMVSS210.2.
Child restraint systems conforming to FMV SS213 or CMVSS213 specifications can be
used.
This vehicle is designed to conform to SAE J1819.
1
Hook
Top tether strap
2

731-2. Child safety
1
For safety and security
RX350/RX350L_U
WARNING
■When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Firmly attach the top tether strap and make sure that the belt is not twisted.
●Do not attach the top strap to anything other than the anchor bracket of the seat the
child restraint system is installed to.
●Follow all installation instructions provided by the child restraint system manufacturer.
●When installing the child restraint system with the head restraint being raised, after
the head restraint has been raised and then the anchor bracket has been fixed, do not
lower the head restraint.
●When installing a child restraint system in th e rear center seat, adjust both seat cush-
ions to the same position an d align both seatbacks at the same angle. The seatbacks
must be adjusted to the same angle. Othe rwise, the child restraint system cannot be
securely restrained and this may cause death or serious injuries in the event of sudden
braking, sudden swerving or an accident.
●If the seat is adjusted, reconfirm the security of the child restraint system.
NOTICE
■Anchor brackets (for top tether strap)
When not in use, make certain to close the lid. If it remains open, the lid may be dam-
aged.

74
RX350/RX350L_U1-3. Theft deterrent system
The indicator light flashes after the
engine switch has been turned off to
indicate that the system is operating.
The indicator light stops flashing after
the engine switch has been turned to
ACCESSORY or IGNITION ON
mode to indicate that the system has
been canceled.
■System maintenance
The vehicle has a maintenance-free type engine immobilizer system.
■Conditions that may cause the system to malfunction
●If the grip portion of the key is
in contact with a metallic object
●If the key is in close proximity to or touching a key registered to the security system (key
with a built-in transponder chip) of another vehicle
Engine immobilizer system
The vehicle’s keys have built-in transponder chips that prevent the engine
from starting if a key has not been previously registered in the vehicle’s on-
board computer.
Never leave the keys inside the vehicle when you leave the vehicle.
This system is designed to help preven t vehicle theft but does not guarantee
absolute security agai nst all vehicle thefts.

751-3. Theft deterrent system
1
For safety and security
RX350/RX350L_U

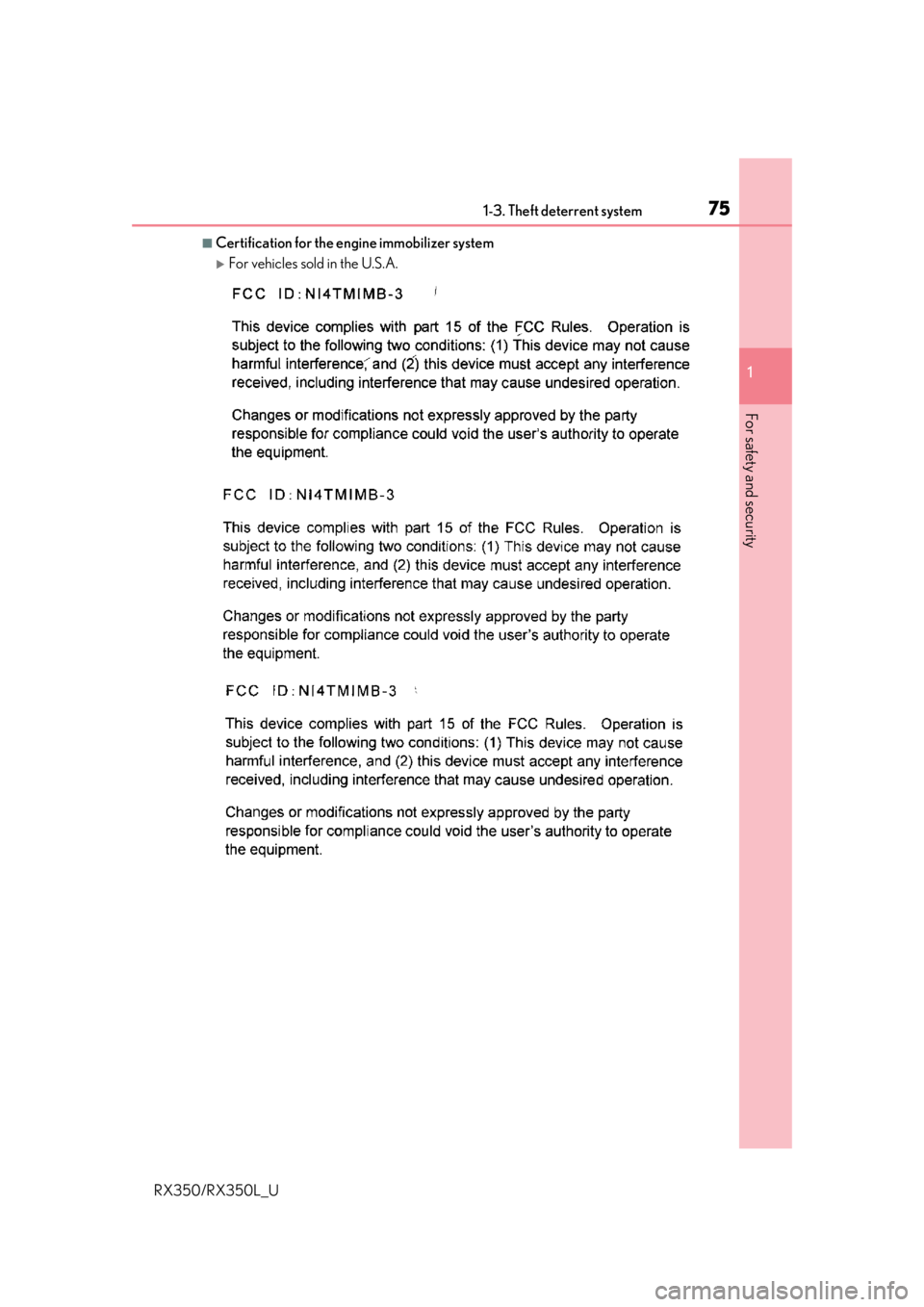

■Certification for the engine immobilizer system
For vehicles sold in the U.S.A.

761-3. Theft deterrent system
RX350/RX350L_U
For vehicles sold in Canada
WARNING
■Certifications for the engine immobilizer system
Changes or modifications not expressly appr oved by the party responsible for compli-
ance could void the user’s authority to operate the equipment.
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If mo dified or removed, the proper operation of
the system cannot be guaranteed.

771-3. Theft deterrent system
1
For safety and security
RX350/RX350L_U
The alarm uses light and sound to give an alert when an intrusion is detected.
The alarm is triggered in the following situations when the alarm is set:
●A locked door is unlocked or opened in any way other than using the entry
function, wireless remote control or mech anical key. (The doors will lock again
automatically.)
●The hood is opened.
Close the doors and hood, and lock all
the doors. The system will be set auto-
matically after 30 seconds.
The indicator light changes from being
on to flashing when the system is set.
Do one of the following to de activate or stop the alarms:
●Unlock the doors.
●Turn the engine switch to ACCESSOR Y or IGNITION ON mode, or start
the engine. (The alarm will be deactivat ed or stopped after a few seconds.)
■System maintenance
The vehicle has a maintenance-free type alarm system.
■Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of the follow-
ing:
●Nobody is in the vehicle.
●The windows and moon roof or panoramic mo on roof are closed before the alarm is
set.
●No valuables or other personal items are left in the vehicle.
Alarm
The alarm
Setting the alarm system
Deactivating or stopping the alarm

781-3. Theft deterrent system
RX350/RX350L_U
■Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)
■Alarm-operated door lock
In the following cases, depending on the si tuation, the door may automatically lock to
prevent improper entry into the vehicle:
●When a person remaining in the vehicle un locks the door and the alarm is activated.
●While the alarm is activated, a person remaining in the vehicle unlocks the door.
●When recharging or replacing the battery
●A person inside the vehicle opens a door or
hood, or unlocks the vehicle.
●The battery is recharged or replaced when the
vehicle is locked. (P. 689)
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If mo dified or removed, the proper operation of
the system cannot be guaranteed.

79
Instrument cluster2
RX350/RX350L_U
2. Instrument clusterWarning lights and indicators .......................................80
Gauges and meters ..................... 86
Multi-information display .......... 90
Head-up display .......................... 108
Fuel consumption information ................................... 114
