TABLE OF CONTENTSIndex
RX400h_U
2
1-1. Hybrid system ............................... 24Hybrid system................................... 24
1-2. Key information ........................... 34 Keys ...................................................... 34
1-3. Opening, closing and locking the doors...................................... 36
Wireless remote control .............. 36
Side doors .......................................... 39
Back door ........................................... 44
1-4. Adjustable components (seats, mirrors,
steering wheel) .......................... 49
Front seats .......................................... 49
Rear seats ........................................... 52
Driving position memory ............. 55
Head restraints................................. 57
Seat belts ........................................... 58
Steering wheel (manually adjustable type) ....... 65
Steering wheel (power-adjustable type)............ 66
Anti-glare inside rear view mirror ................................................ 67
Outside rear view mirrors ........... 68
Roof luggage carrier ..................... 70 1-5. Opening and closing the
windows and moon roof .......... 72
Power windows................................ 72
Moon roof .......................................... 75
1-6. Refueling ........................................ 78 Opening the fuel tank cap........... 78
1-7. Theft deterrent system.............. 83 Hybrid vehicle immobilizer system ............................................... 83
Alarm................................................... 85
Theft prevention labels (U.S.A.) ............................................ 88
1-8. Safety information ...................... 89 Correct driving posture ............... 89
SRS airbags ........................................ 91
Front passenger occupant classification system .................. 103
Child restraint systems ............... 108
Installing child restraints ............... 112
2-1. Driving procedures................... 122 Driving the vehicle ........................ 122
Engine (ignition) switch ................ 131
Transmission ................................... 135
Turn signal lever............................. 136
Parking brake ................................. 137
1Before driving
2When driving

Before driving1
23
RX400h_U
1-1. Hybrid system .................. 24Hybrid system ............................ 24
1-2. Key information ............... 34 Keys ............................................... 34
1-3. Opening, closing and locking the doors ........... 36
Wireless remote control ......... 36
Side doors.................................... 39
Back door .................................... 44
1-4. Adjustable components (seats, mirrors,
steering wheel) .............. 49
Front seats ................................... 49
Rear seats .................................... 52
Driving position memory ........ 55
Head restraints .......................... 57
Seat belts .................................... 58
Steering wheel (manually adjustable type) ...................... 65
Steering wheel (power-adjustable type) ....... 66
Anti-glare inside rear view mirror ......................................... 67
Outside rear view mirrors ...... 68
Roof luggage carrier................ 70 1-5. Opening and closing the
windows and
moon roof ........................ 72
Power windows .......................... 72
Moon roof ................................... 75
1-6. Refueling .......................... 78 Opening the fuel tank cap ..... 78
1-7. Theft deterrent system ... 83 Hybrid vehicle immobilizer system ........................................ 83
Alarm............................................ 85
Theft prevention labels (U.S.A.)...................................... 88
1-8. Safety information........... 89 Correct driving posture ......... 89
SRS airbags ................................. 91
Front passenger occupant classification system............ 103
Child restraint systems ......... 108
Installing child restraints........ 112

55
1
1-4. Adjustable components (seats, mirrors, steering wheel)
Before driving
RX400h_U
Driving position memory (if equipped)
Your preferred driving position (the position of the driver's seat, steering
wheel and outside rear view mirrors) can be memorized and recalled with
the touch of a button.
Two different driving positions can be entered into memory.
■ Entering a position to memory
Check that the shift lever is set in P.
Turn the engine switch to the ON position.
Adjust the driver’s seat, steering wheel, and outside rear view
mirrors to the desired positions. While pushing the SET button,
push button 1 or 2 until the sig-
nal beeps.
If the selected button has
already been preset, the previ-
ously recorded position will be
overwritten.
■Recalling the memorized position
Check that the shift lever is set in P.
Turn the engine switch to the ON position. Push button 1 or 2 to recall the
memorized position.
STEP1
STEP2
STEP3
STEP1
STEP2

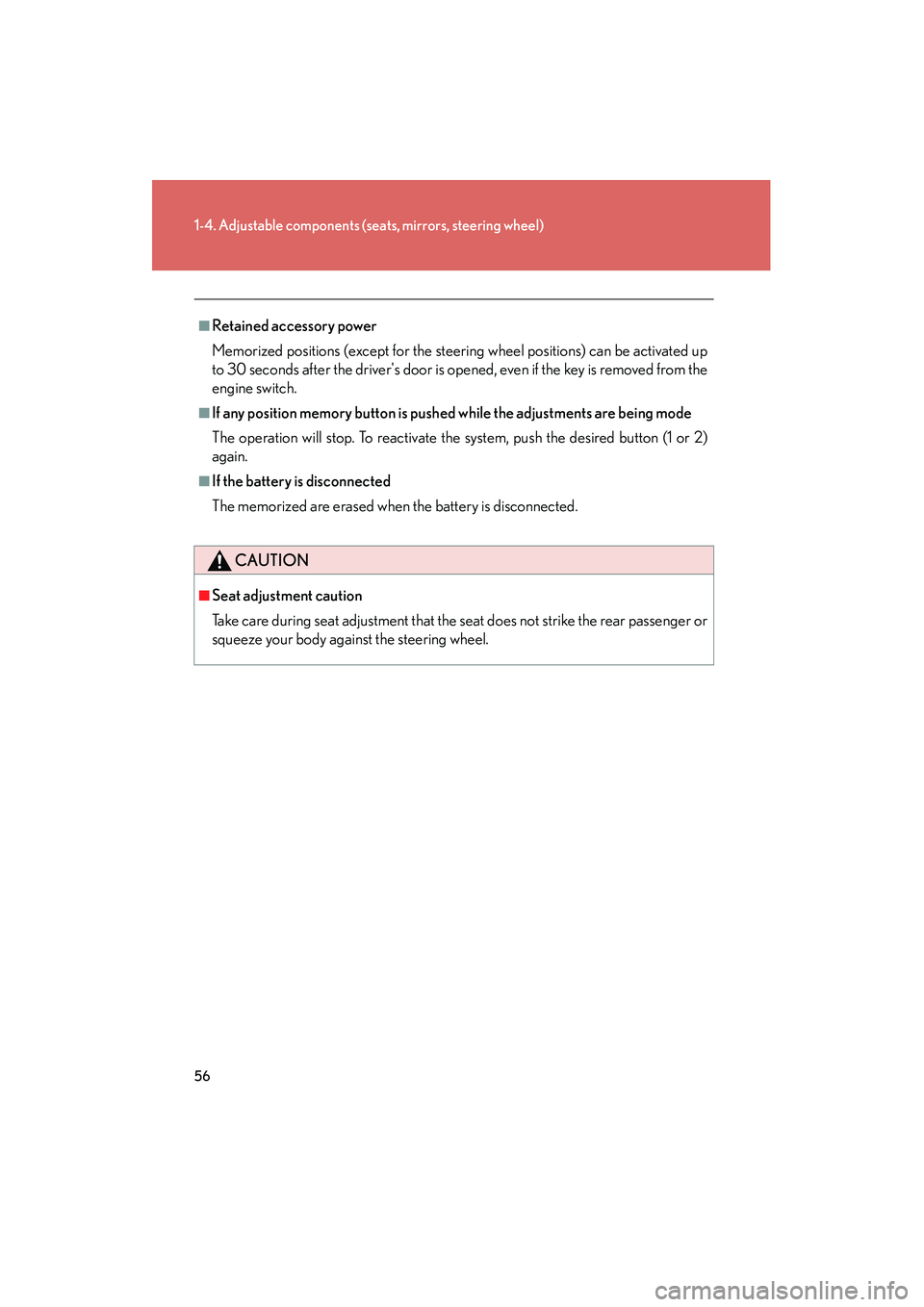

56
1-4. Adjustable components (seats, mirrors, steering wheel)
RX400h_U
■Retained accessory power
Memorized positions (except for the steering wheel positions) can be activated up
to 30 seconds after the driver's door is opened, even if the key is removed from the
engine switch.
■If any position memory button is push ed while the adjustments are being mode
The operation will stop. To reactivate the system, push the desired button (1 or 2)
again.
■If the battery is disconnected
The memorized are erased when the battery is disconnected.
CAUTION
■Seat adjustment caution
Take care during seat adjustment that the seat does not strike the rear passenger or
squeeze your body against the steering wheel.

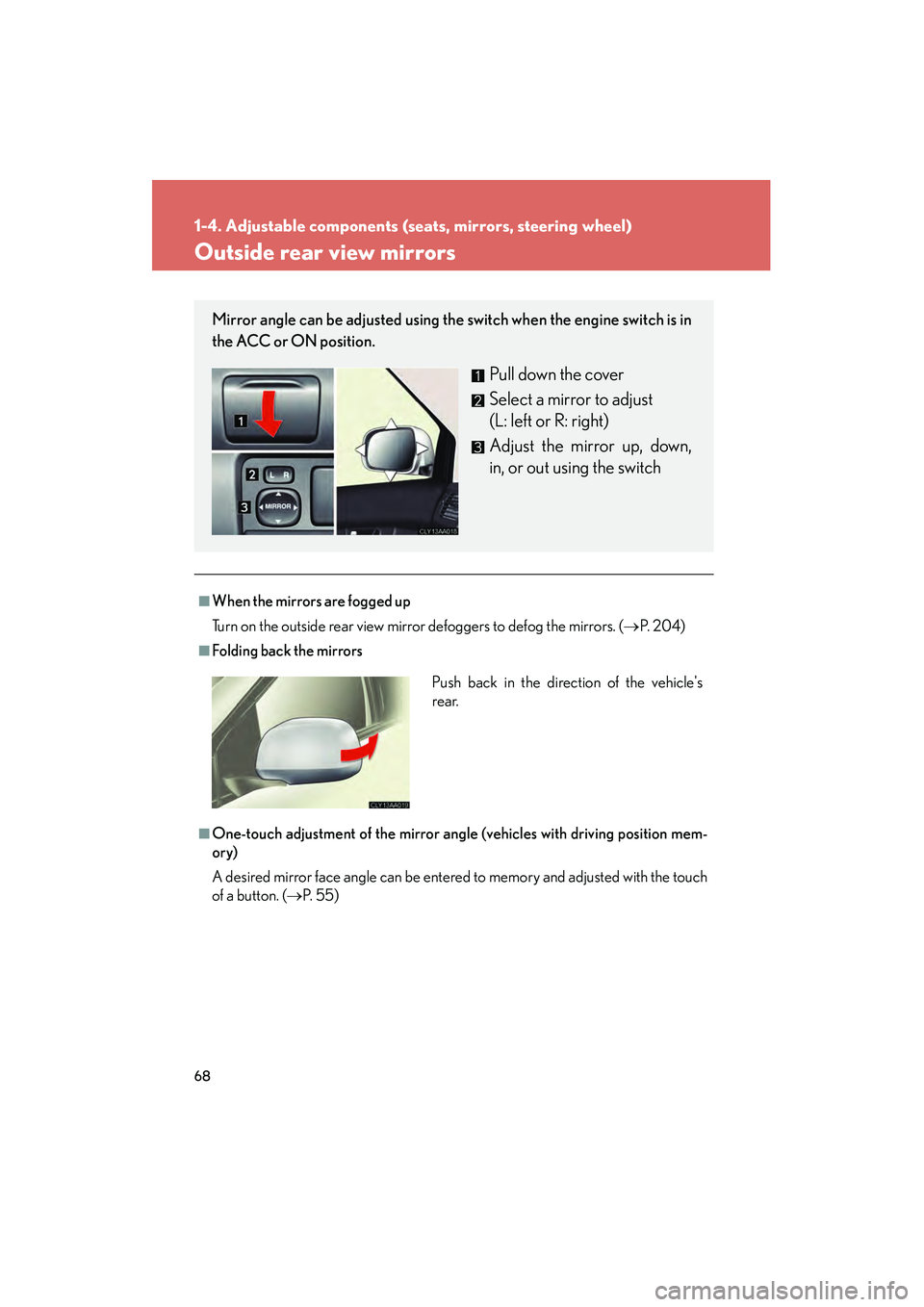

68
1-4. Adjustable components (seats, mirrors, steering wheel)
RX400h_U
Outside rear view mirrors
■When the mirrors are fogged up
Turn on the outside rear view mirror defoggers to defog the mirrors. (→P. 2 0 4 )
■Folding back the mirrors
■One-touch adjustment of the mirror angle (vehicles with driving position mem-
ory)
A desired mirror face angle can be entered to memory and adjusted with the touch
of a button. (→ P. 5 5 )
Mirror angle can be adjusted using the switch when the engine switch is in
the ACC or ON position.
Pull down the cover
Select a mirror to adjust
(L: left or R: right)
Adjust the mirror up, down,
in, or out using the switch
Push back in the direction of the vehicle's
rear.

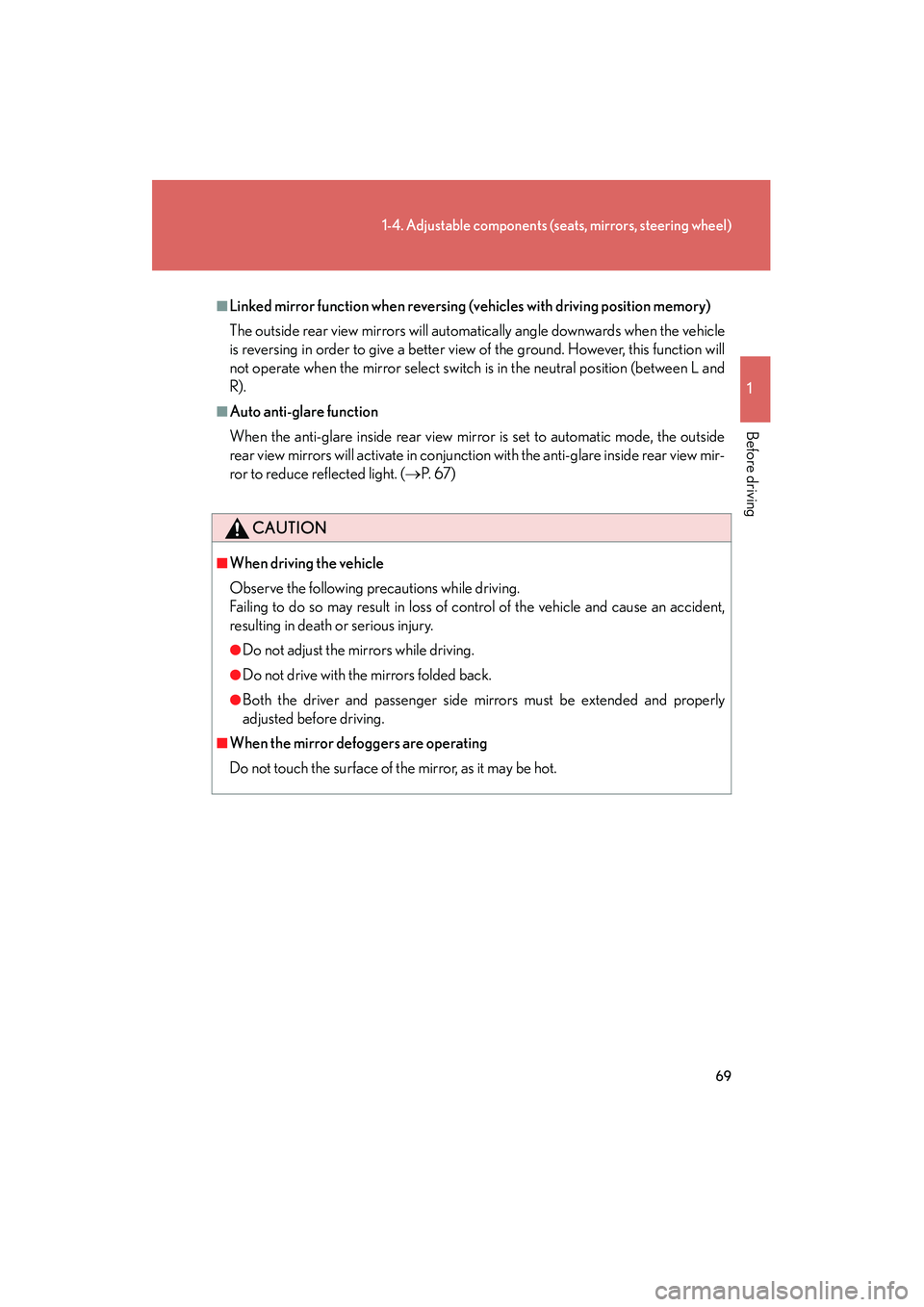

69
1-4. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
RX400h_U
■Linked mirror function when reversing (vehicles with driving position memory)
The outside rear view mirrors will automatically angle downwards when the vehicle
is reversing in order to give a better view of the ground. However, this function will
not operate when the mirror select switch is in the neutral position (between L and
R).
■Auto anti-glare function
When the anti-glare inside rear view mirror is set to automatic mode, the outside
rear view mirrors will activate in conjunction with the anti-glare inside rear view mir-
ror to reduce reflected light. ( →P. 6 7 )
CAUTION
■When driving the vehicle
Observe the following precautions while driving.
Failing to do so may result in loss of control of the vehicle and cause an accident,
resulting in death or serious injury.
●Do not adjust the mirrors while driving.
●Do not drive with the mirrors folded back.
●Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.
■When the mirror defoggers are operating
Do not touch the surface of the mirror, as it may be hot.

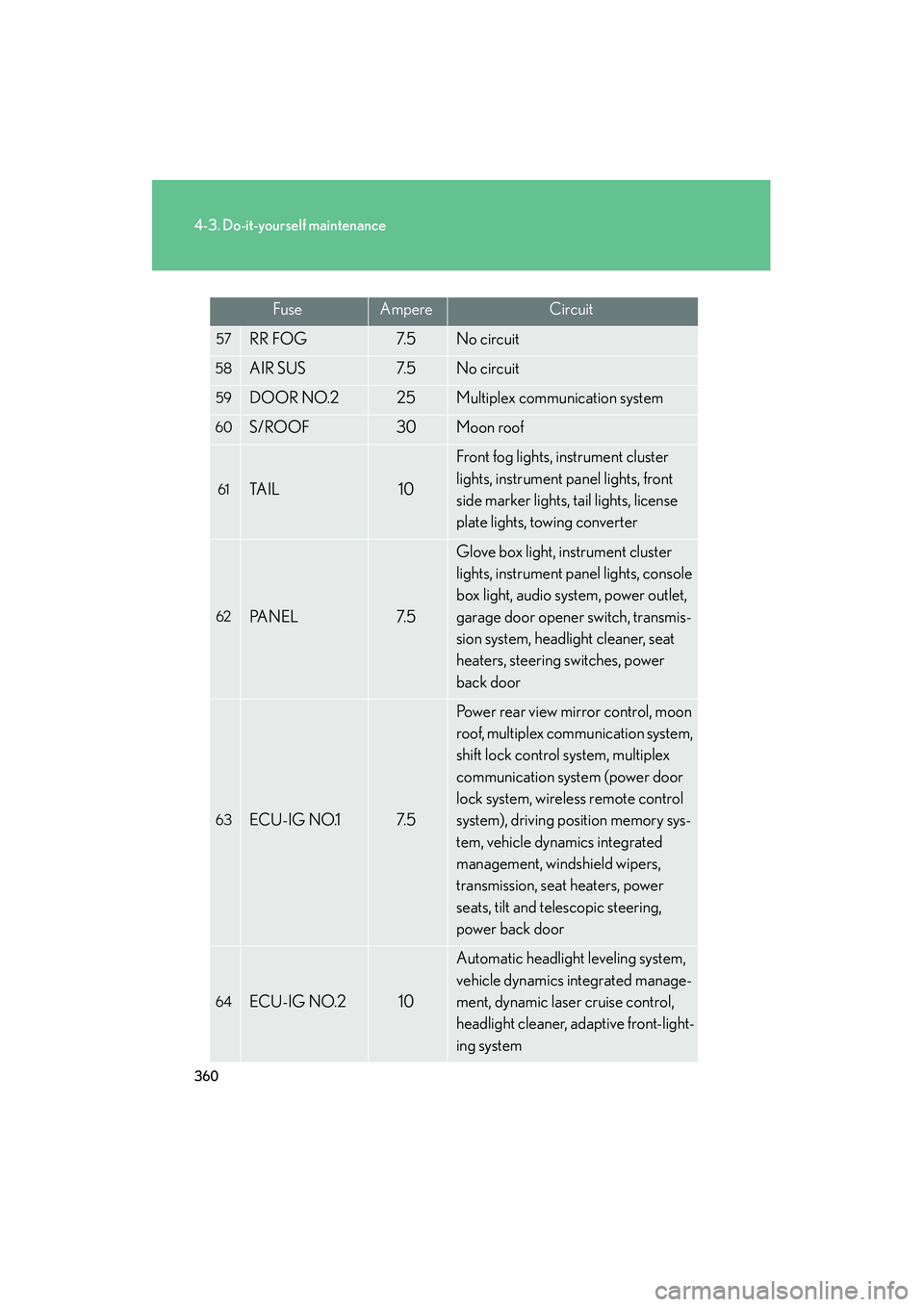

360
4-3. Do-it-yourself maintenance
RX400h_U
57RR FOG 7. 5No circuit
58AIR SUS7. 5No circuit
59DOOR NO.225Multiplex communication system
60S/ROOF 30Moon roof
61TA I L10
Front fog lights, instrument cluster
lights, instrument panel lights, front
side marker lights, tail lights, license
plate lights, towing converter
62PA N E L7. 5
Glove box light, instrument cluster
lights, instrument panel lights, console
box light, audio system, power outlet,
garage door opener switch, transmis-
sion system, headlight cleaner, seat
heaters, steering switches, power
back door
63ECU-IG NO.17. 5
Power rear view mirror control, moon
roof, multiplex communication system,
shift lock control system, multiplex
communication system (power door
lock system, wireless remote control
system), driving position memory sys-
tem, vehicle dynamics integrated
management, windshield wipers,
transmission, seat heaters, power
seats, tilt and telescopic steering,
power back door
64ECU-IG NO.210
Automatic headlight leveling system,
vehicle dynamics integrated manage-
ment, dynamic laser cruise control,
headlight cleaner, adaptive front-light-
ing system
FuseAmpereCircuit

474
Alphabetical index
RX400h_U
Do-it-yourself maintenance .............. 310
Door courtesy lightsDoor courtesy lights.........................260
Wattage.................................................... 441
Door lock Back door................................................. 44
Side door .................................................. 39
Wireless remote control................... 36
Door pockets............................................271
Doors Back door................................................. 44
Door glasses ............................................72
Door lock......................................... 36, 39
Power back door ................................. 44
Side door .................................................. 39
Side mirrors ............................................. 68
Driver's seat belt reminder light ...... 391
Driving Break-in tips ........................................... 123
Correct posture .................................... 89
Procedures ............................................. 122
Winter driving tips...............................182
Driving position memory ......................55
DVD player Audio CD/CD text .......................... 248
DVD video ........................................... 239
Initial setting .......................................... 253
MP3 discs ............................................. 249
Video CD.............................................. 246
Electric power steering ....................... 169
Emergency, in case of If the back door opener is in operative................................................ 46
If the hybrid system will not start ................................................ 418 If the shift lever cannot be
shifted from P..................................... 419
If the 12-volt battery is discharged ......................................... 421
If the warning buzzer sounds......388
If the warning light turns on..........388
If you have a flat tire ........................408
If you lose your keys ........................ 420
If you think something is wrong .................................................. 385
If your vehicle becomes stuck ..... 427
If your vehicle needs to be towed ................................................... 378
If your vehicle overheats.................424
Energy monitor ......................................28
Engine
Compartment ....................................... 316
Engine switch .......................................... 131
Hood ......................................................... 313
How to start the hybrid system ...... 131
Identification number ........................ 431
If the hybrid system will not start .................................................418
Ignition switch ......................................... 131
Overheating .........................................424
Engine compartment cover ............... 317
Engine coolant Capacity ................................................ 435
Checking................................................323
Preparing and checking
before winter...................................... 182
Engine coolant temperature
gauge ...................................................... 138
Engine oil
Capacity .................................................434
Checking................................................. 318
E

475
Alphabetical index
RX400h_U
Preparing and checking before winter ...................................... 182
Engine oil maintenance data ............. 321
Engine switch............................................ 131
Engine switch light ............................... 260
EPS............................................................... 169
Event data recorder............................ 386
Floor mat.................................................. 283
Fluid Brake ....................................................... 325
Washer ................................................... 329
Fog lights Replacing light bulbs ....................... 365
Switch ..........................................................151
Wattage ................................................... 441
Foot well lighting .................................. 260
Front fog lights Replacing light bulbs ....................... 365
Switch ..........................................................151
Wattage ................................................... 441
Front passenger's seat belt
reminder light ....................................... 391
Front seats
Adjustment ...............................................49
Driving position memory ................. 55
Flattening seatbacks ........................... 50
Front side marker light
Replacing light bulbs ....................... 365
Wattage ................................................... 441
Front turn signal lights Replacing light bulbs ....................... 365
Wattage ................................................... 441 Fuel
Capacity .................................................433
Fuel gauge.............................................. 138
Gas station information ................. 484
Information ............................................ 442
Refueling.................................................... 78
Type .......................................................... 442
Fuel door ..................................................... 78
Fuel filler door ........................................... 78
Fuses ..........................................................352
Garage door opener .......................... 287
Gas station information......................484
Gauges ...................................................... 138
Glove box ................................................ 265
Glove box light ...................................... 266
Head restraints
Adjusting .................................................. 57
Headlight aim ......................................... 364
Headlight cleaner .................................. 156
Headlights
Discharge headlights precautions........................................375
Replacing light bulbs ....................... 365
Switch........................................................ 148
Wattage ....................................................441
Heaters
Seat heaters ......................................... 280
Side mirror.............................................204
Hood ........................................................... 313
Hooks Cargo hook ..........................................284
Shopping bag hook..........................284
F
G
H

477
Alphabetical index
RX400h_U
Luggage compartment lightsSwitch ..........................................................46
Wattage ................................................... 441
Luggage cover ...................................... 284
Maintenance
Do-it-yourself maintenance ...........310
General maintenance .....................306
Maintenance data ............................. 430
Maintenance requirements .......... 304
Meter Instrument panel light control ....... 139
Meters .......................................................138
Meter ring light ..................................... 260
Mirrors Inside rear view mirror .......................67
Side mirror heater ............................. 204
Side mirrors............................................. 68
Vanity mirrors ......................................273
Moon roof ...................................................75
MP3 disc ................................................. 220
Multi-display
Brightness control..............................276
Multi-information display
Energy monitor ..................................... 28
Odometer .................................................138
Oil Engine oil .................................................318
Opener
Back door .................................................44
Fuel filler door ........................................ 78
Hood ......................................................... 313
Outside rear view mirrors
Adjusting and folding ......................... 68
Driving position memory ................. 55 Outside temperature display .......... 275
Overhead console ............................... 269
Overhead courtesy lights .................260
Overheating, Engine........................... 424
Parking brake ...........................................137
Parking lights
Replacing light bulbs ....................... 365
Switch........................................................ 148
Wattage ....................................................441
Personal lights Personal lights .................................... 260
Switch.......................................................264
Wattage ....................................................441
Power meter ............................................ 138
Power outlet............................................ 277
Power windows ........................................ 72
Radiator .................................................... 325
Radio .......................................................... 207
RDS ........................................................... 208
Rear audio system ................................ 233
Rear seat entertainment system Audio CD/CD text ..........................248
DVD video ............................................239
Initial setting ..........................................253
MP3 discs.............................................. 249
Rear seat entertainment
system .................................................. 233
Replacing controller battery........ 350
Video ........................................................ 251
Video CD ..............................................246
Rear seats Adjustment ............................................... 52
Folding down .......................................... 52
M
O
P
R
