towing capacity LEXUS RX400H 2008 Owners Manual

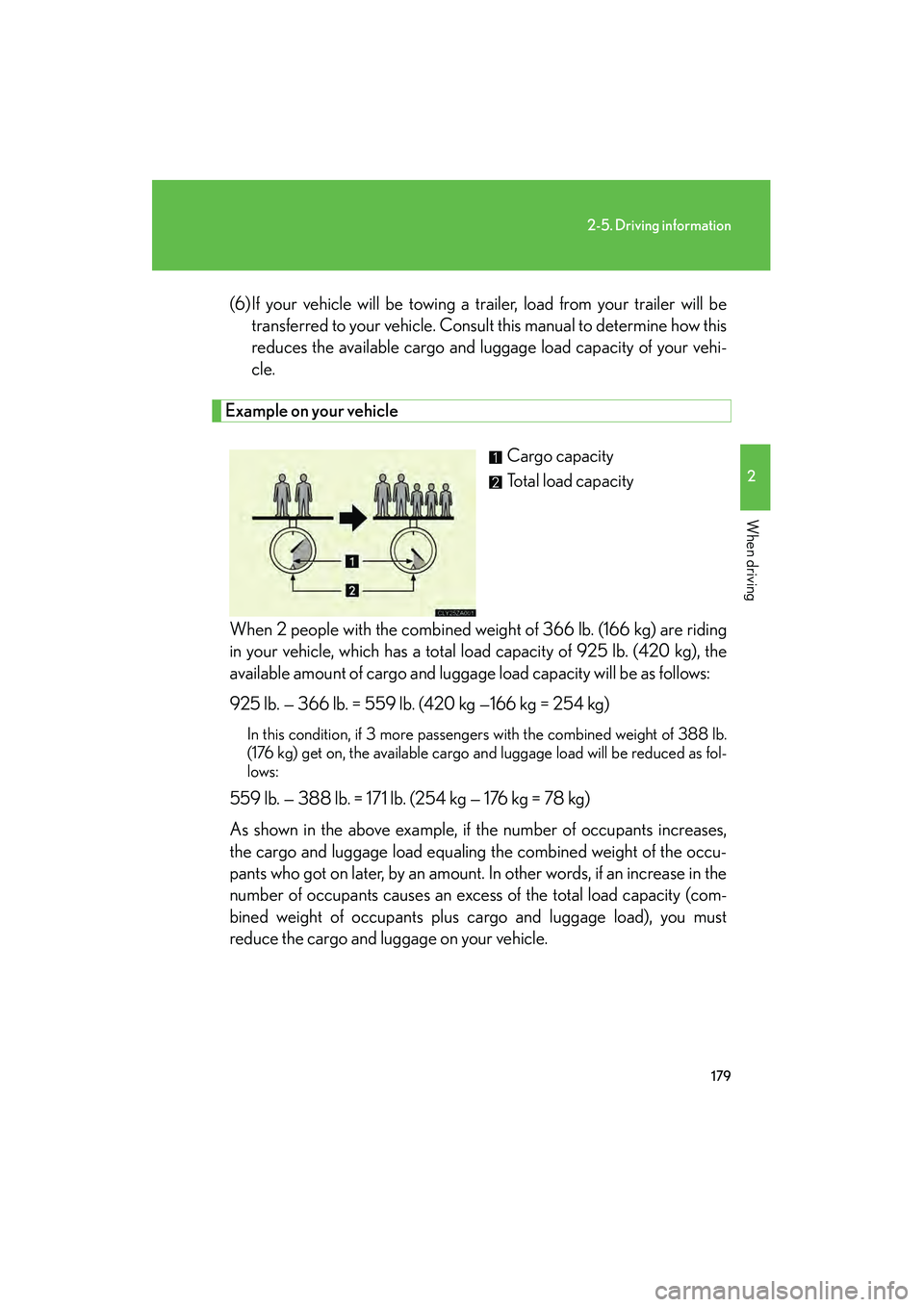

179
2-5. Driving information
2
When driving
RX400h_U(6) If your vehicle will be towing a trailer, load from your trailer will be
transferred to your vehicle. Consult this manual to determine how this
reduces the available cargo and luggage load capacity of your vehi-
cle.
Example on your vehicle
Cargo capacity
Total load capacity
When 2 people with the combined weight of 366 lb. (166 kg) are riding
in your vehicle, which has a total load capacity of 925 lb. (420 kg), the
available amount of cargo and luggage load capacity will be as follows:
925 lb. — 366 lb. = 559 lb. (420 kg —166 kg = 254 kg)
In this condition, if 3 more passengers with the combined weight of 388 lb.
(176 kg) get on, the available cargo and luggage load will be reduced as fol-
lows:
559 lb. — 388 lb. = 171 lb. (254 kg — 176 kg = 78 kg)
As shown in the above example, if the number of occupants increases,
the cargo and luggage load equaling the combined weight of the occu-
pants who got on later, by an amount. In other words, if an increase in the
number of occupants causes an excess of the total load capacity (com-
bined weight of occupants plus cargo and luggage load), you must
reduce the cargo and luggage on your vehicle.

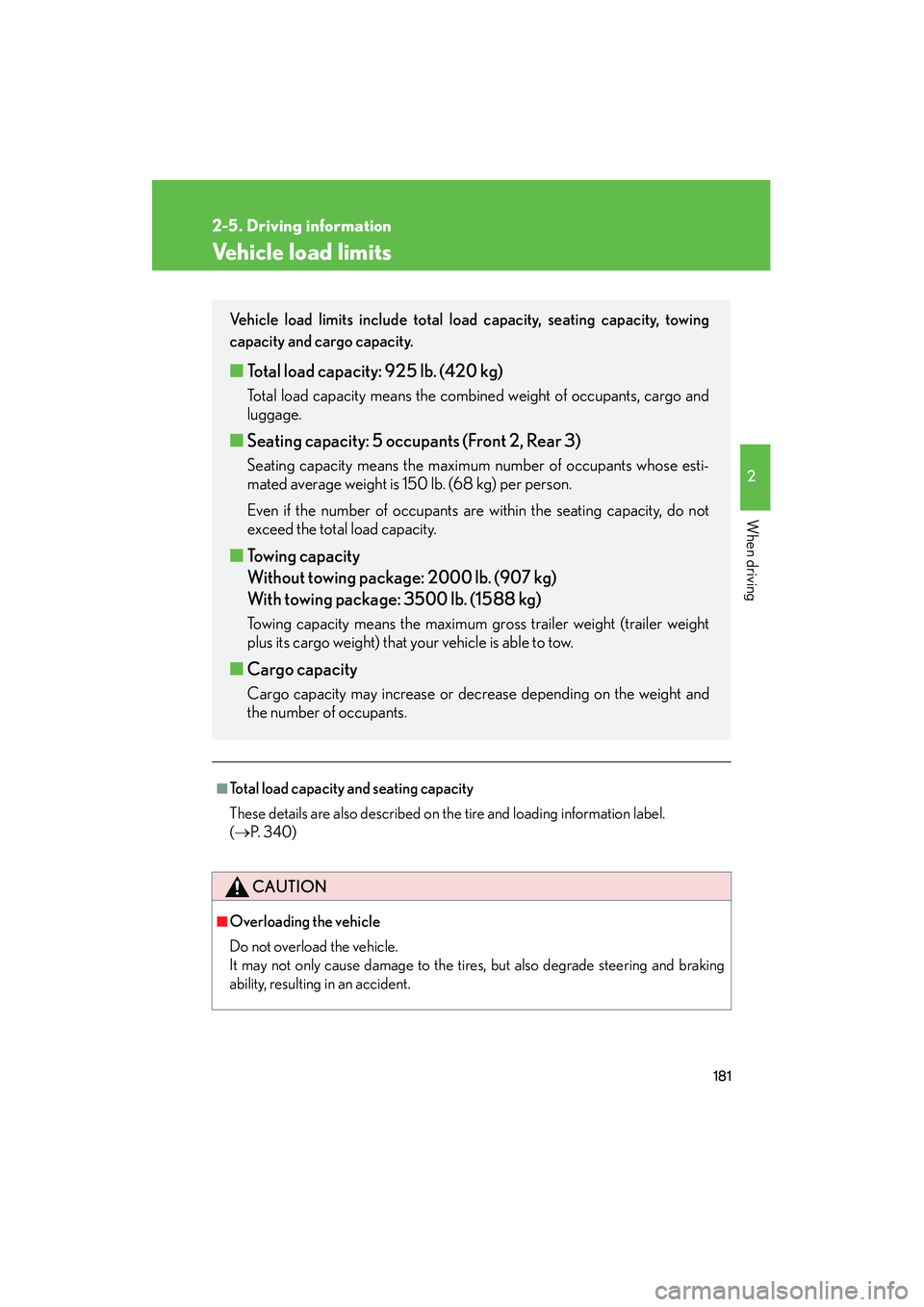

181
2-5. Driving information
2
When driving
RX400h_U
Vehicle load limits
■Total load capacity and seating capacity
These details are also described on the tire and loading information label.
(→ P. 3 4 0 )
CAUTION
■Overloading the vehicle
Do not overload the vehicle.
It may not only cause damage to the tires, but also degrade steering and braking
ability, resulting in an accident.
Vehicle load limits include total load capacity, seating capacity, towing
capacity and cargo capacity.
■Total load capacity: 925 lb. (420 kg)
Total load capacity means the combined weight of occupants, cargo and
luggage.
■Seating capacity: 5 occupants (Front 2, Rear 3)
Seating capacity means the maximum number of occupants whose esti-
mated average weight is 150 lb. (68 kg) per person.
Even if the number of occupants are within the seating capacity, do not
exceed the total load capacity.
■Towing capacity
Without towing package: 2000 lb. (907 kg)
With towing package: 3500 lb. (1588 kg)
Towing capacity means the maximum gross trailer weight (trailer weight
plus its cargo weight) that your vehicle is able to tow.
■Cargo capacity
Cargo capacity may increase or decrease depending on the weight and
the number of occupants.

191
2-5. Driving information
2
When driving
RX400h_U
■Break-in schedule
Lexus recommends that you do not use a new vehicle or a vehicle with any new
power train components (engine, transmission, differential, wheel bearings, etc.) to
tow a trailer for the first 500 miles (800 km) of driving.
■Maintenance
●If you tow a trailer, your vehicle will require more frequent maintenance due to
the additional load. (See “Warranty and Services Guide/ Owner's Manual Sup-
plement/ Scheduled Maintenance”.)
●Retighten the fixing bolts of the towing ball and bracket after approximately 600
miles (1000 km) of trailer towing.
CAUTION
■To avoid accident or injury
●The total trailer weight (trailer weight plus the weight of cargo) must not exceed
the following.
Without towing package: 2000 lb. (907 kg)
With towing package: 3500 lb. (1588 kg)
●If a trailer and cargo weigh over 2000 lb. (907 kg), use a sway control device
with sufficient capacity.
●The gross combined weight (sum of your vehicle weight plus its load and the total
trailer weight) must not exceed the following.
Without towing package: 7265 lb. (3295 kg)
With towing package: 8765 lb. (3976 kg)
●Do not exceed the trailer hitch assembly weight, gross vehicle weight, gross axle
weight and trailer tongue load capacities.
●Never load more weight in the back than in the front of the trailer. About 60% of
the load should be in the front half of the trailer, and the remaining 40% in the
rear.
●The tow hitch receiver installed on your vehicle must never be used on another
vehicle.

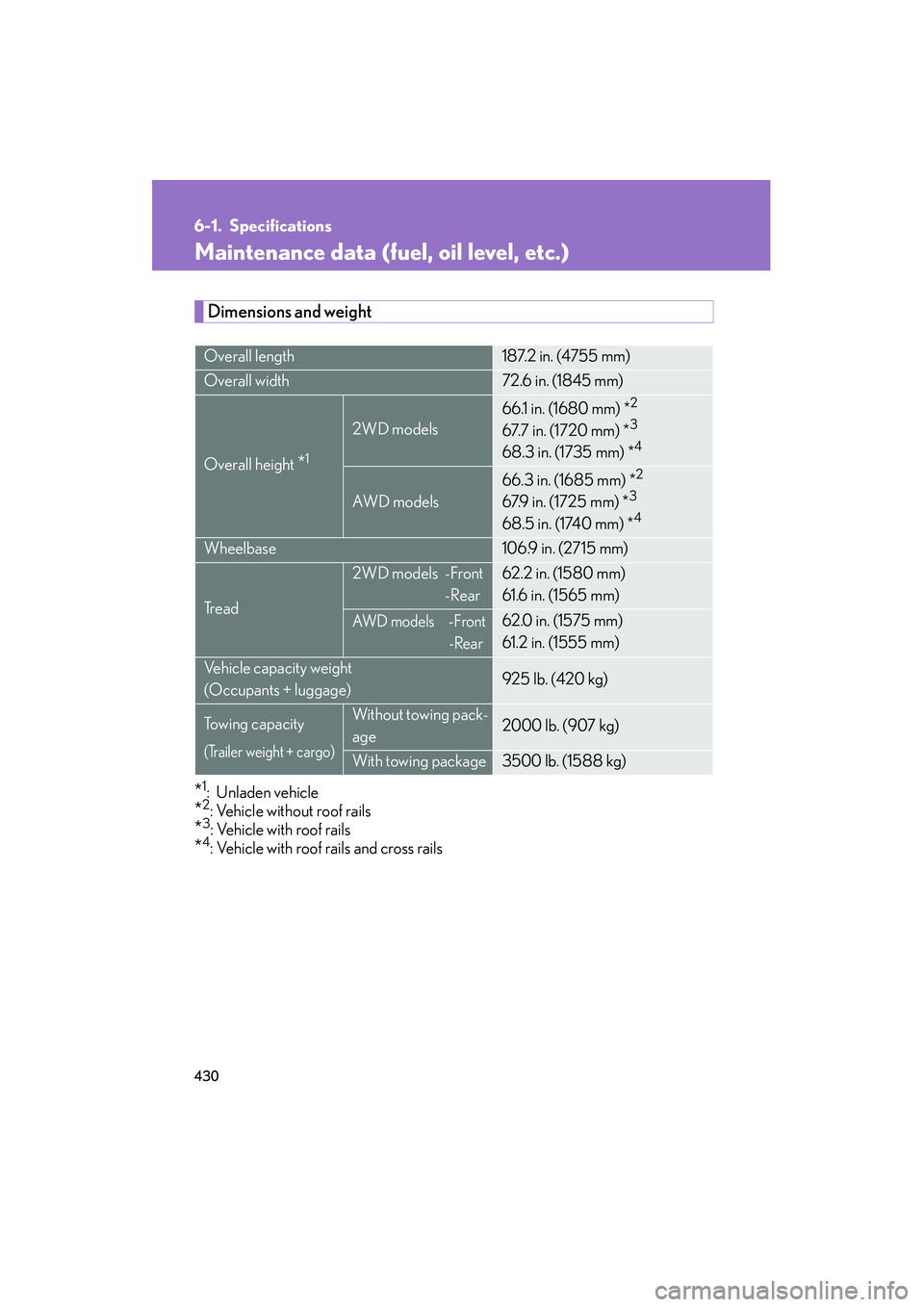

430
RX400h_U
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weight
*1: Unladen vehicle
*2: Vehicle without roof rails
*3: Vehicle with roof rails
*4: Vehicle with roof rails and cross rails
Overall length187.2 in. (4755 mm)
Overall width72.6 in. (1845 mm)
Overall height *1
2WD models
66.1 in. (1680 mm) *2
67.7 in. (1720 mm) *3
68.3 in. (1735 mm) *4
AW D m o d e l s
66.3 in. (1685 mm) *2
67.9 in. (1725 mm) *3
68.5 in. (1740 mm) *4
Wheelbase106.9 in. (2715 mm)
Tr e a d
2WD models -Front-Rear62.2 in. (1580 mm)
61.6 in. (1565 mm)
AW D m o d e l s - Fr o n t -Rear62.0 in. (1575 mm)
61.2 in. (1555 mm)
Vehicle capacity weight
(Occupants + luggage)925 lb. (420 kg)
Towing capacity
(Trailer weight + cargo)
Without towing pack-
age2000 lb. (907 kg)
With towing package3500 lb. (1588 kg)

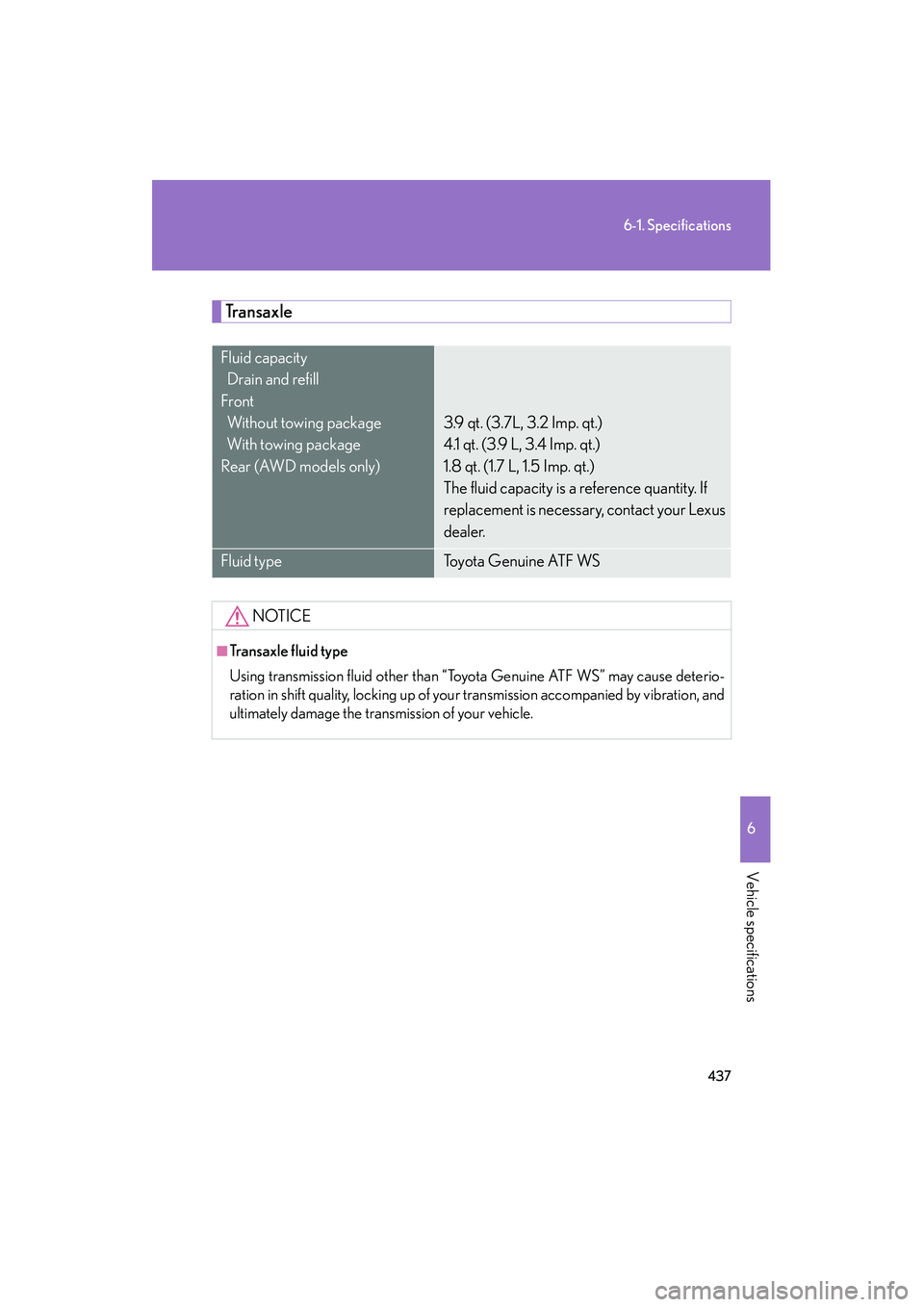

437
6-1. Specifications
6
Vehicle specifications
RX400h_U
Tr a n s a x l e
Fluid capacity
Drain and refill
Front
Without towing package
With towing package
Rear (AWD models only)
3.9 qt. (3.7L, 3.2 Imp. qt.)
4.1 qt. (3.9 L, 3.4 Imp. qt.)
1.8 qt. (1.7 L, 1.5 Imp. qt.)
The fluid capacity is a reference quantity. If
replacement is necessary, contact your Lexus
dealer.
Fluid typeTo y o t a G e n u i n e AT F W S
NOTICE
■Transaxle fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause deterio-
ration in shift quality, locking up of your transmission accompanied by vibration, and
ultimately damage the transmission of your vehicle.

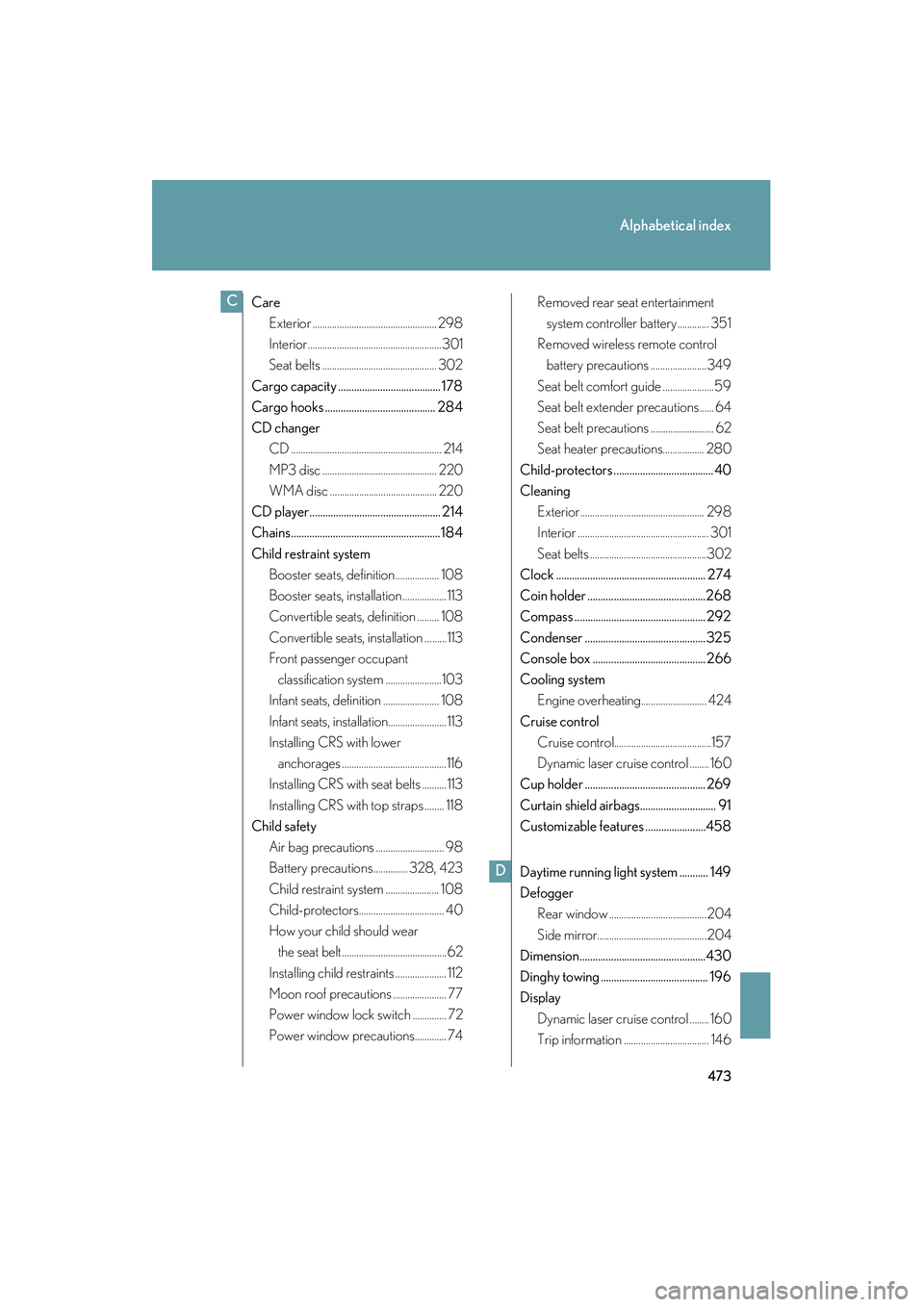

473
Alphabetical index
RX400h_U
CareExterior ................................................... 298
Interior.......................................................301
Seat belts ............................................... 302
Cargo capacity ....................................... 178
Cargo hooks .......................................... 284
CD changer CD .............................................................. 214
MP3 disc ............................................... 220
WMA disc ............................................ 220
CD player.................................................. 214
Chains......................................................... 184
Child restraint system Booster seats, definition.................. 108
Booster seats, installation ..................113
Convertible seats, definition ......... 108
Convertible seats, installation .........113
Front passenger occupant
classification system .......................103
Infant seats, definition ....................... 108
Infant seats, installation........................113
Installing CRS with lower
anchorages ...........................................116
Installing CRS with seat belts ..........113
Installing CRS with top straps ........ 118
Child safety
Air bag precautions ............................ 98
Battery precautions.............. 328, 423
Child restraint system ...................... 108
Child-protectors................................... 40
How your child should wear the seat belt ...........................................62
Installing child restraints ..................... 112
Moon roof precautions ...................... 77
Power window lock switch .............. 72
Power window precautions............. 74 Removed rear seat entertainment
system controller battery............. 351
Removed wireless remote control battery precautions .......................349
Seat belt comfort guide .....................59
Seat belt extender precautions...... 64
Seat belt precautions .......................... 62
Seat heater precautions................. 280
Child-protectors ...................................... 40
Cleaning Exterior................................................... 298
Interior ...................................................... 301
Seat belts ................................................302
Clock ......................................................... 274
Coin holder .............................................268
Compass .................................................. 292
Condenser .............................................. 325
Console box ........................................... 266
Cooling system Engine overheating........................... 424
Cruise control Cruise control........................................157
Dynamic laser cruise control ........ 160
Cup holder .............................................. 269
Curtain shield airbags............................. 91
Customizable features .......................458
Daytime running light system ........... 149
Defogger Rear window ........................................204
Side mirror.............................................204
Dimension................................................430
Dinghy towing ......................................... 196
Display
Dynamic laser cruise control ........ 160
Trip information ................................... 146C
D

479
Alphabetical index
RX400h_U
Spare tireInflation pressure ............................... 340
Spare tire ...............................................408
Spark plug ............................................... 435
Specifications......................................... 430
Speech command switch*
Speedometer Speedometer ........................................138
Steering Column lock release ......................... 132
Steering wheel Audio switches ..................................... 231
Manual adjustment .............................. 65
Power adjustment ................................ 66
Steering wheel position memory ................................................. 55
Storage feature ..................................... 265
Stuck If your vehicle becomes stuck .....427
Sun visors.................................................. 272
Sunshade Roof ..............................................................76
Switch Engine switch ..........................................131
Fog light switch.......................................151
Ignition switch..........................................131
Light switches........................................148
Power back door switch ...................44
Power door lock switch .................... 39
Power window switch......................... 72
Rear window wiper and washer switch .....................................................155
Window lock switch ............................ 72
Wipers and washer switch............. 152 Tail lights
Replacing light bulbs ....................... 365
Switch........................................................ 148
Wattage ....................................................441
Talk switch*
Telephone switch*
Theft deterrent system Alarm.......................................................... 85
Hybrid vehicle immobilizer system .....................................................83
Theft prevention labels ......................... 88
Tire inflation pressure .........................340
Tire section names Glossary .................................................. 451
Size............................................................ 447
Tire identification number..............446
Uniform tire quality grading .........449
Tires
Chains ...................................................... 182
Checking ................................................ 331
If you have a flat tire ......................... 408
Inflation pressure ............................... 340
Inflation pressure sensor ................ 332
Information ............................................445
Replacing .............................................. 408
Rotating tires ......................................... 331
Size............................................................439
Snow tires ............................................... 182
Spare tire ............................................... 408
Tools .......................................................... 408
Total load capacity ..................................181
Towing
Dinghy towing ...................................... 196
Emergency towing............................378
Trailer towing ........................................ 187T
*: Refer to the “Navigation System Owner’s Manual”.

480
Alphabetical index
RX400h_U
Traction control ...................................... 169
Trailer towing........................................... 187
TransmissionTransmission ..........................................135
Trip information display....................... 146
Trip meter ................................................. 138
Turn signal lights Replacing light bulbs........................365
Switch ........................................................136
Wattage.................................................... 441
Valet key...................................................... 34
Vanity lights Vanity lights .......................................... 273
Wattage.................................................... 441
Vanity mirrors ........................................ 273
Vehicle identification number .......... 431
Vehicle stability control....................... 169
Video mode ............................................. 251
VDIM .......................................................... 169
VSC ............................................................. 169
Warning buzzers Brake system ...................................... 388
Key reminder ....................................... 393
Open door ............................................391
Open moon roof reminder ............391
Seat belt reminder...............................391
Warning lights Anti-lock brake system...................389
Automatic headlight leveling system ..................................................389
Brake assist system...........................389
Brake system ...................................... 388
Charging system ...............................389 Electric power steering
control system ................................. 389
Hybrid battery system .................... 389
Low fuel level......................................... 391
Low tire pressure warning light.......................................................... 391
Master warning light.......................... 391
Open door ............................................. 391
Pretensioners ...................................... 389
Seat belt reminder light .................... 391
SRS airbags.......................................... 389
Warning messages
AWD system....................................... 398
Dynamic laser cruise control ..................................... 399, 402
Engine oil maintenance.................. 402
Engine oil pressure........................... 398
Fuel lid..................................................... 407
Head light level................................... 399
Hybrid system..................................... 398
Moon roof............................................. 402
Open door ........................................... 402
Parking brake...................................... 402
Vehicle stability control........399, 401
Washer fluid ........................................ 402
Water temp.......................................... 398
Transmission selector lever ......... 402
Washer
Checking................................................329
Preparing and checking before winter...................................... 182
Switch........................................................ 152
Washing and waxing........................... 298
Weight Cargo capacity .................................... 178
Load limits.................................................181
Weight .................................................... 430
V
W
