21Pictorial index

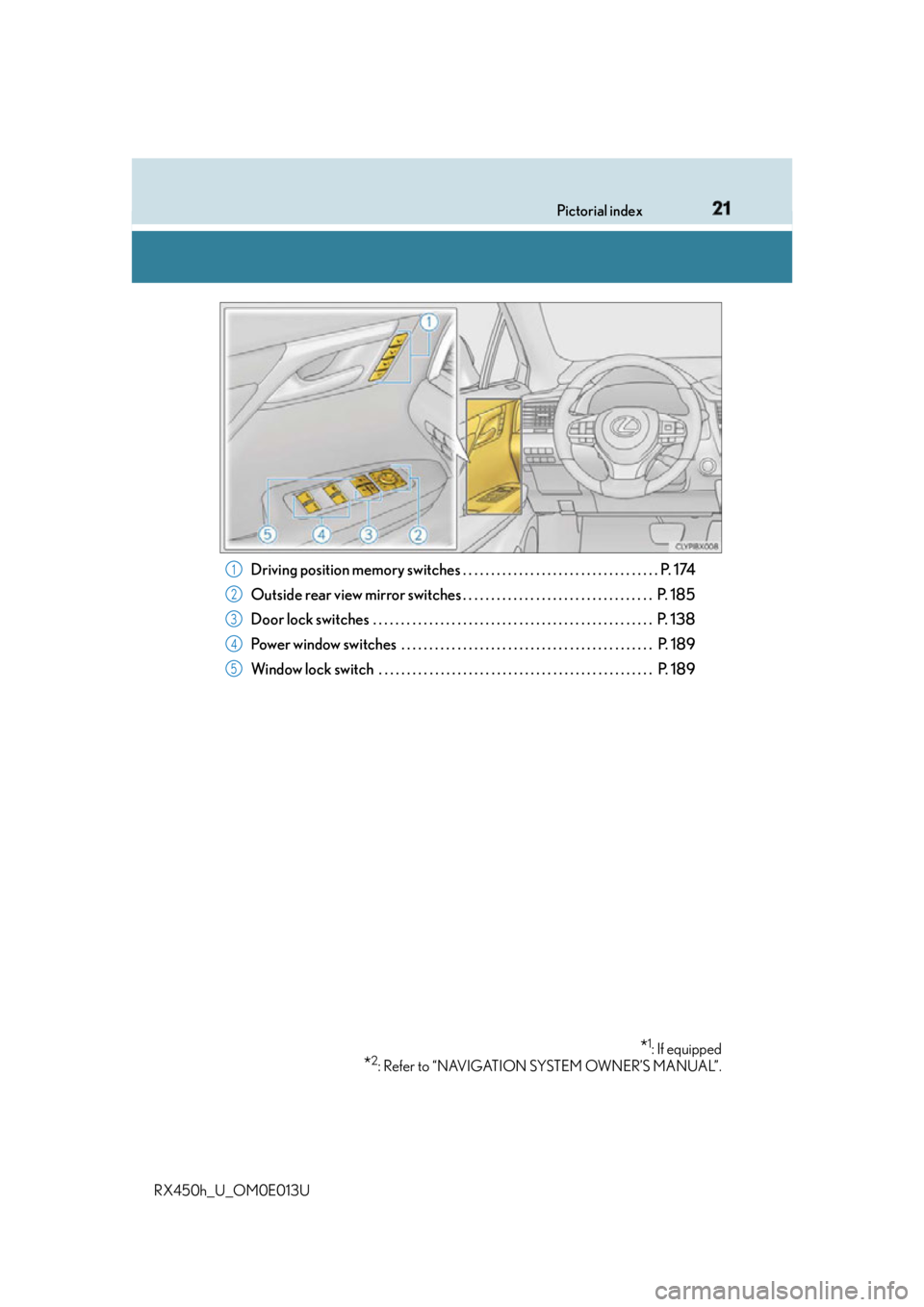

RX450h_U_OM0E013U Driving position memory switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 174
Outside rear view mirror switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 185
Door lock switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 138
Power window switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 189
Window lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 189
* 1
: If equipped
* 2
: Refer to “NAVIGATION SYSTEM OWNER’S MANUAL”.1
2
3
4
5
Page 22 of 660
22 Pictorial index

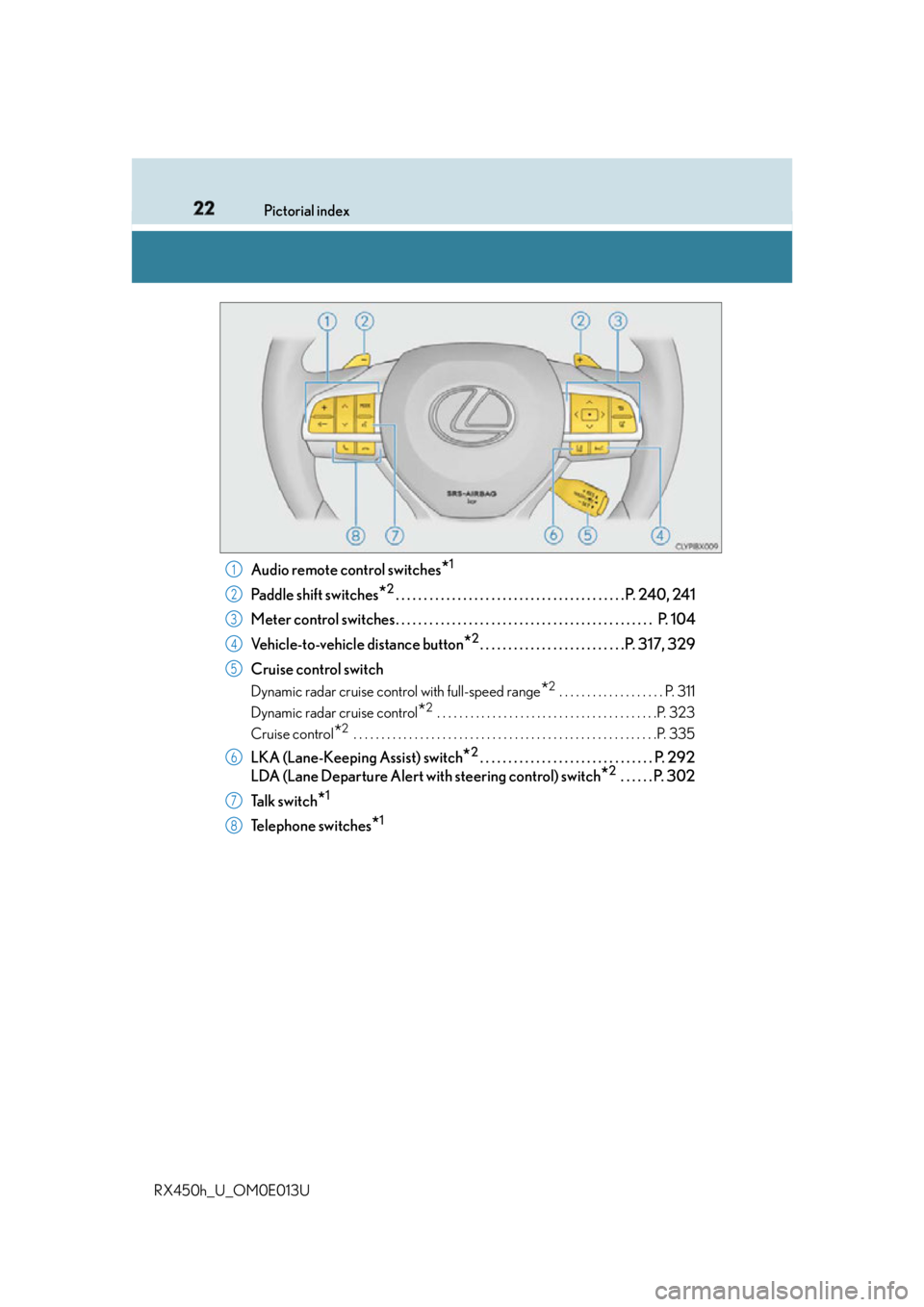

RX450h_U_OM0E013U Audio remote control switches
* 1
Paddle shift switches
* 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 240, 241
Meter control switches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 104
Vehicle-to-vehicle distance button
* 2
. . . . . . . . . . . . . . . . . . . . . . . . . .P. 317, 329
Cruise control switch Dynamic radar cruise control with full-speed range
* 2
. . . . . . . . . . . . . . . . . . . P. 311
Dynamic radar cruise control
* 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 323
Cruise control
* 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 335
LKA (Lane-Keeping Assist) switch
* 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 292
LDA (Lane Departure Alert with steering control) switch
* 2
. . . . . . P. 302
Ta l k s w i t c h
* 1
Telephone switches
* 11
2
3
4
5
6
7
8
Page 23 of 660
23Pictorial index

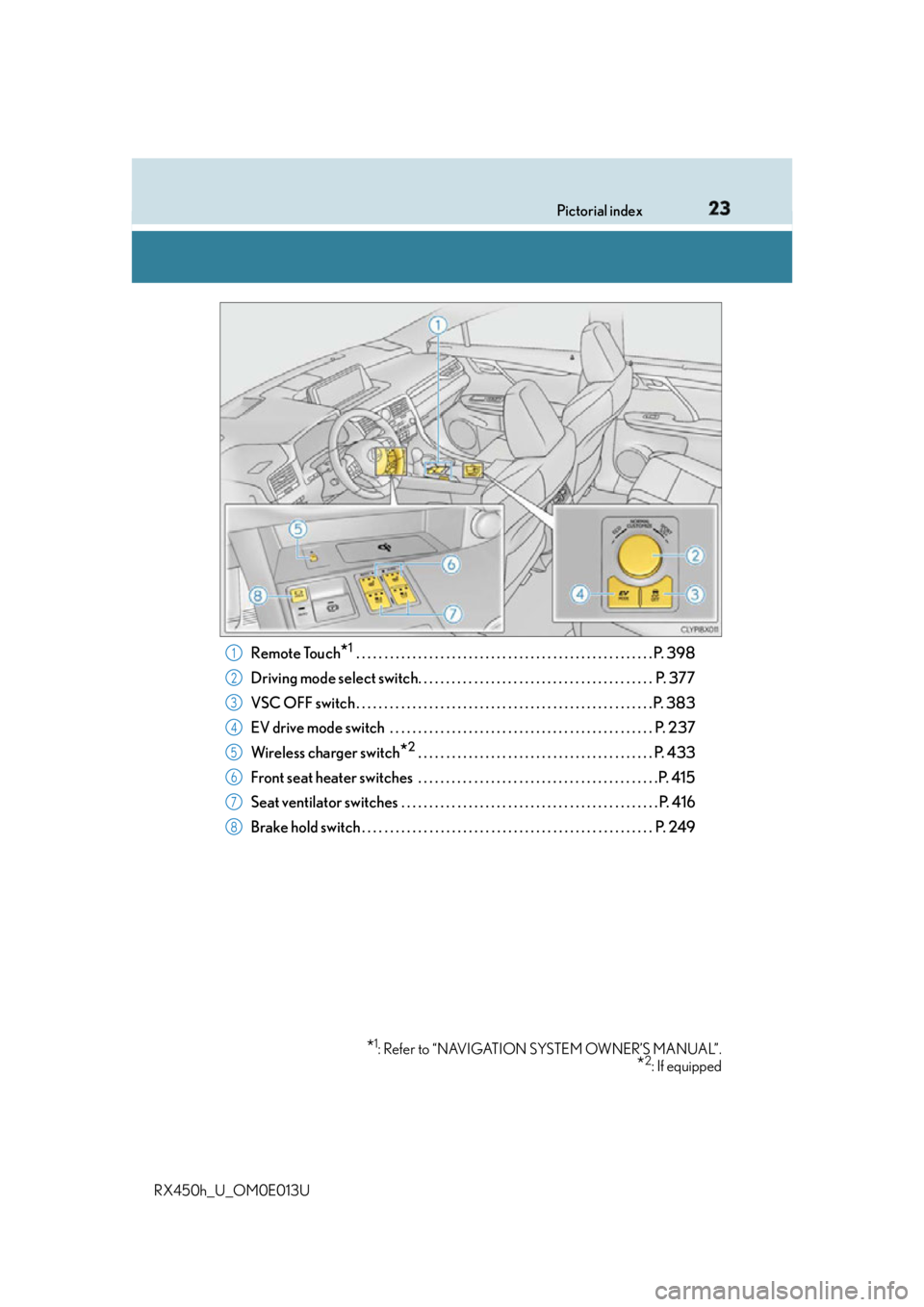

RX450h_U_OM0E013U Remote Touch
* 1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 398
Driving mode select switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 377
VSC OFF switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 383
EV drive mode switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 237
Wireless charger switch
* 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 433
Front seat heater switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 415
Seat ventilator switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 416
Brake hold switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 249
* 1
: Refer to “NAVIGATION SYSTEM OWNER’S MANUAL”.
* 2
: If equipped1
2
3
4
5
6
7
8
Page 24 of 660
24 Pictorial index
RX450h_U_OM0E013U ■ Interior

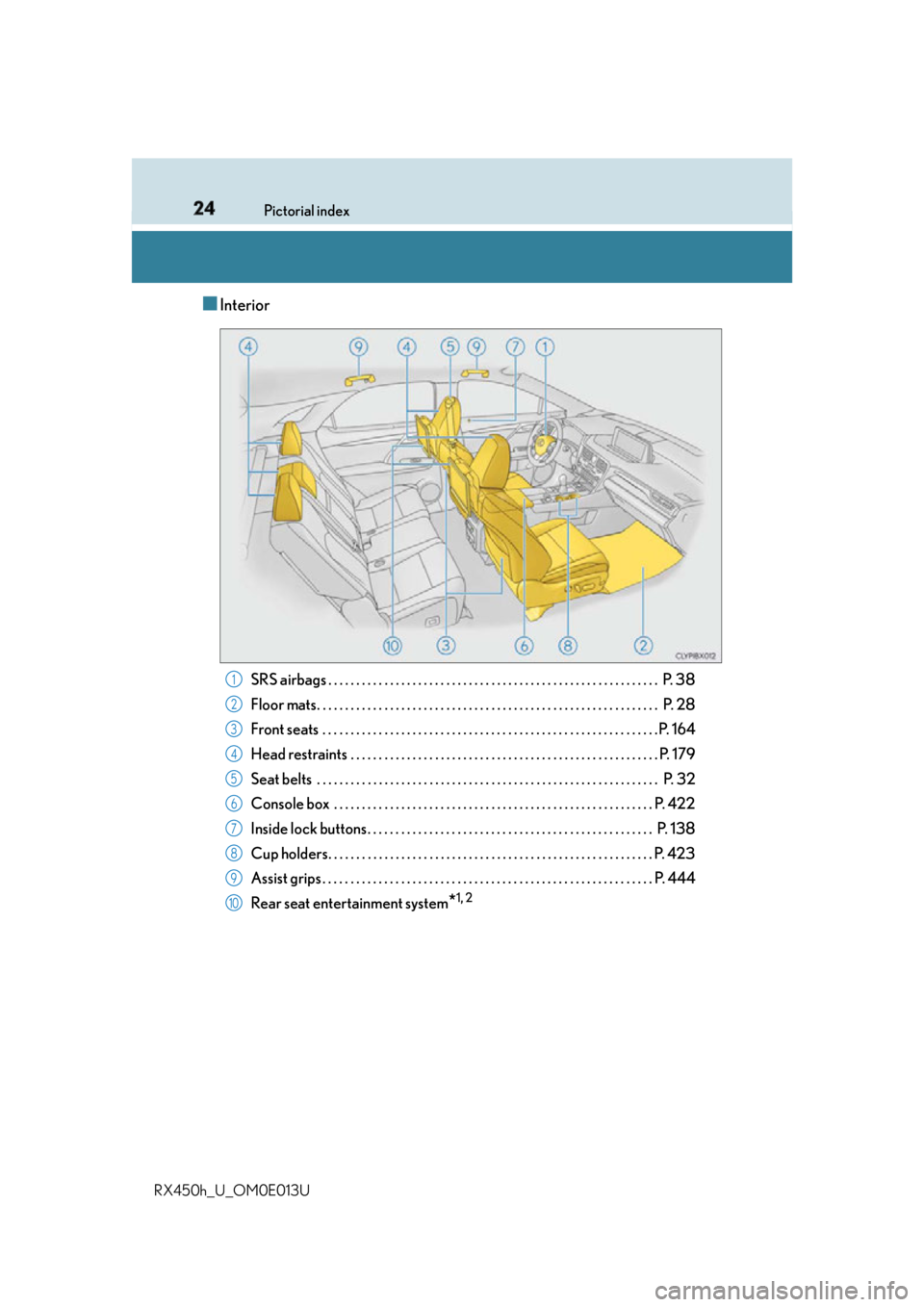

SRS airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 38
Floor mats. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 28
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 164
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 179
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 32
Console box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 422
Inside lock buttons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 138
Cup holders. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P . 423
Assist grips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 444
Rear seat entertainment system
* 1, 21
2
3
4
5
6
7
8
9
10
Page 25 of 660
25Pictorial index

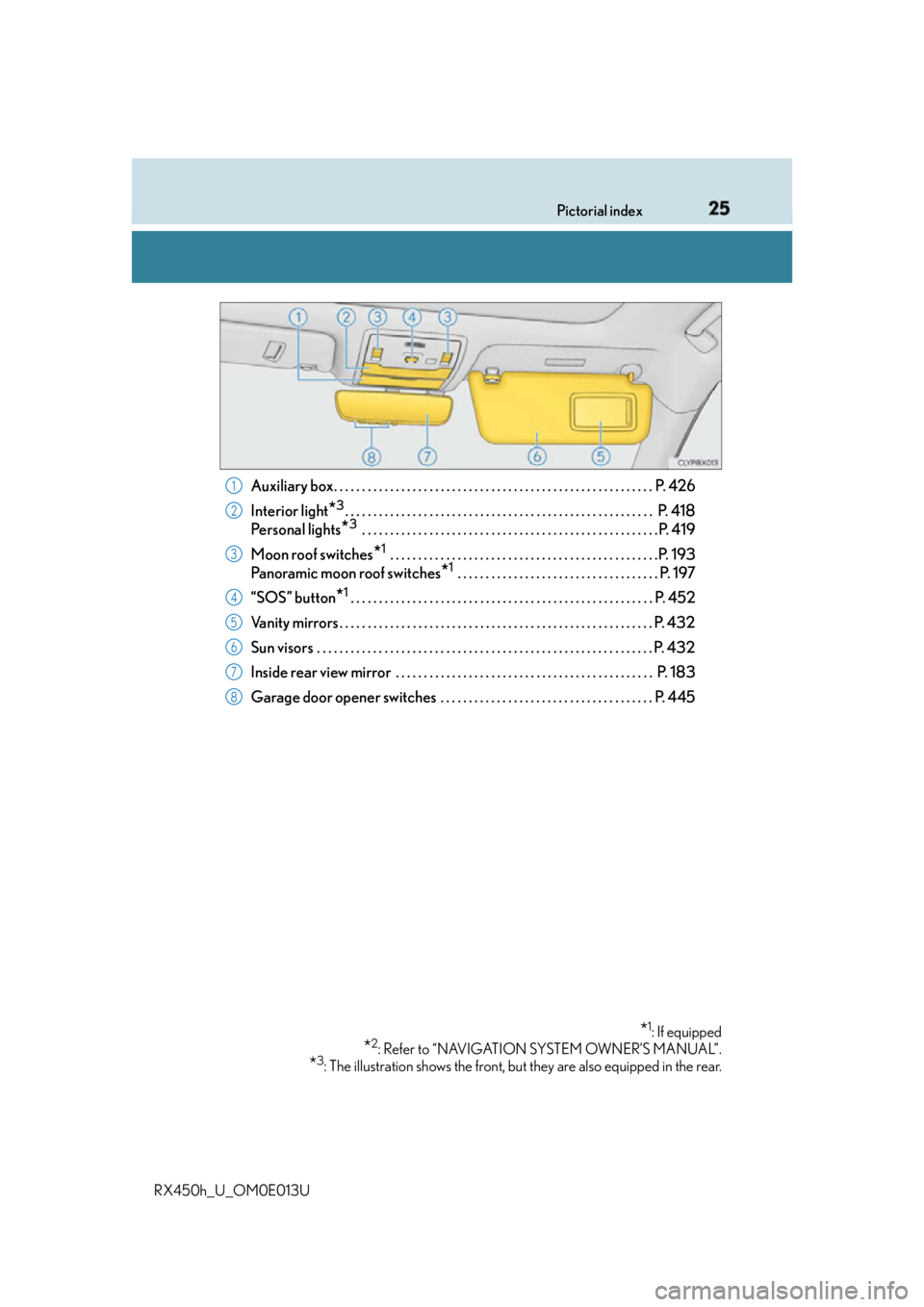

RX450h_U_OM0E013U Auxiliary box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 4 2 6
Interior light
* 3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 418
Pe r s o n a l l i g h t s
* 3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 419
Moon roof switches
* 1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 193
Panoramic moon roof switches
* 1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 197
“SOS” button
* 1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 452
Vanity mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 432
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 432
Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 183
Garage door opener switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 445
* 1
: If equipped
* 2
: Refer to “NAVIGATION SYSTEM OWNER’S MANUAL”.
* 3
: The illustration shows the front, but they are also equipped in the rear.1
2
3
4
5
6
7
8
Page 26 of 660
26 Pictorial index
RX450h_U_OM0E013U
Page 27 of 660
27
For safety and security
1
RX450h_U_OM0E013U 1-1. For safe use
Before driving................................. 28
For safety drive...............................30
Seat belts .......................................... 32
SRS airbags .....................................38
Front passenger occupant
classification system....................51
Exhaust gas precautions ............ 57
1-2. Child safety
Riding with children .....................58
Child restraint systems ............... 59
1-3. Hybrid system
Hybrid system features................ 76
Hybrid system precautions .......80
1-4. Theft deterrent system
Immobilizer system ......................85
Alarm ................................................. 87
Theft prevention labels ............... 89
Page 28 of 660
28
RX450h_U_OM0E013U 1-1. For safe use
Use only floor mats designed specifical ly for vehicles of the same model and
model year as your vehicle. Fix them securely in place onto the carpet.

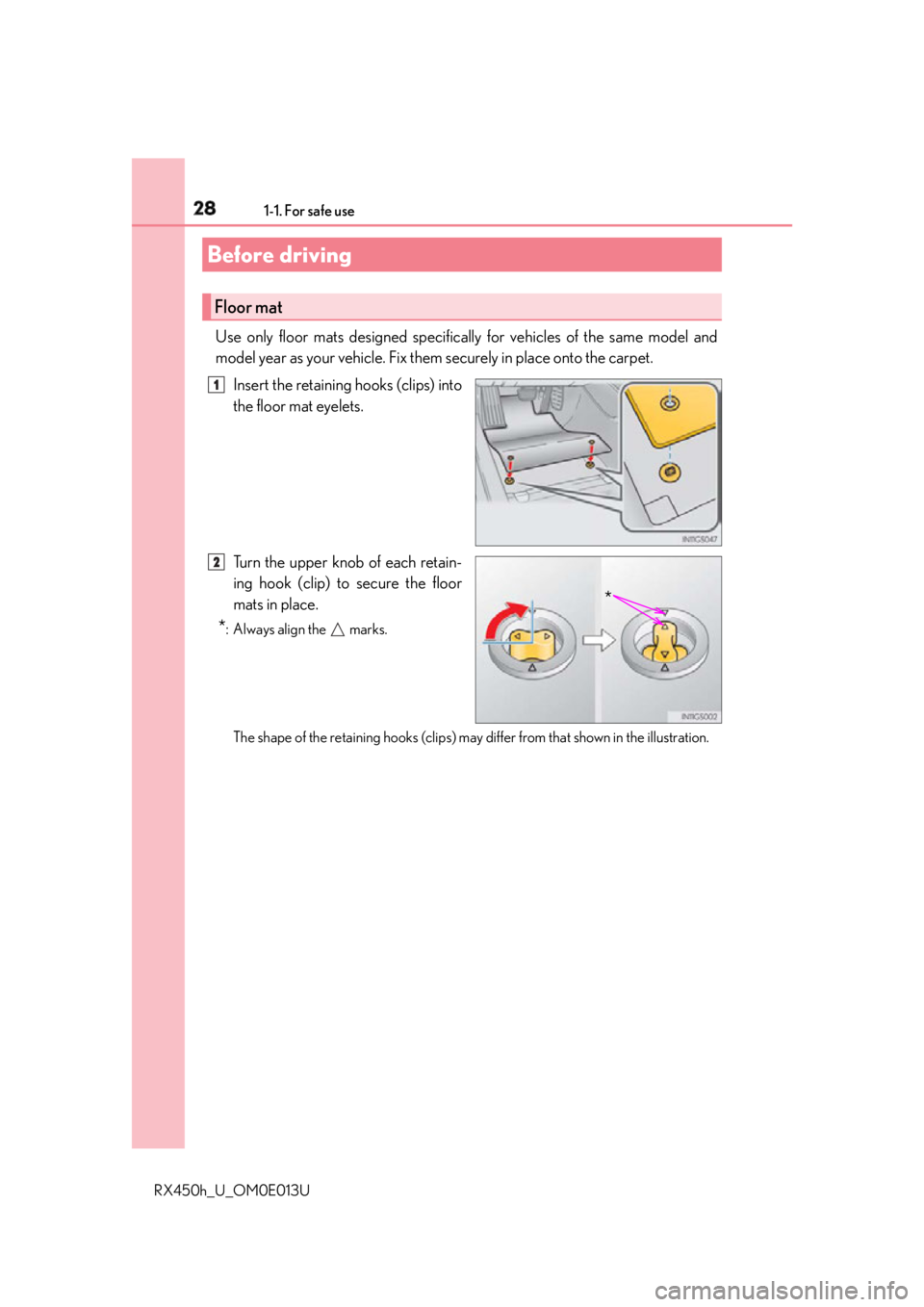

Insert the retaining hooks (clips) into
the floor mat eyelets.
Turn the upper knob of each retain-
ing hook (clip) to secure the floor
mats in place.
* : Always align the marks.
The shape of the retaining hook s (clips) may differ from that shown in the illustration.Before driving Floor mat 1
*2
Page 29 of 660
291-1. For safe use
1
For safety and security
RX450h_U_OM0E013U WA R N I N G
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering with the ped-
als while driving. An unexpect edly high speed may result or it may become difficult to
stop the vehicle. This could lead to an ac cident, resulting in death or serious injury.■

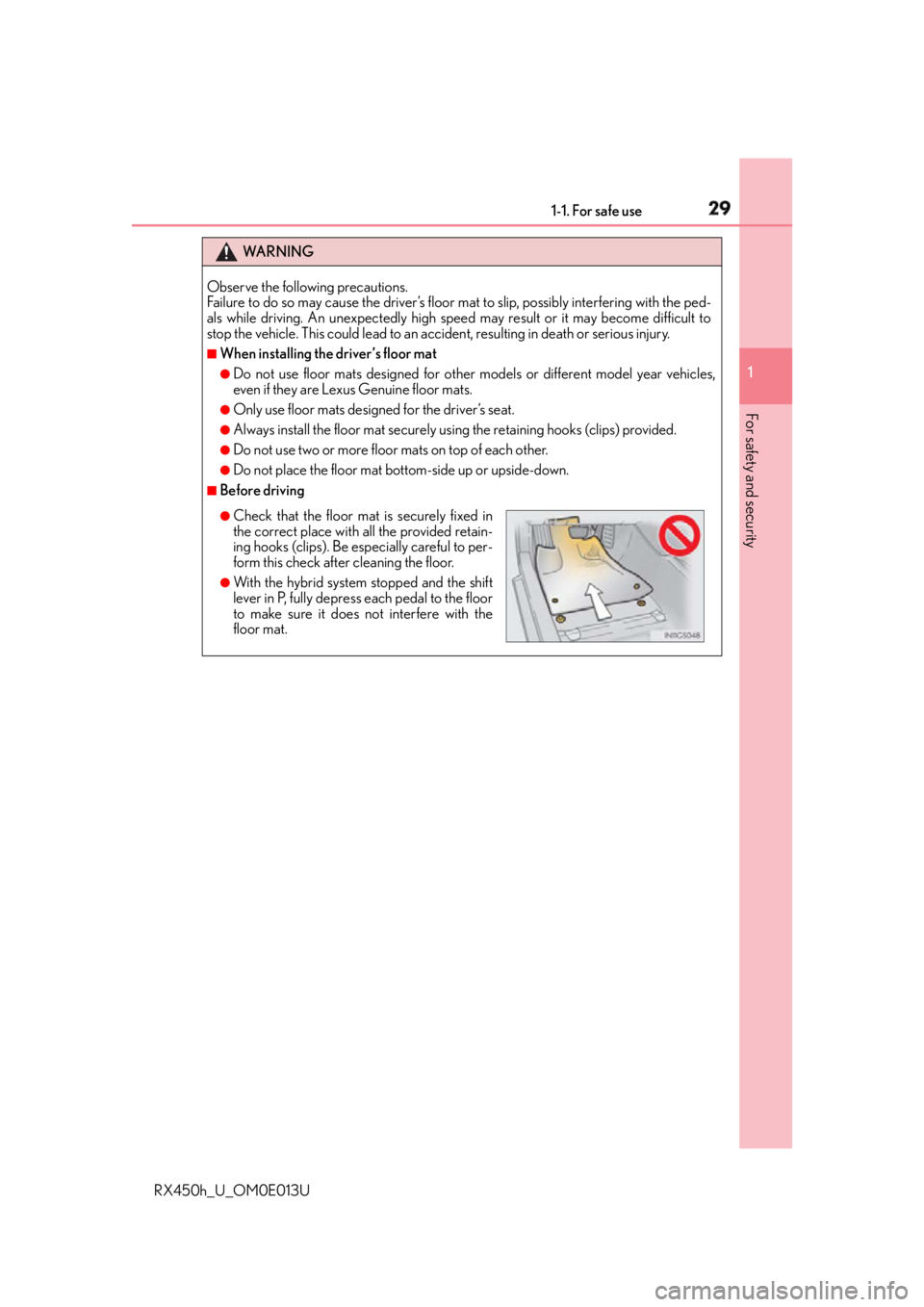

When installing the driver’s floor mat ●
Do not use floor mats designed for other models or different model year vehicles,
even if they are Lexus Genuine floor mats. ●
Only use floor mats designed for the driver’s seat. ●
Always install the floor mat securely using the retaining hooks (clips) provided. ●
Do not use two or more floor mats on top of each other. ●
Do not place the floor mat bottom-side up or upside-down. ■
Before driving ●
Check that the floor mat is securely fixed in
the correct place with all the provided retain-
ing hooks (clips). Be especially careful to per-
form this check after cleaning the floor. ●
With the hybrid system stopped and the shift
lever in P, fully depress each pedal to the floor
to make sure it does not interfere with the
floor mat.
Page 30 of 660
30 1-1. For safe use

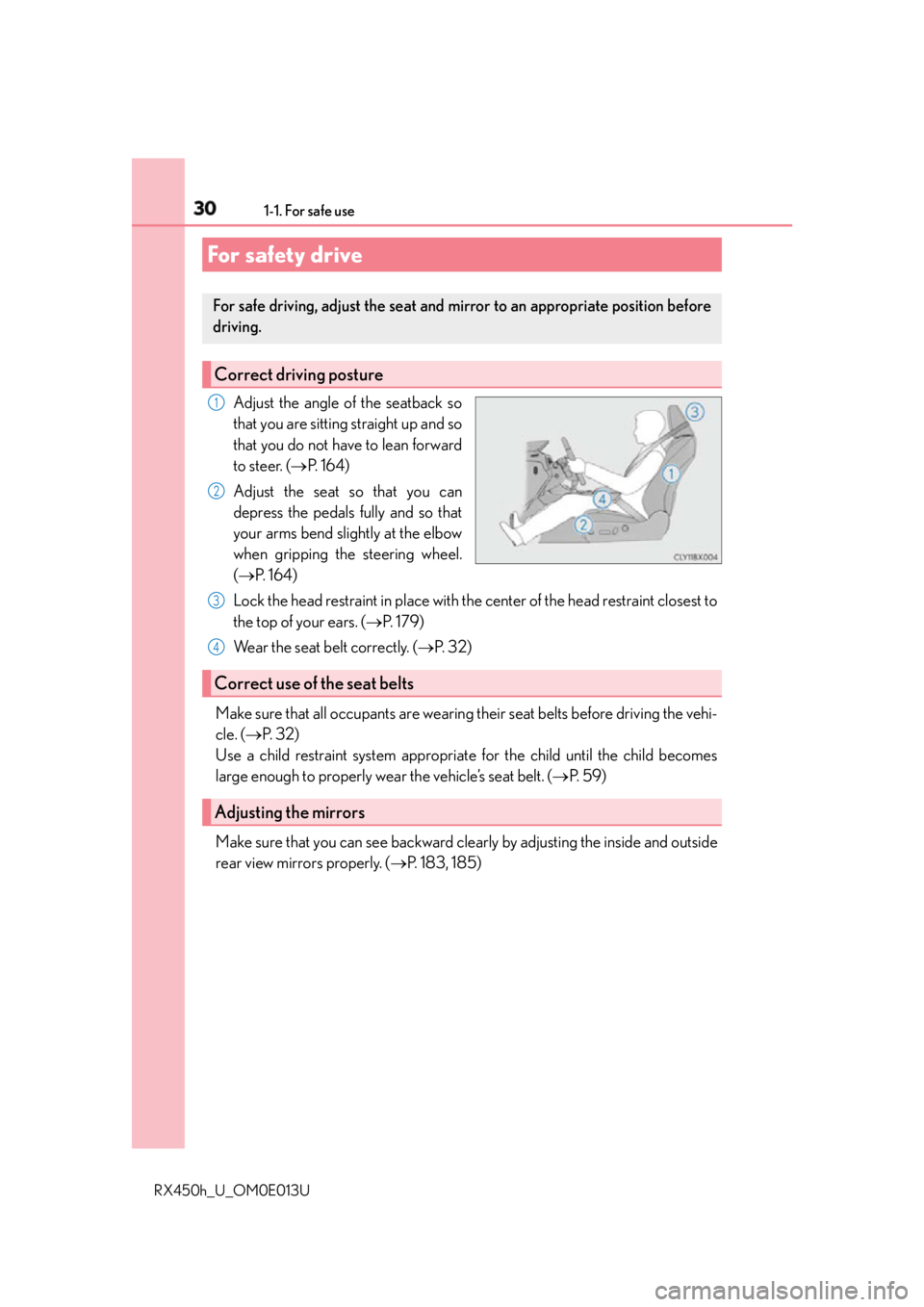

RX450h_U_OM0E013U Adjust the angle of the seatback so
that you are sitting straight up and so
that you do not have to lean forward
to steer. ( P. 1 6 4 )
Adjust the seat so that you can
depress the pedals fully and so that
your arms bend slightly at the elbow
when gripping the steering wheel.
( P. 1 6 4 )
Lock the head restraint in place with th e center of the head restraint closest to
the top of your ears. ( P. 1 7 9 )
Wear the seat belt correctly. ( P. 3 2 )
Make sure that all occupants are wearing their seat belts before driving the vehi-
cle. ( P. 3 2 )
Use a child restraint system appropriate for the child until the child becomes
large enough to properly wear the vehicle’s seat belt. ( P. 5 9 )
Make sure that you can see backward clea rly by adjusting the inside and outside
rear view mirrors properly. ( P. 1 8 3 , 1 8 5 )For safety drive For safe driving, adjust the seat and mi rror to an appropriate position before
driving.
Correct driving posture 1
2
Correct use of the seat belts
Adjusting the mirrors 3
4
