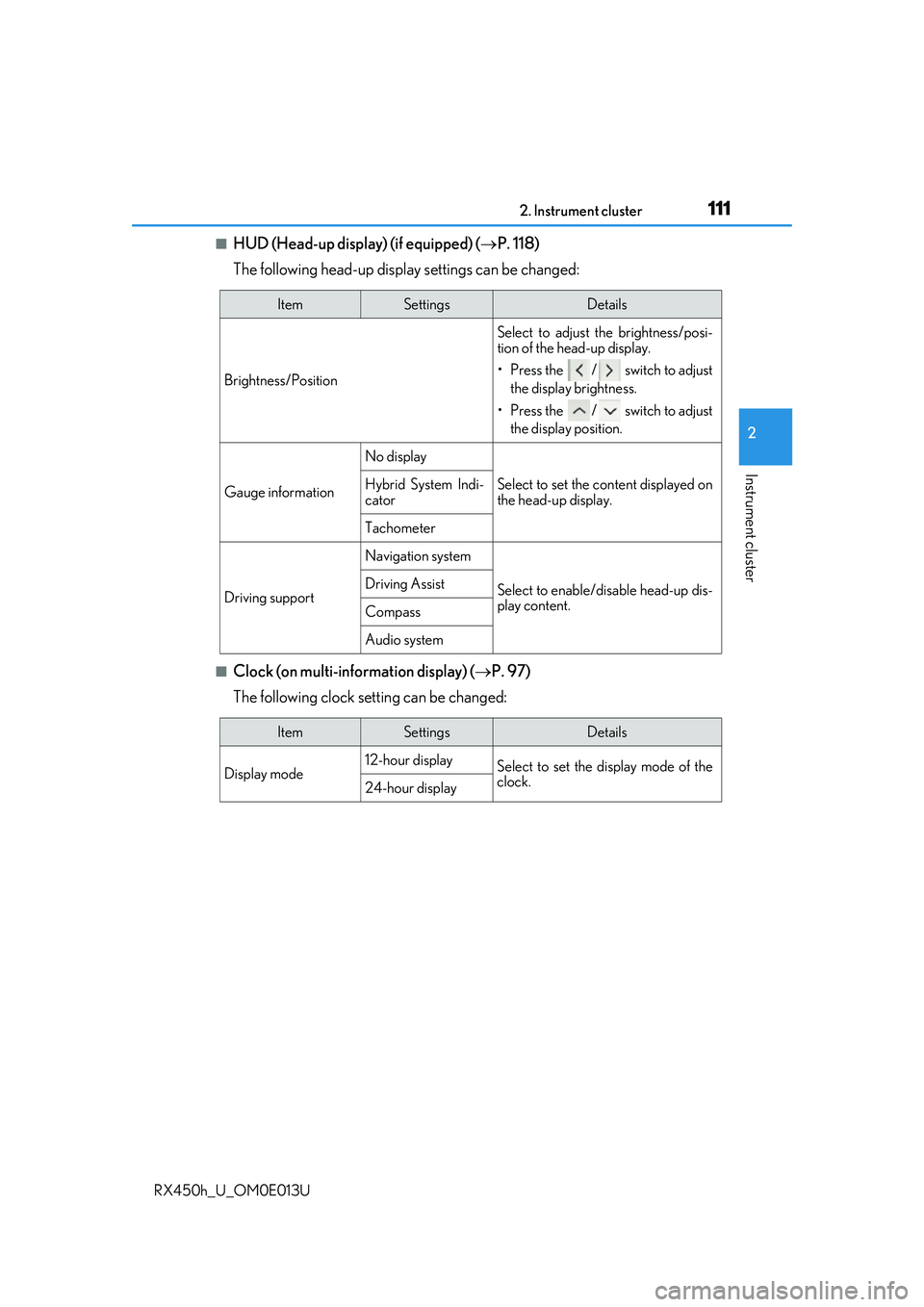

LEXUS RX450H 2016 Owners Manual

1112. Instrument cluster
2
Instrument cluster
RX450h_U_OM0E013U
■HUD (Head-up display) (if equipped) (P. 118)
The following head-up displa y settings can be changed:
■Clock (on multi-information display) ( P. 97)
The following clock setting can be changed:
ItemSettingsDetails
Brightness/Position Select to adjust the brightness/posi-
tion of the head-up display.
• Press the / switch to adjust
the display brightness.
• Press the / switch to adjust the display position.
Gauge information
No display
Select to set the content displayed on
the head-up display.Hybrid System Indi-
cator
Tachometer
Driving support
Navigation system
Select to enable/d isable head-up dis-
play content.Driving Assist
Compass
Audio system
ItemSettingsDetails
Display mode 12-hour display
Select to set the display mode of the
clock.
24-hour display

1122. Instrument cluster
RX450h_U_OM0E013U
■Vehicle settings
ItemSettingsDetails
PBD (Power back door) ( P. 142)
The following power back door settings can be changed:
System settings
All OnSelect to enable the power back door
system.
Touchless Sensor
Off (if equipped)Select to disable the touchless sensor.
(Other power back door functions
remain enabled.)
All OffSelect to disable the power back door
system.
Open position adjust-
mentSelect to set the open position at
which the power back door will stop
when opened automatically.
Volume
3 (Loud)Select to set the volume of the buzzer
which sounds when the power back
door is operated.
2 (Medium)
1 (Low)
TPMS (Tire pressure warning system) (P. 488)
Tire pressure warning system initialization
Select to initialize the Tire pressure
warning system. To perform initializa-
tion, press and hold the
switch.
Before performing initialization, make
sure to adjust the inflation pressure of
each tire to the specified level.
(  P. 489)
Scheduled maintenance (U.S.A. only)
Maintenance data reset
Select to reset the message indicating
maintenance is re quired, after the
required maintenanc e is performed.
(  P. 466)

1132. Instrument cluster
2
Instrument cluster
RX450h_U_OM0E013U
■Meter settings
Oil maintenance
Engine oil maintenance data reset
Select to reset the engine oil mainte-
nance information (message indicat-
ing maintenance is required and
distance until the next oil change)
after engine oil maintenance is per-
formed. (P. 478)
ItemSettingsDetails
ItemSettingsDetails
Language Select to change the language dis-
played.
UnitsSelect to change the units of measure
displayed.
(EV indicator) OnSelect to enable/dis
able the EV indi-
cator. ( P. 78)
Off
Switch settingsSelect to display how to change the
top screen.
Drive information 1Select to select up to 2 items that will
be displayed on ea ch Drive informa-
tion screen (Drive information 1
screen, Drive information 2 screen,
and Drive inform ation 3 screen)
respectively.
(Selectable items:  P. 106)
Drive information 2
Drive information 3
Pop-up display
Intersection guid-
ance
Select to enable/disable the pop-up
display.Incoming calls
Brightness adjust-
ment
Color (except F
SPORT models)2 available colorsSelect to set the color of the cursor on
the multi-information display.
Needle (F SPORT
models)3 available colorsSelect to set the tachometer needle
color.

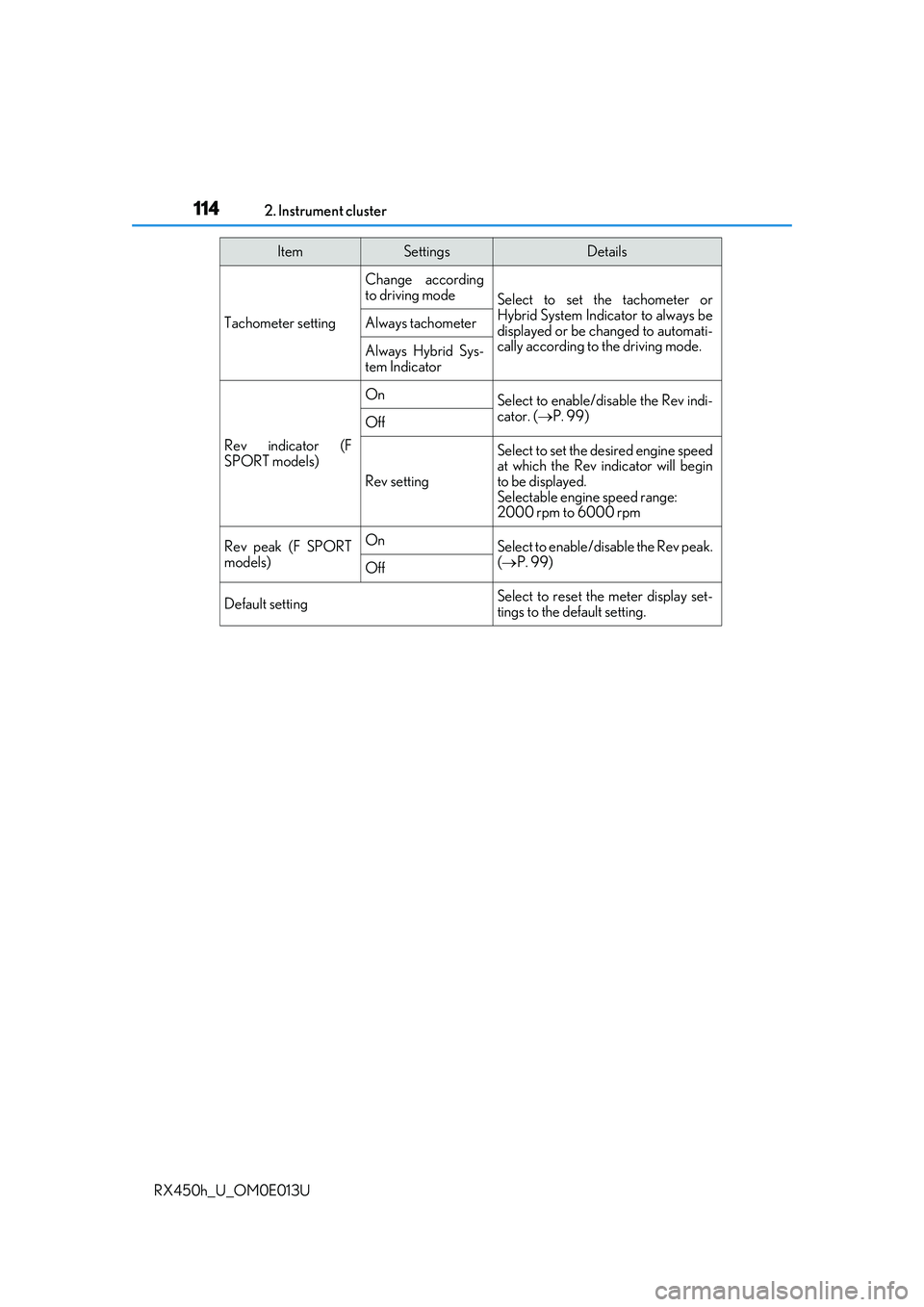

1142. Instrument cluster
RX450h_U_OM0E013U
Tachometer setting
Change according
to driving mode
Select to set the tachometer or
Hybrid System Indicator to always be
displayed or be changed to automati-
cally according to the driving mode.
Always tachometer
Always Hybrid Sys-
tem Indicator
Rev indicator (F
SPORT models)
OnSelect to enable/disable the Rev indi-
cator. ( P. 99)
Off
Rev setting
Select to set the desired engine speed
at which the Rev indicator will begin
to be displayed.
Selectable engine speed range:
2000 rpm to 6000 rpm
Rev peak (F SPORT
models)OnSelect to enable/disable the Rev peak.
( P. 99)
Off
Default settingSelect to reset the meter display set-
tings to the default setting.
ItemSettingsDetails

1152. Instrument cluster
2
Instrument cluster
RX450h_U_OM0E013U
◆Display items
■Odometer
Displays the total distance the vehicle has been driven.
■Trip meter A/trip meter B
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters A and B can be used to record and display different dis-
tances independently.
To reset, display the desired trip meter and press and hold the “ODO/TRIP”
switch.
■Distance until next engine oil change
Displays the distance the vehicle can be driven until an oil change is neces-
sary.
◆Pop-up display
In some situations the following will be temporarily displayed:
■Distance until next engine oil change
Displays the distance until the next engi ne oil change. This display will be dis-
played in the following situations:
• When the power switch is turned to ON mode.
• When a warning message indicating that oil maintenance should be performed
soon or is required is displayed.
Odometer/trip meter display area

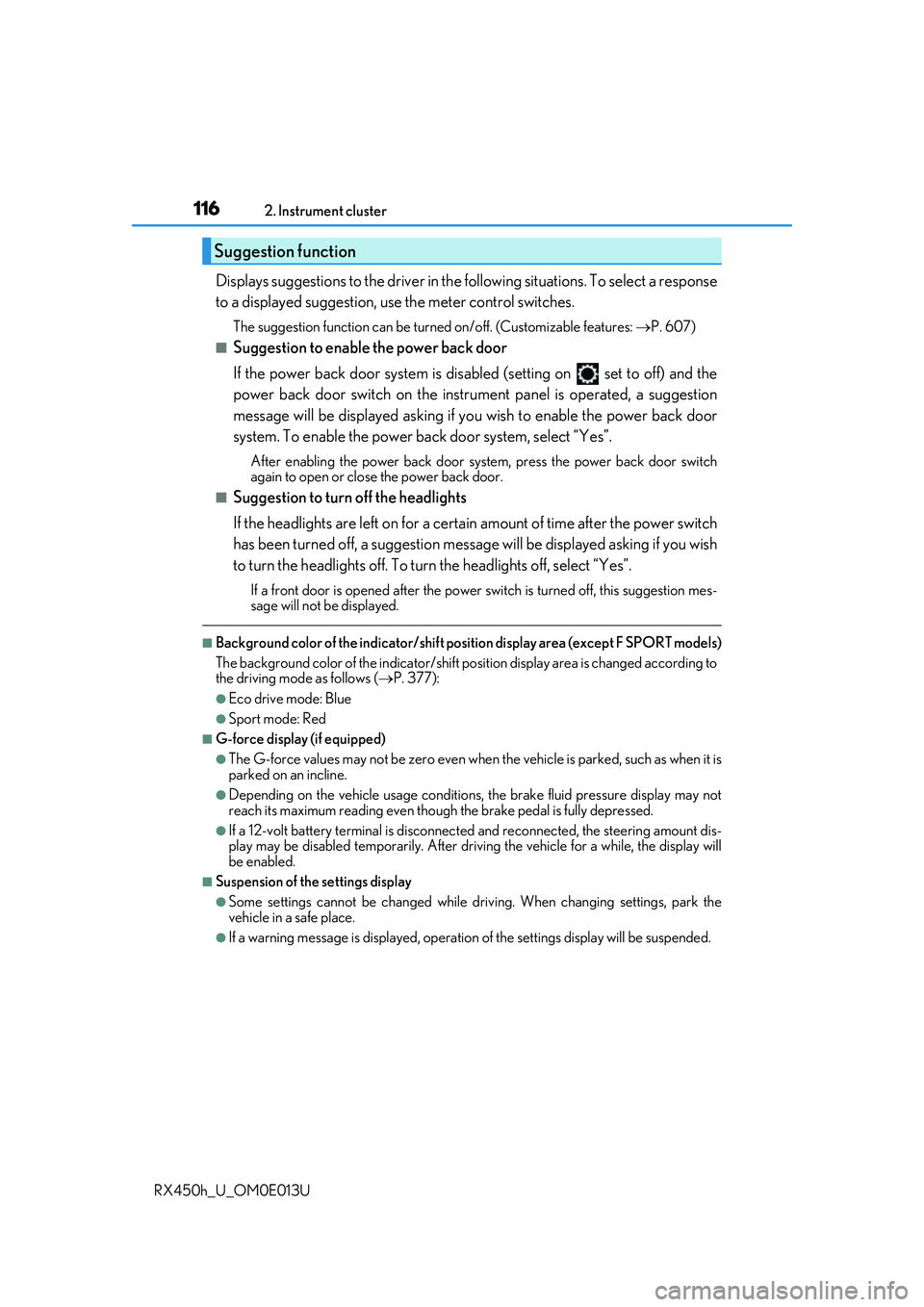

1162. Instrument cluster
RX450h_U_OM0E013U
Displays suggestions to the driver in the following situations. To select a response
to a displayed suggestion, use the meter control switches.
The suggestion function can be turned on/off. (Customizable features: P. 607)
■Suggestion to enable the power back door
If the power back door system is disabled (setting on set to off) and the
power back door switch on the instru ment panel is operated, a suggestion
message will be displayed asking if yo u wish to enable the power back door
system. To enable the power back door system, select “Yes”.
After enabling the power back door syst em, press the power back door switch
again to open or close the power back door.
■Suggestion to turn off the headlights
If the headlights are left on for a certai n amount of time after the power switch
has been turned off, a su ggestion message will be displayed asking if you wish
to turn the headlights off. To turn the headlights off, select “Yes”.
If a front door is opened after the power switch is turned off, this suggestion mes-
sage will not be displayed.
■Background color of the indicator/shift posi tion display area (except F SPORT models)
The background color of the indicator/shift position display area is changed according to
the driving mode as follows ( P. 377):
●Eco drive mode: Blue
●Sport mode: Red
■G-force display (if equipped)
●The G-force values may not be zero even when the vehicle is parked, such as when it is
parked on an incline.
●Depending on the vehicle usage conditions, the brake fluid pressure display may not
reach its maximum reading even though the brake pedal is fully depressed.
●If a 12-volt battery terminal is disconnect ed and reconnected, the steering amount dis-
play may be disabled temporarily. After driv ing the vehicle for a while, the display will
be enabled.
■Suspension of the settings display
●Some settings cannot be changed while driv ing. When changing settings, park the
vehicle in a safe place.
●If a warning message is displa yed, operation of the settings display will be suspended.
Suggestion function

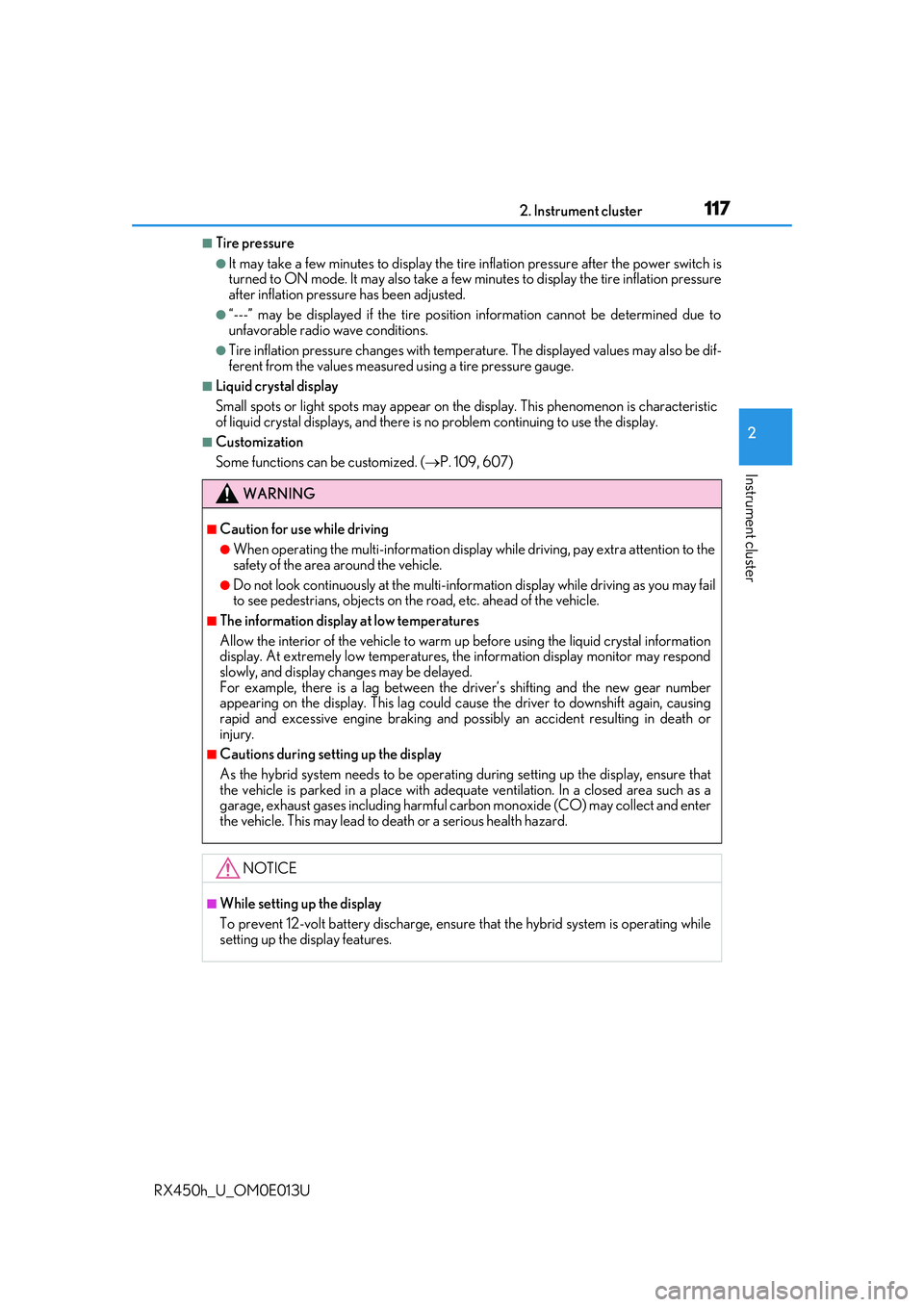

1172. Instrument cluster
2
Instrument cluster
RX450h_U_OM0E013U
■Tire pressure
●It may take a few minutes to display the tire inflation pressure after the power switch is
turned to ON mode. It may also take a few minutes to display the tire inflation pressure
after inflation pressure has been adjusted.
●“---” may be displayed if the tire position information cannot be determined due to
unfavorable radio wave conditions.
●Tire inflation pressure changes with temperat ure. The displayed values may also be dif-
ferent from the values measured using a tire pressure gauge.
■Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is characteristic
of liquid crystal displays, and there is no problem continuing to use the display.
■Customization
Some functions can be customized. ( P. 109, 607)
WARNING
■Caution for use while driving
●When operating the multi-information display while driving, pay extra attention to the
safety of the area around the vehicle.
●Do not look continuously at the multi-info rmation display while driving as you may fail
to see pedestrians, objects on the road, etc. ahead of the vehicle.
■The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal information
display. At extremely low temperatures, the information display monitor may respond
slowly, and display changes may be delayed.
For example, there is a lag between the dr iver’s shifting and the new gear number
appearing on the display. This lag could ca use the driver to downshift again, causing
rapid and excessive engine braking and possibly an accident resulting in death or
injury.
■Cautions during setting up the display
As the hybrid system needs to be operating during setting up the display, ensure that
the vehicle is parked in a place with adequa te ventilation. In a closed area such as a
garage, exhaust gases including harmful carbon monoxide (CO) may collect and enter
the vehicle. This may lead to death or a serious health hazard.
NOTICE
■While setting up the display
To prevent 12-volt battery discharge, ensure that the hybrid system is operating while
setting up the display features.

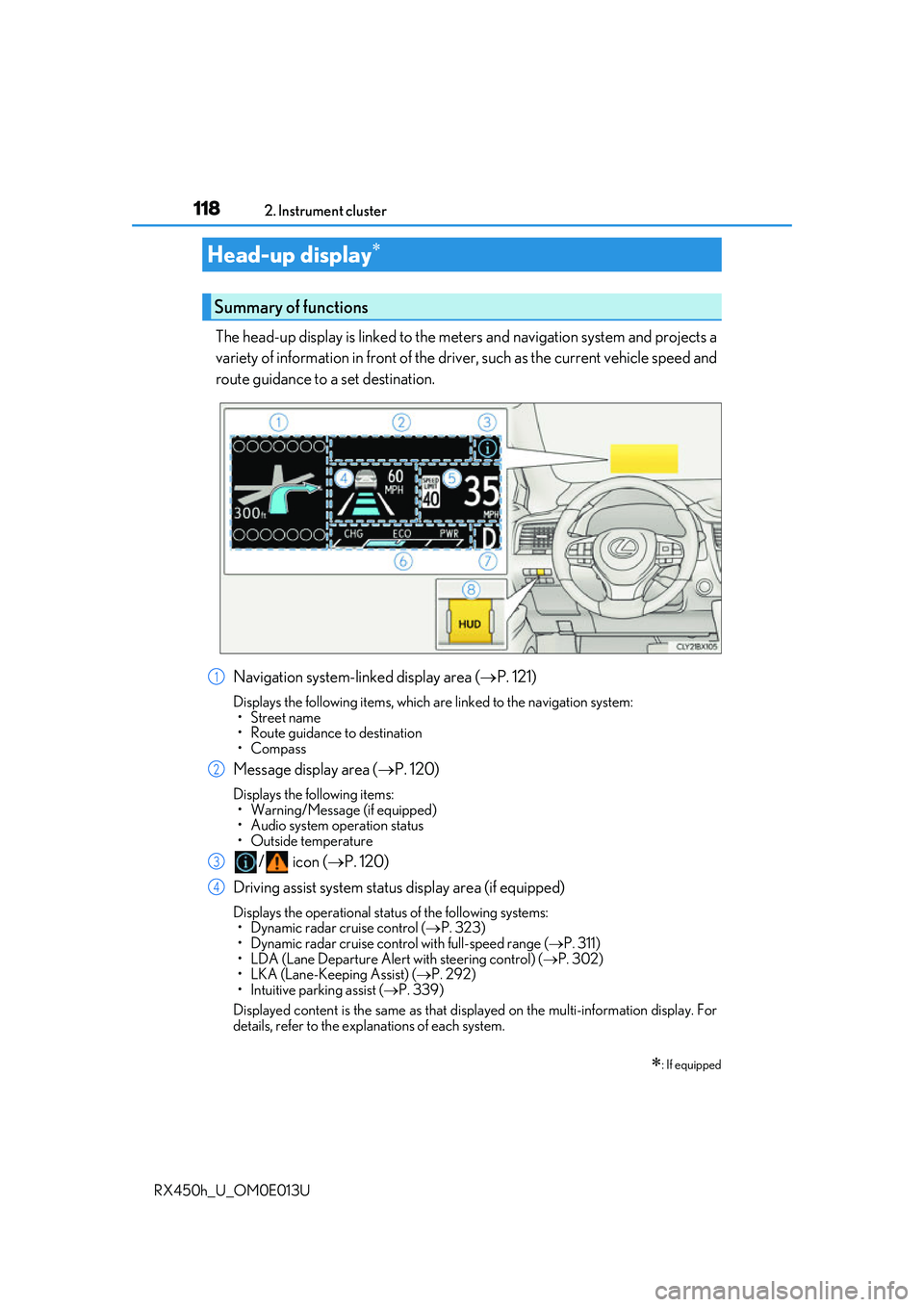

1182. Instrument cluster
RX450h_U_OM0E013U
The head-up display is linked to the meters and navigation system and projects a
variety of information in front of the driv er, such as the current vehicle speed and
route guidance to a set destination.
Navigation system-linked display area ( P. 121)
Displays the following items, which are linked to the navigation system:
•Street name
• Route guidance to destination
•Compass
Message display area ( P. 120)
Displays the following items:
• Warning/Message (if equipped)
• Audio system operation status
• Outside temperature
/ icon ( P. 120)
Driving assist system status display area (if equipped)
Displays the operational stat us of the following systems:
• Dynamic radar cruise control ( P. 323)
• Dynamic radar cruise control with full-speed range ( P. 311)
• LDA (Lane Departure Alert with steering control) ( P. 302)
• LKA (Lane-Keeping Assist) ( P. 292)
• Intuitive parking assist ( P. 339)
Displayed content is the same as that disp layed on the multi-information display. For
details, refer to the explanations of each system.
Head-up display
: If equipped
Summary of functions
1
2
3
4

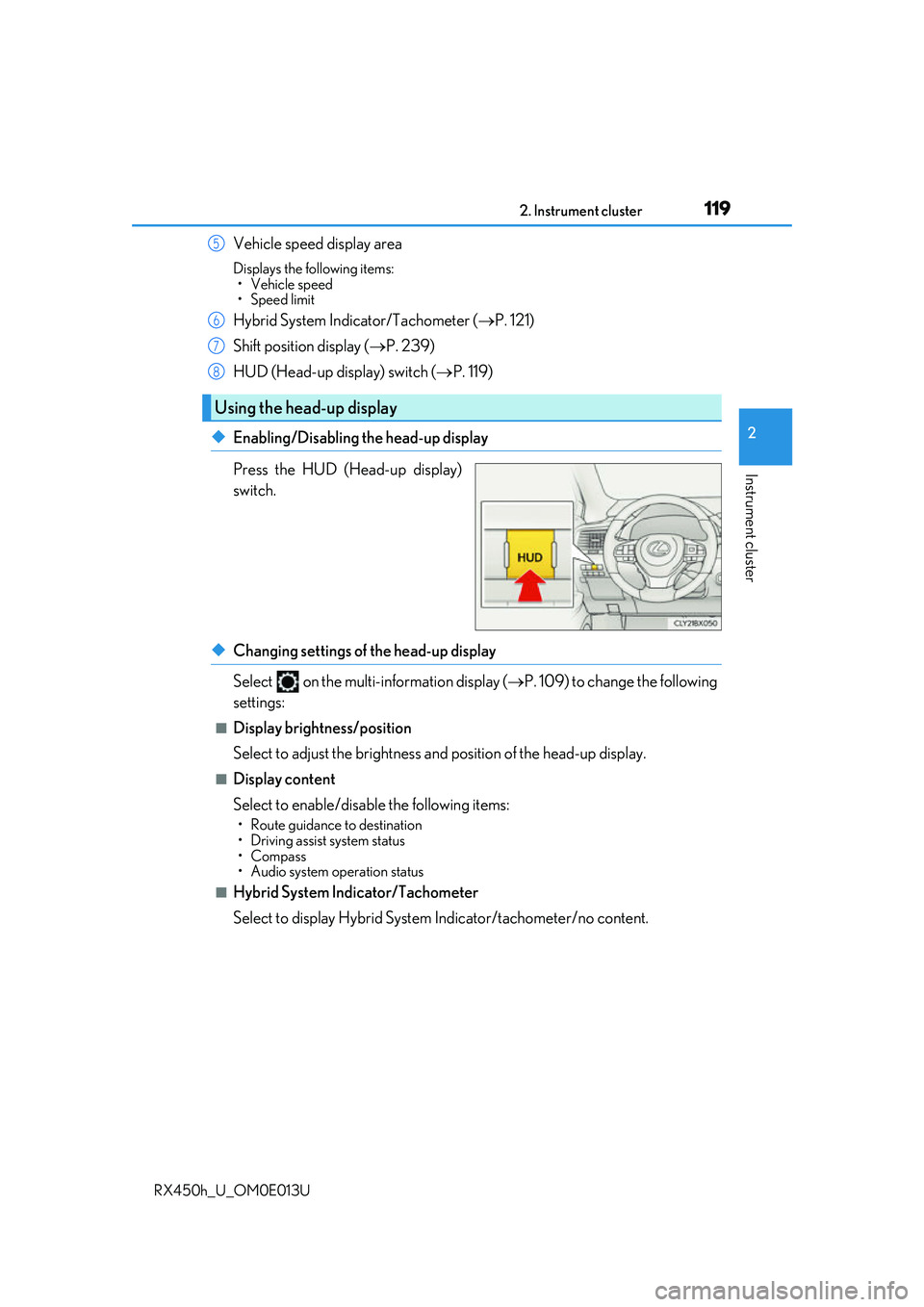

1192. Instrument cluster
2
Instrument cluster
RX450h_U_OM0E013U
Vehicle speed display area
Displays the following items:• Vehicle speed
• Speed limit
Hybrid System Indicator/Tachometer ( P. 121)
Shift position display ( P. 239)
HUD (Head-up display) switch ( P. 119)
◆Enabling/Disabling the head-up display
Press the HUD (Head-up display)
switch.
◆Changing settings of the head-up display
Select on the multi-information display ( P. 109) to change the following
settings:
■Display brightness/position
Select to adjust the brightness and position of the head-up display.
■Display content
Select to enable/disable the following items:
• Route guidance to destination
• Driving assist system status
•Compass
• Audio system operation status
■Hybrid System Indicator/Tachometer
Select to display Hybrid System Indicator/tachometer/no content.
Using the head-up display
5
6
7
8

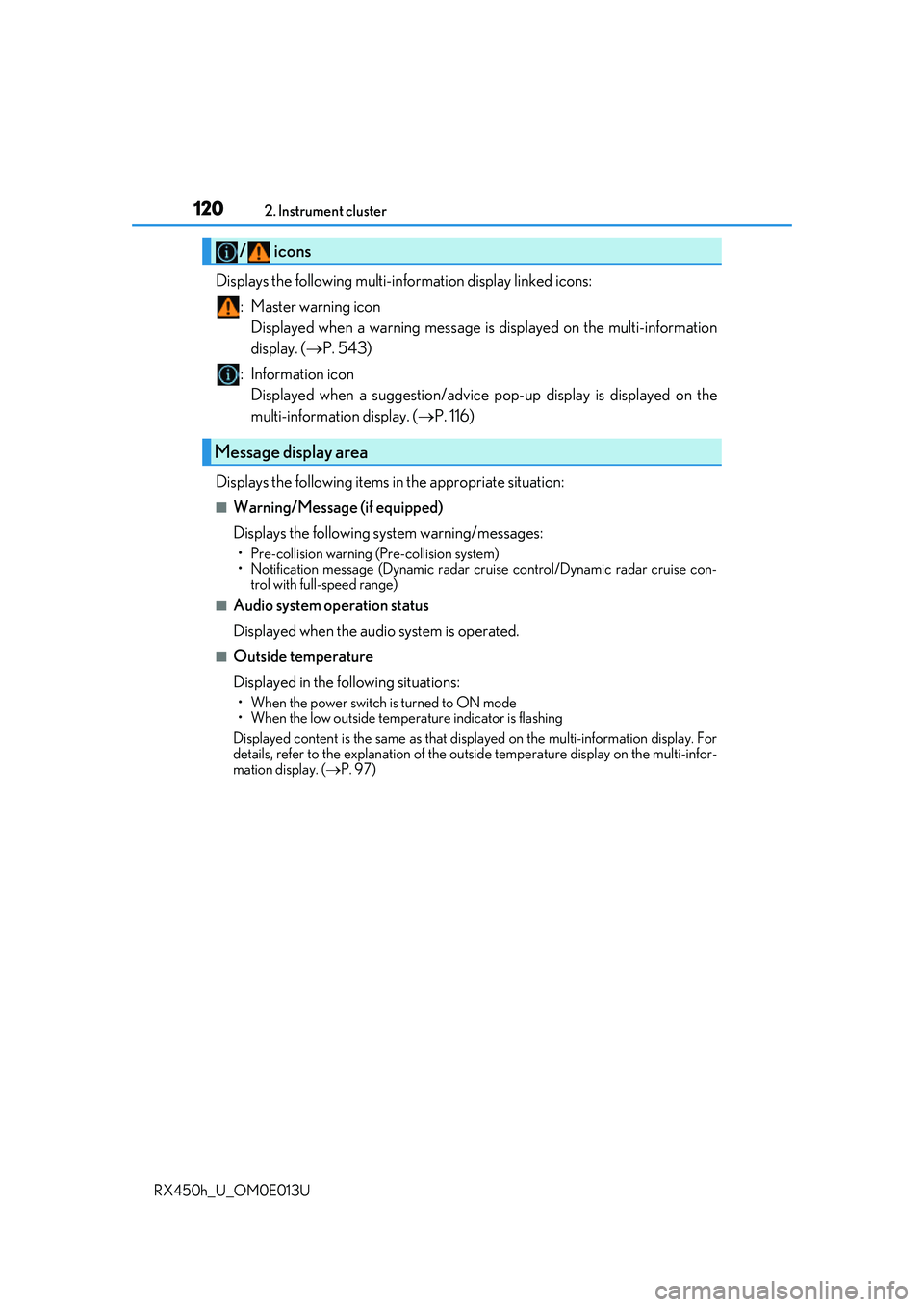

1202. Instrument cluster
RX450h_U_OM0E013U
Displays the following multi-in formation display linked icons:
: Master warning icon Displayed when a warning message is displayed on the multi-information
display. ( P. 543)
: Information icon Displayed when a suggestion/advice po p-up display is displayed on the
multi-information display. ( P. 116)
Displays the following items in the appropriate situation:
■Warning/Message (if equipped)
Displays the following system warning/messages:
• Pre-collision warning (Pre-collision system)
• Notification message (Dynamic radar cruise control/Dynamic radar cruise con- trol with full-speed range)
■Audio system operation status
Displayed when the audio system is operated.
■Outside temperature
Displayed in the following situations:
• When the power switch is turned to ON mode
• When the low outside temperature indicator is flashing
Displayed content is the same as that disp layed on the multi-information display. For
details, refer to the explanation of the outs ide temperature display on the multi-infor-
mation display. ( P. 97)
/ icons
Message display area
