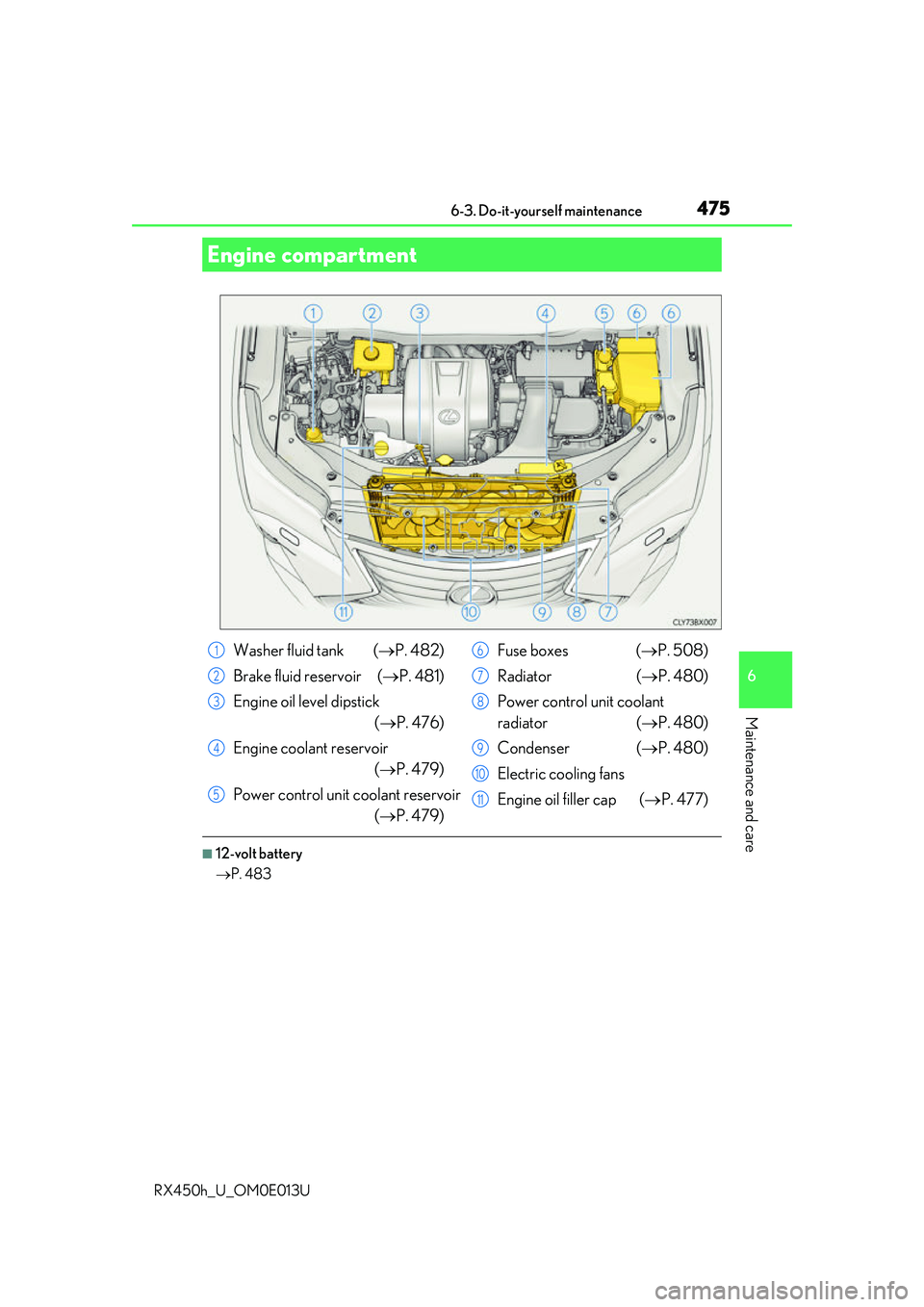

4756-3. Do-it-yourself maintenance
6
Maintenance and care
RX450h_U_OM0E013U
■12-volt battery
P. 483
Engine compartment
Washer fluid tank ( P. 482)
Brake fluid reservoir ( P. 481)
Engine oil level dipstick (P. 476)
Engine coolant reservoir (P. 479)
Power control unit coolant reservoir ( P. 479) Fuse boxes (
P. 508)
Radiator ( P. 480)
Power control unit coolant
radiator ( P. 480)
Condenser ( P. 480)
Electric cooling fans
Engine oil filler cap ( P. 477)1
2
3
4
5
6
7
8
9
10
11

5086-3. Do-it-yourself maintenance
RX450h_U_OM0E013U
Turn the power switch off.
Open the fuse box cover.
Engine compartment
Push the tab in and lift the lid off.
Driver’s side instrument panel
Remove the lid.

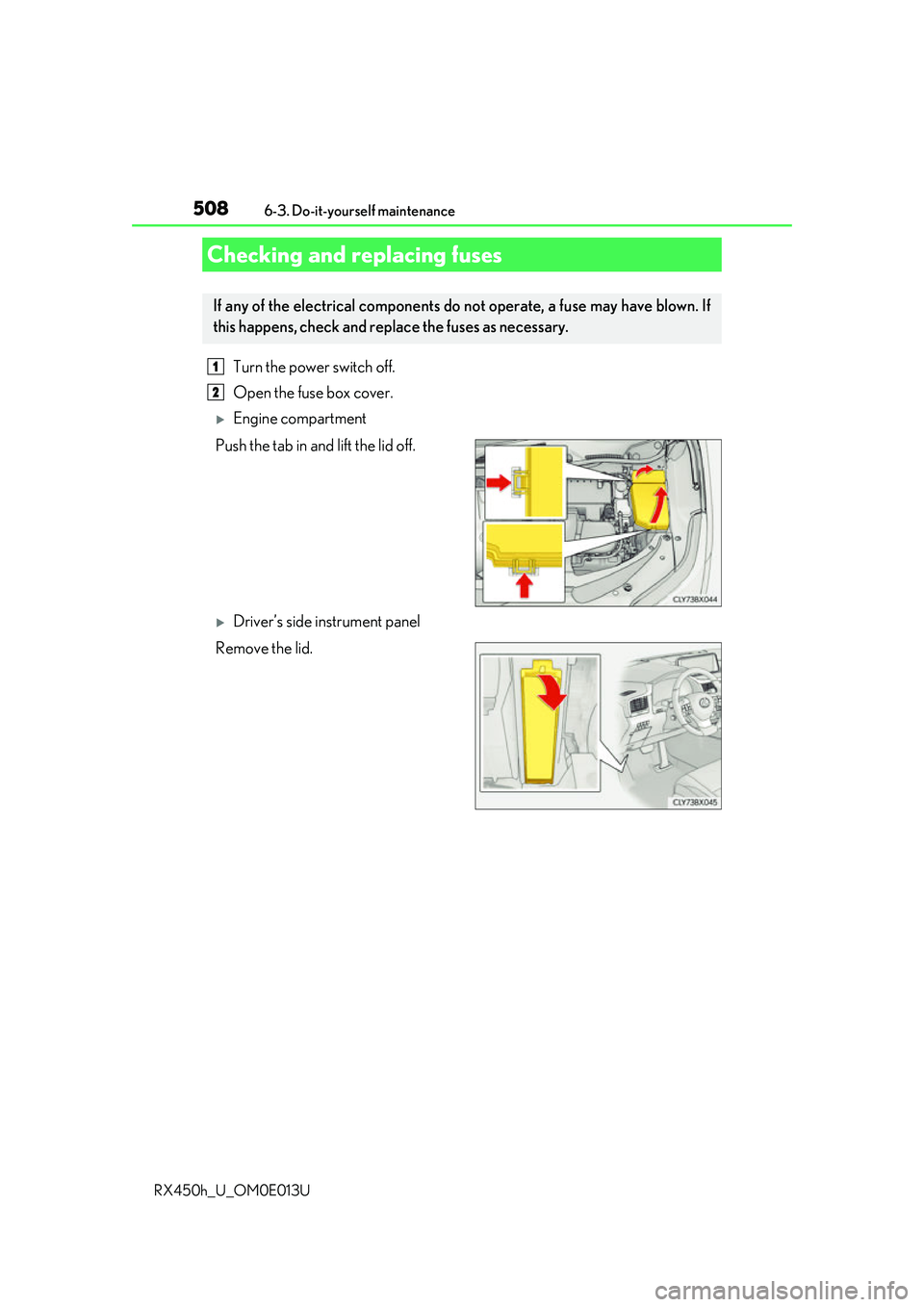

Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have blown. If
this happens, check and repl ace the fuses as necessary.
1
2

5096-3. Do-it-yourself maintenance
6
Maintenance and care
RX450h_U_OM0E013U

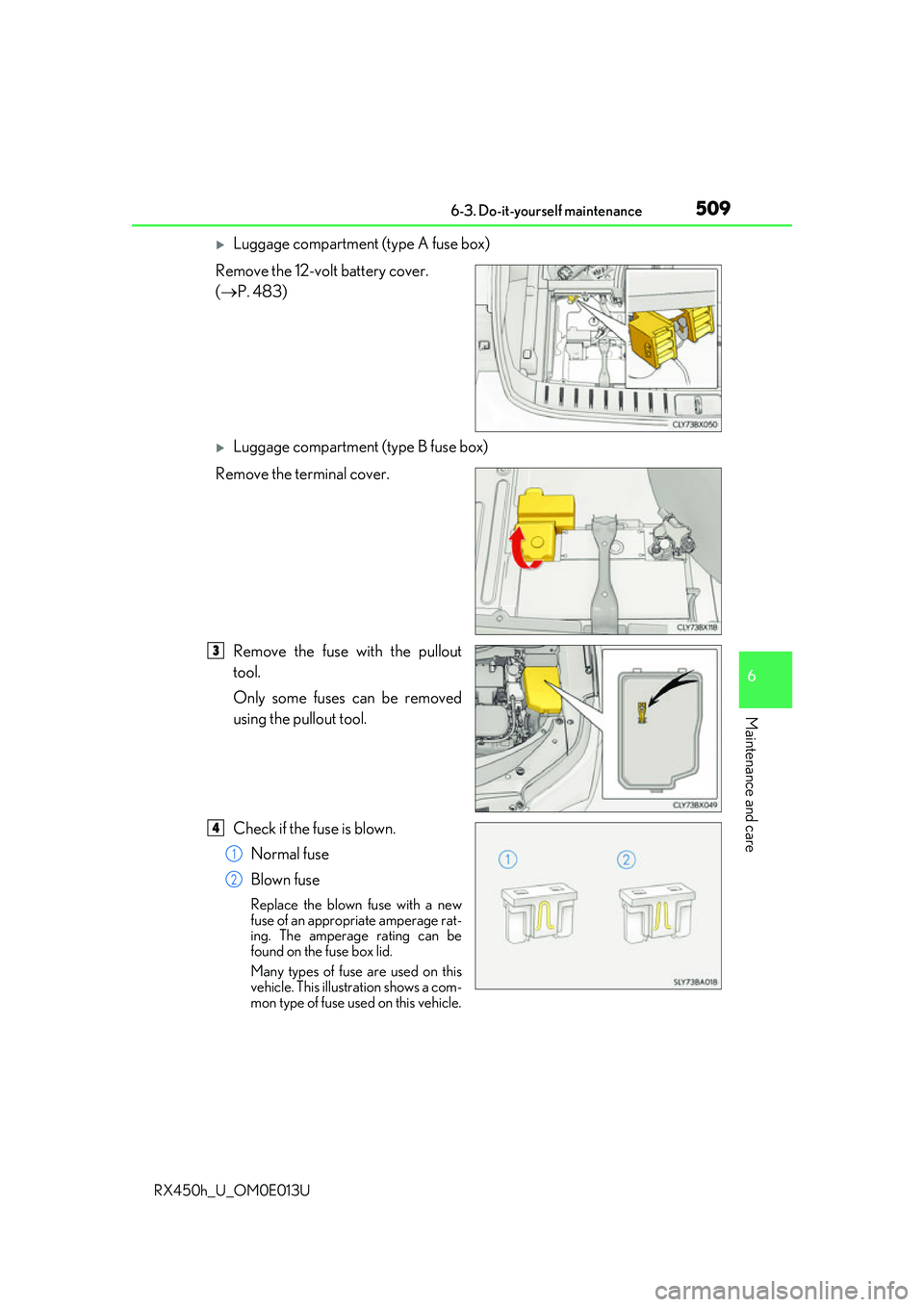

Luggage compartment (type A fuse box)
Remove the 12-volt battery cover.
( P. 483)
Luggage compartment (type B fuse box)
Remove the terminal cover.
Remove the fuse with the pullout
tool.
Only some fuses can be removed
using the pullout tool.
Check if the fuse is blown.Normal fuse
Blown fuse
Replace the blown fuse with a new
fuse of an appropriate amperage rat-
ing. The amperage rating can be
found on the fuse box lid.
Many types of fuse are used on this
vehicle. This illustration shows a com-
mon type of fuse used on this vehicle.
3
4
1
2

5106-3. Do-it-yourself maintenance
RX450h_U_OM0E013U

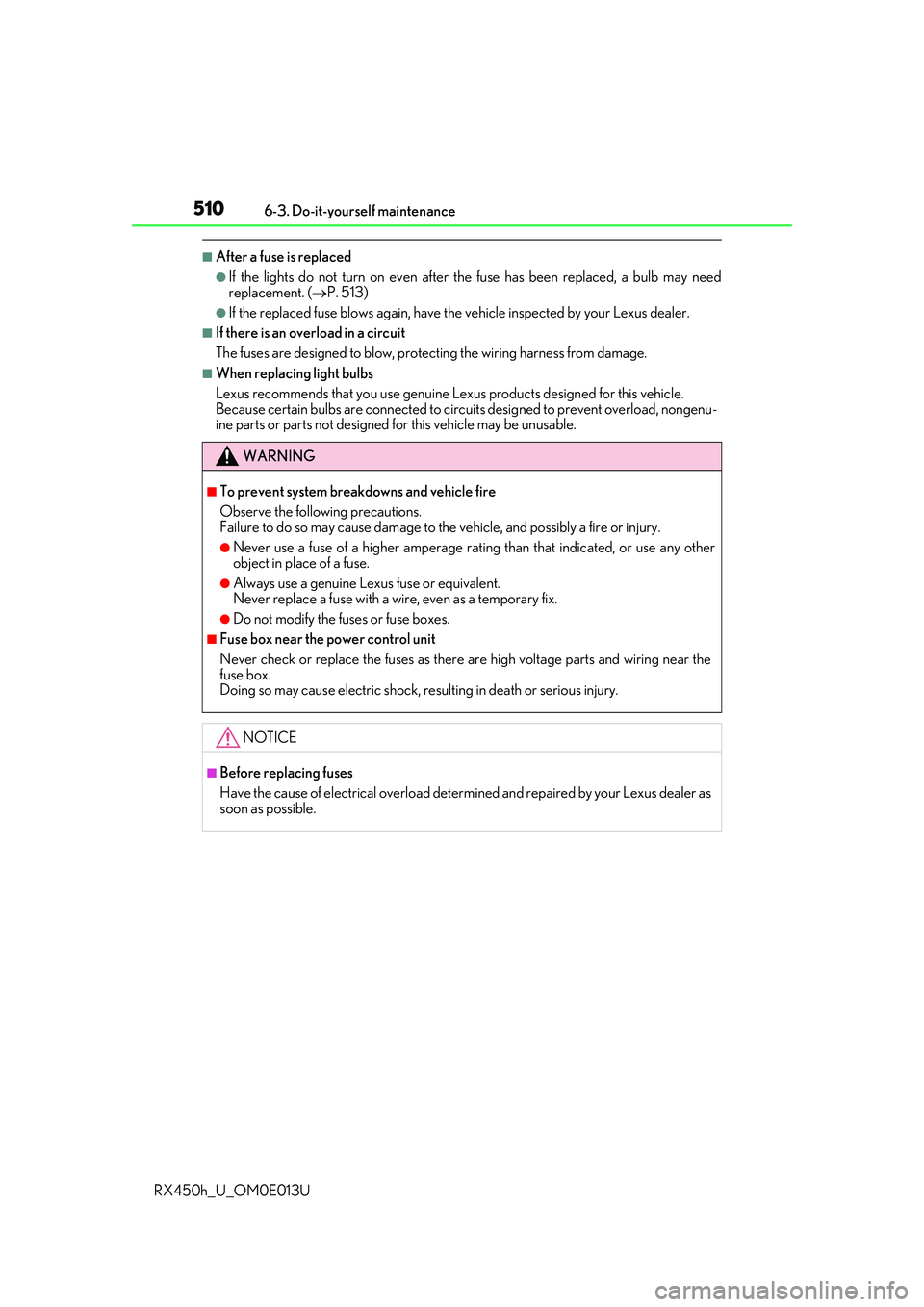

■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may need
replacement. ( P. 513)
●If the replaced fuse blows again, have th e vehicle inspected by your Lexus dealer.
■If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
■When replacing light bulbs
Lexus recommends that you use genuine Lexus products designed for this vehicle.
Because certain bulbs are connected to circuits designed to prevent overload, nongenu-
ine parts or parts not designed for this vehicle may be unusable.
WARNING
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to th e vehicle, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than that indicated, or use any other
object in place of a fuse.
●Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
●Do not modify the fuses or fuse boxes.
■Fuse box near the power control unit
Never check or replace the fuses as there are high volt age parts and wiring near the
fuse box.
Doing so may cause electric shock, re sulting in death or serious injury.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Lexus dealer as
soon as possible.

5687-2. Steps to take in an emergency
RX450h_U_OM0E013U

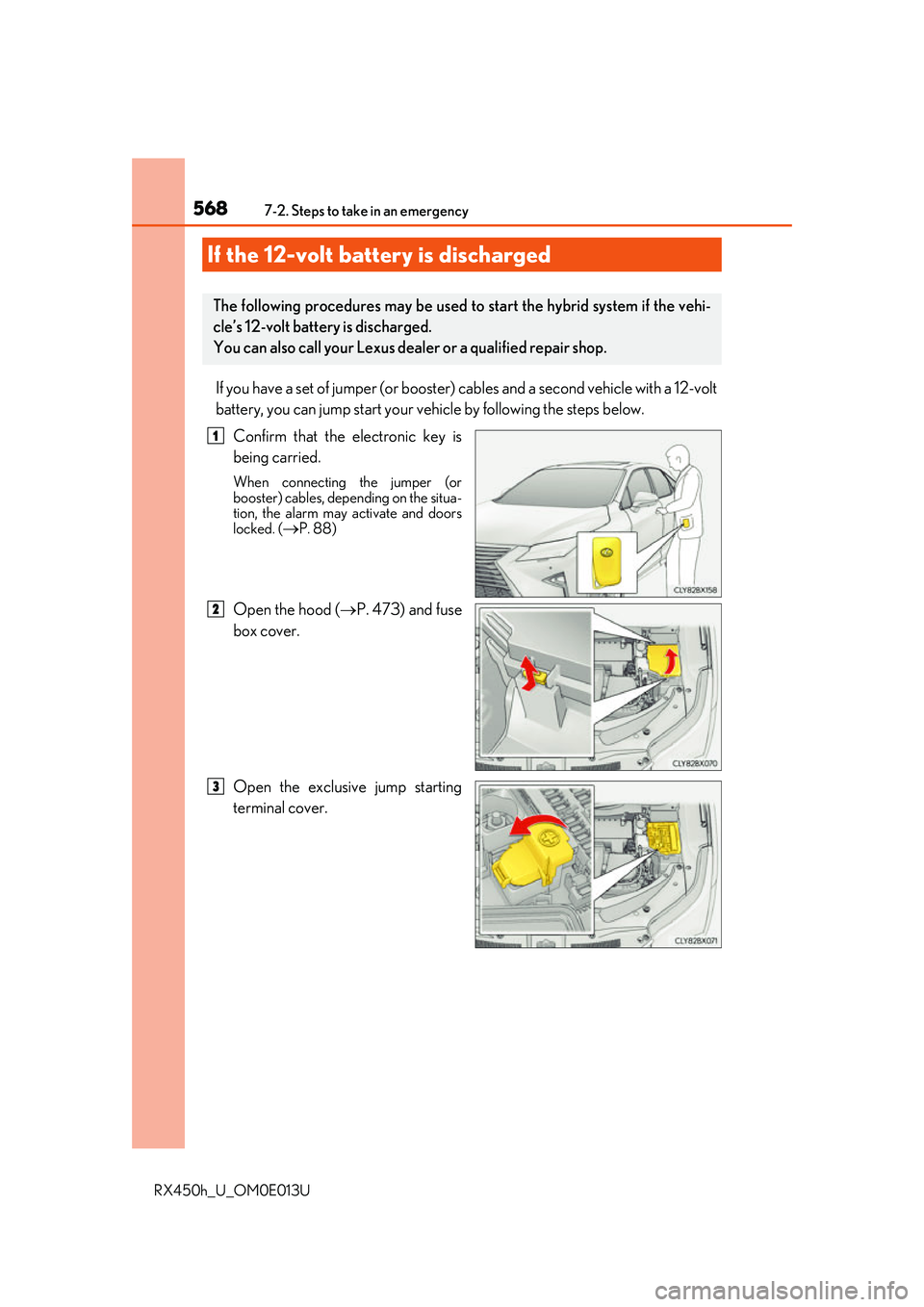

If you have a set of jumper (or booster) cables and a second vehicle with a 12-volt
battery, you can jump start your vehicle by following the steps below.
Confirm that the electronic key is
being carried.
When connecting the jumper (or
booster) cables, depe nding on the situa-
tion, the alarm may activate and doors
locked. (
P. 88)
Open the hood ( P. 473) and fuse
box cover.
Open the exclusive jump starting
terminal cover.
If the 12-volt battery is discharged
The following procedures may be used to start the hybrid system if the vehi-
cle’s 12-volt battery is discharged.
You can also call your Lexus deal er or a qualified repair shop.
1
2
3

5707-2. Steps to take in an emergency
RX450h_U_OM0E013U

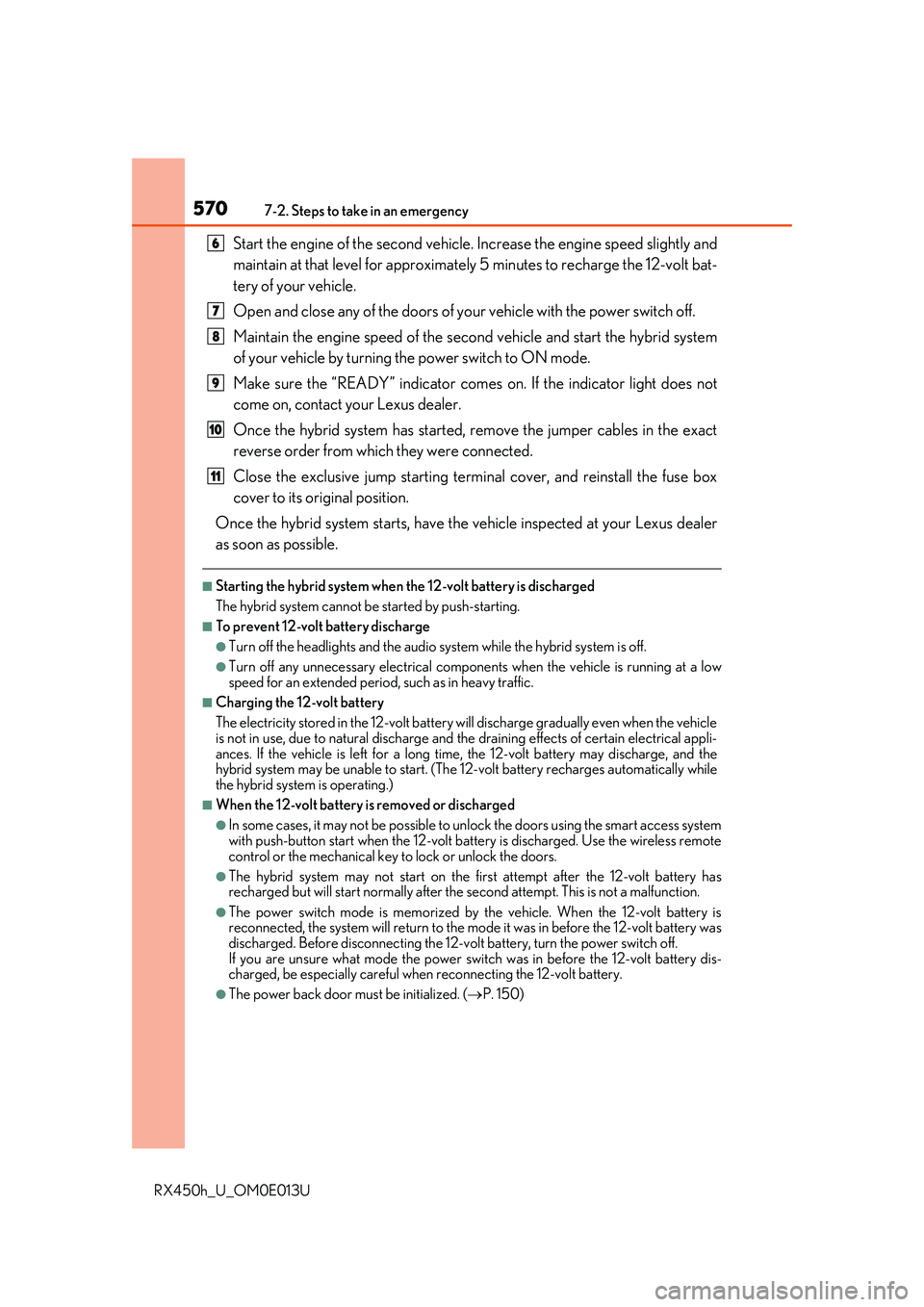

Start the engine of the second vehicle. Increase the engine speed slightly and
maintain at that level for approximatel y 5 minutes to recharge the 12-volt bat-
tery of your vehicle.
Open and close any of the doors of your vehicle with the power switch off.
Maintain the engine speed of the seco nd vehicle and start the hybrid system
of your vehicle by turning th e power switch to ON mode.
Make sure the “READY” indicator comes on. If the indicator light does not
come on, contact your Lexus dealer.
Once the hybrid system has started, remove the jumper cables in the exact
reverse order from which they were connected.
Close the exclusive jump starting termin al cover, and reinstall the fuse box
cover to its original position.
Once the hybrid system starts, have th e vehicle inspected at your Lexus dealer
as soon as possible.
■Starting the hybrid system when the 12-volt battery is discharged
The hybrid system cannot be started by push-starting.
■To prevent 12-volt battery discharge
●Turn off the headlights and the audio system while the hybrid system is off.
●Turn off any unnecessary electrical components when the vehicle is running at a low
speed for an extended period , such as in heavy traffic.
■Charging the 12-volt battery
The electricity stored in the 12-volt battery w ill discharge gradually even when the vehicle
is not in use, due to natural discharge and the draining effects of certain electrical appli-
ances. If the vehicle is left for a long time, the 12-volt battery may discharge, and the
hybrid system may be unable to start. (The 12-volt battery recharges automatically while
the hybrid system is operating.)
■When the 12-volt battery is removed or discharged
●In some cases, it may not be possible to un lock the doors using the smart access system
with push-button start when the 12-volt battery is discharged. Use the wireless remote
control or the mechanical key to lock or unlock the doors.
●The hybrid system may not start on the first attempt after the 12-volt battery has
recharged but will start normally after the second attempt. This is not a malfunction.
●The power switch mode is memorized by the vehicle. When the 12-volt battery is
reconnected, the system will retu rn to the mode it was in before the 12-volt battery was
discharged. Before disconnect ing the 12-volt battery, turn the power switch off.
If you are unsure what mode the power switch was in before the 12-volt battery dis-
charged, be especially careful when reconnecting the 12-volt battery.
●The power back door must be initialized. ( P. 150)
6
7
8
9
10
11

646Alphabetical index
RX450h_U_OM0E013U

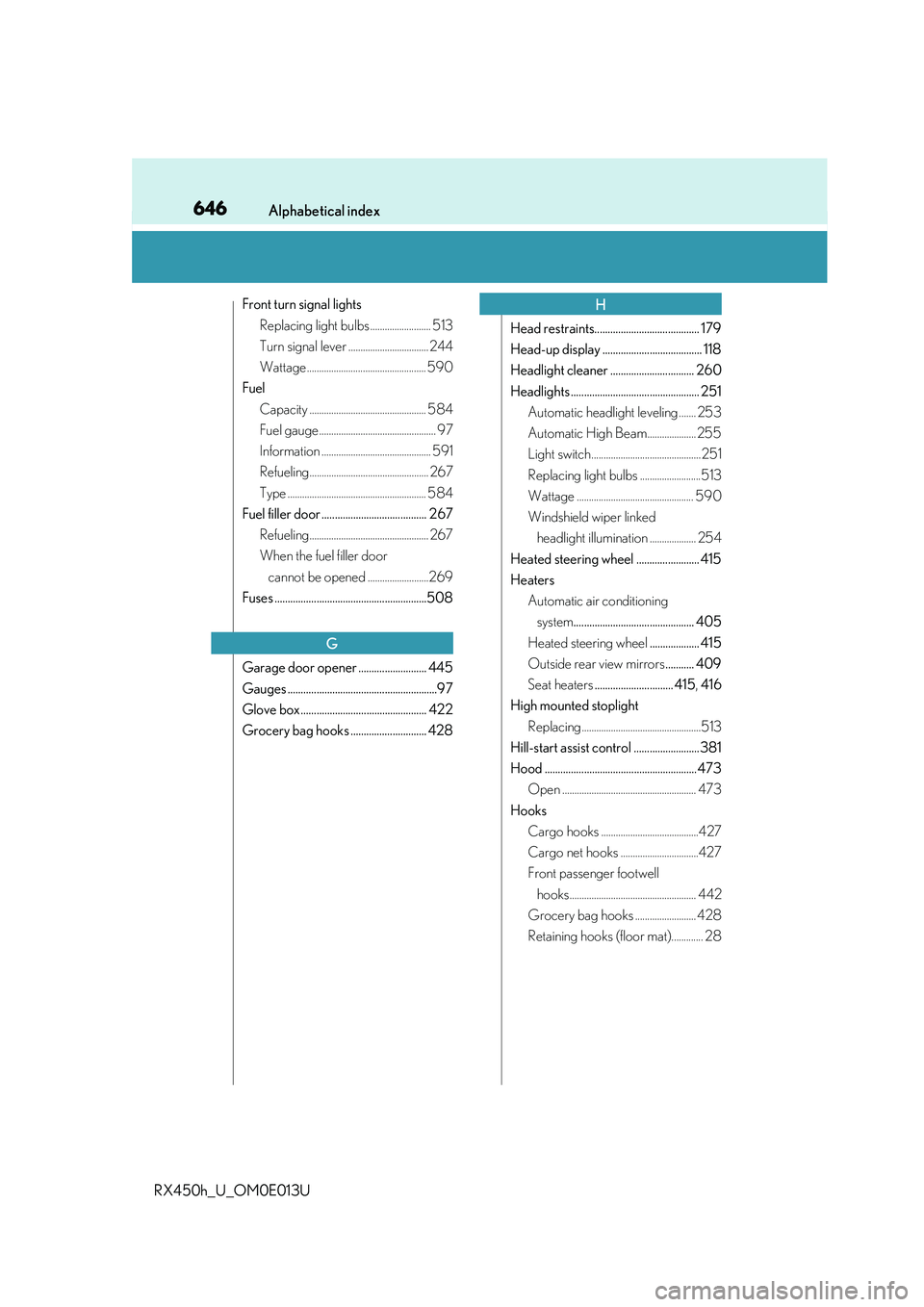

Front turn signal lightsReplacing light bulbs ......................... 513
