LEXUS RX450h 2018 Owner's Guide

311-1. For safe use
1
For safety and security
RX450h_RX450hL _U_OM48F85UWARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.●
Do not adjust the position of the driver’s seat while driving.
Doing so could cause the driver to lose control of the vehicle. ●
Do not place a cushion between the dr iver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce the effec-
tiveness of the seat be lt and head restraint.●
Do not place anything under the front seats.
Objects placed under the fr ont seats may become jammed in the seat tracks and stop
the seat from locking in plac e. This may lead to an accident and the adjustment mech-
anism may also be damaged. ●
Always observe the legal speed limi t when driving on public roads.●
When driving over long distances, take regular breaks before you start to feel tired.
Also, if you feel tired or sleepy while drivin g, do not force yourself to continue driving
and take a break immediately.

32 1-1. For safe use
RX450h_RX450hL _U_OM48F85U●
Extend the shoulder belt so that it
comes fully over the shoulder, but
does not come into contact with the
neck or slide off the shoulder. ●
Position the lap belt as low as possi-
ble over the hips. ●
Adjust the position of the seatback.
Sit up straight and well back in the
seat. ●
Do not twist the seat belt.
To fasten the seat belt, push the plate
into the buckle until a click sound is
heard.
To release the seat belt, press the
release button.
Push the seat belt shoulder anchor
down while pressing the release but-
ton.
Push the seat belt shoulder anchor
up. Move the height adjuster up and down
as needed until you hear a click.Seat belts Make sure that all occupants are wearin g their seat belts before driving the
vehicle.
Correct use of the seat belts
Fastening and releasing the seat belt
Release button1
2
Adjusting the seat belt shoulder anchor height (front seats)
Release button1
2

331-1. For safe use
1
For safety and security
RX450h_RX450hL _U_OM48F85UThe pretensioners help the seat belts to
quickly restrain the occupants by
retracting the seat belts when the vehi-
cle is subjected to certain types of
severe frontal or side collision or a vehi-
cle rollover. The pretensioners do not activate in the
event of a minor frontal impact, a minor
side impact or a rear impact. ■
Emergency locking retractor (ELR)
The retractor will lock th e belt during a sudden stop or on impact. It may also lock if you
lean forward too quickly. A slow, easy motion w ill allow the belt to ex tend so that you can
move around fully. ■
Automatic locking retractor (ALR)
When a passenger’s shoulder belt is completely extended and then retracted even
slightly, the belt is locked in that position and cannot be extended. This feature is used to
hold the child restraint system (CRS) firmly. To free the belt again, fully retract the belt
and then pull the belt out once more. ( → P. 57)■
Child seat belt usage
The seat belts of your vehicle were principally designed for persons of adult size. ●
Use a child restraint system appropriate fo r the child, until the child becomes large
enough to properly wear the vehicle’s seat belt. ( → P. 55)●
When the child becomes large enough to properly wear the vehicle’s seat belt, follow
the instructions regardin g seat belt usage. ( → P. 32)■
Replacing the belt after the pr etensioner has been activated
If the vehicle is involved in multiple collisions, the pretensioner will activate for the first
collision, but will not activate for th e second or subsequent collisions.■
Seat belt extenderSeat belt pretensioners (front seats and outboard second-row seats)
If your seat belts cannot be fastened securely
because they are not long enough, a personal-
ized seat belt extender is available from your
Lexus dealer free of charge.

34 1-1. For safe use
RX450h_RX450hL _U_OM48F85UWARNING
Observe the following precautions to reduce the risk of injury in the event of sudden
braking, sudden swerving or an accident.
Failing to do so may cause death or serious injury. ■
Wearing a seat belt ●
Ensure that all passeng ers wear a seat belt.●
Always wear a seat belt properly. ●
Each seat belt should be used by one person only. Do not use a seat belt for more
than one person at once, including children. ●
Lexus recommends that ch ildren be seated in the rear seat and always use a seat belt
and/or an appropriate child restraint system. ●
To achieve a proper seating position, do not recline the seat more than necessary. The
seat belt is most effective when the occupa nts are sitting up stra ight and well back in
the seats. ●
Do not wear the shoulder belt under your arm. ●
Always wear your seat belt low and snug across your hips.
■
Pregnant women ●
RX450hL: Do not let third-row seat passen-
gers to use second-row seat seat belts.
Obtain medical advice and wear the seat belt
in the proper way. ( → P. 32)
Women who are pregnant should position the
lap belt as low as possible over the hips in the
same manner as other occupants, extending
the shoulder belt completely over the shoulder
and avoiding belt contact with the rounding of
the abdominal area.
If the seat belt is not worn properly, not only the
pregnant woman, but also the fetus could suffer
death or serious injury as a result of sudden
braking or a collision.

351-1. For safe use
1
For safety and security
RX450h_RX450hL _U_OM48F85UWARNING ■
People suffering illness
Obtain medical advice and wear the seat belt in the proper way. ( → P. 32)■
When children are in the vehicle
→ P. 66 ■
Seat belt pretensioners ●
Do not place anything, such as a cushion, on the front passenger’s seat. Doing so will
disperse the passenger’s weight, which prevents the sensor from detecting the pas-
senger’s weight properly. As a result, the seat belt pretensioner for the front passen-
ger’s seat may not activate in the event of a collision. ●
If the pretensioner has activated, the SRS wa rning light will come on. In that case, the
seat belt cannot be used again and must be replaced at your Lexus dealer. ■
Adjustable shoulder anchor
Always make sure the shoulder belt is posi tioned across the center of your shoulder.
The belt should be kept away from your neck , but not falling off your shoulder. Failure to
do so could reduce the amount of protection in an accident and cause death or serious
injuries in the event of a sudden stop, sudden swerve or accident. ( → P. 32)■
Seat belt damage and wear ●
Do not damage the seat belts by allowing th e belt, plate, or buckle to be jammed in
the door. ●
Inspect the seat belt system periodically. Check for cuts, fraying, and loose parts. Do
not use a damaged seat belt until it is replaced. Damaged seat belts cannot protect an
occupant from death or serious injury. ●
Ensure that the belt and plate are locked and the belt is not twisted.
If the seat belt does not function correct ly, immediately contact your Lexus dealer.●
Replace the seat assembly, incl uding the belts, if your vehi cle has been involved in a
serious accident, even if there’s no obvious damage. ●
Do not attempt to install, remove, modify, disassemble or dispose of the seat belts.
Have any necessary repairs carried out by your Lexus dealer. Inappropriate handling
may lead to inco rrect operation.■
Using a seat belt extender ●
Do not wear the seat belt extender if you can fasten the seat belt without the extender. ●
Do not use the seat belt extender when in stalling a child restrain t system because the
belt will not securely hold the child restra int system, increasing the risk of death or
serious injury in the event of an accident. ●
The personalized extender may not be safe on another vehicle, when used by another
person, or at a different seating position other than the one originally intended.
NOTICE ■
When releasing a seat belt extender
When releasing the seat belt, press on the buckle release button on the extender, not
on the seat belt.
This helps prevent damage to the vehicle interior and the extender itself.

36 1-1. For safe use
RX450h_RX450hL _U_OM48F85U 
RX450h

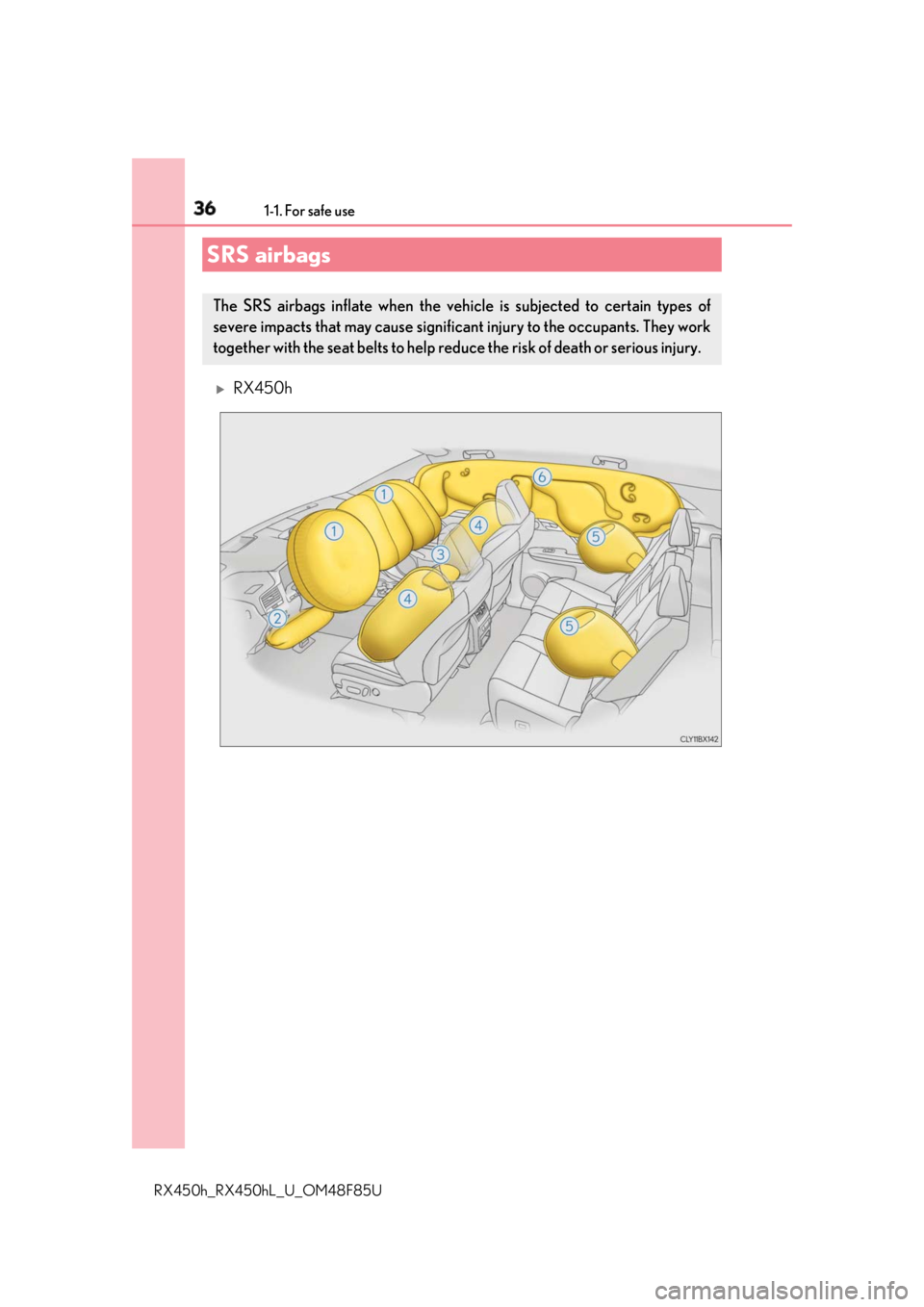

SRS airbags The SRS airbags inflate when the vehi cle is subjected to certain types of
severe impacts that may ca use significant injury to the occupants. They work
together with the seat belts to help redu ce the risk of death or serious injury.

371-1. For safe use
1
For safety and security
RX450h_RX450hL _U_OM48F85U 
RX450hL
◆ SRS front airbags
SRS driver airbag/front passenger airbag
Can help protect the head and chest of the driver and front passenger from
impact with interior components
SRS knee airbag
Can help provide driver protection
SRS seat cushion airbag
Can help restrain the front passenger.
◆ SRS side and curtain shield airbags
SRS front side airbags
Can help protect the torso of the front seat occupants
SRS rear side airbags
Can help protect the torso of o ccupants in the rear outer seats
SRS curtain shield airbags ●
Can help protect primarily the head of occupants in the outer seats ●
Can help prevent the occupants from being thrown from the vehicle in the
event of vehicle rollover 1
2
3
4
5
6

38 1-1. For safe use
RX450h_RX450hL _U_OM48F85UYour vehicle is equipped with ADVA NCED AIRBAGS designed based on the
US motor vehicle safety standards (F MVSS208). The airbag sensor assembly
(ECU) controls airbag deployment based on information obtained from the sen-
sors etc. shown in the system compon ents diagram above. This information
includes crash severity and occupant information. As the airbags deploy, a
chemical reaction in the inflators quickly fills the airbags with non-toxic gas to
help restrain the motion of the occupants.SRS airbag system components
Front passenger airbag
“AIR BAG ON” and “AIR BAG
OFF” indicator lights
Front side airbags
Curtain shield airbags
Side impact sensors (rear)
SRS warning light
Front passenger occupant classifica-
tion system (ECU and sensors)
Driver airbag
Side impact sensors (front door) Seat belt pretensioners and force
limiters
Passenger seat cushion airbag
Driver’s seat position sensor
Driver’s knee airbag
Driver’s seat belt buckle switch
Front passenger’s seat belt buckle
switch
Front impact sensors
Airbag sensor assembly
Rear side airbags1
2
3
4
5
6
7
8
9 10
11
12
13
14
15
16
17
18

391-1. For safe use
1
For safety and security
RX450h_RX450hL _U_OM48F85UWARNING ■
SRS airbag precautions
Observe the following precaution s regarding the SRS airbags.
Failure to do so may cause death or serious injury. ●
The driver and all passengers in the vehicle must wear their seat belts properly.
The SRS airbags are supplemental devices to be us ed with the seat belts.●
The SRS driver airbag deploys with considerable force, and can cause death or seri-
ous injury especially if the driver is very close to the airbag. The National Highway
Traffic Safety Administration (NHTSA) advises:
Since the risk zone for the driver’s airbag is the first 2 - 3 in. (50 - 75 mm) of inflation,
placing yourself 10 in. (250 mm) from your driver airbag provides you with a clear
margin of safety. This distance is measured from the center of the steering wheel to
your breastbone. If you sit less than 10 in . (250 mm) away now, you can change your
driving position in several ways:
• Move your seat to the rear as far as you can while still reaching the pedals com-
fortably.
• Slightly recline the back of the seat.
Although vehicle designs vary, many drivers can achieve the 10 in. (250 mm) dis-
tance, even with the driver seat all the wa y forward, simply by reclining the back of
the seat somewhat. If reclining the back of your seat makes it ha rd to see the road,
raise yourself by using a firm , non-slippery cushion, or ra ise the seat if your vehicle
has that feature.
• If your steering wheel is ad justable, tilt it do wnward. This points the airbag toward
your chest instead of your head and neck.
The seat should be adjusted as recommended by NHTSA ab ove, while still maintain-
ing control of the foot pedals, steering whee l, and your view of the instrument panel
controls.
●
The SRS front passenger airbag also deploy s with considerable force, and can cause
death or serious injury especially if the fron t passenger is very close to the airbag. The
front passenger seat should be as far from the airbag as possible with the seatback
adjusted, so the front passenger sits upright. ●
If the seat belt extender has been connected
to the front seat belt buckles but the seat belt
extender has not also been fastened to the
latch plate of the seat belt, the SRS front air-
bags will judge that the driver and front pas-
senger are wearing the seat belt even though
the seat belt has not been connected. In this
case, the SRS front airbags may not activate
correctly in a collision, resulting in death or
serious injury in the event of a collision. Be
sure to wear the seat belt with the seat belt
extender.

40 1-1. For safe use
RX450h_RX450hL _U_OM48F85UWARNING ■
SRS airbag precautions ●
Improperly seated and/or restrained infant s and children can be killed or seriously
injured by a deploying airbag. An infant or child who is too small to use a seat belt
should be properly secured using a chil d restraint system. Lexus strongly recom-
mends that all infants and children be placed in the rear seats of the vehicle and prop-
erly restrained. The rear se ats are safer for infants an d children than the front
passenger seat. ( → P. 55)●
Do not sit on the edge of the seat or lean
against the dashboard. ●
Do not allow a child to stand in front of the
SRS front passenger airbag unit or sit on the
knees of a front passenger. ●
Do not allow the front seat occupants to hold
items on their knees. ●
Do not lean against the door, the roof side rail
or the front, side and rear pillars.
●
Do not allow anyone to kneel on the passen-
ger seat toward the door or put their head or
hands outside the vehicle.
