LEXUS RX450h 2018 Owners Manual
Manufacturer: LEXUS, Model Year: 2018, Model line: RX450h, Model: LEXUS RX450h 2018Pages: 792, PDF Size: 12.5 MB
Page 501 of 792

5016-1. Basic operation of the Remote Touch screen
6
Interior features
RX450h_RX450hL _U_OM48F85U“HOME” button Press this button to display the home screen.
“ ∧ • ∨ ” buttonPress this button to change map scale and scroll through lists.
Back button Press to display the previous screen.
“MENU” button Press to display th e “Menu” screen. ( → P. 503)
Remote Touch knob Move in the desired direction to select a function, letter and screen button.
Press the knob to enter the selected function, letter or screen button.
“ENTER” button Press to enter the selected func tion, letter or screen button.
“MAP” button Press this button to display the vehicle’s current position.
Select: Move the Remote Touch
knob in the desired direction.
Enter: Push the Remote Touch knob
or an “ENTER” button.Remote Touch operation 1
2
3
4
5
6
7
1
2
Page 502 of 792

502 6-1. Basic operation of the Remote Touch screen
RX450h_RX450hL _U_OM48F85U■
Screen display during low temperatures
When the ambient temperature is extremely low, screen response may be delayed even
if the Remote Touch is operated.
WARNING ■
When using the Remote Touch ●
Do not allow fingers, fingernails or hair to become caught in the Remote Touch as this
may cause an injury. ●
Be careful when selecting the Remote Touch in extreme temperatures as it may
become very hot or cold due to the temperature inside the vehicle.
NOTICE ■
To prevent damage to the Remote Touch ●
Do not allow the Remote Touch to come into contact with food, liquid, stickers or lit
cigarettes as doing so may cause it to change color, emit a strange odor or stop func-
tioning. ●
Do not subject the Remote Touch to excessive pressure or strong impact as the knob
may bend or break off. ●
Do not allow coins, contact lenses or ot her such items to be come caught in the
Remote Touch as this may cause it to stop functioning. ●
Items of clothing may rip if they become caught on the Remote Touch knob. ●
If your hand or any object is on the Remo te Touch knob when th e power switch is in
ACCESSORY mode, the Remote Touch knob may not operate properly.
Page 503 of 792

5036-1. Basic operation of the Remote Touch screen
6
Interior features

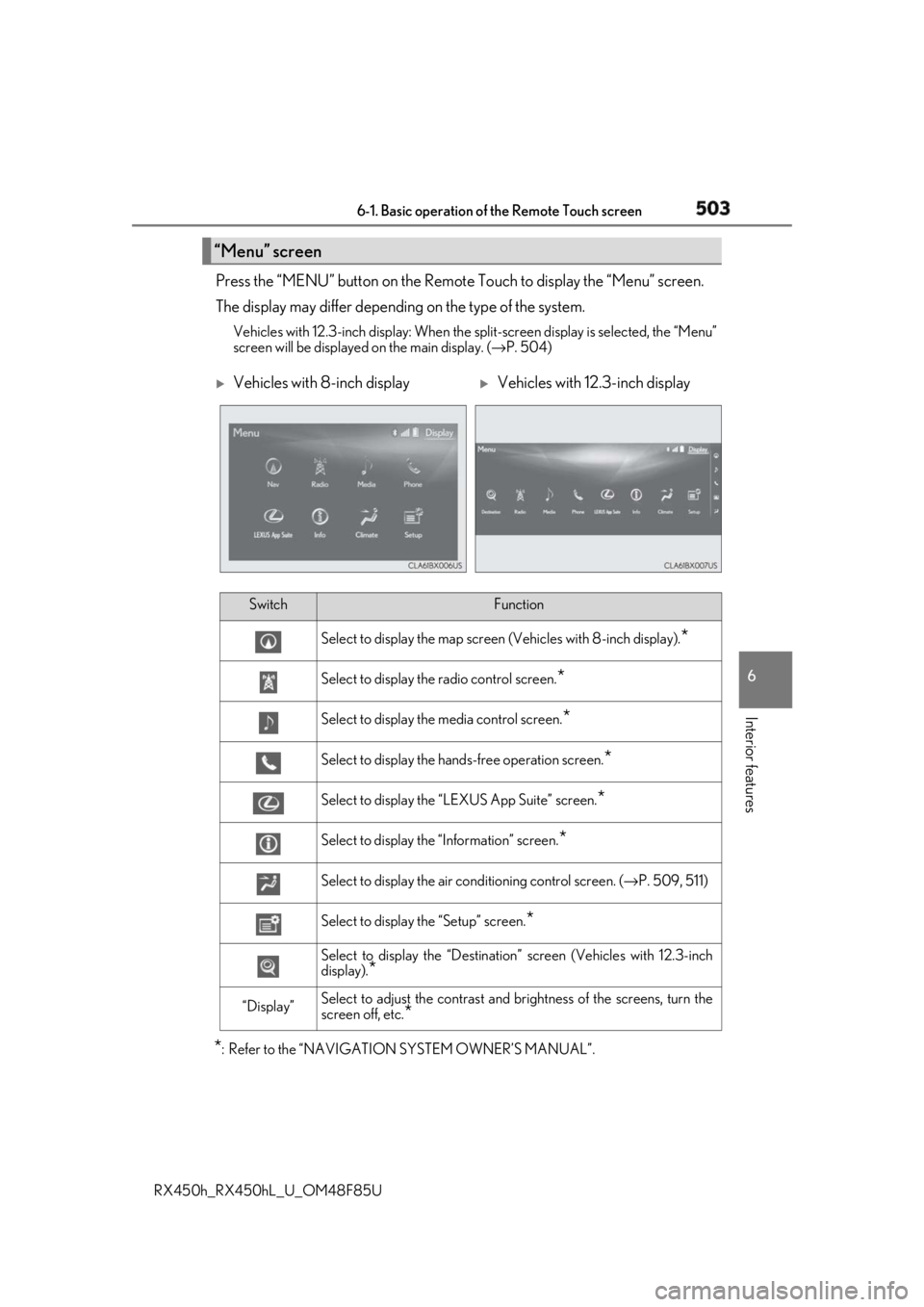

RX450h_RX450hL _U_OM48F85UPress the “MENU” button on the Remote Touch to display the “Menu” screen.
The display may differ depending on the type of the system. Vehicles with 12.3-inch display: When the split-screen display is selected, the “Menu”
screen will be displayed on the main display. ( → P. 504)
* : Refer to the “NAVIGATION SYSTEM OWNER’S MANUAL”.“Menu” screen
Vehicles with 8-inch display
Vehicles with 12.3-inch display
Switch Function
Select to display the map screen (Vehicles with 8- inch display).
*Select to display the radio control screen.
*Select to display the media control screen.
*Select to display the hand s-free operation screen.
*Select to display the “LEXUS App Suite” screen.
*Select to display the “Information” screen.
*Select to display the air conditioning control screen. ( → P. 509, 511)
Select to display the “Setup” screen.
*Select to display the “Destination ” screen (Vehicle s with 12.3-inch
display).
*“Display” Select to adjust the contrast and brightness of the screens, turn the
screen off, etc.
*
Page 504 of 792

504 6-1. Basic operation of the Remote Touch screen
RX450h_RX450hL _U_OM48F85U■
Full screen display
The following functions can be displayed full screen:
• Initial screen
•“Menu” screen ( → P. 503)
• Map screen
**: Refer to the “NAVIGATION SYSTEM OWNER’S MANUAL”.■
Split-screen display
Different information can be displayed on the left and right of the screen. For
example, audio screen can be displa yed and operated while the fuel con-
sumption information screen is being disp layed. The large screen on the left of
the display is called the main display, and the small screen to the right is called
the side display.12.3-inch display ∗
∗ : If equipped12.3-inch display overview
Page 505 of 792

5056-1. Basic operation of the Remote Touch screen
6
Interior features
RX450h_RX450hL _U_OM48F85U■
Selecting the operation screen
When selecting the main display, move the Remote Touch knob to the left.
When selecting the side display, move the Remote Touch knob to the right. ■
Main display
For details about the functions and operat ion of the main display, refer to the
respective section and “NAVIG ATION SYSTEM OWNER’S MANUAL”.■
Side display
Basic screens
To change the screen displayed on the side display, use the screen buttons on
the right side of the display.
Navigation system
*Audio
* Phone
* Vehicle information ( → P. 129)
Air conditioning system
( → P. 510)
Interruption screens
Each of the following screens is displayed automatically in accordance with
conditions.
• Intuitive parking assist ( → P. 333)
•Phone
*• Destination Assist
*•Driving mode ( → P. 379)
* : Refer to the “NAVIGATION SYSTEM OWNER’S MANUAL”.Split-screen display operation
1
2
3
4
5
Page 506 of 792

506
RX450h_RX450hL _U_OM48F85U6-2. Using the air conditio ning system and defogger
Front automatic air conditioning system ( → P. 513)
Set the air conditioning system to automatic mode. The temperature for the driver’s seat and front passenger’s seat can be adjusted indi-
vidually.
Seat heaters and ventilators ( → P. 526, 527)
Select “AUTO” mode on each seat. Seat heater or ventilation is automatically selected according to the set temperature
of the air conditioning system, outside temperature, etc.Lexus Climate Concierge The climate control seats are automatica lly controlled according to the set
temperature of the air conditioning sy stem, outside temperature, cabin tem-
perature, etc. Lexus Climate Concierge allows a comfortable condition to be
maintained without adjusting each system.
1
2
Page 507 of 792

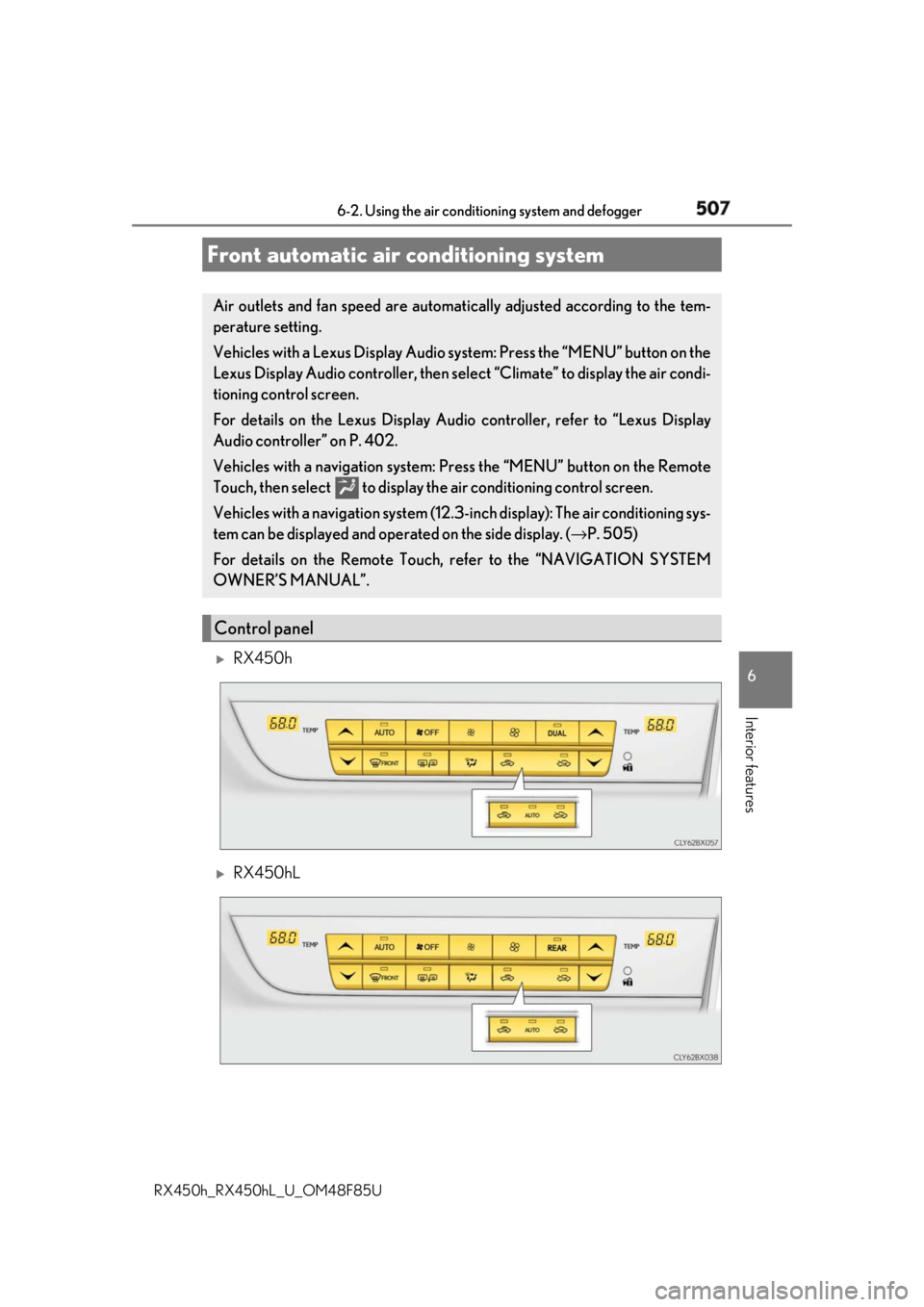

5076-2. Using the air conditioning system and defogger
RX450h_RX450hL _U_OM48F85U 6
Interior features
RX450h
RX450hLFront automatic air conditioning system Air outlets and fan speed are automati cally adjusted according to the tem-
perature setting.
Vehicles with a Lexus Display Audio sy stem: Press the “MENU” button on the
Lexus Display Audio controller, then sele ct “Climate” to display the air condi-
tioning control screen.
For details on the Lexus Display Audio controller, refer to “Lexus Display
Audio controller” on P. 402.
Vehicles with a navigation system: Press the “MENU” button on the Remote
Touch, then select to display th e air conditioning control screen.
Vehicles with a navigation system (12.3 -inch display): The air conditioning sys-
tem can be displayed and operat ed on the side display. ( → P. 505)
For details on the Remote Touch, refer to the “NAVIGATION SYSTEM
OWNER’S MANUAL”.
Control panel
Page 508 of 792

508 6-2. Using the air conditio ning system and defogger
RX450h_RX450hL _U_OM48F85U■
Adjusting the temperature setting
Press to increase the temperature and to decrease the tem-
perature. ■
Adjusting the fan speed setting
Press to increase the fan speed and to decrease the fan speed.
Press the “OFF” button to turn the fan off. ■
Change the airflow mode
To change the air outlets, press .
The air outlets used are switched
each time the button is pressed.
Air flows to the upper body.
Air flows to the upper body and
feet.
Air flows to the feet.
Air flows to the feet and the
windshield defogger operates.
■
Other functions ●
Switching between outside air and recirculated air modes ( → P. 516)●
Defogging the windshield ( → P. 516)●
Defogging the rear window and outside rear view mirrors ( → P. 516)1
2
3
4
Page 509 of 792

5096-2. Using the air conditioning system and defogger
RX450h_RX450hL _U_OM48F85U 6
Interior features
Lexus Display Audio screen
Adjust the left-hand side tempera-
ture setting
Adjust the fan speed setting
Select to set auto mode on/off
Select to set eco mode on/off
( → P. 519)
Select to set cooling and dehumidifi-
cation function on/off If the indicator is turned off, the system will blow ambi ent temperature air
or heated air.
Display the option control screen ( → P. 510)
Select the air flow mode
Adjust the right-hand side temperature setting
Navigation system screen
Adjust the left-hand side tempera-
ture setting
Adjust the fan speed setting
Select the air flow mode
Adjust the right-hand side tempera-
ture setting
Display the option control screen
( → P. 510)
Select to set automatic mode on/off
Select to set cooling and de humidification function on/offIf the indicator is turned off, the system will blow ambient temperature air
or heated air.
Select to set eco mode on/off ( → P. 519)Control screen (RX450h) 1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
Page 510 of 792

510 6-2. Using the air conditio ning system and defogger
RX450h_RX450hL _U_OM48F85U■
Option control screen
Select on the air conditioning control screen to display the option
control screen. The functions can be switched on and off.
Prevent ice from building up on the windshield and wiper blades (if
equipped) ( → P. 516)
Select to set S-FLOW mode ( → P. 514)■
Side display operation screen (Vehicle s with a navigation system [12.3-inch
display])
Select the air flow mode
Adjust the left-hand side tem-
perature setting
Adjust the fan speed setting
Adjust the right-hand side tem-
perature setting
Select to set auto mode on/off
Select to set cooling and dehu-
midification function on/off If the indicator is turned off, the system will blow ambient temperature air
or heated air.
Lexus Display Audio screen
Navigation system screen
1
2
1
2
3
4
5
6
