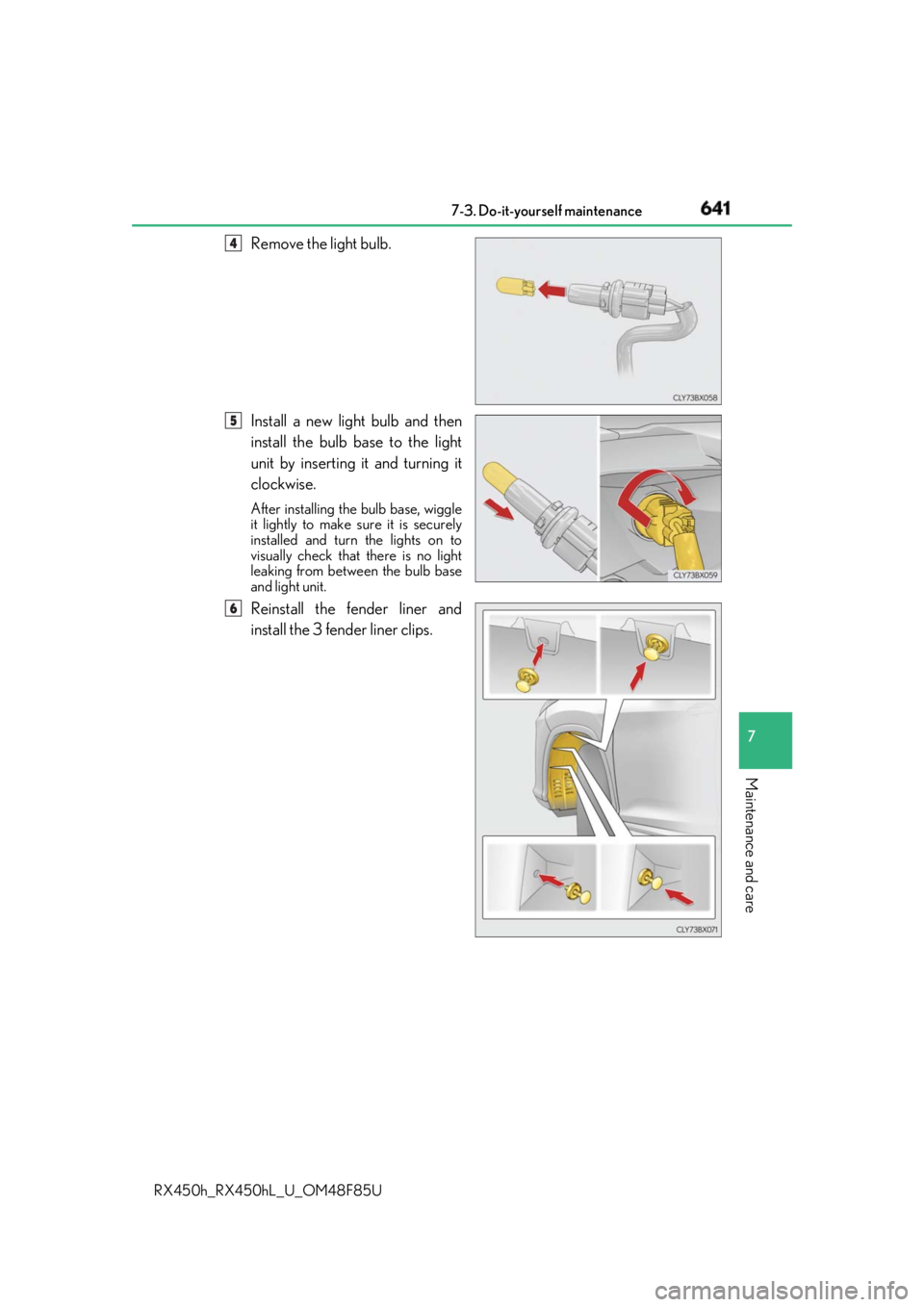

LEXUS RX450h 2018 Owners Manual

6417-3. Do-it-yourself maintenance
7
Maintenance and care

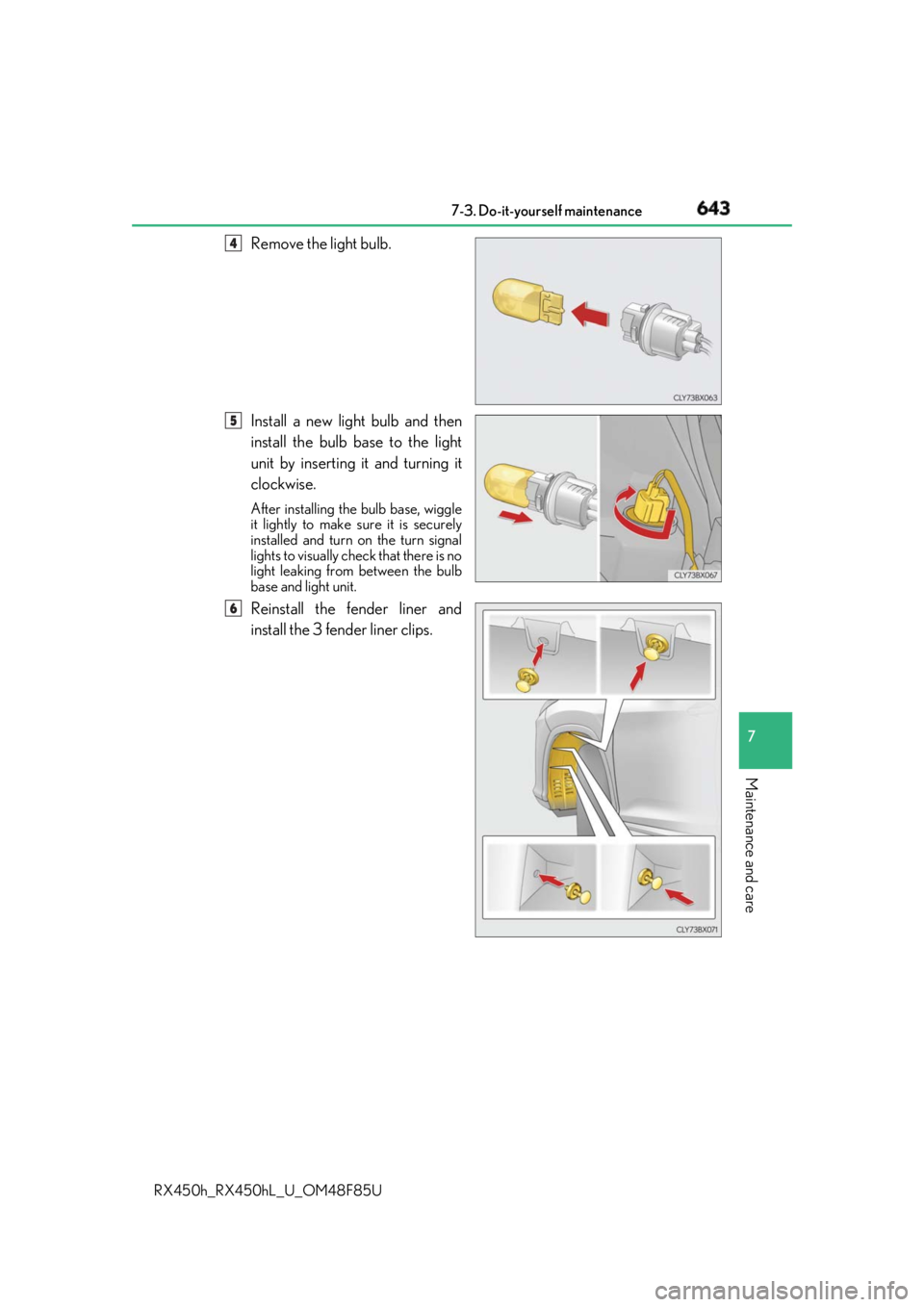

RX450h_RX450hL _U_OM48F85URemove the light bulb.
Install a new light bulb and then
install the bulb base to the light
unit by inserting it and turning it
clockwise. After installing th e bulb base, wiggle
it lightly to make sure it is securely
installed and turn the lights on to
visually check that there is no light
leaking from betw een the bulb base
and light unit.
Reinstall the fender liner and
install the 3 fender liner clips. 4
5
6

642 7-3. Do-it-yourself maintenance
RX450h_RX450hL _U_OM48F85U■
Front turn signal lights (vehic les with single-beam headlights)
To ensure enough space to per-
form work, turn the steering
wheel to rotate the front wheel
away from the bulb to be
replaced.
Remove the 3 fender liner clips. Turn the steering wheel to the left
when replacing the right side light
bulb, and turn the steering wheel to
the right when replacing the left side
light bulb.
When removing a fender liner clip,
use a flathead screwdriver to pry the
center portion out and then remove
the whole clip.
Pull back the fender liner until the
connector is visible.
Partially remove the fender liner
and turn the bulb base counter-
clockwise and remove it. 1
8 2
3

6437-3. Do-it-yourself maintenance
7
Maintenance and care
RX450h_RX450hL _U_OM48F85URemove the light bulb.
Install a new light bulb and then
install the bulb base to the light
unit by inserting it and turning it
clockwise. After installing th e bulb base, wiggle
it lightly to make sure it is securely
installed and turn on the turn signal
lights to visually check that there is no
light leaking from between the bulb
base and light unit.
Reinstall the fender liner and
install the 3 fender liner clips. 4
5
6

644 7-3. Do-it-yourself maintenance
RX450h_RX450hL _U_OM48F85U■
Rear turn signal lights (vehic les with single-beam headlights)

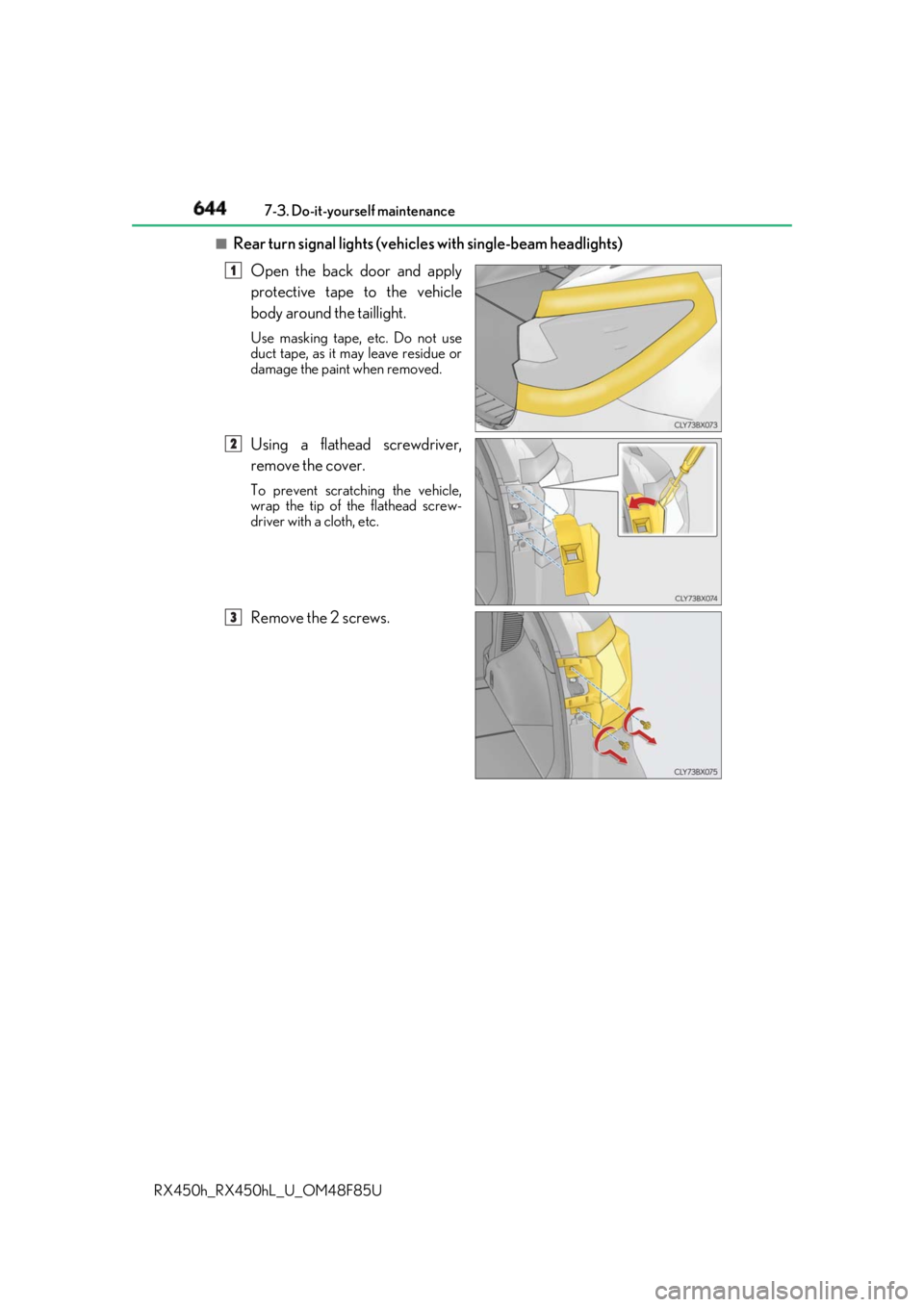

Open the back door and apply
protective tape to the vehicle
body around the taillight. Use masking tape, etc. Do not use
duct tape, as it may leave residue or
damage the paint when removed.
Using a flathead screwdriver,
remove the cover. To prevent scratching the vehicle,
wrap the tip of the flathead screw-
driver with a cloth, etc.
Remove the 2 screws. 1
2
3

6457-3. Do-it-yourself maintenance
7
Maintenance and care
RX450h_RX450hL _U_OM48F85URemove the taillight unit.
Attach 2 long pieces of mask-
ing tape to the taillight unit and
fold the excess in half.
Hold the folded portion and
pull it toward the rear of the
vehicle to remove the light unit.
Turn the bulb base counterclock-
wise and remove it.
Remove the light bulb. 4
1
2
5
6

646 7-3. Do-it-yourself maintenance

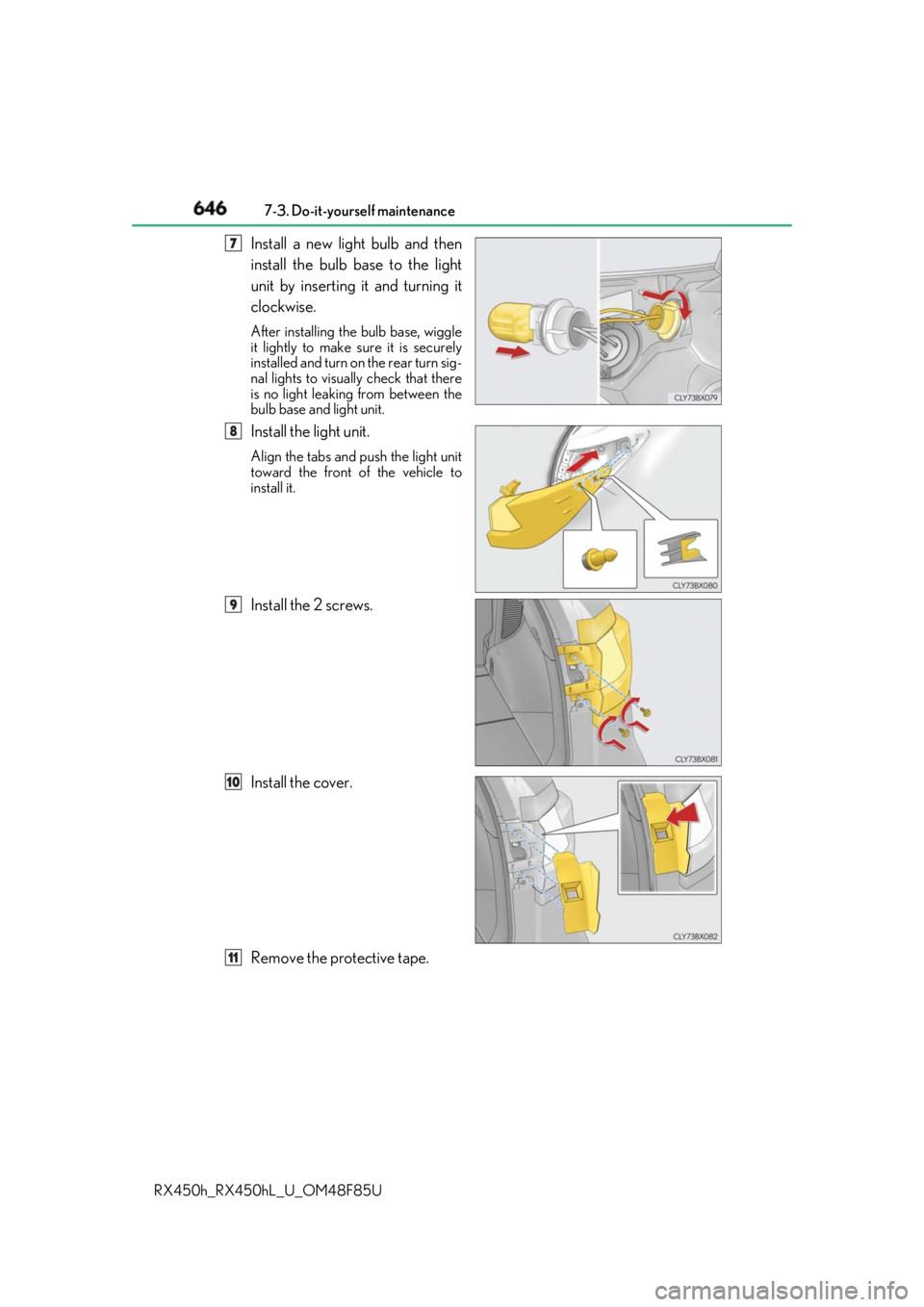

RX450h_RX450hL _U_OM48F85UInstall a new light bulb and then
install the bulb base to the light
unit by inserting it and turning it
clockwise. After installing th e bulb base, wiggle
it lightly to make sure it is securely
installed and turn on the rear turn sig-
nal lights to visually check that there
is no light leaking from between the
bulb base and light unit.
Install the light unit. Align the tabs and push the light unit
toward the front of the vehicle to
install it.
Install the 2 screws.
Install the cover.
Remove the protective tape. 47
8
9
10
11

6477-3. Do-it-yourself maintenance
7
Maintenance and care
RX450h_RX450hL _U_OM48F85U■
Back-up lights

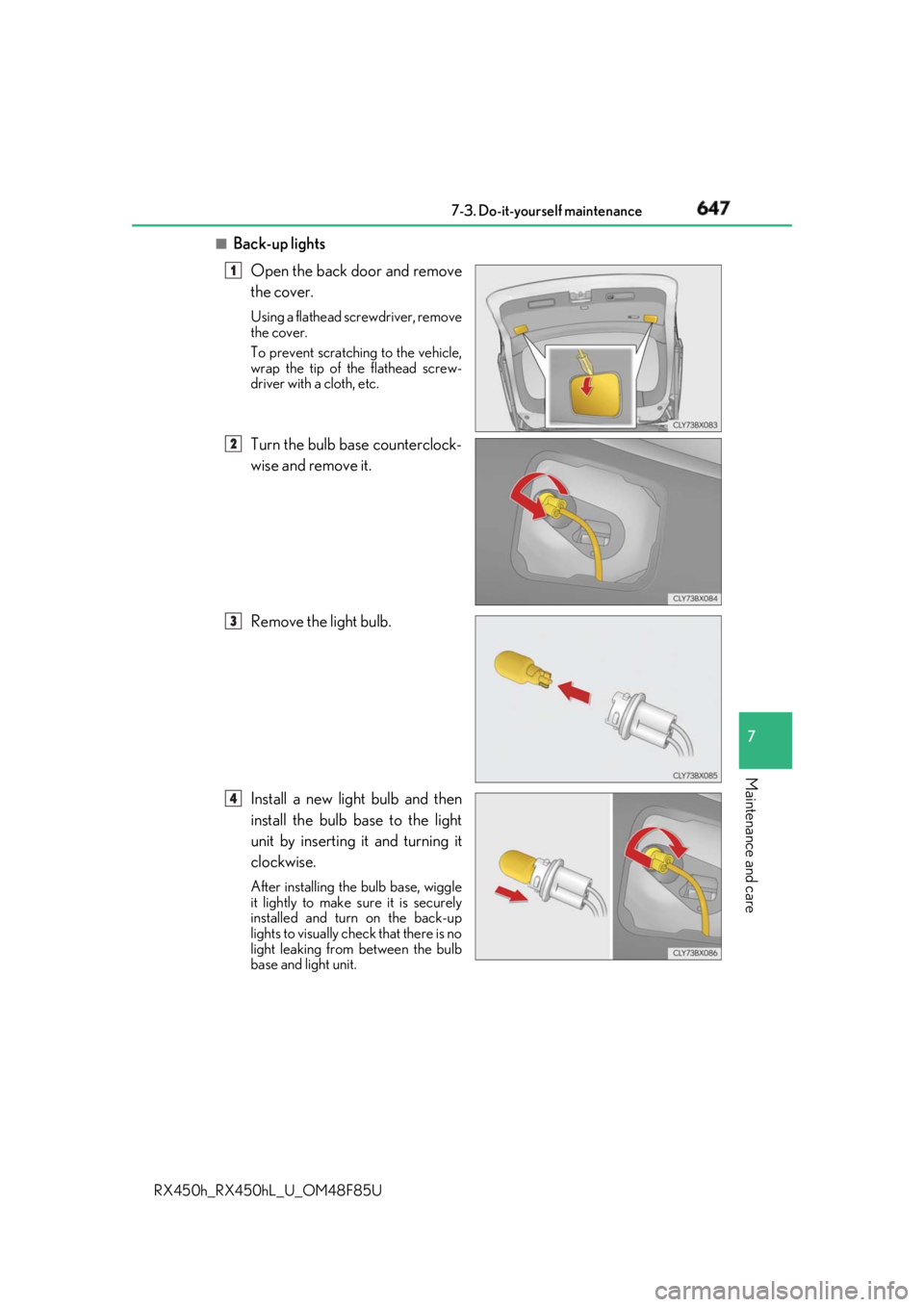

Open the back door and remove
the cover. Using a flathead screwdriver, remove
the cover.
To prevent scratching to the vehicle,
wrap the tip of the flathead screw-
driver with a cloth, etc.
Turn the bulb base counterclock-
wise and remove it.
Remove the light bulb.
Install a new light bulb and then
install the bulb base to the light
unit by inserting it and turning it
clockwise. After installing th e bulb base, wiggle
it lightly to make sure it is securely
installed and turn on the back-up
lights to visually check that there is no
light leaking from between the bulb
base and light unit. 1
2
3
4

648 7-3. Do-it-yourself maintenance
RX450h_RX450hL _U_OM48F85UInstall the cover. Align the tabs of the cover with the
grooves and install the cover.
■
Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by your Lexus
dealer. ●
Headlight low beams ●
Headlight high beams ●
Front turn signal lights (vehic les with triple-beam headlights)●
Parking lights and daytime running lights ●
Fog lights ●
Cornering lights (if equipped) ●
Front side marker lights (vehicles with triple-beam headlights) ●
Side turn signal lights ●
Stop/tail lights ●
Rear turn signal light (vehicles with triple-beam headlights) ●
Rear side marker lights ●
High mounted stoplight ●
License plate lights ●
Outer foot lights 5

6497-3. Do-it-yourself maintenance
7
Maintenance and care
RX450h_RX450hL _U_OM48F85U■
LED lights
The headlight low beams, headlight high beams, front turn signal lights (vehicles with tri-
ple-beam headlights), parking lights and da ytime running lights, fog lights, cornering
lights (if equipped), front side marker lights (vehicles with triple-b eam headlights), side
turn signal lights, stop/tail lights, rear turn signal light (vehicles with triple-beam head-
lights), rear side marker lights, high mounted stoplight, license plate lights, and outer foot
lights consist of a number of LEDs. If any of the LEDs has burned out, take your vehicle to
your Lexus dealer to have the light replaced. ■
Condensation build-up on the inside of a lens
Temporary condensation build-up on the inside of the headlight lens does not indicate a
malfunction. Contact your Lexus dealer for mo re information in the following situations:●
Large drops of water have built up on the inside of a lens. ●
Water has built up inside a headlight. ■
When replacing light bulbs
→ P. 634
WARNING ■
To prevent injury
Before performing any light bulb replacement procedure, be sure to turn the power
switch off. Failure to do so may result in burns from hot components or a part of your
body may get caught on an operating co mponent, possibly causing serious injury.■
Replacing light bulbs ●
Turn off the lights. Do not attempt to replac e the bulb immediately after turning off the
lights.
The bulbs become very hot and may cause burns. ●
Do not touch the glass portion of the light bu lb with bare hands. When it is unavoid-
able to hold the glass portion, use and hold with a clean dry cloth to avoid getting
moisture and oils on the bulb.
Also, if the bulb is sc ratched or dropped, it may blow out or crack.●
Fully install light bulbs and any parts used to secure them. Failure to do so may result
in heat damage, fire, or water entering th e headlight unit. This may damage the head-
lights or cause condensation to build up on the lens.●
Do not attempt to repair or disassemble th e light bulbs, connector s, electric circuits
or component parts.
Doing so may result in death or se rious injury due to electric shock.■
To prevent damage or fire ●
Make sure bulbs are fully seated and locked. ●
Check the wattage of the bulb before installing to prevent heat damage.

650 7-3. Do-it-yourself maintenance
