The multi-information display presents the driver with a variety of driving-related
data, such as the current outside temperature. The multi-information display can
also be used to change the display settings and other settings.

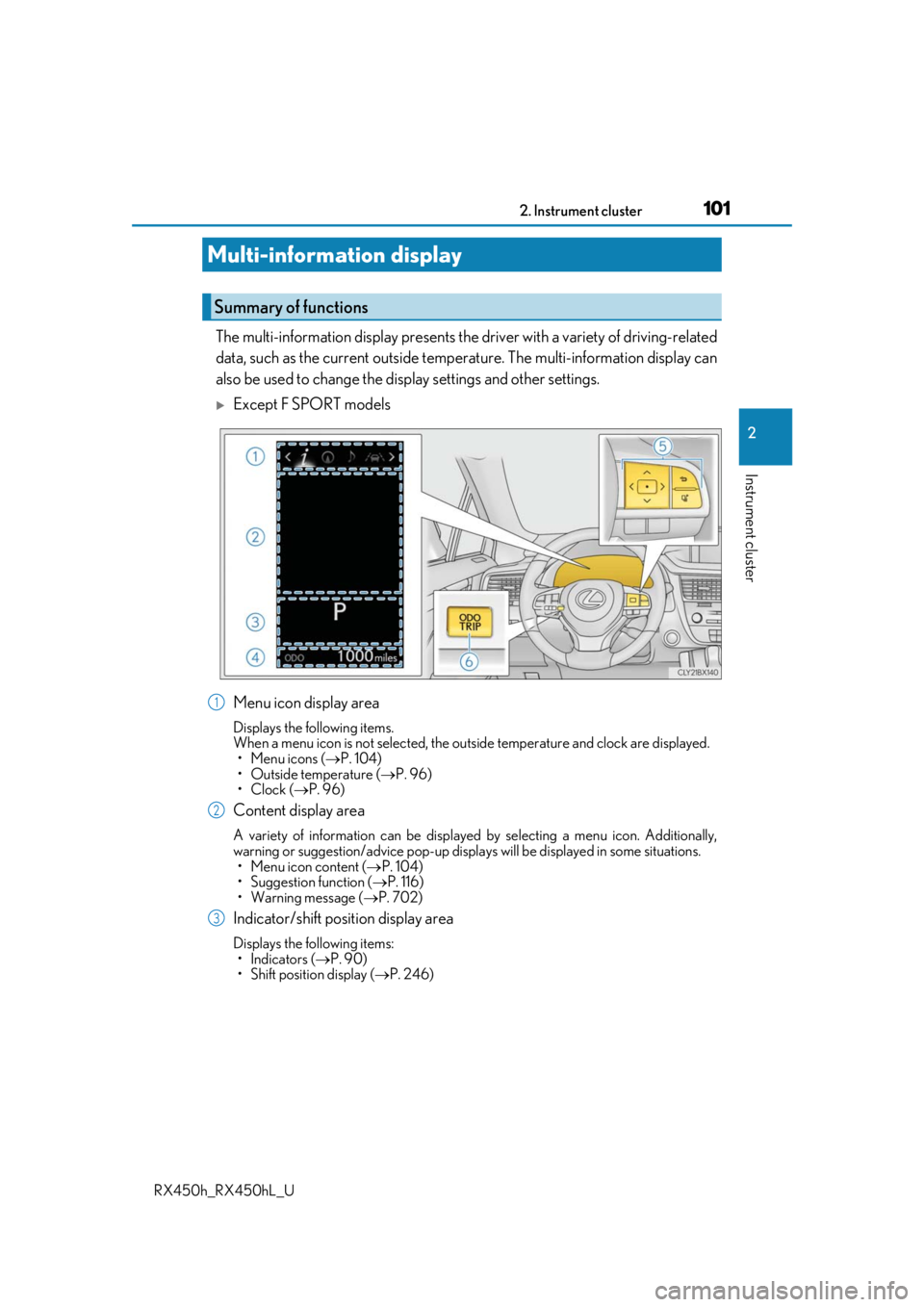

Except F SPORT models
Menu icon display area
Displays the following items.
When a menu icon is not selected, the outside temperature and clock are displayed. •Menu icons ( P. 104)
• Outside temperature ( P. 96)
•Clock ( P. 96)
Content display area
A variety of information can be displayed by selecting a menu icon. Additionally,
warning or suggestion/advice pop-up displa ys will be displayed in some situations.
• Menu icon content ( P. 104)
• Suggestion function ( P. 116)
• Warning message ( P. 702)
Indicator/shift position display area
Displays the following items:
•Indicators ( P. 90)
• Shift position display ( P. 246)
Multi-information display
Summary of functions
1
2
3

1022. Instrument cluster
RX450h_RX450hL_U
Odometer/trip meter display area ( P. 115)
Displays the following items:
• Odometer/trip meter
• Distance until next engine oil change
Meter control switches ( P. 103)
“ODO/TRIP” switch ( P. 104)

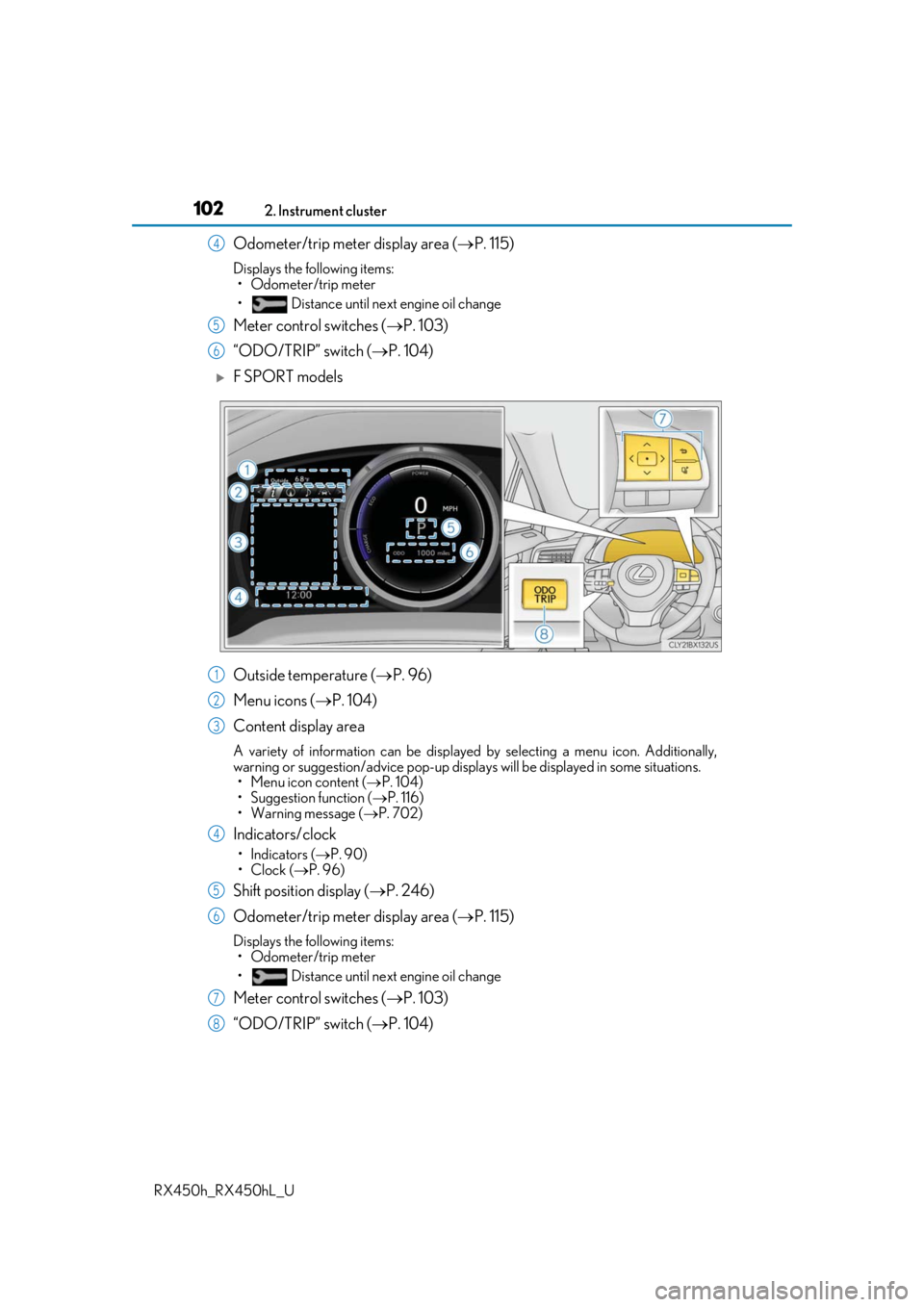

F SPORT models
Outside temperature ( P. 96)
Menu icons ( P. 104)
Content display area
A variety of information can be displayed by selecting a menu icon. Additionally,
warning or suggestion/advice pop-up displa ys will be displayed in some situations.
• Menu icon content ( P. 104)
• Suggestion function ( P. 116)
• Warning message ( P. 702)
Indicators/clock
•Indicators ( P. 90)
•Clock ( P. 96)
Shift position display ( P. 246)
Odometer/trip meter display area ( P. 115)
Displays the following items:
• Odometer/trip meter
• Distance until next engine oil change
Meter control switches ( P. 103)
“ODO/TRIP” switch ( P. 104)
4
5
6
1
2
3
4
5
6
7
8

1032. Instrument cluster
2
Instrument cluster
RX450h_RX450hL_U
◆Using the content display area
The content display area is operated using the meter control switches. : Select menu icons
: Change displayed con-tent, scroll up/down the
screen and move the
cursor
Press: Enter/Set
Press and hold: Reset
Return to the previous screen
Pressing and holding the swit ch will display the first screen of the selected menu
icon.
Press: Display the top screen
Press and hold: Register current screen as the top screen
■Registering a top screen
The displayed top screen can be chan ged to a registered screen of your
choice.
To register a screen as the top screen, display the desired screen and press
and hold .
• A message asking to confirm if registrati on is desired will be displayed. If the
selected screen canno t be registered, a registration failure message will be dis-
played.
• When no screen has been registered, the drive information screen will be dis- played.
■Resetting drive information
To reset the average fuel economy (aft er reset)/average vehicle speed (after
reset)/elapsed time (after reset) that are displayed on , display the desired
item and press and hold .
If both of the displayed items are resettable, a messa ge will be displayed asking
which item(s) to reset.
Using the multi-information display
1
2
3
4

1042. Instrument cluster
RX450h_RX450hL_U
◆Using the odometer/trip meter display area
Items in this area are operated using the “ODO/TRIP” switch.
Press: Change displayed item
Each time the switch is pressed, the
displayed item will be changed.
Press and hold: Reset
Display the desired trip meter and
press and hold the switch to reset the
trip meter.

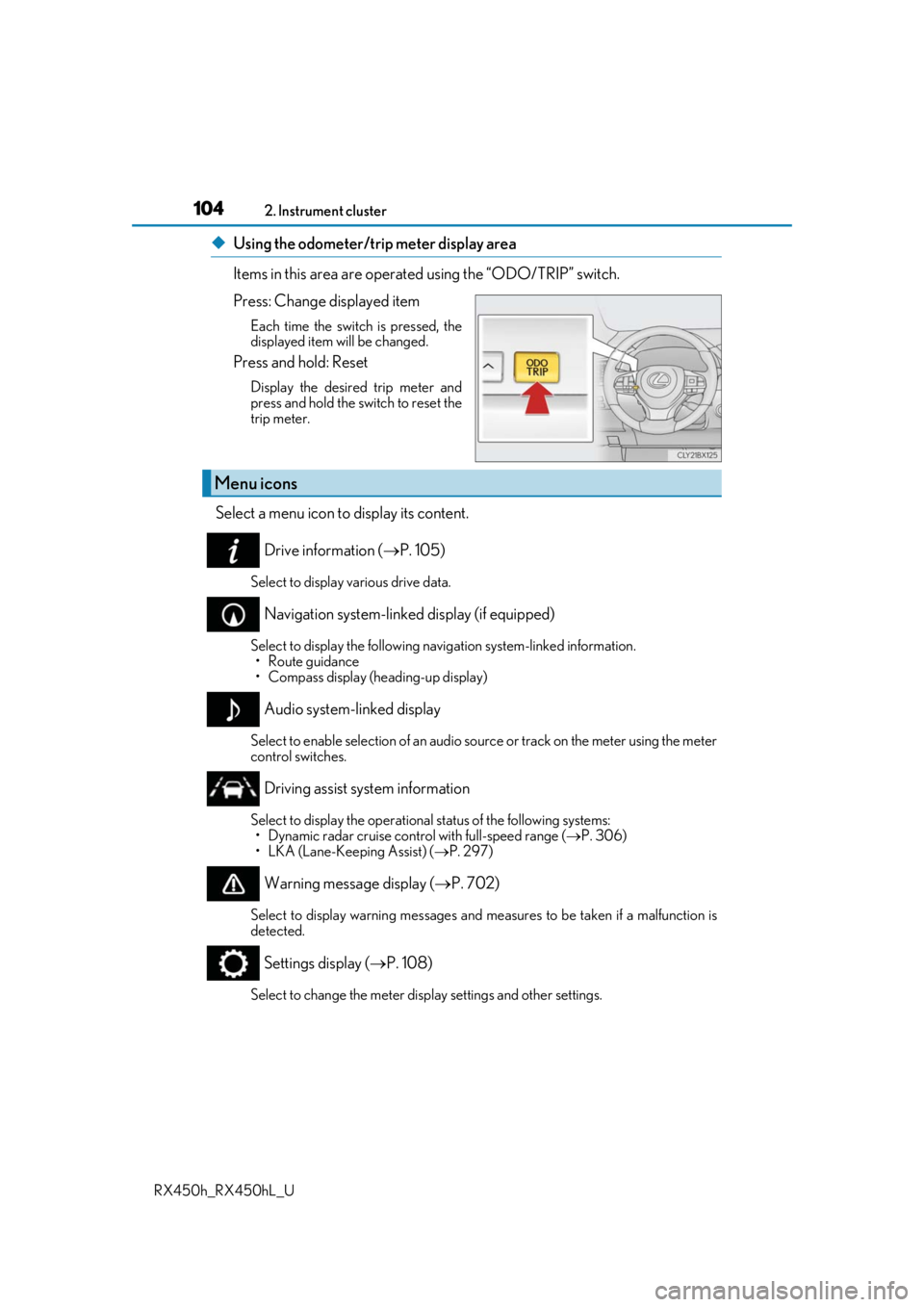

Select a menu icon to display its content.
Drive information ( P. 105)
Select to display various drive data.
Navigation system-linked display (if equipped)
Select to display the following na vigation system-linked information.
•Route guidance
• Compass display (heading-up display)
Audio system-linked display
Select to enable selection of an audio source or track on the meter using the meter
control switches.
Driving assist system information
Select to display the operational status of the following systems: • Dynamic radar cruise control with full-speed range ( P. 306)
• LKA (Lane-Keeping Assist) ( P. 297)
Warning message display ( P. 702)
Select to display warning messages and me asures to be taken if a malfunction is
detected.
Settings display ( P. 108)
Select to change the meter display settings and other settings.
Menu icons

1052. Instrument cluster
2
Instrument cluster
RX450h_RX450hL_U

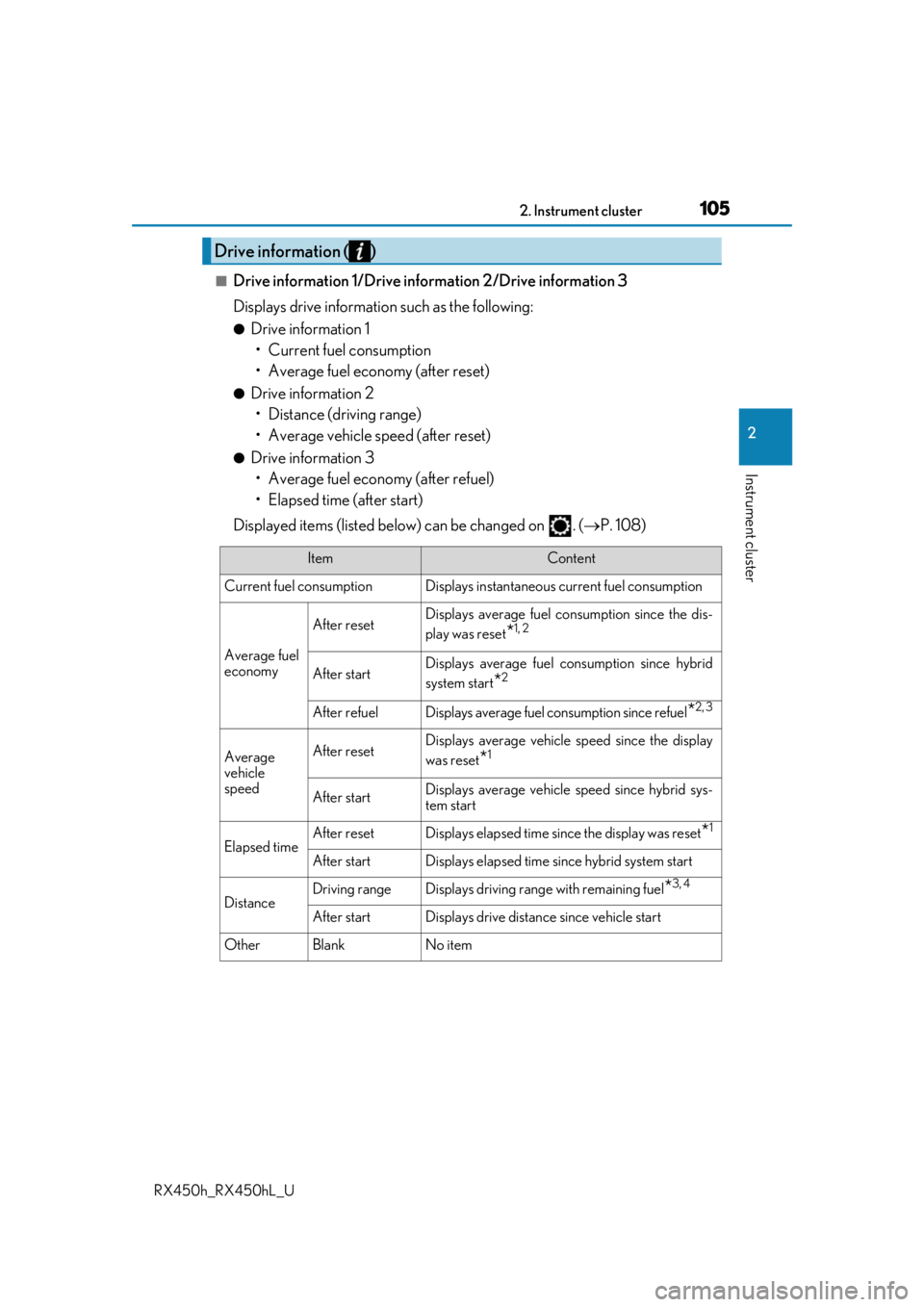

■Drive information 1/Drive information 2/Drive information 3
Displays drive information such as the following:
●Drive information 1
• Current fuel consumption
• Average fuel economy (after reset)
●Drive information 2• Distance (driving range)
• Average vehicle speed (after reset)
●Drive information 3• Average fuel economy (after refuel)
• Elapsed time (after start)
Displayed items (listed below) can be changed on . ( P. 108)
Drive information ( )
ItemContent
Current fuel consumption Displays in stantaneous current fuel consumption
Average fuel
economy
After resetDisplays average fuel consumption since the dis-
play was reset
*1, 2
After startDisplays average fuel consumption since hybrid
system start
*2
After refuelDisplays average fuel consumption since refuel*2, 3
Average
vehicle
speedAfter resetDisplays average vehicle speed since the display
was reset
*1
After startDisplays average vehicle speed since hybrid sys-
tem start
Elapsed timeAfter resetDisplays elapsed time since the display was reset*1
After startDisplays elapsed time since hybrid system start
DistanceDriving rangeDisplays driving range with remaining fuel*3, 4
After startDisplays drive distance since vehicle start
OtherBlankNo item

1062. Instrument cluster
RX450h_RX450hL_U
*1:Resetting: P. 103
*2: Use the displayed fuel consumption as a reference.
*3: When only a small amount of fuel is added to the tank, the display may not be
updated.
When refueling, turn the power switch off. If the vehicle is refueled without turning the
power switch off, the display may not be updated.
*4: This distance is computed based on your average fuel consumption. As a result, the
actual distance that can be driven may differ from that displayed.
■Energy monitor
 P. 124
■Sway warning
Detects the sway of the vehicle within a lane, which is often associated with a
decrease in the driver’s at tention level, and displays the decrease in attention
using a bar display.
The shorter the bar length, the more the driver may need to rest.
This display is a part of the LKA (Lan e-Keeping Assist) system. The display is
enabled when the operating conditions of the vehicle sway warning are met.
(  P. 297)
■ AWD Control
Displays the driving force applie d to each wheel using segments.
The greater the number of segments di splayed, the greater the driving force
applied.

1072. Instrument cluster
2
Instrument cluster
RX450h_RX450hL_U

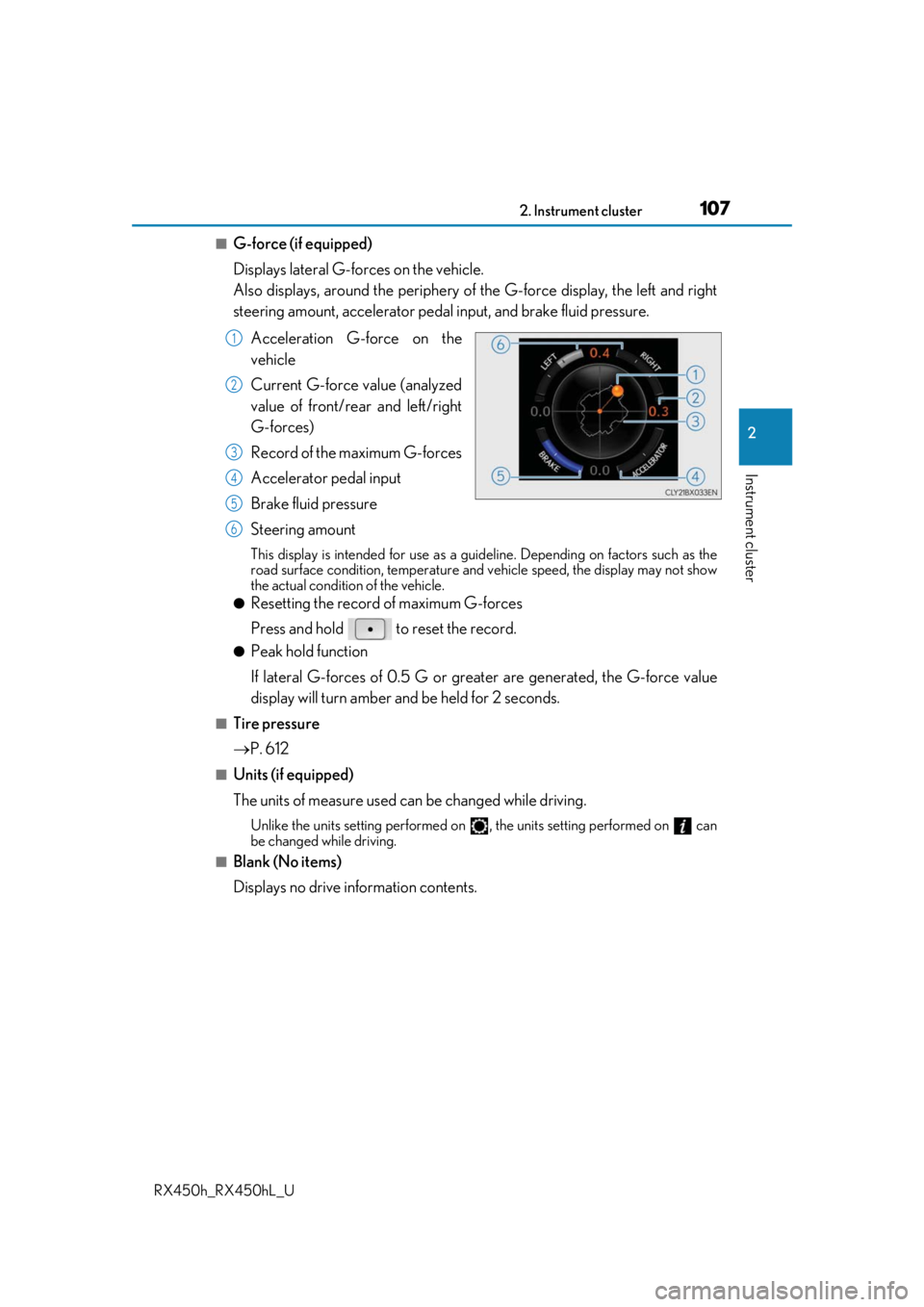

■G-force (if equipped)
Displays lateral G-forces on the vehicle.
Also displays, around the periphery of the G-force display, the left and right
steering amount, accelerator pedal input, and brake fluid pressure.
Acceleration G-force on the
vehicle
Current G-force value (analyzed
value of front/rear and left/right
G-forces)
Record of the maximum G-forces
Accelerator pedal input
Brake fluid pressure
Steering amount
This display is intended for use as a guideline. Depending on factors such as the
road surface condition, temperature and vehicle speed, the display may not show
the actual condition of the vehicle.
●Resetting the record of maximum G-forces
Press and hold to reset the record.
●Peak hold function
If lateral G-forces of 0.5 G or grea ter are generated, the G-force value
display will turn amber and be held for 2 seconds.
■Tire pressure
 P. 612
■Units (if equipped)
The units of measure used can be changed while driving.
Unlike the units setting performed on , the units setting performed on can
be changed while driving.
■Blank (No items)
Displays no drive information contents.
1
2
3
4
5
6

1082. Instrument cluster
RX450h_RX450hL_U

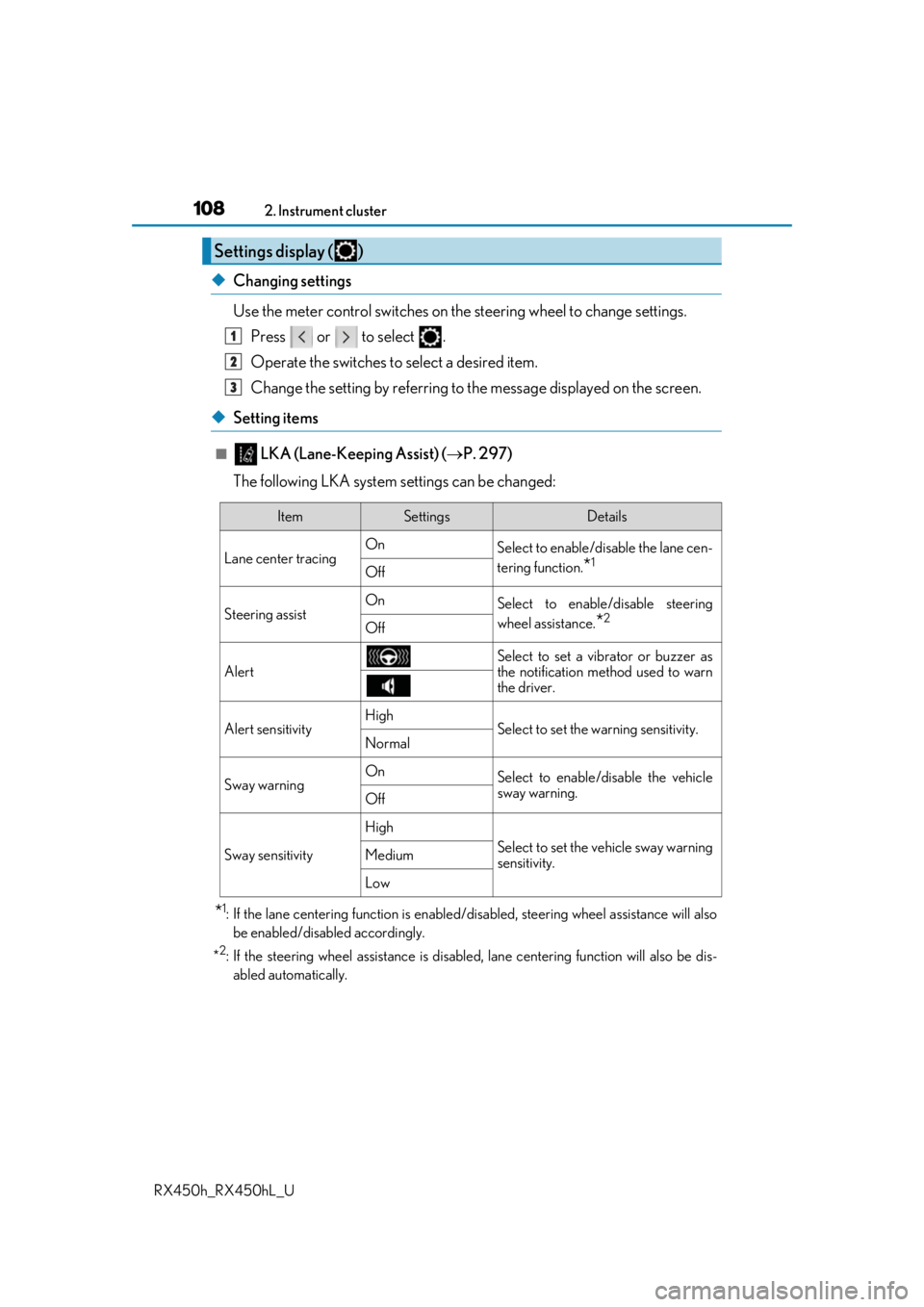

◆Changing settings
Use the meter control switches on th e steering wheel to change settings.
Press or to select .
Operate the switches to select a desired item.
Change the setting by referring to the message displayed on the screen.
◆Setting items
■ LKA (Lane-Keeping Assist) ( P. 297)
The following LKA system settings can be changed:
*1: If the lane centering function is enabled/ disabled, steering wheel assistance will also
be enabled/disabled accordingly.
*
2: If the steering wheel assistance is disabled, lane cent ering function will also be dis-
abled automatically.
Settings display ( )
1
2
3
ItemSettingsDetails
Lane center tracing On
Select to enable/disable the lane cen-
tering function.
*1Off
Steering assistOnSelect to enable/disable steering
wheel assistance.
*2Off
Alert
Select to set a vibrator or buzzer as
the notification method used to warn
the driver.
Alert sensitivityHighSelect to set the warning sensitivity.Normal
Sway warningOnSelect to enable/disable the vehicle
sway warning.
Off
Sway sensitivity
High
Select to set the vehicle sway warning
sensitivity.Medium
Low

1092. Instrument cluster
2
Instrument cluster
RX450h_RX450hL_U

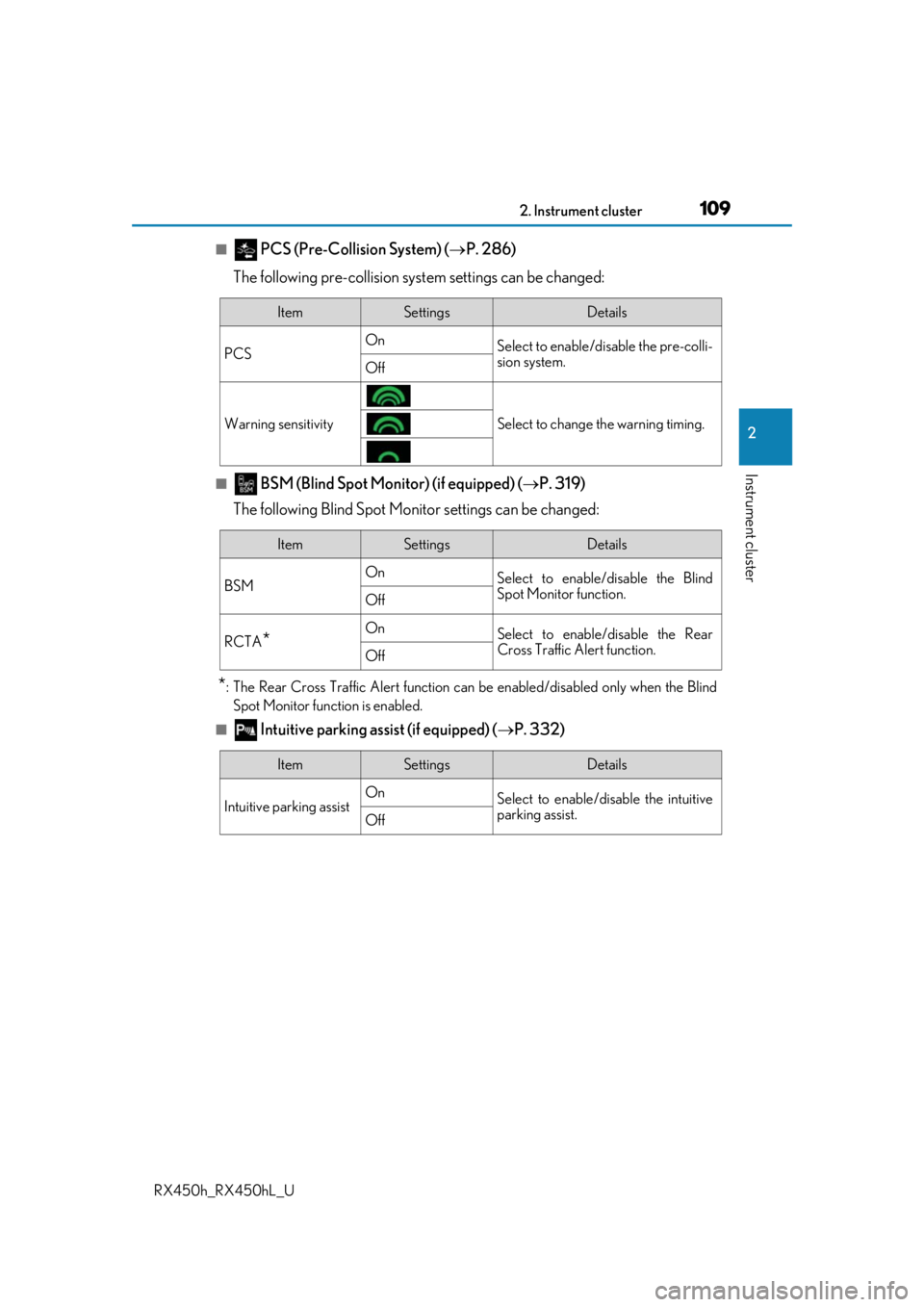

■ PCS (Pre-Collision System) (P. 286)
The following pre-collision syst em settings can be changed:
■ BSM (Blind Spot Monitor) (if equipped) ( P. 319)
The following Blind Spot Monitor settings can be changed:
*: The Rear Cross Traffic Alert function can be enabled/disabled only when the Blind Spot Monitor function is enabled.
■ Intuitive parking assist (if equipped) ( P. 332)
ItemSettingsDetails
PCS On
Select to enable/disable the pre-colli-
sion system.
Off
Warning sensitivitySelect to change the warning timing.
ItemSettingsDetails
BSM On
Select to enable/disable the Blind
Spot Monitor function.
Off
RCTA*OnSelect to enable/disable the Rear
Cross Traffic Alert function.
Off
ItemSettingsDetails
Intuitive parking assist On
Select to enable/disable the intuitive
parking assist.
Off

1102. Instrument cluster
RX450h_RX450hL_U
■ ICS (Intelligent Clearance Sonar) (if equipped) ( P. 342)

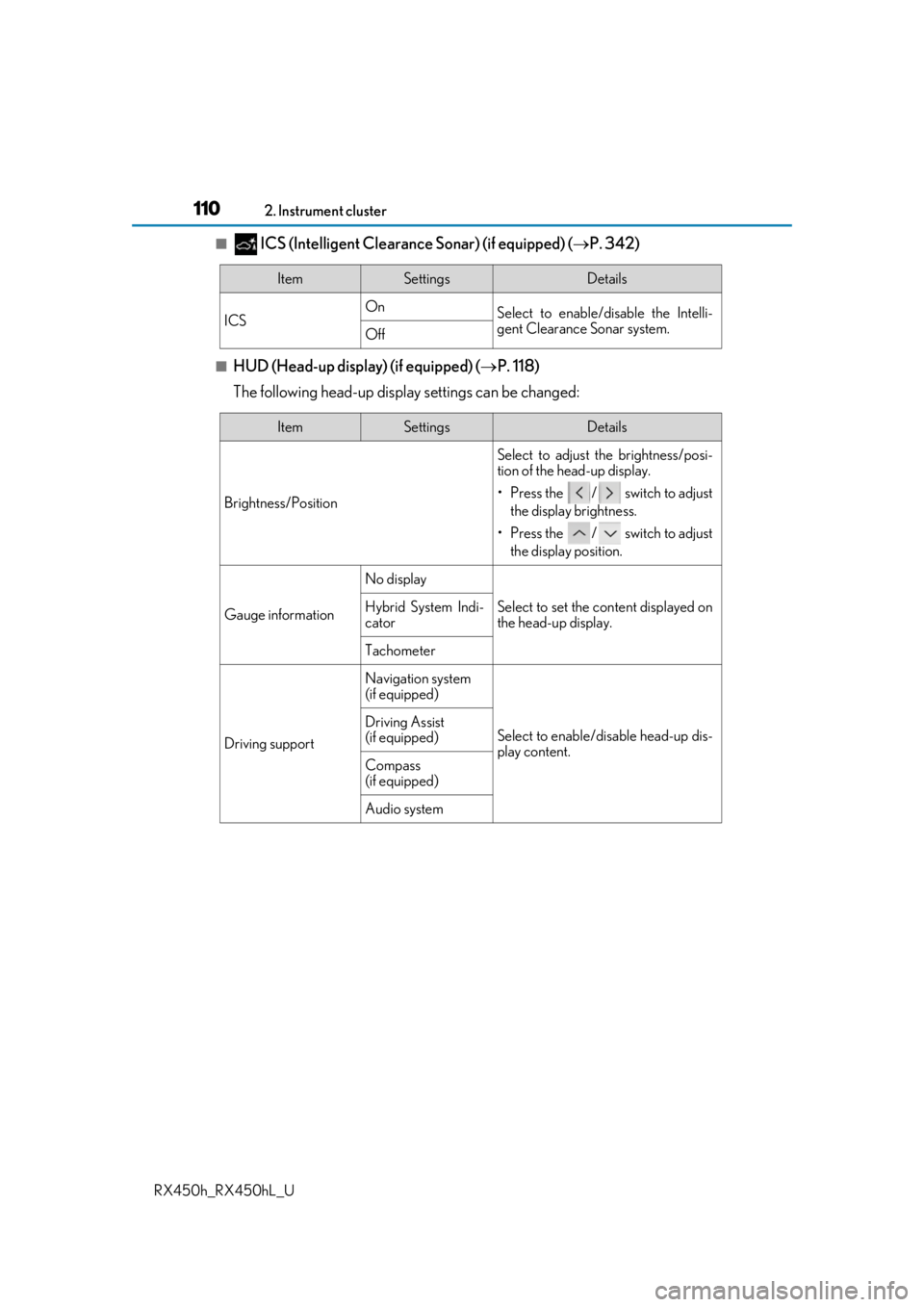

■HUD (Head-up display) (if equipped) (P. 118)
The following head-up displa y settings can be changed:
ItemSettingsDetails
ICS On
Select to enable/disable the Intelli-
gent Clearance Sonar system.
Off
ItemSettingsDetails
Brightness/Position Select to adjust the brightness/posi-
tion of the head-up display.
• Press the / switch to adjust
the display brightness.
• Press the / switch to adjust the display position.
Gauge information
No display
Select to set the content displayed on
the head-up display.Hybrid System Indi-
cator
Tachometer
Driving support
Navigation system
(if equipped)
Select to enable/d isable head-up dis-
play content.Driving Assist
(if equipped)
Compass
(if equipped)
Audio system
