LEXUS RX450H 2019 Owners Manual

7319-1. Specifications
9
Vehicle specifications
RX450h_RX450hL_U

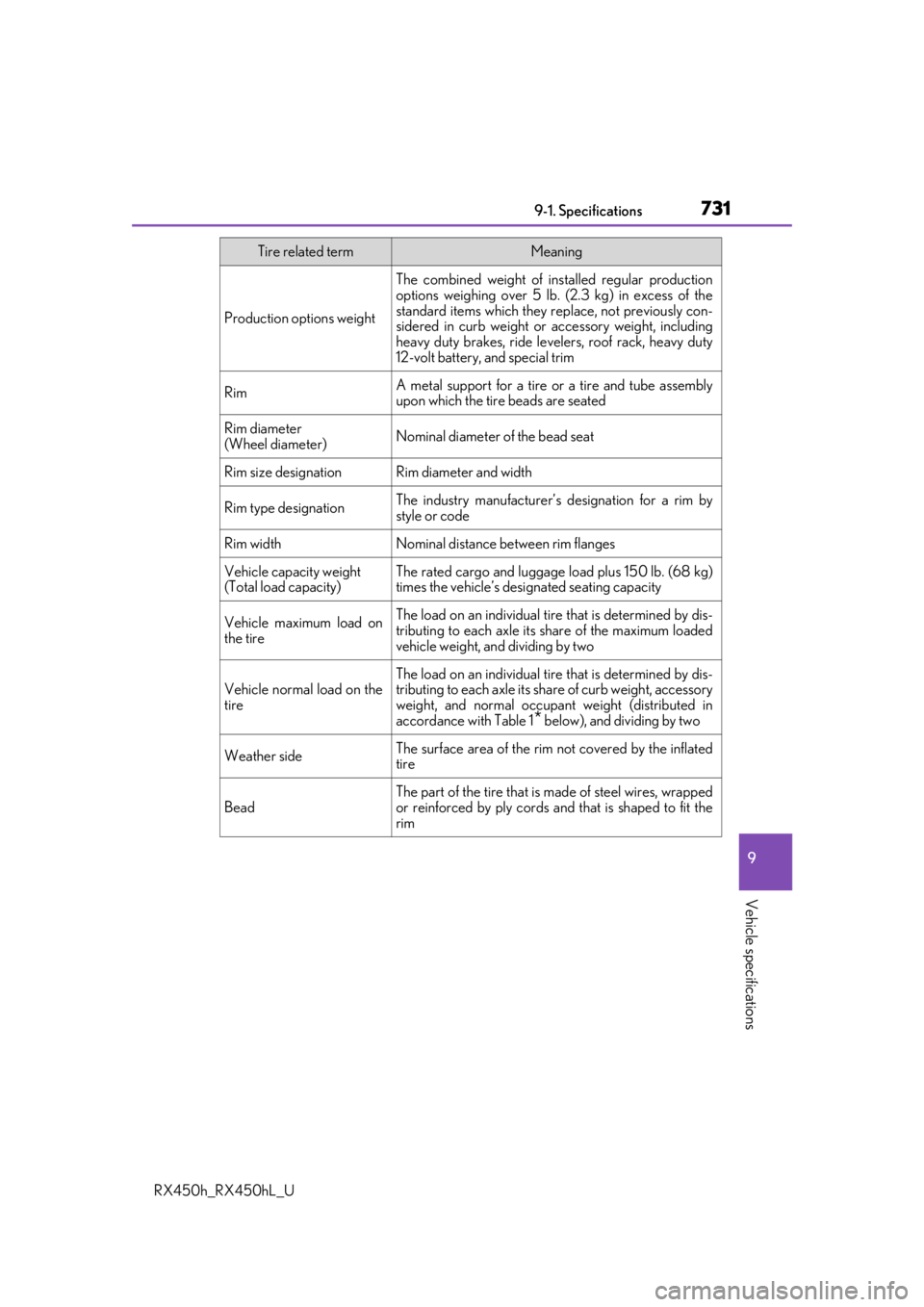

Production options weight
The combined weight of installed regular production
options weighing over 5 lb. (2.3 kg) in excess of the
standard items which they re place, not previously con-
sidered in curb weight or accessory weight, including
heavy duty brakes, ride levelers, roof rack, heavy duty
12-volt battery, and special trim
RimA metal support for a tire or a tire and tube assembly
upon which the tire beads are seated
Rim diameter
(Wheel diameter)Nominal diameter of the bead seat
Rim size designationRim diameter and width
Rim type designationThe industry manufacturer’s designation for a rim by
style or code
Rim widthNominal distance between rim flanges
Vehicle capacity weight
(Total load capacity)The rated cargo and luggage load plus 150 lb. (68 kg)
times the vehicle’s desi gnated seating capacity
Vehicle maximum load on
the tireThe load on an individual tire that is determined by dis-
tributing to each axle its share of the maximum loaded
vehicle weight, and dividing by two
Vehicle normal load on the
tire
The load on an individual tire that is determined by dis-
tributing to each axle its sh are of curb weight, accessory
weight, and normal occupant weight (distributed in
accordance with Table 1
* below), and dividing by two
Weather sideThe surface area of the rim not covered by the inflated
tire
BeadThe part of the tire that is made of steel wires, wrapped
or reinforced by ply cords an d that is shaped to fit the
rim
Tire related termMeaning

7329-1. Specifications
RX450h_RX450hL_U

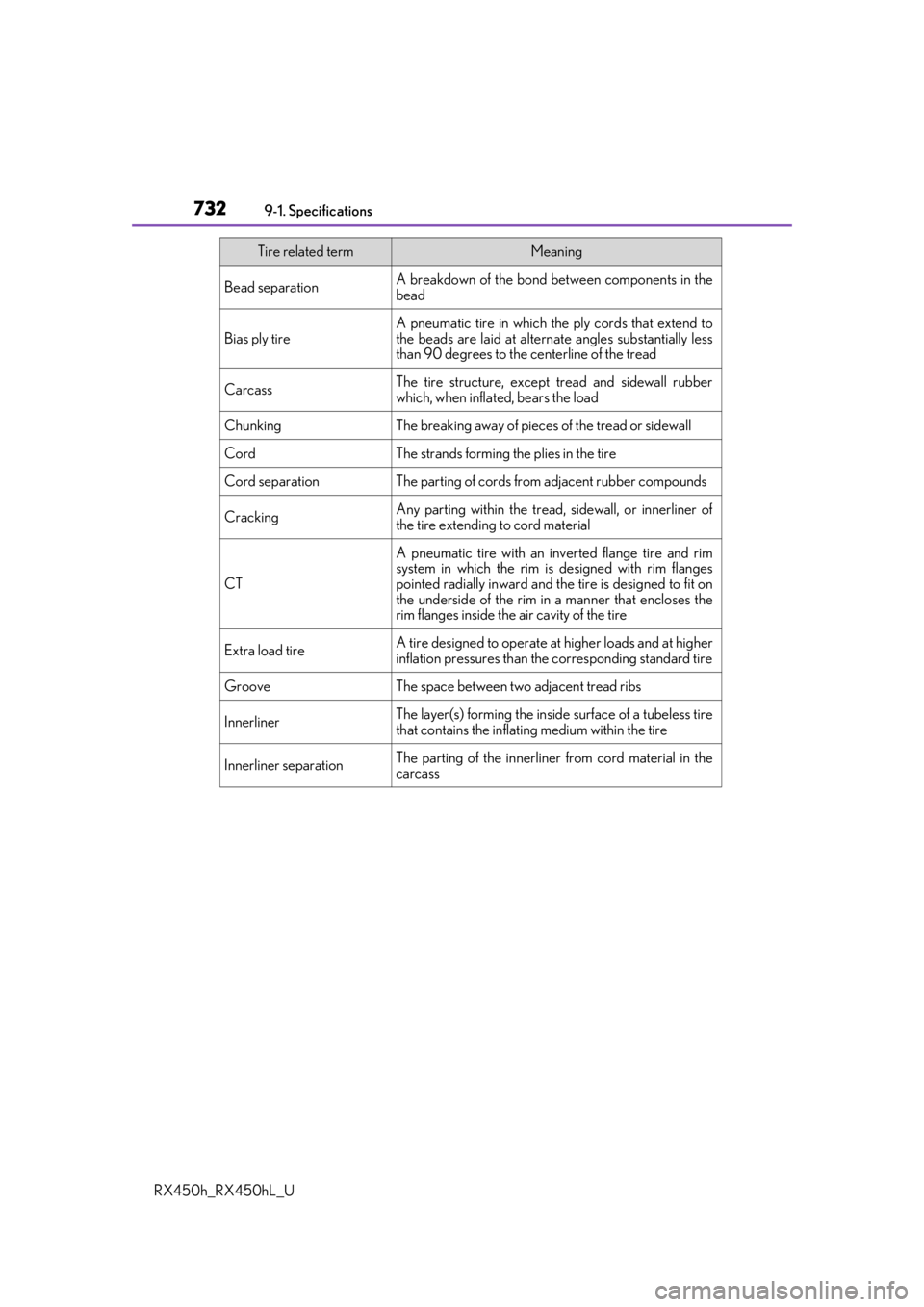

Bead separationA breakdown of the bond between components in the
bead
Bias ply tire
A pneumatic tire in which the ply cords that extend to
the beads are laid at altern ate angles substantially less
than 90 degrees to the centerline of the tread
CarcassThe tire structure, except tread and sidewall rubber
which, when inflated, bears the load
ChunkingThe breaking away of pieces of the tread or sidewall
CordThe strands forming th e plies in the tire
Cord separationThe parting of cords from adjacent rubber compounds
CrackingAny parting within the tread, sidewall, or innerliner of
the tire extending to cord material
CT
A pneumatic tire with an inverted flange tire and rim
system in which the rim is designed with rim flanges
pointed radially inward and the tire is designed to fit on
the underside of the rim in a manner that encloses the
rim flanges inside the air cavity of the tire
Extra load tireA tire designed to operate at higher loads and at higher
inflation pressures than the corresponding standard tire
GrooveThe space between two adjacent tread ribs
InnerlinerThe layer(s) forming the insi de surface of a tubeless tire
that contains the inflating medium within the tire
Innerliner separationThe parting of the innerliner from cord material in the
carcass
Tire related termMeaning

7339-1. Specifications
9
Vehicle specifications
RX450h_RX450hL_U

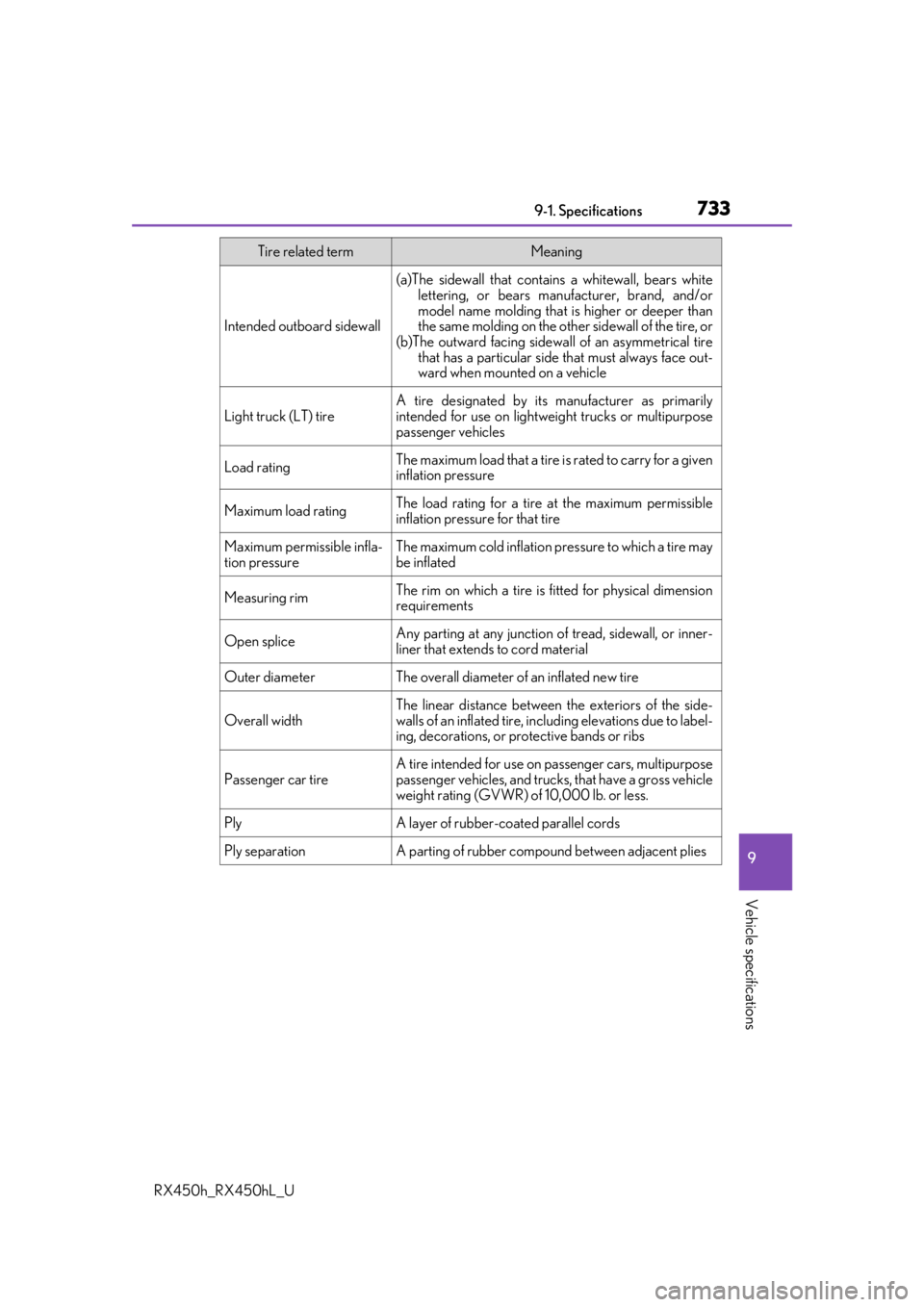

Intended outboard sidewall
(a)The sidewall that contains a whitewall, bears white
lettering, or bears manufacturer, brand, and/or
model name molding that is higher or deeper than
the same molding on the other sidewall of the tire, or
(b)The outward facing sidewa ll of an asymmetrical tire
that has a particular side that must always face out-
ward when mounted on a vehicle
Light truck (LT) tireA tire designated by its manufacturer as primarily
intended for use on lightweig ht trucks or multipurpose
passenger vehicles
Load ratingThe maximum load that a tire is rated to carry for a given
inflation pressure
Maximum load ratingThe load rating for a tire at the maximum permissible
inflation pressure for that tire
Maximum permissible infla-
tion pressureThe maximum cold inflation pr essure to which a tire may
be inflated
Measuring rimThe rim on which a tire is fitted for physical dimension
requirements
Open spliceAny parting at any junction of tread, sidewall, or inner-
liner that extends to cord material
Outer diameterThe overall diameter of an inflated new tire
Overall width
The linear distance between the exteriors of the side-
walls of an inflated tire, including elev ations due to label-
ing, decorations, or protective bands or ribs
Passenger car tireA tire intended for use on passenger cars, multipurpose
passenger vehicles, and trucks, that have a gross vehicle
weight rating (GVWR) of 10,000 lb. or less.
PlyA layer of rubber-coat ed parallel cords
Ply separationA parting of rubber compou nd between adjacent plies
Tire related termMeaning

7349-1. Specifications
RX450h_RX450hL_U

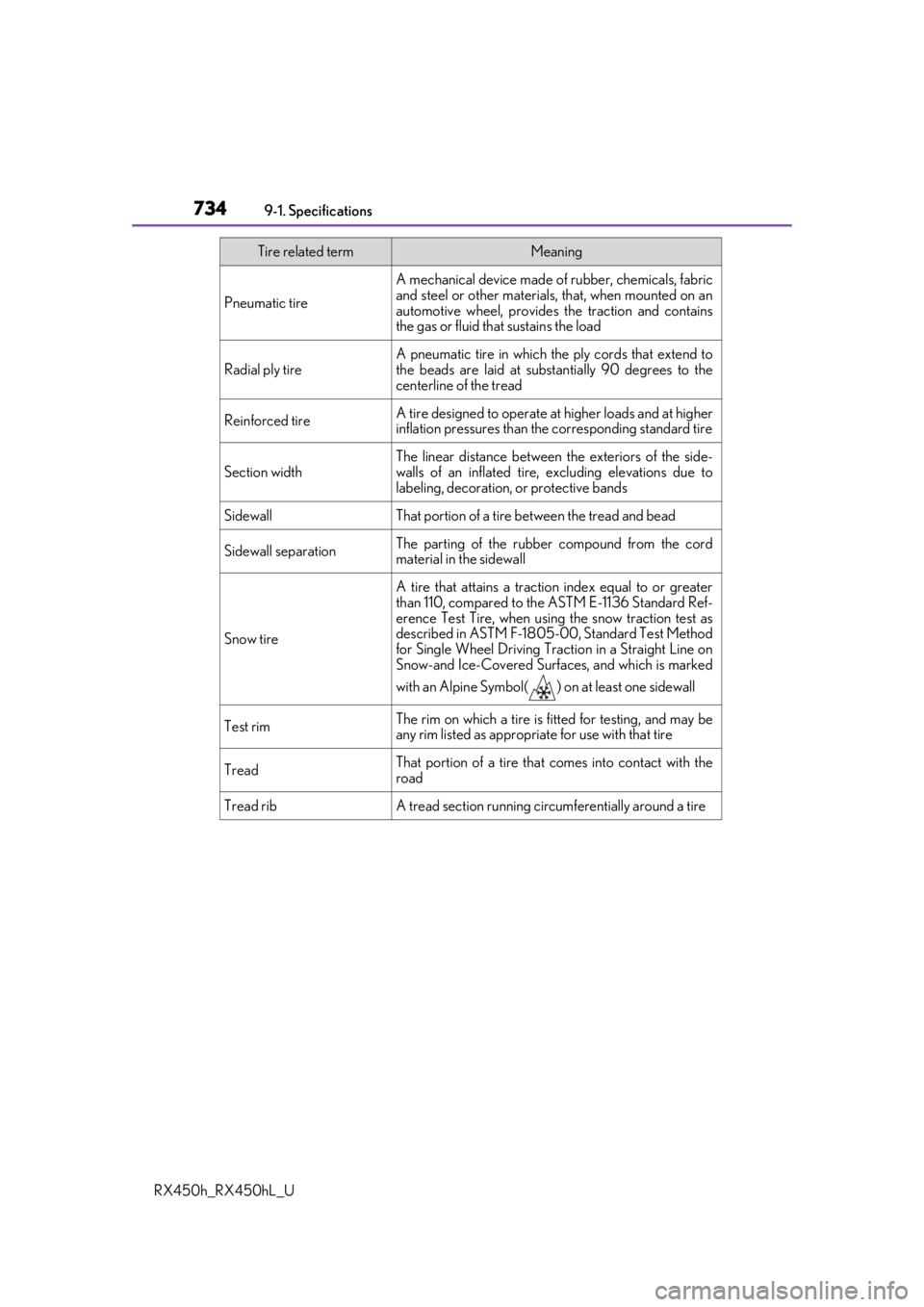

Pneumatic tire
A mechanical device made of rubber, chemicals, fabric
and steel or other materials, that, when mounted on an
automotive wheel, provides the traction and contains
the gas or fluid that sustains the load
Radial ply tireA pneumatic tire in which the ply cords that extend to
the beads are laid at substa ntially 90 degrees to the
centerline of the tread
Reinforced tire A tire designed to operate at higher loads and at higher
inflation pressures than the corresponding standard tire
Section widthThe linear distance between the exteriors of the side-
walls of an inflated tire, excluding elevations due to
labeling, decoration, or protective bands
SidewallThat portion of a tire between the tread and bead
Sidewall separationThe parting of the rubber compound from the cord
material in the sidewall
Snow tire
A tire that attains a traction index equal to or greater
than 110, compared to the ASTM E-1136 Standard Ref-
erence Test Tire, when using the snow traction test as
described in ASTM F-1805-00, Standard Test Method
for Single Wheel Driving Traction in a Straight Line on
Snow-and Ice-Covered Surfaces, and which is marked
with an Alpine Symbol( ) on at least one sidewall
Test rimThe rim on which a tire is fitted for testing, and may be
any rim listed as appropriate for use with that tire
TreadThat portion of a tire that comes into contact with the
road
Tread ribA tread section running circ umferentially around a tire
Tire related termMeaning

7359-1. Specifications
9
Vehicle specifications
RX450h_RX450hL_U

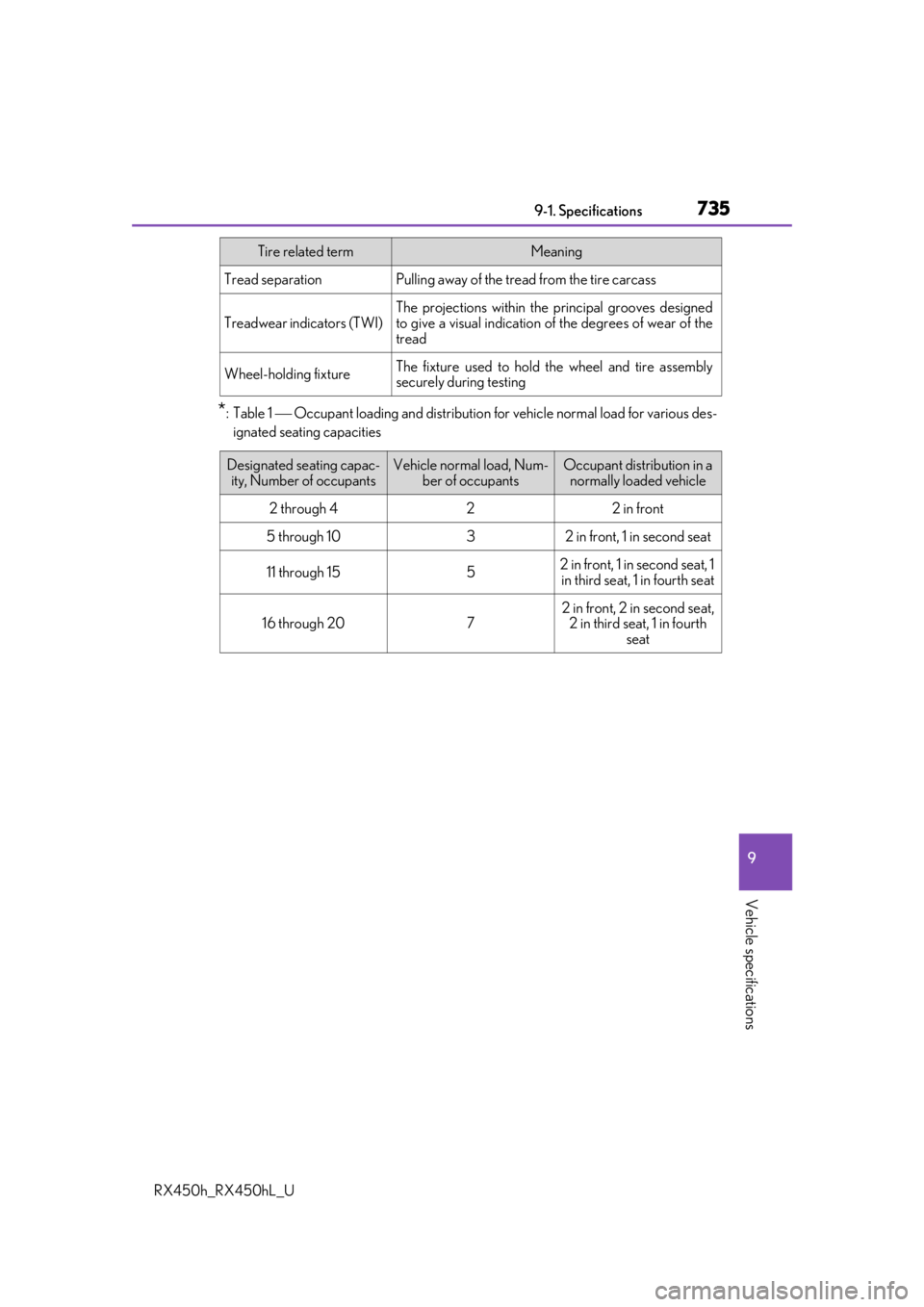

*:Table 1  Occupant loading and distribution for vehicle normal load for various des-
ignated seating capacities
Tread separationPulling away of the tread from the tire carcass
Treadwear indicators (TWI)The projections within the principal grooves designed
to give a visual indication of the degrees of wear of the
tread
Wheel-holding fixtureThe fixture used to hold the wheel and tire assembly
securely during testing
Tire related termMeaning
Designated seating capac-
ity, Number of occupantsVehicle normal load, Num- ber of occupantsOccupant distribution in a normally loaded vehicle
2 through 422 in front
5 through 1032 in front, 1 in second seat
11 through 1552 in front, 1 in second seat, 1 in third seat, 1 in fourth seat
16 through 2072 in front, 2 in second seat, 2 in third seat, 1 in fourth
seat

736
RX450h_RX450hL_U9-2. Customization
When customizing vehicle features, ensure
that the vehicle is parked in a safe
place with the shift lever in P and the parking brake set.
■Changing on the audio system screen
Vehicles with a Lexus Display Audio system
Press the “MENU” button on the Lexus Display Audio controller.
Select “Setup” on the “Menu” screen and select “Vehicle”.
Various setting can be changed. Refer to the list of settings that can be
changed for details.
Vehicles with a navigation system
Press the “MENU” button on the Remote Touch.
Select on the “Menu” screen and select .
Various setting can be changed. Refer to the list of settings that can be
changed for details.
■Changing using the multi-information display
 P. 108
Customizable features
Your vehicle includes a variety of elec tronic features that can be personalized
to suit your preferences. The settings of these features can be changed using
the multi-information display, on the audio system screen, or at your Lexus
dealer.
Customizing vehicle features
1
2
1
2

7379-2. Customization
9
Vehicle specifications
RX450h_RX450hL_U
Some function settings are changed simultaneously with other functions being
customized. Contact your Lexus dealer for further details.
Settings that can be changed on the audio system screen
Settings that can be changed by your Lexus dealer
Definition of symbols: O = Available, – =Not available
■Vehicle proximity no tification system (P. 75)
■Gauges, meters and multi-information display ( P. 96, 101)
*1: The default setting varies according to countries.
*2:Except F SPORT models
Customizable Features
1
2
FunctionDefault settingCustomized setting
The volume of vehicle proximity
notification system soundLevel 1Level 2—OLevel 3
12
FunctionDefault settingCustomized setting
Language EnglishFrench
O—
Spanish
Units*1miles (MPG US)
miles
(MPG Imperial)
O—km (L/100 km)
km (km/L)
Color*2Color 1Color 2O—
Suggestion functionOnOff—O
12

7389-2. Customization
RX450h_RX450hL_U

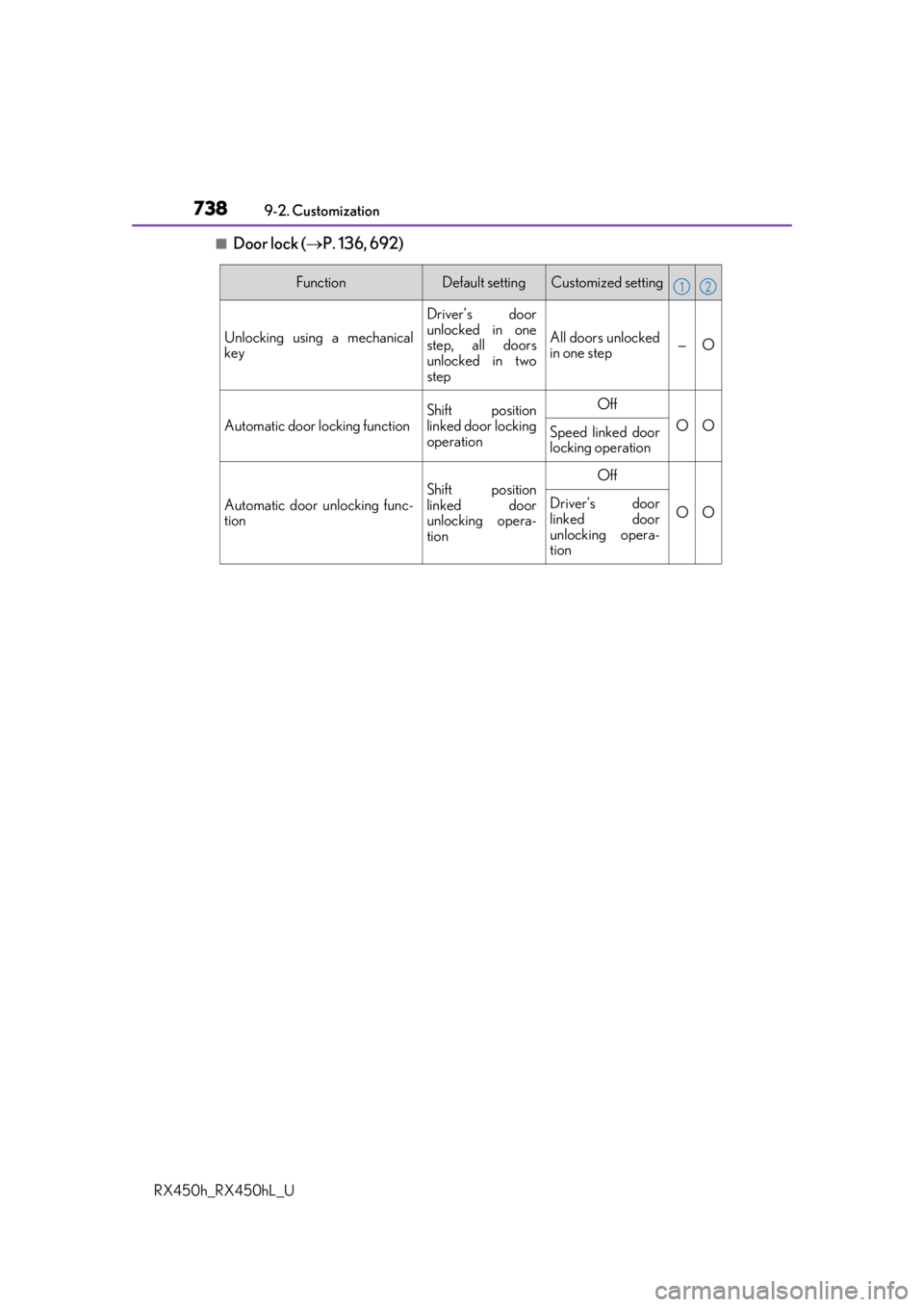

■Door lock ( P. 136, 692)
FunctionDefault settingCustomized setting
Unlocking using a mechanical
key
Driver’s door
unlocked in one
step, all doors
unlocked in two
step
All doors unlocked
in one step—O
Automatic door locking function
Shift position
linked door locking
operationOff
OOSpeed linked door
locking operation
Automatic door unlocking func-
tion
Shift position
linked door
unlocking opera-
tionOff
OODriver’s door
linked door
unlocking opera-
tion
12

7399-2. Customization
9
Vehicle specifications
RX450h_RX450hL_U

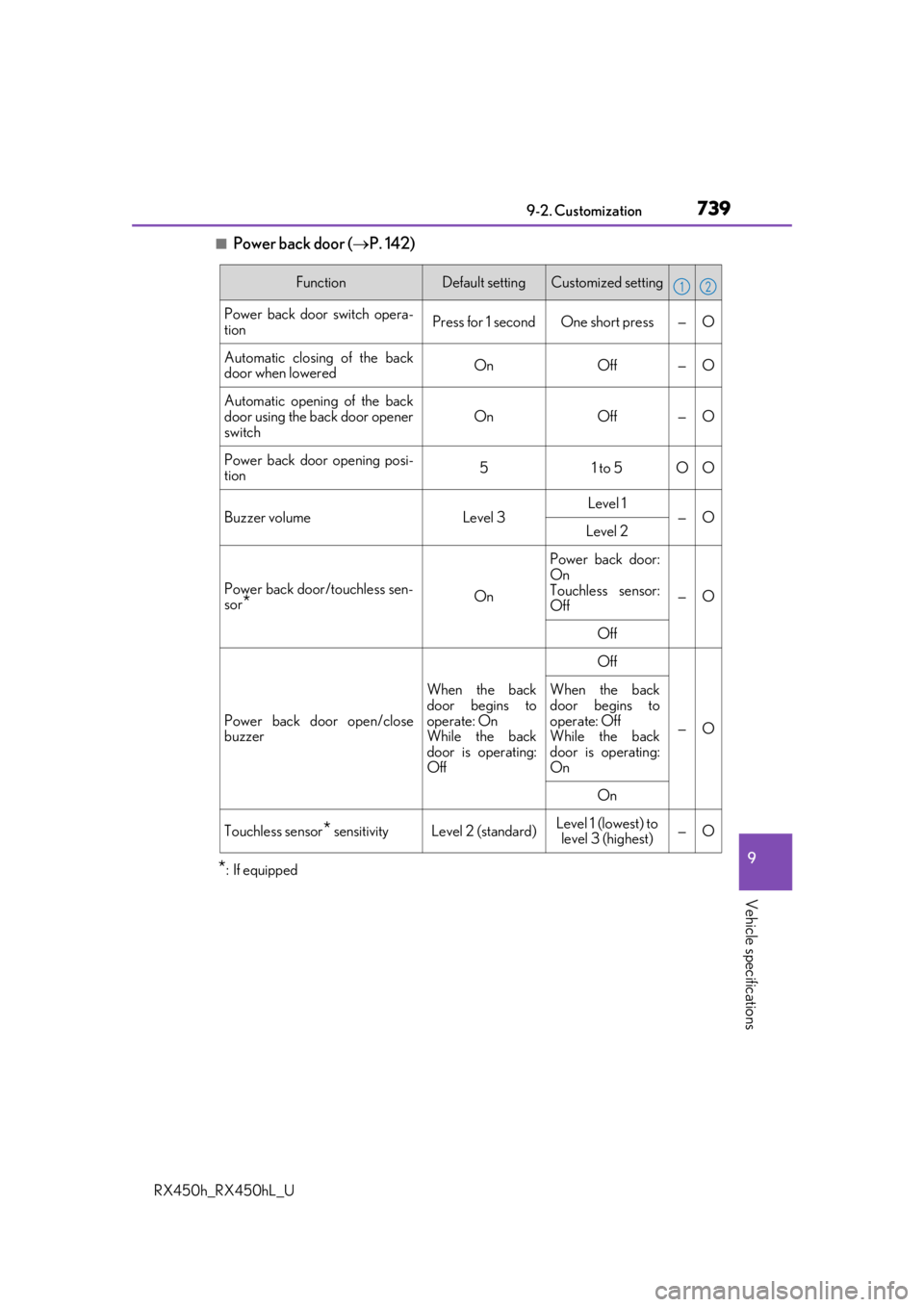

■Power back door (P. 142)
*: If equipped
FunctionDefault settingCustomized setting
Power back door switch opera-
tionPress for 1 secondOne short press—O
Automatic closing of the back
door when loweredOnOff—O
Automatic opening of the back
door using the back door opener
switch
OnOff—O
Power back door opening posi-
tion51 to 5OO
Buzzer volumeLevel 3Level 1—OLevel 2
Power back door/touchless sen-
sor*On
Power back door:
On
Touchless sensor:
Off
—O
Off
Power back door open/close
buzzer
When the back
door begins to
operate: On
While the back
door is operating:
Off
Off
—O
When the back
door begins to
operate: Off
While the back
door is operating:
On
On
Touchless sensor* sensitivityLevel 2 (standard)Level 1 (lowest) to
level 3 (highest)—O
12

7409-2. Customization
RX450h_RX450hL_U
■Smart access system with push-button start and wireless remote control
(  P. 136, 158)
■Smart access system with push-button start ( P. 136, 158)
FunctionDefault settingCustomized setting
Operation buzzer volume5OffOO1 to 7
Operation signal
(Emergency flashers)OnOffOO
Time elapsed before automatic
door lock function is activated if
door is not opened after being
unlocked
60 seconds
Off
—O30 seconds
120 seconds
Open door warning buzzerOffOn—O
Reservation lockOnOff—O
12
FunctionDefault settingCustomized setting
Smart access system with push-
button start On Off — O
The doors that are unlocked
using the smart access system
with push-button start can be
selected Driver’s door All the doors O O
Number of consecutive door
lock operations 2 times As many as desired — O
12
