2945-1. Remote Touch/Display
■Menu screen
Press the “MENU” button on the
Remote Touch to display the menu
screen.
This system can also be operated by
the touch screen.
For details, refer to “NAVIGATION
AND MULTIMEDIA SYSTEM
OWNER’S MANUAL”.
The displays shown in the illustrations
are used for example only and may dif-
fer from the actual vehicle.
Vehicles with a 12.3-inch display
Vehicles with a 8-inch display
Center Display
Center Display overview
SwitchFunction
Select to display the
“Destination”
screen.
*1
Select to display the
audio control
screen.
*1
Select to display the
hands-free control
screen.
*1
Select to display the
“Apps” screen.
*1, 2
/
/
When an Apple
CarPlay/Android
Auto connection is
established and this
button displays
“Apple
CarPlay”/“Android
Auto”, select to dis-
play the home
screen of Apple
CarPlay/Android
Auto.
*1, 2
Select to display the
information screen.
*1
(  P.99)
Select to display the
setup screen.
*1
Select to display the
air conditioning con-
trol screen.
( P.298)
Select to adjust the
contrast and bright-
ness of the screens,
turn the screen off,
etc.
*1, 2

2955-1. Remote Touch/Display
5
Interior features
*1: Refer to “NAVIGATION AND MULTI-MEDIA SYSTEM OWNER’S MAN-
UAL”.*2: This function is not made available in some models or areas.
■Split-screen display (vehicles with a 12.3-inch display)
Different information can be displayed on the left and right sides of the screen. For
example, air conditioning system screen can be displayed and operated while the
fuel consumption information screen is be ing displayed. The large screen on the
left of the display is called the main display, and the small screen to the right is
called the side display.
■Main display (vehicles with a
12.3-inch display)
For details about the functions and
operation of the main display, refer to
the respective section and “NAVIGA-
TION AND MULTIMEDIA SYSTEM
OWNER’S MANUAL”.
■Side display (vehicles with a
12.3-inch display)
The following functions can be dis-
played and operated on the side dis-
play.
Select or to display the desired
screen. Navigation system
*
Audio*
Vehicle information (
P.103)
Air conditioning system ( P.298)
Show/hide the side display
*
*: Refer to “NAVIGATION AND MULTI- MEDIA SYSTEM OWNER’S MAN-
UAL”.
A
B
C
D
E

3015-3. Using the air conditioning system and defogger
5
Interior features
push-button start is used to unlock a pas-
senger door.
●The doors that can recall the air condi-
tioning setting when unlocked using the
smart access system with push-button
start can be changed.
* For details, con-
tact your Lexus dealer.
*: The doors that can recall the driving
position memory are changed at the
same time.
■Operation of the air conditioning sys-
tem in Eco drive mode
In Eco drive mode, the air conditioning sys-
tem is controlled as follows to prioritize fuel
efficiency:
●Engine speed and compressor operation
controlled to restri ct heating/cooling
capacity
●Fan speed restricted when automatic
mode is selected
To improve air condit ioning performance,
perform the following operations:
●Adjust the fan speed
●Turn off Eco drive mode ( P.276)
■When the outside temperature falls to
nearly 32°F (0°C)
The dehumidification function may not
operate even when “A/C” is selected.
■Ventilation and air conditioning odors
●To let fresh air in, set the air conditioning
system to the outside air mode.
●During use, various odors from inside and
outside the vehicle may enter into and
accumulate in the air conditioning sys-
tem. This may then cause odor to be
emitted from the vents.
●To reduce potential odors from occur-
ring:
• It is recommended that the air condition- ing system be set to outside air mode
prior to turning the vehicle off.
• The start timing of the blower may be delayed for a short period of time imme-
diately after the air conditioning system is
started in automatic mode.
■Using the voice command system
Air conditioning system can be operated
using voice commands. For details, refer to
“NAVIGATION AND MULTIMEDIA
SYSTEM OWNER’S MANUAL”.
■Air conditioning filter
P.383
■Air conditioning system refrigerant
●A label regarding the refrigerant of the
air conditioning system is attached to the
hood at the location shown in the follow-
ing illustration.
●The meaning of each symbol on the label
are as follows:
■Customization
Some functions can be customized.
( P.472)
Caution
Air conditioning system
Air conditioning system
lubricant type
Requires registered tech-
nician to service air condi-
tioning system
Flammable refrigerant

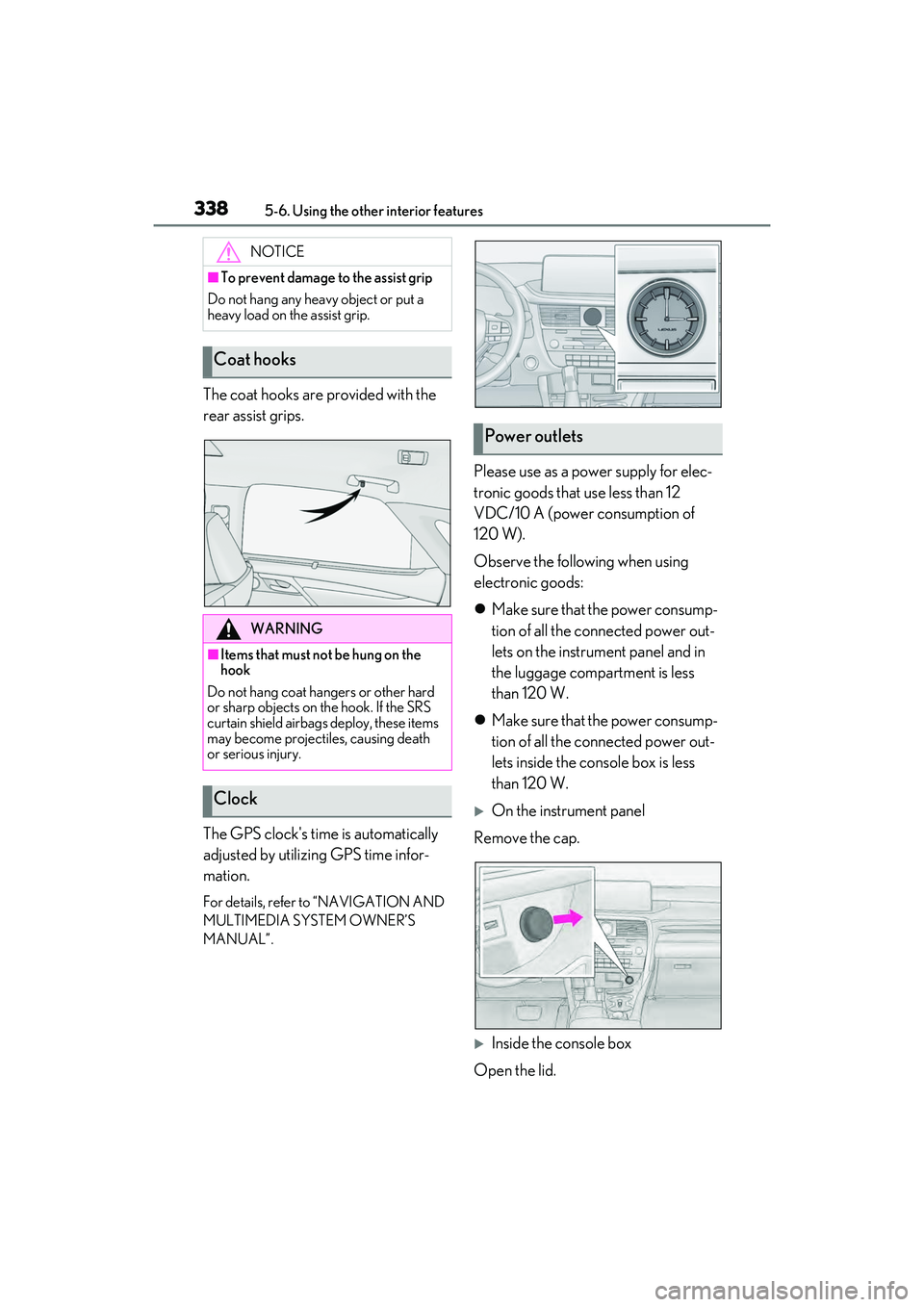

3385-6. Using the other interior features
The coat hooks are provided with the
rear assist grips.
The GPS clock's time is automatically
adjusted by utilizing GPS time infor-
mation.
For details, refer to “NAVIGATION AND
MULTIMEDIA SYSTEM OWNER’S
MANUAL”.
Please use as a power supply for elec-
tronic goods that use less than 12
VDC/10 A (power consumption of
120 W).
Observe the following when using
electronic goods:
Make sure that the power consump-
tion of all the connected power out-
lets on the instrument panel and in
the luggage compartment is less
than 120 W.
 Make sure that the power consump-
tion of all the connected power out-
lets inside the console box is less
than 120 W.
On the instrument panel
Remove the cap.
Inside the console box
Open the lid.
NOTICE
■To prevent damage to the assist grip
Do not hang any heavy object or put a
heavy load on the assist grip.
Coat hooks
WARNING
■Items that must not be hung on the
hook
Do not hang coat hangers or other hard
or sharp objects on the hook. If the SRS
curtain shield airbags deploy, these items
may become projectiles, causing death
or serious injury.
Clock
Power outlets

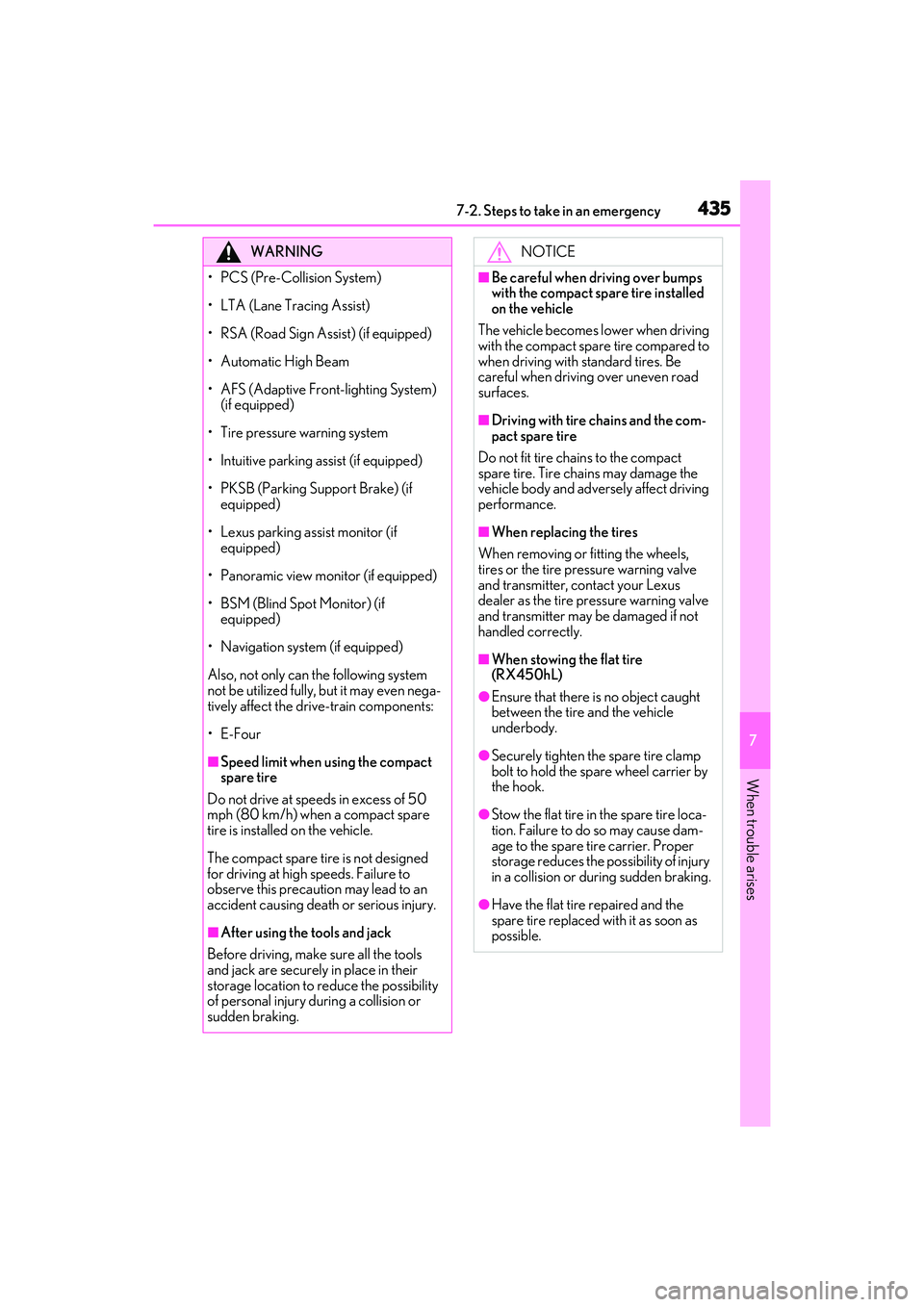

4357-2. Steps to take in an emergency
7
When trouble arises
WARNING
• PCS (Pre-Collision System)
• LTA (Lane Tracing Assist)
• RSA (Road Sign Assist) (if equipped)
• Automatic High Beam
• AFS (Adaptive Front-lighting System) (if equipped)
• Tire pressure warning system
• Intuitive parking assist (if equipped)
• PKSB (Parking Support Brake) (if equipped)
• Lexus parking assist monitor (if equipped)
• Panoramic view monitor (if equipped)
• BSM (Blind Spot Monitor) (if equipped)
• Navigation system (if equipped)
Also, not only can the following system
not be utilized fully, but it may even nega-
tively affect the drive-train components:
•E-Four
■Speed limit when using the compact
spare tire
Do not drive at speeds in excess of 50
mph (80 km/h) when a compact spare
tire is installed on the vehicle.
The compact spare tire is not designed
for driving at high speeds. Failure to
observe this precaution may lead to an
accident causing deat h or serious injury.
■After using the tools and jack
Before driving, make sure all the tools
and jack are securely in place in their
storage location to reduce the possibility
of personal injury during a collision or
sudden braking.
NOTICE
■Be careful when driving over bumps
with the compact spare tire installed
on the vehicle
The vehicle becomes lower when driving
with the compact spar e tire compared to
when driving with standard tires. Be
careful when driving over uneven road
surfaces.
■Driving with tire chains and the com-
pact spare tire
Do not fit tire chains to the compact
spare tire. Tire chains may damage the
vehicle body and adversely affect driving
performance.
■When replacing the tires
When removing or fitting the wheels,
tires or the tire pressure warning valve
and transmitter, contact your Lexus
dealer as the tire pressure warning valve
and transmitter may be damaged if not
handled correctly.
■When stowing the flat tire
(RX450hL)
●Ensure that there is no object caught
between the tire and the vehicle
underbody.
●Securely tighten the spare tire clamp
bolt to hold the spare wheel carrier by
the hook.
●Stow the flat tire in the spare tire loca-
tion. Failure to do so may cause dam-
age to the spare tire carrier. Proper
storage reduces the possibility of injury
in a collision or during sudden braking.
●Have the flat tire repaired and the
spare tire replaced wi th it as soon as
possible.

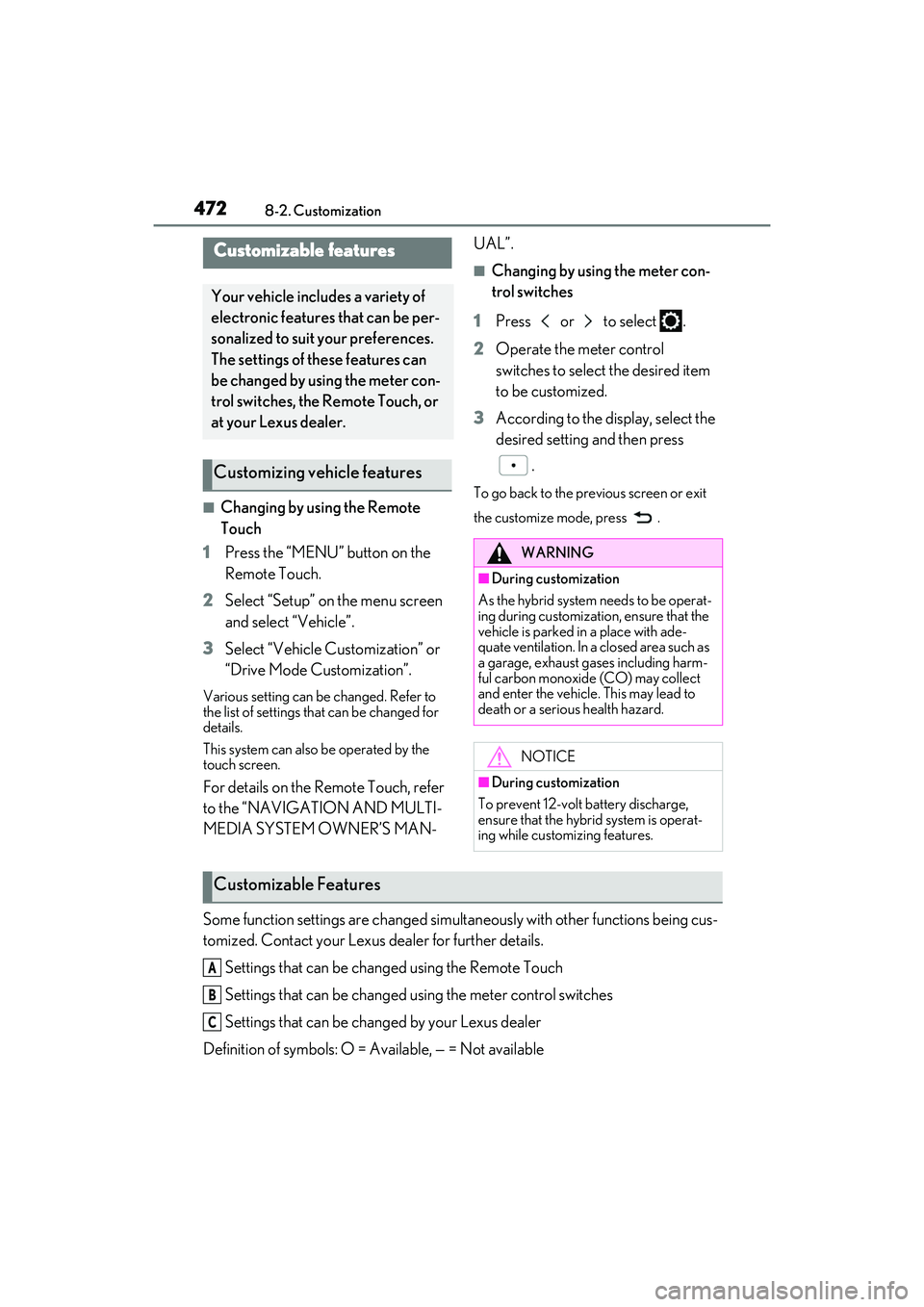

4728-2. Customization
8-2.Customization
■Changing by using the Remote
Touch
1 Press the “MENU” button on the
Remote Touch.
2 Select “Setup” on the menu screen
and select “Vehicle”.
3 Select “Vehicle Customization” or
“Drive Mode Customization”.
Various setting can be changed. Refer to
the list of settings that can be changed for
details.
This system can also be operated by the
touch screen.
For details on the Remote Touch, refer
to the “NAVIGATION AND MULTI-
MEDIA SYSTEM OWNER’S MAN- UAL”.
■Changing by using the meter con-
trol switches
1 Press or to select .
2 Operate the meter control
switches to select the desired item
to be customized.
3 According to the display, select the
desired setting and then press
.
To go back to the previous screen or exit
the customize mode, press .
Some function settings are changed simultaneously with other functions being cus-
tomized. Contact your Lexus dealer for further details.
Settings that can be changed using the Remote Touch
Settings that can be changed using the meter control switches
Settings that can be changed by your Lexus dealer
Definition of symbols: O = Available, — = Not available
Customizable features
Your vehicle includes a variety of
electronic features that can be per-
sonalized to suit your preferences.
The settings of these features can
be changed by using the meter con-
trol switches, the Remote Touch, or
at your Lexus dealer.
Customizing vehicle features
WARNING
■During customization
As the hybrid system needs to be operat-
ing during customization, ensure that the
vehicle is parked in a place with ade-
quate ventilation. In a closed area such as
a garage, exhaust gases including harm-
ful carbon monoxide (CO) may collect
and enter the vehicle. This may lead to
death or a serious health hazard.
NOTICE
■During customization
To prevent 12-volt battery discharge,
ensure that the hybrid system is operat-
ing while customizing features.
Customizable Features
A
B
C

509Alphabetical Index
Front side marker lightsReplacing light bulbs................................ 393
Wattage..........................................................460
Front turn signal lights Replacing light bulbs................... 393, 395
Turn signal lever ........................................... 192
Wattage..........................................................460
Fuel Capacity ......................................................... 454
Fuel gauge ....................................................... 83
Information ......................................................461
Refueling ........................................................209
Type.................................................................. 454
Warning light .................................................413
Fuel consumption Average fuel economy .............................. 90
Current fuel consumption........................ 90
Fuel filler door If the fuel filler door cannot be opened.........................................................................438
Refueling ........................................................209
Fuel gauge ......................................................... 83
Fuses .................................................................388
G
Garage door opener ...................................341
Gauges ............................................................... 83
G-force................................................................. 91
Glove box ....................................................... 320
Glove box light ............................................. 320
Grocery bag hooks .................................... 324
H
Hands Free Power Back Door ................. 116
Head restraints ...............................................143
Headlight aim ................................................ 390
Headlights Adaptive Front-lighting System (AFS).........................................................................200
Automatic High Beam system..............201
Light switch .................................................... 198 Replacing light bulbs................................393
Head-up display.............................................. 95 Driving information display area ...........95
HUD (Head-up display) switch ............ 96
Hybrid System Indicator ........................... 99
Navigation system-linked display ........98
Settings............................................................... 97
Heated steering wheel ................................312
Heaters Front automatic air conditioning system......................................................................... 298
Heated steering wheel ..............................312
Outside rear view mirrors.................... 300
Rear automatic air conditioning system
......................................................................... 309
Seat heaters ....................................................312
High mounted stoplight Replacing light bulbs................................393
High-voltage components ......................... 69
Hill-start assist control ............................... 279
Hood Open................................................................363
Hooks Cargo hooks................................................ 324
Cargo net hooks........................................ 324
Coat hooks .................................................. 338
Front passenger footwell hooks........ 340
Grocery bag hooks.................................. 324
Retaining hooks (floor mat) ..................... 24
Horn ....................................................................146
HUD (Head-up display) switch ................ 96
Hybrid battery (traction battery) Location ............................................................. 69
Specification .................................................454
Warning message ........................................ 72
Hybrid battery (traction battery) air vents ............................................................................... 71
Hybrid system .................................................. 66 Acoustic Vehicle Aler ting System .......68
Emergency shut off system...................... 72
Energy monitor/co nsumption screen99
EV drive mode............................................. 187

512Alphabetical Index
Energy monitor............................................ 100
G-force................................................................ 91
LTA (Lane Tracing Assist).................... 230
Menu icons ...................................................... 89
Meter control switches .............................. 89
Navigation system-linked display ........ 92
Pop-up display...............................................88
Settings .............................................................. 92
Suggestion function..................................... 93
Tire pressure ................................................ 376
Units ...................................................................... 91
Warning message..................................... 420
N
Navigation system-linked display....92, 98
Noise from under vehicle ...............................6
O
“ODO TRIP” switch ...................................... 87
Odometer ......................................................... 87
Odometer and trip meter displayDisplay items ................................................... 87
“ODO TRIP” switch .................................... 87
Pop-up display............................................... 87
Oil Engine oil .......................................................455
Rear differential oil .................................... 457
Opener Fuel filler door..............................................209
Hood................................................................ 363
Outer foot lights Location............................................................315
Outside door handle lights........................315
Outside rear view mirrors Adjustment..................................................... 148
BSM (Blind Sport Monitor) ................. 246
Folding ..............................................................149
Linked mirror function when reversing.......................................................................... 148
Mirror position memory.......................... 140
Outside rear view mirror defoggers300 RCTA function ............................................259
Outside temperature..... ............................... 83
Overheating .................................................. 446
P
Paddle shift switches ........................... 190, 191
Panic mode ......................................................107
Panoramic moon roof Jam protection function ............................157
Operation ....................................................... 156
Parking assist sensors (intuitive parking assist) ............................................................. 252
Parking brake Operation ....................................................... 193
Parking brake engaged warning buzzer........................................................................... 195
Warning light ................................................ 416
Warning message ...................................... 195
Parking lights Light switch .................................................... 198
Replacing light bulbs................................393
Parking Support Brake function (for rear-crossing vehicles) ...........................274 Function .......................................................... 274
Parking Support Brake function (static objects) ........................................................... 271 Function ............................................................ 271
PCS (Pre-Collision System) Function ........................................................... 218
PCS OFF switch ........................................220
Warning light ................................................ 416
Personal lights.................................................315
PKSA (Parking Support Alert) .............. 250
PKSB (Parking Support Brake)............. 265 Warning message ..................................... 270
Power back door ............................................ 113 Hands Free Power Back Door ............. 116
Smart access system with push-button start ................................................................... 114
Power control unit.......................................... 69
Power control unit coolant Capacity ........................................................ 456

517Alphabetical Index
Open window ............................................... 152
PKSA (Parking Support Alert) ...........250
PKSB (Parking Support Brake) ...........415
Pre-collision braking.................................. 219
RCTA (Rear Cross Traffic Alert) ........415
Seat belt ................................................. 413, 414
Warning label .................................................. 69
Warning lights................................................ 410 ABS .................................................................... 412
Brake hold operated indicator ............. 417
Brake Override System ........................... 412
Brake system ................................................ 410
Charging system ...........................................411
Drive-Start Control .................................... 412
Electric power steering ............................413
High coolant temperature ..................... 410
Hybrid system overheat warning light411
Intuitive parking assist OFF indicator 415
Low engine oil pressure.............................411
Low fuel level .................................................413
LTA indicator ................................................. 414
Malfunction indicator lamp.......................411
Master warning light .................................. 417
Parking brake indicator ............................416
PKSB OFF indicator ..................................415
Pre-collision system ...................................416
RCTA OFF indicator.................................415
Seat belt reminder light ................. 413, 414
Slip indicator ..................................................416
SRS...................................................................... 412
Tire pressure .................................................. 414
Warning messages ..................................... 420
Washer Adding ............................................................ 369
Preparing and checking before winter.........................................................................286
Switch .............................................................. 204
Washing and waxing..................................350
Weight Cargo capacity.................................. 167, 170
Load limits .......................................................170
Weight ............................................................ 452 Wheels ............................................................. 382
Size ................................................................... 458
Window lock switch .....................................153
Windows Power windows ............................................. 151
Rear window defogger.......................... 300
Washer ...........................................................204
Windshield wiper de-icer ........................ 305
Windshield wiper inserts ..........................385
Windshield wipers Position........................................................... 206
Rain-sensing windshield wipers .........204
Replacing a windshield wiper insert 385
Winter driving tips....................................... 286
Wireless charger ......................................... 330
Wireless remote control Battery-Saving Function...........................126
Locking/Unlocking ................................... 107
Replacing the battery .............................. 386
For information regarding the equipment listed below, refer to
the “NAVIGATION AND MULTI-
MEDIA SYSTEM OWNER’S
MANUAL”.
· Navigation system
· Audio/visual system
· Panoramic view monitor
· Lexus parking assist monitor
