4568-1. Specifications
*: The coolant capacity is a reference quantity.
If replacement is necessary, contact your Lexus dealer.
Cooling system
Capacity*
Gasoline
engine
RX450h (Vehicles without towing package)
10.3 qt. (9.8 L, 8.6 Imp. qt.)
RX450h (Vehicles with towing package)
10.7 qt. (10.1 L, 8.9 Imp. qt.)
RX450hL
13.2 qt. (12.5 L, 11 Imp. qt.)
Power con-
trol unit2.0 qt. (1.9 L, 1.7 Imp. qt.)
Coolant type
Use either of the following:
 “Toyota Super Long Life Coolant”
 Similar high-quality ethylene glycol-based non-silicate,
non-amine, non-nitrite, and non-borate coolant with
long-life hybrid orga nic acid technology
Do not use plain water alone.
Ignition system (spark plug)
MakeDENSO FK20HBR8
Gap0.03 in. (0.8 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

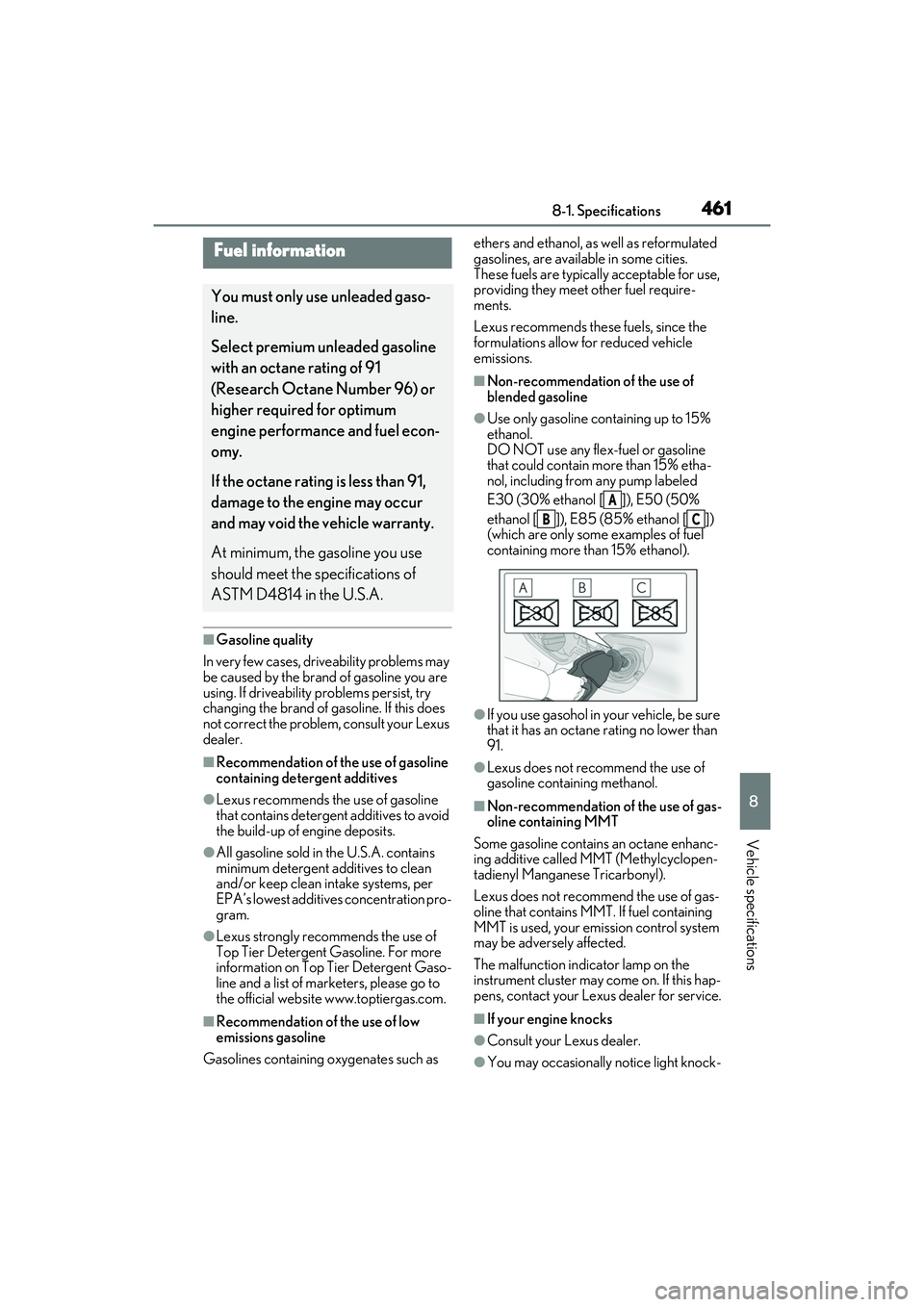

4618-1. Specifications
8
Vehicle specifications
■Gasoline quality
In very few cases, driveability problems may
be caused by the brand of gasoline you are
using. If driveability problems persist, try
changing the brand of gasoline. If this does
not correct the problem, consult your Lexus
dealer.
■Recommendation of the use of gasoline
containing detergent additives
●Lexus recommends the use of gasoline
that contains detergent additives to avoid
the build-up of engine deposits.
●All gasoline sold in the U.S.A. contains
minimum detergent additives to clean
and/or keep clean intake systems, per
EPA’s lowest additive s concentration pro-
gram.
●Lexus strongly recommends the use of
Top Tier Detergent Gasoline. For more
information on Top Tier Detergent Gaso-
line and a list of marketers, please go to
the official websit e www.toptiergas.com.
■Recommendation of the use of low
emissions gasoline
Gasolines containing oxygenates such as ethers and ethanol, as well as reformulated
gasolines, are available in some cities.
These fuels are typically acceptable for use,
providing they meet other fuel require-
ments.
Lexus recommends these fuels, since the
formulations allow for reduced vehicle
emissions.
■Non-recommendation of the use of
blended gasoline
●Use only gasoline containing up to 15%
ethanol.
DO NOT use any flex-fuel or gasoline
that could contain more than 15% etha-
nol, including from any pump labeled
E30 (30% ethanol [ ]), E50 (50%
ethanol [ ]), E85 (85% ethanol [ ])
(which are only some examples of fuel
containing more than 15% ethanol).
●If you use gasohol in your vehicle, be sure
that it has an octane
rating no lower than
91.
●Lexus does not recommend the use of
gasoline containing methanol.
■Non-recommendation of the use of gas-
oline containing MMT
Some gasoline contains an octane enhanc-
ing additive called MMT (Methylcyclopen-
tadienyl Manganese Tricarbonyl).
Lexus does not recommend the use of gas-
oline that contains MMT. If fuel containing
MMT is used, your emission control system
may be adversely affected.
The malfunction indicator lamp on the
instrument cluster may come on. If this hap-
pens, contact your Lexus dealer for service.
■If your engine knocks
●Consult your Lexus dealer.
●You may occasionally notice light knock-
Fuel information
You must only use unleaded gaso-
line.
Select premium unleaded gasoline
with an octane rating of 91
(Research Octane Number 96) or
higher required for optimum
engine performance and fuel econ-
omy.
If the octane rating is less than 91,
damage to the engine may occur
and may void the vehicle warranty.
At minimum, the gasoline you use
should meet the specifications of
ASTM D4814 in the U.S.A.
A
BC

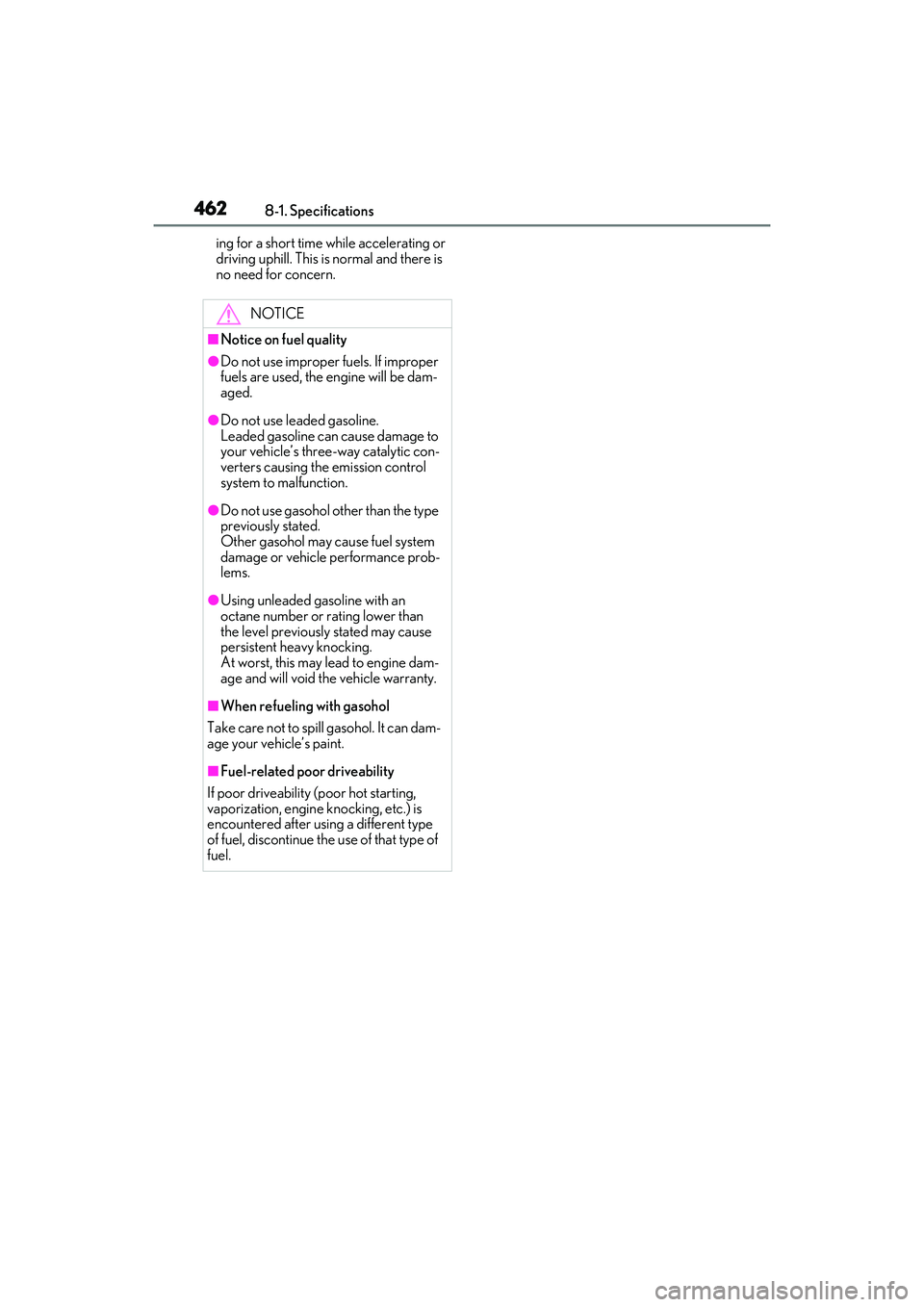

4628-1. Specifications
ing for a short time while accelerating or
driving uphill. This is normal and there is
no need for concern.
NOTICE
■Notice on fuel quality
●Do not use improper fuels. If improper
fuels are used, the engine will be dam-
aged.
●Do not use leaded gasoline.
Leaded gasoline can cause damage to
your vehicle’s three-way catalytic con-
verters causing the emission control
system to malfunction.
●Do not use gasohol other than the type
previously stated.
Other gasohol may cause fuel system
damage or vehicle performance prob-
lems.
●Using unleaded gasoline with an
octane number or rating lower than
the level previously stated may cause
persistent he avy knocking.
At worst, this may lead to engine dam-
age and will void the vehicle warranty.
■When refueling with gasohol
Take care not to spill gasohol. It can dam-
age your vehicle’s paint.
■Fuel-related poor driveability
If poor driveability (poor hot starting,
vaporization, engine knocking, etc.) is
encountered after using a different type
of fuel, discontinue the use of that type of
fuel.

4678-1. Specifications
8
Vehicle specifications
Glossary of tire terminology
Tire related termMeaning
Cold tire inflation pressure
Tire pressure when the vehicle has been parked for
three hours or more, or has not been driven more
than 1 mile or 1.5 km under that condition
Maximum inflation pressureThe maximum cold inflated pressure to which a tire
may be inflated, shown on the sidewall of the tire
Recommended inflation pressureCold tire inflation pressure recommended by a
manufacturer
Accessory weight
The combined weight (in excess of those standard
items which may be replaced) of hybrid transmis-
sion, power steering, power brakes, power win-
dows, power seats, radio and heater, to the extent
that these items are available as factory-installed
equipment (whether installed or not)
Curb weight
The weight of a motor vehicle with standard equip-
ment, including the maximum capacity of fuel, oil
and coolant, and if so equipped, air conditioning
and additional weight optional engine
Maximum loaded vehicle weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
Normal occupant weight
150 lb. (68 kg) times the number of occupants
specified in the second column of Table 1
* that fol-
lows
Occupant distributionDistribution of occupants in a vehicle as specified in
the third column of Table 1
* below
Production options weight
The combined weight of installed regular produc-
tion options weighing over 5 lb. (2.3 kg) in excess of
the standard items which they replace, not previ-
ously considered in curb weight or accessory
weight, including heavy duty brakes, ride levelers,
roof rack, heavy duty 12-v olt battery, and special
trim

506Alphabetical Index
Fluid ......................................................369, 457
Parking brake ................................................193
Regenerative braking ................................. 67
Warning light ................................................ 410
Brake assist .................................................... 278
Break-in tips.....................................................163
Brightness control Instrument panel light control ................ 87
BSM (Blind Spot Monitor)....................... 246
Buzzer Hands off steering wheel warning (LTA)......................................................................... 232
C
Care Exterior .......................................................... 350
Interior ............................................................. 353
Seat belts........................................................ 353
Wheels and wheel ornaments........... 350
Cargo capacity..................................... 167, 170
Cargo hooks ................................................. 324
Cargo net hooks .......................................... 324
Center Display ............................................. 294
Chains .............................................................. 287
Child restraint system Fixed with a LATCH system .................. 54
Fixed with a seat belt...................................50
Front passenger occupant classification system ............................................................. 39
Points to remember .................................... 45
Riding with children ..................................... 45
Types of child restraint system installation method ........................................................... 46
Using an anchor bracket .......................... 57
Child safety 12-volt battery precautions ....... 372, 445
Airbag precautions...................................... 36
Child restraint system................................. 46
Heated steering wheel and seat heater precautions.................................................. 312
How your child should wear the seat belt .............................................................................27 Moon roof precautions............................ 155
Panoramic moon roof precautions ... 158
Power back door precautions ............... 113
Power window lock switch .................... 153
Power window precautions .................. 152
Rear door child-protectors ..................... 112
Seat belt extender prec
autions.............. 27
Seat belt precautions .................................. 45
Child-protectors............................................. 112
Cleaning Exterior........................................................... 350
Interior .............................................................353
Radar sensor .................................................. 212
Seat belts ........................................................353
Wheels and wheel ornaments ........... 350
Clock ....................................................... 83, 338
Coat hooks..................................................... 338
Coin box.......................................................... 322
Compass ......................................................... 346
Condenser ..................................................... 368
Console box .................................................. 320
Cooling system............................................. 367 Engine overheating...................................446
Hybrid system overheating ................. 448
Cornering lights ...........................................200 Replacing light bulbs................................393
Cruise control Dynamic radar cruise control with full-speed range ......................................236
Cup holders .....................................................321
Current fuel consumption .......................... 90
Curtain shield airbags .................................. 30
Customizable features ...............................472
D
Daytime running light system .................. 198
Defogger Outside rear view mirrors.................... 300
Rear window ............................................... 300
Windshield ................................................... 300
Differential Rear differential oil.....................................457

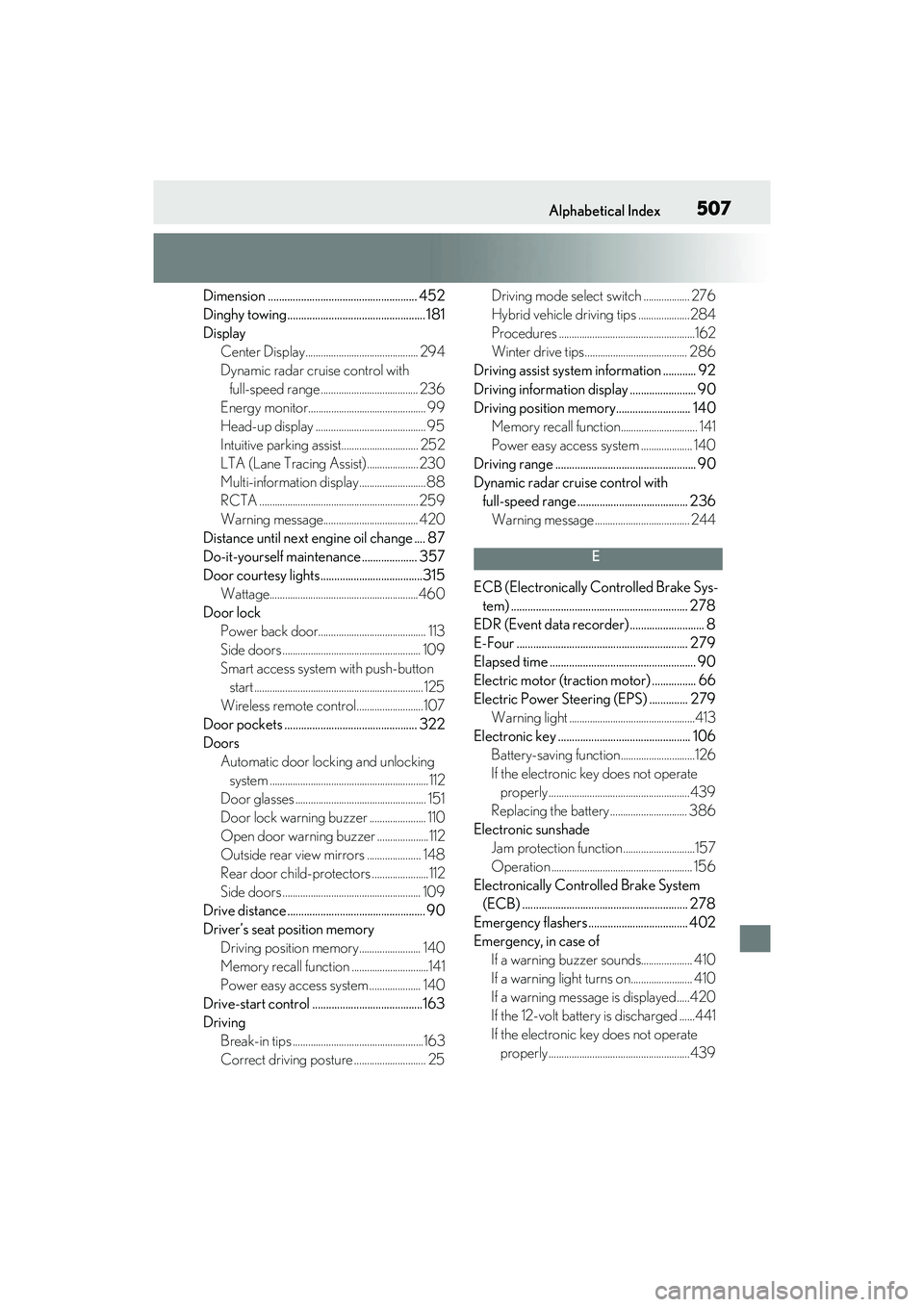

507Alphabetical Index
Dimension ...................................................... 452
Dinghy towing.................................................. 181
DisplayCenter Display............................................ 294
Dynamic radar cruise control with full-speed range ...................................... 236
Energy monitor.............................................. 99
Head-up display ........................................... 95
Intuitive parking assist.............................. 252
LTA (Lane Tracing Assist).................... 230
Multi-information display ..........................88
RCTA .............................................................. 259
Warning message..................................... 420
Distance until next engine oil change .... 87
Do-it-yourself maintenance .................... 357
Door courtesy lights .....................................315 Wattage..........................................................460
Door lock Power back door.......................................... 113
Side doors ...................................................... 109
Smart access system with push-button start .................................................................. 125
Wireless remote control..........................107
Door pockets ................................................ 322
Doors Automatic door lock ing and unlocking
system ..............................................................112
Door glasses ................................................... 151
Door lock warning buzzer ...................... 110
Open door warning buzzer ....................112
Outside rear view mirrors ..................... 148
Rear door child-protectors ......................112
Side doors ...................................................... 109
Drive distance .................................................. 90
Driver’s seat position memory Driving position memory........................ 140
Memory recall function ..............................141
Power easy access system .................... 140
Drive-start control ........................................163
Driving Break-in tips ...................................................163
Correct driving posture ............................ 25 Driving mode select switch .................. 276
Hybrid vehicle driving tips ....................284
Procedures .....................................................162
Winter drive tips ........................................ 286
Driving assist system information ............ 92
Driving information display ........................ 90
Driving position memory........................... 140 Memory recall function.............................. 141
Power easy access system .................... 140
Driving range ................................................... 90
Dynamic radar cruise control with full-speed range ........................................ 236 Warning message ..................................... 244
E
ECB (Electronically Controlled Brake Sys-
tem) ................................................................ 278
EDR (Event data recorder) ........................... 8
E-Four .............................................................. 279
Elapsed time ..................................................... 90
Electric motor (traction motor) ................ 66
Electric Power Steering (EPS) .............. 279 Warning light .................................................413
Electronic key ................................................ 106 Battery-saving function.............................126
If the electronic key does not operate properly .......................................................439
Replacing the battery .............................. 386
Electronic sunshade Jam protection function ............................157
Operation ....................................................... 156
Electronically Controlled Brake System (ECB) ............................................................ 278
Emergency flashers .................................... 402
Emergency, in case of If a warning buzzer sounds.................... 410
If a warning light turns on........................ 410
If a warning message is displayed.....420
If the 12-volt battery is discharged ......441
If the electronic key does not operate properly .......................................................439

508Alphabetical Index
If the fuel filler door cannot be opened.........................................................................438
If the hybrid system will not start ........ 436
If the vehicle is submerged or water on the road is rising......................................403
If you have a flat tire .................................. 424
If you lose your keys.................................438
If you think something is wrong .........409
If your vehicle becomes stuck............. 449
If your vehicle has to be stopped in an
emergency ................................................ 402
If your vehicle needs to be towed .....405
If your vehicle overheats ........................ 446
Energy monitor .....................................99, 100
Engine ACCESSORY mode .............................. 185
Compartment .............................................365
Engine switch.................................................182
Hood................................................................ 363
How to start the hybrid system ............182
Identification number ............................... 453
If the hybrid system will not start ........ 436
If your vehicle has to be stopped in an
emergency ................................................ 402
Ignition switch (power switch) ..............182
Overheating................................................. 446
Power switch .................................................182
Tachometer ..................................................... 83
Engine coolant Capacity .........................................................456
Checking ....................................................... 367
Preparing and checking before winter.........................................................................286
Engine coolant temperature gauge ....... 83
Engine oil Capacity .........................................................455
Checking .......................................................365
Preparing and checking before winter.........................................................................286
Warning light ...................................................411
Engine oil maintenance data .................. 367 Engine switch (power switch) ..................182
If your vehicle has to be stopped in an emergency .................................................402
EPS (Electric Power Steering) .............. 279 Warning light .................................................413
EV drive mode................................................187
EV indicator .......................................................67
Event data recorder (EDR) ........................... 8
F
Flat tire Tire pressure warning system ............. 376
Vehicles with a spare tire....................... 424
Floor mats .......................................................... 24
Fluid Brake ................................................................ 457
Hybrid transmission.................................. 457
Washer .......................................................... 369
Fog lights Switch...............................................................204
Footwell light ...................................................315
Front automatic air conditioning system .......................................................................... 298
Front fog lights Replacing light bulbs................................393
Front passenger footwell hooks ............ 340
Front passenger occupant classification system .............................................................. 39
Front seats Adjustment ......................................................129
Cleaning .........................................................353
Correct driving posture ............................ 25
Driving position memory ........................ 140
Head restraints..............................................143
Memory recall function.............................. 141
Power easy access system .................... 140
Seat heaters ....................................................312
Seat position memory .............................. 140
Seat ventilators ..............................................312
Front side marker light Light switch .................................................... 198
Replacing light bulbs................................393

510Alphabetical Index
High voltage components ....................... 69
Hybrid system precautions ..................... 69
If the hybrid system will not start ........ 436
Overheating.................................................448
Power (ignition) switch.............................182
Regenerative braking ................................. 67
Starting the hybrid system.......................182
Hybrid System Indicator......................85, 99
Hybrid transmission..................................... 189 M mode ............................................................. 191
Paddle shift switches .........................190, 191
Hybrid vehicle driving tips ....................... 284
I
I/M test ............................................................ 360
Identification Engine ............................................................. 453
Vehicle ............................................................ 452
If your vehicle has to be stopped in an
emergency .................................................. 402
Ignition switch (power switch) .................182 Auto power off function .......................... 185
Changing the power switch modes . 185
If your vehicle has to be stopped in an
emergency ................................................ 402
Immobilizer system......... ................................73
Indicators ........................................................... 80
Initialization Items to initialize .........................................485
Maintenance ....................................356, 367
Power windows............................................. 151
Tire pressure warning system ............. 378
Inside rear view mirror ................................ 147
Instrument panel light control ................... 87
Interior lights....................................................315 Front interior light ........................................315
Rear interior light .........................................315
Intuitive parking assist.....................250, 252 Function .......................................................... 252
Warning message..................................... 254
J
JackPositioning a floor jack ............................363
Vehicle-equipped jack ...........................425
Jack handle .................................................... 425
Jam protection function Electronic sunshade ...................................157
Moon roof ...................................................... 154
Panoramic moon roof ...............................157
Power back door.......................................... 119
Power windows ............................................. 151
Rear seats ....................................................... 130
K
Keyless entrySmart access system with push-button start ................................................................. 125
Wireless remote control ......................... 107
Keys Battery-saving function.............................126
Electronic key ............................................... 106
If the electronic key does not operate properly .......................................................439
If you lose your keys ................................ 438
Key number plate ....................................... 106
Keyless entry ....................................... 107, 125
Mechanical key ............................................ 106
Power switch................................................. 182
Replacing the battery .............................. 386
Warning buzzer .......................................... 125
Wireless remote control ......................... 107
Knee airbags .................................................... 30
L
Lane Tracing Assist (LTA) Operation ...................................................... 225
Warning messages................................... 233
Language (multi-infor mation display) ... 92
LATCH anchors ............................................. 54

512Alphabetical Index
Energy monitor............................................ 100
G-force................................................................ 91
LTA (Lane Tracing Assist).................... 230
Menu icons ...................................................... 89
Meter control switches .............................. 89
Navigation system-linked display ........ 92
Pop-up display...............................................88
Settings .............................................................. 92
Suggestion function..................................... 93
Tire pressure ................................................ 376
Units ...................................................................... 91
Warning message..................................... 420
N
Navigation system-linked display....92, 98
Noise from under vehicle ...............................6
O
“ODO TRIP” switch ...................................... 87
Odometer ......................................................... 87
Odometer and trip meter displayDisplay items ................................................... 87
“ODO TRIP” switch .................................... 87
Pop-up display............................................... 87
Oil Engine oil .......................................................455
Rear differential oil .................................... 457
Opener Fuel filler door..............................................209
Hood................................................................ 363
Outer foot lights Location............................................................315
Outside door handle lights........................315
Outside rear view mirrors Adjustment..................................................... 148
BSM (Blind Sport Monitor) ................. 246
Folding ..............................................................149
Linked mirror function when reversing.......................................................................... 148
Mirror position memory.......................... 140
Outside rear view mirror defoggers300 RCTA function ............................................259
Outside temperature..... ............................... 83
Overheating .................................................. 446
P
Paddle shift switches ........................... 190, 191
Panic mode ......................................................107
Panoramic moon roof Jam protection function ............................157
Operation ....................................................... 156
Parking assist sensors (intuitive parking assist) ............................................................. 252
Parking brake Operation ....................................................... 193
Parking brake engaged warning buzzer........................................................................... 195
Warning light ................................................ 416
Warning message ...................................... 195
Parking lights Light switch .................................................... 198
Replacing light bulbs................................393
Parking Support Brake function (for rear-crossing vehicles) ...........................274 Function .......................................................... 274
Parking Support Brake function (static objects) ........................................................... 271 Function ............................................................ 271
PCS (Pre-Collision System) Function ........................................................... 218
PCS OFF switch ........................................220
Warning light ................................................ 416
Personal lights.................................................315
PKSA (Parking Support Alert) .............. 250
PKSB (Parking Support Brake)............. 265 Warning message ..................................... 270
Power back door ............................................ 113 Hands Free Power Back Door ............. 116
Smart access system with push-button start ................................................................... 114
Power control unit.......................................... 69
Power control unit coolant Capacity ........................................................ 456

513Alphabetical Index
Checking ....................................................... 367
Preparing and checking before winter.........................................................................286
Power easy access system ....................... 140
Power outlets ................................................ 338
Power steering (Elect ric power steering
system).......................................................... 279 Warning light .................................................413
Power switch ...................................................182 Auto power off function .......................... 185
Changing the power switch modes . 185
Power switch (engine switch) If your vehicle has to be stopped in an
emergency ................................................ 402
Power windows Door lock linked window operation..152
Jam protection function............................. 151
Operation......................................................... 151
Window lock switch ..................................153
Pre-Collision System (PCS) Function ............................................................218
PCS OFF switch ........................................ 220
Warning light .................................................416
R
Radar cruise control (dynamic radar cruise control with full-speed range)............. 236
Radiator ........................................................... 368
RCTA Function .......................................................... 259
Warning message.....................................260
RCTA (Rear Cross Traffic Alert) ......... 250
RCTA function ............................................. 260
Rear automatic air conditioning system .......................................................................... 309
Rear Cross Traffic Alert (RCTA) ......... 259
Rear door sunshades ................................. 340
Rear fog lights Switch .............................................................. 204
Rear seats ........................................................ 130 Adjustment....................................................... 131
Folding down the rear seatbacks......... 131 Head restraints..............................................143
Seat heaters ....................................................312
Rear side marker lights Light switch .................................................... 198
Replacing light bulbs................................393
Rear turn signal lights Replacing light bulbs....................393, 397
Turn signal lever ...........................................192
Wattage ......................................................... 460
Rear view mirror Inside rear view mirror ..............................147
Outside rear view mirrors...................... 148
Rear window defogger .............................300
Rear window wiper.....................................208
Refueling Capacity .........................................................454
Fuel types .......................................................454
If the fuel filler do or cannot be opened
......................................................................... 438
Opening the fuel tank cap ................... 209
Regenerative braking ....................................67
Remote Touch .............................................. 292
Replacing Electronic key battery ............................. 386
Fuses................................................................ 388
Light bulbs ..................................................... 392
Tires .................................................................. 424
Resetting the message indicating mainte- nance is required ...................................... 356
Rev indicator .................................................... 85
Rev peak............................................................. 85
Road Sign Assist .............. ............................ 234
RSA (Road Sign Assist) ............................ 234
S
Seat belt reminder light.....................413, 414
Seat belts............................................................ 26 Automatic Locking Retractor................. 28
Child restraint system installation ......... 46
Cleaning and maintaining the seat belt..........................................................................353
Emergency Locking Retractor .............. 28
