engine LEXUS RX450h 2022 Owners Manual

4TABLE OF CONTENTS
6-1. Maintenance and careCleaning and protecting the vehi-cle exterior ................................... 350
Cleaning and protecting the vehi- cle interior .................................... 353
6-2. Maintenance Maintenance requirements ..... 356
General maintenance ................ 357
Emission inspection and mainte- nance (I/M) programs ............ 360
6-3. Do-it-yourself maintenance Do-it-yourself service precautions............................................................ 361
Hood.................................................. 363
Positioning a floor jack............... 363
Engine compartment.................. 365
12-volt battery................................ 370
Tires ................................................... 374
Tire inflation pressure................. 380
Wheels.............................................. 382
Air conditioning filter..................383
Windshield wiper inserts........... 385
Electronic key battery ................ 386
Checking and replacing fuses ........................................................... 388
Headlight aim................................. 390
Light bulbs ....................................... 392
7-1. Essential information Emergency flashers..................... 402
If your vehicle has to be stopped in an emergency ............................. 402If the vehicle is submerged or water
on the road is rising .................. 403
7-2. Steps to take in an emergency If your vehicle needs to be towed.......................................................... 405
If you think something is wrong .......................................................... 409
If a warning light turns on or a warn- ing buzzer sounds...................... 410
If a warning messa ge is displayed
.......................................................... 420
If you have a flat tire ..................... 424
If the hybrid syst em will not start
.......................................................... 436
If you lose your keys.................... 438
If the fuel filler door cannot be opened .......................................... 438
If the electronic key does not oper- ate properly ................................. 439
If the 12-volt battery is discharged ............................................................ 441
If your vehicle overheats ........... 446
If the vehicle becomes stuck ... 449
8-1. Specifications Maintenance data (fuel, oil level, etc.) ................................................. 452
Fuel information............................. 461
Tire information ............................ 463
8-2. Customization Customizable features ............... 472
8-3. Initialization Items to initialize ........................... 485
6Maintenance and care
7When trouble arises
8Vehicle specifications

7
tem/sequential multiport fuel injec-
tion system
 Lexus Safety System + 2.0
 Anti-lock brake system
 Vehicle dynamics integrated man-
agement
 SRS airbag system
 Seat belt pretensioner system
Be sure to check with your Lexus
dealer for precautionary measures or
special instructions regarding installa-
tion of a mobile two-way radio system.
High voltage parts and cables on the
hybrid vehicles emit approximately the
same amount of electromagnetic
waves as the conventional gasoline
powered vehicles or home electronic
appliances despite of their electro-
magnetic shielding.
Unwanted noise may occur in the
reception of the mobile two-way radio.
The vehicle is equipped with sophisti-
cated computers that will record cer-
tain data, such as:
• Engine speed/Electric motor speed (traction motor speed)
• Accelerator status
•Brake status
• Vehicle speed
• Operation status of the driving assist systems
• Images from the cameras Your vehicle is equipped with cam-
eras. Contact your Lexus dealer for
the location of recording cameras. The recorded data varies according to
the vehicle grade level and options
with which it is equipped.
These computers do not record con-
versations or sounds, and only record
images outside of the vehicle in certain
situations.

Data Transmission
Your vehicle may transmit the data
recorded in these computers to Lexus
without notification to you.
Data usage
Lexus may use the data recorded in this
computer to diagnose malfunctions, con-
duct research and development, and
improve quality.
Lexus will not disclose the recorded data to
a third party except:
• With the consent of the vehicle owner or
with the consent of the lessee if the vehi-
cle is leased
• In response to an official request by the police, a court of law or a government
agency
• For use by Lexus in a lawsuit
• For research purposes where the data is not tied to a specific vehicle or vehicle
owner
 Recorded image information can be
erased by your Lexus dealer.
The image recording function can be dis-
abled. However, if the function is disabled,
data from when the system operates will
not be available.
To learn more abou t the vehicle data
collected, used and shared by
Lexus, please visit
www.lexus.com/privacyvts/
.
Vehicle data recording

13Pictorial index
Precautions for winter season ..................................................................................... P.286
To prevent freezing (windshield wiper de-icer)
*.................................................P.305
Precautions for car wash ................................................................................................ P.351
Fuel filler door ........................................................................................................ P.209
Refueling method .............................................................................................................P. 209
Fuel type/fuel tank capacity ......................................................................................... P.454
Tires.......................................................................................................................... .. P.374
Tire size/inflation pressure ............................ ................................................... P.374, 458
Winter tires/tire chains .................................................................................................. P.286
Checking/rotation/tire pressure warning system.............................................. P.374
Coping with flat tires........................................................................................................ P .424
Hood ..........................................................................................................................P.363
Opening ........................................................................................................................ ....... P.363
Engine oil ..................................................................................................................... .........P.455
Coping with overheating ............................................................................................... P.446
Warning messages .......................................................................................................... P.420
Headlights/front turn signal lights/front side marker lights ............ P.192, 198
Side turn signal lights ............................................................................................. P.192
Parking lights/daytime running lights................ ...............................................P.198
Fog lights/cornering lights
*...................................................................... P.198, 204
Rear side marker lights .........................................................................................P.198
Stop/tail lights ..........................................................................................................P.198
Back-up lights/rear turn signal lights ............. ......................................... P.192, 198
Shifting the shift lever to R .............................................................................................. P.189
License plate lights .................................................................................................P.198
*:If equipped
Light bulbs of the exterior lights for driving
(Replacing method: P. 392, Watts: P.460)
E
F
G
H
I
J
K
L
M
N
O

331-1. For safe use
1
For safety and security
RX450hL: Rear side airbags (outboard second-row seats)
Your vehicle is equipped with ADVANC ED AIRBAGS designed based on the US
motor vehicle safety standards (FMVSS20 8). The airbag sensor assembly (ECU)
controls airbag deployment based on information obtain ed from the sensors etc.
shown in the system components diagram above. This information includes crash
severity and occupant information. As th e airbags deploy, a chemical reaction in
the inflators quickly fills the airbags with no n-toxic gas to help restrain the motion of
the occupants.
■If the SRS airbags deploy (inflate)
●Slight abrasions, burns, bruising etc., may
be sustained from SRS airbags, due to the
extremely high speed deployment (infla-
tion) by hot gases.
●A loud noise and white powder will be
emitted.
●Parts of the airbag module (steering
wheel hub, airbag cover and inflator) as
well as the front seats, parts of the front
and rear pillars, and roof side rails, may
be hot for several minutes. The airbag
itself may also be hot.
●The windshield may crack.
●The hybrid system will be stopped and
fuel supply to the engine will be stopped.
( P.72)
●All of the doors will be unlocked.
(P.110)
●The brakes and stop lights will be con-
trolled automatically. ( P.279)
●The interior lights will turn on automati-
cally. (P.316)
●The emergency flashers will turn on auto-
matically. ( P.402)
●For Lexus Enform Safety Connect sub-
scribers, if any of the following situations
occur, the system is designed to send an
emergency call to the response center,
notifying them of the vehicle’s location
(without needing to push the “SOS” but-
ton) and an agent will attempt to speak
with the occupants to ascertain the level
of emergency and assi stance required. If
the occupants are unable to communi-
cate, the agent automatically treats the
call as an emergency and helps to dis- patch the necessary emergency services.
(
P.60)
• An SRS airbag is deployed.
• A seat belt preten sioner is activated.
• The vehicle is involved in a severe rear-end collision.
■SRS airbag deployment conditions (SRS
front airbags)
●The SRS front airbags will deploy in the
event of an impact that exceeds the set
threshold level (the level of force corre-
sponding to an approximately 12 - 18
mph [20 - 30 km/h] frontal collision with
a fixed wall that does not move or
deform).
However, this threshol d velocity will be
considerably higher in the following situa-
tions:
• If the vehicle strikes an object, such as a parked vehicle or sign pole, which can
move or deform on impact
• If the vehicle is involved in an underride collision, such as a collision in which the
front of the vehicle “u nderrides”, or goes
under, the bed of a truck
●Depending on the type of collision, it is
possible that only the seat belt
pretensioners will activate.
●The SRS seat cushion airbag on the front
passenger seat will not operate if the
occupant is not wearing a seat belt.
■SRS airbag deployment conditions (SRS
side and curtain shield airbags)
●The SRS side and curtain shield airbags
will deploy in the event of an impact that
exceeds the set threshold level (the level
of force corresponding to the impact
force produced by an approximately
3300 lb. [1500 kg] vehicle colliding with

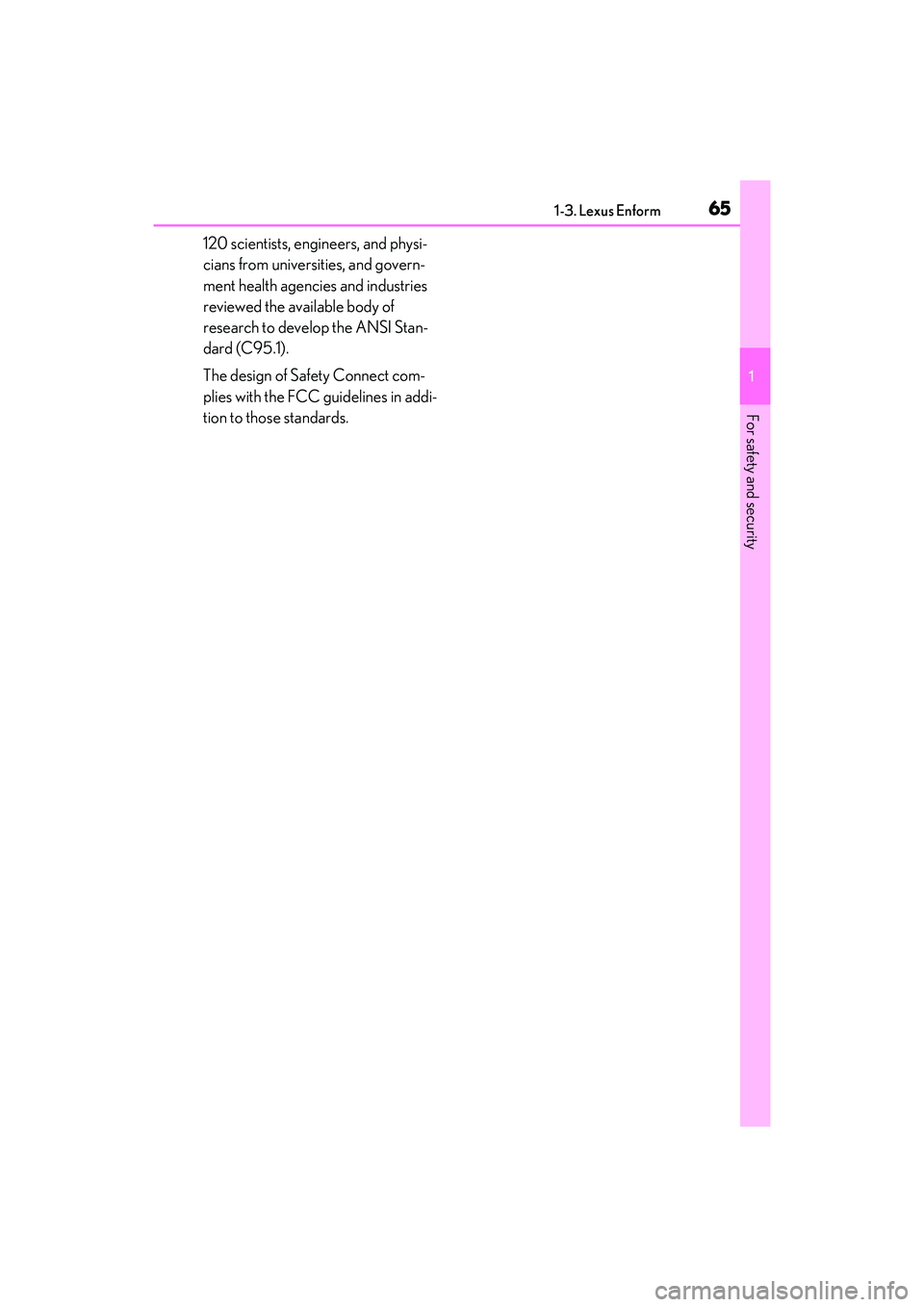

651-3. Lexus Enform
1
For safety and security
120 scientists, engineers, and physi-
cians from universities, and govern-
ment health agencies and industries
reviewed the available body of
research to develop the ANSI Stan-
dard (C95.1).
The design of Safety Connect com-
plies with the FCC guidelines in addi-
tion to those standards.

661-4. Hybrid system
1-4.Hybrid system
■System components
The illustration is an example for explanation and may differ from the actual item.
Gasoline engine
Front electric motor (traction motor)
Rear electric motor (traction motor)
■When stopped/during start off
The gasoline engine stops
* when the
vehicle is stopped. During start off, the
electric motor (traction motor) drives
the vehicle. At slow speeds or when
traveling down a gentle slope, the
engine is stopped
* and the electric
motor (traction motor) is used. When the shift lever is in N, the hybrid
battery (traction battery) is not being
charged.
*: When the hybrid battery (traction bat-
tery) requires charging or the engine is
warming up, etc. , the gasoline engine will
not automatically stop. ( P.67)
■During normal driving
The gasoline engine is predominantly
Hybrid system features
Your vehicle is a hybrid vehicle. It has characteristics different from conven-
tional vehicles. Be sure you are closely familiar with the characteristics of your
vehicle, and operate it with care.
The hybrid system combines the use of a gasoline engine and an electric motor
(traction motor) according to driving conditions, improving fuel efficiency and
reducing exhaust emissions.
System components
A
B
C

671-4. Hybrid system
1
For safety and security
used. The electric motor (traction
motor) charges the hybrid battery
(traction battery) as necessary.
■When accelerating sharply
When the accelerator pedal is
depressed heavily, the power of the
hybrid battery (traction battery) is
added to that of the gasoline engine via
the electric motor (traction motor).
■When braking (regenerative brak-
ing)
The wheels operate the electric motor
(traction motor) as a power generator,
and the hybrid battery (traction bat-
tery) is charged.
■Regenerative braking
In the following situations, kinetic energy is
converted to electric energy and decelera-
tion force can be obta ined in conjunction
with the recharging of the hybrid battery
(traction battery).
●The accelerator pedal is released while
driving with the shift lever in D or S.
●The brake pedal is depressed while driv-
ing with the shift lever in D or S.
■EV indicator
The EV indicator comes on when the vehi-
cle is driven using only the electric motor
(traction motor) or the gasoline engine is
stopped.
■Conditions in which the gasoline engine
may not stop
The gasoline engine starts and stops auto-
matically. However, it may not stop auto- matically in the following conditions:
●During gasoline engine warm-up
●During hybrid battery (traction battery)
charging
●When the temperature of the hybrid bat-
tery (traction battery) is high or low
●When the heater is switched on
Depending on the circumstances, the gaso-
line engine may also not stop automatically
in other situations.
■Charging the hybrid battery (traction
battery)
As the gasoline engine charges the hybrid
battery (traction battery), the battery does
not need to be charged from an outside
source. However, if the vehicle is left parked
for a long time the hybrid battery (traction
battery) will slowly discharge. For this rea-
son, be sure to drive the vehicle at least
once every few months for at least 30 min-
utes or 10 miles (16 km). If the hybrid bat-
tery (traction battery) becomes fully
discharged and you are unable to start the
hybrid system, contact your Lexus dealer.
■Charging the 12-volt battery
P.441
■After the 12-volt battery has discharged
or when the terminal has been removed
and installed during exchange, etc.
The gasoline engine may not stop even if
the vehicle is being driven by the hybrid bat-
tery (traction battery). If this continues for a
few days, contact your Lexus dealer.
■Sounds and vibrations specific to a
hybrid vehicle
There may be no engine sound or vibration
even though the vehicle is able to move with
the “READY” indicator is illuminated. For
safety, apply the parking brake and make
sure to shift the shift lever to P when parked.
The following sounds or vibrations may
occur when the hybrid system is operating
and are not a malfunction:
●Motor sounds may be heard from the
engine compartment.
●Sounds may be heard from the hybrid
battery (traction battery) behind the rear

681-4. Hybrid system
seats when the hybrid system starts or
stops.
●Relay operating sounds such as a snap or
soft clank will be emitted from the hybrid
battery (traction battery), behind the rear
seats, when the hybrid system is started
or stopped.
●Sounds from the hybrid system may be
heard when the back door is open.
●Sounds may be heard from the transmis-
sion when the gasoline engine starts or
stops, when driving at low speeds, or
during idling.
●Engine sounds may be heard when
accelerating sharply.
●Sounds may be heard due to regenera-
tive braking when the brake pedal is
depressed or as the accelerator pedal is
released.
●Vibration may be felt when the gasoline
engine starts or stops.
●Cooling fan sounds may be heard from
the air intake vents under the rear seats.
■Maintenance, repair, recycling, and dis-
posal
Contact your Lexus dealer regarding main-
tenance, repair, recycling and disposal. Do
not dispose of the vehicle yourself.
■Customization
Some functions can be customized.
(  P.472)
When driving with the gasoline engine
stopped, a sound, which changes in
accordance with the driving speed, will
be played in order to warn people
nearby of the vehicle’s approach. This
sound may be heard inside the vehicle.
The sound will stop when the vehicle
speed exceeds approximately 22 mph
(35 km/h).
■Acoustic Vehicle Alerting System
In the following cases, the Acoustic Vehicle
Alerting System may be difficult for sur-
rounding people to hear.
●In very noisy areas
●In the wind or the rain
Also, as the Acoustic Vehicle Alerting Sys-
tem is installed on the front of the vehicle, it
may be more difficult to hear from the rear
of the vehicle compared to the front.
Acoustic Vehicle Alerting Sys-
tem

792-1. Instrument cluster
2
Vehicle status information and indicators
Warning lights inform the driver of mal-
functions in the indicated vehicle’s sys-
tems.
Warning lights
(U.S.A.)
Brake system warning light*1
( P.410)
(red)
(Canada)
Brake system warning light*1
( P.410)
(yellow)
Brake system warning light*1
( P.410)
High coolant temperature
warning light
*2 ( P.410)
Hybrid system overheat warn-
ing light
*2 (  P.411)
Charging system warning
light
*3 (  P.411)
Low engine oil pressure warn-
ing light
*2 (  P.411)
(U.S.A.)
Malfunction indicator lamp*1
( P.411)
(Canada)
Malfunction indicator lamp*1
( P.411)
SRS warning light
*1 ( P.412)
(U.S.A.)
ABS warning light*1 ( P.412)
(Canada)
ABS warning light*1 ( P.412)
Brake Override System warn-
ing light/Drive-Start Control
warning light
*2 ( P.412)
(red)
Electric power steering system
warning light
*1 (P.413)
(yellow)
Electric power steering system
warning light
*1 (P.413)
Low fuel level warning light
( P.413)
Driver’s and front passenger’s
seat belt reminder light
( P.413)
(RX450h)
Rear passengers’ seat
belt reminder light
*4
( P.414)
(RX450hL)
Rear passengers’ seat
belt reminder
light
*4(P.414)
Tire pressure warning light
*1
( P.414)
(orange)
LTA indicator ( P.414)
(flashes)
Intuitive parking assist OFF indi-
cator
*1 (if equipped) (P.415)
(flashes)
RCTA OFF indicator*1 (if
equipped) ( P.415)
(flashes)
PKSB OFF indicator*1 (if
equipped) ( P.415)
(flashes or
illuminates)PCS warning light*1 (  P.416)
Slip indicator
*1 ( P.416)
(flashes)
(U.S.A.)
Parking brake indicator
( P.416)

832-1. Instrument cluster
2
Vehicle status information and indicators
■Locations of gauges and meters
Except F SPORT models
The units used on the meters may differ depending on the target region.
Engine coolant temperature gauge
Displays the engine coolant temperature
Hybrid System Indicator
Displays hybrid system output or regeneration level (P.85)
This display changes to a tachometer depending on the drive mode, and can be set to show
the tachometer in any drive mode on the settings display. (P.92, 276)
Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C). Low
outside temperature indicator comes on when the ambient temperature is 37°F (3°C) or
lower.
Multi-information display
Presents the driver with a variety of vehicle data (P.88)
Displays warning messages in case of a malfunction (P.420)
Clock
Time displayed is linked to the analog clock on the instrument panel. (P.338)
Speedometer
Fuel gauge
Displays the quantity of fuel remaining in the tank
Gauges and meters
Meter display
A
B
C
D
E
F
G
