oxygen sensor LEXUS SC400 1991 Service Repair Manual

Reference INSPECTION USING OSCILLOSCOPE
wWith the engine racing (4,000 rpm) measure
between terminals OX1, OX2 and E1 of engine (&
ECT) ECU.
HINT: The correct waveform appears as shown in the
illustration on the left, oscillating between approx.
0.1 V and 0.9 V
If the oxygen sensor is deteriorated, the amplitude
of the voltage is reduced as shown on the left.
±
ENGINE TROUBLESHOOTING Circuit InspectionTR±63
WhereEverybodyKnowsYourName

Diag. Code 21, 28Main Oxygen Sensor Circuit
CIRCUIT DESCRIPTION
To obtain a high purification rate for the CO, HC and NOx components of th\
e exhaust gas, a three±way
catalyst is used, but for most efficient use of the three±way catalyst, the air±fuel ratio must be \
precisely
controlled so that it is always close to the stoichiometric air±fuel \
ratio.
The oxygen sensor has the characteristic whereby its output voltage chan\
ges suddenly in the vicinity of
the stoichiometric air±fuel ratio. This characteristic is used to det\
ect the oxygen concentration in the ex-
haust gas and provide feedback to the computer for control of the air±\
fuel ratio.
When the air±fuel ratio becomes LEAN, the oxygen concentration in the exh\
aust increases and the oxygen
sensor informs the ECU of the LEAN condition (small electromotive force: O V)\
.
When the air±fuel ratio is RICHER than the stoichiometric air±fuel\
ratio the oxygen concentration in the
exhaust gas is reduced and the oxygen sensor informs the ECU of the RICH condition (large electromotive
force: 1V).
The ECU judges by the electromotive force from the oxygen sensor whether th\
e air±fuel ratio is RICH or
LEAN and controls the injection time accordingly. However, if malfunction of the oxygen sensor causes
output of abnormal electromotive force, the ECU is unable to perform accurate \
air±fuel ratio control.
The main oxygen sensors include a heater which heats the Zirconia element. The heater is controlled by
the ECU. When the intake air volume is low (the temperature of the exhaust\
gas is low) current flows to
the heater to heat the sensor for accurate oxygen concentration detectio\
n.
Code No.Diagnostic Code Detecting ConditionTrouble Area
(1) Open or short in heater circuit of main
oxygen sensor for 0.5 sec. or more.

Open or short in heater circuit of main oxygen sen-
sor.

Main oxygen sensor heater

ECU
21 V
28
(2) Main oxygen sensor signal voltage is reduced to be-
tween 0.35 V and 0.70 V for 60 sec. under conditions
(a) ~ (d). (2 trip detection logic)*
(a) Coolant temp.: Between 70 5C (158 5F) and 95 5C
(203 5F).
(b) Engine speed: 1,500 rpm or more.
(c) Load driving (EX. ECT in 4th speed, A/C ON, Flat road, 50 mph (80km/h)).
(d) Main oxygen sensor signal voltage:
Alternating above and below 0.45 V.

Main oxygen sensor circuit

Main oxygen sensor
*: See page TR±21.
HINT : Diag. code 21 is for the left bank main oxygen sensor circuit. Diag. co\
de 28 is for the right bank main oxy-
gen sensor circuit.
±
ENGINE TROUBLESHOOTING Circuit InspectionTR±62
WhereEverybodyKnowsYourName

DIAGNOSTIC CHART
DIAGNOSTIC
CHART

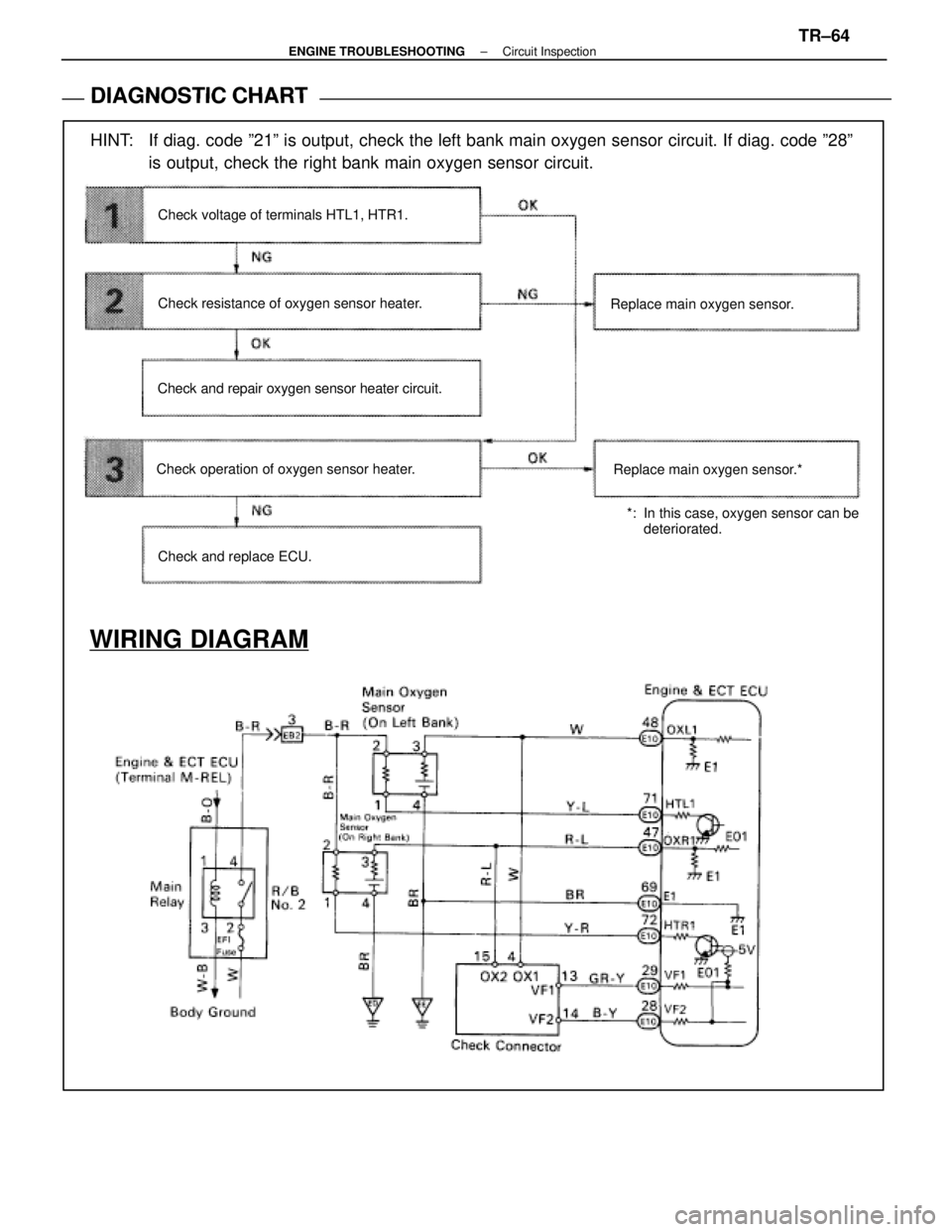

WIRING DIAGRAM
HINT: If diag. code º21º is output, check the left bank main oxygen sens\
or circuit. If diag. code º28º is output, check the right bank main oxygen sensor circuit.
Check voltage of terminals HTL1, HTR1.
Check resistance of oxygen sensor heater.
Check and repair oxygen sensor heater circuit.
Check operation of oxygen sensor heater.
Check and replace ECU. Replace main oxygen sensor.
*: In this case, oxygen sensor can be deteriorated.
Replace main oxygen sensor.*
±
ENGINE TROUBLESHOOTING Circuit InspectionTR±64
WhereEverybodyKnowsYourName

OKNG
OKNG
INSPECTION PROCEDURE

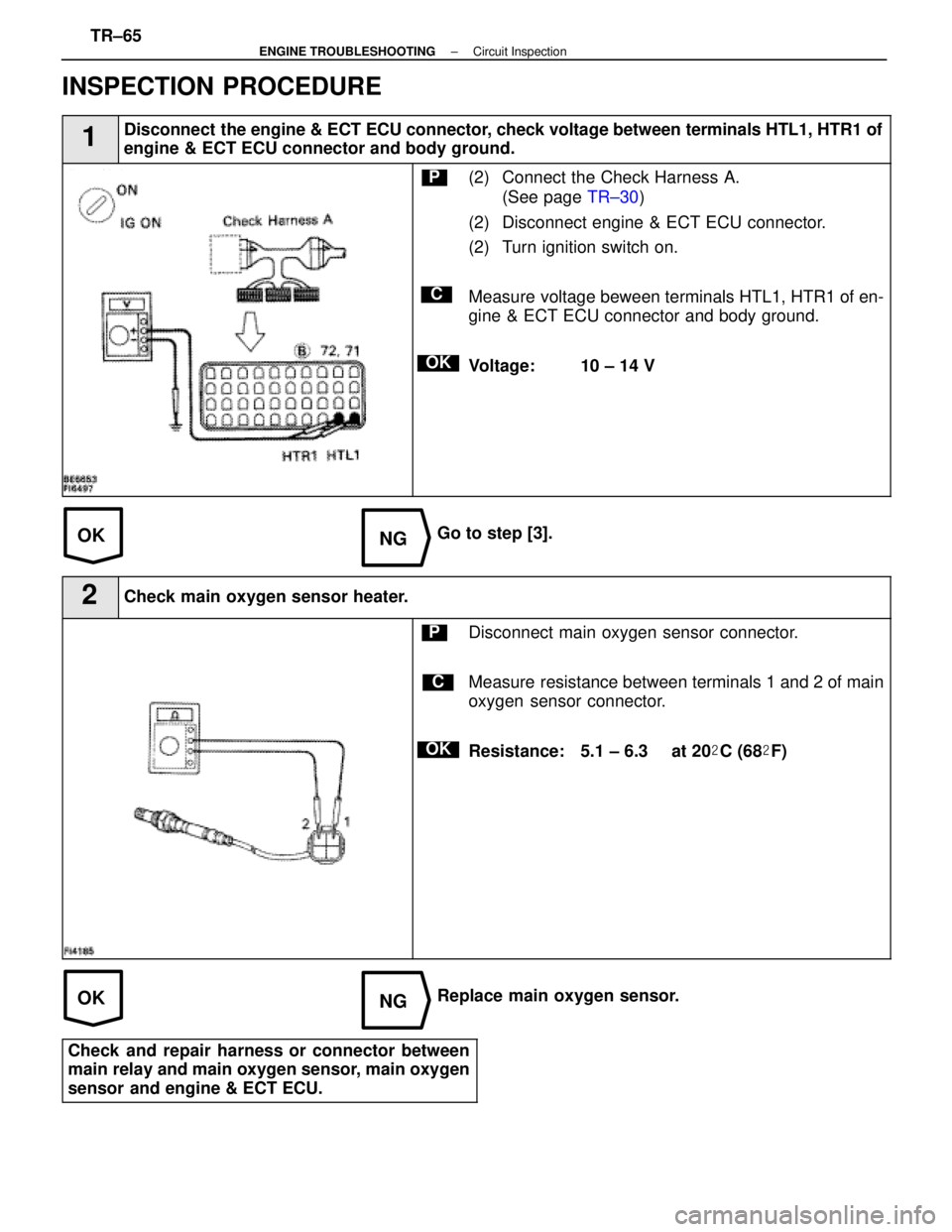

1Disconnect the engine & ECT ECU connector, check voltage between terminals HTL1, HTR1 of
engine & ECT ECU connector and body ground.
C
OK
P(2) Connect the Check Harness A.(See page TR±30)
(2) Disconnect engine & ECT ECU connector.
(2) Turn ignition switch on.
Measure voltage beween terminals HTL1, HTR1 of en-
gine & ECT ECU connector and body ground.
Voltage: 10 ± 14 V
Go to step [3].
2Check main oxygen sensor heater.
C
OK
PDisconnect main oxygen sensor connector.
Measure resistance between terminals 1 and 2 of main
oxygen sensor connector.
Resistance: 5.1 ± 6.3
at 20 C (68 F)
Replace main oxygen sensor.
Check and repair harness or connector between
main relay and main oxygen sensor, main oxygen
sensor and engine & ECT ECU.
TR±65±
ENGINE TROUBLESHOOTING Circuit Inspection
WhereEverybodyKnowsYourName

OKNG

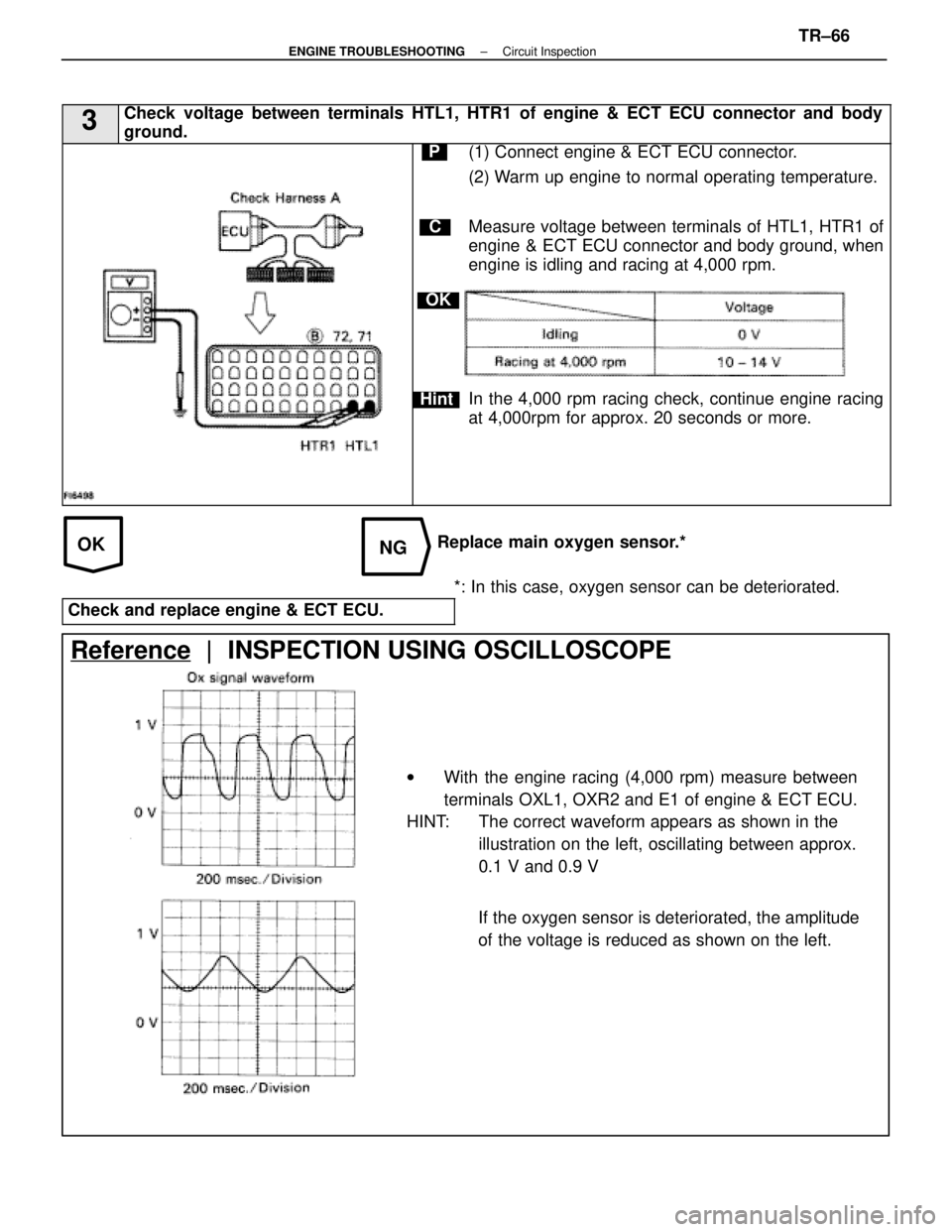

3Check voltage between terminals HTL1, HTR1 of engine & ECT ECU connector and \
body
ground.
C
OK
Hint
P(1) Connect engine & ECT ECU connector.
(2) Warm up engine to normal operating temperature.
Measure voltage between terminals of HTL1, HTR1 of
engine & ECT ECU connector and body ground, when
engine is idling and racing at 4,000 rpm.
In the 4,000 rpm racing check, continue engine racing
at 4,000rpm for approx. 20 seconds or more.
Replace main oxygen sensor.**: In this case, oxygen sensor can be deteriorated.
Check and replace engine & ECT ECU.
Reference | INSPECTION USING OSCILLOSCOPE
w With the engine racing (4,000 rpm) measure between
terminals OXL1, OXR2 and E1 of engine & ECT ECU.
HINT: The correct waveform appears as shown in the
illustration on the left, oscillating between approx.
0.1 V and 0.9 V
If the oxygen sensor is deteriorated, the amplitude
of the voltage is reduced as shown on the left.
±
ENGINE TROUBLESHOOTING Circuit InspectionTR±66
WhereEverybodyKnowsYourName

Diag Code 25 26

Air±Fuel Ratio Lean Malfunction
Diag. Code 25, 26
Air±Fuel Ratio Rich Malfunction
CIRCUIT DESCRIPTION
Refer to page TR±62 for the circuit description.
Code No.
Diagnostic Code Detecting SystemTrouble Area
(1) Main oxygen sensor voltage is 0.45 V or less (lean) for 90 sec. under conditions
(a) and (b).
(2 trip detection logic)
*2
(a) Coolant temp.: 70 °C (158 °F)
or more.
(b) Engine speed: 1,500 rpm or more.
 Open or short in main oxygen sensor
circuit
 Main oxygen sensor
 Ignition system
 ECU
25
(2)*1 Difference of air±fuel ratio feedback
compensation value between front (No.
1 3 cylinders) and rear (No. 4 6
cylinders) is more than 15 percentage
for 20 sec. or more under conditions (a)
and (b).
(2 trip detection logic)
*2
(a) Engine speed: 2,000 rpm or more.
(b) Coolant temp.: Between 60 °C
(140 °F) and 95 °C (203 °F).
 Open and short in injector circuit.
 Fuel line pressure (injector leak, blockage)
 Mechanical system malfunction (skipping
teeth of timing belt)
 Ignition system
 Compression pressure (foreign object
caught in valve)
 Air flow meter (air intake)
 ECU
(3)*1 Engine speed varies by more than 15
rpm over the preceding crank angle period
during a period of 20 sec. or more under
conditions (a) and (b).
(2 trip detection logic)
*2
(a) Engine speed: Idling
(b) Coolant temp.: Between 60 °C
(140 °F) and 95 °C (203 °F).
 Open and short in injector circuit.
 Fuel line pressure (injector leak, blockage)
 Mechanical system malfunction (skipping
teeth of timing belt)
 Ignition system
 Compression pressure (foreign object
caught in valve)
 Air flow meter (air intake)
 ECU
26*1
(1) Difference of air±fuel ratio feedback
compensation value between front (No. 1
3 cylinders) and rear (No.4 6 cylinders) is
more than 15 percentage for 20 sec. or
more under conditions (a) and (b).
(2 trip detection logic)
*2
(a) Engine speed: 2,000 rpm or more.
(b) Coolant temp.: Between 60 °C
(140 °F) and 95 °C (203 °F).
 Open and short in injector circuit.
 Fuel line pressure (injector leak, blockage)
 Mechanical system malfunction (skipping
teeth of timing belt)
 Ignition system
 Compression pressure (foreign object
caught in valve)
 Air flow meter (air intake)
 ECU
261
(2) Engine speed varies by more than 15
rpm over the preceding crank angle peri-
od during a period of 20 sec. or more un-
der conditions (a) and (b).
(2 trip detection logic)
*2
(a) Engine speed: Idling
(b) Coolant temp.: Between 60 °C
(140 °F) and 95 °C (203 °F).
 Open and short in injector circuit.
 Fuel line pressure (injector leak, blockage)
 Mechanical system malfunction (skipping
teeth of timing belt)
 Ignition system
 Compression pressure (foreign object
caught in valve
 Air flow meter (air intake)
 ECU
*1: Only for USA specification vehicles.
*2: See page TR±25.
TR±70
±
ENGINE TROUBLESHOOTING Circuit Inspection
WhereEverybodyKnowsYourName

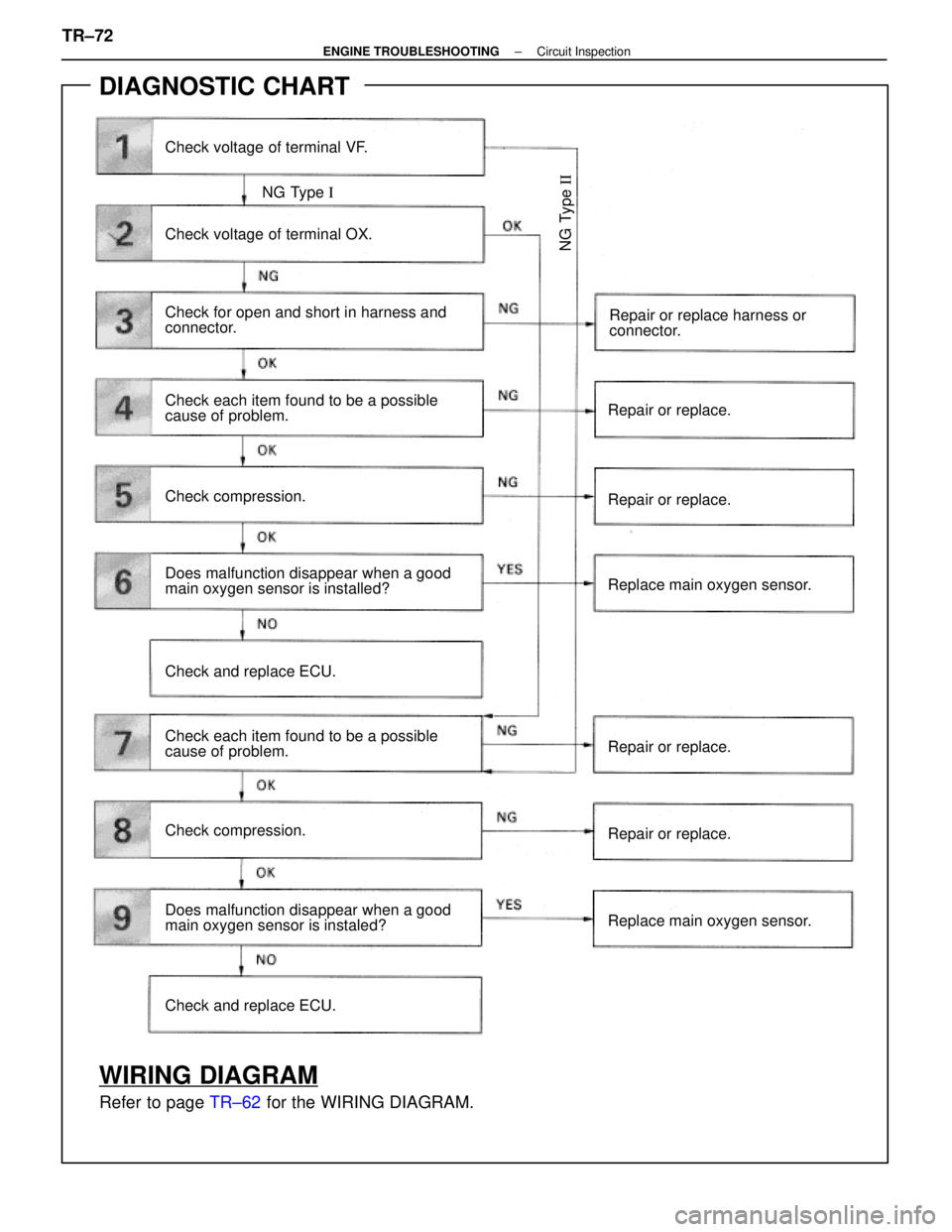

DIAGNOSTIC CHART
Check voltage of terminal VF.
Repair or replace harness or
connector.
Repair or replace.
Repair or replace.
Replace main oxygen sensor.
Repair or replace.
Repair or replace.
Replace main oxygen sensor.
Check voltage of terminal OX.
Check for open and short in harness and
connector.
Check each item found to be a possible
cause of problem.
Check compression.
Does malfunction disappear when a good
main oxygen sensor is installed?
Check and replace ECU.
Check each item found to be a possible
cause of problem.
Check compression.
Does malfunction disappear when a good
main oxygen sensor is instaled?
Check and replace ECU.
NG Type II
NG Type I
WIRING DIAGRAM
Refer to page TR±62 for the WIRING DIAGRAM.
TR±72
±
ENGINE TROUBLESHOOTING Circuit Inspection
WhereEverybodyKnowsYourName

NG
Type I
NG
Type II
NGOK
INSPECTION PROCEDURE

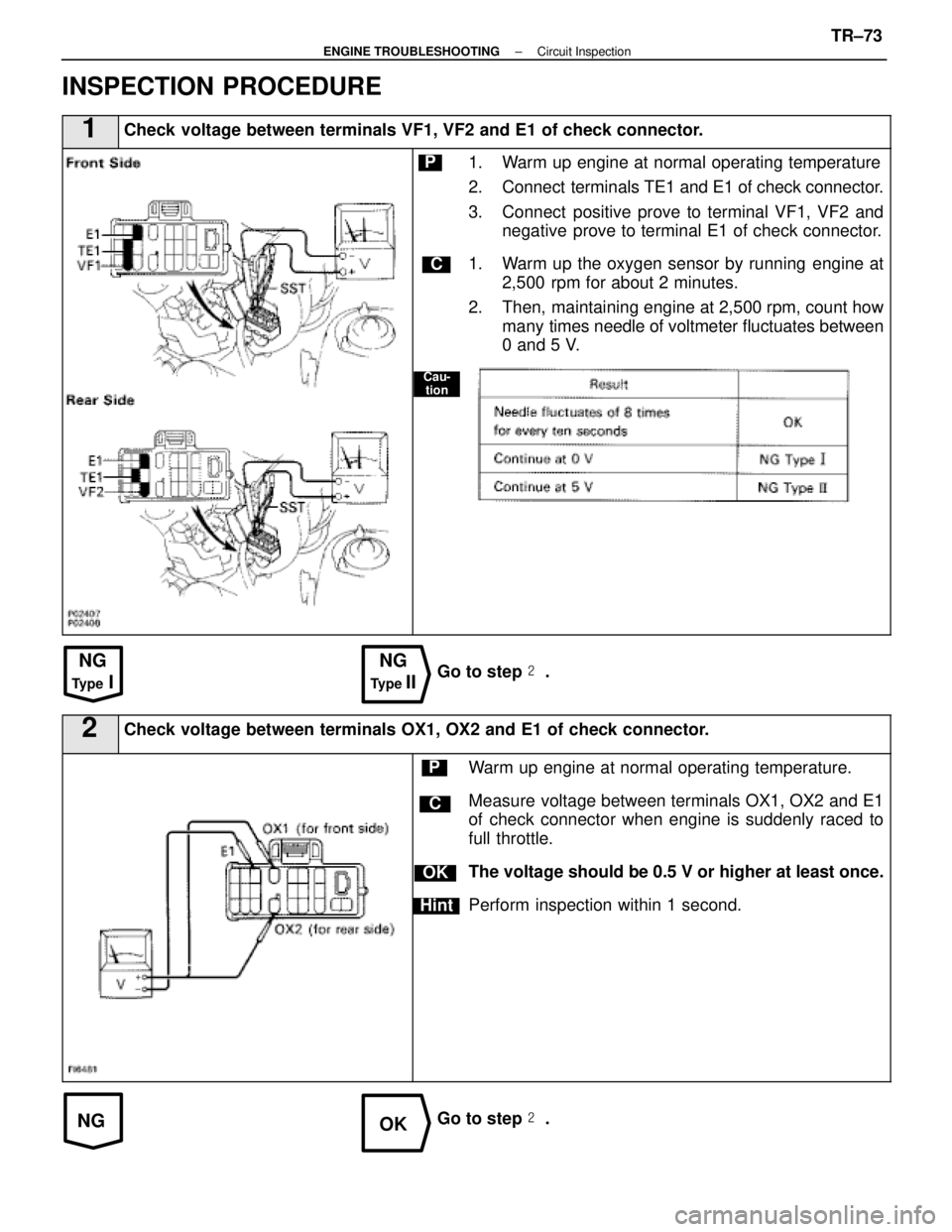

1Check voltage between terminals VF1, VF2 and E1 of check connector.
C
P
Cau-tion
1. Warm up engine at normal operating temperature
2. Connect terminals TE1 and E1 of check connector.
3. Connect positive prove to terminal VF1, VF2 and
negative prove to terminal E1 of check connector.
1. Warm up the oxygen sensor by running engine at 2,500 rpm for about 2 minutes.
2. Then, maintaining engine at 2,500 rpm, count how many times needle of voltmeter fluctuates between
0 and 5 V.
Go to step .
2Check voltage between terminals OX1, OX2 and E1 of check connector.
C
OK
Hint
PWarm up engine at normal operating temperature.
Measure voltage between terminals OX1, OX2 and E1
of check connector when engine is suddenly raced to
full throttle.
The voltage should be 0.5 V or higher at least once.
Perform inspection within 1 second.
Go to step .
±
ENGINE TROUBLESHOOTING Circuit InspectionTR±73
WhereEverybodyKnowsYourName

OKNG
OKNG
OKNG
NGYES
3Check for open and short in harness and connector between engine (& ECT) EC\
U and main
oxygen sensor, engine (& ECT) ECU and check connector (See page IN±27).
Repair or replace harness or connector.
4Check each item found to be a possible cause of problem.
Check each circuit found to be a possible cause of trouble according to the r\
esults of the check in
or
 . The numbers in the table below show the order in which the checks shoul\
d be performed.
Main oxygen sensor
signal from either side
continues at 0 V.Main oxygen sensor
signals from both sides
continue at 0 V.
Possible CauseSee page
1Faulty sensor installation.±
3Injector circuitTR±128
23MisfireIG±6
4Valve timingEM±22
1Air leakageFI±7
2Fuel systemTR±110
6Characteristics deviation
in air flow meter.TR±82
4Characteristics deviation
in water temp. sensor.TR±64
5Characteristics deviation
in intake air temp. sensor.TR±68
Repair or replace.
5Check compression (See page EM±22).
Repair or replace.
6Does malfunction disappear when a good main oxygen sensor is installed?
Replace main oxygen sensor.
Check and replace engine (& ECT) ECU.
TR±74±
ENGINE TROUBLESHOOTING Circuit Inspection
WhereEverybodyKnowsYourName

OKNG
OKNG
NGYES
7Check each item found to be a possible cause of problem.
Check each circuit found to be a possible cause of trouble according to the r\
esults of the check in
. The
numbers in the table below show the order in which the checks should be perform\
ed.
Main oxygen sensor
signal from either
side continues at 5 V.Main oxygen sensor signals from both
sides continue at 5 V.Main oxygen sensor signals from both
sides are normal.
Possible CauseSee page
17Injector circuitTR±128
3MisfireIG±6
24Valve timingEM±22
1Air leakageFI±7
12Fuel systemTR±110
48Characteristics deviation
in air flow meter.TR±82
25Characteristics deviation
in water temp. sensor.TR±64
36Characteristics deviation
in intake air temp. sensor.TR±68
Repair or replace.
8Check compression (See page EM±22).
Repair or replace.
9Does malfunction disappear when a good main oxygen sensor is installed?
Replace main oxygen sensor.
Check and replace engine (& ECT) ECU.
±
ENGINE TROUBLESHOOTING Circuit InspectionTR±75
WhereEverybodyKnowsYourName
