display LEXUS UX 2024 Owner's Guide

59
UX250h_QG_OM76733U_(U)
Play back music files on an iPod or iPhone connected to the USB port. When an iPod or
iPhone is connected, a button with the device’s name is displayed on the source selection
screen. This may not be di splayed for some devices.
Connect an iPod or iPhone.
1Touch [ ] from the main menu.
2Touch [Sources].
3Touch the device name or [USB].
4Operate the iPod or iPhone that is playing as necessary.
● Perform operations from the screen
[ ]: Performs shuffle playback. Each touch switches the shuffle setting.
*
[ ]: Plays the currently playing track from the beginning. When at the start of the
track, the previous track will play from the beginning.
Touch and hold to fast rewind. Release to start playback from that position.
[ ]: Pauses playback.
[]: Plays.
[ ]: Switches the tracks. Touch and hold to fast forward. Release to start playback
from that position.

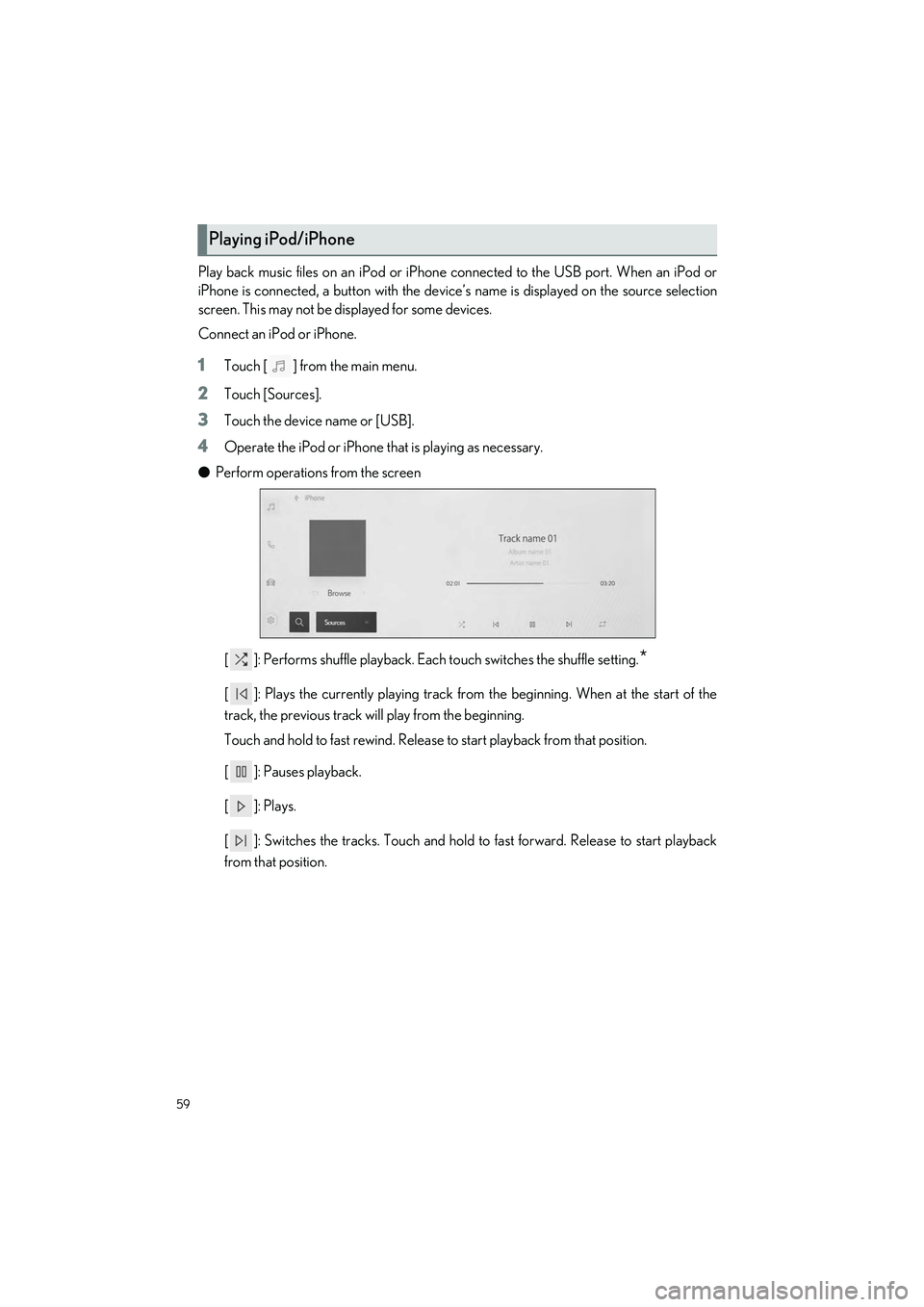

Playing iPod/iPhone

60
UX250h_QG_OM76733U_(U)
[ ]: Performs repeat playback. Each touch switches the repeat setting.*
[Browse]: Displays the playback mode in the sub menu. Tracks can be selected from a
list sorted by artist, album, song, playlist, genre, Podcast, composer, audiobook, or
radio.
[Shuffle play] is displayed when playing a track selected from the list. Touch this to
return to the playback screen and perform shuffle playback.
*: The order in which shuffle or repeat settings switch depends on the connected device.
● Operating with the steering switches
[<]/[>]switches
Switches the tracks.
Press and hold to fast forward or fast
rewind. Release to start playback from that
position.

61
UX250h_QG_OM76733U_(U)
1Select in the main menu on the Center Display.
2Select “Climate”.
If the option screen is displayed, select “Front”.
3Select “Climate concierge”.
The indicator on the air conditioning control screen illuminates, and the automatic air condi-
tioning system, seat heaters and ventilators (if equipped), and heated steering wheel (if
equipped) operate in automatic mode.
If any of the system is operated manually, the indicator turns off. However, all other functions
continue to operate in automatic mode.
Lexus Climate Concierge
The seat heaters (if equipped), seat ventilators (if equipped) and heated steering wheel (if
equipped) are each automatically controlled a ccording to the set temperature of the air
conditioning system, the outside and cabin temperature, etc. Lexus Climate Concierge
allows a comfortable condition to be maintained without adjusting each system.
Turning on Lexus Climate Concierge

62
UX250h_QG_OM76733U_(U)
Left-hand side temperature control switch
Operate the temperature control switch upwards to increase the temperature and
downwards to decrease the temperature.
Fan speed control switch
Automatic mode switch
Off switch
Windshield defogger switch
Rear window and outside rear view mirror defoggers switch
Outside/recirculated air mode switch
Airflow mode control switch
Right-hand side temperature control switch
Operate the temperature control switch up wards to increase the temperature and
downwards to decrease the temperature.
Automatic Air Conditioning System
The air conditioning system can be operated using the air conditioning control panel and
air conditioning control screen on the Center Display ( P.63).
Air conditioning controls
A
B
C
D
E
F
G
H
I

63
UX250h_QG_OM76733U_(U)
■Air conditioning control screen
1
Select in the main menu on the Center Display.
2Select “Climate”.
If the option screen is displayed, select “Front”.
Sub menu
Select the air flow mode
Turn the function on/off
Fan speed level display
■Option screen
Select “Options” on the air conditioning control screen.
The functions can be switched (on) and (off).Set eco air conditioning mode
Air conditioning and heater output is
limited to prioritize fuel economy.
Prevent ice from building up on the
windshield and wiper blades (Wind-
shield wiper de-icer) (if equipped)
1Press the automatic mode switch.
2Adjust the temperature setting.
3To stop the operation, press the off switch.
Air conditioning control screen
A
B
C
D
A
B
Using automatic mode

66
UX250h_QG_OM76733U_(U)
■Multimedia control
Allows you to engage in a dialog with the Intelligent Assistant to complete various multime-
dia tasks via voice input.
■Hands-free phone operation
Allows you to engage in a dialog with the Intelligent Assistant to complete various tasks via
voice input, such as making a phone call to a contact, or calling Destination Assist.
■Screen display switching
Allows you to easily change to various function screen by voice.
FunctionExample voice commandSubscription
Radio“Tune to 99.5 FM”
“Tune to Rock on FM”
“Tune to channel 2 on SiriusXM”No
Media
“Mute audio”
“Next”
“Previous”
No
Media Streaming“Play ” “Play ”Yes
FunctionExample voice commandSubscription
Phone call
“Call ”
“Dial <555 212 1212>” “Call back”
“Redial”
No
Message“Send message to ” “Read message”No
FunctionExample voice commandSubscription
Navigation“Show map”Yes
Phone“Show recent calls”No
Multimedia“Show the FM station list”No
Settings“Show display settings”No

82
UX250h_QG_OM76733U_(U)
●Turn the power switch off and ensure that all the doors and windows are closed.
● Confirm the type of fuel.
1Press the opener switch.
The fuel filler door will open within
about 10 seconds of the switch being
pressed. Before refueling is possible, a
message will be shown on the multi-
information display in the instrument
cluster to indicate the progress of the
fuel filler door opener.
2Turn the fuel tank cap slowly and
remove it, then put it into the holder on
the fuel filler door.
After refueling, turn the fuel tank cap until
you hear a click. Once the cap is released, it
will turn slightly in the opposite direction.
Fuel Tank Cap
Before refueling the vehicle
Opening the fuel tank cap
Closing the fuel tank cap

88
What to do if...
UX250h_QG_OM76733U_(U)
1Ensure that the shift lever is in P and depress the brake pedal.
2Touch the Lexus emblem side of the
electronic key to the power switch.
When the electronic key is detected, a
buzzer sounds and the power switch
will turn to ON.
When the smart access system with
push-button start is deactivated in cus-
tomization setting, the power switch
will turn to ACC.
3Firmly depress the brake pedal and check th at is shown on the multi-information
display.
4Press the power switch.
In the event that the hybrid system still cann ot be started, contact your Lexus dealer.
Starting the hybrid system
Replace the battery with a new one. For instruct ions on replacing the battery, refer to the
“OWNER’S MANUAL”.
If you need further assistance, contact your Lexus dealer.
