TIRE PRESSURE SENSOR FAULT.Displayed when a tire pressure
sensor is malfunctioning, or your spare tire is in use. For more
information on how the system operates under these conditions, refer to
Understanding Your Tire Pressure Monitoring Systemin theTires,
Wheels and Loadingchapter. If the warning stays on or continues to
come on, have the system inspected by your servicing dealership
LOW FUEL LEVEL.Displayed as an early reminder of a low fuel
condition.
CHECK CHARGING SYSTEM.Displayed when the electrical system is
not maintaining proper voltage. If you are operating electrical accessories
when the engine is idling at a low speed, turn off as many of the
electrical loads as soon as possible. If the warning stays on or comes on
when the engine is operating at normal speeds, have the electrical
system checked as soon as possible.
LOW BRAKE FLUID LEVEL.Indicates the brake fluid level is low and
the brake system should be inspected immediately. Refer toChecking
and adding brake fluidin theMaintenance and Specifications
chapter.
LOW OIL PRESSURE.Displayed when the engine oil pressure is low. If
this warning message is displayed, check the level of the engine oil.
Refer toEngine oilin theMaintenance and Specificationschapter for
information about adding engine oil.
TRANSMISSION OVERHEATED.Indicates the transmission is
overheating. This warning may appear when towing heavy loads, city
driving, when driving in a low gear at a high speed for an extended
period of time or due to a loss of transmission fluid. Stop the vehicle as
soon as safely possible, place the shift lever into P (Park) or N (Neutral)
and raise the engine RPM. If this does not cool the transmission, turn off
the engine and let it cool. If the warning stays on or continues to come
on, contact your dealer for transmission service as soon as possible.
Continued operation in this condition may cause internal transmission
damage.
CHECK TRANSMISSION.Indicates the transmission is not operating
properly. If this warning stays on, contact your dealer as soon as possible
to prevent additional transmission damage. Refer to the instrument
cluster warning lamps in theInstrument clusterchapter.
LOW WASHER FLUID LEVEL.Indicates the washer fluid reservoir is
less than one quarter full. Check the washer fluid level. Refer to
Windshield washer fluidin theMaintenance and Specifications
chapter.
REVIEW COPY
2005 Aviator f/k/a Navigator LS(231), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Driver Controls
151

TRANSMISSION FLUID
Checking automatic transmission fluid
The automatic transmission does not have a transmission fluid dipstick.
Refer to yourScheduled Maintenance Guidefor scheduled intervals for
fluid checks and changes. Your transmission does not consume fluid.
However, the fluid level should be checked if the transmission is not
working properly, (i.e., if the transmission slips or shifts slowly) or if you
notice some sign of fluid leakage.
Transmission fluid should be checked and, if required, fluid
should be added by a qualified technician.
Do not use supplemental transmission fluid additives, treatments or
cleaning agents. The use of these materials may affect transmission
operation and result in damage to internal transmission components.
AIR FILTER MAINTENANCE
Refer to the scheduled maintenance guide for the appropriate intervals
for changing the air filter element.
When changing the air filter element, use only the Motorcraft air filter
element listed. Refer toMotorcraft part numbersin this chapter.
Note:Do not start your engine with the air cleaner removed and do not
remove it while the engine is running.
CHANGING THE AIR FILTER ELEMENT
1. Release the clamps that secure the air filter housing cover.
2. Carefully separate the two halves of the air filter housing.
3. Remove the air filter element from the air filter housing.
4. Wipe the air filter housing and cover clean to remove any dirt or
debris and to ensure good sealing.
5. Install a new air filter element. Be careful not to crimp the filter
element edges between the air filter housing and cover. This could cause
filter damage and allow unfiltered air to enter the engine if not properly
seated.
6. Replace the air filter housing cover and secure the clamps.
Note:Failure to use the correct air filter element may result in severe
engine damage. The customer warranty may be voided for any damage to
the engine if the correct air filter element is not used.
REVIEW COPY
2005 Aviator f/k/a Navigator LS(231), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
350

A
ABS (see Brakes) .....................269
Accessory delay ........................128
AdvanceTrac ..............................271
Air bag supplemental restraint
system ................................201, 205
and child safety seats ............203
description ......................201, 205
disposal ....................................208
driver air bag ..................203, 206
indicator light .........................207
operation .........................203, 206
passenger air bag ...........203, 206
Air cleaner filter ...............350–351
All Wheel Drive (AWD),
driving off road .........................282
Ambulance packages ....................7
Antifreeze
(see Engine coolant) ................334
Anti-lock brake system
(see Brakes) ......................269–270
Anti-theft system ......................172
arming the system ..................172
disarming a triggered
system .....................................173
Audio system
(see Radio) ................16, 20, 25, 30
Automatic transmission
driving an automatic
overdrive .................................278
fluid, adding ............................350
fluid, checking ........................350
fluid, refill capacities ..............352
fluid, specification ..................356
Auxiliary power point ...............124
Axle
lubricant specifications ..354, 356refill capacities ........................352
B
Battery .......................................332
acid, treating emergencies .....332
jumping a disabled battery ....304
maintenance-free ....................332
replacement, specifications ...351
servicing ..................................332
BeltMinder .................................197
Brakes ........................................268
anti-lock ...........................269–270
anti-lock brake system (ABS)
warning light ...........................270
fluid, checking and adding ....349
fluid, refill capacities ..............352
fluid, specifications .........354, 356
lubricant specifications ..354, 356
parking ....................................270
shift interlock ..........................276
Bulbs ..........................................111
C
Capacities for refilling fluids ....352
Cargo cover ...............................157
CD-single premium .....................25
Cell phone use ..........................153
Certification Label ....................358
Changing a tire .........................229
Child safety restraints ..............209
child safety belts ....................209
Child safety seats ......................211
attaching with tether straps ..215
in front seat ............................213
in rear seat ..............................213
Cleaning your vehicle
engine compartment ..............320
instrument panel ....................322
REVIEW COPY
2005 Aviator f/k/a Navigator LS(231), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Index
Index
362

interior .............................322–323
interior trim ............................323
plastic parts ............................321
washing ....................................319
waxing .....................................319
wheels ......................................320
wiper blades ............................321
Clock ..........................................124
Clock adjust
6-CD in dash .......................22, 32
AM/FM/Tape/CD .......................18
Compass, electronic
set zone adjustment ...............142
Console ......................................154
overhead ..........................122–123
rear ..........................................154
Controls
power seat ...............................177
steering column ......................134
Coolant
checking and adding ..............334
refill capacities ................337, 352
specifications ..................354, 356
Cruise control
(see Speed control) ..................131
Customer Assistance ................292
Ford accessories for your
vehicle .....................................324
Ford Extended Service
Plan ..........................................316
Getting assistance outside the
U.S. and Canada .....................317
Getting roadside assistance ...292
Getting the service you
need .........................................310
Ordering additional owner’s
literature .................................317
The Dispute Settlement
Board .......................................312Utilizing the
Mediation/Arbitration
Program ...................................315
D
Daytime running lamps
(see Lamps) ..............................106
Defrost
rear window ............................103
Dipstick
automatic transmission
fluid ..........................................350
engine oil .................................328
Doors
lubricant specifications ..........354
Driving under special
conditions ..........................286, 289
sand .........................................288
snow and ice ...........................290
through water .................288, 291
DVD system .................................34
E
Electronic message center .......141
Emergencies, roadside
jump-starting ..........................304
Emission control system ..........346
Engine ........................................356
cleaning ...................................320
coolant .....................................334
fail-safe coolant ......................337
idle speed control ...................332
lubrication
specifications ..................354, 356
refill capacities ........................352
service points ..........................327
starting after a collision .........293
Engine block heater .................268
REVIEW COPY
2005 Aviator f/k/a Navigator LS(231), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Index
363

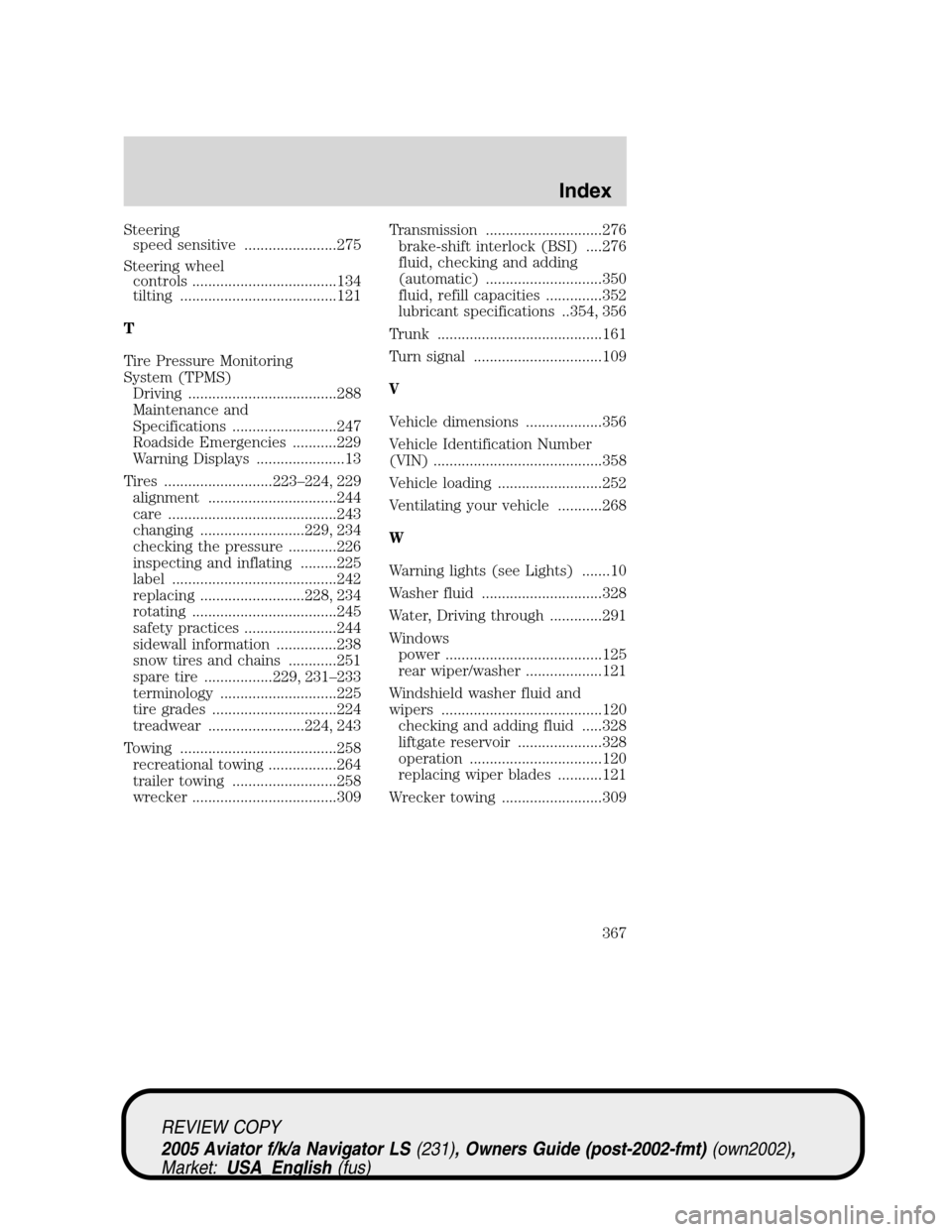

Steering
speed sensitive .......................275
Steering wheel
controls ....................................134
tilting .......................................121
T
Tire Pressure Monitoring
System (TPMS)
Driving .....................................288
Maintenance and
Specifications ..........................247
Roadside Emergencies ...........229
Warning Displays ......................13
Tires ...........................223–224, 229
alignment ................................244
care ..........................................243
changing ..........................229, 234
checking the pressure ............226
inspecting and inflating .........225
label .........................................242
replacing ..........................228, 234
rotating ....................................245
safety practices .......................244
sidewall information ...............238
snow tires and chains ............251
spare tire .................229, 231–233
terminology .............................225
tire grades ...............................224
treadwear ........................224, 243
Towing .......................................258
recreational towing .................264
trailer towing ..........................258
wrecker ....................................309Transmission .............................276
brake-shift interlock (BSI) ....276
fluid, checking and adding
(automatic) .............................350
fluid, refill capacities ..............352
lubricant specifications ..354, 356
Trunk .........................................161
Turn signal ................................109
V
Vehicle dimensions ...................356
Vehicle Identification Number
(VIN) ..........................................358
Vehicle loading ..........................252
Ventilating your vehicle ...........268
W
Warning lights (see Lights) .......10
Washer fluid ..............................328
Water, Driving through .............291
Windows
power .......................................125
rear wiper/washer ...................121
Windshield washer fluid and
wipers ........................................120
checking and adding fluid .....328
liftgate reservoir .....................328
operation .................................120
replacing wiper blades ...........121
Wrecker towing .........................309
REVIEW COPY
2005 Aviator f/k/a Navigator LS(231), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Index
367
