Some drivers may notice a slight movement of the brake pedal when the
AdvanceTrac
performs a system self-check. During AdvanceTrac
/Roll
Stabilty Control operation you may experience the following:
•A rumble or grinding noise
•A slight deceleration of the vehicle
•The AdvanceTrac
indicator light will flash
•If your foot is on the brake pedal, you will feel a vibration in the
pedal.
•If the driving condition is severe and your foot is not on the brake, the
brake pedal will move to apply higher brake forces. You may also hear
a whoosh of air from under the instrument panel during this severe
condition.
All these conditions are normal during AdvanceTrac
/Roll Stability
Control operation.
Do not alter or modify your vehicle’s suspension or steering; the
resulting changes to the vehicle’s handling can adversely affect
the AdvanceTrac
/Roll Stability Control system. Also, do not
install a stereo loudspeaker near the rear console or either rear
seat. The speaker vibrations can adversely affect the
AdvanceTrac
/Roll Stability Control sensors located in this area.
Note:Pressing the AdvanceTrac
button will disable AdvanceTrac
and
Roll Stability Control.
Aggressive driving in any road conditions can cause you to lose
control of your vehicle increasing the risk of severe personal
injury or property damage. The occurrence of a AdvanceTrac
/Roll
Stability Control event is an indication that at least some of the tires
have exceeded their ability to grip the road; this may lead to an
increased risk of loss of vehicle control, vehicle rollover, personal injury
and death. If you experience a severe road event, SLOW DOWN.
STEERING
To prevent damage to the power steering system, never hold the steering
wheel at its furthest turning points (until it stops) for more than a few
seconds when the engine is running.
It is also important to maintain a proper power steering fluid level in the
power steering fluid reservoir:
•Do not operate the vehicle with a low power steering pump fluid level
(below the MIN mark on the reservoir).
REVIEW COPY
2005 Aviator f/k/a Navigator LS(231), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Driving
274

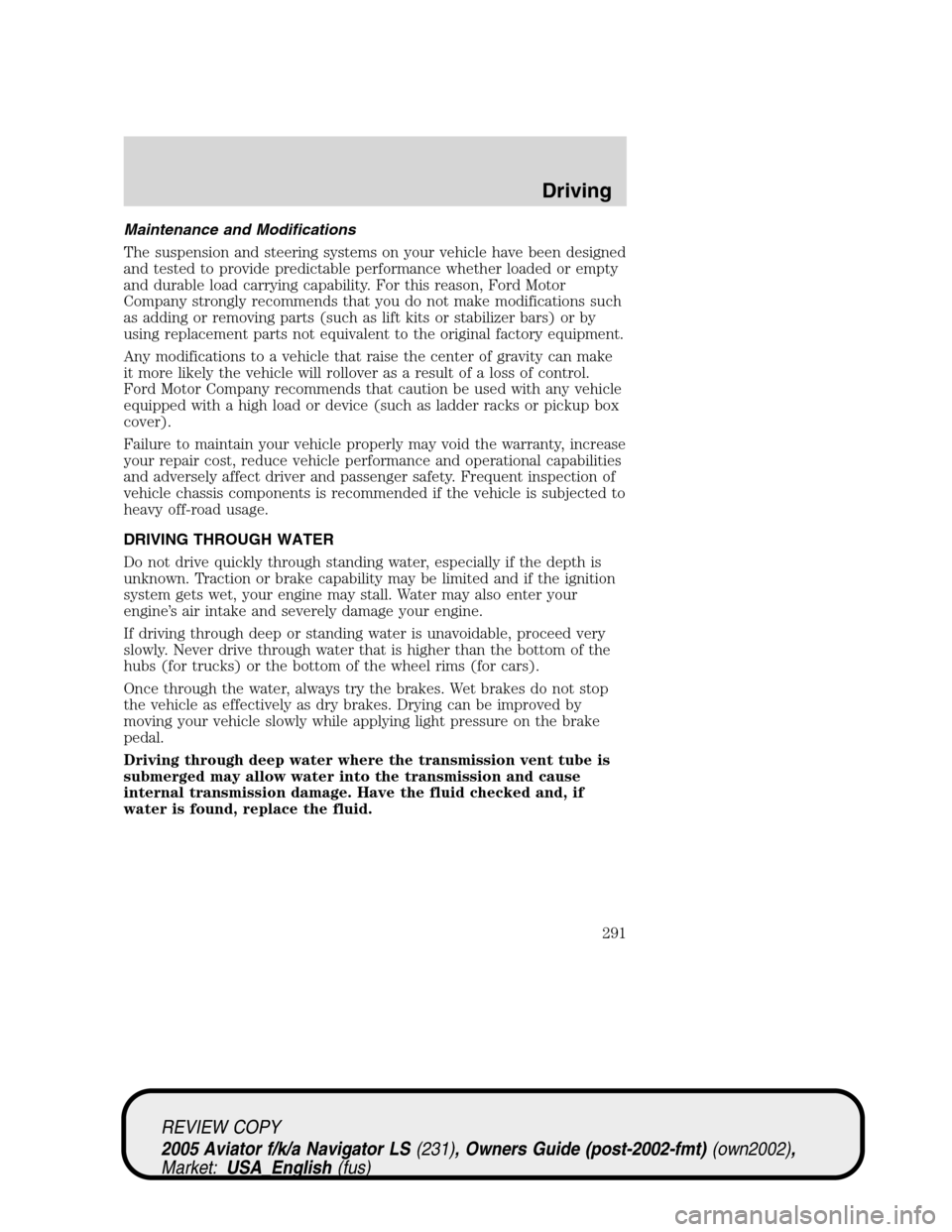

Maintenance and Modifications
The suspension and steering systems on your vehicle have been designed
and tested to provide predictable performance whether loaded or empty
and durable load carrying capability. For this reason, Ford Motor
Company strongly recommends that you do not make modifications such
as adding or removing parts (such as lift kits or stabilizer bars) or by
using replacement parts not equivalent to the original factory equipment.
Any modifications to a vehicle that raise the center of gravity can make
it more likely the vehicle will rollover as a result of a loss of control.
Ford Motor Company recommends that caution be used with any vehicle
equipped with a high load or device (such as ladder racks or pickup box
cover).
Failure to maintain your vehicle properly may void the warranty, increase
your repair cost, reduce vehicle performance and operational capabilities
and adversely affect driver and passenger safety. Frequent inspection of
vehicle chassis components is recommended if the vehicle is subjected to
heavy off-road usage.
DRIVING THROUGH WATER
Do not drive quickly through standing water, especially if the depth is
unknown. Traction or brake capability may be limited and if the ignition
system gets wet, your engine may stall. Water may also enter your
engine’s air intake and severely damage your engine.
If driving through deep or standing water is unavoidable, proceed very
slowly. Never drive through water that is higher than the bottom of the
hubs (for trucks) or the bottom of the wheel rims (for cars).
Once through the water, always try the brakes. Wet brakes do not stop
the vehicle as effectively as dry brakes. Drying can be improved by
moving your vehicle slowly while applying light pressure on the brake
pedal.
Driving through deep water where the transmission vent tube is
submerged may allow water into the transmission and cause
internal transmission damage. Have the fluid checked and, if
water is found, replace the fluid.
REVIEW COPY
2005 Aviator f/k/a Navigator LS(231), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Driving
291

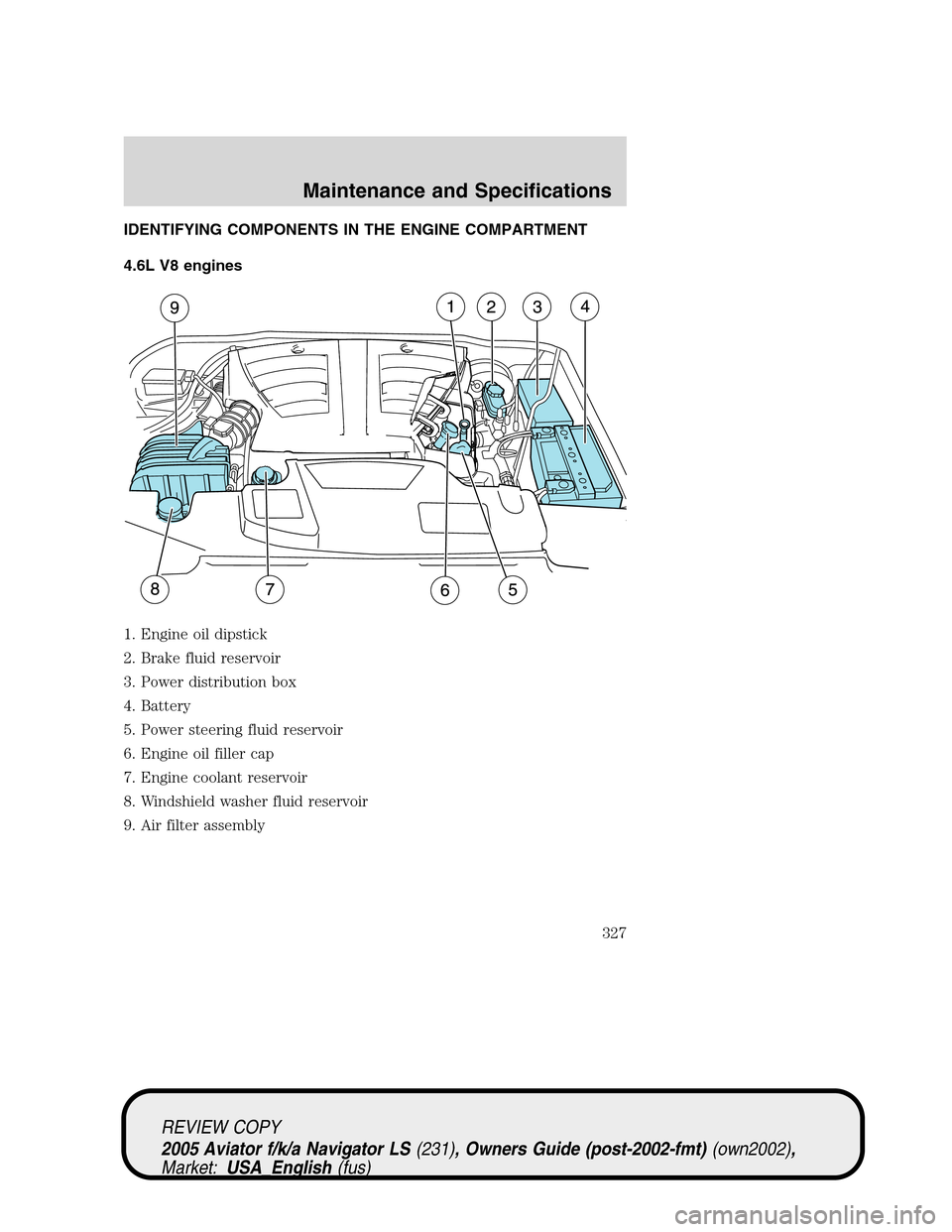

IDENTIFYING COMPONENTS IN THE ENGINE COMPARTMENT
4.6L V8 engines
1. Engine oil dipstick
2. Brake fluid reservoir
3. Power distribution box
4. Battery
5. Power steering fluid reservoir
6. Engine oil filler cap
7. Engine coolant reservoir
8. Windshield washer fluid reservoir
9. Air filter assembly
REVIEW COPY
2005 Aviator f/k/a Navigator LS(231), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
327

1. Start the engine and let it run
until it reaches normal operating
temperature (the engine coolant
temperature gauge indicator will be
near the center of the normal area
between H and C).
2. While the engine idles, turn the
steering wheel left and right several
times.
3. Turn the engine off.
4. Check the fluid level in the
reservoir. It should be between the
MIN and MAX lines. Do not add
fluid if the level is in this range.
5. If the fluid is low, add fluid in
small amounts, continuously
checking the level until it reaches
the range between the MIN and
MAX lines. Be sure to put the cap
back on the reservoir.
BRAKE FLUID RESERVOIR
The fluid level will drop slowly as
the brakes wear, and will rise when
the brake components are replaced.
Fluid levels below the“MAX”line
that do not trigger the brake system
warning lamp are within the normal
operating range, there is no need to
add fluid. If the fluid levels are outside of the normal operating range,
the performance of your brake system could be compromised, seek
service from your dealer immediately.
REVIEW COPY
2005 Aviator f/k/a Navigator LS(231), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
349

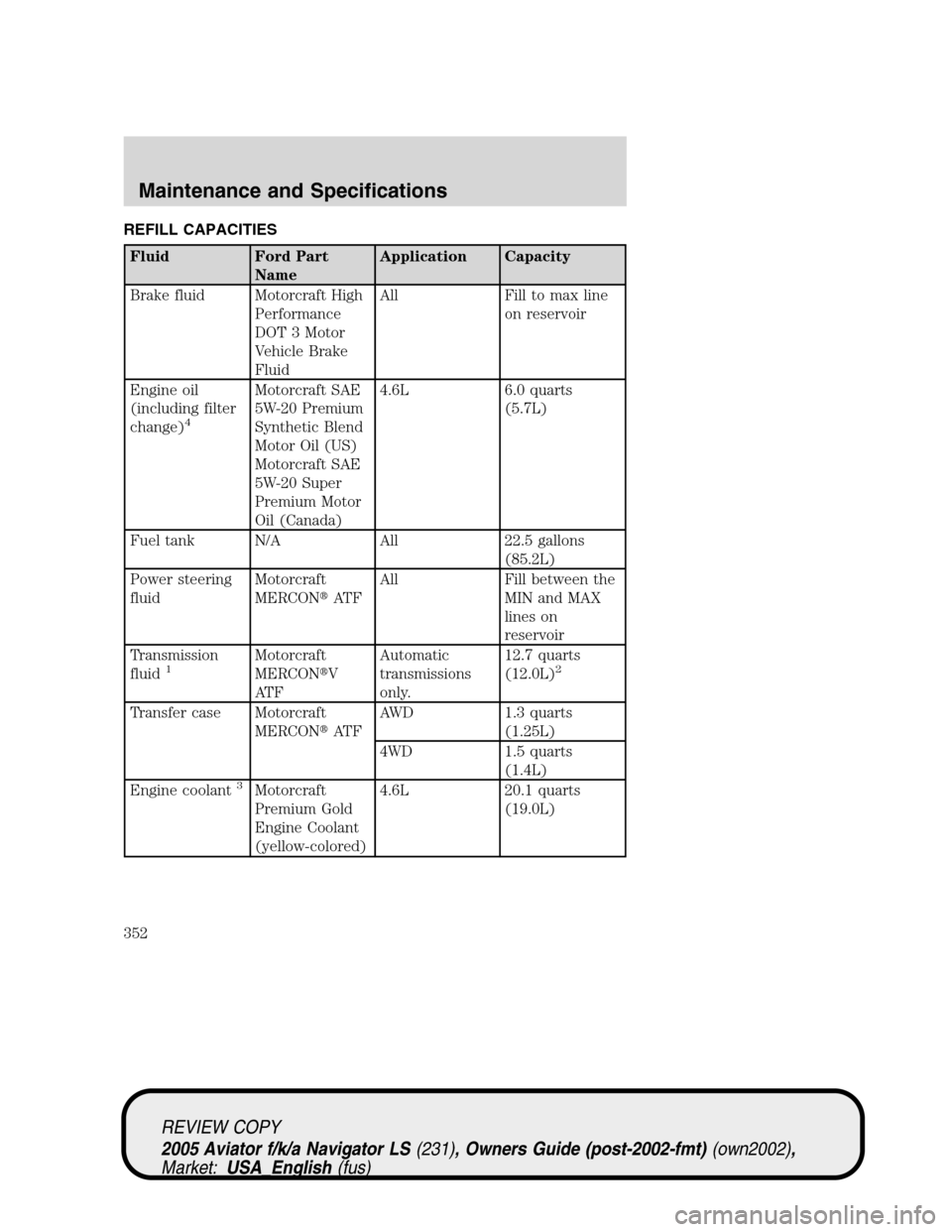

REFILL CAPACITIES
Fluid Ford Part
NameApplication Capacity
Brake fluid Motorcraft High
Performance
DOT 3 Motor
Vehicle Brake
FluidAll Fill to max line
on reservoir
Engine oil
(including filter
change)
4
Motorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)4.6L 6.0 quarts
(5.7L)
Fuel tank N/A All 22.5 gallons
(85.2L)
Power steering
fluidMotorcraft
MERCONAT FAll Fill between the
MIN and MAX
lines on
reservoir
Transmission
fluid
1Motorcraft
MERCONV
AT FAutomatic
transmissions
only.12.7 quarts
(12.0L)2
Transfer case Motorcraft
MERCONAT FAWD 1.3 quarts
(1.25L)
4WD 1.5 quarts
(1.4L)
Engine coolant
3Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)4.6L 20.1 quarts
(19.0L)
REVIEW COPY
2005 Aviator f/k/a Navigator LS(231), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
352

Parking brake ............................270
Parts (see Motorcraft parts) ....351
Pedals (see Power adjustable
foot pedals) ...............................131
Power adjustable foot pedals ...131
Power distribution box
(see Fuses) ...............................299
Power door locks ......................158
Power mirrors ...........................129
Power point ...............................124
Power steering ..................274–275
fluid, checking and adding ....348
fluid, refill capacity ................352
fluid, specifications .........354, 356
Power Windows .........................125
Preparing to drive your
vehicle ........................................275
R
Radio ..........................16, 20, 25, 30
Rear Park Assist .......................281
Rear window defroster .............103
Relays ................................294, 303
Remote entry system .......159, 161
illuminated entry ....................165
locking/unlocking
doors ................................160–161
opening the trunk ...................161
panic alarm .............................161
replacement/additional
transmitters .............................164
Roadside assistance ..................292
Roof rack ...................................156
S
Safety Belt Maintenance ..........200Safety belts (see Safety
restraints) ..........188, 191–194, 196
Safety Canopy ...................205–206
Safety defects, reporting ..........318
Safety restraints ........188, 191–196
belt minder .............................197
extension assembly ................200
for adults .........................192–194
for children .....................208–209
safety belt maintenance .........200
warning light and chime ........196
Safety seats for children ..........211
Seat belts
(see Safety restraints) .............188
Seats ..........................................176
child safety seats ....................211
climate control ........................180
easy access/easyout feature ..179
memory seat ...................162, 179
SecuriLock passive anti-theft
system ................................169–171
Servicing your vehicle ..............325
Setting the clock
AM/FM/In-dash 6 CD ..........22, 32
AM/FM/Tape/CD .......................18
Snowplowing .................................7
Spark plugs,
specifications .....................351, 356
Special notice
ambulance conversions ..............7
utility-type vehicles ....................7
Specification chart,
lubricants ...........................354, 356
Speed control ............................131
Starting your vehicle ........265–267
jump starting ..........................304
REVIEW COPY
2005 Aviator f/k/a Navigator LS(231), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Index
366

Steering
speed sensitive .......................275
Steering wheel
controls ....................................134
tilting .......................................121
T
Tire Pressure Monitoring
System (TPMS)
Driving .....................................288
Maintenance and
Specifications ..........................247
Roadside Emergencies ...........229
Warning Displays ......................13
Tires ...........................223–224, 229
alignment ................................244
care ..........................................243
changing ..........................229, 234
checking the pressure ............226
inspecting and inflating .........225
label .........................................242
replacing ..........................228, 234
rotating ....................................245
safety practices .......................244
sidewall information ...............238
snow tires and chains ............251
spare tire .................229, 231–233
terminology .............................225
tire grades ...............................224
treadwear ........................224, 243
Towing .......................................258
recreational towing .................264
trailer towing ..........................258
wrecker ....................................309Transmission .............................276
brake-shift interlock (BSI) ....276
fluid, checking and adding
(automatic) .............................350
fluid, refill capacities ..............352
lubricant specifications ..354, 356
Trunk .........................................161
Turn signal ................................109
V
Vehicle dimensions ...................356
Vehicle Identification Number
(VIN) ..........................................358
Vehicle loading ..........................252
Ventilating your vehicle ...........268
W
Warning lights (see Lights) .......10
Washer fluid ..............................328
Water, Driving through .............291
Windows
power .......................................125
rear wiper/washer ...................121
Windshield washer fluid and
wipers ........................................120
checking and adding fluid .....328
liftgate reservoir .....................328
operation .................................120
replacing wiper blades ...........121
Wrecker towing .........................309
REVIEW COPY
2005 Aviator f/k/a Navigator LS(231), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Index
367
