Do not let children play with the moon roof or leave children
unattended in the vehicle. They may seriously hurt themselves.
CLOCK
Press the right control to increase
the time displayed.
Press the left control to decrease
the time displayed.
AUXILIARY POWER POINT (IF EQUIPPED)
Power outlets are designed for accessory plugs only. Do not hang
any type of accessory or accessory bracket from the plug.
Improper use of the power outlet can cause damage not covered
by your warranty.
The auxiliary power point is located
inside the center console.
Do not plug optional electrical
accessories into the cigarette lighter.
Use the power point.
Do not use the power point for
operating the cigarette lighter
element.
The maximum power each power point can supply depends on the fuse
rating. For example: a 20A fuse can supply a maximum of 240 Watts, a
15A fuse can supply a maximum of 180 Watts and a 10A fuse can supply
a maximum of 120 Watts. Exceeding these limits will result in a blown
fuse.
Always keep the power point caps closed when not being used.
REVIEW COPY
2005 Aviator f/k/a Navigator LS(231), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Driver Controls
124
Page 125 of 368

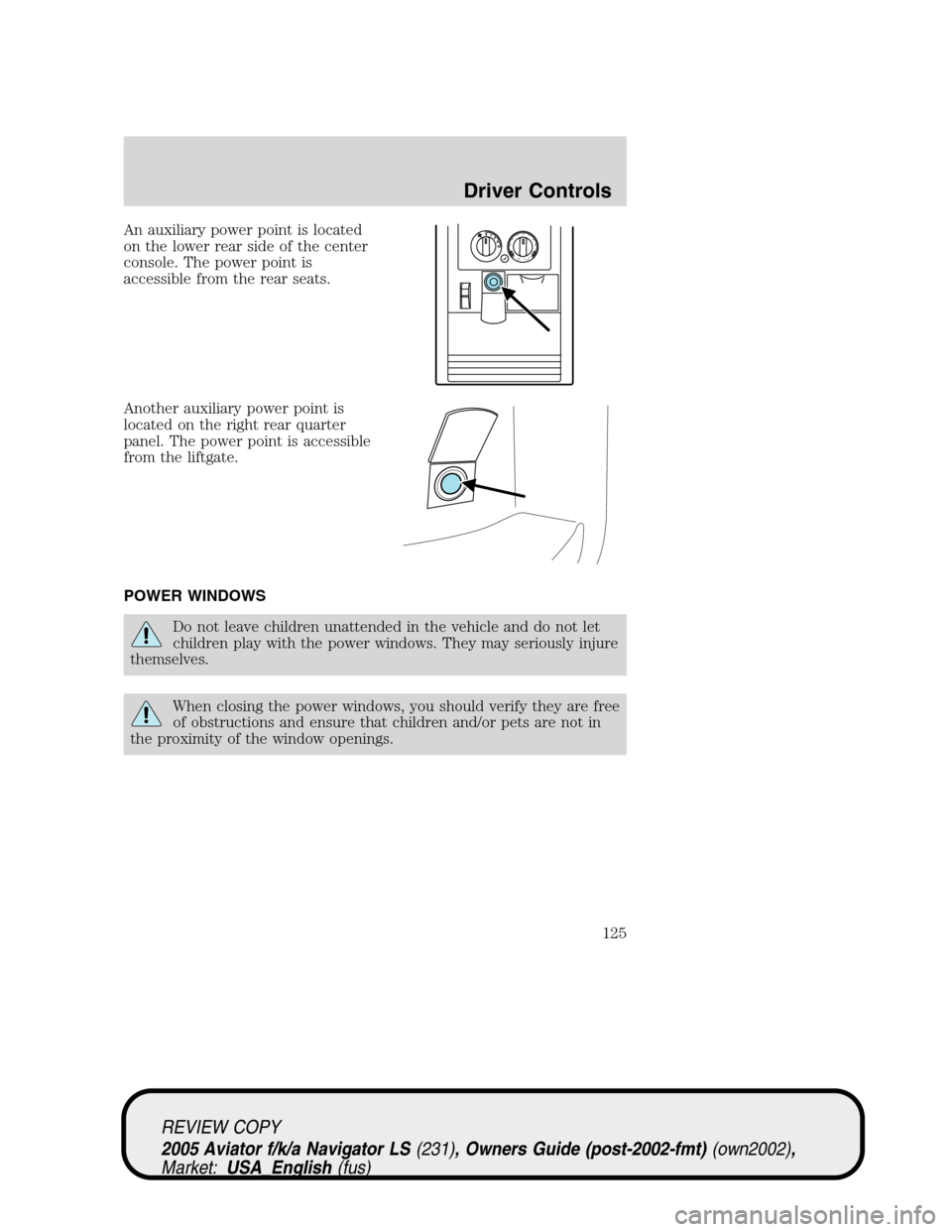

An auxiliary power point is located
on the lower rear side of the center
console. The power point is
accessible from the rear seats.
Another auxiliary power point is
located on the right rear quarter
panel. The power point is accessible
from the liftgate.
POWER WINDOWS
Do not leave children unattended in the vehicle and do not let
children play with the power windows. They may seriously injure
themselves.
When closing the power windows, you should verify they are free
of obstructions and ensure that children and/or pets are not in
the proximity of the window openings.
REVIEW COPY
2005 Aviator f/k/a Navigator LS(231), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Driver Controls
125
Page 126 of 368

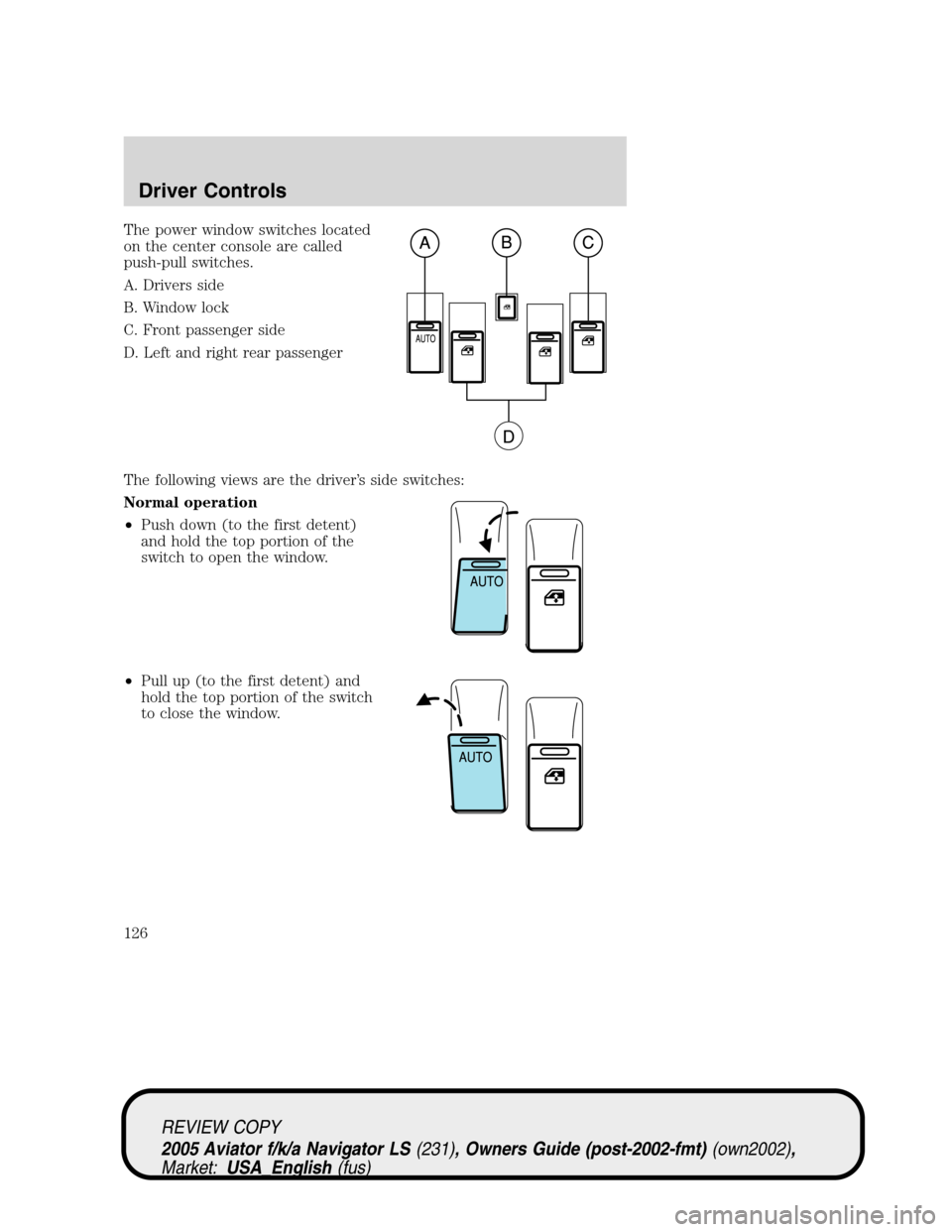

The power window switches located
on the center console are called
push-pull switches.
A. Drivers side
B. Window lock
C. Front passenger side
D. Left and right rear passenger
The following views are the driver’s side switches:
Normal operation
•Push down (to the first detent)
and hold the top portion of the
switch to open the window.
•Pull up (to the first detent) and
hold the top portion of the switch
to close the window.
REVIEW COPY
2005 Aviator f/k/a Navigator LS(231), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Driver Controls
126
Page 154 of 368
Mobile Communication Equipment includes, but is not limited to cellular
phones, pagers, portable email devices, in vehicle communications
systems, telematics devices and portable two-way radios.
A driver’s first responsibility is the safe operation of the vehicle.
The most important thing you can do to prevent a crash is to
avoid distractions and pay attention to the road. Wait until it is safe to
operate Mobile Communications Equipment.
CENTER CONSOLE
Your vehicle may be equipped with a variety of console features. These
include:
•Utility compartment with power point
•Cupholders
•Cigarette lighter
Use only soft cups in the cupholder. Hard objects can injure you
in a collision.
REAR CENTER CONSOLE FEATURES (IF EQUIPPED)
The rear center console incorporates the following features:
•Utility compartment
•Cupholders
•Flip forward armrest to provide a
flat load floor
REVIEW COPY
2005 Aviator f/k/a Navigator LS(231), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Driver Controls
154
Page 363 of 368
interior .............................322–323
interior trim ............................323
plastic parts ............................321
washing ....................................319
waxing .....................................319
wheels ......................................320
wiper blades ............................321
Clock ..........................................124
Clock adjust
6-CD in dash .......................22, 32
AM/FM/Tape/CD .......................18
Compass, electronic
set zone adjustment ...............142
Console ......................................154
overhead ..........................122–123
rear ..........................................154
Controls
power seat ...............................177
steering column ......................134
Coolant
checking and adding ..............334
refill capacities ................337, 352
specifications ..................354, 356
Cruise control
(see Speed control) ..................131
Customer Assistance ................292
Ford accessories for your
vehicle .....................................324
Ford Extended Service
Plan ..........................................316
Getting assistance outside the
U.S. and Canada .....................317
Getting roadside assistance ...292
Getting the service you
need .........................................310
Ordering additional owner’s
literature .................................317
The Dispute Settlement
Board .......................................312Utilizing the
Mediation/Arbitration
Program ...................................315
D
Daytime running lamps
(see Lamps) ..............................106
Defrost
rear window ............................103
Dipstick
automatic transmission
fluid ..........................................350
engine oil .................................328
Doors
lubricant specifications ..........354
Driving under special
conditions ..........................286, 289
sand .........................................288
snow and ice ...........................290
through water .................288, 291
DVD system .................................34
E
Electronic message center .......141
Emergencies, roadside
jump-starting ..........................304
Emission control system ..........346
Engine ........................................356
cleaning ...................................320
coolant .....................................334
fail-safe coolant ......................337
idle speed control ...................332
lubrication
specifications ..................354, 356
refill capacities ........................352
service points ..........................327
starting after a collision .........293
Engine block heater .................268
REVIEW COPY
2005 Aviator f/k/a Navigator LS(231), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Index
363
