functioning properly. Always check the TPMS
malfunction telltale after replacing one or
more tires or wheels on your vehicle to
ensure that the replacement or alternate tires
and wheels allow the TPMS to continue to
function properly.
This device complies with Part 15 of the FCC
Rules and with License exempt RSS
Standards of Industry Canada. Operation is
subject to the following two conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any interference
received, including interference that may
cause undesired operation. WARNING: Changes or modifications
not expressively approved by the party
responsible for compliance could void the
user's authority to operate the equipment.
The term "IC:" before the radio certification
number only signifies that Industry Canada
technical specifications were met. Changing Tires With a Tire Pressure
Monitoring System
Note:
Each road tire is equipped with a tire
pressure sensor located inside the wheel
and tire assembly cavity. The pressure
sensor is attached to the valve stem. The
pressure sensor is covered by the tire and
is not visible unless the tire is removed. Take
care when changing the tire to avoid
damaging the sensor.
You should always have your tires serviced
by an authorized dealer. Check the tire pressure periodically (at least
monthly) using an accurate tire gauge. See
When Inflating Your Tires in this chapter.
Understanding Your Tire Pressure
Monitoring System The tire pressure monitoring system
measures pressure in your road tires and
sends the tire pressure readings to your
vehicle. You can view the tire pressure
readings through the information display.
See General Information (page 134). The low
tire pressure warning light will turn on if the
tire pressure is significantly low. Once the
431
Aviator (CTV) Canada/United States of America, enUSA, Edition date: 202007, Second-Printing Wheels and TiresE142549 E250820

When Inflating Your Tires
WARNING: Do not use the tire
pressure displayed in the information
display as a tire pressure gauge. Failure to
follow this instruction could result in
personal injury or death.
When putting air into your tires (such as at a
gas station or in your garage), the tire
pressure monitoring system may not respond
immediately to the air added to your tires.
It may take up to two minutes of driving over
20 mph (32 km/h) for the light to turn off after
you have filled your tires to the
recommended inflation pressure.
How Temperature Affects Your Tire
Pressure
The tire pressure monitoring system monitors
tire pressure in each pneumatic tire. While
driving in a normal manner, a typical
passenger tire inflation pressure may
increase about
2–4 psi (14–28 kPa) from a
cold start situation. If the vehicle is stationary
overnight with the outside temperature significantly lower than the daytime
temperature, the tire pressure may decrease
about
3 psi (21 kPa) for a drop of 30°F (17°C)
in ambient temperature. This lower pressure
value may be detected by the tire pressure
monitoring system as being significantly
lower than the recommended inflation
pressure and activate the system warning
light for low tire pressure. If the low tire
pressure warning light is on, visually check
each tire to verify that no tire is flat. If one or
more tires are flat, repair as necessary.
Check the air pressure in the road tires. If
any tire is under-inflated, carefully drive the
vehicle to the nearest location where air can
be added to the tires. Inflate all the tires to
the recommended inflation pressure.
CHANGING A ROAD WHEEL WARNING:
If the tire pressure
monitor sensor becomes damaged it may
not function. Note:
You should only use tire sealants in
roadside emergencies as they may cause
damage to the tire pressure monitoring
system sensor.
Note: The tire pressure monitoring system
indicator light illuminates when the spare
tire is in use. To restore the full function of
the monitoring system, all road wheels
equipped with tire pressure monitoring
sensors must be mounted on the vehicle.
If you get a flat tire when driving, do not
apply the brake heavily. Instead, gradually
decrease your speed. Hold the steering
wheel firmly and slowly move to a safe place
on the side of the road.
Have a flat serviced by an authorized dealer
in order to prevent damage to the tire
pressure monitoring system sensors.
See
Tire Pressure Monitoring System (page 430).
Replace the spare tire with a road tire as
soon as possible. During repairing or
replacing of the flat tire, have the authorized
dealer inspect the tire pressure monitoring
system sensor for damage.
434
Aviator (CTV) Canada/United States of America, enUSA, Edition date: 202007, Second-Printing Wheels and Tires

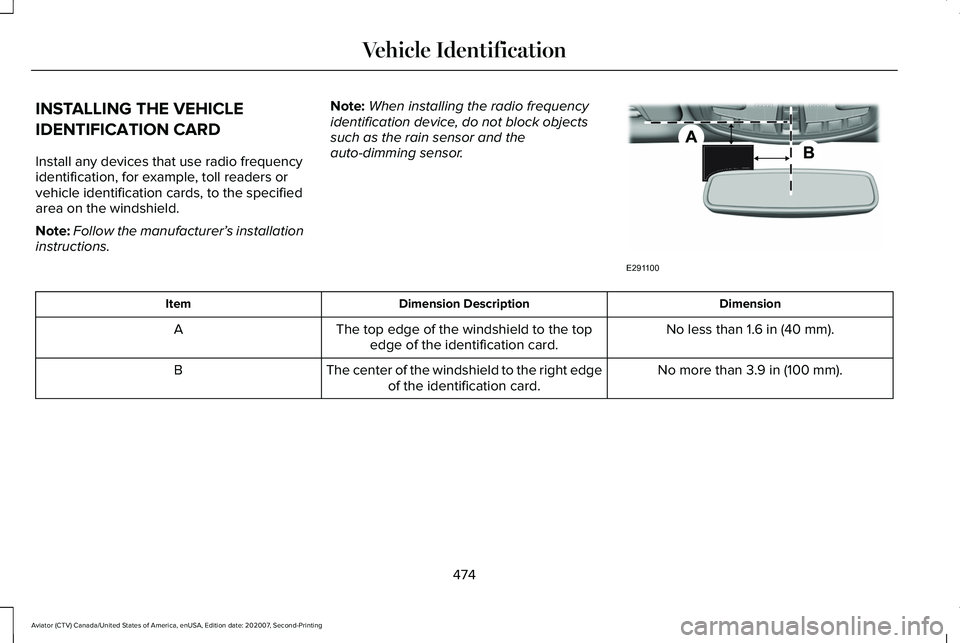

INSTALLING THE VEHICLE
IDENTIFICATION CARD
Install any devices that use radio frequency
identification, for example, toll readers or
vehicle identification cards, to the specified
area on the windshield.
Note:
Follow the manufacturer’ s installation
instructions. Note:
When installing the radio frequency
identification device, do not block objects
such as the rain sensor and the
auto-dimming sensor. Dimension
Dimension Description
Item
No less than 1.6 in (40 mm).
The top edge of the windshield to the top
edge of the identification card.
A
No more than
3.9 in (100 mm).
The center of the windshield to the right edge
of the identification card.
B
474
Aviator (CTV) Canada/United States of America, enUSA, Edition date: 202007, Second-Printing Vehicle IdentificationE291100

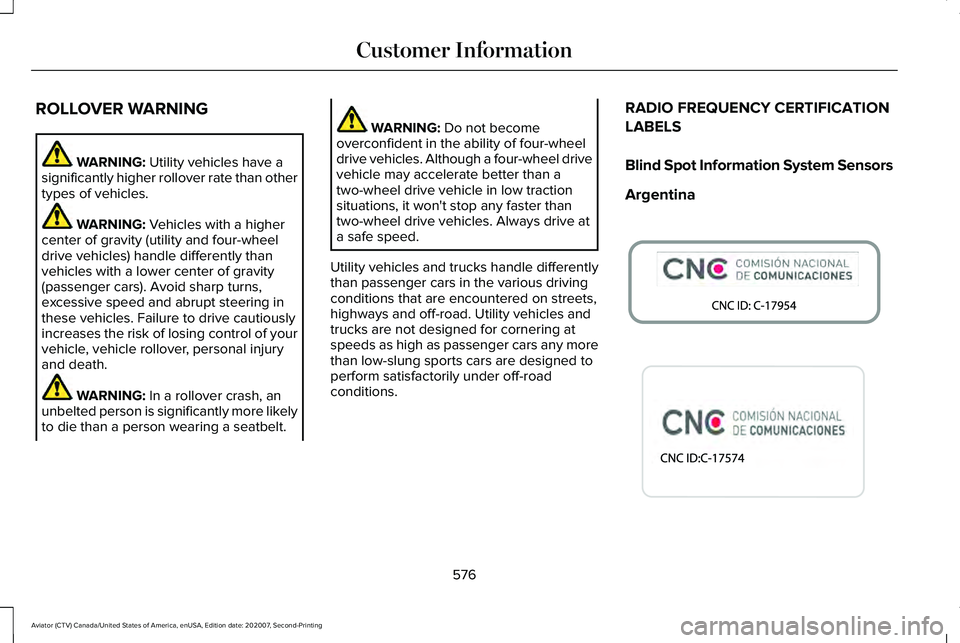

ROLLOVER WARNING
WARNING: Utility vehicles have a
significantly higher rollover rate than other
types of vehicles. WARNING:
Vehicles with a higher
center of gravity (utility and four-wheel
drive vehicles) handle differently than
vehicles with a lower center of gravity
(passenger cars). Avoid sharp turns,
excessive speed and abrupt steering in
these vehicles. Failure to drive cautiously
increases the risk of losing control of your
vehicle, vehicle rollover, personal injury
and death. WARNING:
In a rollover crash, an
unbelted person is significantly more likely
to die than a person wearing a seatbelt. WARNING:
Do not become
overconfident in the ability of four-wheel
drive vehicles. Although a four-wheel drive
vehicle may accelerate better than a
two-wheel drive vehicle in low traction
situations, it won't stop any faster than
two-wheel drive vehicles. Always drive at
a safe speed.
Utility vehicles and trucks handle differently
than passenger cars in the various driving
conditions that are encountered on streets,
highways and off-road. Utility vehicles and
trucks are not designed for cornering at
speeds as high as passenger cars any more
than low-slung sports cars are designed to
perform satisfactorily under off-road
conditions. RADIO FREQUENCY CERTIFICATION
LABELS
Blind Spot Information System Sensors
Argentina
576
Aviator (CTV) Canada/United States of America, enUSA, Edition date: 202007, Second-Printing Customer InformationE337180 E340516

Telematics Control Unit
China
CMIIT ID: 3019CP0600
CMIIT ID: 2019CP0601
United States and Canada
WARNING: Changes or modifications
not expressively approved by the party
responsible for compliance could void the
user's authority to operate the equipment.
The term "IC:" before the radio certification
number only signifies that Industry Canada
technical specifications were met.
FCC ID: LHJ-FB40ND1
IC: 2807E-FB40ND1 This device complies with Part 15 of the FCC
Rules and with Innovation, Science and
Economic Development Canada
’s
licence-exempt RSS(s). Operation is subject
to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference
received, including interference that may
cause undesired operation. Tire Pressure Monitoring System
Sensors - Vehicles With: 315 MHz
Sensors
Brazil
601
Aviator (CTV) Canada/United States of America, enUSA, Edition date: 202007, Second-Printing Customer InformationE339820

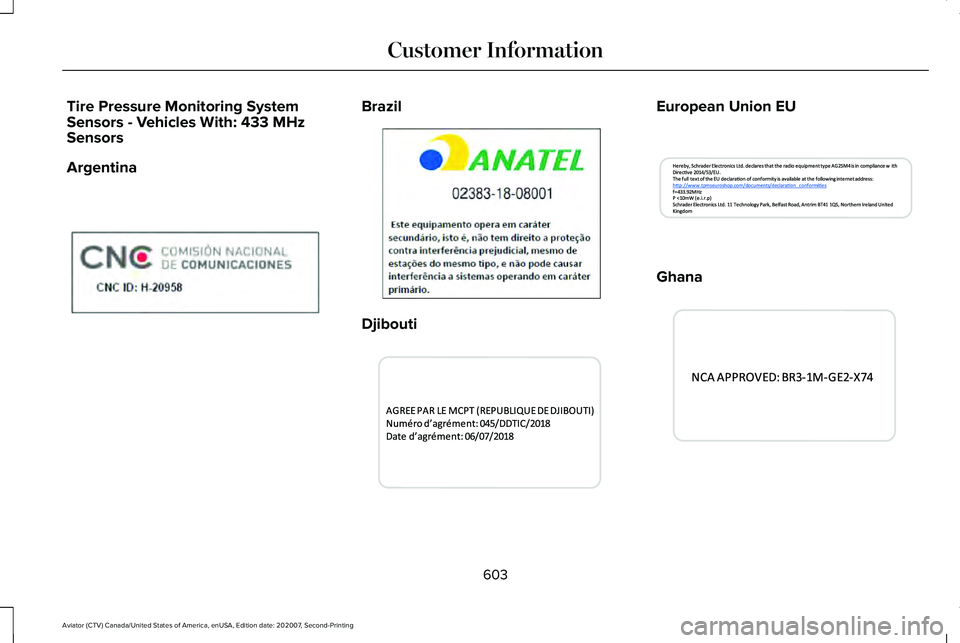

Tire Pressure Monitoring System
Sensors - Vehicles With: 433 MHz
Sensors
Argentina Brazil
Djibouti European Union EU
Ghana
603
Aviator (CTV) Canada/United States of America, enUSA, Edition date: 202007, Second-Printing Customer InformationE339822 E339823 E339945 E339849 E341832

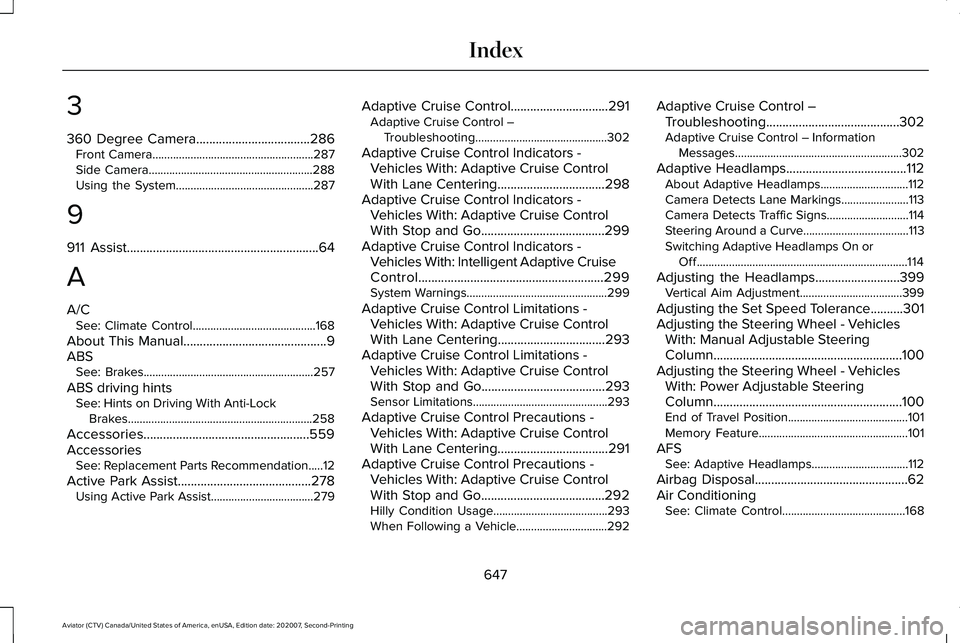

3
360 Degree Camera...................................286
Front Camera.......................................................287
Side Camera........................................................288
Using the System...............................................287
9
911 Assist...........................................................64
A
A/C See: Climate Control..........................................168
About This Manual............................................9
ABS See: Brakes..........................................................257
ABS driving hints See: Hints on Driving With Anti-Lock
Brakes...............................................................258
Accessories...................................................559
Accessories See: Replacement Parts Recommendation.....12
Active Park Assist.........................................278 Using Active Park Assist...................................279 Adaptive Cruise Control..............................291
Adaptive Cruise Control –
Troubleshooting.............................................302
Adaptive Cruise Control Indicators - Vehicles With: Adaptive Cruise Control
With Lane Centering.................................298
Adaptive Cruise Control Indicators - Vehicles With: Adaptive Cruise Control
With Stop and Go......................................299
Adaptive Cruise Control Indicators - Vehicles With: Intelligent Adaptive Cruise
Control.........................................................299
System Warnings................................................299
Adaptive Cruise Control Limitations - Vehicles With: Adaptive Cruise Control
With Lane Centering.................................293
Adaptive Cruise Control Limitations - Vehicles With: Adaptive Cruise Control
With Stop and Go......................................293
Sensor Limitations..............................................293
Adaptive Cruise Control Precautions - Vehicles With: Adaptive Cruise Control
With Lane Centering..................................291
Adaptive Cruise Control Precautions - Vehicles With: Adaptive Cruise Control
With Stop and Go......................................292
Hilly Condition Usage.......................................293
When Following a Vehicle...............................292 Adaptive Cruise Control –
Troubleshooting.........................................
302
Adaptive Cruise Control – Information
Messages .........................................................302
Adaptive Headlamps
.....................................112
About Adaptive Headlamps..............................112
Camera Detects Lane Markings.......................113
Camera Detects Traffic Signs............................114
Steering Around a Curve....................................
113
Switching Adaptive Headlamps On or Off........................................................................\
114
Adjusting the Headlamps
..........................399
Vertical Aim Adjustment...................................399
Adjusting the Set Speed Tolerance..........301
Adjusting the Steering Wheel - Vehicles With: Manual Adjustable Steering
Column..........................................................100
Adjusting the Steering Wheel - Vehicles With: Power Adjustable Steering
Column..........................................................100
End of Travel Position.........................................101
Memory Feature...................................................101
AFS See: Adaptive Headlamps.................................112
Airbag Disposal...............................................62
Air Conditioning See: Climate Control..........................................168
647
Aviator (CTV) Canada/United States of America, enUSA, Edition date: 202007, Second-Printing Index

Switching the Climate Controlled Seats On
and Off...............................................................519
Switching the Climate Control On and Off.......................................................................519
Switching the Heated Exterior Mirrors On and Off......................................................................520
Switching the Heated Rear Window On and Off......................................................................520
Switching the Heated Seats On and Off......................................................................520
Switching the Heated Steering Wheel On and Off......................................................................520
Switching the Heated Windshield On and Off......................................................................520
Switching the Rear Climate Controlled Seats On and Off........................................................521
Switching the Rear Heated Seats On and Off.......................................................................521
Switching the Rear Ventilated Seats On and Off.......................................................................521
Switching the Ventilated Seats On and Off.......................................................................521
Climate Control..............................................168
Cold Weather Precautions.........................348
Collision, Damage or Fire Event...............355 Guidance for Ford Motor Company Electric
and Hybrid-Electric Vehicles Equipped With
High Voltage Batteries.................................355 Connected Vehicle Data................................19
Connecting the Vehicle to a Mobile Network........................................................475
Enabling the Modem Using The Lincoln Way....................................................................475
Enabling the Modem Using the Touchscreen....................................................475
What Is the Modem............................................475
Coolant Check See: Engine Coolant Check............................390
Crash Sensors and Airbag Indicator...........61
Creating a MyKey............................................77 Programming and Changing Configurable
Settings...............................................................78
Creating a Vehicle Wi-Fi Hotspot.............479 Connecting a Device to the Wi-Fi
Hotspot.............................................................479
Finding the Wi-Fi Hotspot Name and Password..........................................................479
Cross Traffic Alert
..........................................316
Cross Traffic Alert Behavior When Trailer is
Attached............................................................319
Cross Traffic Alert Indicator.............................320
Cross Traffic Alert Information Messages .........................................................320
Cross Traffic Alert System Limitations...........319
Cross Traffic Alert System Sensors................319
Switching the System On and Off...................319 Using Cross Traffic Alert....................................316
Cruise Control...............................................289
Cruise Control Indicators...........................290
Cruise Control - Vehicles With: Adaptive Cruise Control With Lane
Centering......................................................102
Cruise Control - Vehicles With: Cruise Control...........................................................103
Customer Assistance..................................359
Customer Information.................................576 Radio Frequency Certification Labels...........576
D
Data Privacy......................................................16 Services That Third Parties Provide..................17
Services That We Provide...................................
16
Daytime Running Lamps - Vehicles With: Configurable Daytime Running
Lamps..............................................................111
Daytime Running Lamps - Vehicles With: Daytime Running Lamps (DRL).................111
Declaration of Conformity..........................644
Declaration of Conformity - Vehicles With: SYNC 3
.........................................................645
Radio Frequency Statement............................645
651
Aviator (CTV) Canada/United States of America, enUSA, Edition date: 202007, Second-Printing Index

One-Touch Down.................................................119
One-Touch Up.......................................................119
Window Lock........................................................120
Pre-Collision Assist......................................323
Adjusting the Pre-Collision Assist
Settings............................................................326
Blocked Sensors................................................326
Distance Indication and Alert..........................
325
Evasive Steering Assist.....................................326
Using the Pre-Collision Assist System..........324
Programming Your Phone
.............................72
Resetting Phone as a Key...................................72
Protecting the Environment..........................21
Puncture See: Changing a Road Wheel.........................434
R
Radio Frequency Certification Labels...........................................................576
Blind Spot Information System Sensors.......576
Body Control Module.........................................581
Cruise Control Module......................................
584
Garage Door Opener........................................588
Keys and Remote Controls..............................588
Radio Transceiver Module...............................
592
Remote Function Actuator................................581
SYNC.....................................................................596 Telematics Control Unit.....................................601
Tire Pressure Monitoring System
Sensors.............................................................601
Wireless Accessory Charging Module.........608
Rear Occupant Alert System Audible Warnings.......................................................196
Rear Occupant Alert System Indicators......................................................196
Rear Occupant Alert System Limitations....................................................195
Rear Occupant Alert System Precautions..................................................195
Rear Occupant Alert System
......................195
Rear Parking Aid...........................................272 Object Distance Indicator.................................274
Rear Passenger Climate Controls.............172 Directing Air to the Overhead and Rear
Footwell Air Vents...........................................173
Rear Climate Control Lock Message..............
173
Rear Passenger Climate Control Screen.......172
Selecting a Row...................................................173
Setting the Rear Blower Motor Speed...........173
Setting the Rear Temperature..........................173
Switching Rear Auto Mode On and Off.........173
Switching the Rear Climate Control On and Off........................................................................\
173 Rear Seats.......................................................189
Adjusting the Second Row Outermost Seats
Backrest............................................................189
Adjusting the Second Row Seats for Easy Entry...................................................................190
Adjusting the Third Row Power Seats...........192
Folding the Second Row Outermost Seats Flat......................................................................190
Rear Under Floor Storage..........................332 Cargo Management System............................
332
Rear View Camera.......................................283 Camera Guidelines............................................284
Manual Zoom......................................................285
Object Distance Indicator................................285
Rear Camera Delay............................................286
Rear Camera On Demand...............................285
Using the Rear View Camera System...........283
Rear View Camera See: Rear View Camera....................................283
Rear Window Wiper and Washers............107 Rear Window Washer.........................................108
Rear Window Wiper............................................107
Rear Wiper Blades See: Changing the Rear Wiper Blades.........403
Recommended Towing Weights
................341
Reduced Engine Performance..................347
Refreshing the Interior Air
...........................176
Automatically Refreshing the Interior Air......176
658
Aviator (CTV) Canada/United States of America, enUSA, Edition date: 202007, Second-Printing Index
