engine coolant LINCOLN AVIATOR 2023 Owner's Manual

Materials
Specification Name
WSS-M97B57-A2 Motorcraft® Yellow Prediluted Antifreeze/Coolant(U.S.)
Motorcraft® Yellow Prediluted Antifreeze/Coolant / Antigel/liquide de refroidissement
prédilué jaune Motorcraft®(Canada)
VC-13DL-G(U.S.)
CVC-13DL-G(Canada)
Engine Oil
E142732
An oil that displays this symbol conforms to
current engine, emission system and fuel
economy performance standards of ILSAC.
We recommend Motorcraft® motor oil for
your vehicle. If Motorcraft® oil is not available,
use motor oils of the recommended viscosity
grade that display the API Certification Mark
for gasoline engines.
Do not use supplemental engine oil additives
because they are unnecessary and could
lead to engine damage that your vehicle
warranty does not cover.
480
Capacities and Specifications

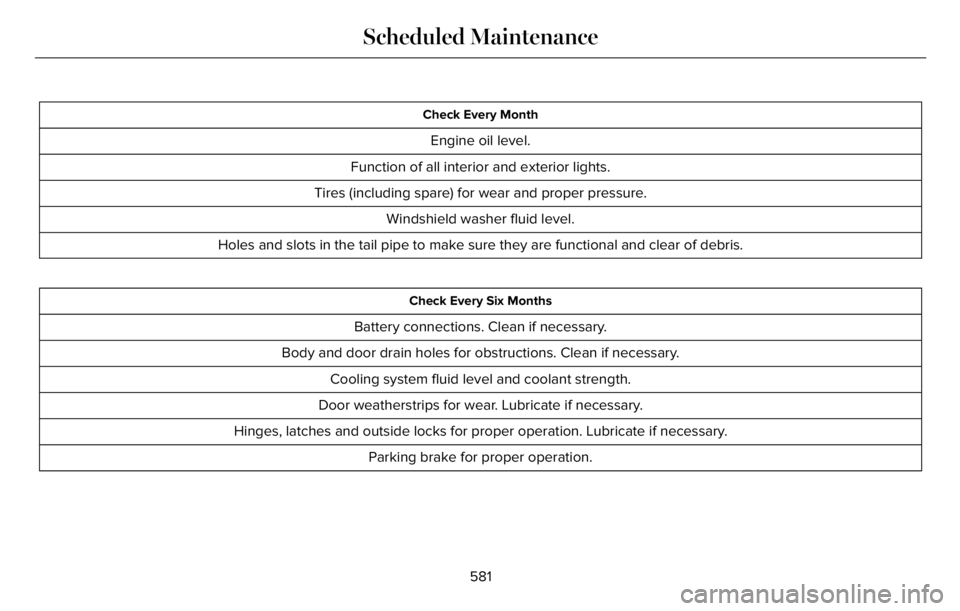

Check Every Month
Engine oil level.
Function of all interior and exterior lights.
Tires (including spare) for wear and proper pressure.
Windshield washer fluid level.
Holes and slots in the tail pipe to make sure they are functional and clear of debris.
Check Every Six Months
Battery connections. Clean if necessary.
Body and door drain holes for obstructions. Clean if necessary.
Cooling system fluid level and coolant strength.
Door weatherstrips for wear. Lubricate if necessary.
Hinges, latches and outside locks for proper operation. Lubricate if necessary.
Parking brake for proper operation.
581
Scheduled Maintenance

Multi-Point Inspection
Steering and linkage Exterior lamps operation
Tires (including spare) for wear and proper pressure
2Fluid levels1; fill if necessary
Windshield for cracks, chips or pits For oil and fluid leaks
Washer spray and wiper operation Half-shaft dust boots
1 Brake, coolant recovery reservoir, automatic transmission and window washer2If your vehicle is equipped with a temporary mobility kit, check the tire sealant expiration Use By date on the canister. Replace as needed.
Be sure to ask your dealership service
advisor or technician about the multi-point
vehicle inspection. It is a comprehensive way
to perform a thorough inspection of your
vehicle. Your checklist gives you immediate
feedback on the overall condition of your
vehicle.
NORMAL SCHEDULED
MAINTENANCE
Intelligent Oil-Life Monitor™
Your vehicle has an Intelligent Oil-Life
Monitor that determines when you should
change the engine oil based on how you use
your vehicle. By using several important
factors in its calculations, the monitor helps
reduce the cost of owning your vehicle and
reduces environmental waste at the same
time.This means you do not have to remember to
change the oil on a mileage-based schedule.
Your vehicle lets you know when an oil
change is due by displaying a message in
the information display.
The following table provides examples of
vehicle use and its impact on oil change
intervals. It is a guideline only. Actual oil
change intervals depend on several factors
and generally decrease with severity of use.
583
Scheduled Maintenance

Brake Fluid Maintenance1
Change the brake fluid.2Every Three Years
1 Perform this maintenance item every three years. Do not exceed the designated time for the interval.2 Brake fluid servicing requires special equipment available at your authorized dealer.
Other Maintenance Items1
Replace the cabin air filter. Every 20,000 mi
(32,000 km)
Replace the engine air filter. Every 30,000 mi
(48,000 km)
Change the engine coolant and motor electronics coolant.
2At 200,000 mi
(322,000 km)
Replace the spark plugs. Every 100,000 mi
(160,000 km)
Inspect the accessory drive belt or belts.
3Every 100,000 mi
(160,000 km)
586
Scheduled Maintenance

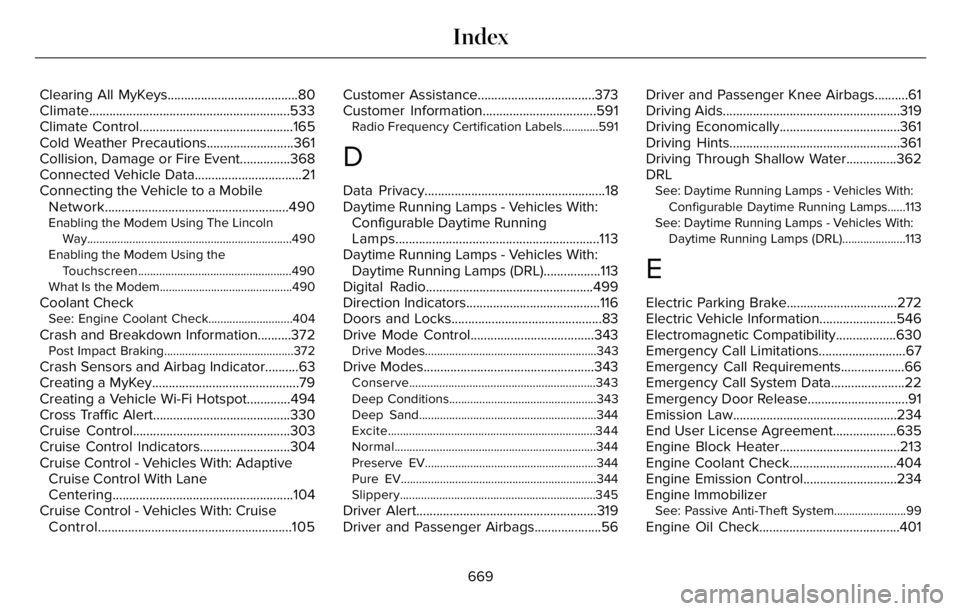

Clearing All MyKeys.......................................80
Climate............................................................533
Climate Control..............................................165
Cold Weather Precautions..........................361
Collision, Damage or Fire Event...............368
Connected Vehicle Data................................21
Connecting the Vehicle to a Mobile
Network.......................................................490
Enabling the Modem Using The Lincoln
Way....................................................................490
Enabling the Modem Using the
Touchscreen...................................................490
What Is the Modem............................................490
Coolant CheckSee: Engine Coolant Check............................404
Crash and Breakdown Information..........372Post Impact Braking...........................................372
Crash Sensors and Airbag Indicator..........63
Creating a MyKey............................................79
Creating a Vehicle Wi-Fi Hotspot.............494
Cross Traffic Alert.........................................330
Cruise Control...............................................303
Cruise Control Indicators...........................304
Cruise Control - Vehicles With: Adaptive
Cruise Control With Lane
Centering......................................................104
Cruise Control - Vehicles With: Cruise
Control..........................................................105Customer Assistance...................................373
Customer Information..................................591
Radio Frequency Certification Labels............591
D
Data Privacy......................................................18
Daytime Running Lamps - Vehicles With:
Configurable Daytime Running
Lamps.............................................................113
Daytime Running Lamps - Vehicles With:
Daytime Running Lamps (DRL).................113
Digital Radio..................................................499
Direction Indicators........................................116
Doors and Locks.............................................83
Drive Mode Control.....................................343
Drive Modes.........................................................343
Drive Modes...................................................343Conserve..............................................................343
Deep Conditions.................................................343
Deep Sand...........................................................344
Excite.....................................................................344
Normal...................................................................344
Preserve EV.........................................................344
Pure EV.................................................................344
Slippery.................................................................345
Driver Alert......................................................319
Driver and Passenger Airbags....................56Driver and Passenger Knee Airbags..........61
Driving Aids.....................................................319
Driving Economically....................................361
Driving Hints...................................................361
Driving Through Shallow Water...............362
DRL
See: Daytime Running Lamps - Vehicles With:
Configurable Daytime Running Lamps......113
See: Daytime Running Lamps - Vehicles With:
Daytime Running Lamps (DRL).....................113
E
Electric Parking Brake.................................272
Electric Vehicle Information.......................546
Electromagnetic Compatibility..................630
Emergency Call Limitations..........................67
Emergency Call Requirements...................66
Emergency Call System Data......................22
Emergency Door Release..............................91
Emission Law.................................................234
End User License Agreement...................635
Engine Block Heater....................................213
Engine Coolant Check................................404
Engine Emission Control............................234
Engine Immobilizer
See: Passive Anti-Theft System........................99
Engine Oil Check..........................................401
669
Index
