Page 11 of 16

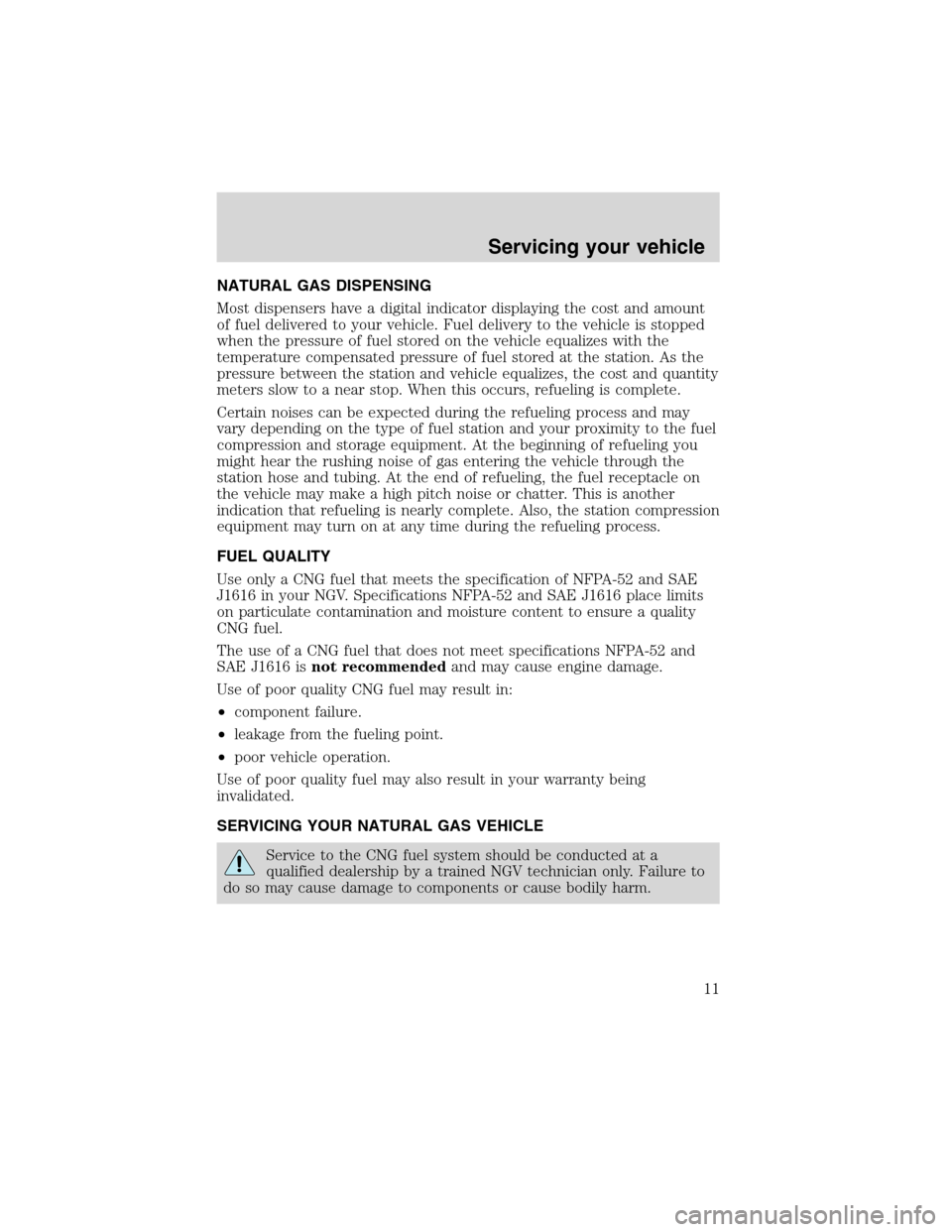

LINCOLN BLACKWOOD 2003  Natural Gas Supplement Manual NATURAL GAS DISPENSING
Most dispensers have a digital indicator displaying the cost and amount
of fuel delivered to your vehicle. Fuel delivery to the vehicle is stopped
when the pressure of fuel stor

Page 12 of 16

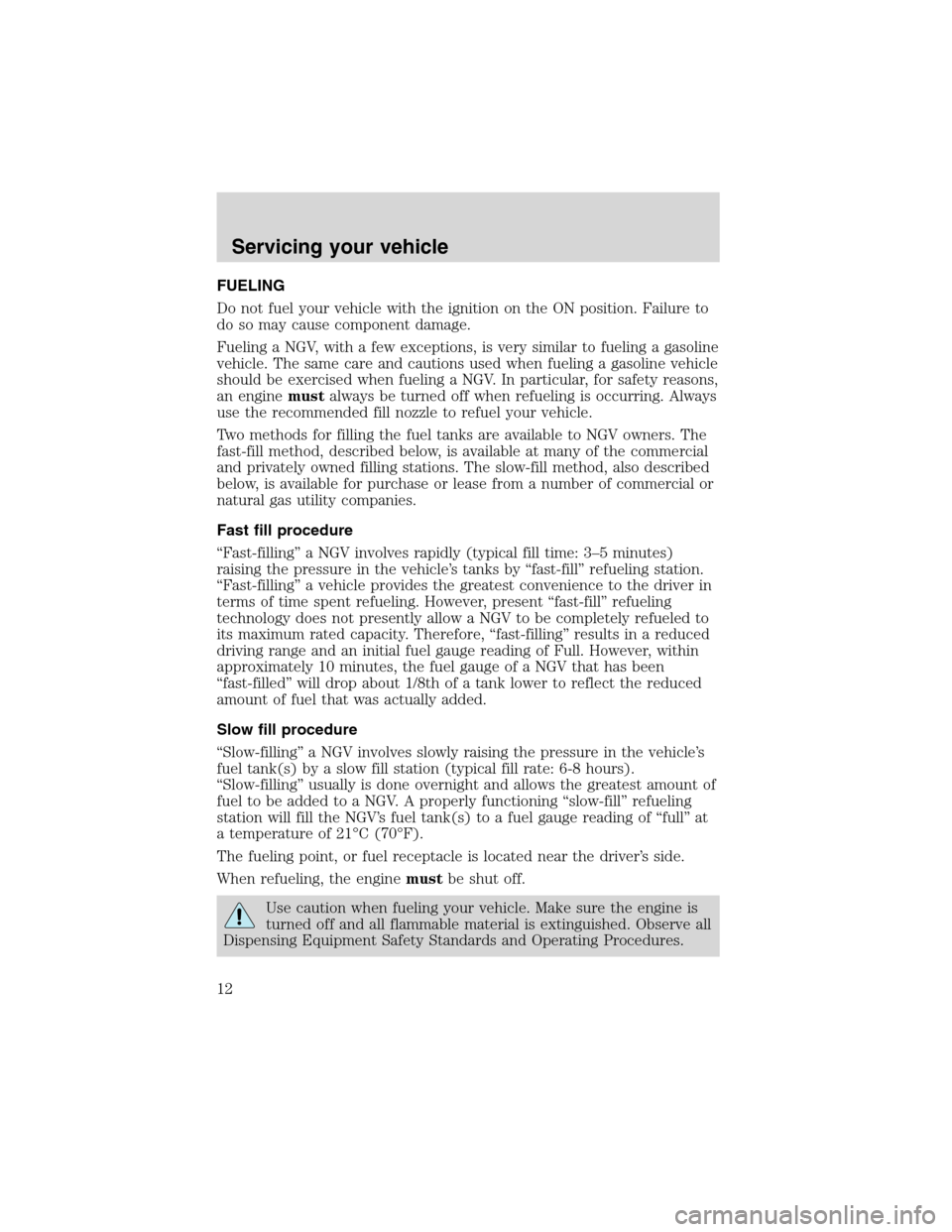

LINCOLN BLACKWOOD 2003  Natural Gas Supplement Manual FUELING
Do not fuel your vehicle with the ignition on the ON position. Failure to
do so may cause component damage.
Fueling a NGV, with a few exceptions, is very similar to fueling a gasoline
vehicle.

Page 13 of 16

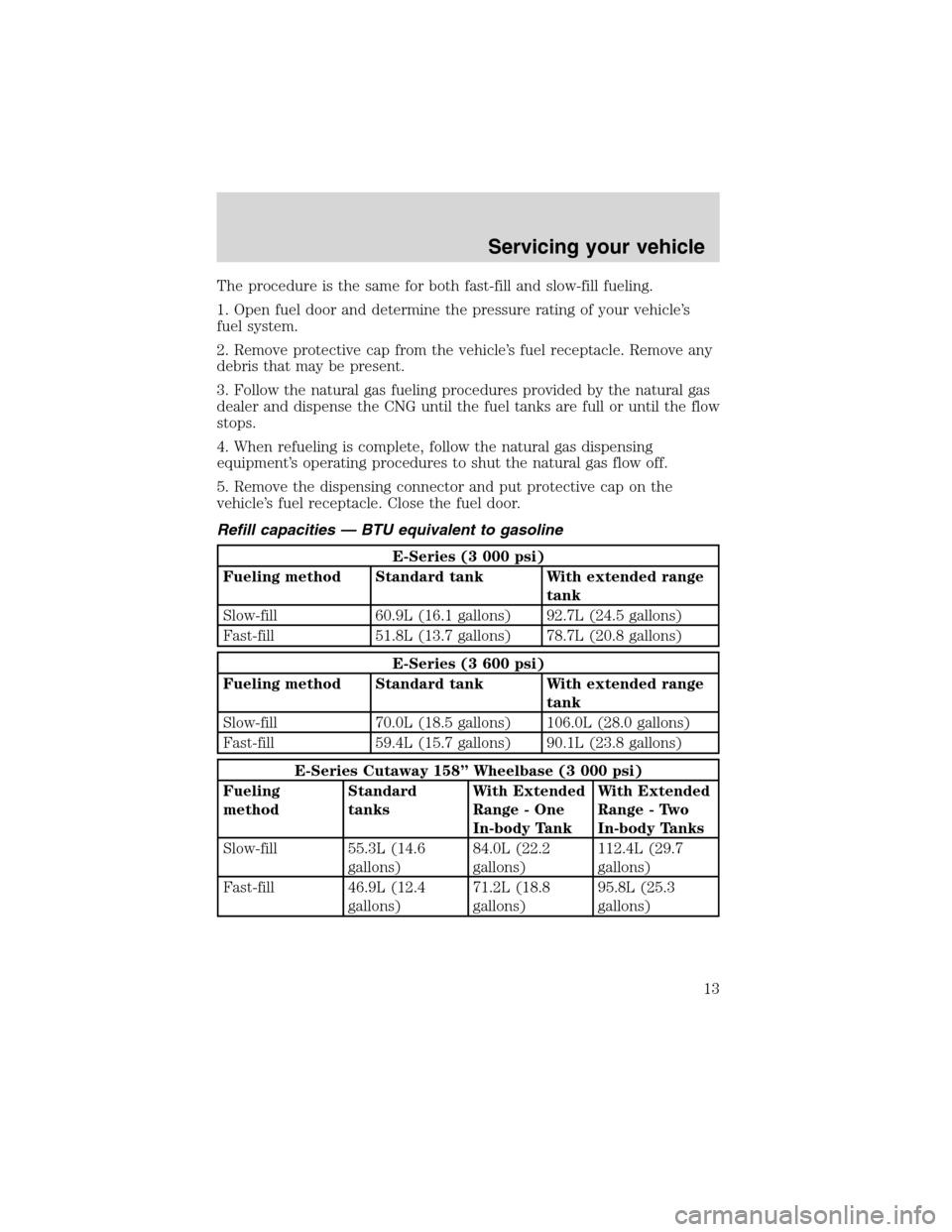

LINCOLN BLACKWOOD 2003  Natural Gas Supplement Manual The procedure is the same for both fast-fill and slow-fill fueling.
1. Open fuel door and determine the pressure rating of your vehicle’s
fuel system.
2. Remove protective cap from the vehicle’s f

Page 14 of 16

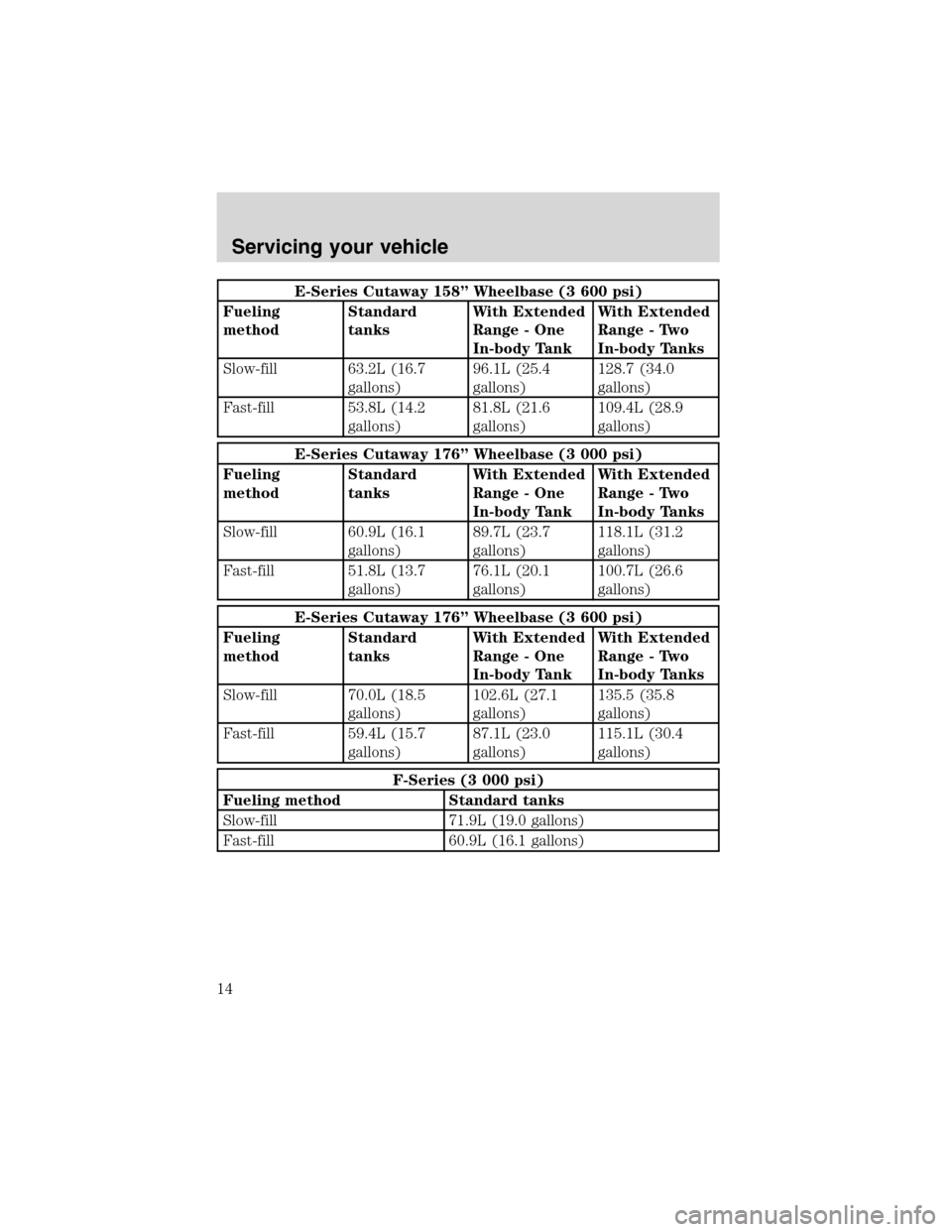

LINCOLN BLACKWOOD 2003  Natural Gas Supplement Manual E-Series Cutaway 158”Wheelbase (3 600 psi)
Fueling
methodStandard
tanksWith Extended
Range - One
In-body TankWith Extended
Range - Two
In-body Tanks
Slow-fill 63.2L (16.7
gallons)96.1L (25.4
gallons

Page 15 of 16

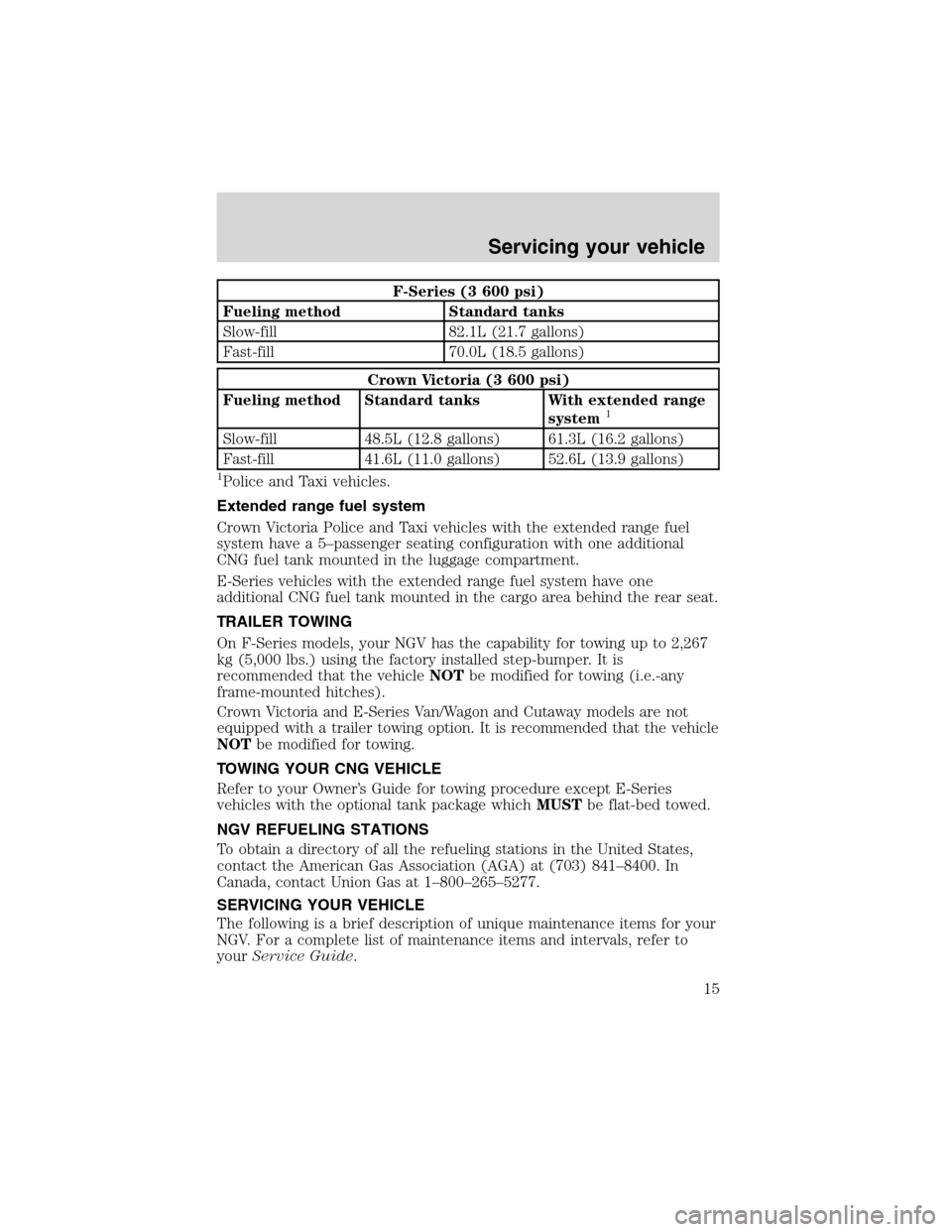

LINCOLN BLACKWOOD 2003  Natural Gas Supplement Manual F-Series (3 600 psi)
Fueling method Standard tanks
Slow-fill 82.1L (21.7 gallons)
Fast-fill 70.0L (18.5 gallons)
Crown Victoria (3 600 psi)
Fueling method Standard tanks With extended range
system
1
S

Page 16 of 16

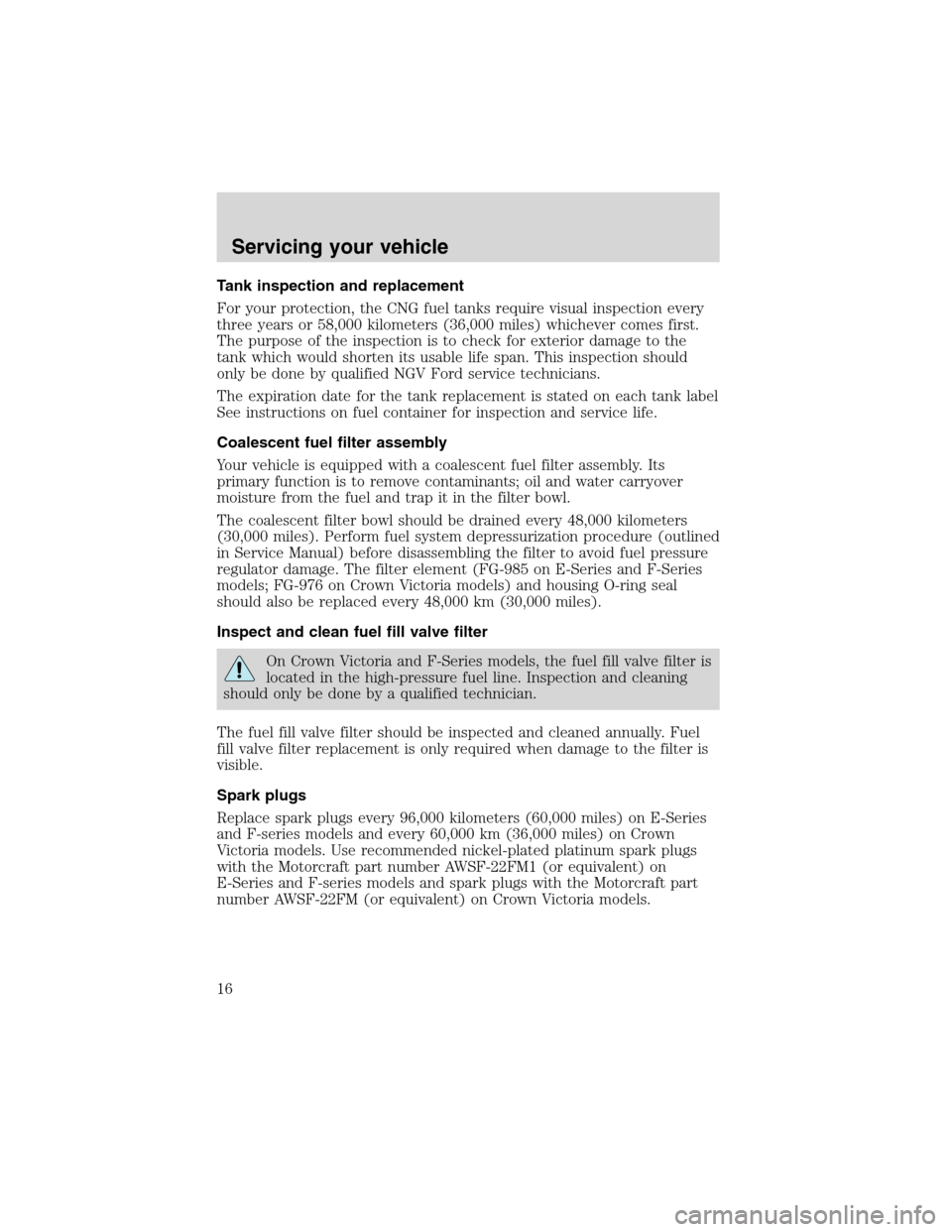

LINCOLN BLACKWOOD 2003  Natural Gas Supplement Manual Tank inspection and replacement
For your protection, the CNG fuel tanks require visual inspection every
three years or 58,000 kilometers (36,000 miles) whichever comes first.
The purpose of the inspec
