power steering fluid LINCOLN CONTINENTAL 1997 Owners Manual

237
Power Steering FluidCheck the level of the power steering fluid at least
twice a year (i.e., every Spring and Fall).Checking and Adding Power Steering
Fluid1. Start the engine and let it run until the power
steering fluid reaches normal operating
temperature. The power steering fluid will be at
the right temperature when the engine coolant
temperature gauge in the instrument cluster is
near the center of the NORMAL operating
temperature range.2. While the engine idles, turn the steering wheel
back and forth several times. Make sure that
the cap assembly is installed at this time.
3. Turn the engine off and check the level on the
power steering reservoir.

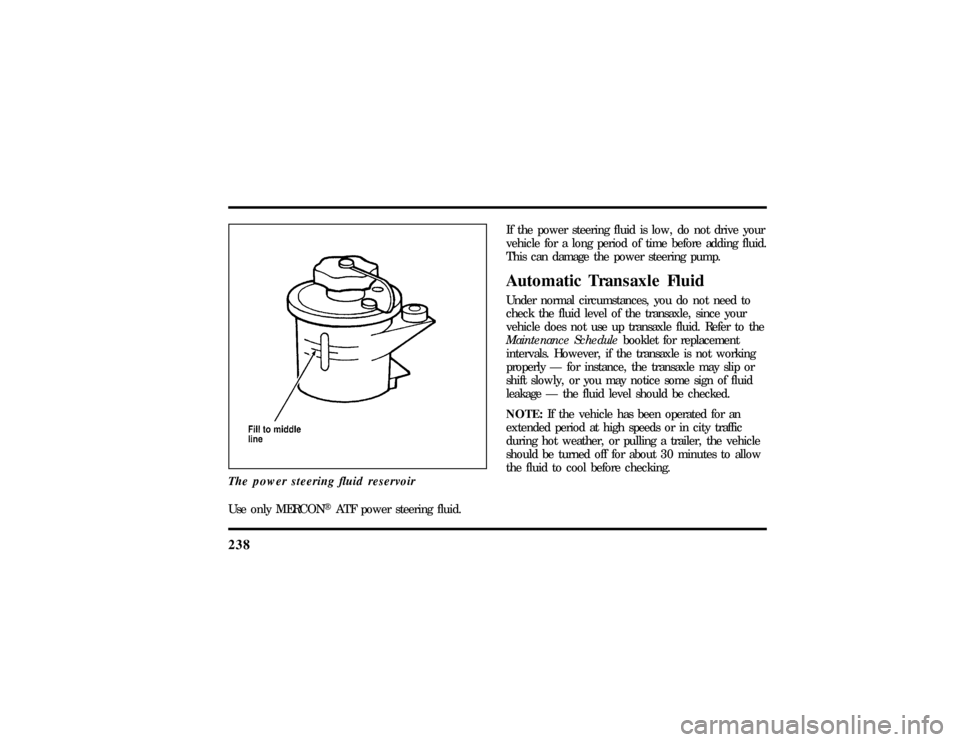

4. The fluid level is viewed through the sight
window on the power steering reservoir. If the
power steering fluid is below the middle line,
add fluid in small amounts, continuously
checking the level. Do not overfill.
File:11fnmcc.ex
Update:Fri Sep 6 08:51:16 1996

238The power steering fluid reservoirUse only MERCONHATF power steering fluid.If the power steering fluid is low, do not drive your
vehicle for a long period of time before adding fluid.
This can damage the power steering pump.
Automatic Transaxle FluidUnder normal circumstances, you do not need to
check the fluid level of the transaxle, since your
vehicle does not use up transaxle fluid. Refer to the
Maintenance Schedulebooklet for replacement
intervals. However, if the transaxle is not working
properly Ð for instance, the transaxle may slip or
shift slowly, or you may notice some sign of fluid
leakage Ð the fluid level should be checked.
NOTE:If the vehicle has been operated for an
extended period at high speeds or in city traffic
during hot weather, or pulling a trailer, the vehicle
should be turned off for about 30 minutes to allow
the fluid to cool before checking.
File:11fnmcc.ex
Update:Fri Sep 6 08:51:16 1996

310Clutch
fluid reservoir............ 229
specifications............ 273
Cold engine starting.......... 166
Combination lap and shoulder belts . 135, 137
Compact disc player (see Electronic sound
system)............... 35
Compact disc radio (see Electronic
sound system)............ 27
Console, description.......... 113
Controls, mirrors............ 92
Convenience kit in cargo area...... 206
Coolant (see Engine coolant)....... 231
checking and adding......... 231
preparing for storage......... 275
refill capacities............ 272
specifications............ 273
temperature gauge.......... 17
warnings.............. 231
Cooling fan.............. 221
Crankcase emission filter........ 271Customer Assistance Centre,
Ford of Canada............ 284
D
Daytime running light system...... 56
Defects, reporting............ 277
Dipstick................ 227
automatic transaxle fluid....238, 239
engine oil.............. 227
power steering fluid......... 237
Disabled vehicle (see Towing)...... 217
Dispute Settlement Board........ 280
Doors................. 103
lubricant specifications........ 273
Driving under special conditions
heavy load............. 183
towing a trailer........... 185
E
Electrical system, fuses......192, 203
Electronic sound system
antenna............... 31
tuning the radio........... 27
File:fnixc.ex
Update:Tue Sep 17 08:28:54 1996

317
On-board diagnostic (OBD II) system . . . 260
Overdrive............... 181
Overseas offices............ 286
P
Panic alarm feature, remote
entry system............. 124
Parking brake............. 172
operation.............. 172
warning light............ 10
Parts (see Motorcraft Parts)....... 271
PCV valve, specifications........ 271
Phone, cellular............. 113
Power features
antenna............... 31
mirrors............... 92
moon roof.............. 91
seats................ 132
windows.............. 105
Power steering
dipstick............... 237
driving with power steering...... 177fluid, checking and adding....... 237
fluid, refill capacity.......... 272
fluid, specifications.......... 273
Prop rod, hood............. 223
R
Radio (see Electronic sound systems) . . . 25
Rear axle
lubricant specification......... 273
refill capacity............ 272
Rearview mirror............ 92
Rear window, washer reservoir...... 230
Refill capacities for fluids........ 272
Regulations, National Highway Traffic Safety
Administration............ 277
Remote entry system
arming and disarming the
anti-theft system.......... 124
locking/unlocking doors........ 123
opening the trunk.......... 123
panic alarm............. 124
File:fnixc.ex
Update:Tue Sep 17 08:28:54 1996
