sensor LINCOLN CONTINENTAL 2017 Workshop Manual

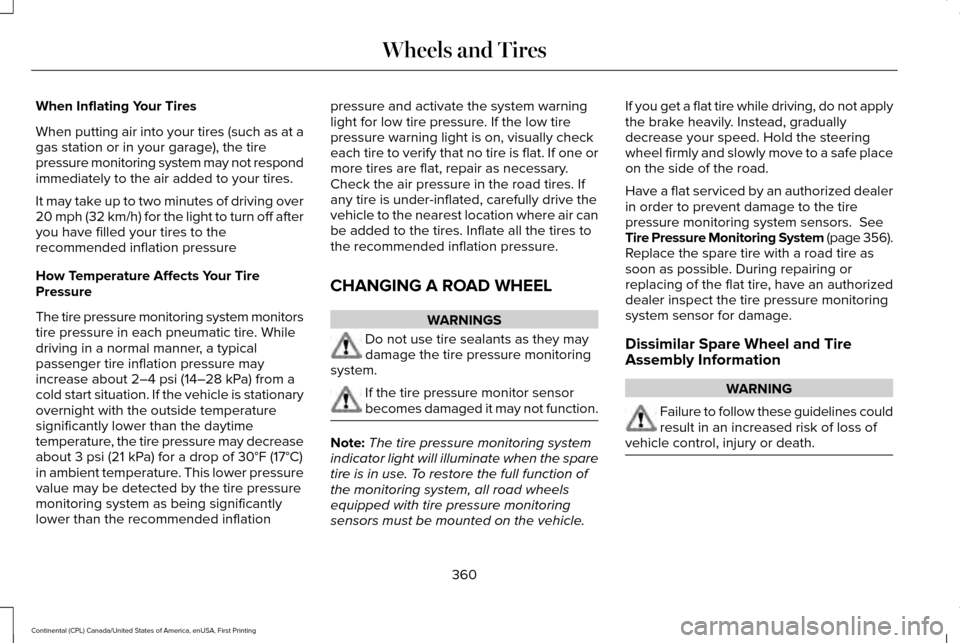

When Inflating Your Tires
When putting air into your tires (such as at a
gas station or in your garage), the tire
pressure monitoring system may not respond
immediately to the air added to your tires.
It may take up to two minutes of driving over
20 mph (32 km/h) for the light to turn off after
you have filled your tires to the
recommended inflation pressure
How Temperature Affects Your Tire
Pressure
The tire pressure monitoring system monitors
tire pressure in each pneumatic tire. While
driving in a normal manner, a typical
passenger tire inflation pressure may
increase about 2–4 psi (14–28 kPa) from a
cold start situation. If the vehicle is stationary
overnight with the outside temperature
significantly lower than the daytime
temperature, the tire pressure may decrease
about
3 psi (21 kPa) for a drop of 30°F (17°C)
in ambient temperature. This lower pressure
value may be detected by the tire pressure
monitoring system as being significantly
lower than the recommended inflation pressure and activate the system warning
light for low tire pressure. If the low tire
pressure warning light is on, visually check
each tire to verify that no tire is flat. If one or
more tires are flat, repair as necessary.
Check the air pressure in the road tires. If
any tire is under-inflated, carefully drive the
vehicle to the nearest location where air can
be added to the tires. Inflate all the tires to
the recommended inflation pressure.
CHANGING A ROAD WHEEL
WARNINGS
Do not use tire sealants as they may
damage the tire pressure monitoring
system. If the tire pressure monitor sensor
becomes damaged it may not function.
Note:
The tire pressure monitoring system
indicator light will illuminate when the spare
tire is in use. To restore the full function of
the monitoring system, all road wheels
equipped with tire pressure monitoring
sensors must be mounted on the vehicle. If you get a flat tire while driving, do not apply
the brake heavily. Instead, gradually
decrease your speed. Hold the steering
wheel firmly and slowly move to a safe place
on the side of the road.
Have a flat serviced by an authorized dealer
in order to prevent damage to the tire
pressure monitoring system sensors.
See
Tire Pressure Monitoring System (page 356).
Replace the spare tire with a road tire as
soon as possible. During repairing or
replacing of the flat tire, have an authorized
dealer inspect the tire pressure monitoring
system sensor for damage.
Dissimilar Spare Wheel and Tire
Assembly Information WARNING
Failure to follow these guidelines could
result in an increased risk of loss of
vehicle control, injury or death. 360
Continental (CPL) Canada/United States of America, enUSA, First Printing Wheels and Tires

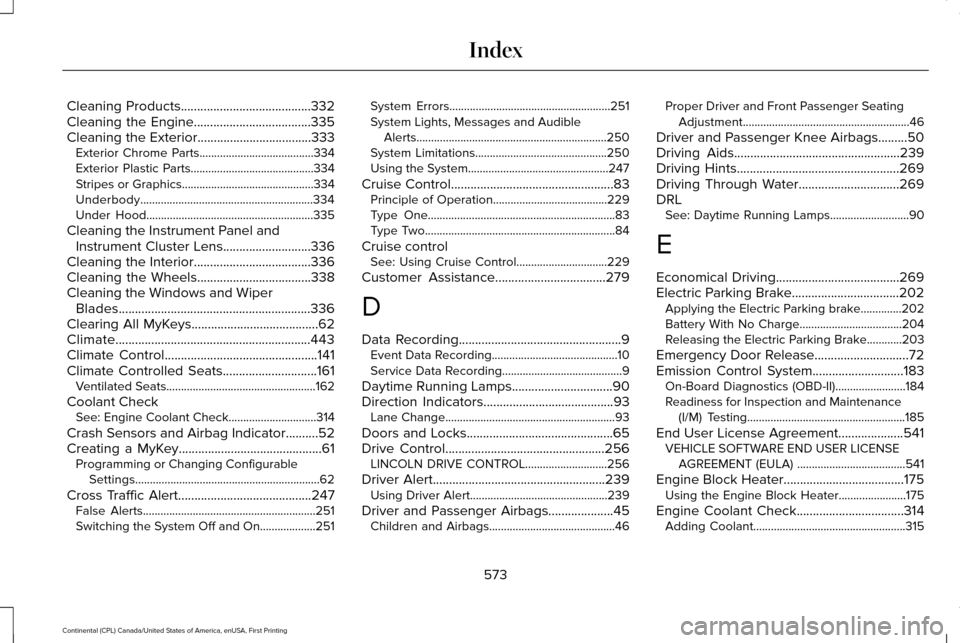

Cleaning Products........................................332
Cleaning the Engine....................................335
Cleaning the Exterior...................................333
Exterior Chrome Parts.......................................334
Exterior Plastic Parts..........................................334
Stripes or Graphics.............................................334
Underbody...........................................................334
Under Hood.........................................................335
Cleaning the Instrument Panel and Instrument Cluster Lens...........................336
Cleaning the Interior....................................336
Cleaning the Wheels...................................338
Cleaning the Windows and Wiper Blades...........................................................336
Clearing All MyKeys
.......................................62
Climate............................................................443
Climate Control
...............................................141
Climate Controlled Seats.............................161
Ventilated Seats...................................................162
Coolant Check See: Engine Coolant Check..............................314
Crash Sensors and Airbag Indicator
..........52
Creating a MyKey............................................61 Programming or Changing Configurable
Settings...............................................................62
Cross Traffic Alert
.........................................247
False Alerts...........................................................251
Switching the System Off and On...................251 System Errors.......................................................251
System Lights, Messages and Audible
Alerts.................................................................250
System Limitations.............................................250
Using the System................................................247
Cruise Control..................................................83 Principle of Operation.......................................229
Type One................................................................83
Type Two.................................................................84
Cruise control See: Using Cruise Control...............................
229
Customer Assistance..................................279
D
Data Recording
..................................................9
Event Data Recording...........................................10
Service Data Recording.........................................9
Daytime Running Lamps...............................90
Direction Indicators
........................................93
Lane Change..........................................................93
Doors and Locks.............................................65
Drive Control
.................................................256
LINCOLN DRIVE CONTROL............................256
Driver Alert.....................................................239 Using Driver Alert...............................................239
Driver and Passenger Airbags....................45 Children and Airbags...........................................46 Proper Driver and Front Passenger Seating
Adjustment.........................................................46
Driver and Passenger Knee Airbags.........50
Driving Aids
...................................................239
Driving Hints..................................................269
Driving Through Water...............................269
DRL See: Daytime Running Lamps...........................90
E
Economical Driving
......................................269
Electric Parking Brake.................................202 Applying the Electric Parking brake..............202
Battery With No Charge...................................204
Releasing the Electric Parking Brake............203
Emergency Door Release.............................72
Emission Control System
............................183
On-Board Diagnostics (OBD-II)........................184
Readiness for Inspection and Maintenance
(I/M) Testing......................................................185
End User License Agreement
....................541
VEHICLE SOFTWARE END USER LICENSE
AGREEMENT (EULA) .....................................541
Engine Block Heater
.....................................175
Using the Engine Block Heater.......................175
Engine Coolant Check.................................314 Adding Coolant....................................................315
573
Continental (CPL) Canada/United States of America, enUSA, First Printing Index

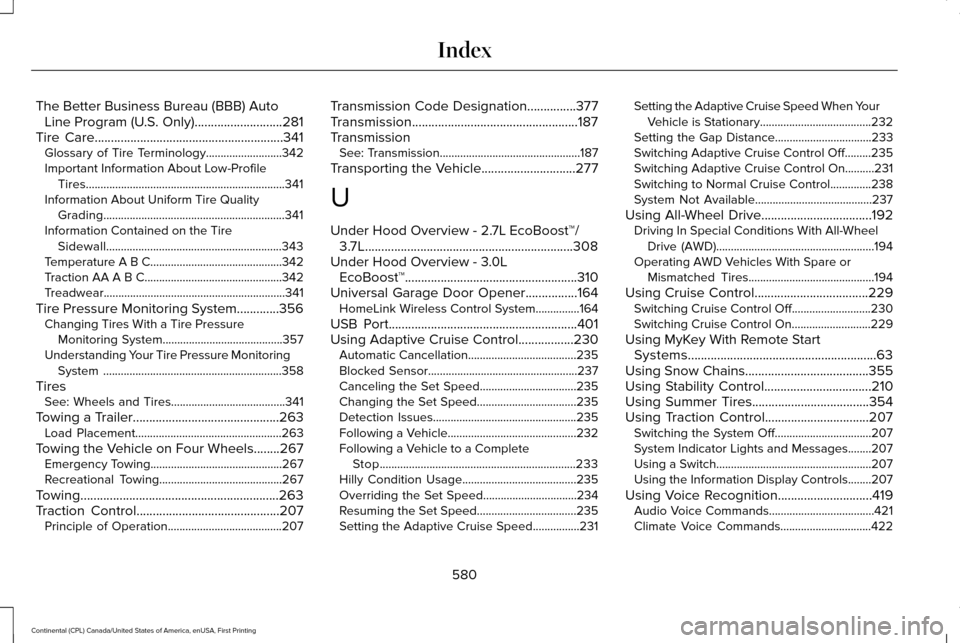

The Better Business Bureau (BBB) Auto
Line Program (U.S. Only)...........................281
Tire Care..........................................................341 Glossary of Tire Terminology..........................342
Important Information About Low-Profile
Tires....................................................................341
Information About Uniform Tire Quality Grading..............................................................341
Information Contained on the Tire Sidewall............................................................343
Temperature A B C.............................................342
Traction AA A B C...............................................342
Treadwear..............................................................341
Tire Pressure Monitoring System.............356 Changing Tires With a Tire Pressure
Monitoring System.........................................357
Understanding Your Tire Pressure Monitoring System .............................................................358
Tires See: Wheels and Tires.......................................341
Towing a Trailer.............................................263
Load Placement..................................................263
Towing the Vehicle on Four Wheels........267 Emergency Towing.............................................267
Recreational Towing..........................................267
Towing.............................................................263
Traction Control
............................................207
Principle of Operation.......................................207 Transmission Code Designation...............377
Transmission...................................................187
Transmission
See: Transmission................................................187
Transporting the Vehicle.............................277
U
Under Hood Overview - 2.7L EcoBoost™/ 3.7L
................................................................308
Under Hood Overview - 3.0L EcoBoost™.....................................................310
Universal Garage Door Opener
................164
HomeLink Wireless Control System...............164
USB Port
..........................................................401
Using Adaptive Cruise Control.................230
Automatic Cancellation.....................................235
Blocked Sensor...................................................237
Canceling the Set Speed.................................235
Changing the Set Speed..................................235
Detection Issues.................................................235
Following a Vehicle............................................232
Following a Vehicle to a Complete
Stop...................................................................233
Hilly Condition Usage.......................................235
Overriding the Set Speed................................234
Resuming the Set Speed..................................235
Setting the Adaptive Cruise Speed................231 Setting the Adaptive Cruise Speed When Your
Vehicle is Stationary......................................232
Setting the Gap Distance.................................
233
Switching Adaptive Cruise Control Off.........235
Switching Adaptive Cruise Control On..........231
Switching to Normal Cruise Control..............238
System Not Available........................................237
Using All-Wheel Drive
..................................192
Driving In Special Conditions With All-Wheel
Drive (AWD)......................................................194
Operating AWD Vehicles With Spare or Mismatched Tires...........................................194
Using Cruise Control...................................229 Switching Cruise Control Off...........................230
Switching Cruise Control On...........................229
Using MyKey With Remote Start Systems..........................................................63
Using Snow Chains......................................355
Using Stability Control
.................................210
Using Summer Tires....................................354
Using Traction Control................................207 Switching the System Off.................................207
System Indicator Lights and Messages........207
Using a Switch.....................................................207
Using the Information Display Controls........
207
Using Voice Recognition.............................419 Audio Voice Commands....................................421
Climate Voice Commands...............................
422
580
Continental (CPL) Canada/United States of America, enUSA, First Printing Index
